Transporto priemonė: 2035 LS/6X2/4; VIN numerio dalis: 647510

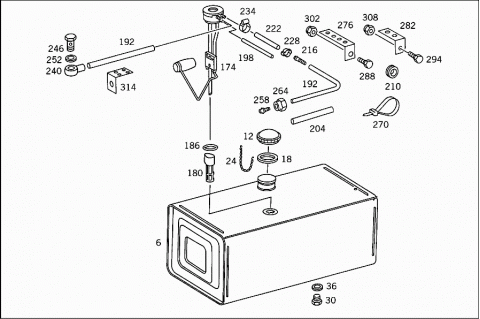

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3874701001 | FUEL TANK |
| 300 L | ||
| 006 | A 3914700101 | FUEL TANK |
| 300 L | ||
| 012 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 012 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 012 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 012 | A 0004700305 | FILLER CAP |
| 018 | A 3049970340 | SEAL RING |
| 024 | A 3034700031 | CHAIN |
| FILLER CAP TO FILLER NECK | ||
| 030 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 030 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 036 | N 007603014405 | SEAL RING |
| AT TANK | ||

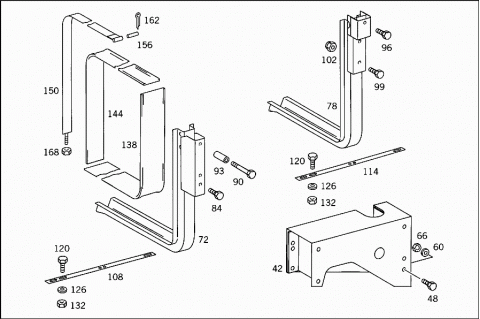

| 042 | A 3914700242 | SUPPORT |
| Repalced by: A 6574700442 | ||
| 042 | A 6574700442 | SUPPORT |
| Repalced by: A 6574700542 | ||
| 042 | A 6574700542 | SUPPORT |
| FUEL TANK | ||
| 048 | N 000961014054 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X45 | ||
| 048 | N 000961014028 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X40 | ||
| 060 | A 3609901840 | WASHER |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 060 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 060 | N 000125015019 | WASHER |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 066 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 066 | N 910113014001 | NUT |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 072 | A 3914700142 | SUPPORT |
| FRONT FUEL TANK | ||
| 078 | A 3914700342 | SUPPORT |
| REAR FUEL TANK | ||
| 078 | A 3634700342 | SUPPORT |
| FUEL TANK | ||
| 084 | N 000961014054 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X45 | ||
| 084 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 084 | N 308676014020 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X35 | ||
| 090 | N 000960014201 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M 14X95 | ||
| 093 | A 3874750053 | SPACER TUBE |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 096 | N 000960016260 | SCREW |
| Repalced by: N 308765016002 | ||
| 096 | N 308765016002 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| 099 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 099 | N 308676014020 | SCREW |
| SUPPORT TO SUPPORT | ||
| 102 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 102 | N 910113014001 | NUT |
| SUPPORT TO SUPPORT | ||
| 108 | A 3914750026 | REINFORCEMENT |
| FUEL TANK SUPPORT | ||
| 114 | A 3664750026 | REINFORCEMENT |
| FUEL TANK SUPPORT | ||
| 120 | N 000961012151 | SCREW |
| REINFORCEMENT TO SUPPORT | ||
| 126 | N 000125013008 | WASHER |
| 132 | N 910113012002 | NUT |
| REINFORCEMENT TO SUPPORT | ||
| 138 | A 3634750120 | PAD |
| BRAKE ANCHOR | ||
| 144 | A 3634750320 | PAD |
| STRAP | ||
| 150 | A 3464705340 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 150 | A 3914700040 | STRAP |
| Repalced by: A 3464705340 | ||
| 150 | A 3464705340 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 156 | N 001443016203 | PIN |
| STRAP TO SUPPORT | ||
| 162 | N 000094004051 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 168 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SENDER UNIT AND FUEL LINES | ||
| 174 | A 0055423917 | SENDER UNIT |
| Repalced by: A 0085428117 | ||
| 174 | A 0085428117 | SENDER UNIT |
| FUEL GAUGE | ||
| 174 | A 0055424017 | SENDER UNIT |
| Repalced by: A 0085428217 | ||
| 174 | A 0085428217 | SENDER UNIT |
| FUEL GAUGE | ||
| 180 | A 0004710235 | FUEL STRAINER |
| AT SENDER UNIT | ||
| 186 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 192 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 198 | A 0089979082 | HOSE |
| AERATION | ||
| 6X8 MM | ||
| 204 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| 210 | A 6209970181 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 42/36 MM | ||
| 210 | A 6454290081 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 216 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 216 | N 915062008000 | SLEEVE |
| FEED LINE AND RETURN LINE | ||
| 222 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 228 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 234 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 234 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 12-22X13 MM | ||
| 240 | N 915052008016 | BANJO UNION |
| FEED LINE TO FUEL PUMP | ||
| 246 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 246 | N 915036010108 | HOLLOW SCREW |
| FEED LINE TO FUEL PUMP | ||
| 252 | N 007603014405 | SEAL RING |
| FEED LINE TO FUEL PUMP | ||
| 258 | A 0019974972 | FITTING |
| RETURN LINE TO FILTER | ||
| 264 | N 915017010201 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 270 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 270 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 276 | A 3604292940 | BRACKET |
| LINE MOUNTING | ||
| 282 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 282 | A 6205240340 | BRACKET |
| LINE MOUNTING | ||
| 288 | N 000931010282 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 294 | N 000961012122 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 302 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 302 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 308 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 314 | A 3854760836 | BRACKET |
| LINE MOUNTING | ||
