Transporto priemonė: 2035 LS/6X2/4; VIN numerio dalis: 647510

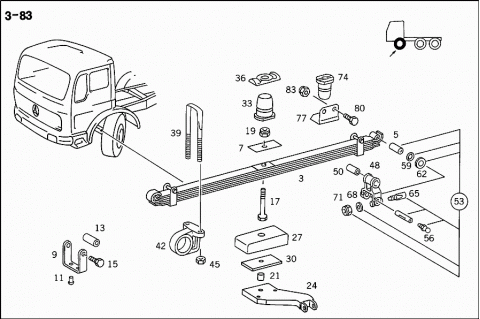

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SPRINGS FOR FRONT AXLE I | ||
| 003 | A 3913201002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 005 | A 3043210150 | BUSHING |
| SPRING EYE,FRONT AND REAR | ||
| 005 | A 6203210050 | BUSHING |
| SPRING EYE,FRONT AND REAR | ||
| 007 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 007 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 009 | A 6203240633 | SPRING CLAMP |
| FRONT SPRING | ||
| 009 | A 6203240533 | SPRING CLAMP |
| 011 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 013 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 015 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 017 | A 3913210071 | SCREW |
| (SPRING BOLT) | ||
| 017 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 019 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 019 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 021 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 024 | A 6223230040 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,LEFT BOTTOM | ||
| 024 | A 6223230140 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,RIGHT BOTTOM | ||
| 027 | A 6203310328 | SHIM |
| SHOCK ABSORBER BRACKET | ||
| 027 | A 6203310228 | SHIM |
| SHOCK ABSORBER BRACKET | ||
| 030 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 033 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 033 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 036 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 036 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 036 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 036 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 039 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| 039 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| 039 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 039 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 039 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 039 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 042 | A 6203230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 045 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 045 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 045 | N 308674020000 | NUT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 048 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 050 | A 3043210150 | BUSHING |
| 050 | A 6203210050 | BUSHING |
| 053 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING | ||
| 056 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 059 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 059 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 059 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 062 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 065 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 068 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 068 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 071 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 071 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 074 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 077 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 080 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 083 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 083 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||

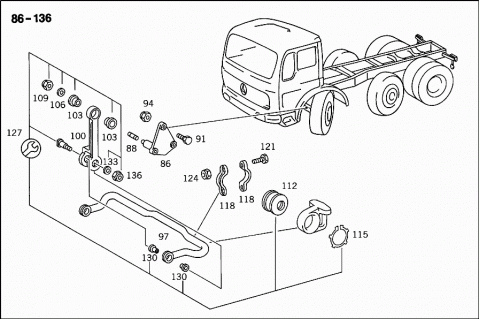

| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE I TORSION BAR | ||
| 086 | A 6223200178 | CONSOLE |
| Repalced by: A 6223230163 | ||
| 086 | A 6223230163 | BEARING BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 088 | N 000939014036 | STUD BOLT |
| 091 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 094 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 094 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 097 | A 6213230165 | TORSION BAR |
| FRONT AXLE I | ||
| 100 | A 6223230116 | LINK |
| FRONT AXLE I TORSION BAR | ||
| 103 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 106 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 109 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 109 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| N 000961014127 | SCREW | |
| LINK TO CONSOLE | ||
| 112 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 115 | N 000983085001 | LOCK RING |
| TORSION BAR TO CONSOLE | ||
| 118 | A 6213230540 | BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 121 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 121 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 124 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 127 | A 6213200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 130 | A 6203230350 | BUSHING |
| LINK TO TORSION BAR | ||
| 133 | A 6203230052 | SPACER WASHER |
| LINK TO TORSION BAR | ||
| 136 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 136 | N 910113014001 | NUT |
| LINK TO TORSION BAR | ||

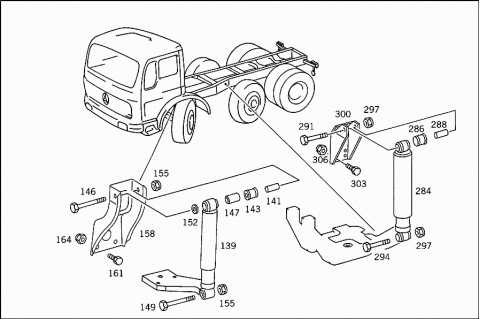

| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE I SHOCK ABSORBER | ||
| 139 | A 0043234800 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 139 | A 0033235700 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 139 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 139 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 139 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 141 | A 0003233150 | BUSHING |
| TO 003 323 57 00,004 323 48 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 46 00,006 323 08 00 | ||
| 141 | A 0003235250 | BUSHING |
| TO 004 323 01 00 | ||
| 143 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 57 00,004 323 48 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 46 00,006 323 08 00 | ||
| 143 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 143 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 01 00, | ||
| 146 | N 000960016275 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 146 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 147 | A 6208910053 | SPACER TUBE |
| Repalced by: A 6458910653 | ||
| 147 | A 6458910653 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 147 | A 6458910553 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 149 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BRACKET UNDER FRONT SPRING | ||
| 152 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 155 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 155 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 155 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET UNDER FRONT SPRING | ||
| 158 | A 6243230340 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,TOP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 52 | ||
| 161 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 161 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 164 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 164 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

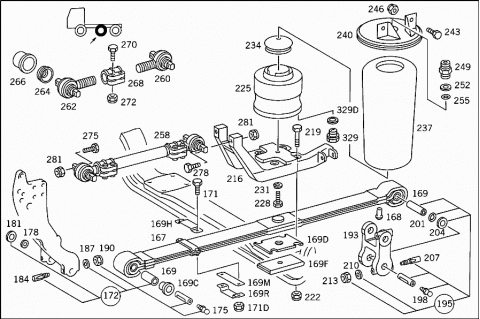

| FRONT AXLE II GUIDE SPRING | ||
| 167 | A 6223200102 | FRONT SPRING |
| Repalced by: A 6573200102 | ||
| 167 | A 6573200102 | FRONT SPRING |
| (GUIDE SPRING),2 LEAVES;FRONT AXLE II | ||
| 168 | N 910005016017 | RIVET |
| SPRING EYE,FRONT | ||
| 169 | A 3523250150 | BUSHING |
| 169 | A 3853250050 | BUSHING |
| 169C | A 6553250050 | BUSHING |
| SPLIT | ||
| 169D | A 3833220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 169F | A 6193220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 169H | A 6193210133 | SPRING CLAMP |
| UPPER PART | ||
| 169H | A 6193210233 | SPRING CLAMP |
| UPPER PART | ||
| 169M | A 3833212433 | SPRING CLAMP |
| CENTRAL PART | ||
| 169M | A 6193210333 | SPRING CLAMP |
| CENTRAL PART | ||
| 169R | A 3833212233 | SPRING CLAMP |
| LOWER PART | ||
| 169R | A 6193210433 | SPRING CLAMP |
| LOWER PART | ||
| 171 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 171 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 171 | A 0099900101 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 171 | N 000931010282 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 171D | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 171D | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 171D | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 171D | N 910113010000 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 172 | A 6223200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 175 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 178 | A 3523231076 | WASHER |
| SPRING SUSPENSION | ||
| 181 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 184 | A 3839900337 | BOLT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 187 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 187 | N 000125010532 | WASHER |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 190 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 190 | N 910113010000 | NUT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 193 | A 3913270040 | BRACKET |
| FRONT AXLE II GUIDE SPRING | ||
| 195 | A 6223200165 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 198 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 201 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 201 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 204 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 207 | A 3529900337 | BOLT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 210 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 210 | N 000125010532 | WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 213 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 213 | N 910113010000 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 216 | A 6223270041 | SUPPORT |
| AIR SPRING BELLOWS,THRUST ARM,FRONT AXLE II SHOCK ABSORBER,LEFT | ||
| 216 | A 6223270141 | SUPPORT |
| AIR SPRING BELLOWS,THRUST ARM,FRONT AXLE II SHOCK ABSORBER,RIGHT | ||
| 219 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 219 | N 000960020084 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M 20X125 | ||
| 219 | N 000960020143 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M 20X100 | ||
| 222 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 222 | N 913004020003 | NUT |
| SUPPORT TO FRONT AXLE II | ||
| 225 | A 6223200018 | PISTON |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 225 | A 6233200218 | PISTON |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 228 | N 000961016065 | SCREW |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 231 | N 912004016101 | LOCK WASHER |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 234 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 237 | A 3833270001 | AIR SPRING BELLOWS |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 237 | A 6213280001 | AIR SPRING BELLOWS |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 237 | A 3633280201 | AIR SPRING BELLOWS |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 240 | A 3913200035 | PLATE |
| Repalced by: A 3913200135 | ||
| 240 | A 3913200135 | PLATE |
| AIR SPRING BELLOWS,TOP | ||
| 243 | N 000961012106 | SCREW |
| PLATE TO FRAME | ||
| 246 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 246 | N 910113012003 | NUT |
| PLATE TO FRAME | ||
| 249 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 252 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 255 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 258 | A 3833300311 | THRUST ARM |
| Repalced by: A 6543300011 | ||
| 258 | A 6543300011 | THRUST ARM |
| Repalced by: A 6543300111 | ||
| 258 | A 6543300111 | THRUST ARM |
| FRONT AXLE II | ||
| 260 | A 0003330027 | JOINT |
| Repalced by: A 0003301811 | ||
| 260 | A 0003301811 | THRUST ARM |
| L.H. THREAD | ||
| 262 | A 0003330127 | JOINT |
| Repalced by: A 0003301911 | ||
| 262 | A 0003301911 | THRUST ARM |
| R.H. THREAD | ||
| 264 | A 0003381897 | BOOT |
| OUTSIDE | ||
| 266 | A 0003330254 | RETAINING RING |
| BOOT | ||
| 268 | A 0003380317 | CLAMPING PIECE |
| SCREWED PART OF JOINT | ||
| 270 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 270 | N 000960012353 | SCREW |
| CLAMPING PIECE | ||
| 272 | N 910113012002 | NUT |
| CLAMPING PIECE | ||
| 275 | N 000960014143 | SCREW |
| THRUST ARM TO FRONT SPRING FRONT BRACKET | ||
| 278 | N 308676014002 | SCREW |
| THRUST ARM TO BEARING BRACKET ON AXLE | ||
| 281 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 281 | N 910113014000 | NUT |
| THRUST ARM TO FRONT SPRING FRONT BRACKET | ||
| 281 | N 910113014000 | NUT |
| THRUST ARM TO BEARING BRACKET ON AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE II SHOCK ABSORBER | ||
| 284 | A 0033262500 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 284 | A 0033264800 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 286 | A 0003232885 | RUBBER MOUNTING |
| TO 003 326 25 00 | ||
| 286 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 286 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 48 00 | ||
| 288 | A 0003233150 | BUSHING |
| TO 003 326 25 00 | ||
| 288 | A 0003234550 | BUSHING |
| TO 003 326 48 00 | ||
| 291 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 294 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO SUPPORT,BOTTOM | ||
| 297 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 297 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 297 | N 910113016002 | NUT |
| SHOCK ABSORBER TO SUPPORT,BOTTOM | ||
| 300 | A 3873200243 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 303 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 303 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| 306 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

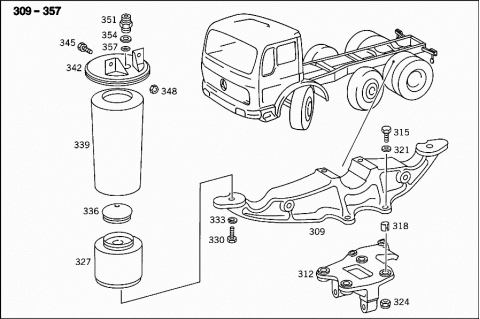

| REAR AXLE PNEUMATIC SUSPENSION | ||
| 309 | A 6203280141 | SUPPORT |
| Repalced by: A 6203280041 | ||
| 309 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280541 | ||
| 309 | A 6553280541 | SUPPORT |
| Repalced by: A 6553280341 | ||
| 309 | A 6553280341 | SUPPORT |
| Repalced by: A 6553281041 | ||
| 309 | A 6553281041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 309 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280641 | ||
| 309 | A 6553280641 | SUPPORT |
| Repalced by: A 6553280441 | ||
| 309 | A 6553280441 | SUPPORT |
| Repalced by: A 6553281141 | ||
| 309 | A 6553281141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 312 | A 3933251140 | BRACKET |
| TORSION BAR,LEFT | ||
| 312 | A 3933251240 | BRACKET |
| TORSION BAR,RIGHT | ||
| 315 | N 000960024058 | SCREW |
| SUPPORT AND BRACKET TO REAR AXLE | ||
| 318 | N 007346030004 | CLAMPING SLEEVE |
| SUPPORT AND BRACKET TO REAR AXLE | ||
| 321 | A 6203250070 | SPHERICAL WASHER |
| SUPPORT AND BRACKET TO REAR AXLE | ||
| 324 | N 913004024004 | NUT |
| SUPPORT AND BRACKET TO REAR AXLE | ||
| 327 | A 3933200918 | PISTON |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 329 | A 0004290456 | SCREW PLUG |
| 329D | N 007603012405 | SEAL RING |
| 330 | N 000961016113 | SCREW |
| PISTON TO REAR AXLE AIR-SPRING-BELLOWS SUPPORT | ||
| 330 | N 000961016081 | SCREW |
| PISTON TO REAR AXLE AIR-SPRING-BELLOWS SUPPORT | ||
| 333 | N 912004016101 | LOCK WASHER |
| PISTON TO REAR AXLE AIR-SPRING-BELLOWS SUPPORT | ||
| 336 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 339 | A 3833270001 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 339 | A 6213280001 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 342 | A 3873200635 | PLATE |
| REAR AXLE,FRONT | ||
| 342 | A 3873200535 | PLATE |
| REAR AXLE,REAR | ||
| 345 | N 000960018133 | SCREW |
| FRONT PLATE TO SIDE MEMBER | ||
| 345 | N 000961012106 | SCREW |
| REAR PLATE TO SIDE MEMBER | ||
| 348 | N 913004018004 | NUT |
| FRONT PLATE TO SIDE MEMBER | ||
| 348 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 348 | N 910113012003 | NUT |
| REAR PLATE TO SIDE MEMBER | ||
| 351 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 354 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 357 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

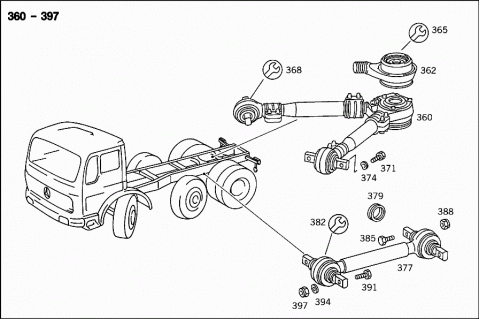

| WISHBONE CONTROL ARM | ||
| 360 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 360 | A 6553500305 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 360 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 360 | A 6583500005 | CONTROL ARM |
| REAR AXLE,TOP | ||
| 362 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05;EHRENREICH | ||
| 362 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 362 | A 0003500813 | JOINT |
| (CENTRAL JOINT) | ||
| TO 658 350 00 05;EHRENREICH | ||
| 365 | A 0005860135 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 365 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 365 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 365 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 368 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 368 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 368 | A 0003500505 | REPAIR KIT |
| Repalced by: A 0003500305 | ||
| 368 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 368 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 371 | N 000961020016 | SCREW |
| Repalced by: N 308676020021 | ||
| 371 | N 308676020021 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 374 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 374 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO SUPPORT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| THRUST ARM | ||
| 377 | A 6203500106 | CONTROL ARM |
| Repalced by: A 6553500306 | ||
| 377 | A 6553500306 | CONTROL ARM |
| REAR AXLE,BOTTOM | ||
| 379 | A 0003381797 | BOOT |
| 382 | A 0003500505 | CONTROL ARM |
| Repalced by: A 0003500305 | ||
| 382 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 382 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| 385 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 385 | N 000960020078 | SCREW |
| LINK TO AXLE | ||
| 385 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 385 | N 308765020012 | SCREW |
| LINK TO AXLE | ||
| A 6529900040 | WASHER | |
| LINK TO AXLE | ||
| 388 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 388 | N 913004020003 | NUT |
| LINK TO AXLE | ||
| 391 | N 000960020130 | SCREW |
| LINK TO CENTRAL BEARING | ||
| 394 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 394 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 394 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 394 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 394 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 397 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 397 | N 913004020003 | NUT |
| LINK TO CENTRAL BEARING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

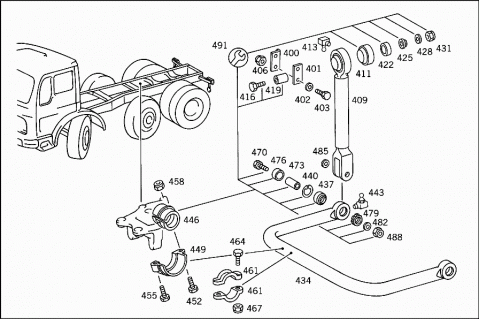

| REAR AXLE TORSION BAR | ||
| 400 | A 3833260940 | BRACKET |
| REAR AXLE TORSION BAR | ||
| 401 | A 6483120184 | SHIM |
| REAR AXLE TORSION BAR | ||
| 402 | N 000125019009 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 403 | N 000961018020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 406 | N 913004018004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 409 | A 3933200789 | ROD |
| REAR AXLE TORSION BAR | ||
| 411 | A 0009816131 | JOINT BEARING |
| 413 | N 071412008302 | GREASE NIPPLE |
| 416 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 419 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 422 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 425 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 428 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| 431 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 431 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 434 | A 3933260865 | TORSION BAR |
| REAR AXLE | ||
| 437 | A 0009816131 | JOINT BEARING |
| TORSION BAR | ||
| 437 | A 0009817431 | JOINT BEARING |
| TORSION BAR | ||
| 440 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 443 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR | ||
| 446 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 446 | A 6553260581 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 449 | A 3933250319 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 449 | A 3933250419 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,LEFT | ||
| A 6553260064 | STEP BEARING | |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 452 | N 000960016285 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X115 | ||
| 455 | N 000960016248 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X160 | ||
| 455 | N 000960016277 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X110 | ||
| 458 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 458 | N 910113016001 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 461 | A 3933251540 | BRACKET |
| REAR AXLE TORSION BAR | ||
| 464 | N 000961010038 | SCREW |
| BRACKET TO TORSION BAR | ||
| 467 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 467 | N 910113010002 | NUT |
| BRACKET TO TORSION BAR | ||
| 470 | N 000960016285 | SCREW |
| ROD TO TORSION BAR | ||
| 473 | A 3853230453 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 476 | A 3853230353 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 479 | A 3803230160 | SEAL RING |
| ROD TO TORSION BAR | ||
| 482 | N 007349017002 | WASHER |
| ROD TO TORSION BAR | ||
| 485 | A 3939900140 | WASHER |
| ROD TO TORSION BAR | ||
| 488 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 488 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 491 | A 3873200328 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 491 | A 6203200111 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

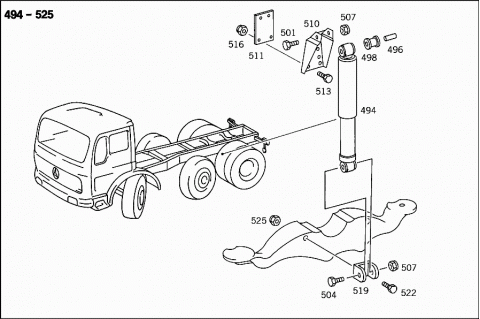

| REAR AXLE SHOCK ABSORBER | ||
| 494 | A 0023265500 | SHOCK ABSORBER |
| REAR AXLE | ||
| 494 | A 0033267400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 496 | A 0003233150 | BUSHING |
| 498 | A 0003232885 | RUBBER MOUNTING |
| 501 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 504 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 507 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 507 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 507 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 510 | A 3873200243 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 511 | A 6483120084 | SHIM |
| SHOCK ABSORBER,TOP | ||
| 513 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 513 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 516 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 519 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 522 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 522 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 522 | N 000960020040 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 525 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 525 | N 913004020003 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINES AND VALVES FOR PNEUMATIC SUSPENSION | ||

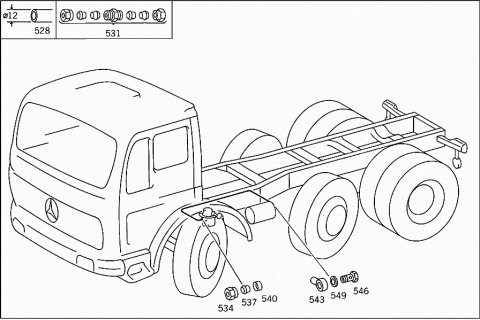

| 528 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 528 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE | ||
| 9X12 MM | ||
| 531 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 531 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 534 | N 915017012100 | UNION NUT |
| 537 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 537 | A 0019901967 | SEAL CONE |
| 540 | N 915062009000 | SLEEVE |
| 543 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 546 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "14" | ||
| 549 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "14" | ||
| 552 | A 0089979082 | HOSE |
| AIR RESERVOIR,PRESSURE RELIEF VALVE, TWO-WAY VALVE | ||
| 6X8 MM | ||
| 552 | A 0089979082 | HOSE |
| SHIFT VALVE,AIR SPRING BELLOWS,TEST CONNECTION | ||
| 6X8 MM | ||
| 552 | A 0089979082 | HOSE |
| RELAY VALVE,3/2-WAY VALVE,PRESSURE CONTROL VALVE | ||
| 6X8 MM | ||

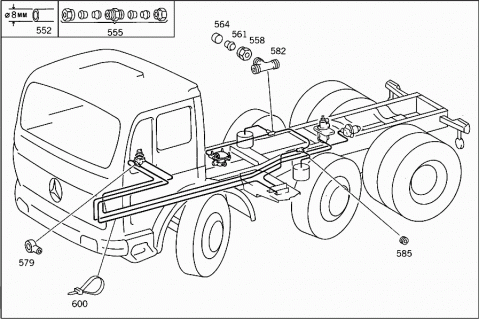

| 555 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 555 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 558 | N 915017008100 | UNION NUT |
| 561 | N 003861008005 | GLAND |
| 564 | N 915062006000 | SLEEVE |

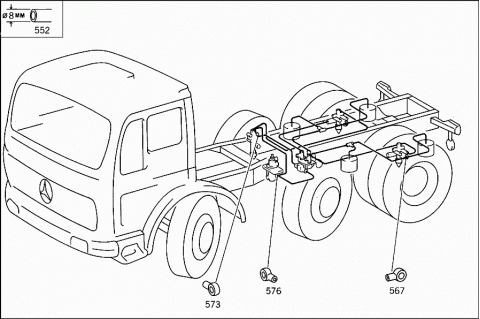

| 567 | A 0009909488 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||

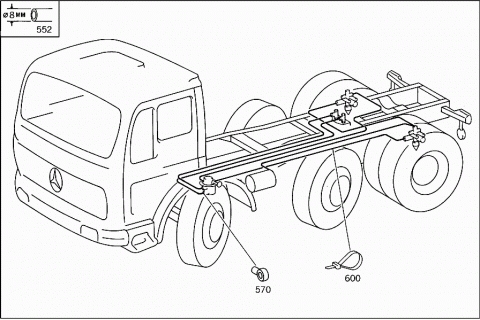

| 570 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 573 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 576 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 579 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/10 MM | ||
| 582 | A 0009907990 | T-FITTING |
| BETWEEN THE LINES | ||
| 585 | A 0039977581 | GROMMET |
| COMPRESSED AIR LINE THRU FRAME | ||

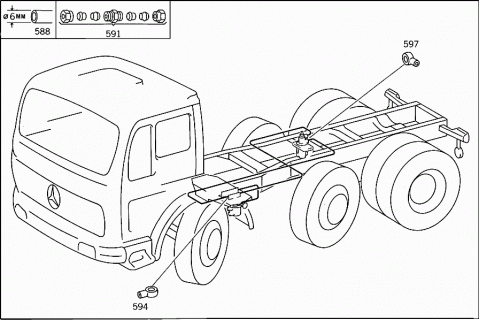

| 588 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 588 | A 0009872627 | PLASTIC PIPE |
| SHIFT VALVE,TEST CONNECTION,PRESSURE CONTROL VALVE | ||
| 4X6 MM | ||
| 591 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 594 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 597 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 600 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 600 | A 0019978490 | LOOM TIE |
| 376 MM | ||

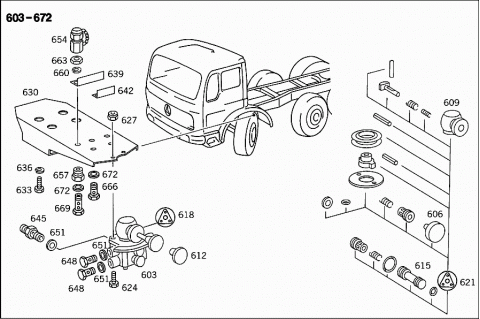

| 603 | A 0003290725 | VALVE |
| (SHIFT VALVE) | ||
| GRAU | ||
| 603 | A 0003290825 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 606 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 609 | A 0003290092 | BOOT |
| KNORR | ||
| 612 | A 0009973177 | HANDLE |
| KNORR | ||
| 615 | A 0003200058 | VALVE |
| KNORR | ||
| 618 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 621 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR | ||
| 624 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 624 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 627 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 627 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 630 | A 3913270140 | BRACKET |
| CONTROL VALVE | ||
| 633 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 636 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 639 | A 6225840321 | GUIDE SIGN |
| FRONT AXLE AIR-SPRING BELLOWS PRESSURE | ||
| 642 | A 3935840721 | GUIDE SIGN |
| REAR AXLE AIR-SPRING BELLOWS PRESSURE, RIGHT AND LEFT | ||
| A 3875840055 | ADHESIVE FOIL | |
| REAR AXLE AIR-SPRING BELLOWS PRESSURE, RIGHT AND LEFT | ||
| 645 | N 915039012206 | HOLLOW SCREW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 648 | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 651 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,12,13,22,23" | ||
| 654 | A 0004312031 | TEST CONNECTION |
| CONTROL VALVE | ||
| VOSS | ||
| 654 | A 0004314531 | TEST CONNECTION |
| CONTROL VALVE | ||
| SCHAEFER | ||
| 654 | A 0004314831 | TEST CONNECTION |
| CONTROL VALVE | ||
| WABCO | ||
| 654 | A 0004316131 | TEST CONNECTION |
| CONTROL VALVE | ||
| WIRA | ||
| 657 | A 0019908168 | FITTING |
| TEST CONNECTION TO BRACKET | ||
| 660 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 663 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 666 | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTIONS: | ||
| "11,21,22" | ||
| 669 | N 915047008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTION: | ||
| "23" | ||
| 672 | N 007603012405 | SEAL RING |
| TEST CONNECTION,CONNECTIONS: | ||
| "11,21,22,23" | ||

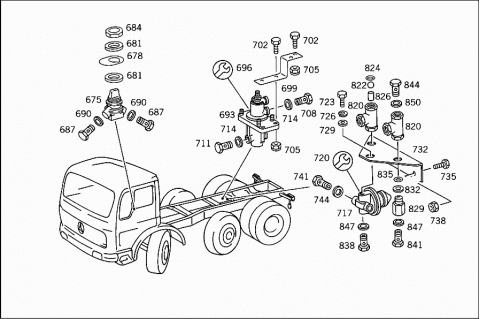

| 675 | A 0029979936 | VALVE |
| STARTING ASSISTANCE | ||
| 678 | A 6235840224 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 678 | A 6235840324 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 681 | A 6239900040 | WASHER |
| 3/2-WAY VALVE TO SUBSTRUCTURE | ||
| 681 | A 3859901640 | WASHER |
| 3/2-WAY VALVE TO SUBSTRUCTURE | ||
| 684 | A 3839900051 | NUT |
| 3/2-WAY VALVE TO SUBSTRUCTURE | ||
| 687 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,41,42" | ||
| 690 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,41,42" | ||
| 693 | A 0014305381 | VALVE |
| (PRESSURE CONTROL VALVE) | ||
| 693 | A 0024309581 | VALVE |
| (PRESSURE CONTROL VALVE) | ||
| 696 | A 0004309760 | REPAIR KIT |
| PRESSURE CONTROL VALVE | ||
| 699 | A 6224310940 | BRACKET |
| PRESSURE CONTROL VALVE | ||
| 702 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 702 | N 304017008027 | SCREW |
| VALVE TO BRACKET | ||
| 702 | N 304017008027 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 705 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 705 | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 705 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 708 | N 915047008202 | HOLLOW SCREW |
| PRESSURE REGULATOR VALVE,CONNECTIONS: | ||
| "10,41,42" | ||
| 711 | N 915036008202 | HOLLOW SCREW |
| PRESSURE REGULATOR VALVE,CONNECTION: | ||
| "20" | ||
| 714 | N 007603012405 | SEAL RING |
| PRESSURE REGULATOR VALVE,CONNECTIONS: | ||
| "10,20,41,42" | ||
| 717 | A 0014295644 | VALVE |
| PRESSURE RELIEF | ||
| 717 | A 0034298344 | VALVE |
| PRESSURE RELIEF | ||
| 720 | A 0004300568 | REPAIR KIT |
| PRESSURE RELIEF VALVE | ||
| 723 | N 000933010128 | SCREW |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| 726 | N 912004010102 | LOCK WASHER |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| 729 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 729 | N 009021010209 | WASHER |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| 732 | A 6484290040 | BRACKET |
| PRESSURE RELIEF VALVE | ||
| 735 | N 000933010145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 738 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 738 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 741 | N 915036008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 744 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTIONS: | ||
| "10,20" | ||

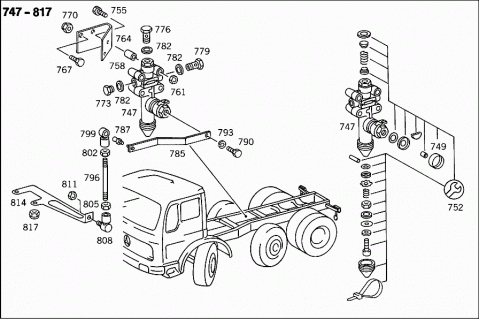

| 747 | A 0003283630 | VALVE |
| FRONT AXLE II SELF-LEVELLING DEVICE | ||
| 749 | A 0003280292 | BOOT |
| 752 | A 0003200267 | REPAIR KIT |
| AIR SPRING VALVE | ||
| 755 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 755 | N 304017008053 | SCREW |
| AIR SPRING VALVE TO BRACKET | ||
| 758 | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 758 | A 3094310249 | GUIDE BUSHING |
| AIR SPRING VALVE TO BRACKET | ||
| 761 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 761 | N 913004008001 | NUT |
| AIR SPRING VALVE TO BRACKET | ||
| 764 | A 3913280040 | BRACKET |
| AIR SPRING VALVE | ||
| 767 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 767 | N 304017008027 | SCREW |
| SEE FIG. NO.: | ||
| 161 | ||
| 770 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 770 | N 913004008001 | NUT |
| SEE FIG. NO.: | ||
| 164 | ||
| 773 | N 007604012102 | SCREW PLUG |
| AIR SPRING VALVE,CONNECTION: | ||
| "21" | ||
| 776 | N 915047008202 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTION: | ||
| "11" | ||
| 779 | N 915036008202 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTION: | ||
| "21" | ||
| 782 | N 007603012405 | SEAL RING |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 785 | A 3603200927 | LEVER |
| FRONT AXLE II SELF-LEVELLING DEVICE | ||
| 787 | N 071803013208 | BALL PIVOT |
| 790 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 790 | N 304017008016 | SCREW |
| LEVER TO AIR SPRING VALVE | ||
| 793 | N 912004008102 | LOCK WASHER |
| LEVER TO AIR SPRING VALVE | ||
| 796 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 799 | A 0004310667 | YOKE |
| TOP | ||
| 802 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 802 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 805 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 805 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 808 | A 0004310767 | YOKE |
| BOTTOM | ||
| 811 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 811 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 814 | A 3873281140 | BRACKET |
| SELF-LEVELLING DEVICE SUSPENSION, FRONT AXLE II | ||
| 817 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 817 | N 913004020003 | NUT |
| BRACKET TO FRONT AXLE II | ||
| 820 | A 0034292244 | VALVE |
| TWO-WAY | ||
| VOSS | ||
| 820 | A 0024299544 | VALVE |
| TWO-WAY | ||
| WABCO | ||
| 822 | A 0029810485 | BALL |
| VOSS | ||
| 824 | A 0004290180 | GASKET |
| VOSS | ||
| 826 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 826 | A 0004291182 | VALVE BODY |
| WABCO | ||
| 829 | A 0004295934 | ADAPTER FITTING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "13,16" | ||
| 832 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "13,16" | ||
| 835 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "13,16" | ||
| 838 | N 915047010202 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTION: | ||
| "16" | ||
| 841 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 841 | N 915036010108 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTION: | ||
| "13" | ||
| 844 | N 915036012203 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "14,15,22,23" | ||
| 847 | N 007603014405 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "13,16" | ||
| 850 | N 007603016401 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "14,15,22,23" | ||

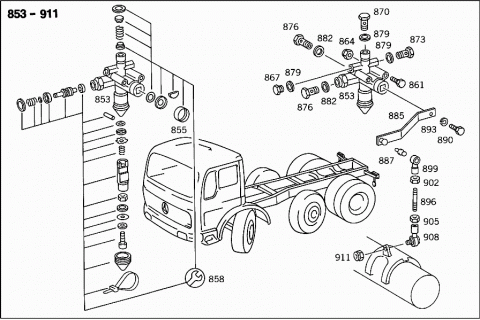

| 853 | A 0003283230 | VALVE |
| REAR AXLE SELF-LEVELLING DEVICE | ||
| 855 | A 0003280292 | BOOT |
| 858 | A 0005861332 | REPAIR KIT |
| Repalced by: A 0003201067 | ||
| 858 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/69324 | ||
| 858 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/80093 | ||
| 861 | N 000931008309 | SCREW |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| 864 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 864 | N 913004008001 | NUT |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| 867 | N 007604012102 | SCREW PLUG |
| AIR SPRING VALVE,CONNECTION: | ||
| "21" | ||
| 870 | N 915047008202 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTION: | ||
| "11" | ||
| 873 | N 915036008202 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 876 | N 915036012203 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "12,23" | ||
| 879 | N 007603012405 | SEAL RING |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 882 | N 007603016401 | SEAL RING |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "12,23" | ||
| 885 | A 3603200927 | LEVER |
| REAR AXLE SELF-LEVELLING DEVICE | ||
| 887 | N 071803013208 | BALL PIVOT |
| 890 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 890 | N 304017008016 | SCREW |
| LEVER TO AIR SPRING VALVE | ||
| 893 | N 912004008102 | LOCK WASHER |
| LEVER TO AIR SPRING VALVE | ||
| 896 | N 900331008427 | PULL ROD |
| FROM LEVER TO REAR AXLE | ||
| 899 | A 0004310667 | YOKE |
| TOP | ||
| 902 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 902 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 905 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 905 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 908 | A 0004310767 | YOKE |
| BOTTOM | ||
| 911 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 911 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
