Transporto priemonė: 2035 S/6X2/4; VIN numerio dalis: 647110

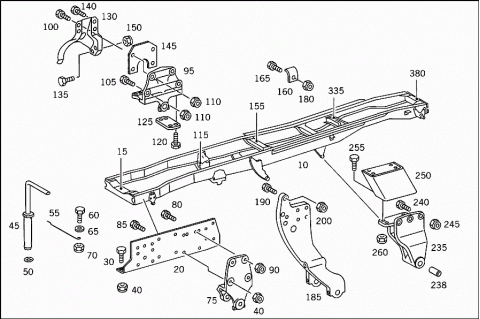

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6473100101 | FRAME |
| 010 | A 6473100201 | FRAME |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT FRAME AREA | ||
| 015 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 020 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 020 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 030 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 030 | N 308676012026 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X35 | ||
| 030 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 030 | N 308676014008 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 14X35 | ||
| N 000125013008 | WASHER | |
| 040 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 040 | N 910113014000 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 045 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 050 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 055 | A 3353150031 | LOCKING SPRING |
| TO SECURE COUPLING PIN | ||
| 060 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 060 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 065 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 065 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 070 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 070 | N 913004008001 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 075 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 075 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 075 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 080 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X18X45 | ||
| 085 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X18X55 | ||
| 090 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 090 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 095 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 095 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 100 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET AND STRUT TO SIDE MEMBER | ||
| M 14X50 | ||
| 105 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 105 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 105 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 110 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 110 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 115 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 120 | N 000961014113 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 125 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 130 | A 6203121561 | STRUT |
| CROSS MEMBER AT FRONT SPRING REAR BRACKET | ||
| 135 | N 000961014113 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 140 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 140 | N 308676014020 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 145 | A 6203120384 | SHIM |
| STRUT TO SIDE MEMBER | ||
| 150 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 150 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CENTRAL FRAME AREA | ||
| 155 | A 6203100336 | CROSS MEMBER |
| FRONT AXLE II SPRING FRONT BRACKET | ||
| NO.3 | ||
| 160 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 165 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 165 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 165 | N 308676014020 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X35 | ||
| 180 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 180 | N 910113014000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 185 | A 6223220003 | FRONT SPRING BRACKET |
| FRONT AXLE II,FRONT LEFT | ||
| 185 | A 6223220103 | FRONT SPRING BRACKET |
| FRONT AXLE II,FRONT RIGHT | ||
| 190 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 190 | N 308676014014 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 14X70 | ||
| 190 | N 308676014014 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 14X70 | ||
| 190 | N 000960014138 | SCREW |
| Repalced by: N 000961014084 | ||
| 190 | N 000961014084 | SCREW |
| Repalced by: N 000961014148 | ||
| 190 | N 000961014148 | SCREW |
| SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER | ||
| M 14X75 | ||
| 200 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 200 | N 910113014001 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 200 | N 910113014001 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 205 | A 3873120017 | CROSS MEMBER |
| FRONT AXLE II SPRING REAR BRACKET, REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 210 | A 6203121584 | SHIM |
| CROSS MEMBER AND SADDLE PLATE ANGLE TO SIDE MEMBER | ||
| 215 | A 3873120161 | STRUT |
| AT CROSS MEMBER | ||
| NO.4 | ||
| 235 | A 6223250003 | FRONT SPRING BRACKET |
| Repalced by: A 6223200070 | ||
| 235 | A 6223200070 | REAR SUBFRAME |
| FRONT AXLE II,REAR | ||
| 238 | A 3523250150 | BUSHING |
| 238 | A 3853250050 | BUSHING |
| 240 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 240 | N 308676014020 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 245 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 245 | N 910113014001 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 250 | A 6223200043 | BRACKET |
| FRONT AXLE II SPRING REAR BRACKET,LEFT | ||
| 250 | A 6223200143 | BRACKET |
| FRONT AXLE II SPRING REAR BRACKET, RIGHT | ||
| 255 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 255 | N 308676012026 | SCREW |
| BRACKET TO SPRING BRACKET AND TO CROSS MEMBER | ||
| 260 | N 910113012002 | NUT |
| BRACKET TO SPRING BRACKET AND TO CROSS MEMBER | ||
| 265 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 285 | A 6203160752 | ANGLE |
| SADDLE PLATE,LEFT | ||
| 285 | A 6203160852 | ANGLE |
| SADDLE PLATE,RIGHT | ||

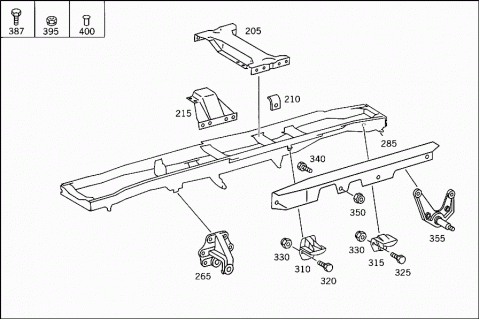

| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR FRAME AREA | ||
| 310 | A 6223250017 | HELPER SPRING BRACKET |
| Repalced by: A 3893250217 | ||
| 310 | A 3893250217 | HELPER SPRING BRACKET |
| FRONT | ||
| 315 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 315 | A 6843250017 | HELPER SPRING BRACKET |
| REAR | ||
| 320 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 320 | N 308676012026 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 325 | N 000960012342 | SCREW |
| HELPER SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER | ||
| 330 | N 910113012002 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 335 | A 6203100537 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.5 | ||
| 340 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 340 | N 308676012026 | SCREW |
| CROSS MEMBER AND SADDLE PLATE ANGLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 340 | N 000961012151 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X30 | ||
| 350 | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 355 | A 6213250003 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 355 | A 6213250004 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 380 | A 6213100346 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| A 6213121235 | CROSS MEMBER | |
| A 6213122587 | GUSSET PLATE | |
| CROSS MEMBER TO LEFT SIDE MEMBER | ||
| A 6213122687 | GUSSET PLATE | |
| CROSS MEMBER TO RIGHT SIDE MEMBER | ||
| N 000961014088 | SCREW | |
| Repalced by: N 308676014008 | ||
| N 308676014008 | SCREW | |
| GUSSET PLATE TO CROSS MEMBER | ||
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| GUSSET PLATE TO CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 387 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 387 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 387 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 387 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 387 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 387 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 387 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 387 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 387 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 387 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 387 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 387 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 387 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 387 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 387 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 387 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 387 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 387 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 387 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 387 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 387 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 387 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 387 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 387 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 387 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 387 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 387 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 387 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 387 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 387 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 387 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 387 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 387 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 387 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 387 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 387 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 387 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 387 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 3859900914 | SCREW |
| M 16X16X18X36 | ||
| 387 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 387 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 387 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 387 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 387 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 387 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 387 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 387 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 387 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 387 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 387 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 387 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 387 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 387 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 387 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 387 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 387 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 387 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 387 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 387 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 395 | N 913004010011 | NUT |
| 395 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 395 | N 910113012003 | NUT |
| 395 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 395 | N 910113014000 | NUT |
| 395 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 395 | N 910113016001 | NUT |
| 395 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 400 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 400 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 400 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 400 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 400 | N 910005014066 | RIVET |
| 14X65 MM | ||
| 400 | N 910005016017 | RIVET |
| 16X48 MM | ||
| 400 | N 910005016027 | RIVET |
| 16X58 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

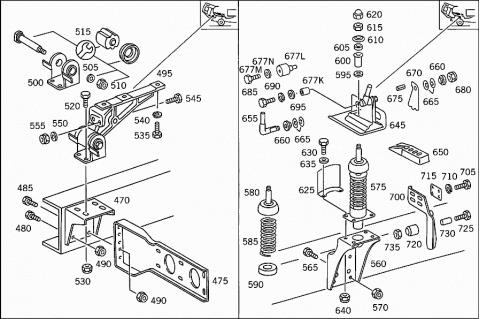

| CAB SUSPENSION,FRONT; SHORT MERCEDES-BENZ CAB | ||
| 470 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 475 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 475 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 480 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 480 | A 9429901304 | SCREW |
| CONSOLE TO FRAME | ||
| 485 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 485 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 490 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 490 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 495 | A 6208902103 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 495 | A 6208902203 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 500 | A 6208902003 | MOUNTING |
| 505 | N 007349017002 | WASHER |
| 510 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 510 | N 910113016002 | NUT |
| 515 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 520 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 520 | A 9429901304 | SCREW |
| MOUNTING TO CONSOLE | ||
| 520 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 520 | N 308676014012 | SCREW |
| MOUNTING TO CONSOLE AND TO STRUT | ||
| 530 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 530 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE AND TO STRUT | ||
| 535 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| 540 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 545 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 550 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 555 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 555 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CAB SUSPENSION,REAR; SHORT MERCEDES-BENZ CAB | ||
| 560 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 560 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 560 | A 3873170001 | CONSOLE |
| CAB SUSPENSION,REAR | ||
| 565 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 565 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 570 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 575 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 575 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 575 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 580 | A 0008910201 | RUBBER MOUNTING |
| TO 620 890 00 19 | ||
| 580 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19 | ||
| 585 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 585 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 590 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 595 | N 000433015002 | WASHER |
| Repalced by: N 000433015005 | ||
| 595 | N 000433015005 | WASHER |
| VIBRATION ABSORBER | ||
| 600 | A 3813170753 | SPACER TUBE |
| VIBRATION ABSORBER | ||
| 605 | A 3275045082 | RUBBER RING |
| VIBRATION ABSORBER | ||
| 610 | A 3878912010 | WASHER |
| VIBRATION ABSORBER | ||
| 615 | N 000934012022 | NUT |
| VIBRATION ABSORBER | ||
| 620 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 620 | N 001587012010 | CAP NUT |
| VIBRATION ABSORBER | ||
| 625 | A 3813170031 | COVER PLATE |
| VIBRATION ABSORBER | ||
| 630 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 630 | N 304017008034 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 635 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 635 | N 009021008213 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 640 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 640 | N 913004008001 | NUT |
| VIBRATION ABSORBER TO CONSOLE | ||
| 645 | A 3813102075 | LOCKING MECHANISM |
| Repalced by: A 6453100283 | ||
| 645 | A 6453100283 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 645 | A 3813101975 | LOCKING MECHANISM |
| Repalced by: A 6453100183 | ||
| 645 | A 6453100183 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 650 | A 3813170119 | LATCH |
| 655 | A 3813172374 | PIN |
| 660 | A 3813170676 | WASHER |
| 665 | A 0009935426 | DISC SPRING |
| 670 | A 3813170924 | LEVER |
| 670 | A 6453100289 | TOOTHED SEGMENT |
| LEFT | ||
| 670 | A 6453100189 | TOOTHED SEGMENT |
| RIGHT | ||
| 675 | N 001481006041 | CLAMPING SLEEVE |
| 677K | A 6553170053 | SPACER TUBE |
| Repalced by: A 6017910036 | ||
| 677K | A 6017910036 | PIPE |
| 677L | A 6553100077 | BUFFER |
| 677M | N 000933010094 | SCREW |
| 677N | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 677N | N 009021010209 | WASHER |
| 680 | N 910113012002 | NUT |
| 680 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 680 | N 910113010000 | NUT |
| 685 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 690 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 695 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 695 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
| 700 | A 3873170626 | GUIDE |
| CAB,LEFT | ||
| 700 | A 3873170726 | GUIDE |
| CAB, RIGHT | ||
| 705 | N 000961012151 | SCREW |
| GUIDE TO CAB | ||
| 710 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 715 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 720 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 725 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 730 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 735 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
