Transporto priemonė: 2035 S/6X2/4; VIN numerio dalis: 647110
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

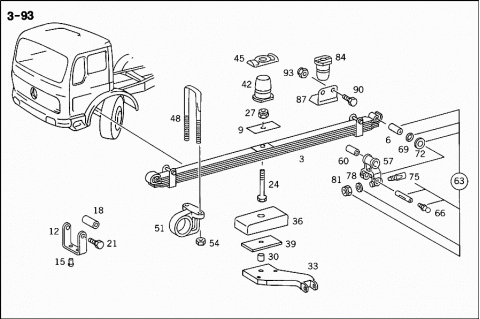

| FRONT SPRINGS FOR FRONT AXLE I | ||
| 003 | A 3913201002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6203200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 006 | A 3043210150 | BUSHING |
| SPRING EYE,FRONT AND REAR | ||
| 006 | A 6203210050 | BUSHING |
| SPRING EYE,FRONT AND REAR | ||
| 009 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 012 | A 6203240633 | SPRING CLAMP |
| FRONT SPRING | ||
| 012 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 015 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 018 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 021 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 024 | A 3913210071 | SCREW |
| (SPRING BOLT) | ||
| 027 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 027 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 030 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 033 | A 6223230040 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,LEFT BOTTOM | ||
| 033 | A 6223230140 | BRACKET |
| FRONT AXLE I SHOCK ABSORBER,RIGHT BOTTOM | ||
| 036 | A 6203310328 | SHIM |
| SHOCK ABSORBER BRACKET | ||
| 036 | A 3953310128 | SHIM |
| SHOCK ABSORBER BRACKET | ||
| 039 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 042 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 042 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 045 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 045 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 045 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 045 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 048 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 048 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 048 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| 048 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| 048 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 048 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 048 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 051 | A 6193230063 | BEARING BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 054 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 054 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 054 | N 308674020000 | NUT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 057 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 060 | A 3043210150 | BUSHING |
| 060 | A 6203210050 | BUSHING |
| 063 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING | ||
| 066 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 069 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 069 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 069 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 072 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 075 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 078 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 078 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 081 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 081 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 084 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 087 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 090 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 093 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 093 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

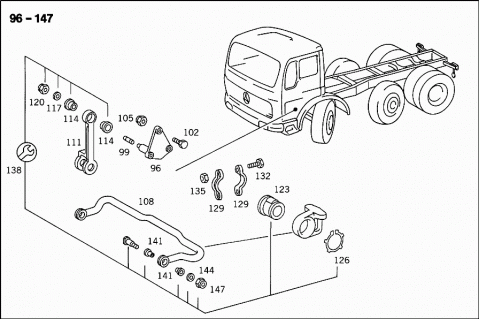

| FRONT AXLE I TORSION BAR | ||
| 096 | A 6223200178 | CONSOLE |
| Repalced by: A 6223230163 | ||
| 096 | A 6223230163 | BEARING BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 099 | N 000939014036 | STUD BOLT |
| 102 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 105 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 105 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 108 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 108 | A 6523230765 | TORSION BAR |
| FRONT AXLE I | ||
| 111 | A 6223230216 | LINK |
| FRONT AXLE I TORSION BAR | ||
| 114 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 117 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 120 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 120 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| N 000961014127 | SCREW | |
| LINK TO CONSOLE | ||
| 123 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 126 | N 000983068000 | LOCK RING |
| TORSION BAR TO CONSOLE | ||
| 129 | A 6213230340 | BRACKET |
| FRONT AXLE I TORSION BAR | ||
| 132 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 132 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 135 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 138 | A 6473200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 141 | A 6203230250 | BUSHING |
| LINK TO TORSION BAR | ||
| 144 | N 007349017002 | WASHER |
| LINK TO TORSION BAR | ||
| 147 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 147 | N 910113016001 | NUT |
| LINK TO TORSION BAR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

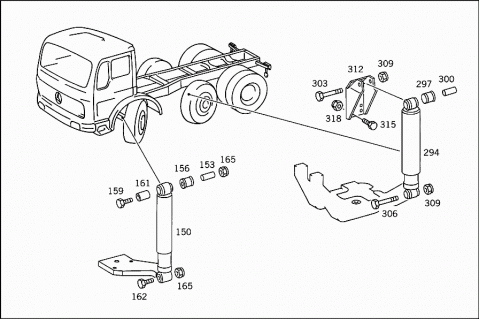

| FRONT AXLE I SHOCK ABSORBER | ||
| 150 | A 0043234800 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 150 | A 0033235700 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 150 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 150 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 150 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 153 | A 0003233150 | BUSHING |
| FRONT AXLE I | ||
| TO 003 323 57 00,004 323 48 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 32 00,006 323 09 00 | ||
| 153 | A 0003235250 | BUSHING |
| TO 004 323 92 00 | ||
| 156 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 57 00,004 323 48 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 32 00,006 323 09 00 | ||
| 156 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 156 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 92 00 | ||
| 159 | N 000960016275 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 161 | A 6208910053 | SPACER TUBE |
| Repalced by: A 6458910653 | ||
| 161 | A 6458910653 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 161 | A 6458910553 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 162 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BRACKET UNDER FRONT SPRING | ||
| 165 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 165 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 165 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET UNDER FRONT SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

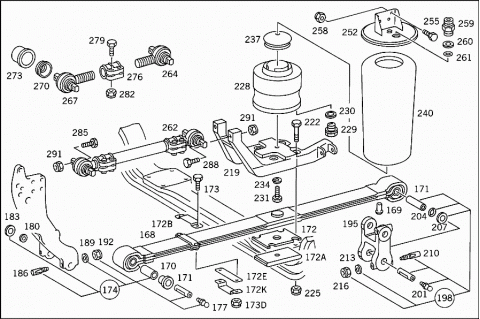

| FRONT AXLE II GUIDE SPRING | ||
| 168 | A 6193200802 | FRONT SPRING |
| Repalced by: A 6573200002 | ||
| 168 | A 6573200002 | FRONT SPRING |
| (GUIDE SPRING),2 LEAVES;FRONT AXLE II | ||
| 169 | N 910005016017 | RIVET |
| SPRING EYE,FRONT | ||
| 170 | A 3523250150 | BUSHING |
| 170 | A 3853250050 | BUSHING |
| 171 | A 6553250050 | BUSHING |
| SPLIT | ||
| 172 | A 3833220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 172A | A 6193220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 172B | A 6193210133 | SPRING CLAMP |
| UPPER PART | ||
| 172B | A 6193210233 | SPRING CLAMP |
| UPPER PART | ||
| 172E | A 3833212433 | SPRING CLAMP |
| CENTRAL PART | ||
| 172E | A 6193210333 | SPRING CLAMP |
| CENTRAL PART | ||
| 172K | A 3833212233 | SPRING CLAMP |
| LOWER PART | ||
| 172K | A 6193210433 | SPRING CLAMP |
| LOWER PART | ||
| 173 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 173 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 173 | A 0099900101 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 173 | N 000931010282 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 173D | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 173D | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 173D | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 173D | N 910113010000 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 174 | A 6223200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 177 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 180 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 180 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 183 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 186 | A 3839900337 | BOLT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 189 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 189 | N 000125010532 | WASHER |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 192 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 192 | N 910113010000 | NUT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 195 | A 3913270040 | BRACKET |
| FRONT AXLE II GUIDE SPRING | ||
| 198 | A 6223200165 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 201 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 204 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 204 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 207 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 210 | A 3529900337 | BOLT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 213 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 213 | N 000125010532 | WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 216 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 216 | N 910113010000 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 219 | A 6223270041 | SUPPORT |
| AIR SPRING BELLOWS,THRUST ARM,FRONT AXLE II SHOCK ABSORBER,LEFT | ||
| 219 | A 6223270141 | SUPPORT |
| AIR SPRING BELLOWS,THRUST ARM,FRONT AXLE II SHOCK ABSORBER,RIGHT | ||
| 222 | N 000960020143 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| 225 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 225 | N 913004020003 | NUT |
| SUPPORT TO FRONT AXLE II | ||
| 228 | A 6233200318 | PISTON |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 229 | A 0004290456 | SCREW PLUG |
| 230 | N 007603012405 | SEAL RING |
| 231 | N 000961016065 | SCREW |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 234 | N 912004016101 | LOCK WASHER |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 237 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 240 | A 3633280201 | AIR SPRING BELLOWS |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 252 | A 6223200035 | PLATE |
| AIR SPRING BELLOWS,TOP | ||
| 255 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 255 | N 308676014003 | SCREW |
| PLATE TO SIDE MEMBER | ||
| 258 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 258 | N 910113014000 | NUT |
| PLATE TO SIDE MEMBER | ||
| 259 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 260 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 261 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 262 | A 3833300311 | THRUST ARM |
| Repalced by: A 6543300011 | ||
| 262 | A 6543300011 | THRUST ARM |
| Repalced by: A 6543300111 | ||
| 262 | A 6543300111 | THRUST ARM |
| FRONT AXLE II | ||
| 264 | A 0003330027 | JOINT |
| Repalced by: A 0003301811 | ||
| 264 | A 0003301811 | THRUST ARM |
| L.H. THREAD | ||
| 267 | A 0003330127 | JOINT |
| Repalced by: A 0003301911 | ||
| 267 | A 0003301911 | THRUST ARM |
| R.H. THREAD | ||
| 270 | A 0003381897 | BOOT |
| OUTSIDE | ||
| 273 | A 0003330254 | RETAINING RING |
| BOOT | ||
| 276 | A 0003380317 | CLAMPING PIECE |
| SCREWED PART OF JOINT | ||
| 279 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 279 | N 000960012353 | SCREW |
| CLAMPING PIECE | ||
| 282 | N 910113012002 | NUT |
| CLAMPING PIECE | ||
| 285 | N 000960014143 | SCREW |
| THRUST ARM TO FRONT SPRING FRONT BRACKET | ||
| 288 | N 308676014002 | SCREW |
| THRUST ARM TO BEARING BRACKET ON AXLE | ||
| 291 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 291 | N 910113014000 | NUT |
| THRUST ARM TO FRONT SPRING FRONT BRACKET | ||
| 291 | N 910113014000 | NUT |
| THRUST ARM TO BEARING BRACKET ON AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE II SHOCK ABSORBER | ||
| 294 | A 0033262500 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 294 | A 0033264800 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 297 | A 0003232885 | RUBBER MOUNTING |
| TO 003 326 25 00 | ||
| 297 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 297 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 48 00 | ||
| 300 | A 0003233150 | BUSHING |
| TO 003 326 25 00 | ||
| 300 | A 0003234550 | BUSHING |
| TO 003 326 48 00 | ||
| 303 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 306 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO SUPPORT,BOTTOM | ||
| 309 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 309 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 309 | N 910113016002 | NUT |
| SHOCK ABSORBER TO SUPPORT,BOTTOM | ||
| 312 | A 3873200243 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 315 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 315 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| 318 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINES AND VALVES FOR PNEUMATIC SUSPENSION | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT AXLE II | ||

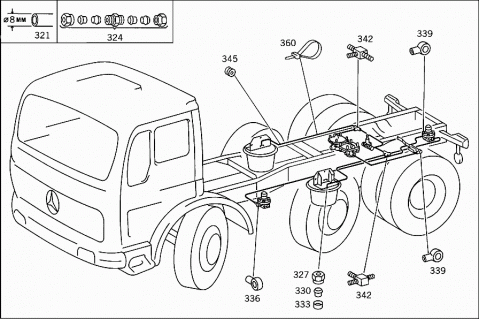

| 321 | A 0089979082 | HOSE |
| PRESSURE RELIEF VALVE,AIR SPRING VALVE,RELAY VALVE,AIR SPRING BELLOWS | ||
| 6X8 MM | ||
| 324 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 324 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 327 | N 915017008100 | UNION NUT |
| LINE CONNECTION | ||
| 330 | N 003861008005 | GLAND |
| LINE CONNECTION | ||
| 333 | N 915062006000 | SLEEVE |
| LINE CONNECTION | ||
| 336 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 339 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 342 | A 0009907990 | T-FITTING |
| BETWEEN THE LINES | ||
| 345 | A 3859970081 | GROMMET |
| COMPRESSED AIR LINE THRU FRAME | ||

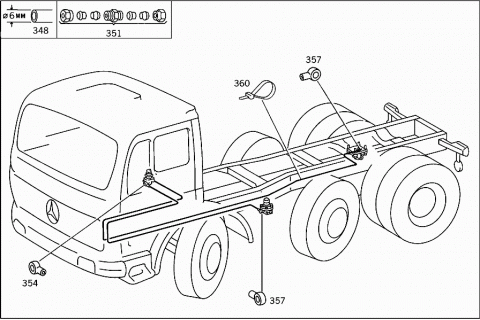

| 348 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 348 | A 0009872627 | PLASTIC PIPE |
| 3/2-WAY VALVE,PRESSURE RELIEF VALVE, RELAY VALVE | ||
| 4X6 MM | ||
| 351 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 354 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 357 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 360 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 360 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| A 3609902340 | WASHER | |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||

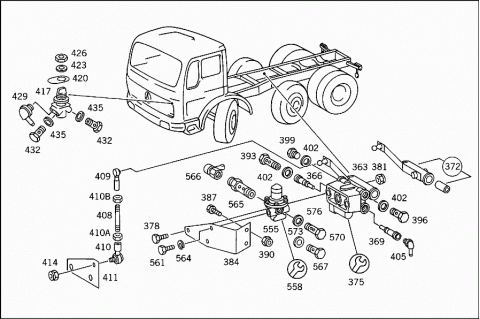

| 363 | A 0003282030 | VALVE |
| FRONT AXLE II LEVEL ADJUSTMENT | ||
| 366 | A 0003281925 | VALVE |
| INTAKE | ||
| 369 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 369 | A 0003282125 | VALVE |
| EXHAUST | ||
| A 0003280014 | SHAFT | |
| 87 MM | ||
| 372 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 372 | A 0003200127 | LEVER |
| (PARTS KIT) | ||
| 375 | A 0003200467 | REPAIR KIT |
| Repalced by: A 0003200258 | ||
| 375 | A 0003200258 | REPAIR KIT |
| AIR SPRING VALVE | ||
| 378 | N 000933008269 | SCREW |
| Repalced by: N 304014008002 | ||
| 378 | N 304014008002 | SCREW |
| AIR SPRING VALVE TO BRACKET | ||
| 381 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 381 | N 913004008001 | NUT |
| AIR SPRING VALVE TO BRACKET | ||
| 384 | A 6193270340 | BRACKET |
| AIR SPRING VALVE | ||
| 387 | N 000933010105 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 390 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 390 | N 910113010000 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 393 | N 915047008202 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTION: | ||
| "11" | ||
| 396 | N 915036008202 | HOLLOW SCREW |
| LEFT AIR SPRING VALVE,CONNECTION: | ||
| "21" | ||
| 399 | N 007604012102 | SCREW PLUG |
| RIGHT AIR SPRING VALVE,CONNECTION: | ||
| "21" | ||
| 402 | N 007603012405 | SEAL RING |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 405 | A 4063580065 | BREATHER |
| Repalced by: A 3933280065 | ||
| 405 | A 3933280065 | PIPE SOCKET |
| AIR SPRING VALVE,CONNECTION: | ||
| "30" | ||
| 408 | N 900331008426 | PULL ROD |
| AIR SPRING VALVE OPERATING ROD | ||
| 200 MM | ||
| 409 | A 0004310667 | YOKE |
| TOP | ||
| 410 | A 0004310767 | YOKE |
| BOTTOM | ||
| 410A | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 410A | N 304035008001 | NUT |
| R.H. THREAD | ||
| 410B | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 410B | N 304035008002 | NUT |
| L.H. THREAD | ||
| 411 | A 6223270140 | BRACKET |
| AT REAR AXLE | ||
| 414 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 414 | N 913004008001 | NUT |
| OPERATING ROD TO BRACKET | ||
| 417 | A 0029979936 | VALVE |
| STARTING ASSISTANCE | ||
| 420 | A 6235840224 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 423 | A 6239900040 | WASHER |
| 3/2-WAY VALVE TO SUBSTRUCTURE | ||
| 426 | A 3839900051 | NUT |
| 3/2-WAY VALVE TO SUBSTRUCTURE | ||
| 429 | A 6233280165 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "41" | ||
| 432 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,41,42" | ||
| 435 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,41,42" | ||

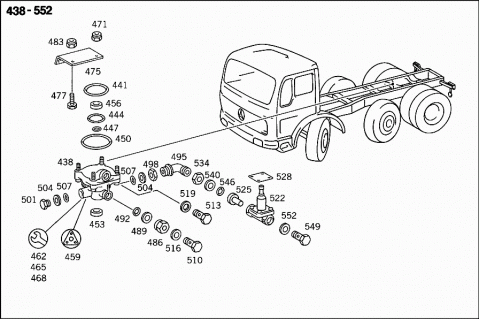

| 438 | A 0014296844 | VALVE |
| STARTING ASSISTANCE | ||
| WABCO | ||
| 441 | A 0059972748 | SEAL RING |
| 83X3 MM,TO 000 429 28 95,GRAU | ||
| 444 | A 0014311660 | SEAL RING |
| 28X2 MM,GRAU | ||
| 447 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,GRAU | ||
| 450 | A 0014311760 | SEAL RING |
| 86X2 MM,GRAU | ||
| 453 | A 0004311980 | GASKET |
| 34X2X6 MM,GRAU | ||
| 456 | A 0004312788 | VALVE SEAT |
| GRAU | ||
| 459 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 459 | A 0004201271 | VALVE |
| GASKET KIT | ||
| BOSCH | ||
| 462 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 462 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| BOSCH | ||
| 465 | A 0005863542 | REPAIR KIT |
| KNORR | ||
| 468 | A 0005865742 | REPAIR KIT |
| WABCO | ||
| 471 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 471 | N 913004008001 | NUT |
| RELAY VALVE TO BRACKET | ||
| 475 | A 6174310740 | BRACKET |
| RELAY VALVE | ||
| 477 | N 000933010105 | SCREW |
| BRACKET TO REAR SPRING BRACKET CROSS MEMBER | ||
| 483 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 483 | N 910113010000 | NUT |
| BRACKET TO REAR SPRING BRACKET CROSS MEMBER | ||
| 486 | A 0009904468 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 489 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 492 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 495 | A 0019903971 | ELBOW FITTING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 498 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 501 | N 007604016102 | SCREW PLUG |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 504 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 507 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 510 | N 915036008202 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 513 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 516 | N 007603012405 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 519 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 522 | A 0034298044 | VALVE |
| (OVERFLOW VALVE) | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BELLOWS RESIDUAL PRESSURE | ||
| 522 | A 0034299044 | VALVE |
| (OVERFLOW VALVE) | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| STARTING-ASSISTANCE BELLOWS RESIDUAL PRESSURE | ||
| 525 | A 0024298844 | VALVE |
| 528 | A 0004290745 | DIAPHRAGM |
| A 0009905168 | FITTING | |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| A 0009904468 | FITTING | |
| OVERFLOW VALVE,CONNECTIONS: | ||
| "10,20" | ||
| A 4063580065 | BREATHER | |
| Repalced by: A 3933280065 | ||
| A 3933280065 | PIPE SOCKET | |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 534 | N 000933006130 | SCREW |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| A 0004290227 | THRUST RING | |
| OVERFLOW VALVE,CONNECTIONS: | ||
| "10,20" | ||
| A 0004290227 | THRUST RING | |
| STARTING ASSISTANCE OVERFLOW VALVE, CONNECTIONS: | ||
| "10,20" | ||
| 540 | A 0004290927 | THRUST RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| A 0009870446 | SEALING CORD | |
| OVERFLOW VALVE,CONNECTIONS: | ||
| "10,20" | ||
| A 0009870446 | SEALING CORD | |
| STARTING ASSISTANCE OVERFLOW VALVE, CONNECTIONS: | ||
| "10,20" | ||
| 546 | A 0009971548 | SEAL RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| N 915036008202 | HOLLOW SCREW | |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 549 | N 915036012203 | HOLLOW SCREW |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| N 007603012405 | SEAL RING | |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 552 | N 007603016401 | SEAL RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| A 6734291340 | BRACKET | |
| LEFT | ||
| A 6734291440 | BRACKET | |
| RIGHT | ||
| N 007981003246 | SHEET METAL SCREW | |
| 555 | A 0034292644 | VALVE |
| BELLOWS RESIDUAL PRESSURE | ||
| 558 | A 0004300568 | REPAIR KIT |
| PRESSURE RELIEF VALVE | ||
| 561 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 561 | N 304017010028 | SCREW |
| PRESSURE RELIEF VALVE TO AIR SPRING VALVE BRACKET | ||
| 564 | N 912004010102 | LOCK WASHER |
| PRESSURE RELIEF VALVE TO AIR SPRING VALVE BRACKET | ||
| 565 | N 915040008202 | HOLLOW SCREW FITTING |
| PRESSURE RELIEF VALVE,CONNECTIONS: | ||
| "10" | ||
| 566 | A 0004312031 | TEST CONNECTION |
| PRESSURE RELIEF VALVE | ||
| 566 | A 0004314531 | TEST CONNECTION |
| PRESSURE RELIEF VALVE | ||
| 567 | N 915036008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTIONS: | ||
| "20" | ||
| 570 | N 915047012203 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "20" | ||
| 573 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 576 | N 007603016401 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "20" | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

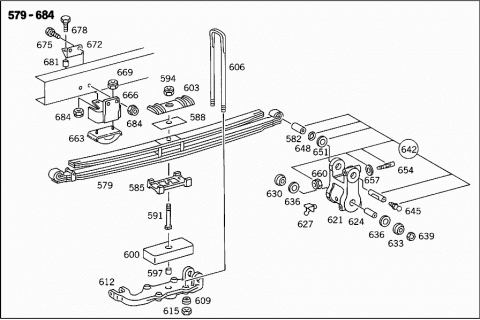

| REAR SPRINGS,STEEL SPRING SUSPENSION | ||
| 579 | A 3873201008 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 1-LEAF HELPER SPRING | ||
| 579 | A 6553200008 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 582 | A 3353240350 | BUSHING |
| SPRING EYE,FRONT AND REAR | ||
| 582 | A 6203240050 | BUSHING |
| SPRING EYE,FRONT AND REAR | ||
| 585 | A 3873240035 | SPACER |
| BOTTOM | ||
| 588 | A 3873210084 | SHIM |
| TOP | ||
| 588 | A 3873210084 | SHIM |
| TOP | ||
| 591 | A 3873240471 | SPRING BOLT |
| 591 | A 3873240171 | SPRING BOLT |
| Repalced by: A 9463210071 | ||
| 591 | A 9463210071 | SCREW |
| 594 | N 913004018004 | NUT |
| SPRING BOLT | ||
| 597 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE | ||
| 600 | A 3893510428 | PAD |
| BETWEEN SPRING AND REAR AXLE | ||
| 600 | A 3873510628 | PAD |
| BETWEEN SPRING AND REAR AXLE | ||
| 603 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 603 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 606 | A 3633510125 | U-BOLT |
| Repalced by: A 6203510125 | ||
| 606 | A 6203510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 606 | A 3353510125 | U-BOLT |
| Repalced by: A 9433510225 | ||
| 606 | A 9433510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 609 | A 3879975026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 612 | A 3873260720 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 612 | A 3873260820 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 615 | N 000934024001 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 621 | A 3873200163 | SHACKLE |
| REAR SPRING | ||
| 624 | A 3353240050 | BUSHING |
| 627 | N 071412008200 | GREASE NIPPLE |
| 630 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET, INSIDE | ||
| 633 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET, OUTSIDE | ||
| 636 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 639 | N 000439024200 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 642 | A 6583200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING EYE | ||
| 642 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),REAR SPRING EYE | ||
| 645 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 648 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 648 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 651 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 654 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 657 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 657 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 660 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 660 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 663 | A 3853300275 | RUBBER MOUNTING |
| AXLE STOP | ||
| 666 | A 6473250031 | PLATE |
| RUBBER MOUNTING | ||
| 669 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 669 | N 913004008001 | NUT |
| RUBBER MOUNTING TO PLATE | ||
| 672 | A 6223250048 | ANGLE |
| PLATE TO SIDE MEMBER | ||
| 675 | N 000933010247 | SCREW |
| PLATE TO SIDE MEMBER | ||
| M 10X38 | ||
| 678 | N 000933010145 | SCREW |
| PLATE TO SIDE MEMBER | ||
| M 10X35 | ||
| 681 | A 1119911140 | SPACER TUBE |
| Repalced by: A 6673170253 | ||
| 681 | A 6673170253 | SPACER TUBE |
| PLATE TO SIDE MEMBER | ||
| 684 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 684 | N 910113010000 | NUT |
| PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

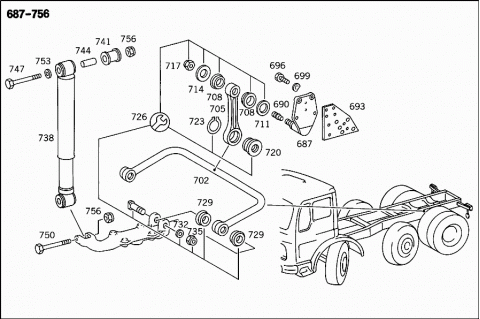

| REAR AXLE TORSION BAR | ||
| 687 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 687 | A 3933261163 | BEARING BRACKET |
| REAR AXLE TORSION BAR | ||
| 690 | N 000939016033 | STUD BOLT |
| 693 | A 6203121884 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 696 | N 000961016108 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 699 | N 000137016202 | SPRING WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 702 | A 3873260065 | TORSION BAR |
| REAR AXLE | ||
| 705 | A 3873260947 | SHACKLE |
| REAR AXLE TORSION BAR | ||
| 708 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 711 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 714 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 717 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 717 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961016081 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 720 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 723 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 726 | A 6203200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 729 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING | ||
| 732 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING | ||
| 735 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 735 | N 910113018004 | NUT |
| TORSION BAR TO BEARING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE SHOCK ABSORBER | ||
| 738 | A 0033264400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 738 | A 0023268800 | SHOCK ABSORBER |
| REAR AXLE | ||
| 741 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 741 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 44 00 | ||
| 741 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 88 00 | ||
| 744 | A 0003234550 | BUSHING |
| TO 003 326 44 00 | ||
| 744 | A 0003233150 | BUSHING |
| TO 002 326 88 00 | ||
| 747 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 750 | N 000960016224 | SCREW |
| SHOCK ABSORBER TO BEARING | ||
| 753 | N 007349017002 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 756 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 756 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
