Transporto priemonė: 2124; VIN numerio dalis: 375150
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

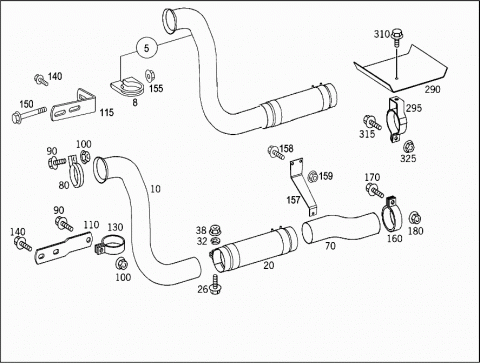

| 005 | A 9704901619 | EXHAUST PIPE |
| THROTTLE HOUSING,FRONT | ||
| 75 MM; 4X2 | ||
| 005 | A 9704901519 | EXHAUST PIPE |
| THROTTLE HOUSING,FRONT | ||
| 90 MM | ||
| 008 | A 6734920140 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 75.5 MM | ||
| 008 | A 6764920040 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 90.5 MM | ||
| 010 | A 9704920001 | FRONT EXHAUST PIPE |
| THROTTLE HOUSING,FRONT | ||
| 75 MM; 4X2 | ||
| 020 | A 9704900265 | FLEXIBLE METAL TUBE |
| CONNECTION OF EXHAUST PIPES WITH EACH OTHER | ||
| 75 MM | ||
| 026 | N 308676010016 | SCREW |
| 032 | N 912004010102 | SPRING LOCK WASHER |
| 038 | N 304032010002 | HEXAGON NUT |
| 070 | A 3754920001 | FRONT EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 75 MM | ||
| 070 | A 3754920501 | FRONT EXHAUST PIPE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 75 MM | ||
| 070 | A 3754904319 | EXHAUST GAS LINE |
| IN FRONT OF EXHAUST MUFFLER | ||
| 080 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 75 MM | ||
| 080 | A 6209970590 | CLAMP |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 90 MM | ||
| 090 | N 910105008010 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 8X40 | ||
| 090 | N 910143008005 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 8X40 | ||
| 090 | N 910105010011 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 10X40 | ||
| 090 | N 910105010001 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10X30 | ||
| 090 | N 910105010007 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10 X 35 | ||
| 090 | N 910105008046 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8 X 110 | ||
| 100 | N 913023010002 | NUT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10 | ||
| 100 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8 | ||
| 100 | N 913023008003 | NUT |
| CLAMP TO BRACKET | ||
| M8 | ||
| 100 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8 | ||
| 110 | A 9704920441 | BRACKET |
| EXHAUST PIPE TO BELL HOUSING | ||
| 115 | A 9704920741 | BRACKET |
| EXHAUST PIPE TO BELL HOUSING | ||
| 115 | A 9704920941 | BRACKET |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 115 | A 9704920941 | BRACKET |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 130 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 130 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 130 | A 6734920140 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 140 | N 910105008026 | SCREW |
| BRACKET TO TIMING CASE | ||
| M8 X 20 | ||
| 140 | N 910105008039 | SCREW |
| BRACKET TO TIMING CASE | ||
| M8 X 25 | ||
| 140 | N 304017008034 | SCREW |
| BRACKET TO TIMING CASE | ||
| M 8X25 | ||
| 150 | N 910105008024 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 8X110 | ||
| 150 | N 910105008015 | SCREW |
| CLAMP TO BRACKET | ||
| M 8X130 | ||
| 155 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 157 | A 3754920641 | BRACKET |
| EXHAUST PIPE | ||
| 157 | A 3754923841 | BRACKET |
| EXHAUST PIPE | ||
| 158 | N 910105012020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 158 | N 910105012015 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X1.5X45 | ||
| 159 | N 913023012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 159 | N 913023012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 160 | A 6684920340 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 75 MM | ||
| 160 | A 0009956202 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| D = 91,8 MM | ||
| 160 | A 0009956202 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| D = 91,8 MM | ||
| 170 | N 910105008046 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8X110 | ||
| 170 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO BRACKET | ||
| M10X35 | ||
| 180 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 180 | N 913023010002 | NUT |
| EXHAUST PIPE TO BRACKET | ||

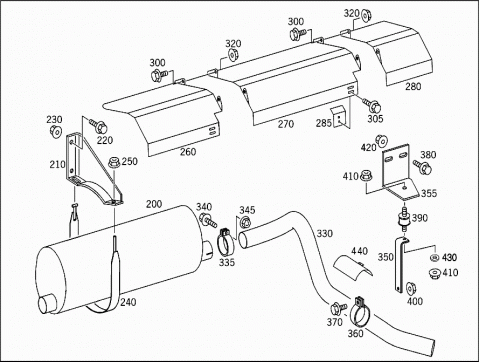

| 200 | A 3754900001 | EXHAUST MUFFLER |
| 75 MM | ||
| 210 | A 3754900040 | BRACKET |
| EXHAUST MUFFLER TO SIDE MEMBER | ||
| 220 | N 910105012007 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 230 | N 913023012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 240 | A 3754900042 | STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 250 | N 913023010002 | NUT |
| STRAP TO BRACKET | ||
| 260 | A 3754920030 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 260 | A 3754920030 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 270 | A 3754920130 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 270 | A 3754920130 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 280 | A 3754920230 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 285 | A 3754900130 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| 290 | A 3754920330 | PROTECTIVE PLATE |
| (HEAT SHIELD) EXHAUST PIPE | ||
| 295 | A 3754900041 | CLAMP |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| 300 | N 910105005002 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 5X16 | ||
| 300 | N 910105005003 | SCREW |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M 5X20 | ||
| 305 | N 910105006002 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| M6X12 | ||
| 310 | N 910105008041 | SCREW |
| Repalced by: N 910143008000 | ||
| 310 | N 910143008000 | SCREW |
| HEAT SHIELD TO PIPE CLAMP | ||
| M 8X16 | ||
| 315 | N 910105010046 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X30 | ||
| 320 | N 913023005002 | NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 325 | N 913023010003 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 330 | A 3754920104 | REAR EXHAUST PIPE |
| 75 MM | ||
| 330 | A 3754920004 | REAR EXHAUST PIPE |
| 75 MM | ||
| 330 | A 3754920404 | REAR EXHAUST PIPE |
| 75 MM | ||
| 335 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 75 MM | ||
| 335 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 75 MM | ||
| 340 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M10X30 | ||
| 340 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M10X30 | ||
| 345 | N 913023010002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 345 | N 913023010002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 350 | A 3754900140 | BRACKET |
| TAIL PIPE TO BRACKET | ||
| 350 | A 3754920541 | BRACKET |
| TAIL PIPE TO BRACKET | ||
| 355 | A 3754920041 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 360 | N 071555075502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 370 | N 910105010001 | HEXAGON HEAD BOLT |
| TAIL PIPE TO BRACKET | ||
| M10X30 | ||
| 380 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M10X30 | ||
| 390 | A 3714927087 | BUFFER |
| BRACKET TO TAIL PIPE BRACKET | ||
| 400 | N 913023010002 | NUT |
| TAIL PIPE TO BRACKET | ||
| 410 | N 913023010002 | NUT |
| BRACKET TO TAIL PIPE BRACKET | ||
| 420 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 430 | N 000125010538 | WASHER |
| BRACKET TO TAIL PIPE BRACKET | ||
| 440 | A 3834901030 | PROTECTIVE PLATE |
| REAR EXHAUST PIPE | ||

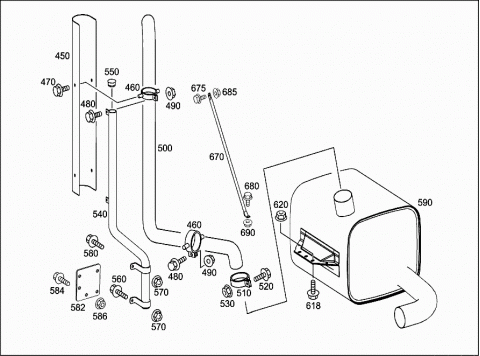

| 450 | A 9704920030 | PROTECTIVE PLATE |
| VERTICAL; TOP | ||
| 460 | N 071555075502 | CLAMP |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| 460 | A 9704900141 | CLAMP |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| 460 | A 9704900041 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 90.5 MM | ||
| 460 | A 9709950102 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 470 | N 910105008013 | SCREW |
| Repalced by: N 910143008020 | ||
| 470 | N 910143008020 | SCREW |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| M8X12 | ||
| 480 | N 000000000428 | HEXAGON HEAD BOLT |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| M10X35 | ||
| 480 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO SUPPORT | ||
| M10X35 | ||
| 480 | N 910143010000 | HEXALOBULAR BOLT |
| EXHAUST PIPE TO SUPPORT | ||
| M 10X45 | ||
| 490 | N 913023010002 | NUT |
| HEAT PROTECTION PLATE ON EXHAUST PIPE | ||
| 490 | N 913023010002 | NUT |
| EXHAUST PIPE TO SUPPORT | ||
| 500 | A 9704920204 | REAR EXHAUST PIPE |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 75 MM | ||
| 500 | A 9734920404 | REAR EXHAUST PIPE |
| VERTICAL TAIL PIPE BEHIND CAB | ||
| 90 MM | ||
| 510 | A 6734920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 75 MM | ||
| 510 | A 9709950002 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 94.5 MM | ||
| 520 | N 910105008024 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X110 | ||
| 520 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M10X40 | ||
| 530 | N 913023008002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 530 | N 913023010002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 540 | A 9704900034 | SUPPORT |
| TAIL PIPE BRACING | ||
| 540 | A 9704900334 | SUPPORT |
| TAIL PIPE BRACING | ||
| 540 | A 9704900740 | BRACKET |
| TAIL PIPE BRACING | ||
| 550 | N 915042044001 | STOP PLUG |
| TO PLUG THE HOLES | ||
| 550 | N 915042044001 | STOP PLUG |
| TO PLUG THE HOLES | ||
| 560 | N 910105012020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X35 | ||
| 570 | N 913023012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 580 | N 910105012024 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 580 | N 910105012024 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 580 | N 910105012007 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M 12X1,5X30 | ||
| 582 | A 3754110751 | PLATE |
| SUPPORT TO SIDE MEMBER | ||
| 584 | N 910105012020 | HEXAGON HEAD BOLT |
| MOUNTING PLATE TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 586 | N 913023012002 | NUT |
| MOUNTING PLATE TO SIDE MEMBER | ||
| 586 | N 913023012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 590 | A 9704900101 | EXHAUST MUFFLER |
| 75 MM | ||

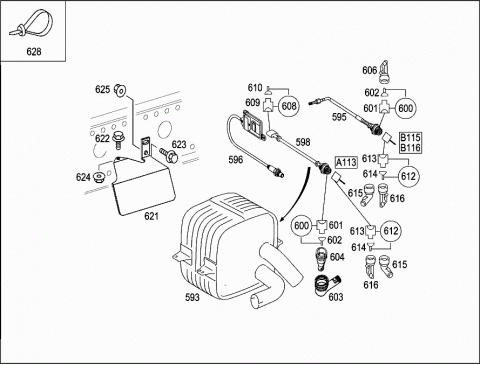

| 593 | A 0014901414 | CATALYST |
| 95L | ||
| Repalced by: A 0024901414 | ||
| 593 | A 0024901414 | CATALYST |
| 95L | ||
| 593 | A 0024901414 | CATALYST |
| 95L | ||
| 593 | A 0024903414 | CATALYST |
| 125L; EURO 5 | ||
| 593 | A 0014901514 | CATALYST |
| 125 L | ||
| 593 | A 0024901514 | CATALYST |
| 125 L | ||
| 593 | A 0024903514 | CATALYST |
| 125 L | ||
| 595 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| "T1, T2" | ||
| 595 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| "T1, T2" | ||
| 595 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| "T1, T2" | ||
| 595 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,CATALYTIC CONVERTER | ||
| "T1,T2" | ||
| 596 | A 0061537328 | SENDER UNIT |
| SENSOR | ||
| NOX | ||
| 596 | A 0061537328 | SENDER UNIT |
| SENSOR | ||
| NOX | ||
| 596 | A 0061537328 | SENDER UNIT |
| SENSOR | ||
| NOX | ||
| 596 | A 0061537328 | CONTROL UNIT |
| SENSOR | ||
| "NOX" | ||
| 598 | A 0001507633 | ELECTRIC CABLE |
| ADAPTER | ||
| NOX | ||
| Repalced by: A 0001507733 | ||
| 598 | A 0001507733 | ELECTRIC CABLE |
| ADAPTER | ||
| NOX | ||
| 598 | A 0001507133 | ELECTRIC CABLE |
| ADAPTER | ||
| NOX | ||
| 598 | A 0001507133 | ELECTRIC CABLE |
| ADAPTER | ||
| NOX | ||
| 598 | A 0001507133 | ELECTRIC CABLE |
| LINE EXTENSION | ||
| "NOX" | ||
| 600 | A 0025402781 | PARTS KIT |
| A113, B115, B116, 4PIN | ||
| 601 | A 0295459528 | PLUG HOUSING |
| 602 | A 0355454828 | CONTACT PIN |
| 0.5 - 1.0 MM2 | ||
| 602 | A 0295456528 | CONTACT PIN |
| 1.0 - 1.5 MM2 | ||
| 602 | A 0005457280 | WIRE SEAL |
| GREY | ||
| 0.5 - 1.0 MM2 | ||
| 602 | A 0005457380 | CORE BUNDLE SEALING |
| YELLOW COLOURED | ||
| 1.0-2.5 MM2 | ||
| 602 | A 0005456280 | BLIND PLUG |
| NATURAL-COLORED | ||
| 602 | A 0005460522 | CLAMPING RING |
| 603 | A 0001530182 | PLUG CAP |
| 90 DEGREE BRACKET | ||
| A113 | ||
| 604 | A 0001530282 | PLUG CAP |
| 180 DEGREE BRACKET | ||
| A113 | ||
| 606 | A 0015460035 | BOOT |
| 180 DEGREE OUTLET WITH VARIABLE CLAMPING | ||
| B115, B116 | ||
| 606 | A 0015460135 | BOOT |
| 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 | ||
| B115, B116 | ||
| 608 | A 0075408581 | PARTS KIT |
| A113, 5PIN | ||
| 609 | A 0225452926 | PLUG SOCKET |
| 5PIN | ||
| 610 | A 0009823026 | CONTAKT SOCKET |
| 610 | A 0015455080 | GASKET |
| YELLOW | ||
| 610 | A 0015455980 | BLIND PLUG |
| ORANGE | ||
| 610 | A 0005401366 | SOCKET |
| 612 | A 0025402381 | PARTS KIT |
| TEMPERATURE SENSOR,CATALYTIC CONVERTER | ||
| B115, B116, 4PIN | ||
| 612 | A 0025402381 | PARTS KIT |
| NOX SENSOR DOWNSTREAM OF TWC | ||
| A113, 4PIN | ||
| 613 | A 0155456526 | SOCKET HOUSING |
| 4-POLE | ||
| 614 | A 0095454726 | ROUND PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 0.5-1.0 MM2 | ||
| 614 | A 0065459126 | CONTAKT SOCKET |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1.0-2.5 MM2 | ||
| 614 | A 0005457280 | WIRE SEAL |
| GREY | ||
| 0.5-1.0 MM2 | ||
| 614 | A 0005457380 | CORE BUNDLE SEALING |
| YELLOW COLOURED | ||
| 1.0-2.5 MM2 | ||
| 614 | A 0005456280 | BLIND PLUG |
| NATURAL-COLORED | ||
| 615 | A 0005467735 | BOOT |
| 90 DEGREE OUTLET WITH VARIABLE CLAMPING | ||
| 615 | A 0005469535 | BOOT |
| 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 | ||
| GGVS | ||
| 616 | A 0015460135 | BOOT |
| LONG | ||
| 616 | A 0015460035 | BOOT |
| SHORT | ||
| 618 | N 910105008005 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO CONSOLE | ||
| M 8X25 | ||
| 618 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO CONSOLE | ||
| M10X30 | ||
| 618 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO CONSOLE | ||
| M10X30 | ||
| 618 | N 910143010012 | HEXALOBULAR BOLT |
| EXHAUST MUFFLER TO CONSOLE | ||
| M 10X30 | ||
| 618 | N 910143010012 | HEXALOBULAR BOLT |
| EXHAUST MUFFLER TO CONSOLE | ||
| M 10X30 | ||
| 620 | N 913023008002 | NUT |
| EXHAUST MUFFLER TO CONSOLE | ||
| 620 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO CONSOLE | ||
| 620 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO CONSOLE | ||
| 620 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO CONSOLE | ||
| 620 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO CONSOLE | ||
| 621 | A 9704920830 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| GGVS | ||
| 621 | A 9704920830 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| GGVS | ||
| 621 | A 9704920830 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| GGVS | ||
| 621 | A 9704920830 | PROTECTIVE PLATE |
| (HEAT SHIELD),EXHAUST MUFFLER | ||
| WSB GGVS | ||
| 622 | N 910105010009 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO SUPPORT | ||
| M 10X25 | ||
| 622 | N 910105010009 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO SUPPORT | ||
| M 10X25 | ||
| 623 | N 910105012013 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 12X25 | ||
| 623 | N 910105012013 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 12X25 | ||
| 623 | N 910105012013 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 12X25 | ||
| 623 | N 910105012020 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M12X1.5X35 | ||
| 624 | N 913023010002 | NUT |
| PROTECTIVE PLATE TO SUPPORT | ||
| 624 | N 913023010002 | NUT |
| PROTECTIVE PLATE TO SUPPORT | ||
| 625 | N 913023012002 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 625 | N 913023012002 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 625 | N 913023012002 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 625 | N 913023012002 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 628 | A 0069971190 | LOOM TIE |
| LINE FOR HYDRAULIC TILTING MECHANISM AT HEAT SHIELD | ||
| 375 X 7.6 MM | ||
| 628 | A 0069971190 | LOOM TIE |
| LINE FOR HYDRAULIC TILTING MECHANISM AT HEAT SHIELD | ||
| 375 X 7.6 MM | ||

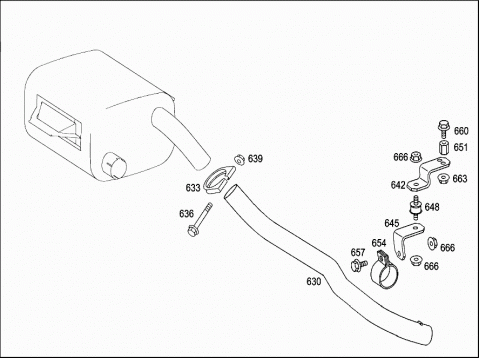

| 630 | A 9734920504 | REAR EXHAUST PIPE |
| SPECIAL VERSION | ||
| 90 MM | ||
| 630 | A 9734920504 | REAR EXHAUST PIPE |
| SPECIAL VERSION | ||
| 90 MM | ||
| 630 | A 9734920504 | REAR EXHAUST PIPE |
| SPECIAL VERSION | ||
| 90 MM | ||
| 633 | A 6744920040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 90 MM | ||
| 633 | A 6744920040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 90 MM | ||
| 633 | A 6744920040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 90 MM | ||
| 636 | N 910105008015 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X130 | ||
| 636 | N 910105008015 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X130 | ||
| 636 | N 910105008015 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X130 | ||
| 639 | N 913023008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 639 | N 913023008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 639 | N 913023008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 642 | A 9704920641 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 642 | A 3754923641 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 642 | A 3754923541 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 642 | A 3754923741 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 645 | A 6744915741 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 645 | A 6744915741 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 645 | A 6744915741 | BRACKET |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 648 | A 3849877140 | RUBBER BUFFER |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 648 | A 3849877140 | RUBBER BUFFER |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 648 | A 3849877140 | RUBBER BUFFER |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 651 | A 3649910040 | SPACER TUBE |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 651 | A 3649910040 | SPACER TUBE |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 654 | N 071555090502 | CLAMP |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 90,5 MM | ||
| 654 | N 071555090502 | CLAMP |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 90,5 MM | ||
| 654 | N 071555090502 | CLAMP |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 90,5 MM | ||
| 657 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| M10X35 | ||
| 657 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| M10X35 | ||
| 657 | N 000000000428 | HEXAGON HEAD BOLT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| M10X35 | ||
| 660 | N 910143008003 | SCREW |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| M 8X30 | ||
| 660 | N 910105010009 | HEXAGON HEAD BOLT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| M10X25 | ||
| 663 | N 913023008003 | NUT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 663 | N 913023008003 | NUT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 663 | N 913023010002 | NUT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 666 | N 913023010002 | NUT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 666 | N 913023010002 | NUT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 666 | N 913023010002 | NUT |
| EXHAUST PIPE REAR ON BATTERY CASE | ||
| 670 | A 9304901595 | REINFORCEMENT |
| EXHAUST PIPE TO FRAME | ||
| 675 | N 910105010011 | HEXAGON HEAD BOLT |
| STRUT TO SUPPORT | ||
| M 10X40 | ||
| 680 | N 910105012020 | HEXAGON HEAD BOLT |
| STRUT TO SIDE MEMBER | ||
| M 10X35 | ||
| 685 | N 913023010002 | NUT |
| STRUT TO SUPPORT | ||
| 690 | N 913023012002 | NUT |
| STRUT TO SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
