Transporto priemonė: 2124; VIN numerio dalis: 375150
Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|

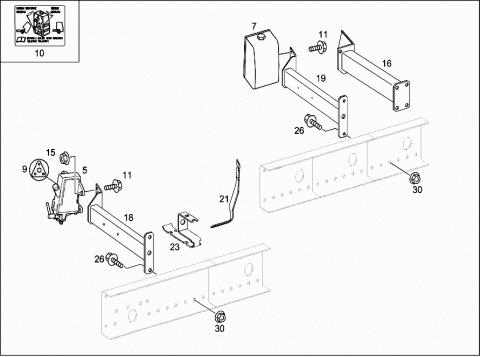

| 005 | A 0015535901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 3755530001 | PUMP |
| (HAND PUMP) | ||
| ERGUN | ||
| 005 | A 9735530401 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 005 | A 9735530401 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 007 | A 9765530101 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 007 | A 9765530101 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 009 | A 0005504483 | GASKET KIT |
| TO 001 553 00 01 | ||
| 009 | A 0005505683 | GASKET KIT |
| HAND PUMP | ||
| 009 | A 0005505683 | GASKET KIT |
| HAND PUMP | ||
| 010 | A 3755840838 | GUMMED LABEL |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 011 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 011 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 011 | N 910105010001 | HEXAGON HEAD BOLT |
| HAND PUMP TO BRACKET | ||
| M10X30 | ||
| 011 | N 910105010040 | SCREW |
| PUMP TO BRACKET | ||
| M 10X16 | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 015 | N 913023010002 | NUT |
| HAND PUMP TO BRACKET | ||
| 016 | A 3755500540 | BRACKET |
| HAND PUMP | ||
| 016 | A 3755500640 | BRACKET |
| HAND PUMP | ||
| 016 | A 3755501740 | BRACKET |
| HAND PUMP | ||
| 018 | A 3755500040 | BRACKET |
| HAND PUMP | ||
| 019 | A 9735500740 | BRACKET |
| HAND PUMP | ||
| 021 | A 9705530040 | BRACKET |
| HAND PUMP | ||
| 021 | A 9705530040 | BRACKET |
| HAND PUMP | ||
| 023 | A 3755530140 | BRACKET |
| HAND PUMP | ||
| 026 | N 910105010009 | SCREW |
| BRACKET TO SUPPORT | ||
| M10 X 25 | ||
| 026 | N 910105010009 | SCREW |
| BRACKET TO SUPPORT | ||
| M10 X 25 | ||
| 026 | N 910105012020 | SCREW |
| BRACKET TO SUPPORT | ||
| M12 X 35 | ||
| 026 | N 910105012020 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| M12 X 35 | ||
| 026 | N 910105012015 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| M12 X 45 | ||
| 026 | N 910105012007 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| M12X1.5X30 | ||
| 030 | N 913023010002 | NUT |
| BRACKET TO SUPPORT | ||
| 030 | N 913023010002 | NUT |
| BRACKET TO SUPPORT | ||
| 030 | N 913023012002 | NUT |
| BRACKET TO SUPPORT | ||
| 030 | N 913023012002 | NUT |
| BRACKET TO SUPPORT | ||
| 030 | N 913023012002 | NUT |
| BRACKET TO SUPPORT | ||

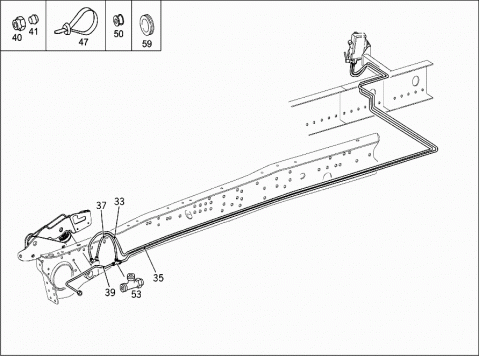

| 033 | A 9705530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 033 | A 9705530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 035 | A 9705530782 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 035 | A 9705531382 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 035 | A 9705531382 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 037 | A 9705530482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 037 | A 9705531482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 037 | A 9705531482 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 037 | A 9705531582 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 037 | A 9705531582 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 039 | A 9705530582 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 039 | A 9705530882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 040 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 041 | A 0019901667 | GLAND |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 047 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 047 | A 0069971590 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 380X7.8MM | ||
| 050 | A 9419900340 | WASHER |
| LINE MOUNTING | ||
| 18 MM / 11.5 MM | ||
| 053 | A 0009903470 | T-FITTING |
| Repalced by: N 000000006204 | ||
| 053 | N 000000006204 | FITTING |
| 053 | A 0009903470 | T-FITTING |
| HIGH PRESSURE HOSE TO INTERLOCK, RIGHT | ||
| Repalced by: N 000000006204 | ||
| 053 | N 000000006204 | FITTING |
| HIGH PRESSURE HOSE TO INTERLOCK, RIGHT | ||
| 059 | A 3189970181 | GROMMET |
| CABLE FEED POINT,SIDE MEMBER | ||

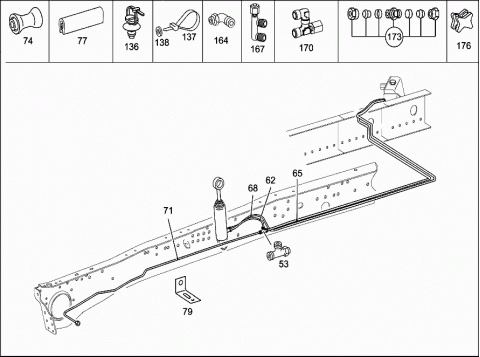

| 062 | A 9705531182 | HOSE |
| BETWEEN T-FITTING AND TILTING CYLINDER (LIFTING) | ||
| 065 | A 9735530582 | HOSE |
| BETWEEN HAND PUMP AND T-FITTING (LIFTING) | ||
| 065 | A 9305530682 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405530482 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405532782 | HOSE |
| HAND PUMP ON LOCK | ||
| 065 | A 9405530282 | HOSE |
| FROM LOCKING MECHANISM ON LOCKING MECHANISM | ||
| 068 | A 9735530682 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 068 | A 9735531282 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| 068 | A 3755530082 | HOSE |
| BETWEEN HAND PUMP AND TILTING CYLINDER (LOWERING) | ||
| L = 4215 MM | ||
| 071 | A 9735530782 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 071 | A 9735530882 | HOSE |
| BETWEEN T-FITTING AND CAB CONNECTION POINT | ||
| 074 | A 3609902340 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 30 MM / 13.5 MM | ||
| 077 | A 9416950589 | EDGE GUARD SECTION |
| CAB SUSPENSION | ||
| 079 | A 3812951940 | BRACKET |
| LINE TO CROSS MEMBER | ||

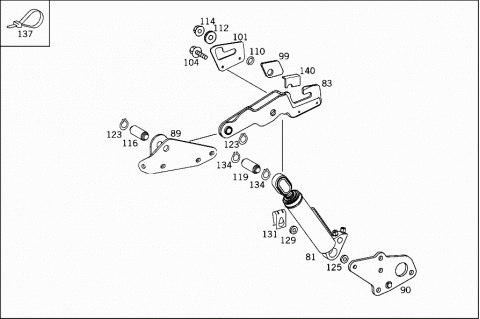

| 081 | A 9735530005 | CYLINDER |
| (HAND PUMP) | ||
| WEBER | ||
| 081 | A 9735530005 | CYLINDER |
| (HAND PUMP) | ||
| WEBER | ||
| 081 | A 3755530005 | CYLINDER |
| (HAND PUMP) | ||
| ERGUN | ||
| 081 | A 3755530005 | CYLINDER |
| (HAND PUMP) | ||
| ERGUN | ||
| 083 | A 9735500338 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 083 | A 9735500338 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 089 | A 9735501138 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 090 | A 9735501638 | SUPPORT |
| HYDRAULIC CYLINDER | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 099 | A 9735530241 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 101 | A 9735530341 | PLATE |
| SUPPORT ON CAB BOLT | ||
| 104 | N 910105008011 | SCREW |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 104 | N 910105008011 | SCREW |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 104 | N 910105008011 | HEXAGON HEAD BOLT |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 104 | N 910105008011 | HEXAGON HEAD BOLT |
| PLATE TO SUPPORT | ||
| 8X20 | ||
| 110 | A 0059974145 | SEAL RING |
| SUPPORT ON CAB BOLT | ||
| 110 | A 0059974145 | SEAL RING |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9735530376 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9735530376 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9734010001 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9734010001 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 112 | A 9734010001 | WASHER |
| SUPPORT ON CAB BOLT | ||
| 114 | N 913023010004 | NUT |
| SUPPORT ON CAB BOLT | ||
| M 10X1 | ||
| 114 | N 913023010004 | NUT |
| SUPPORT ON CAB BOLT | ||
| M 10X1 | ||
| 114 | N 913023010004 | NUT |
| SUPPORT ON CAB BOLT | ||
| M 10X1 | ||
| 114 | N 913023010004 | NUT |
| SUPPORT ON CAB BOLT | ||
| M 10X1 | ||
| 114 | N 913023012002 | NUT |
| SUPPORT ON CAB BOLT | ||
| 114 | N 913023012002 | NUT |
| SUPPORT ON CAB BOLT | ||
| 114 | N 913023012002 | NUT |
| SUPPORT ON CAB BOLT | ||
| 116 | A 9735530874 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 116 | A 9735530874 | PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 119 | A 9735530374 | PIN |
| HYDRAULIC CYLINDER SUPPORT | ||
| 119 | A 9735530374 | PIN |
| HYDRAULIC CYLINDER SUPPORT | ||
| 123 | N 000471025002 | LOCK RING |
| PIN TO BRACKET | ||
| 123 | N 000471025002 | LOCK RING |
| PIN TO BRACKET | ||
| 125 | A 0059974145 | SEAL RING |
| PIN TO BRACKET | ||
| 125 | A 0059974145 | SEAL RING |
| PIN TO BRACKET | ||
| 125 | A 0059974145 | SEAL RING |
| PIN TO BRACKET | ||
| 129 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 03 74 | ||
| 129 | N 000125021006 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 03 74 | ||
| 131 | N 000000003588 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 03 74 | ||
| 131 | N 000000003588 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 03 74 | ||
| 134 | N 912001024001 | LOCK |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 08 74 | ||
| 134 | N 912001024001 | LOCK |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| TO 973 553 08 74 | ||
| 136 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 136 | A 0059976290 | CABLE STRAP |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 260X3.3MM | ||
| 137 | A 3719977090 | LOOM TIE |
| 137 | A 0029972490 | CABLE TIE |
| LINE MOUNTING | ||
| 310X5MM | ||
| 137 | A 0029972490 | CABLE TIE |
| LINE MOUNTING | ||
| 310X5MM | ||
| 137 | A 0019978490 | CABLE TIE |
| HIGH PRESSURE HOSE TO BRACKET AND TO FRAME | ||
| 376 X 7.6 MM | ||
| 137 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 137 | A 0069971190 | LOOM TIE |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 375 X 7.6 MM | ||
| 137 | A 0029975890 | CABLE TIE |
| CABLE HARNESS MOUNTING | ||
| 375X8.4MM | ||
| 138 | A 3609902340 | WASHER |
| HIGH PRESSURE HOSE TO SIDE MEMBER | ||
| 10 MM | ||
| 140 | A 9735531195 | WEB |
| MOSS TYPE RUBBER | ||
| 140 | A 9735531195 | WEB |
| MOSS TYPE RUBBER | ||
| 140 | A 9735531195 | WEB |
| MOSS TYPE RUBBER | ||

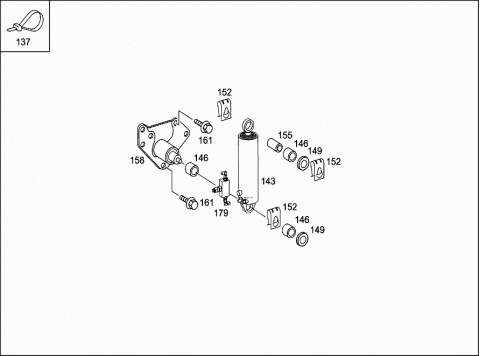

| 143 | A 9765530005 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 146 | A 9735530350 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 149 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 149 | N 009021017201 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 152 | N 000000003588 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 152 | N 912007016001 | CLIP |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 155 | A 9735530974 | PIN |
| HYDRAULIC CYLINDER SUPPORT | ||
| 158 | A 9735530738 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 161 | N 910105012013 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X1,5X25 | ||
| 164 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 164 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| Repalced by: N 000000006197 | ||
| 164 | N 000000006197 | FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 164 | N 003952006102 | FITTING |
| HIGH PRESSURE HOSE TO POWER CYLINDER | ||
| 164 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 167 | A 9309970171 | DOUBLE FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 170 | A 0029973171 | HOLLOW SCREW FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 170 | A 0029973171 | HOLLOW SCREW FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 173 | A 0039979172 | FITTING |
| HIGH PRESSURE HOSE TO LOCK,LEFT | ||
| 176 | A 9414290152 | SPACER WASHER |
| 179 | A 9765530107 | PRESSURE LIMITING VALVE |
| PRE-TENSION VALVE AT TELESCOPIC CYLINDER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
