Transporto priemonė: 2219/6X2; VIN numerio dalis: 385328

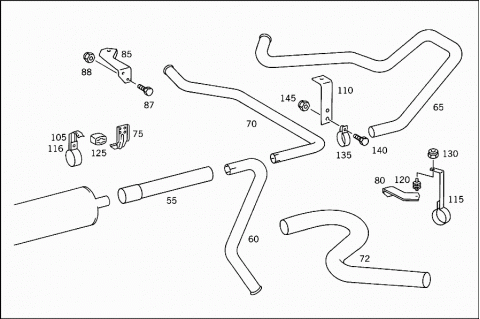

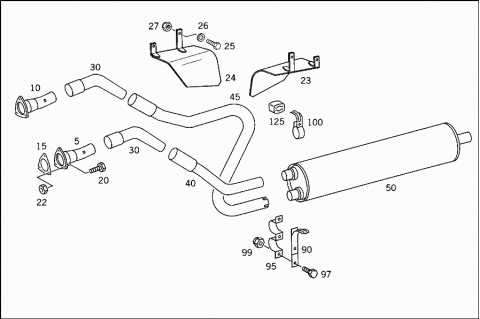

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3854900019 | EXHAUST PIPE |
| FRONT LEFT | ||
| 010 | A 3854900119 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 015 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 015 | A 4424920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 022 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | A 3834900830 | PROTECTIVE PLATE |
| LEFT | ||
| 024 | A 3834900930 | PROTECTIVE PLATE |
| RIGHT | ||
| 025 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 025 | N 304017008027 | SCREW |
| PROTECTIVE PLATE | ||
| 026 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 026 | N 000125008443 | WASHER |
| PROTECTIVE PLATE | ||
| 027 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 027 | N 913004008001 | NUT |
| PROTECTIVE PLATE | ||
| 030 | A 3834920007 | CONNECTOR |
| FRONT LEFT AND RIGHT | ||
| A 3834920107 | CONNECTOR | |
| Repalced by: A 3834920007 | ||
| 040 | A 3834920601 | FRONT EXHAUST PIPE |
| FRONT LEFT | ||
| 045 | A 3834922201 | FRONT EXHAUST PIPE |
| FRONT RIGHT | ||
| 050 | A 3834900301 | EXHAUST MUFFLER |
| 055 | A 3604921807 | CONNECTOR |
| Repalced by: A 3604921907 | ||
| 055 | A 3604921907 | CONNECTOR |
| REAR | ||
| 060 | A 3814920504 | REAR EXHAUST PIPE |
| Repalced by: A 3814926304 | ||
| 060 | A 3814926304 | REAR EXHAUST PIPE |
| 065 | A 3854920804 | REAR EXHAUST PIPE |
| 070 | A 3814920304 | REAR EXHAUST PIPE |
| Repalced by: A 3814926804 | ||
| 070 | A 3814926804 | REAR EXHAUST PIPE |
| 070 | A 3814924404 | REAR EXHAUST PIPE |
| Repalced by: A 3814927004 | ||
| 070 | A 3814927004 | REAR EXHAUST PIPE |
| A 3814924304 | REAR EXHAUST PIPE | |
| Repalced by: A 3814926504 | ||
| 072 | A 3814926504 | REAR EXHAUST PIPE |
| 075 | A 3814910416 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 075 | A 3814910416 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 080 | A 3814910516 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 085 | A 3814910616 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 085 | A 3814910616 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 087 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 087 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 087 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 087 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 088 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 088 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 090 | A 3834900040 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 095 | A 3834920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 097 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 097 | N 304017008034 | SCREW |
| CLAMP TO BRACKET | ||
| 099 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 099 | N 913004008001 | NUT |
| CLAMP TO BRACKET | ||
| 100 | A 3814921941 | BRACKET |
| EXHAUST PIPE | ||
| 105 | A 3834921341 | BRACKET |
| EXHAUST PIPE | ||
| 110 | A 3814922641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 110 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 115 | A 3834922141 | BRACKET |
| Repalced by: A 3834927941 | ||
| 115 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 116 | A 3834921941 | BRACKET |
| EXHAUST PIPE | ||
| 116 | A 3834921941 | BRACKET |
| EXHAUST PIPE | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 135 | N 071555065501 | CLAMP |
| 65.5 MM | ||
| 140 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 140 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 8X25 MM | ||
| 140 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 10X28 MM | ||
| 145 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 145 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 145 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 145 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
