Transporto priemonė: 2219/6X2; VIN numerio dalis: 385328

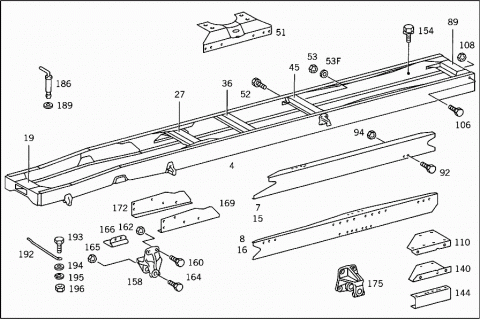

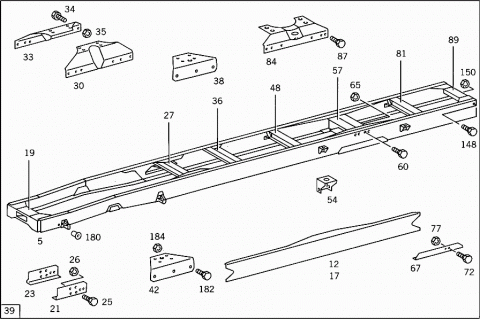

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3853105501 | FRAME |
| 004 | A 3853105401 | FRAME |
| 004 | A 3853101601 | FRAME |
| 004 | A 3853101701 | FRAME |
| 004 | A 3853105002 | FRAME |
| 004 | A 3853105201 | FRAME |
| 005 | A 3853105301 | FRAME |
| 005 | A 3853101801 | FRAME |
| 005 | A 3853103001 | FRAME |
| 005 | A 3853103401 | FRAME |
| 007 | A 3853113560 | REINFORCEMENT |
| LEFT | ||
| 007 | A 3853112960 | REINFORCEMENT |
| LEFT | ||
| 007 | A 3853113360 | REINFORCEMENT |
| LEFT | ||
| 008 | A 3853110160 | REINFORCEMENT |
| Repalced by: A 3853115360 | ||
| 008 | A 3853115360 | REINFORCEMENT |
| LEFT | ||
| 012 | A 3853110160 | REINFORCEMENT |
| Repalced by: A 3853115560 | ||
| 012 | A 3853115560 | REINFORCEMENT |
| LEFT | ||
| 012 | A 3853110360 | REINFORCEMENT |
| Repalced by: A 3853114360 | ||
| 012 | A 3853114360 | REINFORCEMENT |
| LEFT | ||
| 015 | A 3853113860 | REINFORCEMENT |
| RIGHT | ||
| 015 | A 3853113060 | REINFORCEMENT |
| RIGHT | ||
| 015 | A 3853113660 | REINFORCEMENT |
| RIGHT | ||
| 016 | A 3853110260 | REINFORCEMENT |
| Repalced by: A 3853115460 | ||
| 016 | A 3853115460 | REINFORCEMENT |
| RIGHT | ||
| 017 | A 3853110260 | REINFORCEMENT |
| Repalced by: A 3853115660 | ||
| 017 | A 3853115660 | REINFORCEMENT |
| RIGHT | ||
| 017 | A 3853110460 | REINFORCEMENT |
| Repalced by: A 3853114460 | ||
| 017 | A 3853114460 | REINFORCEMENT |
| RIGHT | ||
| 019 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 021 | A 3853121187 | GUSSET PLATE |
| LEFT | ||
| 021 | A 3853121987 | GUSSET PLATE |
| Repalced by: A 3853122187 | ||
| 021 | A 3853122187 | GUSSET PLATE |
| LEFT | ||
| 023 | A 3853121287 | GUSSET PLATE |
| RIGHT | ||
| 023 | A 3853122087 | GUSSET PLATE |
| Repalced by: A 3853122287 | ||
| 023 | A 3853122287 | GUSSET PLATE |
| RIGHT | ||
| 025 | N 000961012106 | SCREW |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| 026 | N 910113012002 | NUT |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| A 3813100036 | CROSS MEMBER | |
| Repalced by: A 3853100436 | ||
| A 3853100436 | CROSS MEMBER | |
| Repalced by: A 3813120015 | ||
| 027 | A 3813120015 | CROSS MEMBER |
| NO.2 | ||
| A 3853120152 | ANGLE | |
| LEFT TOP | ||
| A 3853120252 | ANGLE | |
| RIGHT TOP | ||
| 030 | A 3813120252 | ANGLE |
| BOTTOM LEFT | ||
| 033 | A 3813120352 | ANGLE |
| BOTTOM RIGHT | ||
| 034 | N 000933010128 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 034 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 034 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 034 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 035 | N 910113010000 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 035 | N 910113012002 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 035 | N 910113012002 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 036 | A 3853100036 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.3 | ||
| 036 | A 3813100136 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.3 | ||
| 036 | A 3813100136 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 038 | A 3523120452 | ANGLE |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 039 | A 3523120552 | ANGLE |
| TOP | ||
| 042 | A 3523120052 | ANGLE |
| BOTTOM | ||
| 045 | A 3813120017 | CROSS MEMBER |
| NO.3 | ||
| 045 | A 3813120017 | CROSS MEMBER |
| NO.4 | ||
| 045 | A 3813120017 | CROSS MEMBER |
| NO.5 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SHOCK ABSORBER CROSS MEMBER, SEE GROUP 32 | ||
| 048 | A 3853120017 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.7 | ||
| 048 | A 3853120017 | CROSS MEMBER |
| REAR SPRING BRACKET | ||
| NO.6 | ||
| 048 | A 3523120217 | CROSS MEMBER |
| NO.3 | ||
| 048 | A 3523120217 | CROSS MEMBER |
| NO.4 | ||
| 051 | A 3833120360 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 051 | A 3523122360 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 052 | A 3859900114 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 053 | N 913004010011 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 053F | A 3609901640 | WASHER |
| Repalced by: A 4239900040 | ||
| 053F | A 4239900040 | WASHER |
| Repalced by: N 007349010003 | ||
| 053F | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 053F | N 007349010007 | WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 054 | A 3433250034 | BEARING BRACKET |
| Repalced by: A 3433200078 | ||
| 054 | A 3433200078 | CONSOLE |
| RETAINING ROPE TO FRAME | ||
| 057 | A 3853100337 | CROSS MEMBER |
| NO.4 | ||
| 057 | A 3853100337 | CROSS MEMBER |
| NO.5 | ||
| 060 | A 3589900414 | SCREW |
| Repalced by: A 3859901314 | ||
| 060 | A 3859901314 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 065 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 065 | N 910113014000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 065 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 065 | N 910113016001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 067 | A 3853100069 | CONNECTION |
| REINFORCEMENT TO CROSS MEMBER | ||
| 072 | N 000960018109 | SCREW |
| REINFORCEMENT TO CROSS MEMBER | ||
| 072 | A 3859900314 | SCREW |
| REINFORCEMENT TO CROSS MEMBER | ||
| 077 | N 913004018004 | NUT |
| REINFORCEMENT TO CROSS MEMBER | ||
| 077 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 077 | N 910113014000 | NUT |
| REINFORCEMENT TO CROSS MEMBER | ||
| 081 | A 3523120217 | CROSS MEMBER |
| NO.5 | ||
| 081 | A 3523120217 | CROSS MEMBER |
| NO.6 | ||
| 084 | A 3523122360 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 087 | N 000961012151 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| 089 | A 3853120235 | CROSS MEMBER |
| REAR | ||
| 089 | A 3853120235 | CROSS MEMBER |
| Repalced by: A 3833100246 | ||
| 089 | A 3833100246 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 089 | A 3833100246 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 092 | N 000961014028 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO SIDE MEMBER | ||
| 092 | N 000961014028 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO SIDE MEMBER | ||
| 094 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 094 | N 910113014001 | NUT |
| REINFORCEMENT TO GUSSET PLATE AND TO SIDE MEMBER | ||
| 094 | N 910113014001 | NUT |
| REINFORCEMENT TO GUSSET PLATE AND TO SIDE MEMBER | ||
| 106 | N 000961012151 | SCREW |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X30 | ||
| 106 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 106 | N 308676012012 | SCREW |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X25 | ||
| 108 | N 910113012002 | NUT |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 110 | A 3213120087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 110 | A 3213120087 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 140 | A 3213120187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 140 | A 3213120187 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 144 | A 3853120460 | REINFORCEMENT |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 148 | N 000961012122 | SCREW |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X40 | ||
| 148 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 148 | N 308676012026 | SCREW |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X35 | ||
| 148 | N 000961014028 | SCREW |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 150 | N 910113012002 | NUT |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 150 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 150 | N 910113014001 | NUT |
| GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 154 | N 007985005174 | SCREW |
| JUNCTION BOX TO FRAME | ||
| 158 | A 3523220201 | FRONT SPRING BRACKET |
| Repalced by: A 3833220101 | ||
| 158 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 160 | A 3589900414 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 160 | A 3589900714 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 162 | N 000934014020 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 164 | N 000609016010 | FITTED SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 165 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 165 | N 910113016002 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 166 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 169 | A 3833110253 | ANGLE |
| RIGHT REINFORCEMENT | ||
| 172 | A 3833110353 | ANGLE |
| RIGHT REINFORCEMENT | ||
| 175 | A 3523250101 | REAR SPRING BRACKET |
| FRONT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900814 | SCREW | |
| Repalced by: A 3229903101 | ||
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| Repalced by: N 308676016020 | ||
| N 308676016020 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| Repalced by: A 3959900501 | ||
| A 3959900501 | SCREW | |
| M 16X16X20X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 180 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 180 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 180 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 180 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 180 | N 910005010027 | RIVET |
| 10X40 MM | ||
| 180 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 180 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 180 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 180 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 180 | N 910005014057 | RIVET |
| 14X48 MM | ||
| 180 | N 910005014059 | RIVET |
| 14X50 MM | ||
| 182 | N 000961014100 | SCREW |
| REINFORCEMENT ANGLE AND GUSSET PLATE TO FRAME | ||
| 184 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 184 | N 910113014001 | NUT |
| REINFORCEMENT ANGLE AND GUSSET PLATE TO FRAME | ||
| 186 | A 3873150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 186 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 189 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 192 | A 3353150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 193 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 193 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 194 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 194 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 195 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 196 | N 304032008006 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 220 | A 3878910531 | CONSOLE |
| Repalced by: A 3878912631 | ||
| 220 | A 3878912631 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 220 | A 3878912631 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 220 | A 3878912631 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 220 | A 3878912631 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 222 | A 3878911431 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 225 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 225 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 228 | A 3873100153 | STRUT |
| BUMPER,LEFT | ||
| 228 | A 3873100253 | STRUT |
| BUMPER,RIGHT | ||
| 230 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 230 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 230 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 233 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 233 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 233 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 233 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 233 | N 308676016013 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 233 | N 000961018018 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| CONSOLE AND STRUT TO FRAME | ||
| N 913004018004 | NUT | |
| CONSOLE AND STRUT TO FRAME | ||
| 234 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 234 | N 000125015019 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 235 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 235 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 235 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||

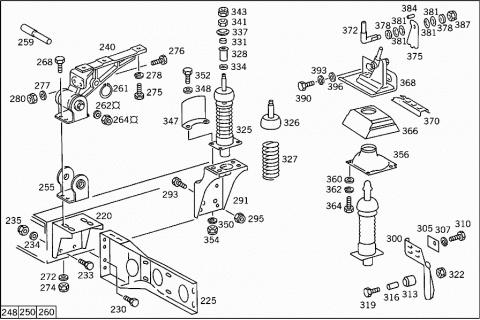

| 240 | A 3813106409 | BRACKET |
| CAB SUSPENSION,FRONT LEFT | ||
| 240 | A 3813106509 | BRACKET |
| CAB SUSPENSION,FRONT LEFT | ||
| 240 | A 3813106609 | BRACKET |
| CAB SUSPENSION,FRONT RIGHT | ||
| 248 | A 3813171512 | RUBBER BUFFER |
| 250 | A 3813171412 | RUBBER BUFFER |
| 255 | A 3878902903 | MOUNTING |
| 259 | A 3813172274 | PIN |
| 260 | A 3813172174 | PIN |
| 261 | N 000471018001 | LOCK RING |
| 262 | N 007349017002 | WASHER |
| 264 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 264 | N 910113016002 | NUT |

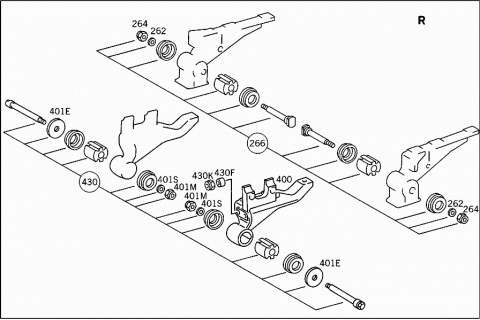

| 266 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 268 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 268 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 268 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 268 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 272 | N 007349015003 | WASHER |
| BRACKET TO CONSOLE | ||
| 272 | A 3209901840 | WASHER |
| BRACKET TO CONSOLE | ||
| 274 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 274 | N 910113014000 | NUT |
| CAB TO FRAME | ||
| 275 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 276 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X50 | ||
| 277 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 278 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 280 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 280 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 291 | A 3813100263 | CONSOLE |
| Repalced by: A 3813170601 | ||
| 291 | A 3813170601 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 293 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 293 | N 308676014020 | SCREW |
| CAB CONSOLE TO SIDE MEMBER | ||
| 295 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 295 | N 910113014001 | NUT |
| CAB CONSOLE TO SIDE MEMBER | ||
| 300 | A 3813171526 | GUIDE |
| LEFT | ||
| 300 | A 3813171626 | GUIDE |
| RIGHT | ||
| 305 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 307 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 310 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 313 | A 3813170750 | BUSHING |
| CAB,REAR | ||
| 316 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 319 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 322 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 325 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 325 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 325 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 326 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19 | ||
| 326 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19 | ||
| 327 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 327 | A 0008910451 | SPRING |
| 328 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 331 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER TO CONSOLE | ||
| 334 | N 000433015005 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 337 | A 3878912010 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 341 | N 000934012022 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 343 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 343 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 347 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER TO CAB | ||
| 348 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 348 | N 009021008213 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 350 | N 912004008102 | LOCK WASHER |
| SHOCK ABSORBER TO CAB | ||
| 352 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 352 | N 304017008021 | SCREW |
| SHOCK ABSORBER TO CAB | ||
| 354 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 354 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 356 | A 3813176140 | BRACKET |
| Repalced by: A 3813177840 | ||
| 356 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 356 | A 3813176240 | BRACKET |
| Repalced by: A 3813177940 | ||
| 356 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 360 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 360 | N 000433010510 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 362 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 364 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 366 | A 3813170097 | BOOT |
| CAB SUSPENSION,REAR | ||
| 368 | A 3813101875 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,LEFT | ||
| 368 | A 3813101775 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,RIGHT | ||
| 370 | A 3813170119 | LATCH |
| 372 | A 3813172374 | PIN |
| 375 | A 3813170924 | LEVER |
| 378 | A 3813170676 | WASHER |
| 381 | A 0009935426 | DISC SPRING |
| 384 | N 001481006041 | CLAMPING SLEEVE |
| 387 | N 910113012002 | NUT |
| 390 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 393 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 396 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 396 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||

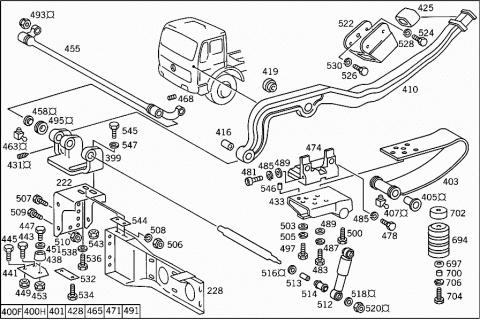

| 399 | A 3878915320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 399 | A 3878916220 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 399 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 399 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 399 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 399 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 399 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 399 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 399 | A 3878915420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 399 | A 3878916320 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 400 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 400 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 400F | A 3813171712 | RUBBER BUFFER |
| Repalced by: A 6205860031 | ||
| 400H | A 3813171412 | RUBBER BUFFER |
| Repalced by: A 6205860031 | ||
| 401 | A 3873170874 | PIN |
| Repalced by: A 6205860031 | ||
| 401E | A 3873170376 | WASHER |
| CAB SUSPENSION | ||
| 401M | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 401M | N 910113016002 | NUT |
| CAB SUSPENSION | ||
| 401S | N 007349017002 | WASHER |
| CAB SUSPENSION | ||
| 403 | A 3878900705 | SPRING |
| Repalced by: A 3878910851 | ||
| 403 | A 3878910851 | SPRING |
| CAB SUSPENSION,FRONT | ||
| 405 | A 3638910617 | BUSHING |
| 407 | N 071412008200 | GREASE NIPPLE |
| 410 | A 3878911656 | LEVER |
| Repalced by: A 3878912756 | ||
| 410 | A 3878912356 | LEVER |
| Repalced by: A 3878912756 | ||
| 410 | A 3878912756 | LEVER |
| CAB SUSPENSION | ||
| 410 | A 3878911756 | LEVER |
| Repalced by: A 3878912856 | ||
| 410 | A 3878912456 | LEVER |
| Repalced by: A 3878912856 | ||
| 410 | A 3878912856 | LEVER |
| CAB SUSPENSION | ||
| 416 | A 3879920003 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| 416 | A 3879920203 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| A 0009817231 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| 419 | A 0019810431 | JOINT BEARING |
| Repalced by: A 6208910017 | ||
| A 0019810531 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| 419 | A 6208910017 | BUSHING |
| CAB TILTING LEVER | ||
| 425 | A 0029943741 | LOCK |
| Repalced by: A 6208910017 | ||
| 425 | A 3638910023 | BUFFER |
| CAB SUSPENSION | ||
| 428 | A 3873170674 | PIN |
| Repalced by: A 3875860131 | ||

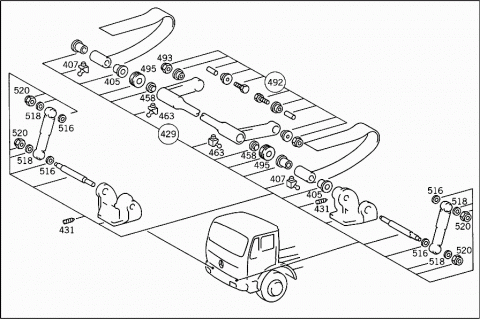

| 429 | A 3875860131 | REPAIR KIT |
| Repalced by: A 3873100077 | ||
| 429 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 430 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 430F | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 430F | N 007349017002 | WASHER |
| PIN TO BEARING | ||
| 430K | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 430K | N 910113016002 | NUT |
| CAB SUSPENSION,FRONT | ||
| 431 | N 000417008004 | HEADLESS SETSCREW |
| CAB SUSPENSION,FRONT | ||
| 433 | A 3878903903 | MOUNTING |
| Repalced by: A 3878905303 | ||
| 433 | A 3878905303 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 433 | A 3878904003 | MOUNTING |
| Repalced by: A 3878905603 | ||
| 433 | A 3878905603 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 438 | A 3878910123 | BUFFER |
| Repalced by: A 3348910072 | ||
| 438 | A 3348910072 | MOUNTING |
| RUBBER MOUNTING | ||
| 441 | A 3878910914 | BRACKET |
| RUBBER MOUNTING | ||
| 443 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 443 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 445 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 447 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 447 | N 304017008034 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 449 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 451 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 451 | N 009021008213 | WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 453 | N 910113008001 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 455 | A 3878900504 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 458 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 458 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 458 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 458 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 458 | A 0019814631 | JOINT BEARING |
| TORSION BAR TO BEARING BRACKET | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR TO BEARING BRACKET | ||
| 463 | N 071412008200 | GREASE NIPPLE |
| STABILIZER | ||
| 465 | A 3878910717 | BUSHING |
| Repalced by: A 3875860531 | ||
| 468 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 471 | A 3878910272 | MOUNTING |
| Repalced by: A 3875860531 | ||
| 474 | A 3878910831 | CONSOLE |
| Repalced by: A 6208910631 | ||
| 474 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 474 | A 3878910931 | CONSOLE |
| Repalced by: A 6208910731 | ||
| 474 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 478 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 478 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 481 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 483 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 483 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 485 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 487 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 489 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 491 | A 3878910957 | PIN |
| Repalced by: A 3875860531 | ||
| 492 | A 3875860531 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 493 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 493 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 495 | A 3878911910 | WASHER |
| BEARING BRACKET TO CAB | ||
| 495 | A 3209901840 | WASHER |
| BEARING BRACKET TO CAB | ||
| 497 | N 000961014028 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 497 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 497 | N 000961014064 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X50 | ||
| 500 | N 000961014044 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X35 | ||
| 500 | N 000961014054 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X45 | ||
| 503 | N 007349015003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 503 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 503 | N 000125015019 | WASHER |
| BEARING BRACKET TO CAB | ||
| 505 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 506 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 506 | N 910113014001 | NUT |
| BEARING BRACKET TO CAB | ||
| 507 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 507 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 507 | N 308676012011 | SCREW |
| BEARING BRACKET TO CAB | ||
| 508 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 509 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 509 | N 304017008034 | SCREW |
| BEARING BRACKET TO CAB | ||
| 510 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 510 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 512 | A 0008911905 | SHOCK ABSORBER |
| Repalced by: A 0008911805 | ||
| 512 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 512 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 513 | A 0008910317 | BUSHING |
| Repalced by: A 0008910617 | ||
| 513 | A 0008910617 | BUSHING |
| 514 | A 0008910401 | RUBBER MOUNTING |
| Repalced by: A 0008910501 | ||
| 514 | A 0008910501 | RUBBER MOUNTING |
| 516 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 516 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 518 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 518 | N 000125013008 | WASHER |
| 520 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 522 | A 3878915520 | MOUNTING |
| Repalced by: A 3878913220 | ||
| 522 | A 3878913220 | MOUNTING |
| Repalced by: A 6208901603 | ||
| 522 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 524 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 526 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 526 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 526 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 528 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 530 | N 912004012101 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 532 | A 3878910098 | SHIM |
| Repalced by: A 3878910498 | ||
| 532 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 534 | N 000960014229 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 536 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 536 | N 308676014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 538 | N 912004014100 | LOCK WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 543 | N 913004014001 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 544 | A 3878910798 | SHIM |
| Repalced by: A 3878910498 | ||
| 544 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 545 | N 000961016112 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 16X25 | ||
| 545 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 545 | N 308676016020 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 16X55 | ||
| 545 | N 000961016108 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 16X30 | ||
| 545 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 545 | N 308676014003 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| 546 | N 900037018000 | DOWEL PIN |
| CAB ON CONSOLE AT FRAME | ||
| 547 | N 912004016100 | LOCK WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 548 | A 3878907303 | MOUNTING |
| RETAINING ROPE | ||
| 549 | N 001481006040 | CLAMPING SLEEVE |
| BEARING BRACKET TO CAB | ||
| 550 | N 000961014100 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 551 | N 912004014100 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 552 | A 3878907503 | MOUNTING |
| RETAINING ROPE | ||
| 553 | N 000960014263 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X120 | ||
| 554 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 554 | N 308676014012 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 555 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 555 | N 910113014000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 556 | A 3878907603 | MOUNTING |
| RETAINING ROPE | ||
| 557 | A 0009882075 | WIRE CABLE |
| (RETAINING ROPE) | ||
| 558 | A 3873171174 | PIN |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
| 559 | N 000094005044 | COTTER PIN |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
| 560 | A 3635530051 | SPACER RING |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
| 560D | A 3873171274 | PIN |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 560F | A 3878911553 | SPACER TUBE |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 560K | A 3879930020 | SPRING |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 560K | A 3879930120 | SPRING |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 560M | N 000433021002 | WASHER |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||

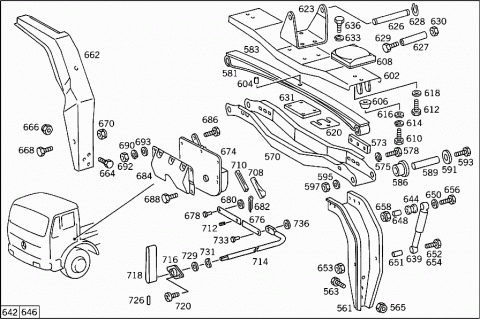

| 561 | A 3878911031 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 561 | A 3878911731 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 563 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 563 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| 565 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 565 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 565 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 565 | N 910113018004 | NUT |
| CONSOLE TO FRAME | ||
| 570 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 570 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 573 | A 3878910198 | SHIM |
| CAB MOUNTING,REAR | ||
| 575 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 578 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 578 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 581 | A 3878911351 | SPRING |
| (SPRING LEAF),BOTTOM;CAB REAR SUSPENSION | ||
| 583 | A 3878911451 | SPRING |
| (SPRING LEAF),TOP;CAB REAR SUSPENSION | ||
| 586 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 589 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 591 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 593 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 595 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 597 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 602 | A 3878900322 | RAIL |
| Repalced by: A 3878900622 | ||
| 602 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 602 | A 6558900222 | RAIL |
| (CONNECTING RAIL) | ||
| 602 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 602 | A 6558900222 | RAIL |
| (CONNECTING RAIL) | ||
| 604 | N 000007012213 | CYLINDRICAL PIN |
| 606 | A 3638910123 | BUFFER |
| Repalced by: A 3878910323 | ||
| 606 | A 3878910323 | BUFFER |
| CAB SUSPENSION | ||
| 608 | A 3878910072 | MOUNTING |
| CAB SUSPENSION | ||
| 610 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X20 | ||
| 612 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 612 | N 304017008021 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X22 | ||
| 614 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 616 | N 000433008406 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 618 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 618 | N 000125008443 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 620 | A 3878910298 | SHIM |
| BUFFER AND MOUNTING TO RAIL | ||
| 623 | A 3638910520 | MOUNTING |
| Repalced by: A 3878918120 | ||
| 623 | A 3878918120 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 623 | A 6208910020 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 626 | A 3638910457 | PIN |
| AT BEARING BRACKET | ||
| 627 | A 3878911753 | SPACER TUBE |
| AT BEARING BRACKET | ||
| 628 | N 000471025002 | LOCK RING |
| AT BEARING BRACKET | ||
| 629 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 629 | N 000960016251 | SCREW |
| AT BEARING BRACKET | ||
| 630 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 630 | N 910113016002 | NUT |
| AT BEARING BRACKET | ||
| 631 | A 3878910811 | PLATE |
| CAB LOCKING MECHANISM | ||
| 633 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET AND PLATE TO SPRING | ||
| 636 | N 000931010331 | SCREW |
| BEARING BRACKET AND PLATE TO SPRING | ||
| 639 | A 0008911405 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 639 | A 0008911605 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 639 | A 0008911905 | SHOCK ABSORBER |
| Repalced by: A 0008911805 | ||
| 639 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 639 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 642 | A 0008910101 | RUBBER MOUNTING |
| Repalced by: A 0008910001 | ||
| 644 | A 0008910001 | RUBBER MOUNTING |
| 644 | A 0008910401 | RUBBER MOUNTING |
| Repalced by: A 0008910501 | ||
| 644 | A 0008910501 | RUBBER MOUNTING |
| 646 | A 0008910217 | BUSHING |
| Repalced by: A 0008910117 | ||
| 648 | A 0008910117 | BUSHING |
| 648 | A 0008910317 | BUSHING |
| Repalced by: A 0008910617 | ||
| 648 | A 0008910617 | BUSHING |
| 650 | A 3878911610 | WASHER |
| SHOCK ABSORBER | ||
| 651 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER | ||
| 652 | N 000960014145 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 652 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 652 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 653 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 653 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 653 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 653 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 654 | N 000960014136 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 14X148 | ||
| 654 | N 000960018072 | SCREW |
| Repalced by: N 308765018004 | ||
| 654 | N 308765018004 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X140 | ||
| 656 | N 000960014249 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 14X55 | ||
| 656 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 656 | N 000960018142 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X65 | ||
| 658 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 658 | N 910113014001 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 658 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 658 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 658 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 658 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 658 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 662 | A 3815000727 | SUPPORT |
| EXPANSION TANK | ||
| 662 | A 3815000927 | SUPPORT |
| Repalced by: A 3815001227 | ||
| 662 | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 664 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 664 | N 308676014020 | SCREW |
| SUPPORT TO FRAME | ||
| M 14X35 | ||
| 664 | N 308676014020 | SCREW |
| SUPPORT TO FRAME | ||
| M 14X35 | ||
| 664 | N 000961014100 | SCREW |
| SUPPORT TO FRAME | ||
| M 14X30 | ||
| 666 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 666 | N 910113014001 | NUT |
| SUPPORT TO FRAME | ||
| 668 | N 000961012151 | SCREW |
| SUPPORT TO FRAME | ||
| 670 | N 910113012002 | NUT |
| SUPPORT TO FRAME | ||
| 674 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 674 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 674 | A 0008902389 | FASTENER |
| CAB LOCKING MECHANISM | ||
| 676 | A 3878910070 | ROD |
| CAB LOCKING MECHANISM | ||
| 678 | N 001434008059 | PIN |
| PULL TO FASTENER | ||
| 680 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 682 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 684 | A 3878911131 | CONSOLE |
| CAB LOCKING MECHANISM | ||
| 686 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X20 | ||
| 688 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X25 | ||
| 690 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 692 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 692 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 693 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 693 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 694 | A 3638910223 | BUFFER |
| CAB LOCKING MECHANISM | ||
| 697 | A 3638910047 | FLANGE |
| CAB LOCKING MECHANISM | ||
| 700 | A 3638910517 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 702 | A 3878911710 | WASHER |
| Repalced by: A 3878912210 | ||
| 702 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 702 | A 4432610076 | WASHER |
| CAB LOCKING MECHANISM | ||
| 20 MM | ||
| 702 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 702 | A 4432610076 | WASHER |
| CAB LOCKING MECHANISM | ||
| 10 MM | ||
| 704 | N 000931010282 | SCREW |
| BUFFER TO CAB | ||
| 706 | N 912004010102 | LOCK WASHER |
| BUFFER TO CAB | ||
| 708 | A 3878910814 | BRACKET |
| CAB LOCKING MECHANISM | ||
| 710 | A 3878910085 | SEAL |
| CAB LOCKING MECHANISM | ||
| 712 | N 007346005003 | CLAMPING SLEEVE |
| CAB LOCKING MECHANISM | ||
| 714 | A 3878911456 | LEVER |
| 716 | A 3638910317 | BUSHING |
| 718 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 718 | A 6208910073 | HANDLE |
| 720 | A 0039905801 | SCREW |
| 726 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 726 | N 001481005039 | CLAMPING SLEEVE |
| 729 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 729 | N 000125015019 | WASHER |
| 731 | N 900055014400 | LOCK RING |
| 733 | N 001434008057 | PIN |
| 736 | N 000433008406 | WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
