Transporto priemonė: 2219/6X2; VIN numerio dalis: 385328
Grupė: 41 PROPELLER SHAFT

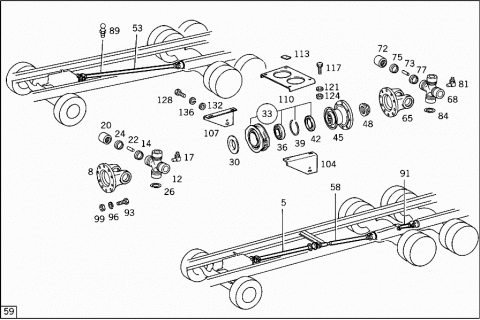

41248
# Kodas Pavadinimas
005 A 3854102904 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1175 MM
005 A 3854102904 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1175 MM
005 A 3854102904 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1175 MM
005 A 3854106204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1163 MM
005 A 3854106204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1163 MM
005 A 3854106204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1163 MM
005 A 3854106604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1001 MM
005 A 3854102804 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1575 MM
005 A 3854106704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1561 MM
005 A 3854102604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1162 MM
005 A 3814102804 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1600 MM
005 A 3854101104 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1600 MM
005 A 3854105004 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1501 MM
005 A 3854106804 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1486 MM
008 A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
008 A 3854111711 DRIVE FLANGE
008 A 3854111711 DRIVE FLANGE
A 3854110311 DRIVE FLANGE
A 3604100231 UNIVERSAL JOINT CROSS
Repalced by: A 3854100531
012 A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
012 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
012 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
014 A 3604110233 EXPANSION PLUG
017 N 071412008302 GREASE NIPPLE
020 A 3854100242 BEARING BUSHING
Repalced by: A 3854100842
020 A 3854100842 BEARING BUSHING
020 A 3854100842 BEARING BUSHING
022 A 3819810487 NEEDLE
SET=144 PIECES
024 A 0089970946 SEAL RING
026 A 0029941241 LOCK
Repalced by: A 0069940641
026 A 0069940641 LOCK
AS REQUIRED
1.65 MM
A 0069940841 LOCK
AS REQUIRED
1.70 MM
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
A 0069941241 LOCK
AS REQUIRED
1.80 MM
A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 0039943641 LOCK
AS REQUIRED
1.90 MM
030 A 3854130161 PROTECTIVE CAP
OUTSIDE
030 A 3854130461 PROTECTIVE CAP
OUTSIDE
033 A 3854100222 INTERMEDIATE BEARING
Repalced by: A 3855860141
033 A 3855860141 REPAIR KIT
Repalced by: A 3854100110
033 A 3854100110 REPAIR KIT
Repalced by: A 3854100122
033 A 3854100122 INTERMEDIATE BEARING
Repalced by: A 3854100922
033 A 3854100922 INTERMEDIATE BEARING
Repalced by: A 3854101722
033 A 3854101722 INTERMEDIATE BEARING
Repalced by: A 9734100022
033 A 9734100022 INTERMEDIATE BEARING
PROPELLER SHAFT
033 A 9734100022 INTERMEDIATE BEARING
PROPELLER SHAFT
TO 385 410 09 22 , 385 410 17 22
036 A 0019818125 BALL BEARING
039 N 912009100200 SNAP RING
042 A 3854130061 PROTECTIVE CAP
INSIDE
A 9734110052 SPACER WASHER
PROPELLER SHAFT BEARING
045 A 3604100130 CENTERING FLANGE
PROPELLER SHAFT BEARING
045 A 3604100130 CENTERING FLANGE
PROPELLER SHAFT BEARING
A 3854100030 CENTERING FLANGE
Repalced by: A 3854110045
A 3854110045 FLANGE
PROPELLER SHAFT BEARING
A 3854110045 FLANGE
PROPELLER SHAFT BEARING
A 3854130161 PROTECTIVE CAP
OUTSIDE
A 3854130461 PROTECTIVE CAP
OUTSIDE
048 A 3853510172 NUT
048 A 3853510172 NUT
A 3894110162 THRUST WASHER
A 3894110162 THRUST WASHER
A 3839900019 SCREW
A 3839900019 SCREW
053 A 3854103302 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1800 MM
A 3854104107 PROPELLER SHAFT
Repalced by: A 3854107307
053 A 3854107307 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1715 MM
053 A 3854104807 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1670 MM
053 A 3854104807 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
1670 MM
058 A 3074100502 PROPELLER SHAFT
Repalced by: A 3854106107
058 A 3854106107 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1010 MM
058 A 3854106107 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1010 MM
058 A 3854104007 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
914 MM
058 A 3854104407 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1130 MM
A 3854103207 PROPELLER SHAFT
Repalced by: A 3974100207
058 A 3974100207 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1035 MM
A 3854100502 PROPELLER SHAFT
Repalced by: A 3854104507
058 A 3854104507 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1580 MM
A 3854103407 PROPELLER SHAFT
Repalced by: A 3854109707
058 A 3854109707 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1554 MM
058 A 3854105207 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1520 MM
A 3854100202 PROPELLER SHAFT
Repalced by: A 3854107207
A 3854104507 PROPELLER SHAFT
Repalced by: A 3854107207
A 3854107207 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE I
1620 MM
A 3854103202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
850 MM
A 3854106207 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
815 MM
A 3854106702 PROPELLER SHAFT
Repalced by: A 3854104907
A 3854104907 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
1450 MM
A 3854103402 PROPELLER SHAFT
Repalced by: A 3854105702
A 3854105702 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
1645 MM
A 3814105302 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO REAR AXLE
970 MM
065 A 3604110611 DRIVE FLANGE
Repalced by: A 3854111711
065 A 3854111711 DRIVE FLANGE
065 A 3854111711 DRIVE FLANGE
065 A 3854110311 DRIVE FLANGE
068 A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
068 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
068 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
072 A 3854100242 BEARING BUSHING
Repalced by: A 3854100842
072 A 3854100842 BEARING BUSHING
072 A 3854100842 BEARING BUSHING
A 0009817187 NEEDLE
Repalced by: A 3819810487
073 A 3819810487 NEEDLE
SET=144 PIECES
075 A 0089970946 SEAL RING
077 A 3604110233 EXPANSION PLUG
081 N 071412008302 GREASE NIPPLE
084 A 0029941241 LOCK
Repalced by: A 0069940641
084 A 0069940641 LOCK
AS REQUIRED
1.65 MM
084 A 0069940841 LOCK
AS REQUIRED
1.70 MM
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
084 A 0069941241 LOCK
AS REQUIRED
1.80 MM
084 A 0069941441 LOCK
AS REQUIRED
1.85 MM
084 A 0039943641 LOCK
AS REQUIRED
1.90 MM
A 3854110059 SEAL RING
PROTECTIVE TUBE
089 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
089 N 071412008102 GREASE NIPPLE
091 A 3854106902 PROPELLER SHAFT
Repalced by: A 3854102107
091 A 3854102107 PROPELLER SHAFT
FROM REAR AXLE I TO REAR AXLE II
740 MM
A 3854110111 DRIVE FLANGE
Repalced by: A 3854111811
A 3854111811 DRIVE FLANGE
A 3854100531 UNIVERSAL JOINT CROSS
Repalced by: A 3814100231
A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
N 071412008302 GREASE NIPPLE
A 0029941241 LOCK
Repalced by: A 0069940641
A 0069940641 LOCK
AS REQUIRED
1.65 MM
A 0069940841 LOCK
AS REQUIRED
1.70 MM
N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
A 0069941241 LOCK
AS REQUIRED
1.80 MM
A 0069941441 LOCK
AS REQUIRED
1.85 MM
A 0039943641 LOCK
AS REQUIRED
1.90 MM
A 3854110059 SEAL RING
PROTECTIVE TUBE
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
093 A 3609901901 SCREW
Repalced by: A 3609903001
093 A 3609903001 SCREW
TO MOUNT THE PROPELLER SHAFTS
096 N 912004012100 LOCK WASHER
TO MOUNT THE PROPELLER SHAFTS
099 N 000934012034 NUT
TO MOUNT THE PROPELLER SHAFTS
104 A 3854132142 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
104 A 3854132142 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854135242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3834131242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
107 A 3854132242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
107 A 3854132242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854134342 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3834131342 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854130242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854130242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854130242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854130242 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL
A 3854134042 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854134042 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854130342 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854130342 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854130342 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854130342 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL
A 3854134142 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854134142 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854130442 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854130442 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL
A 3854135042 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
A 3854130642 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
A 3854130642 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL
A 3854135142 BRACKET
PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
110 A 3854130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
113 A 3854130111 REINFORCEMENT
BRACKET TO CROSS MEMBER
117 N 000960010026 SCREW
Repalced by: N 000961010031
117 N 000961010031 SCREW
Repalced by: N 308676010023
117 N 308676010023 SCREW
BRACKET TO CROSS MEMBER
121 N 007349010003 WASHER
Repalced by: N 007349010007
121 N 007349010007 WASHER
BRACKET TO CROSS MEMBER
124 N 913002010010 NUT
BRACKET TO CROSS MEMBER
128 N 000931010282 SCREW
FRONT PROPELLER SHAFT TO BRACKET
M 10X40
128 N 000933010105 SCREW
FRONT PROPELLER SHAFT TO BRACKET
M 10X25
132 N 007349010003 WASHER
Repalced by: N 007349010007
132 N 007349010007 WASHER
FRONT PROPELLER SHAFT TO BRACKET
136 N 912004010102 LOCK WASHER
FRONT PROPELLER SHAFT TO BRACKET
