Transporto priemonė: 2219/6X2; VIN numerio dalis: 385328
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3835010201 | RADIATOR |
| 005 | A 3815010601 | RADIATOR |
| 005 | A 0005001403 | RADIATOR |
| 005 | A 3815010301 | RADIATOR |
| 005 | A 3815010901 | RADIATOR |
| 005 | A 0005001503 | RADIATOR |
| 010 | N 007603014405 | SEAL RING |
| 012 | N 007604014101 | SCREW PLUG |
| 016 | A 1235040246 | CLAMP |
| FAN SHROUD | ||
| 020 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 020 | N 000125010532 | WASHER |
| 022 | N 000137010201 | SPRING WASHER |
| 024 | N 000933010105 | SCREW |
| 030 | A 3815000249 | TANK |
| Repalced by: A 3815001649 | ||
| 030 | A 3815001649 | TANK |
| COOLING WATER EXPANSION | ||
| 030 | A 3815000649 | TANK |
| Repalced by: A 3815000749 | ||
| 030 | A 3815000749 | TANK |
| COOLING WATER EXPANSION | ||
| 032 | A 0005013115 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 032 | A 0005013515 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005014215 | RADIATOR CAP |
| TO 381 500 02 49,381 500 16 49 | ||
| 036 | A 0005014515 | RADIATOR CAP |
| TO 381 500 07 49 | ||
| 036 | A 0005014615 | RADIATOR CAP |
| TO 381 500 07 49 | ||
| 036 | A 0005017215 | RADIATOR CAP |
| TO 381 500 07 49 | ||
| 037 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM,TO 000 501 42 15,000 501 46 15 | ||
| 037 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 040 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 040 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 040 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 041 | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 042 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 044 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 044 | N 304017010028 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 044D | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 044D | A 4010100440 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 044F | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 044L | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 044P | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 045 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 045 | A 3815012720 | BRACKET |
| 045 | A 3815012520 | BRACKET |
| A 4404750020 | PAD | |
| Repalced by: A 3634750220 | ||
| 047 | A 3634750220 | PAD |
| A 3815010095 | SHIM | |
| Repalced by: A 3815010295 | ||
| 049 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 049 | A 3815010495 | SHIM |
| 050 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 052 | N 006902011101 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 054 | N 912004010102 | LOCK WASHER |
| 056 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 056 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| A 3835000055 | FAN SHROUD | |
| Repalced by: A 3835050355 | ||
| 060 | A 3835050355 | FAN SHROUD |
| 065 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 065 | N 304017006018 | SCREW |
| M 6X12 | ||
| 065 | N 000933006102 | SCREW |
| M 6X16 | ||
| 065 | N 000933006102 | SCREW |
| M 6X16 | ||
| 065 | N 000933006130 | SCREW |
| M 6X18 | ||
| 072 | N 000137006204 | SPRING WASHER |
| 072K | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 072K | N 009021006208 | WASHER |
| 072K | A 3859901140 | WASHER |
| 073 | A 3815040051 | SPACER RING |
| Repalced by: A 3469910040 | ||
| 073 | A 3469910040 | SPACER TUBE |
| 074 | A 3815040031 | SUPPORTING PLATE |
| 076 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 076 | N 009021006208 | WASHER |
| 077 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 077 | N 913004006001 | NUT |
| 080 | A 3835040201 | SUPPORT |
| A 3835040301 | SUPPORT | |
| 080 | A 3835040040 | BRACKET |
| 080 | A 3835040401 | SUPPORT |
| 083 | N 000137010201 | SPRING WASHER |
| 086 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 086 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| 087 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 087 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 089 | A 3875040012 | RUBBER MOUNTING |
| 089 | A 3875040112 | RUBBER MOUNTING |
| 090 | N 000961012023 | SCREW |
| 091 | N 910113012002 | NUT |
| 092 | A 3835010282 | HOSE |
| 092 | A 3835010082 | HOSE |
| TOP | ||
| 095 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 095 | N 000000000674 | CLAMP |
| 097 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 097 | N 000000000672 | CLAMP |
| 100 | A 3835010382 | HOSE |
| 100 | A 3835010182 | HOSE |
| BOTTOM | ||
| 102 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 102 | N 000000000672 | CLAMP |
| 104 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 104 | N 000000000673 | CLAMP |
| 110 | A 3835010023 | CONNECTOR |
| 112 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 112 | A 4422010480 | GASKET |
| 114 | N 000137010201 | SPRING WASHER |
| 116 | N 000933010105 | SCREW |
| 120 | A 3875011082 | HOSE |
| 122 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 122 | N 000000000670 | CLAMP |
| 125 | A 3835010124 | COOLING WATER PIPE |
| 125 | A 3835011024 | COOLING WATER PIPE |
| 127 | N 900271028008 | HOSE |
| ORDER BY THE METER | ||
| 129 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 129 | N 000000000670 | CLAMP |
| 135 | A 3835010120 | BRACKET |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 135H | A 3875010920 | BRACKET |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 137 | N 916016028200 | CLAMP |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 137 | A 3839950001 | CLAMP |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 141 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 141 | N 304017008021 | SCREW |
| 143 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 143 | N 913004008001 | NUT |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 145 | A 3875000179 | FLANGE |
| 150 | N 917003040008 | GASKET |
| 152 | N 912004010102 | LOCK WASHER |
| 154 | N 000933010105 | SCREW |
| 155 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 155 | N 000933010094 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 155 | N 000933010145 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 156 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 157 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 157 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 158 | A 3835040084 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 158 | A 3855040184 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 158 | A 3855040284 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 160 | A 3875011420 | BRACKET |
| 162 | A 3609951501 | CLAMP |
| Repalced by: A 3609950601 | ||
| 162 | A 3609950601 | CLAMP |
| 163 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 163 | N 304017008016 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 163 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 165 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 165 | N 913004008001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 165 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 165 | N 910113006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 170 | A 3835060035 | HOSE |
| 171 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 171 | N 000000000667 | CLAMP |
| 175 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 175 | A 3875000072 | LINE |
| 179 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 179 | N 000000000667 | CLAMP |
| 185 | A 3875060535 | HOSE |
| Repalced by: A 3635060235 | ||
| 185 | A 3635060235 | HOSE |
| 185 | A 3875060335 | HOSE |
| 187 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 187 | N 000000000667 | CLAMP |
| 187 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 187 | N 000000000668 | CLAMP |
| 190 | A 3875011925 | BREATHER PIPE |
| 190 | A 3875017125 | BREATHER PIPE |
| 192 | N 900271012018 | HOSE |
| 195 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 195 | N 000000000667 | CLAMP |
| 200 | A 3875011525 | BREATHER PIPE |
| 200 | A 3875017225 | BREATHER PIPE |
| 202 | N 900271015037 | HOSE |
| 204 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 204 | N 000000000667 | CLAMP |
| A 3875011020 | BRACKET | |
| Repalced by: A 3855010220 | ||
| 210 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 211 | A 3184923441 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 212 | A 3815011320 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 213 | N 000933010062 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 213 | N 000933010062 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 214 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 214 | N 304017008021 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 215 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 215 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 215 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 216 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 216 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 216 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 217 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 217 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 220 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 220 | N 916016011202 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 222 | A 3609951201 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 222 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 224 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 224 | N 304017008021 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 224 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 224 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 224 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 224 | N 304017008021 | SCREW |

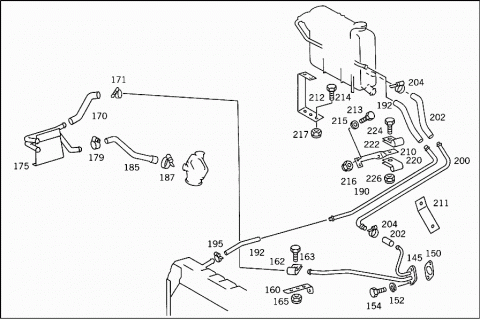

| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 226 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 226 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 226 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 226 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 226 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
