Transporto priemonė: 2219/6X2; VIN numerio dalis: 385328

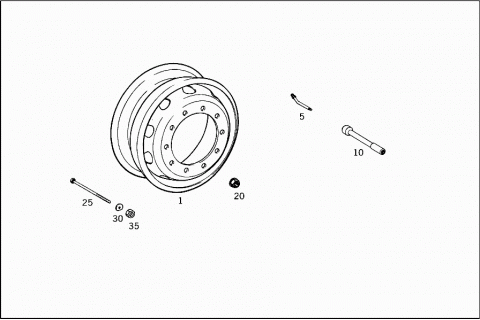

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 6174000002 | DISC WHEEL |
| Repalced by: A 3854001302 | ||
| 001 | A 3854001302 | DISC WHEEL |
| Repalced by: A 0004017405 | ||
| 001 | A 0004017405 | RIM |
| 7.50X22.50 | ||
| 001 | A 0004018705 | RIM |
| Repalced by: A 0004012302 | ||
| 001 | A 0004012302 | DISC WHEEL |
| Repalced by: A 0004002902 | ||
| 001 | A 0004002902 | DISC WHEEL |
| 7.50X22.50 | ||
| 001 | A 0004019805 | RIM |
| 7.50X22.50 | ||
| 005 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 005 | A 0004017113 | VALVE |
| 27 DEGREES | ||
| A 0004010272 | NUT | |
| VALVE TO DISC WHEEL | ||
| 010 | A 3854010013 | VALVE |
| EXTENSION | ||
| 010 | A 3854010113 | VALVE |
| EXTENSION | ||
| N 007757008600 | VALVE CAP | |
| 020 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 025 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 025 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 030 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 030 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 035 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 035 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||

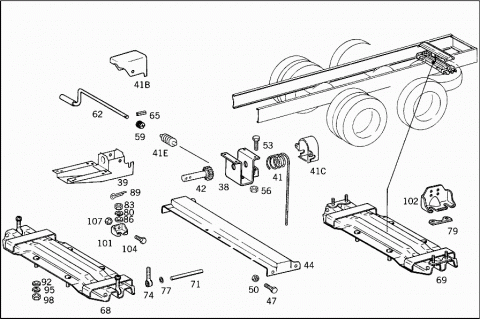

| 038 | A 3834000139 | SPARE WHEEL HOIST |
| Repalced by: A 3834000639 | ||
| A 3834000039 | BRACKET | |
| Repalced by: A 3834000639 | ||
| A 3834000739 | BRACKET | |
| Repalced by: A 3834000639 | ||
| 038 | A 3834000639 | SPARE WHEEL HOIST |
| 038 | A 3834000639 | SPARE WHEEL HOIST |
| A 3814001739 | BRACKET | |
| Repalced by: A 3814001639 | ||
| 039 | A 3814001639 | SPARE WHEEL HOIST |
| SPARE WHEEL HOIST | ||
| 041 | A 3814030036 | CABLE |
| Repalced by: N 083331008500 | ||
| 041 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 041 | N 083334008000 | WIRE CABLE |
| 2700 MM | ||
| A 3149900440 | WASHER | |
| WORM AND SHAFT TO BRACKET | ||
| A 3149900440 | WASHER | |
| WORM AND SHAFT TO BRACKET | ||
| A 3819900340 | WASHER | |
| WORM AND SHAFT TO BRACKET | ||
| A 3819900140 | WASHER | |
| WORM AND SHAFT TO BRACKET | ||
| A 6179900540 | WASHER | |
| N 001481008038 | CLAMPING SLEEVE | |
| Repalced by: N 308752008000 | ||
| N 308752008000 | CLAMPING PIN | |
| WORM AND SHAFT TO BRACKET | ||
| N 002093031201 | DISC SPRING | |
| WORM AND SHAFT TO BRACKET | ||
| 041B | A 3814030044 | COVER PLATE |
| 041C | A 3854000020 | COVERING |
| PROTECTION PLATE TO BRACKET | ||
| N 000933006130 | SCREW | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PROTECTION PLATE TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| PROTECTION PLATE TO BRACKET | ||
| 041E | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 041E | A 6204030085 | WORM |
| 041E | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 041E | A 6204030085 | WORM |
| A 3814030250 | BUSHING | |
| N 001481006027 | CLAMPING SLEEVE | |
| CRANK TO WORM | ||
| 042 | A 3834030183 | STOP GEAR |
| Repalced by: A 6204030383 | ||
| 042 | A 6204030383 | STOP GEAR |
| 042 | A 6204030383 | STOP GEAR |
| 042 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 042 | A 6204030483 | STOP GEAR |
| 044 | A 3834030201 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| 044 | A 3834030201 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| A 3854030019 | BASE BLOCK | |
| Repalced by: A 6744320019 | ||
| A 6744320019 | BASE | |
| CROSS MEMBER TO FRAME | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| 047 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 047 | N 304017010002 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 047 | N 304017010002 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 050 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 050 | N 910113010000 | NUT |
| CROSS MEMBER TO FRAME | ||
| 050 | N 910113010000 | NUT |
| CROSS MEMBER TO FRAME | ||
| 053 | N 000933010128 | SCREW |
| 056 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 056 | N 910113010000 | NUT |
| 059 | A 3814030150 | BUSHING |
| 059 | A 3834030050 | BUSHING |
| 059 | A 3834030050 | BUSHING |
| 062 | A 3814000045 | CRANK |
| Repalced by: A 3814030045 | ||
| 062 | A 3814030045 | CRANK |
| 065 | N 001481006027 | CLAMPING SLEEVE |
| 068 | A 3814001139 | BRACKET |
| Repalced by: A 3814002039 | ||
| 068 | A 3814002039 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 069 | A 3814002239 | BRACKET |
| Repalced by: A 3814002639 | ||
| 069 | A 3814002639 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 071 | A 3634030074 | PIN |
| SPARE WHEEL CARRIER | ||
| 071 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER | ||
| 074 | N 000444016322 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 074 | N 000444016104 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 074 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 074 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 077 | N 007349017002 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 079 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 080 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 080 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 083 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 083 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 083 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 083 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 086 | N 000433017004 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 089 | N 000094004023 | COTTER PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 007346004016 | CLAMPING SLEEVE | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 092 | N 007349017002 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 092 | N 007349019002 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 092 | N 007349021001 | WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 095 | N 912004016101 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 095 | N 912004018101 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 095 | N 912004020100 | LOCK WASHER |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 098 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 098 | N 308673016001 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 098 | N 000934018006 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 098 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 098 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 098 | N 308674020000 | NUT |
| SUPPORT TO SPARE WHEEL CARRIER | ||
| 101 | A 3354031301 | SUPPORT |
| 102 | A 3874030701 | SUPPORT |
| N 910005012080 | RIVET | |
| 104 | N 000961012151 | SCREW |
| 107 | N 910113012002 | NUT |
