Transporto priemonė: 2219 C,2220; VIN numerio dalis: 619011
Grupė: 42 BRAKES

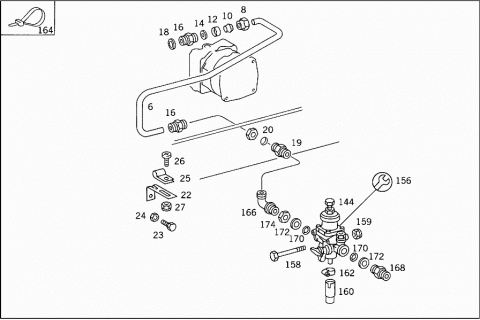

43517

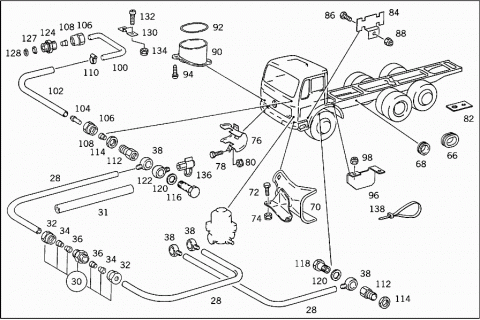

43518

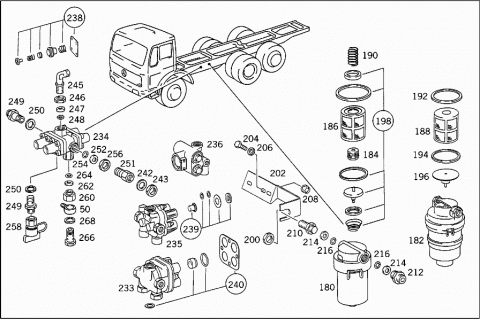

43519

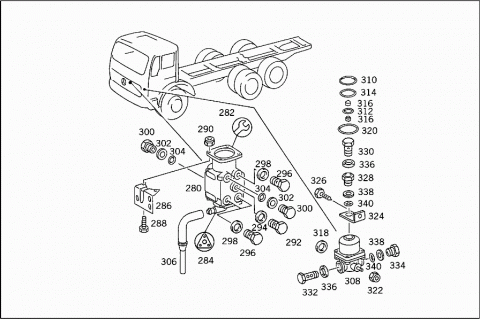

43520

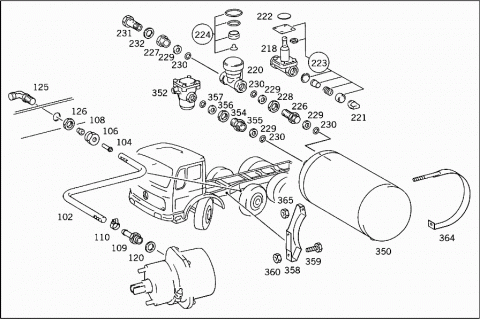

43521

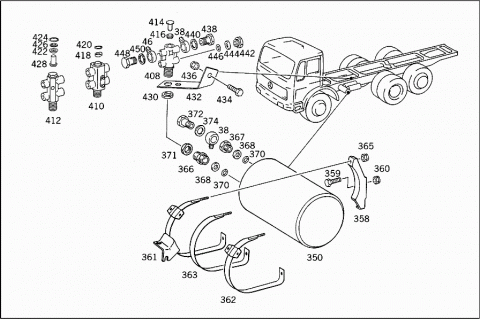

43522

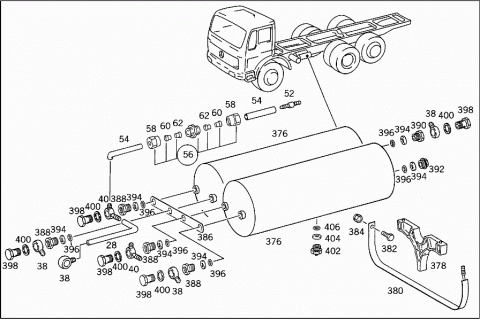

43523

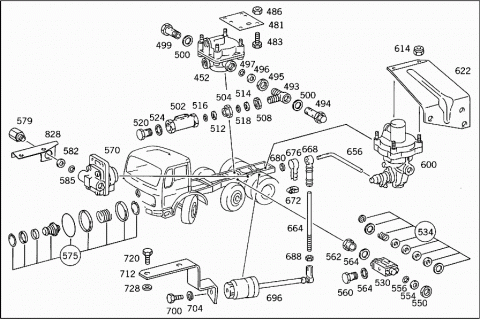

43524

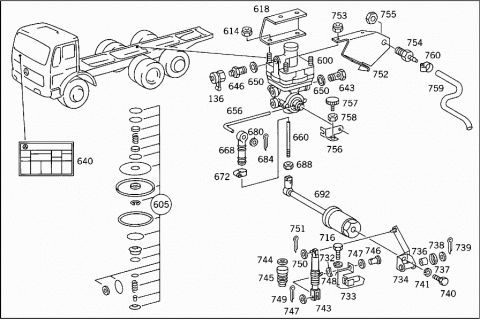

43525

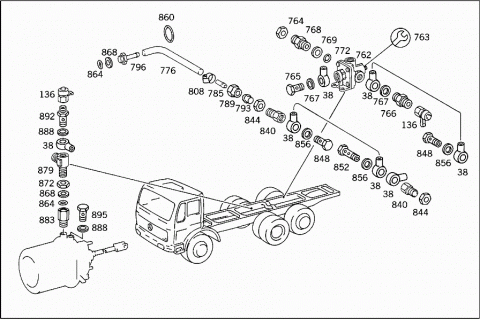

43526

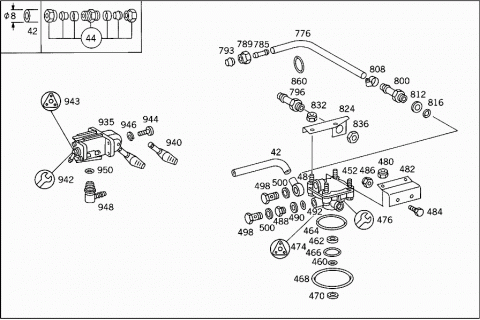

43527

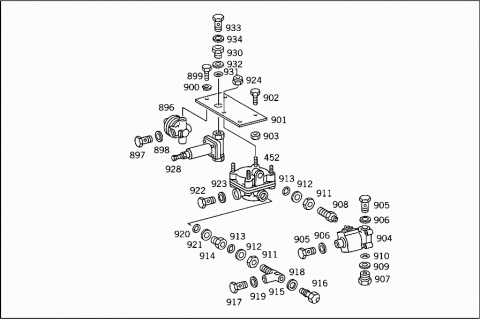

43528
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES ON FRONT AXLE I, SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES ON FRONT AXLE II, SEE UNIT STANDARD VERSION,MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
745.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL:
749.0
T YYYYYYYYYYYY PART NAME MISSING
FOR AIR COMPRESSOR CONNECTION,SEE GROUP 13
006 A 0004291401 LINE
BRASS
15 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM AIR RESERVOIR TO CHECK VALVE
008 N 915018015000 UNION NUT
N 915017015100 UNION NUT
010 N 003861015004 GLAND
012 N 915065015101 THRUST RING
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
A 0004294338 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
A 6209900071 ELBOW FITTING
Repalced by: A 0039901671
A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
N 074302022405 T-FITTING
Repalced by: A 0029901970
A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
A 0189972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
A 0009902370 T-FITTING
BETWEEN THE LINES
016 A 0019972172 FITTING
BETWEEN THE LINES
016 A 0019972172 FITTING
AIR COMPRESSOR,CONNECTION:
"2"
018 N 007603022102 SEAL RING
AIR COMPRESSOR,CONNECTION:
"2"
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
019 A 0019972372 FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
020 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
022 A 3854290540 BRACKET
LINE MOUNTING
A 6154290240 BRACKET
LINE MOUNTING
A 6164290040 BRACKET
LINE MOUNTING
A 6154290640 BRACKET
LINE MOUNTING
A 6164290340 BRACKET
LINE MOUNTING
A 6174291440 BRACKET
LINE MOUNTING
023 N 000933008153 SCREW
Repalced by: N 304017008034
023 N 304017008034 SCREW
M 8X25
024 N 913004008004 NUT
Repalced by: N 913004008001
024 N 913004008001 NUT
N 000961014028 SCREW
BRACKET TO RIGHT SIDE MEMBER
M 14X1.5X40
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
BRACKET TO RIGHT SIDE MEMBER
N 000933008116 SCREW
Repalced by: N 000933008337
N 000933008337 SCREW
Repalced by: A 0099900101
A 0099900101 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
N 000933010105 SCREW
BRACKET TO CYLINDER BLOCK, REAR
N 000939010026 STUD BOLT
BRACKET TO CYLINDER BLOCK, REAR
N 912004010102 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
025 A 3609952001 CLAMP
Repalced by: A 6739950001
025 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
026 N 007985006145 SCREW
Repalced by: N 007985006581
026 N 007985006581 SCREW
CLAMP TO BRACKET
M 6X20
027 N 913004006002 NUT
Repalced by: N 913004006001
027 N 913004006001 NUT
CLAMP TO BRACKET
N 009021006215 WASHER
CLAMP TO BRACKET
028 A 0109975982 HOSE
Repalced by: A 0009872827
028 A 0009872827 PLASTIC PIPE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
T YYYYYYYYYYYY PART NAME MISSING
DOUBLE FITTING,RELAY VALVE
028 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
T YYYYYYYYYYYY PART NAME MISSING
HAND BRAKE VALVE BLEEDING
030 A 0049971772 FITTING
Repalced by: A 0029906171
030 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
9X12 MM
A 0009907378 CONNECTOR
REPAIR SIZE
031 N 040621013200 INSULATING HOSE
13X14,6 MM
032 N 915017012100 UNION NUT
034 N 003861012007 GLAND
Repalced by: A 0019901967
034 A 0019901967 SEAL CONE
036 N 915062009000 SLEEVE
038 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
040 A 0019901088 BANJO UNION
A 0029902171 ELBOW FITTING
A 0019903970 T-FITTING
Repalced by: A 0029909070
A 0029909070 T-FITTING
FROM RELAY VALVE TO CONNECTOR
042 A 0089979082 HOSE
6X8 MM
T YYYYYYYYYYYY PART NAME MISSING
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
T YYYYYYYYYYYY PART NAME MISSING
PARKING BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
T YYYYYYYYYYYY PART NAME MISSING
SELF-LEVELLING VALVE,OVERFLOW VALVE, PRESSURE RELIEF VALVE
T YYYYYYYYYYYY PART NAME MISSING
AIR RESERVOIR,RELAY VALVE,3/2-WAY VALVE,AIR SPRING BELLOWS
T YYYYYYYYYYYY PART NAME MISSING
AXLE BREATHING
044 A 0039978972 FITTING
Repalced by: A 0029905971
044 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
6X8 MM
046 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
048 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
050 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
A 0009907588 BANJO UNION
Repalced by: A 0019908288
A 0019908288 BANJO UNION
FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
050 N 915052006022 BANJO UNION
HOSE WIDTH, / I.D.,
6/10 MM
052 A 0009904678 CONNECTOR
COMPRESSED AIR LINE
054 A 0089976082 HOSE
Repalced by: A 0009872627
054 A 0009872627 PLASTIC PIPE
4X6 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
056 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
4X6 MM
058 N 915017006100 UNION NUT
N 915017008100 UNION NUT
060 N 003861006007 GLAND
Repalced by: A 0019901667
060 A 0019901667 SEAL CONE
N 003861008005 GLAND
062 N 915062004000 SLEEVE
N 915062006000 SLEEVE
066 A 6209970181 GROMMET
LINE THRU LEFT SIDE MEMBER
42/36 MM
A 0039977581 GROMMET
LINE THRU FRAME
068 A 3549970081 GROMMET
LINE THRU LEFT SIDE MEMBER
32/27 MM
070 A 6204201186 BRACKET
LEFT COMPRESSED AIR LINES
070 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
072 N 000933008147 SCREW
Repalced by: N 304017008021
072 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
074 N 913004008004 NUT
Repalced by: N 913004008001
074 N 913004008001 NUT
BRACKET TO BUMPER STRUT
076 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
076 A 6204201486 BRACKET
Repalced by: A 6154200186
076 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
078 N 000933008153 SCREW
Repalced by: N 304017008034
078 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
080 N 913004008004 NUT
Repalced by: N 913004008001
080 N 913004008001 NUT
BRACKET TO CAB CONSOLE
082 A 6204294340 BRACKET
Repalced by: A 3604293140
082 A 3604293140 BRACKET
COMPRESSED AIR LINE
084 A 6204293940 BRACKET
COMPRESSED AIR LINE
084 A 6204293940 BRACKET
COMPRESSED AIR LINE
086 N 000933008152 SCREW
Repalced by: N 304017008027
086 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
088 N 913004008004 NUT
Repalced by: N 913004008001
088 N 913004008001 NUT
BRACKET TO SIDE MEMBER
090 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
090 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
092 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
094 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
BRACKET TO CAB FLOOR
A 0009946445 LOCK
BRACKET TO CAB FLOOR
096 A 6204295240 BRACKET
BETWEEN THE LINES
098 N 913004006002 NUT
Repalced by: N 913004006001
098 N 913004006001 NUT
BRACKET TO CAB FLOOR
A 6174200244 PROTECTIVE PLATE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LEFT COMPRESSED AIR LINES
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
LEFT COMPRESSED AIR LINES
100 A 6194290801 LINE
Repalced by: A 6254293501
100 A 6254293501 LINE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
102 N 916027011014 HOSE
T YYYYYYYYYYYY PART NAME MISSING
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
102 N 916027011014 HOSE
FRONT AXLE II BRAKE CYLINDER
104 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
104 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
A 0004290641 FITTING
LEFT AND RIGHT BRAKE HOSES
106 N 915017012100 UNION NUT
108 N 003861012007 GLAND
Repalced by: A 0019901967
108 A 0019901967 SEAL CONE
109 N 074304016201 FITTING
FRONT AXLE II BRAKE HOSE
110 N 916017016000 CLAMP
Repalced by: N 000000000666
110 N 000000000666 CLAMP
LINE MOUNTING
112 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
112 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
114 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
N 915039012205 HOLLOW SCREW FITTING
LEFT AND RIGHT BRAKE HOSES
116 N 915047012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
118 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
N 003952012101 FITTING
Repalced by: A 0019902771
A 0019902771 ELBOW FITTING
LEFT AND RIGHT BRAKE HOSES
120 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
122 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
122 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
A 6194313340 BRACKET
LEFT FRONT BRAKE HOSE
A 6194313440 BRACKET
RIGHT FRONT BRAKE HOSE
N 080705018002 NUT
BRAKE HOSE TO BRACKET
124 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
125 A 0009905871 ELBOW FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
126 N 080705016003 NUT
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
127 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
128 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
A 1159950465 CLAMP
BRAKE HOSE MOUNTING
A 6209950065 CLAMP
BRAKE HOSE MOUNTING
A 6154290086 PROTECTIVE TUBE
Repalced by: N 073379008200
N 073379008200 HOSE
BRAKE HOSE MOUNTING
A 3854292640 BRACKET
Repalced by: A 3604292440
A 3604292440 BRACKET
Repalced by: A 3604292940
A 6205240340 BRACKET
BRAKE HOSE MOUNTING
N 000961012164 SCREW
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
N 910113012002 NUT
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
130 A 3159955010 CLAMP
LINE MOUNTING
132 N 007985006145 SCREW
Repalced by: N 007985006581
132 N 007985006581 SCREW
LINE MOUNTING
M 6X20
N 000125006421 WASHER
LINE MOUNTING
134 N 913004006002 NUT
Repalced by: N 913004006001
134 N 913004006001 NUT
LINE MOUNTING
136 A 0004312031 TEST CONNECTION
VOSS
136 A 0004314531 TEST CONNECTION
SCHAEFER
136 A 0004314831 TEST CONNECTION
WABCO
136 A 0004316131 TEST CONNECTION
WIRA
136 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
136 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
136 A 0004316131 TEST CONNECTION
FRONT AXLE II RELAY VALVE
WIRA
136 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
136 A 0004316131 TEST CONNECTION
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
136 A 0004316131 TEST CONNECTION
FRONT AXLE II PNEUMATIC SUSPENSION
WIRA
A 0009979486 PLUG
138 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
138 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
144 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
144 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
144 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
144 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
144 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
144 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
144 A 0024314906 PRESSURE REGULATOR
WABCO
144 A 0024318306 VALVE
KNORR
156 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
156 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
156 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
156 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
156 A 0014304960 REPAIR KIT
TO 003 431 37 06
156 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
156 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
156 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR,3200
156 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU,312 017 014
156 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
156 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
156 A 0004307960 REPAIR KIT
SEAL RING
TO 002 431 34 06,BOSCH 0 481 039 221
156 A 0004307960 REPAIR KIT
SEAL RING
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 PRESSURE REGULATOR
TO 002 431 83 06,KNORR 90309
158 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
159 N 913004008004 NUT
Repalced by: N 913004008001
159 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
160 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
160 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
162 N 916026016001 CLAMP
Repalced by: A 0059970190
162 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
162 N 916026020001 CLAMP
Repalced by: N 000000000667
162 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
164 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
166 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
168 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
168 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION:
21
170 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
172 A 0004290227 THRUST RING
Repalced by: A 0009940203
172 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
174 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
180 A 0004292595 AIR CLEANER
BOSCH
180 A 0004292695 AIR CLEANER
KNORR
180 A 0004292795 AIR CLEANER
WABCO
182 A 0004292895 AIR CLEANER
GRAU
184 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
186 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
188 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
188 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
190 A 0059930901 SPRING
TO 000 429 27 95,WABCO
192 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
192 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
194 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
194 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
A 0089978848 SEAL RING
Repalced by: A 0049972248
A 0049972248 SEAL RING
Repalced by: A 0289972348
A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
A 0009870746 SEALING CORD
TO 000 429 27 95,075X3MM,WABCO
196 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
196 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
198 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
200 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
202 A 6204310740 BRACKET
AIR CLEANER
204 N 000933008147 SCREW
Repalced by: N 304017008021
204 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
206 N 000125008418 WASHER
Repalced by: N 000125008443
206 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
208 N 913004008004 NUT
Repalced by: N 913004008001
208 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
210 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
212 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
214 A 0004290227 THRUST RING
Repalced by: A 0009940203
214 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"2","1"
216 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"2","1"
218 A 0014296544 VALVE
Repalced by: A 0044293144
218 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
218 A 0024297044 VALVE
Repalced by: A 0044293244
218 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
220 A 0024290044 VALVE
Repalced by: A 0044293144
220 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
221 A 0024298844 VALVE
TO 002 429 70 44,GRAU
222 A 0004290745 DIAPHRAGM
TO 002 429 70 44,GRAU
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
223 A 0015862042 REPAIR KIT
TO 001 429 65 44,WABCO
224 A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
226 A 0019972372 FITTING
OVERFLOW VALVE,CONNECTION:
"20"
227 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"1"
228 N 074305022202 NUT
OVERFLOW VALVE,CONNECTION:
"2"
229 A 0004290227 THRUST RING
Repalced by: A 0009940203
229 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"1,2"
230 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS:
"1,2"
231 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
232 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
233 A 0014319306 VALVE
Repalced by: A 0034315006
234 A 0014318906 VALVE
Repalced by: A 0024314006
234 A 0024314006 VALVE
Repalced by: A 0034315006
235 A 0014318706 VALVE
Repalced by: A 0034315006
236 A 0024312706 VALVE
Repalced by: A 0024319106
236 A 0024319106 VALVE
Repalced by: A 0034315006
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
238 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
239 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
240 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
240 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
242 N 000125017010 WASHER
Repalced by: N 000125017016
242 N 000125017016 WASHER
VALVE TO BRACKET
243 N 080705016003 NUT
VALVE TO BRACKET
245 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
245 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
246 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
247 A 0004290227 THRUST RING
Repalced by: A 0009940203
247 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
248 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
249 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
250 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
251 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
252 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
254 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
256 N 000439016206 NUT
Repalced by: N 308675016001
256 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
258 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
258 A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
260 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
262 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
264 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
266 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
268 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
280 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
280 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
280 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
280 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
280 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
280 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
280 A 0024310605 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
280 A 0024311005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
280 A 0024312005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
A 0004313623 VALVE
WABCO
282 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
282 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
282 A 0004308206 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 07 05,002 431 06 05,WABCO
282 A 0004300160 REPAIR KIT
Repalced by: A 0004303306
282 A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
284 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
284 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
286 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
288 N 000933008152 SCREW
Repalced by: N 304017008027
288 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
290 N 913004008004 NUT
Repalced by: N 913004008001
290 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
292 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"4"
294 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"4"
296 N 915036012203 HOLLOW SCREW
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
298 N 007603016401 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
300 N 000908016001 SCREW PLUG
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
302 A 0004290927 THRUST RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
304 A 0009971548 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
306 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
306 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
308 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
310 A 0019871746 SEALING CORD
38X3 MM
312 A 0089970445 SEAL RING
34.6X2.6 MM
314 A 0089978648 SEAL RING
28.4X2.6 MM
316 A 0004313223 VALVE
318 N 007603016401 SEAL RING
16X20 MM
320 A 0089978748 SEAL RING
56X1.7 MM
322 N 913004008004 NUT
Repalced by: N 913004008001
322 N 913004008001 NUT
VALVE TO FLOOR
324 A 6204312440 BRACKET
PRESSURE RATIO VALVE
324 A 6204312540 BRACKET
PRESSURE RATIO VALVE
326 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
328 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
328 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
330 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
332 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
334 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
336 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
338 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
340 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915047012203 HOLLOW SCREW
AT FITTING
N 007603016401 SEAL RING
AT FITTING
350 A 0004324801 RESERVOIR
Repalced by: A 0014327501
350 A 0014327501 RESERVOIR
Repalced by: A 0034321201
350 A 0034321201 RESERVOIR
PARKING BRAKE
20 L
350 A 0034321201 RESERVOIR
FRONT AXLE II PNEUMATIC SUSPENSION
20 L
352 A 0024312206 VALVE
Repalced by: A 0034298844
352 A 0034298844 VALVE
(PRESSURE RELIEF VALVE)
WABCO
A 0034298944 VALVE
(PRESSURE RELIEF VALVE)
WABCO
A 0005866842 REPAIR KIT
Repalced by: A 0004205455
A 0004205455 REPAIR KIT
Repalced by: A 0024292844
A 0024292844 VALVE
WABCO
354 N 074305022202 NUT
PRESSURE RELIEF VALVE TO AIR RESERVOIR,CONNECTION:
10
355 A 0019972372 FITTING
PRESSURE RELIEF VALVE TO AIR RESERVOIR,CONNECTION:
10
356 A 0004290227 THRUST RING
Repalced by: A 0009940203
356 A 0009940203 THRUST RING
PRESSURE RELIEF VALVE TO AIR RESERVOIR,CONNECTION:
10
357 A 0009870446 SEALING CORD
PRESSURE RELIEF VALVE TO AIR RESERVOIR,CONNECTION:
10
358 A 3874320540 BRACKET
FRONT AIR RESERVOIR
358 A 3874320540 BRACKET
REAR AIR RESERVOIR
359 N 000933008215 SCREW
Repalced by: A 0069909301
359 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
360 N 913004008004 NUT
Repalced by: N 913004008001
360 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
361 A 6204300440 STRAP
FRONT AIR RESERVOIR
362 A 6204300540 STRAP
FRONT AIR RESERVOIR
363 A 6204300240 STRAP
FRONT AIR RESERVOIR
363 A 6204300240 STRAP
FRONT AIR RESERVOIR
363 A 6204301240 STRAP
FRONT AIR RESERVOIR
363 A 6204301240 STRAP
FRONT AIR RESERVOIR
364 A 3874300640 STRAP
REAR AIR RESERVOIR
365 N 913004010008 NUT
Repalced by: N 910113010000
365 N 910113010000 NUT
STRAP TO BRACKET
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
366 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
367 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
368 A 0004290227 THRUST RING
Repalced by: A 0009940203
368 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23"
368 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTION:
"14,"24"
370 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,23"
370 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTION:
"14,"24"
371 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"14"
372 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
374 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
376 A 0004322101 RESERVOIR
Repalced by: A 0034322301
376 A 0034322301 RESERVOIR
AIR RESERVOIR,BRAKE CIRCUITS I & II
30 L
378 A 6204320018 BASE
STRAP TO SUPPORT
380 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
382 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
384 N 913004010008 NUT
Repalced by: N 910113010000
384 N 910113010000 NUT
STRAP TO SUPPORT
386 A 3464320073 LOCK
PROTECTION AGAINST TORSION
388 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
390 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
392 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
392 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
394 A 0004290227 THRUST RING
Repalced by: A 0009940203
394 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
396 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
398 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
400 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
402 A 0004322407 VALVE
DRAIN
402 A 0004321107 VALVE
DRAIN
402 A 0004322107 VALVE
DRAIN
404 A 0004290227 THRUST RING
Repalced by: A 0009940203
404 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
406 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
408 A 0024299644 VALVE
(CHECK VALVE)
VOSS
410 A 0034290444 VALVE
(CHECK VALVE)
WABCO
412 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
414 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
416 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
418 A 0002950320 VALVE
TO 003 429 04 44,WABCO
420 A 0089977348 SEAL RING
19.3X2.4 MM;TO 003 429 04 44,WABCO
422 A 0109970048 SEAL RING
13.6X2 MM;TO 003 429 12 44,SCHAEFER
424 A 0109970148 SEAL RING
15.3X2.4 MM;TO 003 429 12 44,SCHAEFER
426 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
428 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
430 N 074305022202 NUT
CHECK VALVE TO BRACKET
432 A 6204292540 BRACKET
Repalced by: A 6164290140
432 A 6164290140 BRACKET
CHECK VALVE
434 N 000933010129 SCREW
Repalced by: N 304017010002
434 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
436 N 913004010008 NUT
Repalced by: N 910113010000
436 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
438 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
440 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
442 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
444 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
446 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
448 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
448 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
450 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
452 A 0014296844 VALVE
(RELAY VALVE)
WABCO
452 A 0014299144 VALVE
(RELAY VALVE)
GRAU
452 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
452 A 0034295344 VALVE
(RELAY VALVE)
KNORR
452 A 0034295344 VALVE
FRONT AXLE II
KNORR
452 A 0034295344 VALVE
REAR AXLE I
KNORR
452 A 0034295344 VALVE
REAR AXLE II
KNORR
460 A 0059972648 SEAL RING
22.3X2.4 MM; TO 001 429 91 44,GRAU
462 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
464 A 0059972748 SEAL RING
80X3 MM; TO 001 429 91 44,GRAU
466 A 0014311660 SEAL RING
28X2 MM; TO 001 429 91 44,GRAU
468 A 0014311760 SEAL RING
86X2 MM; TO 001 429 91 44,GRAU
470 A 0004311980 GASKET
34X2X6 MM; TO 001 429 91 44,GRAU
474 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
474 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
474 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
476 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
476 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
476 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
476 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
480 N 913004008004 NUT
Repalced by: N 913004008001
480 N 913004008001 NUT
RELAY VALVE TO BRACKET
481 A 3914311240 BRACKET
FRONT AXLE II RELAY VALVE
482 A 6174310640 BRACKET
REAR AXLE I RELAY VALVE
483 N 000933008153 SCREW
Repalced by: N 304017008034
483 N 304017008034 SCREW
BRACKET TO CROSS MEMBER
M 8X20
484 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
M 10X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER
486 N 913004010008 NUT
Repalced by: N 910113010000
486 N 910113010000 NUT
BRACKET TO SIDE AND CROSS MEMBERS
N 000125006421 WASHER
BRACKET TO CROSS MEMBER
488 A 0009905168 FITTING
REAR AXLE I RELAY VALVE,CONNECTION:
"1"
488 A 0009905168 FITTING
FRONT AXLE II RELAY VALVE,CONNECTIONS:
"1,2"
490 A 0004290227 THRUST RING
Repalced by: A 0009940203
490 A 0009940203 THRUST RING
REAR AXLE I RELAY VALVE,CONNECTION:
"1"
490 A 0009940203 THRUST RING
FRONT AXLE II RELAY VALVE,CONNECTION:
"1"
492 A 0009870446 SEALING CORD
REAR AXLE I RELAY VALVE,CONNECTION:
"1"
492 A 0009870446 SEALING CORD
FRONT AXLE II RELAY VALVE,CONNECTIONS:
"1,2"
493 A 0039977072 FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
"2"
A 0024292444 VALVE
(RELAY VALVE)
A 0039974348 SEAL RING
A 0039974448 SEAL RING
A 0039974548 SEAL RING
A 0039974498 CHAIN LOCK LINK
N 074313008104 FITTING
Repalced by: A 0029979572
A 0029979572 FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
"4"
494 N 915040012206 HOLLOW SCREW FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
2
N 915039012205 HOLLOW SCREW FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
"2"
495 N 080705016003 NUT
FRONT AXLE II RELAY VALVE,CONNECTION:
"2"
496 A 0004290927 THRUST RING
REAR AXLE I RELAY VALVE,CONNECTION:
"2"
496 A 0004290927 THRUST RING
FRONT AXLE II RELAY VALVE,CONNECTIONS:
"2","4"
497 A 0009971548 SEAL RING
REAR AXLE I RELAY VALVE,CONNECTION:
"2"
497 A 0009971548 SEAL RING
FRONT AXLE II RELAY VALVE,CONNECTIONS:
"2","4"
498 N 915036012203 HOLLOW SCREW
REAR AXLE I RELAY VALVE,CONNECTIONS:
"1,2,4"
499 N 915047012203 HOLLOW SCREW
REAR AXLE I RELAY VALVE,CONNECTION:
"1"
500 N 007603016401 SEAL RING
REAR AXLE I RELAY VALVE,CONNECTIONS:
"1,2"
502 A 0004290444 VALVE
Repalced by: A 0034290744
502 A 0034290744 VALVE
(CHECK VALVE)
A 0034205855 BLEEDER VALVE
TO 003 429 07 44
504 A 0009905168 FITTING
CHECK VALVE,CONNECTION:
"1"
508 N 080705016003 NUT
CHECK VALVE,CONNECTION:
"1"
512 A 0004290227 THRUST RING
Repalced by: A 0009940203
512 A 0009940203 THRUST RING
CHECK VALVE,CONNECTIONS:
"1,2"
514 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"1"
516 A 0009870446 SEALING CORD
CHECK VALVE,CONNECTIONS:
"1,2"
518 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"1"
520 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"1"
524 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"1"
530 A 0014290444 VALVE
3/2-WAY
534 A 0005866542 REPAIR KIT
Repalced by: A 0004205755
534 A 0004205755 REPAIR KIT
550 N 000934010014 NUT
3/2-WAY VALVE;CONNECTION:
"1"
554 A 0004290827 THRUST RING
Repalced by: A 0009940103
554 A 0009940103 THRUST RING
3/2-WAY VALVE;CONNECTION:
"1"
556 A 0019970845 SEAL RING
3/2-WAY VALVE;CONNECTION:
"1"
560 N 915036006202 HOLLOW SCREW
3/2-WAY VALVE;CONNECTIONS:
"2,4"
562 N 007604010102 SCREW PLUG
Repalced by: N 007604010108
562 N 007604010108 SCREW PLUG
3/2-WAY VALVE;CONNECTION:
"3"
564 N 007603010103 SEAL RING
Repalced by: N 007603010110
564 N 007603010110 SEAL RING
3/2-WAY VALVE;CONNECTIONS:
"2,3,4"
570 A 0034291444 VALVE
(PRESSURE RATIO VALVE),REAR AXLE I
575 A 0004300760 REPAIR KIT
579 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
579 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"2"
582 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
585 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
600 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
600 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
600 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
600 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
600 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
600 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
605 A 0004307560 REPAIR KIT
TO 001 431 33 12,001 431 32 12,WABCO
A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,001 431 36 12,BOSCH
A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,001 431 36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
614 N 913004008004 NUT
Repalced by: N 913004008001
614 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
A 3874311540 BRACKET
BRAKE POWER REGULATOR
618 A 3854317040 BRACKET
BRAKE POWER REGULATOR
622 A 6174310040 BRACKET
BRAKE POWER REGULATOR
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BRACKET TO SIDE MEMBER
M 10X30
N 000961016113 SCREW
BRACKET TO SIDE MEMBER
M 16X1.5X32
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRACKET TO SIDE MEMBER
N 913004016004 NUT
Repalced by: N 910113016002
N 910113016002 NUT
BRACKET TO SIDE MEMBER
640 A 6195841121 GUIDE SIGN
LOAD-DEPENDING BRAKE
640 A 6195841621 GUIDE SIGN
LOAD-DEPENDING BRAKE
640 A 6195843521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
643 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
A 0069970072 FITTING
BRAKE POWER REGULATOR,CONNECTION:
"2"
646 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
650 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
A 6204310439 LEVER
BRAKE POWER REGULATOR CONTROL
656 A 6204310839 LEVER
Repalced by: A 6744310039
656 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
660 N 900331008262 PULL ROD
Repalced by: N 900331008420
660 N 900331008420 PULL ROD
FROM LEVER TO METAL SPRING BELLOWS
664 N 900331008419 PULL ROD
FROM LEVER TO METAL SPRING BELLOWS
668 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
672 N 916026010000 CLAMP
Repalced by: N 000000000665
672 N 000000000665 CLAMP
CONNECTOR TO ROD
676 A 6249950065 CLAMP
CONNECTOR TO ROD
680 N 000125008418 WASHER
Repalced by: N 000125008443
680 N 000125008443 WASHER
ROD TO LEVER
684 N 000094002069 COTTER PIN
ROD TO LEVER
688 N 304032008006 NUT
PULL ROD TO METAL-SPRING-BELLOWS BALL JOINT
A 0004311618 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
692 A 0004311718 METAL SPRING BELLOWS
TRAILING AXLE
692 A 0004311718 METAL SPRING BELLOWS
TRAILING AXLE
A 0004311218 METAL SPRING BELLOWS
696 A 0004311018 METAL SPRING BELLOWS
700 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
704 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
A 3854317840 BRACKET
METAL SPRING BELLOWS
A 6174311040 BRACKET
METAL SPRING BELLOWS
A 6524310440 BRACKET
METAL SPRING BELLOWS
712 A 6204313740 BRACKET
METAL SPRING BELLOWS
716 N 000961012056 SCREW
Repalced by: N 308676012038
716 N 308676012038 SCREW
BRACKET TO REAR AXLE I
720 N 000961016105 SCREW
Repalced by: N 308676016004
720 N 308676016004 SCREW
BRACKET TO REAR AXLE I
728 A 3609900940 WASHER
BRACKET TO REAR AXLE I
728 A 3939900240 WASHER
BRACKET TO REAR AXLE I
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
BRACKET TO REAR AXLE
M 12X1.5X25
732 N 912004012100 LOCK WASHER
BRACKET TO REAR AXLE I
733 A 6194300410 BRACKET
TRAILING AXLE
734 A 6194300111 CONSOLE
TRAILING AXLE
A 3813010188 COVERING
Repalced by: A 4073015088
A 4073015088 COVERING
TRAILING AXLE
736 A 3813020050 BUSHING
TRAILING AXLE
737 A 3813010388 COVERING
Repalced by: A 6153010088
737 A 6153010088 COVERING
TRAILING AXLE
738 N 001440012005 WASHER
TRAILING AXLE
739 N 000094003219 COTTER PIN
TRAILING AXLE
740 N 000961012052 SCREW
Repalced by: N 308676012012
740 N 308676012012 SCREW
METAL SPRING BELLOWS TO BRACKET
741 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 SCREW
METAL SPRING BELLOWS TO BRACKET
743 A 0004302926 CYLINDER
TRAILING AXLE
744 A 0004340459 SEAL RING
Repalced by: A 0239975247
744 A 0239975247 SEAL RING
745 A 0003530389 BOOT
746 N 001444008221 PIN
TRAILING AXLE
747 N 000125008418 WASHER
Repalced by: N 000125008443
747 N 000125008443 WASHER
TRAILING AXLE
748 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
748 N 000137008212 SPRING WASHER
TRAILING AXLE
749 N 000094002077 COTTER PIN
TRAILING AXLE
750 N 001440008002 WASHER
TRAILING AXLE
751 N 000094002077 COTTER PIN
TRAILING AXLE
752 A 6233910040 BRACKET
TRAILING AXLE
753 N 913004008004 NUT
Repalced by: N 913004008001
753 N 913004008001 NUT
TRAILING AXLE
754 A 0019977472 FITTING
TRAILING AXLE
755 N 080705014002 NUT
TRAILING AXLE
756 A 6234300410 BRACKET
TRAILING AXLE
757 A 0009900127 KNURLED HEAD SCREW
TRAILING AXLE
758 N 304032008006 NUT
TRAILING AXLE
759 A 0004295135 BRAKE HOSE
CONNECTION TO CYLINDER
450 MM
760 N 900288012001 CLAMP
CONNECTION TO CYLINDER
N 000933008301 SCREW
Repalced by: A 0079900801
A 0079900801 SCREW
REGULATOR TO BRACKET
M 8X14
762 A 0014309981 VALVE
(PRESSURE RATIO VALVE),TRAILING AXLE
763 A 0005867943 REPAIR KIT
764 N 080705018002 NUT
VALVE TO SIDE MEMBER
765 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
766 N 915039012205 HOLLOW SCREW FITTING
PRESSURE RATIO VALVE,CONNECTION:
"2"
767 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
768 N 074313012304 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"2"
769 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
772 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
776 N 916027011014 HOSE
T YYYYYYYYYYYY PART NAME MISSING
REAR BRAKE HOSE,REAR AXLE I
T YYYYYYYYYYYY PART NAME MISSING
REAR BRAKE HOSE,TRAILING AXLE
785 A 0004290541 FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
785 A 0004290541 FITTING
REAR BRAKE HOSE,TRAILING AXLE
"11,12"
789 N 915017012100 UNION NUT
793 N 003861012007 GLAND
Repalced by: A 0019901967
793 A 0019901967 SEAL CONE
796 A 0004290641 FITTING
BRAKE HOSE TO RELAY VALVE BRACKET
796 A 0004290641 FITTING
BRAKE HOSE TO RELAY VALVE BRACKET
800 N 074304016201 FITTING
AT RELAY VALVE
800 N 074304016201 FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
808 N 916017016000 CLAMP
Repalced by: N 000000000666
808 N 000000000666 CLAMP
BRAKE HOSE TO FITTING
812 A 0004290927 THRUST RING
FITTING TO RELAY VALVE
816 A 0009971548 SEAL RING
FITTING TO RELAY VALVE
824 A 6204292040 BRACKET
FITTING
824 A 6204292040 BRACKET
FITTING
828 A 6194310840 BRACKET
PRESSURE RATIO VALVE
832 N 913004008004 NUT
Repalced by: N 913004008001
832 N 913004008001 NUT
BRACKET TO RELAY VALVE
836 N 080705018002 NUT
FITTING TO BRACKET
840 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
840 A 0004296934 ADAPTER FITTING
REAR BRAKE HOSE,TRAILING AXLE
844 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
848 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
852 N 915047012203 HOLLOW SCREW
LEFT BRAKE HOSE
N 915040012206 HOLLOW SCREW FITTING
LEFT AND RIGHT BRAKE HOSES
856 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
A 0004312031 TEST CONNECTION
LEFT AND RIGHT BRAKE HOSES
A 0004314531 TEST CONNECTION
LEFT AND RIGHT BRAKE HOSES
A 0004314831 TEST CONNECTION
LEFT AND RIGHT BRAKE HOSES
A 0004316131 TEST CONNECTION
LEFT AND RIGHT BRAKE HOSES
A 0009979486 PLUG
860 A 0039975745 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
A 3039971440 SEAL RING
BRAKE HOSE TO PARKING BRAKE HOSE
A 1159950465 CLAMP
BRAKE HOSE MOUNTING
A 6209950065 CLAMP
BRAKE HOSE MOUNTING
864 A 0009971548 SEAL RING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
864 A 0009971548 SEAL RING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
868 A 0004290927 THRUST RING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
868 A 0004290927 THRUST RING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
872 N 080705016003 NUT
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
879 A 0019905370 T-FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
883 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
883 A 0069970072 FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
888 N 007603016401 SEAL RING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
892 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
895 N 915036012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER, CONNECTION:
"11"
896 A 0014295644 VALVE
Repalced by: A 0044291844
896 A 0044291844 VALVE
(PRESSURE RELIEF VALVE)
A 0004300568 REPAIR KIT
897 N 915036008202 HOLLOW SCREW
PRESSURE RELIEF VALVE,CONNECTIONS:
"1","2"
898 N 007603012405 SEAL RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
899 N 000933010128 SCREW
PRESSURE RELIEF VALVE TO BRACKET
M 10X20
900 N 912004010102 LOCK WASHER
PRESSURE RELIEF VALVE TO BRACKET
901 A 6233910140 BRACKET
PRESSURE RELIEF VALVE
902 N 000933008147 SCREW
Repalced by: N 304017008021
902 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
M 8X20
903 N 913004008004 NUT
Repalced by: N 913004008001
903 N 913004008001 NUT
BRACKET TO CROSS MEMBER
904 A 0004202755 BLEEDER VALVE
(3/2-WAY SOLENOID VALVE)
905 N 915036008202 HOLLOW SCREW
3/2-WAY VALVE;CONNECTIONS:
"1,3"
906 N 007603012405 SEAL RING
3/2-WAY VALVE;CONNECTION:
"1"
907 N 007604012101 SCREW PLUG
3/2-WAY VALVE;CONNECTION:
"1"
908 A 0049970572 FITTING
3/2-WAY VALVE;CONNECTION:
"2"
909 A 0004290827 THRUST RING
Repalced by: A 0009940103
909 A 0009940103 THRUST RING
3/2-WAY VALVE;CONNECTION:
"2"
910 A 0019970845 SEAL RING
3/2-WAY VALVE;CONNECTION:
"2"
911 N 080705016003 NUT
FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
911 N 080705016003 NUT
RELAY VALVE,CONNECTION "1"
912 A 0004290927 THRUST RING
FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
912 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "1"
913 A 0009971548 SEAL RING
FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
913 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "1"
914 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
915 A 0019905270 T-FITTING
RELAY VALVE,CONNECTION "1"
916 A 0024293344 VALVE
RELAY VALVE,CONNECTION "1"
917 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
918 N 007603012405 SEAL RING
RELAY VALVE,CONNECTION "1"
919 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
920 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION "1"
921 A 0004290227 THRUST RING
Repalced by: A 0009940203
921 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION "1"
922 N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "2",FRONT
922 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "2",REAR
923 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"2"
924 N 913004008004 NUT
Repalced by: N 913004008001
924 N 913004008001 NUT
A 0039979972 FITTING
AIR SPRING BELLOWS,CONNECTION:
"1"
A 0079974245 SEAL RING
AIR SPRING BELLOWS,CONNECTION:
"1"
A 0004290627 THRUST RING
AIR SPRING BELLOWS,CONNECTION:
"1"
928 A 0014296144 VALVE
Repalced by: A 0024297244
928 A 0024297244 VALVE
(OVERFLOW VALVE)
A 0015862042 REPAIR KIT
(OVERFLOW VALVE)
930 A 0009904468 FITTING
OVERFLOW VALVE TO BRACKET
930 A 0019907168 FITTING
OVERFLOW VALVE,CONNECTION:
931 A 0009870446 SEALING CORD
OVERFLOW VALVE TO BRACKET
931 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION:
932 A 0004290227 THRUST RING
Repalced by: A 0009940203
932 A 0009940203 THRUST RING
OVERFLOW VALVE TO BRACKET
932 A 0004290227 THRUST RING
Repalced by: A 0009940203
932 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION:
933 N 915036008202 HOLLOW SCREW
OVERFLOW VALVE TO BRACKET
933 N 915036008202 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
934 N 007603012405 SEAL RING
OVERFLOW VALVE TO BRACKET
934 N 007603012405 SEAL RING
OVERFLOW VALVE,CONNECTION:
935 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
935 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
935 A 0014306681 VALVE
Repalced by: A 0024309881
935 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
935 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
935 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
935 A 0014306781 VALVE
Repalced by: A 0024309981
935 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81,WABCO
A 0014311087 PROTECTIVE CAP
001 430 34 81,43 81,BOSCH
A 0009975577 HANDLE
KNORR
940 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
940 A 0009973477 HANDLE
TO 001 430 34 81,001 430 43 81,BOSCH
N 001481003025 CLAMPING SLEEVE
KNORR
942 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
942 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
942 A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
943 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
944 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
946 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO CAB
948 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
950 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
