Transporto priemonė: 2219 L/6X2; VIN numerio dalis: 385528
Grupė: 42 BRAKE SYSTEM - 001 BRAKES

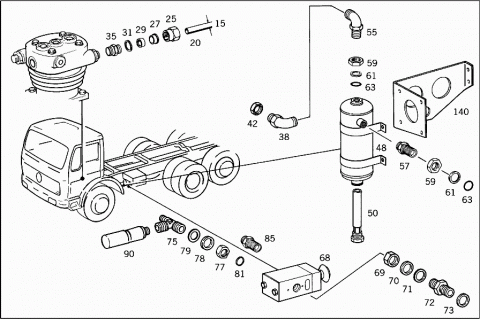

43877

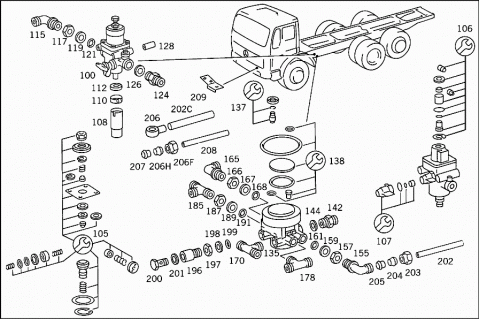

43878

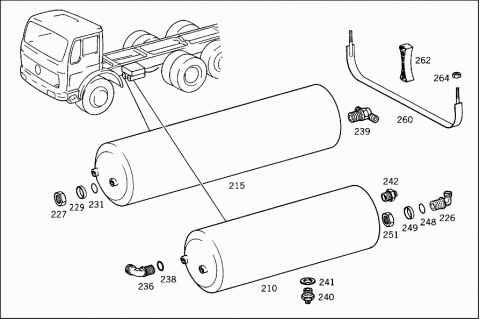

43879

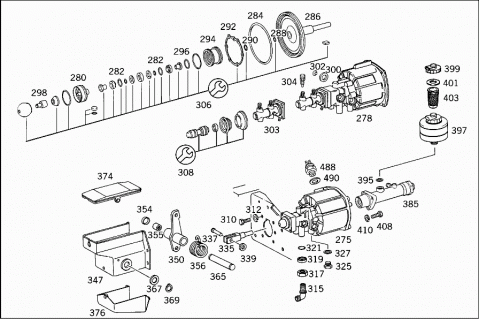

43881

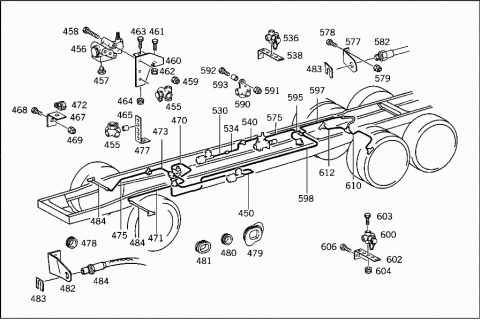

43884

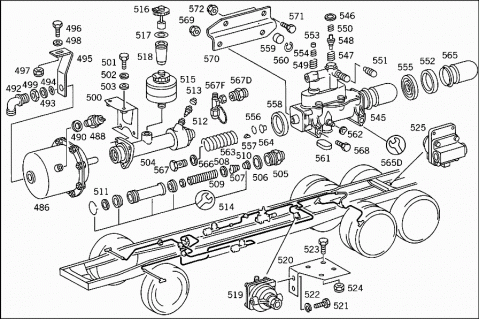

43890

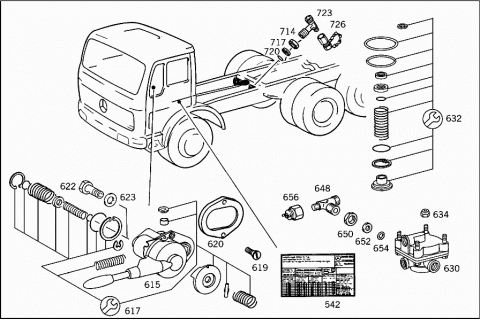

43891

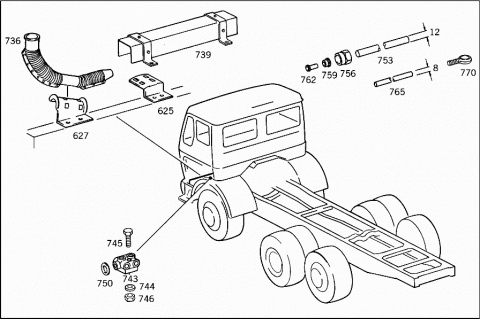

43892

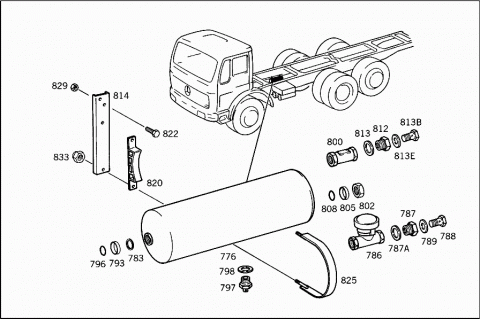

43893
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
740.1
020 A 0004291401 LINE
15 MM
025 N 915018015000 UNION NUT
TO 15-MM-DIA. COMPRESSED AIR LINES
027 N 003861015004 GLAND
TO 15-MM-DIA. COMPRESSED AIR LINES
029 N 915065015101 THRUST RING
TO 15-MM-DIA. COMPRESSED AIR LINES
031 N 915045012100 SEAL RING
Repalced by: N 007603012121
031 N 007603012121 SEAL RING
TO 15-MM-DIA. COMPRESSED AIR LINES
035 N 074298022203 DOUBLE FITTING
038 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
038 A 0029901271 ELBOW FITTING
AT LEFT SIDE MEMBER
N 003941015101 FITTING
AT LEFT SIDE MEMBER
042 N 074305022202 NUT
AT LEFT SIDE MEMBER
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 000000001147 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TO BRACKET
048 A 0004326201 RESERVOIR
0.9 L
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
050 A 0004321707 VALVE
DRAIN
055 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
055 A 0004294638 ELBOW FITTING
AT AIR RESERVOIR
A 0039979472 FITTING
AT AIR RESERVOIR
057 N 074298022203 DOUBLE FITTING
AT AIR RESERVOIR
059 N 074305022202 NUT
AT AIR RESERVOIR
N 007603022102 SEAL RING
AT AIR RESERVOIR
061 A 0004290227 THRUST RING
AT AIR RESERVOIR
061 A 0004290227 THRUST RING
AT AIR RESERVOIR
063 A 0009870446 SEALING CORD
AT AIR RESERVOIR
063 A 0009870446 SEALING CORD
AT AIR RESERVOIR
A 0019972172 FITTING
AT AIR RESERVOIR
068 A 0024293244 VALVE
Repalced by: A 0034296944
068 A 0034296944 VALVE
069 N 074305022202 NUT
3/2-WAY VALVE,CONNECTION "A"
070 A 0004290227 THRUST RING
3/2-WAY VALVE,CONNECTION "A"
071 A 0009870446 SEALING CORD
3/2-WAY VALVE,CONNECTION "A"
072 N 074298022203 DOUBLE FITTING
3/2-WAY VALVE;CONNECTION:
"2.1"
N 007603022102 SEAL RING
3/2-WAY VALVE;CONNECTION:
"2.1"
A 0019972172 FITTING
3/2-WAY VALVE; CONNECTIONS "P2,R1"
073 A 0004290227 THRUST RING
3/2-WAY VALVE; CONNECTIONS "P2,R1"
A 0009870446 SEALING CORD
3/2-WAY VALVE; CONNECTIONS "P2,R1"
075 A 0009906770 T-FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
077 N 074305022202 NUT
3/2-WAY VALVE; CONNECTIONS "P1,R2"
A 0029971172 FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
078 A 0004290227 THRUST RING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
079 A 0009870446 SEALING CORD
3/2-WAY VALVE; CONNECTIONS "P1,R2"
081 N 007603022102 SEAL RING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
085 N 074298022203 DOUBLE FITTING
3/2-WAY VALVE; CONNECTIONS "P1,R2"
N 074305022202 NUT
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
090 A 0024293444 VALVE
Repalced by: A 0044297244
090 A 0044297244 VALVE
(SAFETY VALVE)
A 0004294934 ADAPTER FITTING
(SAFETY VALVE)
N 007603018104 SEAL RING
(SAFETY VALVE)
100 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
100 A 0024314906 PRESSURE REGULATOR
WABCO
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
100 A 0024314306 PRESSURE REGULATOR
BOSCH
100 A 0024318306 PRESSURE REGULATOR
KNORR
A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
105 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
105 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
106 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
106 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
107 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
107 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
108 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION "3"
A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
110 N 916017032000 CLAMP
Repalced by: N 000000000670
110 N 000000000670 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
110 N 916026016001 CLAMP
Repalced by: A 0059970190
110 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION "3"
110 N 916026020001 CLAMP
Repalced by: N 000000000667
110 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
112 A 0004310151 SPACER RING
PRESSURE REGULATOR,CONNECTION "3"
115 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
117 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
119 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
121 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
124 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "2.1"
126 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "2.1"
A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "2.1"
128 A 3809910040 SPACER TUBE
PRESSURE REGULATOR TO SUPPORT
N 000931008209 SCREW
PRESSURE REGULATOR TO SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
PRESSURE REGULATOR TO SUPPORT
A 0014313506 VALVE
Repalced by: A 0014318406
A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
135 A 0014313806 VALVE
Repalced by: A 0024310406
135 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014316806 VALVE
Repalced by: A 0024312906
A 0024312906 VALVE
Repalced by: A 0024319306
A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
A 0014310986 CUP
TO 002 431 04 06,BOSCH
A 0009934905 SPRING
Repalced by: A 0009935205
A 0009935205 SPRING
TO 002 431 04 06,BOSCH
A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
A 0059973248 SEAL RING
25.3X2.4 M,TO 001 431 68 06,GRAU
A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
15X2 MM,TO 001 431 68 06,GRAU 37001
A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4 GRAU 37001
A 0004302906 GASKET KIT
BOOT
TO 002 431 04 6,BOSCH
A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
137 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
138 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
140 A 3854313540 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
A 3854316740 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SUPPORT
N 074305022202 NUT
N 074313016401 FITTING
Repalced by: A 0019972372
142 A 0019972372 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
144 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
155 N 074315012100 FITTING
Repalced by: A 0019903371
155 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
157 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
159 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
A 0029971640 SEAL RING
Repalced by: A 0009971548
161 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1"
165 N 074315012100 FITTING
Repalced by: A 0019903371
165 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
166 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
167 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
168 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
A 0005455414 SWITCH
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
170 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"
178 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
185 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
187 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
189 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
191 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
196 A 0009909270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
197 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
198 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
A 0029971640 SEAL RING
Repalced by: A 0009971548
199 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
200 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
201 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
202 A 0004292101 LINE
12 MM
202C A 0109975982 HOSE
Repalced by: A 0009872827
202C A 0009872827 PLASTIC PIPE
9X12
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
N 040621013200 INSULATING HOSE
BLACK
13 MM
N 040621010200 INSULATING HOSE
BLACK
10 MM
N 040621007200 INSULATING HOSE
BLACK
7 MM
A 0019978390 LOOM TIE
203 N 915017012100 UNION NUT
COMPRESSED AIR LINE
12 MM
204 N 003861012007 GLAND
Repalced by: A 0019901967
204 A 0019901967 SEAL CONE
COMPRESSED AIR LINE
12 MM
205 A 0009921505 BUSHING
Repalced by: N 915062009000
205 N 915062009000 SLEEVE
206 N 915052009009 BANJO UNION
A 0019903970 T-FITTING
Repalced by: A 0029909070
A 0029909070 T-FITTING
A 0089979082 HOSE
6X8
N 915017008100 UNION NUT
N 003861008005 GLAND
A 0007630043 SLEEVE
Repalced by: N 915062006000
N 915062006000 SLEEVE
N 915052006021 BANJO UNION
A 0009906688 BANJO UNION
Repalced by: N 915052006013
N 915052006013 BANJO UNION
N 915052006014 BANJO UNION
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
A 0109977082 HOSE
206F N 915017006100 UNION NUT
206H N 003861006007 GLAND
Repalced by: A 0019901667
206H A 0019901667 SEAL CONE
207 A 0009920105 BUSHING
Repalced by: N 915062004000
207 N 915062004000 SLEEVE
A 0009903888 BANJO UNION
Repalced by: N 915052004006
N 915052004015 BANJO UNION
208 N 073379006203 HOSE
6X10
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
COMPRESSED AIR LINE MOUNTING
A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
209 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3524290740 BRACKET
COMPRESSED AIR LINE MOUNTING
A 3535400040 BRACKET
COMPRESSED AIR LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
A 3604292540 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
A 3609950401 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 000084006127 SCREW
COMPRESSED AIR LINE TO BRACKET
N 000084006127 SCREW
COMPRESSED AIR LINE TO BRACKET
N 000084005114 SCREW
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
N 912004005103 LOCK WASHER
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
A 3854292440 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
AT TRIANGULAR CONTROL ARM
N 912004008102 LOCK WASHER
AT TRIANGULAR CONTROL ARM
A 1801550053 SPACER TUBE
AT TRIANGULAR CONTROL ARM
A 3934310140 BRACKET
Repalced by: A 6514310240
A 6514310240 BRACKET
AT TRIANGULAR CONTROL ARM
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
AT TRIANGULAR CONTROL ARM
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AT TRIANGULAR CONTROL ARM
A 0019978490 LOOM TIE
PLASTIC HOSE TO BRACKET
A 0019978390 LOOM TIE
PLASTIC HOSE TO BRACKET
A 6204295240 BRACKET
AT CAB FLOOR
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT CAB FLOOR
A 3229971581 GROMMET
210 A 0004322601 RESERVOIR
Repalced by: A 0034321801
210 A 0034321801 RESERVOIR
30 L
215 A 0004325301 RESERVOIR
30/10 L.
A 0009902787 CROSS FITTING
INSIDE AIR RESERVOIR
226 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR
A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR
227 N 074305022202 NUT
INSIDE AIR RESERVOIR
229 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR
231 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR
N 003952012101 FITTING
Repalced by: A 0019902771
A 0019902771 ELBOW FITTING
INSIDE AIR RESERVOIR,FRONT CONNECTION
N 074313012100 FITTING
Repalced by: A 0029971172
236 A 0029971172 FITTING
INSIDE AIR RESERVOIR
A 0009904670 T-FITTING
INSIDE AIR RESERVOIR
238 N 007603022102 SEAL RING
INSIDE AIR RESERVOIR
239 A 0024295844 VALVE
CHECK VALVE
239 A 0024295944 VALVE
CHECK VALVE
239 A 0024297544 VALVE
CHECK VALVE
240 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
N 007603022102 SEAL RING
AIR RESERVOIR,BOTTOM CONNECTION
241 A 0004290227 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
A 0009870446 SEALING CORD
AIR RESERVOIR,BOTTOM CONNECTION
A 0009902687 CROSS FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0019979572 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
VOSS
A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
SCHAEFER
A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WABCO
A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
WIRA
A 0009979486 PLUG
N 074313012100 FITTING
Repalced by: A 0029971172
242 A 0029971172 FITTING
OUTSIDE AIR RESERVOIR
248 N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR
249 A 0004290227 THRUST RING
OUTSIDE AIR RESERVOIR
251 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
251 N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR
N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR
260 A 3854300140 STRAP
262 A 3854320218 BASE
264 N 000934010014 NUT
275 A 0004316814 BRAKE CYLINDER
Repalced by: A 0014317214
275 A 0004316914 BRAKE CYLINDER
Repalced by: A 0014317214
275 A 0014317214 BRAKE CYLINDER
BOSCH
278 A 0004319514 BRAKE CYLINDER
Repalced by: A 0014317514
278 A 0014310814 BRAKE CYLINDER
Repalced by: A 0014317514
278 A 0024301030 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317514
278 A 0014314214 BRAKE CYLINDER
Repalced by: A 0014317514
278 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
280 A 0004317283 PISTON
TO 000 431 95 14;000 431 69 14
282 A 0019979340 SEAL RING
Repalced by: A 0019975945
282 A 0019975945 SEAL RING
TO 000 431 95 14;000 431 69 14
284 A 0039979548 SEAL RING
TO 000 431 95 14;000 431 69 14
286 A 0004317483 PISTON
TO 000 431 95 14;000 431 69 14
288 A 0069975645 SEAL RING
TO 000 431 95 14;000 431 69 14
290 A 0039979348 SEAL RING
TO 000 431 95 14;000 431 69 14
292 A 0014310660 SEAL RING
TO 000 431 95 14;000 431 69 14
294 A 0004317383 PISTON
TO 000 431 95 14;000 431 69 14
296 A 0039979448 SEAL RING
TO 000 431 69 14;000 431 95 14
A 0004311349 GUIDE BUSHING
TO 000 431 69 14,BOSCH
298 A 0004311249 GUIDE BUSHING
TO 000 321 95 14,BOSCH-SCHAEFER
A 0004317587 PROTECTIVE CAP
TO 000 431 69 14,BOSCH
A 0009882735 CAP
TO 001 431 72 14,BOSCH
300 A 0039974347 SEAL RING
302 A 0004318886 CUP
TO 000 431 95 14;000 431 69 14
A 0004315586 CUP
TO 000 431 68 14,BOSCH
A 0004311422 COVER
TO 001 431 72 14,BOSCH
A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
303 A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
303 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
304 A 0004310265 VALVE
Repalced by: A 3075530107
304 A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
306 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
306 A 0004302108 REPAIR KIT
TO 000 431 95 14,000 431 69 14
306 A 0004302108 REPAIR KIT
TO 001 431 42 14,BOSCH-SCHAEFER
306 A 0004302108 REPAIR KIT
TO 001 431 72 14,BOSCH
A 0025865743 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 68 14,BOSCH
A 0025866543 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 08 14,002 430 10 30
A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18
308 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
A 0089979082 HOSE
BLEEDING
A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
310 N 000933010129 SCREW
Repalced by: N 304017010002
310 N 304017010002 SCREW
BRAKE CYLINDER TO SUPPORT
N 000931010094 SCREW
Repalced by: N 000931010407
N 000931010407 SCREW
BRAKE CYLINDER TO SUPPORT
312 N 912004010102 LOCK WASHER
BRAKE CYLINDER TO SUPPORT
315 N 074315012100 FITTING
Repalced by: A 0019903371
315 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
317 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
319 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
321 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
325 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTION "2.2"
N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
327 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTION "2.2"
A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
CONNECTION "2.1"
N 080705016003 NUT
CONNECTION "2.1"
A 0004290927 THRUST RING
CONNECTION "2.1"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
CONNECTION "2.1"
335 A 3804310092 ROD
BRAKE LEVER TO SUPPORT
337 N 001434010009 PIN
BRAKE LEVER TO SUPPORT
339 N 000433010505 WASHER
Repalced by: N 000433010510
339 N 000433010510 WASHER
BRAKE LEVER TO SUPPORT
N 000094003219 COTTER PIN
BRAKE LEVER TO SUPPORT
N 000933010105 SCREW
BRAKE LEVER TO SUPPORT
N 000933010128 SCREW
BRAKE LEVER TO SUPPORT
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRAKE LEVER TO SUPPORT
A 3854200168 SUPPORT
Repalced by: A 3854260240
347 A 3854260240 BRACKET
350 A 3854200042 BRAKE LEVER
354 A 0089978046 SEAL RING
Repalced by: A 0069979147
354 A 0069979147 SEAL RING
355 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
355 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
355 A 0119813410 NEEDLE BEARING
356 A 3859930010 SPRING
A 3802940507 PIVOT PIN
365 A 3854310853 SPACER TUBE
367 N 000433021002 WASHER
N 000931010379 SCREW
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
369 N 000471020001 LOCK RING
N 304017010025 SCREW
Repalced by: N 304017010051
N 304017010051 SCREW
CABLE TO BRAKE LEVER
N 000934010014 NUT
CABLE TO BRAKE LEVER
374 A 3854260165 PROTECTIVE PLATE
TOP
376 A 3854260065 PROTECTIVE PLATE
BOTTOM
385 A 0034305501 BRAKE MASTER CYLINDER
FRONT AXLE
A 0025863243 REPAIR KIT
Repalced by: A 0014300260
A 0014300260 REPAIR KIT
395 N 007603022102 SEAL RING
397 A 0004318702 RESERVOIR
399 A 0004312833 FILLER CAP
Repalced by: A 0004315533
399 A 0004315533 FILLER CAP
A 0014310287 PROTECTIVE CAP
401 A 0039976440 SEAL RING
403 A 0004312634 STRAINER
A 0004319702 RESERVOIR
Repalced by: A 0004318702
A 0004313333 FILLER CAP
408 N 000933010129 SCREW
Repalced by: N 304017010002
408 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
410 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
A 0004230184 FITTING
MASTER CYLINDER,CONNECTION "2.1"
N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "2.1"
450 A 3404202729 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
1500 MM
455 A 0004311231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
455 A 0004316631 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
456 A 0004314713 VALVE
(PRESSURE CONTROL VALVE)
456 A 0004314613 VALVE
(PRESSURE CONTROL VALVE)
456 A 0004314513 VALVE
(PRESSURE CONTROL VALVE)
A 0209975948 SEAL RING
TO 000 431 46 13
457 A 0004280032 SCREW PLUG
AT VALVE
458 N 000931008251 SCREW
VALVE TO BRACKET
459 N 913004008004 NUT
Repalced by: N 913004008001
459 N 913004008001 NUT
VALVE TO BRACKET
460 A 3854315540 BRACKET
PRESSURE CONTROL VALVE
461 N 000933008153 SCREW
Repalced by: N 304017008034
461 N 304017008034 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
462 N 913004008004 NUT
Repalced by: N 913004008001
462 N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
463 N 000933010105 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
464 N 913004010008 NUT
Repalced by: N 910113010000
464 N 910113010000 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
A 3604292440 BRACKET
Repalced by: A 3604292940
A 3604292940 BRACKET
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
TEST CONNECTION TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO BRACKET
465 A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
467 A 3604280243 ANGLE
BRAKE LINE TO FRAME
468 N 000933008153 SCREW
Repalced by: N 304017008034
468 N 304017008034 SCREW
BRAKE LINE TO FRAME
469 N 913004008004 NUT
Repalced by: N 913004008001
469 N 913004008001 NUT
BRAKE LINE TO FRAME
470 A 3404200529 LINE
FROM TEST CONNECTION TO VALVE
400 MM
471 A 3404202929 LINE
FROM VALVE TO LEFT FRONT WHEEL
1600 MM
A 3854291740 BRACKET
BRAKE LINE TO FRAME
A 3854280043 ANGLE
Repalced by: A 3604280243
A 3604280243 ANGLE
BRAKE LINE TO FRAME
472 A 3604300143 CLAMP
Repalced by: N 916016008200
472 N 916016008200 CLAMP
BRAKE LINE TO FRAME
A 3609950601 CLAMP
BRAKE LINE TO FRAME
N 000000001147 SCREW
BRAKE LINE TO FRAME
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE TO FRAME
473 A 3404200729 LINE
FROM VALVE TO TEST CONNECTION
500 MM
475 A 3404204129 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
2800 MM
477 A 3274925419 BRACKET
Repalced by: A 6205240340
477 A 6205240340 BRACKET
COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER
478 A 3859970081 GROMMET
479 A 3879970181 GROMMET
AT LEFT SIDE MEMBER
480 A 0039973481 GROMMET
AT LEFT SIDE MEMBER
481 A 3859970381 GROMMET
AT LEFT SIDE MEMBER
482 A 3854280240 BRACKET
LEFT FRONT BRAKE HOSE
A 3854280340 BRACKET
RIGHT FRONT BRAKE HOSE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
483 A 0004280473 BRACKET
Repalced by: A 6525040038
483 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
A 0004283335 BRAKE HOSE
Repalced by: A 0004288935
A 0014285035 BRAKE HOSE
Repalced by: A 0004288935
484 A 0024281135 BRAKE HOSE
Repalced by: A 0014284835
484 A 0014284835 BRAKE HOSE
650 MM
A 0014309901 BRAKE MASTER CYLINDER
Repalced by: A 0034304401
A 0004313414 BRAKE CYLINDER
Repalced by: A 0034304401
486 A 0034304401 BRAKE BOOSTER
A 0015869143 REPAIR KIT
TO 003 430 44 01,000 431 34 14
488 A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
490 N 007603010103 SEAL RING
Repalced by: N 007603010110
490 N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
N 000933010145 SCREW
10X35
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
10X30
N 912004010102 LOCK WASHER
N 074313012300 FITTING
Repalced by: A 0029971372
492 A 0029971372 FITTING
BRAKE MASTER CYLINDER
N 007603022102 SEAL RING
BRAKE MASTER CYLINDER
493 A 0004290227 THRUST RING
BRAKE MASTER CYLINDER
494 A 0009870446 SEALING CORD
BRAKE MASTER CYLINDER
495 A 3854320540 BRACKET
MASTER CYLINDER,FRONT
496 N 000933010105 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
497 N 913004010008 NUT
Repalced by: N 910113010000
497 N 910113010000 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
498 N 000125010518 WASHER
Repalced by: N 000125010532
498 N 000125010532 WASHER
BRACKET TO CROSS MEMBER BEHIND CAB
499 N 080705018002 NUT
BRAKE CYLINDER TO FRONT BRACKET
500 A 3854300210 BRACKET
REAR
501 N 000933010105 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
502 N 912004010102 LOCK WASHER
BRACKET TO CROSS MEMBER BEHIND CAB
503 A 3609900040 WASHER
Repalced by: A 4219905440
503 A 4219905440 WASHER
BRACKET TO CROSS MEMBER BEHIND CAB
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRAKE CYLINDER AND BRAKE MASTER CYLINDER TO BRACKET
504 A 0024306101 BRAKE MASTER CYLINDER
RELAY VALVE, REAR AXLES I & II
505 A 0004310975 THREADED UNION
506 N 007603035101 SEAL RING
507 A 0009930605 SPRING
508 A 0004311876 WASHER
509 A 0004313793 SPRING
510 A 0004310089 SPRING RETAINER
511 A 0004311976 WASHER
Repalced by: A 0004312176
511 A 0004312176 WASHER
512 A 0004310265 VALVE
Repalced by: A 3075530107
512 A 3075530107 VALVE
513 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
513 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
513 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
513 A 0004210887 PROTECTIVE CAP
514 A 0005861143 REPAIR KIT
TO 002 430 61 01
515 A 0004318702 RESERVOIR
516 A 0004312833 FILLER CAP
Repalced by: A 0004315533
516 A 0004315533 FILLER CAP
517 A 0039976440 SEAL RING
518 A 0004312634 STRAINER
A 0004319702 RESERVOIR
Repalced by: A 0004318702
A 0004313333 FILLER CAP
N 007603022102 SEAL RING
A 0004230184 FITTING
MASTER CYLINDER,CONNECTION "2.1"
N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "2.1"
519 A 0004313913 VALVE
REAR AXLE II
A 0029971572 FITTING
N 915036012203 HOLLOW SCREW
CONNECTION "1"
N 007603016401 SEAL RING
N 007603016401 SEAL RING
CONNECTION "1"
N 074315012102 FITTING
CONNECTION "2"
N 080705016006 NUT
CONNECTION "2"
A 0004290927 THRUST RING
CONNECTION "2"
A 0009971548 SEAL RING
CONNECTION "2"
520 A 3854313840 BRACKET
521 N 000933008145 SCREW
CONTROL VALVE TO BRACKET
522 N 912004008102 LOCK WASHER
CONTROL VALVE TO BRACKET
523 N 000933008147 SCREW
Repalced by: N 304017008021
523 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
524 N 913004008004 NUT
Repalced by: N 913004008001
524 N 913004008001 NUT
BRACKET TO CROSS MEMBER
525 A 0024297344 VALVE
REDUCTION VALVE
A 0024298944 VALVE
REDUCTION VALVE
A 0025862342 REPAIR KIT
Repalced by: A 0004300760
A 0004300760 REPAIR KIT
TO 002 429 89 44
A 0025862943 REPAIR KIT
Repalced by: A 0004300760
A 0004300760 REPAIR KIT
TO 002 429 73 44
N 074313012100 FITTING
Repalced by: A 0029971172
A 0029971172 FITTING
N 007603022102 SEAL RING
A 0009905168 FITTING
CONNECTION "1"
N 915036012203 HOLLOW SCREW
CONNECTION "1"
N 007603016401 SEAL RING
CONNECTION "1"
A 0004290227 THRUST RING
CONNECTION "1"
A 0009870446 SEALING CORD
CONNECTION "1"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
CONNECTION "2"
A 0019972372 FITTING
CONNECTION "2"
A 0004290227 THRUST RING
CONNECTION "2"
A 0009870446 SEALING CORD
CONNECTION "2"
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
VALVE TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
VALVE TO BRACKET
A 3854293140 BRACKET
REDUCTION VALVE
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO CROSS MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO CROSS MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER
A 0004304981 VALVE
(ADAPTATION VALVE)
A 0004290227 THRUST RING
CONNECTION "1"
A 0009870446 SEALING CORD
CONNECTION "1"
N 074305022202 NUT
CONNECTION "1"
N 007604022105 SCREW PLUG
CONNECTION "2"
A 0004290227 THRUST RING
CONNECTION "2"
A 0009870446 SEALING CORD
CONNECTION "2"
A 0009904670 T-FITTING
CONNECTION "2"
A 0004312031 TEST CONNECTION
CONNECTION "2"
VOSS
A 0004314531 TEST CONNECTION
CONNECTION "2"
SCHAEFER
A 0004314831 TEST CONNECTION
CONNECTION "2"
WABCO
A 0004316131 TEST CONNECTION
CONNECTION "2"
WIRA
A 0009979486 PLUG
N 074305022202 NUT
CONNECTION "2"
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
VALVE TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
VALVE TO BRACKET
A 3854293040 BRACKET
(ADAPTATION VALVE)
530 A 3404204529 LINE
FROM MASTER CYLINDER TO CONNECTOR
3600 MM
A 3404204829 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
4200 MM
A 3404205329 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
5200 MM
A 0004292736 CONNECTOR
A 3609950601 CLAMP
AT BRACKET
N 000000001147 SCREW
AT BRACKET
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT BRACKET
A 3604280243 ANGLE
CONNECTOR
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
534 A 3404204529 LINE
FROM CONNECTOR TO TEST CONNECTION
A 3404204829 LINE
FROM CONNECTOR TO TEST CONNECTION
A 3404205329 LINE
FROM CONNECTOR TO TEST CONNECTION
536 A 0004311231 TEST CONNECTION
BRAKE CIRCUIT II, REAR AXLES I & II
A 0004316631 TEST CONNECTION
BRAKE CIRCUIT II, REAR AXLES I & II
N 007985006160 SCREW
Repalced by: N 007985006590
N 007985006590 SCREW
Repalced by: N 000000001481
N 000000001481 SCREW
TEST CONNECTION TO BRACKET
N 000125006421 WASHER
TEST CONNECTION TO BRACKET
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
TEST CONNECTION TO BRACKET
538 A 3604293140 BRACKET
BRAKE CIRCUIT II TEST CONNECTION
A 3852670040 BRACKET
BRAKE CIRCUIT II TEST CONNECTION
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
540 A 3404201729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
700 MM
A 3855842321 GUIDE SIGN
Repalced by: A 3855845921
542 A 3855845921 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
A 0004314612 BRAKE PRESSURE REGULATOR
545 A 0014311212 BRAKE PRESSURE REGULATOR
546 N 007603018101 SEAL RING
TO 000 431 46 12,001 431 12 12
547 A 0014315493 SPRING
TO 000 431 46 12,001 431 12 12
548 A 0004311068 VALVE PART
TO 000 431 46 12,001 431 12 12
549 A 0029937201 SPRING
TO 000 431 46 12,001 431 12 12
550 A 0014315793 SPRING
TO 000 431 46 12,001 431 12 12
551 A 0004310465 VALVE
Repalced by: A 0004310265
551 A 0004310265 VALVE
Repalced by: A 3075530107
551 A 3075530107 VALVE
TO 000 431 46 12,001 431 12 12
552 A 0004314160 SEAL RING
TO 000 431 46 12,001 431 12 12
553 A 0004311049 GUIDE BUSHING
TO 000 431 46 12,001 431 12 12
554 A 0014315293 SPRING
TO 000 431 46 12,001 431 12 12
555 A 0004315786 CUP
TO 000 431 46 12,001 431 12 12
556 N 009045016101 SNAP RING
TO 000 431 46 12,001 431 12 12
557 N 006888004012 WOODRUFF KEY
TO 000 431 46 12,001 431 12 12
558 A 0004314060 SEAL RING
Repalced by: A 0129975448
558 A 0129975448 SEAL RING
TO 000 431 46 12,001 431 12 12
559 A 0079816310 NEEDLE BEARING
TO 000 431 46 12,001 431 12 12
560 N 000472010000 LOCK RING
TO 000 431 46 12,001 431 12 12
561 A 0004290695 AIR CLEANER
TO 000 431 46 12,001 431 12 12
562 N 000137004202 SPRING WASHER
TO 000 431 46 12,001 431 12 12
563 A 0014314293 SPRING
TO 000 431 46 12,001 431 12 12
564 A 0004317887 PROTECTIVE CAP
TO 000 431 46 12,001 431 12 12
565 A 0004318787 PROTECTIVE CAP
TO 000 431 46 12,001 431 12 12
565D A 0014304260 REPAIR KIT
TO 000 431 46 12,001 431 12 12
566 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
4
566 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
4
567 N 915039008202 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
4
567D A 0019972572 FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
567F A 0024292444 VALVE
BRAKE POWER REGULATOR,CONNECTION:
"4"
A 0039974348 SEAL RING
A 0039974448 SEAL RING
A 0039974548 SEAL RING
568 N 000960012333 SCREW
BRAKE POWER REGULATOR TO BRACKET
N 000960012371 SCREW
BRAKE POWER REGULATOR TO BRACKET
M 12X115
569 N 910113012002 NUT
BRAKE POWER REGULATOR TO BRACKET
A 3604270253 SPACER TUBE
BRAKE POWER REGULATOR TO BRACKET
570 A 3854314540 BRACKET
571 N 000961012151 SCREW
BRACKET TO RIGHT SIDE MEMBER
572 N 910113012002 NUT
BRACKET TO RIGHT SIDE MEMBER
575 A 3404201329 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
800 MM
577 A 3124281040 BRACKET
Repalced by: A 3834280140
577 A 3834280140 BRACKET
578 N 000933008152 SCREW
Repalced by: N 304017008027
578 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
579 N 913004008004 NUT
Repalced by: N 913004008001
579 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
N 000933006121 SCREW
Repalced by: N 304017006020
N 304017006020 SCREW
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
582 A 0004286835 BRAKE HOSE
Repalced by: A 0024280535
582 A 0024280535 BRAKE HOSE
REAR AXLE I
582 A 0014285535 BRAKE HOSE
REAR AXLE I
A 0014283435 BRAKE HOSE
REAR AXLE I
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET,REAR AXLE I
A 3129951020 CLAMP
LEFT & RIGHT BRAKE LINES TO REAR AXLE
A 3129973482 HOSE
LEFT & RIGHT BRAKE LINES TO REAR AXLE
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
LEFT & RIGHT BRAKE LINES TO REAR AXLE
N 912004008102 LOCK WASHER
LEFT & RIGHT BRAKE LINES TO REAR AXLE
A 0004290437 DISTRIBUTOR
BRAKE CIRCUIT II, REAR AXLES I & II
590 A 0004282024 DISTRIBUTOR
BRAKE CIRCUIT II, REAR AXLES I & II
591 N 913004008004 NUT
Repalced by: N 913004008001
591 N 913004008001 NUT
AT CROSS MEMBER
592 N 000933008150 SCREW
Repalced by: N 304017008018
592 N 304017008018 SCREW
AT CROSS MEMBER
A 3609910140 SPACER TUBE
AT CROSS MEMBER
593 A 1801550053 SPACER TUBE
AT CROSS MEMBER
595 A 3404204629 LINE
FROM DISTRIBUTOR TO VALVE
3800 MM
595 A 3404204929 LINE
FROM DISTRIBUTOR TO VALVE
4400 MM
595 A 3404205429 LINE
FROM DISTRIBUTOR TO VALVE
5400 MM
597 A 3404201529 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE
900 MM
598 A 3404203929 LINE
FROM DISTRIBUTOR TO VALVE
2400 MM
600 A 0004312231 TEST CONNECTION
REAR AXLE I
600 A 0004316531 TEST CONNECTION
REAR AXLE I
602 A 3854315040 BRACKET
TEST CONNECTION
603 N 000933008150 SCREW
Repalced by: N 304017008018
603 N 304017008018 SCREW
TEST CONNECTION TO BRACKET
604 N 913004008004 NUT
Repalced by: N 913004008001
604 N 913004008001 NUT
TEST CONNECTION TO BRACKET
A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
606 N 000933008212 SCREW
Repalced by: N 304017008016
606 N 304017008016 SCREW
BRACKET TO AXLE HOUSING
N 912004008102 LOCK WASHER
BRACKET TO AXLE HOUSING
610 A 3404201829 LINE
FROM TEST CONNECTION TO LEFT REAR WHEEL
1050 MM
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
BRAKE LINE MOUNTING
N 000000001147 SCREW
BRAKE LINE MOUNTING
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRAKE LINE MOUNTING
A 3854280740 BRACKET
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
BRACKET TO AXLE HOUSING
N 912004008102 LOCK WASHER
BRACKET TO AXLE HOUSING
A 3604280243 ANGLE
BRAKE LINE MOUNTING
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRAKE LINE MOUNTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRAKE LINE MOUNTING
A 3604293140 BRACKET
BRAKE LINE MOUNTING
612 A 3404200929 LINE
FROM TEST CONNECTION TO RIGHT REAR WHEEL
600 MM
A 3129973482 HOSE
LINE TO REAR AXLE I
A 3129951020 CLAMP
LINE TO REAR AXLE I
615 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
615 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
615 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
615 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
617 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
617 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
A 0005868143 REPAIR KIT
Repalced by: A 0004305860
A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
A 0025866243 REPAIR KIT
Repalced by: A 0034303881
A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
619 N 000965006003 SCREW
HAND BRAKE VALVE TO CAB
N 000965006000 SCREW
HAND BRAKE VALVE TO CAB
620 A 3874310684 SHIM
HAND BRAKE VALVE TO CAB
622 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
622 N 915036010108 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
623 N 007603014405 SEAL RING
LINE TO HAND BRAKE VALVE
625 A 3874291140 BRACKET
LINE TO CAB CONSOLE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LINE TO CAB CONSOLE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
LINE TO CAB CONSOLE
627 A 3874292540 BRACKET
LEFT
A 3874292640 BRACKET
RIGHT
N 000933008145 SCREW
BRACKET TO BUMPER STRUT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO BUMPER STRUT
A 0014292044 VALVE
Repalced by: A 0034291644
630 A 0034291644 VALVE
RELAY VALVE
BOSCH
A 0024290744 VALVE
Repalced by: A 0034295344
630 A 0034295344 VALVE
RELAY VALVE
KNORR
630 A 0014299144 VALVE
RELAY VALVE
GRAU
630 A 0014296844 VALVE
RELAY VALVE
WABCO
A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
A 0014311980 GASKET
Repalced by: A 0004311980
A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH ; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH ; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
632 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
634 N 913004008004 NUT
Repalced by: N 913004008001
634 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
A 0009970169 F-FITTING
Repalced by: A 0019979172
A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
A 0004290227 THRUST RING
RELAY VALVE,CONNECTION "1"
A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION "1"
A 0019979272 FITTING
RELAY VALVE,CONNECTION "2",RIGHT
N 003952012101 FITTING
Repalced by: A 0019902771
A 0019902771 ELBOW FITTING
RELAY VALVE,CONNECTION "2",RIGHT
648 N 074317012202 FITTING
RELAY VALVE,CONNECTION "2",RIGHT
650 N 080705016003 NUT
RELAY VALVE,CONNECTION "2",RIGHT
652 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",RIGHT
A 0029971640 SEAL RING
Repalced by: A 0009971548
654 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",RIGHT
656 A 0005455414 SWITCH
RELAY VALVE,CONNECTION "2",RIGHT
A 0029971640 SEAL RING
Repalced by: A 0009971548
N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
A 0029971640 SEAL RING
Repalced by: A 0009971548
N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "4"
N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
A 0004290641 FITTING
FROM HOSE TO TRISTOP CYLINDER
A 0004290541 FITTING
FROM HOSE TO TRISTOP CYLINDER
N 915017012100 UNION NUT
FROM HOSE TO TRISTOP CYLINDER
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
FROM HOSE TO TRISTOP CYLINDER
A 0009971190 LOOM TIE
Repalced by: N 916018011000
N 916017011000 CLAMP
Repalced by: N 916017011001
N 000000000665 CLAMP
FROM HOSE TO TRISTOP CYLINDER
N 080705018002 NUT
HOSE TO SIDE MEMBER
N 003954012101 FITTING
Repalced by: A 0019900970
A 0019900970 T-FITTING
HOSE TO SIDE MEMBER
A 3039971440 SEAL RING
BETWEEN THE LINES
A 0029971572 FITTING
CONNECTION TO TRISTOP CYLINDER
N 007603016401 SEAL RING
CONNECTION TO TRISTOP CYLINDER
714 N 080705016003 NUT
LEFT SPRING-LOAD ACCUMULATOR
717 A 0004290927 THRUST RING
LEFT SPRING-LOAD ACCUMULATOR
A 0029971640 SEAL RING
Repalced by: A 0009971548
720 A 0009971548 SEAL RING
LEFT SPRING-LOAD ACCUMULATOR
723 A 0009904770 T-FITTING
LEFT SPRING-LOAD ACCUMULATOR
726 A 0004312031 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
VOSS
726 A 0004314531 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
SCHAEFER
726 A 0004314831 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
WABCO
726 A 0004316131 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
WIRA
A 0009979486 PLUG
A 0009905563 HOLLOW SCREW
Repalced by: N 915047012100
N 915047012100 HOLLOW SCREW
RIGHT SPRING-LOAD ACCUMULATOR
N 007603016401 SEAL RING
RIGHT SPRING-LOAD ACCUMULATOR
A 0029971572 FITTING
AT TRISTOP CYLINDER
A 0004290927 THRUST RING
AT TRISTOP CYLINDER
A 0009971548 SEAL RING
AT TRISTOP CYLINDER
736 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
736 A 0004290286 PROTECTIVE TUBE
739 A 3854200244 PROTECTIVE PLATE
Repalced by: A 3854200644
739 A 3854200644 PROTECTIVE PLATE
Repalced by: A 3854201544
739 A 3854201544 PROTECTIVE PLATE
HEAT INSULATION; PLASTIC LINES; ON THE LEFT
739 A 3854200244 PROTECTIVE PLATE
Repalced by: A 3854200744
739 A 3854200744 PROTECTIVE PLATE
Repalced by: A 3854201444
739 A 3854201444 PROTECTIVE PLATE
HEAT INSULATION;PLASTIC LINES;ON THE RIGHT
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
HEAT SHIELD TO SIDE MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
HEAT SHIELD TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
HEAT SHIELD TO SIDE MEMBER
743 A 0004294037 DISTRIBUTOR
744 N 000125006421 WASHER
DISTRIBUTOR TO CAB
745 N 304017006026 SCREW
Repalced by: N 304017006026
745 N 304017006026 SCREW
DISTRIBUTOR TO CAB
746 N 913004006002 NUT
Repalced by: N 913004006001
746 N 913004006001 NUT
DISTRIBUTOR TO CAB
N 915039008202 HOLLOW SCREW FITTING
DISTRIBUTOR,CONNECTIONS:
"1,2,3"
N 915047008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTION:
"1"
750 N 007603012405 SEAL RING
DISTRIBUTOR
N 000908012003 SCREW PLUG
Repalced by: N 000908012009
N 000908012009 SCREW PLUG
DISTRIBUTOR
753 A 0109975982 HOSE
Repalced by: A 0009872827
753 A 0009872827 PLASTIC PIPE
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
N 040621013200 INSULATING HOSE
BLACK
13X0.8 MM
756 N 915017012100 UNION NUT
759 N 003861012007 GLAND
Repalced by: A 0019901967
759 A 0019901967 SEAL CONE
762 A 0009921505 BUSHING
Repalced by: N 915062009000
762 N 915062009000 SLEEVE
N 074317012300 FITTING
765 A 0089979082 HOSE
6X8 MM
770 N 915052006021 BANJO UNION
776 A 0004322001 RESERVOIR
Repalced by: A 0034321101
776 A 0034321101 RESERVOIR
PNEUMATIC SUSPENSION
N 074313016401 FITTING
Repalced by: A 0019972372
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
RESERVOIR,FRONT CONNECTION
783 N 007603022102 SEAL RING
RESERVOIR,FRONT CONNECTION
A 0004290227 THRUST RING
RESERVOIR,FRONT CONNECTION
A 0009870446 SEALING CORD
RESERVOIR,FRONT CONNECTION
786 A 0024290044 VALVE
Repalced by: A 0044293144
786 A 0044293144 VALVE
OVERFLOW VALVE
WABCO
A 0014296544 VALVE
Repalced by: A 0044293144
786 A 0044293144 VALVE
OVERFLOW VALVE
WABCO
A 0024297044 VALVE
Repalced by: A 0044293244
786 A 0044293244 VALVE
OVERFLOW VALVE
GRAU
A 0004290745 DIAPHRAGM
TO 002 429 70 44,GRAU
A 0024298844 VALVE
TO 002 429 70 44,GRAU
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
A 0015862042 REPAIR KIT
TO 001 429 65 44,WABCO
A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTION "1"
A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION "1"
787 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION "1"
787A N 007603022102 SEAL RING
OVERFLOW VALVE,CONNECTION "1"
788 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION "1"
789 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION "1"
N 074305022202 NUT
REAR AIR RESERVOIR
793 A 0004290227 THRUST RING
REAR AIR RESERVOIR
796 A 0009870446 SEALING CORD
REAR AIR RESERVOIR
797 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
N 007603022102 SEAL RING
AIR RESERVOIR,BOTTOM CONNECTION
798 A 0004290227 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
A 0009870446 SEALING CORD
AIR RESERVOIR,BOTTOM CONNECTION
A 3539900087 CROSS FITTING
RESERVOIR,REAR CONNECTION
A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
A 0004294638 ELBOW FITTING
RESERVOIR,REAR CONNECTION
800 A 0024296044 VALVE
800 A 0024296144 VALVE
800 A 0024297644 VALVE
802 N 074305022202 NUT
RESERVOIR,REAR CONNECTION
802 N 074305022202 NUT
RESERVOIR,REAR CONNECTION
805 A 0004290227 THRUST RING
RESERVOIR,REAR CONNECTION
808 A 0009870446 SEALING CORD
RESERVOIR,REAR CONNECTION
A 0009901670 T-FITTING
RESERVOIR,REAR CONNECTION
A 0004312531 TEST CONNECTION
RESERVOIR,REAR CONNECTION
A 0004315331 TEST CONNECTION
RESERVOIR,REAR CONNECTION
A 0009979486 PLUG
A 0004290444 VALVE
Repalced by: A 0034290744
A 0034290744 VALVE
CHECK VALVE
A 0004290088 VALVE SEAT RING
TO 000 429 04 44,003 429 07 44
A 0004290049 BUSHING
TO 000 429 04 44,003 429 07 44
A 0005865942 REPAIR KIT
TO 000 429 04 44
812 A 0009905168 FITTING
A 0009903970 T-FITTING
Repalced by: A 0019901070
A 0019901070 T-FITTING
813 N 007603022102 SEAL RING
A 0009905563 HOLLOW SCREW
Repalced by: N 915047012100
813B N 915047012100 HOLLOW SCREW
813E N 007603016401 SEAL RING
N 074305022202 NUT
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
814 A 3814320140 BRACKET
PNEUMATIC SUSPENSION RESERVOIR
820 A 3354320418 BASE
PNEUMATIC SUSPENSION RESERVOIR
822 N 000933010105 SCREW
PNEUMATIC SUSPENSION RESERVOIR
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
PNEUMATIC SUSPENSION RESERVOIR
825 A 3524300040 STRAP
Repalced by: A 3354300340
825 A 3354300340 STRAP
PNEUMATIC SUSPENSION RESERVOIR
829 N 913004010008 NUT
Repalced by: N 910113010000
829 N 910113010000 NUT
PNEUMATIC SUSPENSION RESERVOIR
833 N 000934010014 NUT
PNEUMATIC SUSPENSION RESERVOIR
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
