Transporto priemonė: 2219 L/6X2; VIN numerio dalis: 385528

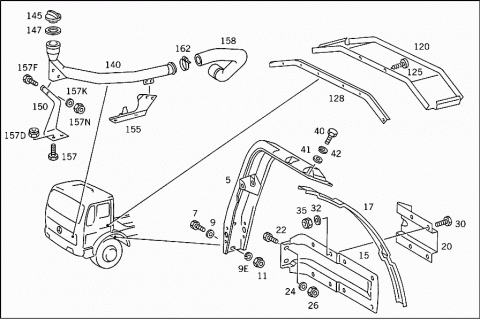

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| A 3815200333 | SUPPORT | |
| Repalced by: A 3815202333 | ||
| 005 | A 3815202333 | SUPPORT |
| EXPANSION TANK | ||
| 007 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X35 | ||
| 007 | N 000961012151 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X30 | ||
| 009 | N 009021013200 | WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 009E | N 912004012102 | LOCK WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 011 | N 910113012002 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 015 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 015 | A 6575210140 | BRACKET |
| FENDER | ||
| 017 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 017 | A 3815200026 | FENDER STAY |
| RIGHT | ||
| 020 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 020 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 020 | A 6575200033 | SUPPORT |
| FENDER | ||
| 022 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| M 14X1.5X40 | ||
| 022 | N 000961014054 | SCREW |
| BRACKET TO FRAME | ||
| M 14X1.5X45 | ||
| 024 | A 3609901840 | WASHER |
| BRACKET TO FRAME | ||
| 026 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 026 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 026 | N 910113014001 | NUT |
| CONSOLE TO FENDER BRACKET | ||
| 030 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 030 | N 304017008018 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 030 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 030 | N 304017008021 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 8X22 | ||
| 032 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 032 | A 6312670276 | WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 035 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 035 | N 913004008001 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 035 | N 913004008001 | NUT |
| CONSOLE TO FENDER BRACKET | ||
| 040 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 040 | N 304017008027 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 8X30 | ||
| 041 | N 000433008406 | WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| N 000933008160 | SCREW | |
| Repalced by: N 304017008040 | ||
| N 304017008040 | SCREW | |
| Repalced by: N 910105008010 | ||
| N 910105008010 | SCREW | |
| Repalced by: N 910143008005 | ||
| N 910143008005 | SCREW | |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X40 | ||
| 042 | N 912004008102 | LOCK WASHER |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 050 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 050 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 053 | A 3879880011 | BUFFER |
| CAB | ||
| 054 | A 3879880111 | BUFFER |
| CAB | ||
| 055 | A 0019901791 | NUT RETAINER |
| CAB | ||
| 057 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 057 | N 000125008443 | WASHER |
| CAB | ||
| 059 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 059 | N 913004008001 | NUT |
| CAB | ||
| 062 | A 3815280191 | BOOT |
| 065 | A 3815280443 | CLAMP |
| BOOT TO AIR INTAKE PIPE | ||
| 067 | N 000084004425 | SCREW |
| 068 | N 000934004006 | NUT |
| 070 | A 0090945702 | AIR CLEANER |
| 070 | A 0090945802 | AIR CLEANER |
| 075 | A 0010949304 | FILTER ELEMENT |
| 077 | A 0000940276 | WASHER |
| FELT | ||
| 078 | A 0009901550 | NUT |
| 080 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 080 | A 6505200333 | SUPPORT |
| AIR CLEANER | ||
| 080 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 080 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| 085 | A 3855280421 | STRAP |
| 086 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 086 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 086D | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 086D | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 087 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 087D | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 000933010128 | SCREW |
| SUPPORT TO BUMPER STRUT | ||
| 088D | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 088D | N 910113010000 | NUT |
| SUPPORT TO BUMPER STRUT | ||
| 090 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 090 | N 304017008021 | SCREW |
| STRAP TO SUPPORT | ||
| 100 | A 3855280008 | AIR INTAKE PIPE |
| Repalced by: A 6215280182 | ||
| 100 | A 6215280182 | HOSE |
| FROM AIR CLEANER TO MUFFLER | ||
| 100 | A 3835280308 | AIR INTAKE PIPE |
| Repalced by: A 6215280282 | ||
| 100 | A 6215280282 | HOSE |
| AIR INTAKE PIPE,LEFT REAR | ||
| 105 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 105 | A 0059971490 | LOOM TIE |
| HOSE TO PICO AIR CLEANER | ||
| 108 | A 0109977082 | HOSE |
| 110 | N 073379006203 | HOSE |
| 120 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 125 | N 007981005302 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||
| 128 | A 3875240084 | SHIM |
| ENGINE COVERING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL REFILLING | ||
| 140 | A 4010101564 | OIL FILLER NECK |
| THREADED | ||
| 145 | A 3520100468 | CAP |
| THREADED | ||
| A 0000180180 | GASKET | |
| Repalced by: A 1020180080 | ||
| 147 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 147 | A 1020180380 | GASKET |
| 150 | A 4010182540 | BRACKET |
| FRONT | ||
| 155 | A 4010182840 | BRACKET |
| REAR | ||
| 155 | A 4010182940 | BRACKET |
| REAR | ||
| 157 | N 000933010105 | SCREW |
| BRACKET MOUNTING | ||
| 157D | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 157D | N 910113010000 | NUT |
| BRACKET MOUNTING | ||
| 157F | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 157F | N 304017006020 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 157K | N 000125006421 | WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 157N | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 157N | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 158 | A 4010180682 | HOSE |
| 162 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 162 | N 000000000674 | CLAMP |
