Transporto priemonė: 2219 L/6X2; VIN numerio dalis: 385528
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

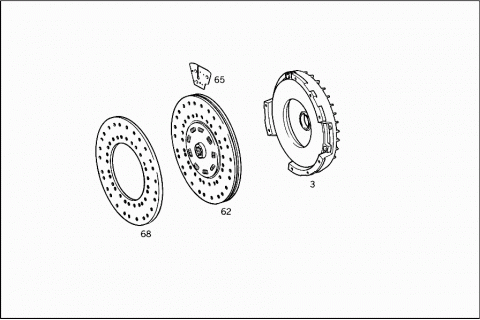

| 003 | A 0022507504 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042502404 | ||
| 003 | A 0042502404 | CLUTCH PRESSURE PLATE |
| N 912004008102 | LOCK WASHER | |
| CLUTCH TO FLYWHEEL | ||
| N 000931008254 | SCREW | |
| Repalced by: N 304014008002 | ||
| N 304014008002 | SCREW | |
| CLUTCH TO FLYWHEEL | ||
| 062 | A 0072507403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 062 | A 0032506203 | CLUTCH DISC |
| Repalced by: A 0042507303 | ||
| 062 | A 0042507303 | CLUTCH DISC |
| 065 | A 0002521719 | LEAF SPRING |
| Repalced by: A 0002523419 | ||
| 065 | A 0002523419 | LEAF SPRING |
| Repalced by: A 0002524419 | ||
| 065 | A 0002524419 | LEAF SPRING |
| A 0002520675 | RIVET | |
| Repalced by: A 0002522075 | ||
| A 0002522075 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| A 0002523975 | RIVET | |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 068 | A 0012524810 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 068 | A 0012521310 | CLUTCH LINING |
| Repalced by: A 0002528810 | ||
| 068 | A 0002528810 | CLUTCH LINING |
| Repalced by: A 0012524310 | ||
| 068 | A 0012524310 | CLUTCH LINING |
| A 0002520375 | RIVET | |
| Repalced by: A 0002521275 | ||
| A 0002521275 | RIVET | |
| Repalced by: A 0002524375 | ||
| A 0002524375 | RIVET | |
| LINING WITH INTERMEDIATE SPRING | ||
| A 0002521475 | RIVET | |
| Repalced by: A 0002523875 | ||
| A 0002523875 | RIVET | |
| LINING WITH CLUTCH DISC | ||

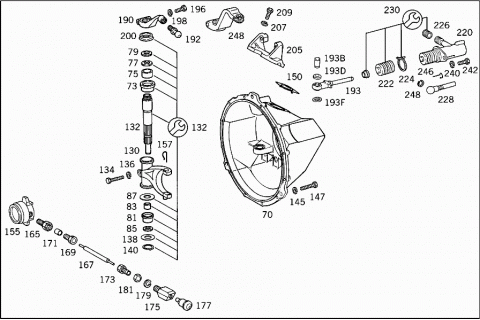

| 070 | A 3852502405 | HOUSING |
| Repalced by: A 3972500405 | ||
| 070 | A 3972500405 | HOUSING |
| Repalced by: A 6202501105 | ||
| 070 | A 6202501105 | HOUSING |
| BELL HOUSING WITH BUSHINGS | ||
| 073 | A 3852510250 | BUSHING |
| Repalced by: A 3852510450 | ||
| 073 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 073 | A 6202510050 | BUSHING |
| TOP | ||
| 075 | A 3389920103 | BUSHING |
| 077 | A 3859970040 | SEAL RING |
| 077 | A 3859970040 | SEAL RING |
| 077 | A 0119978846 | SEAL RING |
| 077 | A 0099971547 | SEAL RING |
| 079 | A 3852930027 | COVER PLATE |
| 079 | A 3852930027 | COVER PLATE |
| 081 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 083 | A 3439920103 | BUSHING |
| 085 | A 3379975040 | SEAL RING |
| 087 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 087 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 087 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 087 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 087 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 087 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 130 | A 3372540208 | RELEASE LEVER |
| Repalced by: A 6202540108 | ||
| 130 | A 6202540108 | RELEASE LEVER |
| A 3852540507 | SHAFT | |
| Repalced by: A 3895860025 | ||
| 132 | A 3895860025 | REPAIR KIT |
| Repalced by: A 3892500014 | ||
| 132 | A 3892500014 | SHAFT |
| Repalced by: A 3852500014 | ||
| 132 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 134 | N 000931012033 | SCREW |
| Repalced by: N 000933012102 | ||
| 134 | N 000933012102 | SCREW |
| RELEASE LEVER TO SHAFT | ||
| 136 | N 912004012100 | LOCK WASHER |
| RELEASE LEVER TO SHAFT | ||
| 138 | A 3432930052 | SPACER WASHER |
| RELEASE LEVER TO SHAFT | ||
| 140 | N 000471024000 | LOCK RING |
| RELEASE LEVER TO SHAFT | ||
| 145 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 147 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 150 | A 3852500155 | COVER |
| TOP | ||
| 155 | A 0002503615 | RELEASE BEARING |
| 155 | A 0002503815 | RELEASE BEARING |
| 157 | A 3179930225 | SPRING |
| RELEASE YOKE TO RELEASE BEARING | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 165 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 167 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 169 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 171 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 173 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 175 | A 3872510108 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 175 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 177 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 177 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 179 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 181 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 181 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 181 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| A 3852950628 | LEVER | |
| Repalced by: A 6202900534 | ||
| 190 | A 3072950228 | LEVER |
| CLUTCH ACTUATION | ||
| A 6202900534 | LEVER | |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 192 | A 3029910115 | BALL PIVOT |
| CLUTCH ACTUATION | ||
| 193 | A 0009966440 | ROD END |
| CLUTCH ACTUATION | ||
| 193B | A 3072560074 | PIN |
| CLUTCH ACTUATION | ||
| 193D | A 0019970041 | SEAL RING |
| Repalced by: A 0019972141 | ||
| 193D | A 0019972141 | SEAL RING |
| CLUTCH ACTUATION | ||
| 193F | N 000471012001 | LOCK RING |
| CLUTCH ACTUATION | ||
| 196 | N 304017010030 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 198 | N 912004010102 | LOCK WASHER |
| LEVER TO RELEASE SHAFT | ||
| 200 | A 3852540576 | WASHER |
| Repalced by: A 6202540176 | ||
| 200 | A 6202540176 | WASHER |
| LEVER TO RELEASE SHAFT | ||
| 200 | A 6202500155 | COVER |
| LEVER TO RELEASE SHAFT | ||
| A 0029972948 | SEAL RING | |
| LEVER TO RELEASE SHAFT | ||
| A 3852950340 | BRACKET | |
| Repalced by: A 3852951740 | ||
| 205 | A 3852951740 | BRACKET |
| Repalced by: A 3072950840 | ||
| 205 | A 3072950840 | BRACKET |
| CLUTCH ACTUATION | ||
| 207 | N 912004010102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 209 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 209 | N 304017010002 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 220 | A 0002957907 | SLAVE CYLINDER |
| Repalced by: A 0012950307 | ||
| 220 | A 0012950307 | SLAVE CYLINDER |
| Repalced by: A 0012955307 | ||
| 220 | A 0012955307 | SLAVE CYLINDER |
| Repalced by: A 0012958807 | ||
| 220 | A 0012958807 | SLAVE CYLINDER |
| Repalced by: A 0022950407 | ||
| 220 | A 0022950407 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 222 | A 0002952683 | BOOT |
| Repalced by: A 0005863129 | ||
| 224 | A 0002950673 | LOCK |
| 226 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 226 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 226 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 226 | A 0004210887 | PROTECTIVE CAP |
| 228 | A 0002950974 | PIN |
| 230 | A 0005863129 | REPAIR KIT |
| Repalced by: A 0002900911 | ||
| 230 | A 0002900911 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 240 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 242 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 242 | N 304017010002 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 246 | N 071805019402 | SECURING CLIP |
| Repalced by: N 073130019300 | ||
| 246 | N 073130019300 | SNAP RING |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
| 248 | N 071805019301 | SNAP RING |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
