Transporto priemonė: 2219 L/6X2; VIN numerio dalis: 385528

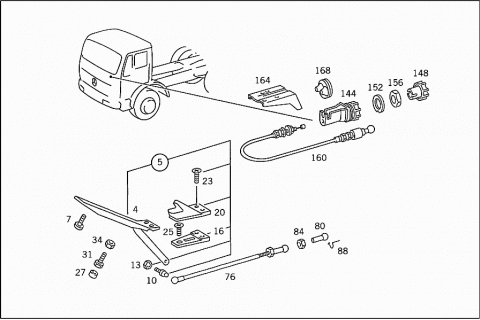

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3813000104 | ACCELERATOR PEDAL |
| Repalced by: A 6243000304 | ||
| 004 | A 6243000104 | ACCELERATOR PEDAL |
| Repalced by: A 6243000304 | ||
| 005 | A 6243000304 | ACCELERATOR PEDAL |
| (PARTS KIT) | ||
| A 6153000104 | PAD | |
| ACCELERATOR PEDAL | ||
| 007 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL | ||
| 010 | N 071803010301 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 010 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 013 | N 000934006007 | NUT |
| ACCELERATOR PEDAL | ||
| 016 | A 3813010184 | SHIM |
| Repalced by: A 3813010284 | ||
| 016 | A 3813010284 | SHIM |
| Repalced by: A 6153010084 | ||
| 016 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL | ||
| 020 | A 3813010197 | BOOT |
| Repalced by: A 3813010297 | ||
| 020 | A 3813010297 | BOOT |
| ACCELERATOR PEDAL | ||
| 020 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 023 | N 000965006003 | SCREW |
| PEDAL TO CAB FLOOR | ||
| M 6X25 | ||
| 025 | N 000965006040 | SCREW |
| PEDAL TO CAB FLOOR | ||
| M 6X30 | ||
| A 6553010093 | GUIDE RAIL | |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| N 000965006077 | SCREW | |
| GUIDE RAIL RETROFIT | ||
| 027 | A 3813010041 | STOP |
| PEDAL TO CAB FLOOR | ||
| 031 | N 000933008269 | SCREW |
| Repalced by: N 304014008002 | ||
| 031 | N 304014008002 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 034 | N 304032008006 | NUT |
| PEDAL TO CAB FLOOR | ||
| 038 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 042 | N 071805010403 | SECURING CLIP |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 045 | A 3813000021 | BEARING TUBE |
| Repalced by: A 6153000021 | ||
| 045 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 048 | A 3813020050 | BUSHING |
| BEARING TUBE | ||
| 052 | A 3813000020 | SHAFT |
| Repalced by: A 6153000020 | ||
| 052 | A 6153000020 | SHAFT |
| CONTROL | ||
| 056 | A 3813000625 | LEVER |
| CONTROL | ||
| 060 | N 071803010204 | BALL PIVOT |
| 064 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 064 | N 308752004001 | CLAMPING PIN |
| LEVER TO SHAFT | ||
| 068 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 068 | N 304017008016 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 072 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 072 | N 913004008001 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 076 | A 3873000215 | ROD |
| Repalced by: A 3604302992 | ||
| 076 | A 3604302992 | ROD |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| A 3604301992 | ROD | |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| 080 | A 0009912422 | BALL SOCKET |
| 084 | N 000934006007 | NUT |
| 088 | N 071805010403 | SECURING CLIP |
| ROD TO ACCELERATOR PEDAL | ||
| 092 | A 3813000436 | BEARING BRACKET |
| Repalced by: A 6203000536 | ||
| 092 | A 6203000536 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| A 3813000636 | BEARING BRACKET | |
| Repalced by: A 6203000436 | ||
| A 6203000436 | BEARING BRACKET | |
| (REVERSING LEVER) | ||
| 096 | A 3813000328 | LEVER |
| Repalced by: A 6153000028 | ||
| 096 | A 6153000028 | LEVER |
| Repalced by: A 6203000628 | ||
| 096 | A 6203000628 | LEVER |
| INTERMEDIATE BEARING | ||
| A 3813000728 | LEVER | |
| Repalced by: A 6203000928 | ||
| A 6203000928 | LEVER | |
| (REVERSING LEVER) | ||
| 100 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 100 | A 3129910120 | BALL PIVOT |
| 104 | N 071803013208 | BALL PIVOT |
| 108 | A 3813020050 | BUSHING |
| DOUBLE LEVER BEARING | ||
| 108 | A 3813020050 | BUSHING |
| DOUBLE LEVER BEARING | ||
| 112 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 112 | A 6153010088 | COVERING |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 116 | N 006799010001 | LOCK PLATE |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 120 | N 000933010105 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 128 | N 900331008422 | PULL ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 800 MM | ||
| N 900331008421 | PULL ROD | |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 600 MM | ||
| 132 | N 071805013203 | BALL SOCKET |
| PULL ROD TO INTERMEDIATE LEVER AND TO REAR CONTROL LEVER | ||
| A 4069910022 | BALL SOCKET | |
| PULL ROD TO INTERMEDIATE LEVER AND TO REAR CONTROL LEVER | ||
| 136 | N 304032008006 | NUT |
| BALL SOCKET TO ROD | ||
| 140 | N 071805013402 | SECURING CLIP |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 144 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| A 3813020108 | GUIDE | |
| IDLING ADJUSTMENT | ||
| 148 | A 3813020201 | KNOB |
| Repalced by: A 6153020001 | ||
| 148 | A 6153020001 | KNOB |
| IDLING ADJUSTMENT | ||
| 152 | A 3819940016 | LOCK |
| Repalced by: N 000988030003 | ||
| 152 | N 000988030003 | FITTED WASHER |
| IDLING ADJUSTMENT | ||
| 156 | A 3819900051 | NUT |
| IDLING ADJUSTMENT | ||
| 160 | A 3813001330 | WIRE CABLE |
| Repalced by: A 3813001430 | ||
| 160 | A 3813001430 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 164 | A 3813020340 | BRACKET |
| Repalced by: A 3813020240 | ||
| 164 | A 3813020240 | BRACKET |
| IDLING ADJUSTMENT | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| BRACKET TO WINDOW SILL GIRDER | ||
| N 007976005202 | SHEET METAL SCREW | |
| BRACKET TO WINDOW SILL GIRDER | ||
| 168 | A 3833020091 | GROMMET |
| CABLE | ||
| 172 | A 3833020840 | BRACKET |
| WIRE CABLE | ||
| A 3833020440 | BRACKET | |
| WIRE CABLE | ||
| N 000000001147 | SCREW | |
| BRACKET TO FIRE WALL | ||
| M 6X20 | ||
| N 000934006007 | NUT | |
| BRACKET TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO FIRE WALL | ||
| 180 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 180 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 180 | A 6739950001 | CLAMP |
| CABLE TO REAR OIL FILLER PIPE BRACKET | ||
| 15 MM | ||
| 180 | A 6739950001 | CLAMP |
| BRACKET TO SIDE MEMBER | ||
| 15 MM | ||
| 180 | A 6739950001 | CLAMP |
| CABLE TO BRACKET | ||
| 15 MM | ||
| N 000000001147 | SCREW | |
| CABLE TO REAR OIL FILLER PIPE BRACKET | ||
| M 6X20 | ||
| N 000000001147 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 6X20 | ||
| N 000000001147 | SCREW | |
| CABLE TO BRACKET | ||
| M 6X20 | ||
| N 000000001147 | SCREW | |
| BRACKET TO FRONT CROSS MEMBER | ||
| M 6X20 | ||
| N 000934006007 | NUT | |
| CABLE TO REAR OIL FILLER PIPE BRACKET | ||
| N 000934006007 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 000934006007 | NUT | |
| CABLE TO BRACKET | ||
| N 000934006007 | NUT | |
| BRACKET TO FRONT CROSS MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO REAR OIL FILLER PIPE BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO FRONT CROSS MEMBER | ||
| A 3873020140 | BRACKET | |
| RADIATOR CONSOLE | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| CABLE TO BRACKET | ||
| N 000933006102 | SCREW | |
| FRESH AIR DUCT | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| FRESH AIR DUCT | ||
| A 3609951201 | CLAMP | |
| 10 MM | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| 6 MM | ||
| A 3609952001 | CLAMP | |
| Repalced by: A 6739950001 | ||
| A 6739950001 | CLAMP | |
| CABLE TO BRACKET ON CROSS MEMBER NO. 1 | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| CABLE TO BRACKET ON CROSS MEMBER NO. 1 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| CABLE TO BRACKET ON CROSS MEMBER NO. 1 | ||
