Transporto priemonė: 2219 L/6X2; VIN numerio dalis: 385528

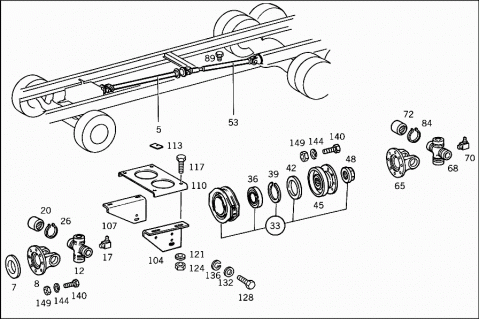

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3854102904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING | ||
| 1175 MM | ||
| 005 | A 3854106604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING | ||
| 983 MM | ||
| 005 | A 3854106204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING | ||
| 1145 MM | ||
| 005 | A 3854102704 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1466 MM | ||
| 005 | A 3854106804 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1468 MM | ||
| 007 | A 3854130161 | PROTECTIVE CAP |
| 007 | A 3854130461 | PROTECTIVE CAP |
| 008 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 008 | A 3854111711 | DRIVE FLANGE |
| 012 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 012 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 012 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 017 | N 071412008302 | GREASE NIPPLE |
| 020 | A 3854100242 | BEARING BUSHING |
| Repalced by: A 3854100842 | ||
| 020 | A 3854100842 | BEARING BUSHING |
| 026 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 026 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 026 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 026 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 026 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 026 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 033 | A 3854100222 | INTERMEDIATE BEARING |
| Repalced by: A 3855860141 | ||
| 033 | A 3855860141 | REPAIR KIT |
| Repalced by: A 3854100110 | ||
| 033 | A 3854100110 | REPAIR KIT |
| Repalced by: A 3854100122 | ||
| 033 | A 3854100122 | INTERMEDIATE BEARING |
| Repalced by: A 3854100922 | ||
| 033 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 033 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 033 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 036 | A 0019818125 | BALL BEARING |
| 039 | N 912009100200 | SNAP RING |
| 042 | A 3854130061 | PROTECTIVE CAP |
| INSIDE | ||
| A 9734110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 045 | A 3604100130 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| A 3854100030 | CENTERING FLANGE | |
| Repalced by: A 3854110045 | ||
| A 3854110045 | FLANGE | |
| PROPELLER SHAFT BEARING | ||
| A 3854130161 | PROTECTIVE CAP | |
| A 3854130461 | PROTECTIVE CAP | |
| 048 | A 3853510172 | NUT |
| A 3894110162 | THRUST WASHER | |
| A 3839900019 | SCREW | |
| 053 | A 3074100502 | PROPELLER SHAFT |
| Repalced by: A 3854106107 | ||
| 053 | A 3854106107 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1010 MM | ||
| 053 | A 3854104607 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1190 MM | ||
| 053 | A 3854100502 | PROPELLER SHAFT |
| Repalced by: A 3854104507 | ||
| 053 | A 3854104507 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1580 MM | ||
| 053 | A 3854107207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1620 MM | ||
| 053 | A 3074100402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1160 MM | ||
| 053 | A 3854104407 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1130 MM | ||
| 065 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| A 3854111711 | DRIVE FLANGE | |
| 068 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| A 3814100231 | UNIVERSAL JOINT CROSS | |
| Repalced by: A 9734100031 | ||
| A 9734100031 | UNIVERSAL JOINT CROSS | |
| WITH BUSHINGS | ||
| 070 | N 071412008302 | GREASE NIPPLE |
| 072 | A 3854100242 | BEARING BUSHING |
| Repalced by: A 3854100842 | ||
| 072 | A 3854100842 | BEARING BUSHING |
| A 3854101042 | BEARING BUSHING | |
| 084 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 084 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 084 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 084 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 084 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 089 | N 900087008000 | PLUG |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 104 | A 3854132142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 104 | A 3834131242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| 104 | A 3854134042 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT | ||
| A 3854130442 | BRACKET | |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| A 3854135842 | BRACKET | |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,LEFT CENTRAL | ||
| 107 | A 3854132242 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 107 | A 3834131342 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| 107 | A 3854134142 | BRACKET |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT | ||
| A 3854130642 | BRACKET | |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| A 3854135942 | BRACKET | |
| PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT CENTRAL | ||
| 110 | A 3854130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 113 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 117 | N 000960010007 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 121 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 121 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 124 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 128 | N 000931010282 | SCREW |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 10X40 | ||
| 128 | N 000933010105 | SCREW |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 10X25 | ||
| 132 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 132 | N 007349010007 | WASHER |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 136 | N 912004010102 | LOCK WASHER |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 140 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 140 | A 3609903001 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 144 | N 912004012100 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 149 | N 000934012034 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
