Transporto priemonė: 2220 L; VIN numerio dalis: 619402
Grupė: 42 BRAKES
43529
43530
43531
43532
43533
43534
43535
43536
43537
43538
43539
43540
43541
43542
43543
# Kodas Pavadinimas

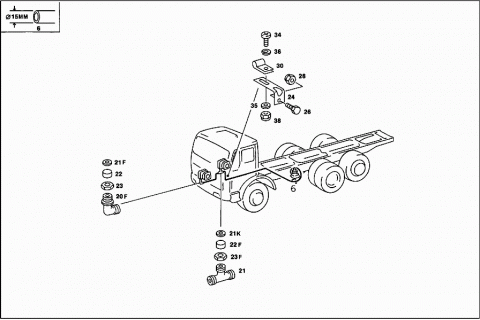

T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
740.1
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
740.9
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL:
749.1
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
006 A 0004291401 LINE
BETWEEN THE CONNECTIONS
15 MM
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
006 A 0004291401 LINE
PRESSURE LIMIT VALVE
15 MM
006 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM

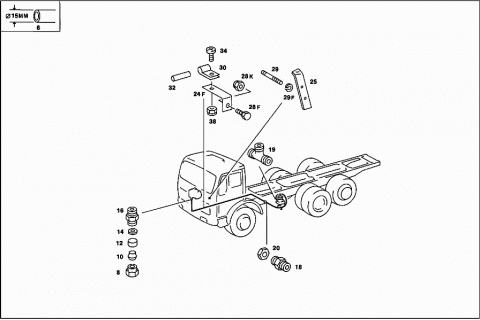

008 N 915018015000 UNION NUT
N 915017015100 UNION NUT
010 N 003861015004 GLAND
012 N 915065015101 THRUST RING
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
016 A 0019972172 FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
018 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
019 A 0009902370 T-FITTING
AT FITTING
020 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
020F A 0004294338 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
A 6209900071 ELBOW FITTING
Repalced by: A 0039901671
A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
021 N 074302022405 T-FITTING
Repalced by: A 0029901970
021 A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
021 A 0029901970 T-FITTING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
021F A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
021K A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
021K A 0139972248 SEAL RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
022 A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
022F A 0004290227 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
022F A 0004290227 THRUST RING
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
023 N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
023F N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
023F N 074305022202 NUT
CAMSHAFT-DRIVEN AIR COMPRESSOR, CONNECTION:
"20"
024 A 3854290540 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
024F A 6154290240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
025 A 6154290640 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
025 A 6164290340 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
A 6174291440 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
026 N 000961014028 SCREW
BRACKET TO LEFT SIDE MEMBER
028 N 913004014002 NUT
Repalced by: N 910113014001
028 N 910113014001 NUT
BRACKET TO LEFT SIDE MEMBER
028F N 000933008116 SCREW
Repalced by: N 000933008337
028F N 000933008337 SCREW
Repalced by: A 0099900101
028F A 0099900101 SCREW
BRACKET TO LEFT SIDE MEMBER
028K N 913004008004 NUT
Repalced by: N 913004008001
028K N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
029 N 000933012064 SCREW
BRACKET TO CYLINDER BLOCK, REAR
029 N 000933010105 SCREW
BRACKET TO CYLINDER BLOCK, REAR
029 N 000933010105 SCREW
BRACKET TO CYLINDER BLOCK, REAR
029 N 000939010026 STUD BOLT
BRACKET TO CYLINDER BLOCK, REAR
029F N 912004012100 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
029F N 912004010102 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
029F N 912004010102 LOCK WASHER
BRACKET TO CYLINDER BLOCK, REAR
030 A 3609952001 CLAMP
Repalced by: A 6739950001
030 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
032 N 040621013200 INSULATING HOSE
034 N 007985006145 SCREW
Repalced by: N 007985006581
034 N 007985006581 SCREW
CLAMP TO BRACKET
035 N 009021006205 WASHER
Repalced by: N 009021006208
035 N 009021006208 WASHER
CLAMP TO BRACKET
035 N 000125006421 WASHER
CLAMP TO BRACKET
036 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
038 N 913004006002 NUT
Repalced by: N 913004006001
038 N 913004006001 NUT
CLAMP TO BRACKET

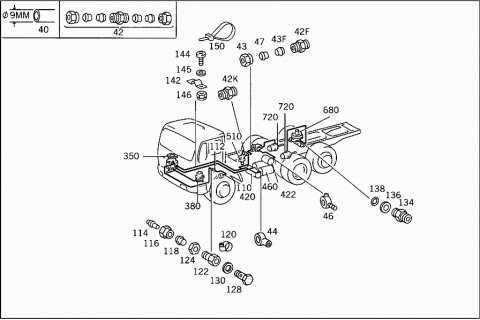

040 A 0109975982 HOSE
Repalced by: A 0009872827
040 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
040 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
040 A 0009872827 PLASTIC PIPE
PRESSURE LIMIT VALVE,OVERFLOW VALVE
9X12 MM
040 A 0009872827 PLASTIC PIPE
FROM FITTING TO BRAKE HOSE
9X12 MM
040 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
040 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
042 A 0049971772 FITTING
Repalced by: A 0029906171
042 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
042F A 0029902171 ELBOW FITTING
042K A 0019909771 ELBOW FITTING
FROM AIR RESERVOIR TO CHECK VALVE
043 N 915017012100 UNION NUT
043F N 003861012007 GLAND
Repalced by: A 0019901967
043F A 0019901967 SEAL CONE
044 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
046 A 0019901088 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
047 N 915062009000 SLEEVE
048 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
048 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
048 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
048 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
050 A 0039978972 FITTING
Repalced by: A 0029905971
050 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
051 A 0009904678 CONNECTOR
BETWEEN THE LINES

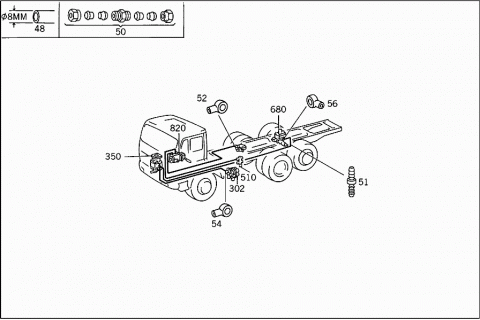

052 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
054 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
056 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM

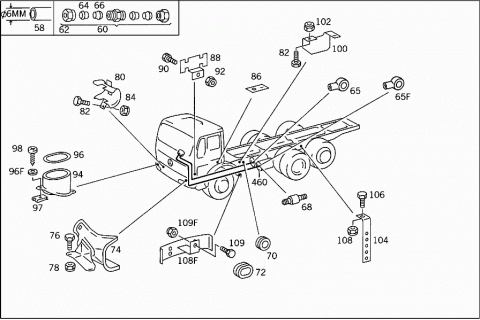

058 A 0089976082 HOSE
Repalced by: A 0009872627
058 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
060 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
062 N 915017006100 UNION NUT
064 N 003861006007 GLAND
Repalced by: A 0019901667
064 A 0019901667 SEAL CONE
065 N 915052004016 BANJO UNION
HOSE WIDTH, / I.D.,
4/10 MM
065F N 915052004015 BANJO UNION
HOSE WIDTH, / I.D.,
4/12 MM
066 N 915062004000 SLEEVE
068 A 0009904678 CONNECTOR
PRESSURE REGULATOR TO AIR RESERVOIR
070 A 6209970181 GROMMET
LINE THRU LEFT SIDE MEMBER
42/36 MM
072 A 3549970081 GROMMET
LINE THRU LEFT SIDE MEMBER
32/27 MM
074 A 6204201186 BRACKET
LEFT COMPRESSED AIR LINES
074 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
076 N 000933008147 SCREW
Repalced by: N 304017008021
076 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
078 N 913004008004 NUT
Repalced by: N 913004008001
078 N 913004008001 NUT
BRACKET TO BUMPER STRUT
079 A 3854292640 BRACKET
Repalced by: A 3604292440
079 A 3604292440 BRACKET
Repalced by: A 3604292940
079 A 3604292940 BRACKET
PRESSURE REGULATOR TO AIR RESERVOIR
080 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
A 6204201486 BRACKET
Repalced by: A 6154200186
080 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
081 N 000961012164 SCREW
BRACKET TO FRAME
082 N 000933008153 SCREW
Repalced by: N 304017008034
082 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
084 N 913004008004 NUT
Repalced by: N 913004008001
084 N 913004008001 NUT
BRACKET TO CAB CONSOLE
085 N 910113012002 NUT
BRACKET TO FRAME
086 A 6204294340 BRACKET
Repalced by: A 3604293140
086 A 3604293140 BRACKET
COMPRESSED AIR LINE
088 A 6204293940 BRACKET
COMPRESSED AIR LINE
088 A 6204293940 BRACKET
COMPRESSED AIR LINE
090 N 000933008152 SCREW
Repalced by: N 304017008027
090 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
092 N 913004008004 NUT
Repalced by: N 913004008001
092 N 913004008001 NUT
BRACKET TO SIDE MEMBER
092F A 6204296740 BRACKET
Repalced by: A 3184923441
092F A 3184923441 BRACKET
PRESSURE REGULATOR TO AIR RESERVOIR
093 A 3934310140 BRACKET
Repalced by: A 6514310240
093 A 6514310240 BRACKET
PRESSURE REGULATOR TO AIR RESERVOIR
093F N 000933008147 SCREW
Repalced by: N 304017008021
093F N 304017008021 SCREW
BRACKET TO CONTROL ARM
093K N 913004008004 NUT
Repalced by: N 913004008001
093K N 913004008001 NUT
BRACKET TO CONTROL ARM
094 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
096 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
096F N 009021005202 WASHER
Repalced by: N 009021005205
096F N 009021005205 WASHER
BRACKET TO CAB FLOOR
097 A 0009946445 LOCK
BRACKET TO CAB FLOOR
098 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
100 A 6204295240 BRACKET
BETWEEN THE LINES
102 N 913004006002 NUT
Repalced by: N 913004006001
102 N 913004006001 NUT
BRACKET TO CAB FLOOR
104 A 6174290540 BRACKET
Repalced by: A 3604292940
104 A 3604292940 BRACKET
COMPRESSED AIR LINE
106 N 000933008147 SCREW
Repalced by: N 304017008021
106 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
108 N 913004008004 NUT
Repalced by: N 913004008001
108 N 913004008001 NUT
BRACKET TO CROSS MEMBER
108F A 6174200244 PROTECTIVE PLATE
109 N 000933008147 SCREW
Repalced by: N 304017008021
109 N 304017008021 SCREW
LEFT COMPRESSED AIR LINES
109F N 913004008004 NUT
Repalced by: N 913004008001
109F N 913004008001 NUT
LEFT COMPRESSED AIR LINES

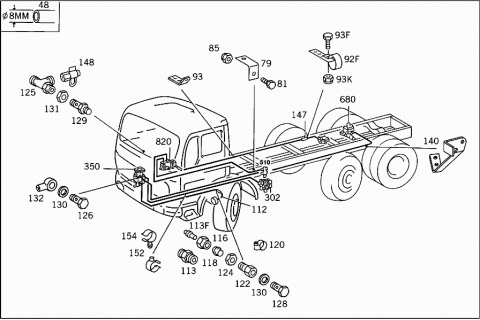

110 A 6194290801 LINE
Repalced by: A 6254293501
110 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
112 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
113 N 074304016201 FITTING
LEFT AND RIGHT BRAKE HOSES
113F A 0004290641 FITTING
LEFT AND RIGHT BRAKE HOSES
114 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
116 N 915017012100 UNION NUT
118 N 003861012007 GLAND
Repalced by: A 0019901967
118 A 0019901967 SEAL CONE
120 N 916017016000 CLAMP
Repalced by: N 000000000666
120 N 000000000666 CLAMP
LINE MOUNTING
122 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
122 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
124 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
124 N 080705018002 NUT
BRAKE HOSE TO BRACKET
125 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
125 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
125 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
126 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
126 N 915047012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
126 N 915047012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
126 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
128 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
129 N 915039012205 HOLLOW SCREW FITTING
RIGHT FRONT BRAKE HOSE
130 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
131 N 080705018002 NUT
LEFT AND RIGHT BRAKE HOSES
132 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
132 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
134 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
136 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
138 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
140 A 6194313340 BRACKET
LEFT FRONT BRAKE HOSE
140 A 6194313440 BRACKET
RIGHT FRONT BRAKE HOSE
142 A 3159955010 CLAMP
LINE MOUNTING
144 N 007985006145 SCREW
Repalced by: N 007985006581
144 N 007985006581 SCREW
LINE MOUNTING
145 N 000125006421 WASHER
LINE MOUNTING
146 N 913004006002 NUT
Repalced by: N 913004006001
146 N 913004006001 NUT
LINE MOUNTING
147 A 6154290086 PROTECTIVE TUBE
Repalced by: N 073379008200
147 N 073379008200 HOSE
CLUTCH
148 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
148 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
148 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"40"
148 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
148 A 0004316131 TEST CONNECTION
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
148 A 0004316131 TEST CONNECTION
RELAY VALVE,CONNECTION:
"20"
A 0009979486 PLUG
150 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
150 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
152 A 1159950465 CLAMP
LINE MOUNTING
154 A 6209950065 CLAMP
LINE MOUNTING

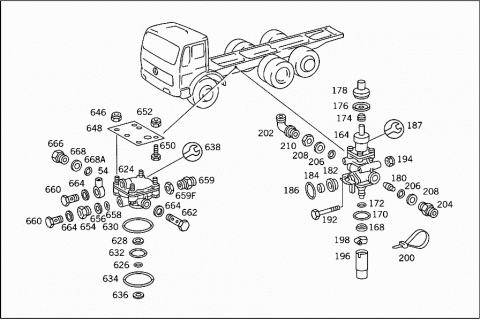

164 A 0014316106 PRESSURE REGULATOR
Repalced by: A 0024313606
164 A 0024313606 PRESSURE REGULATOR
Repalced by: A 0024314406
164 A 0014316506 PRESSURE REGULATOR
Repalced by: A 0024315006
164 A 0014319006 PRESSURE REGULATOR
Repalced by: A 0024314406
164 A 0024314406 PRESSURE REGULATOR
BOSCH
A 0014319106 PRESSURE REGULATOR
Repalced by: A 0024318406
164 A 0024315006 PRESSURE REGULATOR
WABCO
164 A 0024318406 PRESSURE REGULATOR
KNORR
168 A 0004312381 VALVE DISC
TO 001 431 90 06,GRAU
170 A 0059972948 SEAL RING
TO 001 431 90 06,GRAU
172 A 0059973048 SEAL RING
TO 001 431 90 06,GRAU
174 A 0004312481 VALVE DISC
TO 001 431 90 06,GRAU
176 A 0004311328 DIAPHRAGM
TO 001 431 90 06,GRAU
178 A 0004318687 PROTECTIVE CAP
TO 001 431 90 06,GRAU
180 A 0004313423 VALVE
TO 001 431 90 06,GRAU
182 A 0004313534 STRAINER
TO 001 431 90 06,GRAU
184 A 0004312888 VALVE SEAT
TO 001 431 90 06,GRAU
186 A 0059973148 SEAL RING
TO 001 431 90 06,GRAU
187 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
187 A 0004301407 REPAIR KIT
TO 001 431 61 06,BOSCH 0 481 039 105
187 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
187 A 0004301107 REPAIR KIT
TO 001 431 65 06,WABCO 975 300 151 0
187 A 0014304960 REPAIR KIT
TO 002 431 50 06,WABCO 975 303 50 00
187 A 0025866743 REPAIR KIT
TO 001 431 91 06,KNORR
187 A 0004301768 REPAIR KIT
DIAPHRAGM PART
TO 002 431 36 06,BOSCH 0 481 039 225
187 A 0004301768 REPAIR KIT
DIAPHRAGM PART
TO 002 431 44 06,BOSCH 0 481 039 205
187 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 36 06,BOSCH 0 481 039 225
187 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 44 06,BOSCH 0 481 039 205
A 0004300507 REPAIR KIT
TO 002 431 84 06,KNORR
192 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
194 N 913004008004 NUT
Repalced by: N 913004008001
194 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
196 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
196 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
198 N 916026016001 CLAMP
Repalced by: A 0059970190
198 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
198 N 916026020001 CLAMP
Repalced by: N 000000000667
198 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
200 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
202 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
204 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
206 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
208 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
210 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"

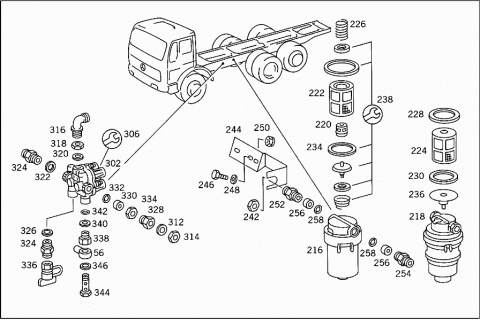

216 A 0004292595 AIR CLEANER
BOSCH
216 A 0004292695 AIR CLEANER
KNORR
216 A 0004292795 AIR CLEANER
WABCO
218 A 0004292895 AIR CLEANER
GRAU
220 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
222 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
222 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
224 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
226 A 0059930901 SPRING
TO 000 429 27 95,WABCO
228 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
228 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
230 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
230 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
234 A 0049972248 SEAL RING
Repalced by: A 0289972348
234 A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
234 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
236 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
236 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
238 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
242 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
244 A 6204310740 BRACKET
AIR CLEANER
246 N 000933008147 SCREW
Repalced by: N 304017008021
246 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
248 N 000125008418 WASHER
Repalced by: N 000125008443
248 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
250 N 913004008004 NUT
Repalced by: N 913004008001
250 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
252 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
254 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
256 A 0004290227 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
258 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"

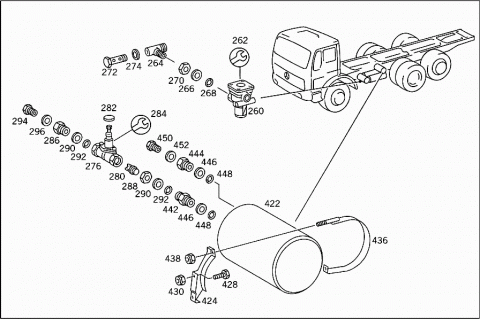

260 A 0024312406 VALVE
(PRESSURE LIMIT VALVE)
262 A 0004304960 REPAIR KIT
PRESSURE LIMIT VALVE
264 A 0019907370 T-FITTING
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
A 0029902270 T-FITTING
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
266 A 0004290927 THRUST RING
PRESSURE LIMIT VALVE,CONNECTIONS:
"10,20"
268 A 0009971548 SEAL RING
PRESSURE LIMIT VALVE,CONNECTIONS:
"10,20"
270 N 080705016003 NUT
PRESSURE LIMIT VALVE,CONNECTIONS:
"10,20"
272 N 915036012203 HOLLOW SCREW
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
274 N 007603016401 SEAL RING
PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT
"10"
276 A 0034290844 VALVE
Repalced by: A 0044293244
276 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
276 A 0034290944 VALVE
Repalced by: A 0044293144
276 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
280 A 0024298844 VALVE
TO 003 429 08 44,WABCO
282 A 0004290745 DIAPHRAGM
TO 003 429 08 44,WABCO
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
284 A 0005865842 REPAIR KIT
TO 003 429 09 44,GRAU
286 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"10"
288 N 074305022202 NUT
OVERFLOW VALVE,CONNECTION:
"20"
290 A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"10,20"
292 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS:
"10,20"
294 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"10"
296 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"10"
302 A 0014319306 VALVE
Repalced by: A 0034315006
302 A 0024314006 VALVE
Repalced by: A 0034315006
302 A 0014318706 VALVE
Repalced by: A 0034315006
302 A 0024312706 VALVE
Repalced by: A 0024319106
302 A 0024319106 VALVE
Repalced by: A 0034315006
302 A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
306 A 0035860943 REPAIR KIT
TO 002 431 40 06,WABCO
306 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
306 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
306 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
306 A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
312 N 000125017010 WASHER
Repalced by: N 000125017016
312 N 000125017016 WASHER
VALVE TO BRACKET
314 N 080705016003 NUT
VALVE TO BRACKET
316 A 0019903971 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
318 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
320 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
322 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
324 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
326 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
328 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
330 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
332 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
334 N 000439016206 NUT
Repalced by: N 308675016001
334 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
336 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
336 A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
338 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
340 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
342 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
344 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
346 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
350 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
350 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
350 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR

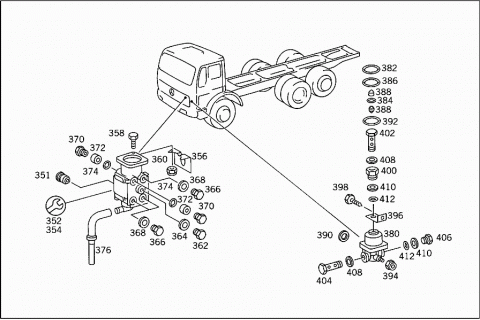

351 A 0004313623 VALVE
WABCO
A 0035861143 REPAIR KIT
Repalced by: A 0004306360
352 A 0004306360 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 07 05,WABCO
354 A 0004300160 REPAIR KIT
Repalced by: A 0004303306
354 A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
356 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
358 N 000933008152 SCREW
Repalced by: N 304017008027
358 N 304017008027 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
360 N 913004008004 NUT
Repalced by: N 913004008001
360 N 913004008001 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
362 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"40"
364 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"40"
366 N 915036012203 HOLLOW SCREW
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
368 N 007603016401 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
370 N 000908016001 SCREW PLUG
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
372 A 0004290927 THRUST RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
374 A 0009971548 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
376 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
376 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
380 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
382 A 0019871746 SEALING CORD
38X3 MM
384 A 0089970445 SEAL RING
34.6X2.6 MM
386 A 0089978648 SEAL RING
28.4X2.6 MM
388 A 0004313223 VALVE
390 N 007603016401 SEAL RING
16X20 MM
392 A 0089978748 SEAL RING
56X1.7 MM
394 N 913004008004 NUT
Repalced by: N 913004008001
394 N 913004008001 NUT
VALVE TO FLOOR
396 A 6204312440 BRACKET
PRESSURE RATIO VALVE
396 A 6204312540 BRACKET
PRESSURE RATIO VALVE
398 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
400 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
400 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"10"
402 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"10"
404 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"20"
406 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"20"
408 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"10,20"
410 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"20"
412 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"20"

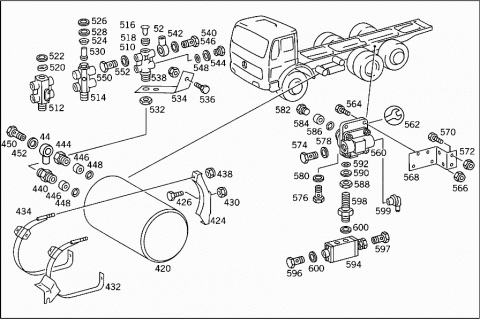

420 A 0004324801 RESERVOIR
Repalced by: A 0014327501
420 A 0014327501 RESERVOIR
Repalced by: A 0034321201
420 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
422 A 0004325101 RESERVOIR
Repalced by: A 0034321301
422 A 0034321301 RESERVOIR
REAR AIR RESERVOIR
20 L
424 A 3874320540 BRACKET
FRONT AIR RESERVOIR
424 A 3874320540 BRACKET
REAR AIR RESERVOIR
426 N 000933008215 SCREW
Repalced by: A 0069909301
426 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
428 N 000933008154 SCREW
Repalced by: N 304017008021
428 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
430 N 913004008004 NUT
Repalced by: N 913004008001
430 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
432 A 6204300440 STRAP
FRONT AIR RESERVOIR
432 A 6204300240 STRAP
FRONT AIR RESERVOIR
432 A 6204300240 STRAP
FRONT AIR RESERVOIR
434 A 6204300540 STRAP
FRONT AIR RESERVOIR
434 A 6204301240 STRAP
FRONT AIR RESERVOIR
434 A 6204301240 STRAP
FRONT AIR RESERVOIR
436 A 3874300640 STRAP
REAR AIR RESERVOIR
438 N 913004010008 NUT
Repalced by: N 910113010000
438 N 910113010000 NUT
STRAP TO BRACKET
440 A 0019972172 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
FRONT AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
FRONT AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
FRONT AIR RESERVOIR,CONNECTION:
"13"
442 A 0019972372 FITTING
REAR AIR RESERVOIR,CONNECTION:
"24"
444 A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"23"
444 A 0009905168 FITTING
REAR AIR RESERVOIR,CONNECTION:
"14"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
446 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,14,23,24"
448 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,14,23,24"
450 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"23,24"
452 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"23,24"

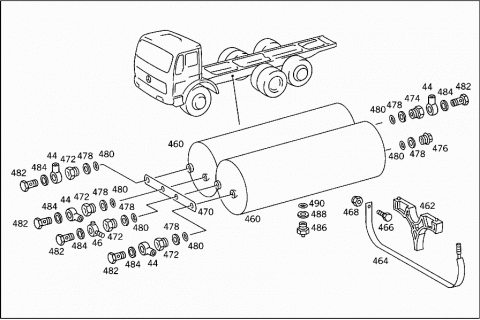

460 A 0004322101 RESERVOIR
Repalced by: A 0034322301
460 A 0034322301 RESERVOIR
AIR RESERVOIR,BRAKE CIRCUITS I & II
30 L
462 A 6204320018 BASE
STRAP TO SUPPORT
464 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
466 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
468 N 913004010008 NUT
Repalced by: N 910113010000
468 N 910113010000 NUT
STRAP TO SUPPORT
470 A 3464320073 LOCK
PROTECTION AGAINST TORSION
472 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
474 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
476 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
476 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
478 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
480 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
482 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
484 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
486 A 0004322107 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
488 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
490 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
510 A 0024299644 VALVE
(CHECK VALVE)
VOSS
512 A 0034290444 VALVE
(CHECK VALVE)
WABCO
514 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
516 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
518 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
520 A 0002950320 VALVE
TO 003 429 04 44,WABCO
522 A 0089977348 SEAL RING
19.3X2.4 MM,TO 003 429 04 44,WABCO
524 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
526 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
528 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
530 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
532 N 074305022202 NUT
CHECK VALVE TO BRACKET
534 A 6204292540 BRACKET
Repalced by: A 6164290140
534 A 6164290140 BRACKET
CHECK VALVE
536 N 000933010129 SCREW
Repalced by: N 304017010002
536 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
538 N 913004010008 NUT
Repalced by: N 910113010000
538 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
540 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
542 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
544 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
546 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
548 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
550 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
550 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
552 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
560 A 0004313313 VALVE
LOAD/NO-LOAD
562 A 0005867843 REPAIR KIT
564 N 000933008147 SCREW
Repalced by: N 304017008021
564 N 304017008021 SCREW
VALVE TO BRACKET
566 N 913004008004 NUT
Repalced by: N 913004008001
566 N 913004008001 NUT
VALVE TO BRACKET
568 A 6194311440 BRACKET
LOAD/NO-LOAD VALVE
570 N 000933008147 SCREW
Repalced by: N 304017008021
570 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
572 N 913004008004 NUT
Repalced by: N 913004008001
572 N 913004008001 NUT
BRACKET TO CROSS MEMBER
574 N 915036012203 HOLLOW SCREW
LOAD/NO-LOAD VALVE,CONNECTION:
"11"
574 N 915036012203 HOLLOW SCREW
LOAD/NO-LOAD VALVE,CONNECTION "2", BOTTOM
"11"
576 N 915036008202 HOLLOW SCREW
LOAD/NO-LOAD VALVE,CONNECTION:
"12"
578 N 007603016401 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION:
"11"
578 N 007603016401 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION "2", BOTTOM
"11"
580 N 007603012405 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION:
"12"
582 N 000908016001 SCREW PLUG
LOAD/NO-LOAD VALVE,CONNECTION "2",TOP
584 A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE,CONNECTION "2",TOP
586 A 0009971548 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION "2",TOP
588 N 080705012003 NUT
LOAD/NO-LOAD VALVE,CONNECTION:
"40"
590 A 0004290827 THRUST RING
LOAD/NO-LOAD VALVE,CONNECTION:
"40"
592 A 0019875046 SEALING CORD
LOAD/NO-LOAD VALVE,CONNECTION:
"40"
594 A 0014292644 VALVE
3/2-WAY
596 N 915036006202 HOLLOW SCREW
3/2-WAY VALVE;CONNECTION:
"10"
597 N 915047006202 HOLLOW SCREW
3/2-WAY VALVE;CONNECTION:
"4"
598 A 0029979272 FITTING
3/2-WAY VALVE;CONNECTION:
"2"
599 A 6233280165 PIPE SOCKET
3/2-WAY VALVE;CONNECTION:
"3"
600 N 007603010103 SEAL RING
Repalced by: N 007603010110
600 N 007603010110 SEAL RING
3/2-WAY VALVE;CONNECTIONS:
"1,2,4"
624 A 0014296844 VALVE
(RELAY VALVE)
WABCO
624 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
624 A 0034295344 VALVE
(RELAY VALVE)
KNORR
624 A 0014299144 VALVE
(RELAY VALVE)
GRAU
626 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
628 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
630 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95,GRAU
632 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
634 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
636 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
638 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
638 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
638 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
638 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
638 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
638 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
638 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
646 N 913004008004 NUT
Repalced by: N 913004008001
646 N 913004008001 NUT
RELAY VALVE TO BRACKET
648 A 3914311240 BRACKET
RELAY VALVE
650 N 000933008147 SCREW
Repalced by: N 304017008021
650 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
652 N 913004008004 NUT
Repalced by: N 913004008001
652 N 913004008001 NUT
BRACKET TO CROSS MEMBER
654 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"10"
654 A 0009905168 FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
"10"
656 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"10"
656 A 0004290227 THRUST RING
FRONT AXLE II RELAY VALVE,CONNECTION:
"10"
658 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"10"
658 A 0009870446 SEALING CORD
FRONT AXLE II RELAY VALVE,CONNECTION:
"10"
659 N 915040012200 HOLLOW SCREW FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
"20"
659 A 0029972572 FITTING
FRONT AXLE II RELAY VALVE,CONNECTION:
"20"
659F N 080705016003 NUT
FRONT AXLE II RELAY VALVE,CONNECTION:
"20"
660 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"10,20,40"
662 N 915047012203 HOLLOW SCREW
FRONT AXLE II RELAY VALVE,CONNECTION:
"10"
664 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"10,20,40"
664 N 007603016401 SEAL RING
FRONT AXLE II RELAY VALVE,CONNECTION:
"10,20"
666 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
666 N 000908016001 SCREW PLUG
FRONT AXLE II RELAY VALVE,CONNECTION:
"20"
668 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
668 A 0004290927 THRUST RING
FRONT AXLE II RELAY VALVE,CONNECTION:
"20"
668A A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
668A A 0009971548 SEAL RING
FRONT AXLE II RELAY VALVE,CONNECTION:
"20"
668E A 0004290444 VALVE
Repalced by: A 0034290744
668E A 0034290744 VALVE
(CHECK VALVE)
668F A 0009905168 FITTING
CHECK VALVE,CONNECTIONS:
"20"
668K N 074305022202 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"10"
668M A 0004290227 THRUST RING
CHECK VALVE,CONNECTIONS:
"10,20"
668N A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"10"
668Q A 0009870446 SEALING CORD
CHECK VALVE,CONNECTIONS:
"10,20"
668R A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"10"
668S N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"20"
668U N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"20"
669 A 0024292444 VALVE
(TEST VALVE)
A 0039974348 SEAL RING
A 0039974448 SEAL RING
A 0039974548 SEAL RING
A 0039974498 CHAIN LOCK LINK
669F N 074313008104 FITTING
Repalced by: A 0029979572
669F A 0029979572 FITTING
TEST VALVE
669K A 0004290927 THRUST RING
TEST VALVE
669M A 0009971548 SEAL RING
TEST VALVE
680 A 0014314312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
680 A 0014314812 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
682 A 0004303660 REPAIR KIT
WABCO
684 N 000125008418 WASHER
Repalced by: N 000125008443
684 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
686 N 913004008004 NUT
Repalced by: N 913004008001
686 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
688 A 6234310140 BRACKET
BRAKE POWER REGULATOR
690 N 000933008147 SCREW
Repalced by: N 304017008021
690 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
692 N 913004008004 NUT
Repalced by: N 913004008001
692 N 913004008001 NUT
BRACKET TO CROSS MEMBER
694 A 6195844021 GUIDE SIGN
LOAD-DEPENDING BRAKE
694 A 6195840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
696 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20"
698 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20,41,42"
700 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
702 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20,40"
N 915036008202 HOLLOW SCREW
704 N 915047008202 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"41,42"
706 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"41,42"
715 A 0104202618 WHEEL BRAKE CYLINDER
Repalced by: A 0194200518
715 A 0194200518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
715 A 0084207918 WHEEL BRAKE CYLINDER
Repalced by: A 0194200518
715 A 0194200518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
715 A 0094203518 WHEEL BRAKE CYLINDER
Repalced by: A 0194200518
715 A 0194200518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
720 A 0074204218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
FA.KNORR
720 A 0074206518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
FA.WABCO
720 A 0084209018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
FA.BOSCH
722 A 0004231060 SEAL RING
TO 007 420 42 18,KNORR
724 A 0004313628 DIAPHRAGM
TO 010 420 26 18,KNORR
724 A 0004312928 DIAPHRAGM
TO 007 420 42 18,KNORR
726 A 0004313028 DIAPHRAGM
TO 008 420 90 18,BOSCH
728 A 0004234187 PROTECTIVE CAP
TO 007 420 42 18,KNORR
730 A 0004212286 CUP
Repalced by: A 0004215286
730 A 0004215286 CUP
TO 007 420 65 18,WABCO
732 A 0004233886 CUP
TO 008 420 90 18,BOSCH
734 A 0004211263 GUIDE
Repalced by: N 071752014000
734 N 071752014000 YOKE
TO 008 420 90 18,BOSCH
736 A 0004304060 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 007 420 42 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 007 420 42 18,KNORR
738 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 90 18,BOSCH
740 A 0025865042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 65 18,WABCO
741 A 0014305560 REPAIR KIT
TO 010 420 26 18,KNORR
742 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
742 A 0024301560 REPAIR KIT
TO 008 420 79 18, 007 420 65 18,WABCO

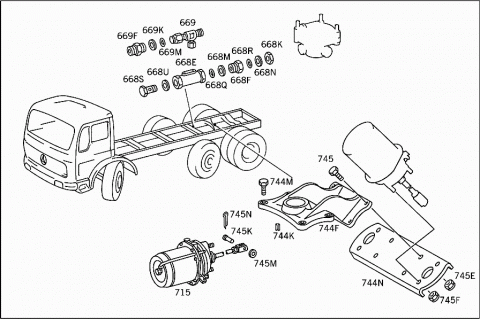

744F A 3874200078 BEARING BRACKET
WHEEL CYLINDER
744K N 007346012003 CLAMPING SLEEVE
744M N 000961016036 SCREW
Repalced by: N 308676016013
744M N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
744N A 6164230006 BRAKE ANCHOR
WHEEL CYLINDER
745 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
745E N 913004014002 NUT
Repalced by: N 910113014001
745E N 910113014001 NUT
SUPPORT TO BEARING BRACKET
745F N 913004016004 NUT
Repalced by: N 910113016002
745F N 910113016002 NUT
TRISTOP CYLINDER TO SUPPORT
745K A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
745M N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
745N N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
745P A 0009971548 SEAL RING
LEFT TRISTOP CYLINDER; REAR AXLE I; CONNECTION:
"11"
745P A 0009971548 SEAL RING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
""11,12"
746 A 0004290927 THRUST RING
LEFT TRISTOP CYLINDER; REAR AXLE I; CONNECTION:
"11"
746 A 0004290927 THRUST RING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
748 N 080705016003 NUT
LEFT TRISTOP CYLINDER; REAR AXLE I; CONNECTION:
"11"
750 A 0019905370 T-FITTING
LEFT TRISTOP CYLINDER; REAR AXLE I; CONNECTION:
"11"
752 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
752 A 0069970072 FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
754 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
754 N 007603016401 SEAL RING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
754 N 007603016401 SEAL RING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
756 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"12"
756 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
758 N 915040012206 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTION:
"11,12"
758 N 915040012206 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER; REAR AXLE I, CONNECTION:
"11"
760 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTION:
"11"
760 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER; REAR AXLE I, CONNECTION:
"11"
760 N 915036012203 HOLLOW SCREW
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
762 A 0019903970 T-FITTING
Repalced by: A 0029909070
762 A 0029909070 T-FITTING
REAR AXLE II TRISTOP CYLINDER LINE CONNECTION
764 A 3934310140 BRACKET
Repalced by: A 6514310240
764 A 6514310240 BRACKET
COMPRESSED AIR LINE TO TRIANGULAR CONTROL ARM
766 N 000933008147 SCREW
Repalced by: N 304017008021
766 N 304017008021 SCREW
BRACKET TO CONTROL ARM
M 8X20
768 N 913004008004 NUT
Repalced by: N 913004008001
768 N 913004008001 NUT
BRACKET TO CONTROL ARM
770 A 6194290040 BRACKET
Repalced by: A 3875010820
770 A 3875010820 BRACKET
Repalced by: A 3834929141
770 A 3834929141 BRACKET
772 A 6204293940 BRACKET
COMPRESSED AIR LINE
774 N 000933008154 SCREW
Repalced by: N 304017008021
774 N 304017008021 SCREW
BRACKET TO REAR AXLE II
M 8X22
776 N 913004008004 NUT
Repalced by: N 913004008001
776 N 913004008001 NUT
BRACKET TO REAR AXLE II
778 A 6194290140 BRACKET
Repalced by: A 3184923441
778 A 3184923441 BRACKET
COMPRESSED AIR LINE TO TRIANGULAR CONTROL ARM
792 A 6174290540 BRACKET
Repalced by: A 3604292940
792 A 3604292940 BRACKET
COMPRESSED AIR LINES TO CROSS MEMBER
796 N 000933008147 SCREW
Repalced by: N 304017008021
796 N 304017008021 SCREW
COMPRESSED AIR LINES TO CROSS MEMBER
M 8X20
800 N 913004008004 NUT
Repalced by: N 913004008001
800 N 913004008001 NUT
COMPRESSED AIR LINES TO CROSS MEMBER
820 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
820 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
820 A 0014306681 VALVE
Repalced by: A 0024309881
820 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
820 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
820 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
820 A 0014306781 VALVE
Repalced by: A 0024309981
820 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
824 A 0009975577 HANDLE
KNORR
824 A 0009972477 HANDLE
WABCO
824 A 0009973477 HANDLE
BOSCH
825 A 0014310887 PROTECTIVE CAP
WABCO
825 A 0014311087 PROTECTIVE CAP
BOSCH
825 A 0014311287 PROTECTIVE CAP
KNORR
825 N 001481003025 CLAMPING SLEEVE
KNORR
826 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
826 A 0034303181 REPAIR KIT
WABCO
828 A 0025866343 REPAIR KIT
GASKET KIT
BOSCH
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
830 A 0035860543 REPAIR KIT
KNORR
832 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
834 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO CAB
836 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
838 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
