Transporto priemonė: 2220 L; VIN numerio dalis: 619402

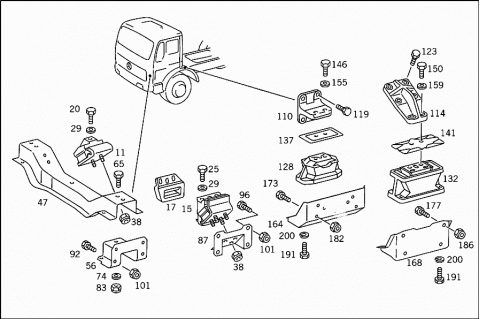

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 015 | A 6162400317 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 015 | A 6162400417 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 015 | A 6162400517 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 017 | A 0002420043 | STOP |
| ENGINE FRONT MOUNTING | ||
| TO 616 240 03 17 | ||
| 020 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 020 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 020 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 025 | N 000961016092 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 029 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 038 | N 910113012002 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 038 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 047 | A 3813120105 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 056 | A 3812410609 | ENGINE STAY |
| ENGINE FRONT SUSPENSION | ||
| 065 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 065 | N 308676012026 | SCREW |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 074 | A 3859901040 | WASHER |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 083 | N 910113012002 | NUT |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 087 | A 6172410035 | BEARING BRACKET |
| FRONT RUBBER MOUNTING | ||
| 092 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 092 | N 308676012026 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 092 | N 000961012122 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X40 | ||
| 096 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X28 | ||
| 096 | N 000961012106 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X32 | ||
| 101 | N 910113012002 | NUT |
| ENGINE STAY TO SIDE MEMBER | ||
| 101 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 110 | A 3812420305 | SUPPORTING ARM |
| REAR | ||
| 114 | A 6172420105 | SUPPORTING ARM |
| REAR | ||
| 119 | N 000933016072 | SCREW |
| Repalced by: N 304017016004 | ||
| 119 | N 304017016004 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 123 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 123 | N 308676018001 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 128 | A 6152400018 | RUBBER MOUNTING |
| REAR | ||
| 128 | A 6152400118 | RUBBER MOUNTING |
| REAR | ||
| 132 | A 6162400618 | RUBBER MOUNTING |
| REAR | ||
| 132 | A 6162400718 | RUBBER MOUNTING |
| REAR | ||
| 132 | A 6162400818 | RUBBER MOUNTING |
| REAR | ||
| 137 | A 3812420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 141 | A 3832420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 146 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 146 | N 308676014012 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X45 | ||
| 146 | N 000961014116 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 14X50 | ||
| 150 | N 000961016039 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 155 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 159 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 164 | A 6162420302 | SUPPORT |
| Repalced by: A 3812400106 | ||
| 164 | A 3812400106 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 164 | A 6162420302 | SUPPORT |
| Repalced by: A 3812400206 | ||
| 164 | A 3812400206 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 168 | A 6172420002 | SUPPORT |
| Repalced by: A 3962420002 | ||
| 168 | A 3962420002 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 173 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 173 | N 308676012010 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| 177 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 177 | N 308676014008 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 177 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 177 | A 9429901304 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X38 | ||
| 182 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 186 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 186 | N 910113014000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 191 | N 000961012164 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X28 | ||
| 191 | N 000961012151 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X30 | ||
| 191 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 191 | N 308676012026 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X35 | ||
| 200 | N 000125013008 | WASHER |
| 200 | N 000125013008 | WASHER |
