Transporto priemonė: 2220 L; VIN numerio dalis: 619402
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

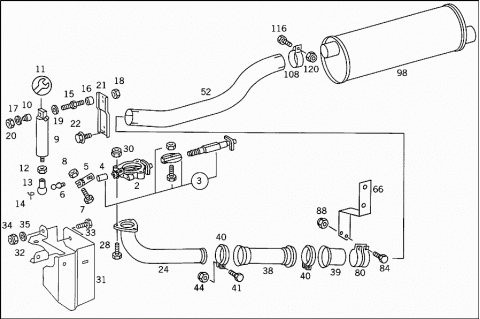

| 002 | A 3661402353 | THROTTLE HOUSING |
| Repalced by: A 3661405353 | ||
| 002 | A 3661405353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 003 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 004 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| A 3661400032 | LEVER | |
| Repalced by: A 3661400232 | ||
| 005 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 006 | N 071803013208 | BALL PIVOT |
| 007 | N 000933006124 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 007 | N 914126006025 | SCREW |
| Repalced by: N 910105006005 | ||
| 007 | N 910105006005 | SCREW |
| Repalced by: N 000000001479 | ||
| 007 | N 000000001479 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 008 | N 000934006007 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 008 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 008 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 008 | N 913023006001 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| A 0004304226 | CYLINDER | |
| Repalced by: A 0004303026 | ||
| A 0004303026 | CYLINDER | |
| Repalced by: A 0004304826 | ||
| 009 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| A 0004303226 | CYLINDER | |
| Repalced by: A 0004304926 | ||
| 009 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 009 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 009 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| MOTORBREMSE TECHNOMATIK | ||
| A 0004340550 | BUSHING | |
| Repalced by: A 0004340850 | ||
| 010 | A 0004340850 | BUSHING |
| TO 000 430 30 26/32 26 | ||
| 010 | A 4421440050 | BUSHING |
| TO 000 430 48 26/49 26 | ||
| 011 | A 0004308460 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,SZ 1130 I/74963,000 430 30 26 | ||
| 011 | A 0004305426 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,000 430 48 26 | ||
| 012 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 012 | N 304035008001 | NUT |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 013 | A 4039910222 | BALL SOCKET |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 013 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 014 | N 071805013402 | SECURING CLIP |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| 015 | A 4221440174 | PIN |
| Repalced by: A 4421440574 | ||
| 015 | A 4421440574 | PIN |
| POWER CYLINDER TO BRACKET | ||
| 015 | A 4421440274 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 016 | N 007349008003 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| 017 | A 0039902940 | WASHER |
| POWER CYLINDER | ||
| 018 | N 304032008006 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 019 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 019 | N 000125008443 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| 020 | N 999900008005 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 021 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 021 | A 3661440440 | BRACKET |
| POWER CYLINDER | ||
| 022 | N 914126008007 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 023 | A 6164900125 | CONNECTOR |
| FRONT,FRONT PART | ||
| 024 | A 6164900919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 024 | A 6164900919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 024 | A 6164902319 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 026 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 027 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 028 | N 000931012114 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 028 | N 000933012071 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X40 | ||
| 028 | N 000960012221 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X80 | ||
| 028 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 028 | N 000961012208 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X75 | ||
| 030 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | N 910113012002 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 031 | A 6174900730 | PROTECTIVE PLATE |
| Repalced by: A 6524920230 | ||
| 031 | A 6524920230 | PROTECTIVE PLATE |
| 032 | A 6764921641 | BRACKET |
| Repalced by: A 6764901040 | ||
| 032 | A 6764901040 | BRACKET |
| PROTECTIVE PLATE | ||
| 033 | N 000933008291 | SCREW |
| Repalced by: A 4609900601 | ||
| 033 | A 4609900601 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| M 8X20 | ||
| 034 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 034 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
| 035 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 035 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| M 12X1,5X25 | ||
| 038 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 038 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 038 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 039 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 039 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 039 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 040 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 040 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 040 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 041 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 041 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 044 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 044 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 046 | A 6164902020 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 048 | A 6174902820 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 052 | A 6164901620 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 052 | A 6164902120 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 052 | A 6164900020 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 056 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 058 | A 6194901920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 060 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 062 | A 6194902020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 064 | A 6164920641 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 066 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 066 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 066 | A 6164900540 | BRACKET |
| Repalced by: A 6504920241 | ||
| 066 | A 6504920241 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 068 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 068 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 072 | N 912004014100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 072 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 072 | N 308676014020 | SCREW |
| BRACKET TO SUPPORT | ||
| 076 | N 000961014100 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 078 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 078 | N 910113014001 | NUT |
| BRACKET TO SUPPORT | ||
| 080 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 084 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 084 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 088 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 088 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 092 | A 6174900401 | EXHAUST MUFFLER |
| 092 | A 6164900401 | EXHAUST MUFFLER |
| 096 | A 6174900301 | EXHAUST MUFFLER |
| 098 | A 6164900501 | EXHAUST MUFFLER |
| 098 | A 6164900501 | EXHAUST MUFFLER |
| 100 | A 6174900001 | EXHAUST MUFFLER |
| 104 | A 6174900101 | EXHAUST MUFFLER |
| 106 | A 6174901901 | EXHAUST MUFFLER |
| 108 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 112 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 78.5 MM | ||
| 112 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 112 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 116 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 116 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 120 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 120 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 124 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 124 | A 6174911216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 128 | N 000933012151 | SCREW |
| Repalced by: N 304017012022 | ||
| 128 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M12X1.5X30 | ||
| 128 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M12X1.5X30 | ||
| 132 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 132 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 136 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 136 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 138 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 140 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 140 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 140 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 144 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 144 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 144 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 145 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 145 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 146 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 146 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 147 | A 6174900142 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 148 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 149 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 149 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 150 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 150 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 152 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 152 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 152 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| 156 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 156 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 156 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 156 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 160 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 160 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 164 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 164 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 164 | A 6164923341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 168 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 168 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 172 | A 6164910040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 172 | A 6174910340 | CLAMP |
| Repalced by: A 6174910540 | ||
| 172 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 176 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 176 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 176 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 180 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 180 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 180 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 182 | A 6164922014 | END PIECE |
| 184 | A 6174921014 | END PIECE |
| 184 | A 6164921514 | END PIECE |
| Repalced by: A 6164922314 | ||
| 184 | A 6164922314 | END PIECE |
| 185 | A 6174921114 | END PIECE |
| A 6194921204 | REAR EXHAUST PIPE | |
| TAIL PIPE,FRONT | ||
| 188 | A 6164920814 | END PIECE |
| 189 | A 6164921914 | END PIECE |
| 190 | A 6194920307 | CONNECTOR |
| 192 | A 3834926504 | REAR EXHAUST PIPE |
| A 6174920204 | REAR EXHAUST PIPE | |
| A 6174920204 | REAR EXHAUST PIPE | |
| 197 | A 6194921204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 198 | A 6194922004 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 199 | A 6194922104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 200 | A 0004900563 | FLAP |
| (RAIN DEFLECTOR) | ||
| 201 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 204 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 204 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 204 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 208 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 208 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 212 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 212 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 216 | A 6164920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 216 | A 6164920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 220 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 224 | A 6164920516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 224 | A 6164920516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 224 | A 3814910116 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 228 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 228 | N 304017010002 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 228 | N 304017010002 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 232 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 232 | N 304017008034 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 236 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 236 | N 910113010000 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 236 | N 910113010000 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 240 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 240 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 244 | A 6174911316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 248 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| 252 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 252 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 256 | A 3834921341 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 258 | A 6164921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 260 | A 6164920841 | BRACKET |
| Repalced by: A 3834927941 | ||
| 260 | A 3834927941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 264 | A 6164923041 | BRACKET |
| Repalced by: A 6164920141 | ||
| 264 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 264 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 264 | A 6164924341 | BRACKET |
| Repalced by: A 6164920141 | ||
| 264 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 264 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 264 | A 6174923641 | BRACKET |
| REAR EXHAUST PIPE | ||
| 265 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 265 | A 6164920241 | BRACKET |
| BRACKET TO SUPPORT | ||
| 265 | A 6164922241 | BRACKET |
| Repalced by: A 3834927941 | ||
| 265 | A 3834927941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 266 | A 6164924041 | BRACKET |
| Repalced by: A 3604923541 | ||
| 266 | A 3604923541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 105 MM | ||
| 267 | A 6164923841 | BRACKET |
| TAIL PIPE,FRONT | ||
| 268 | A 6194921041 | BRACKET |
| TAIL PIPE,FRONT | ||
| 269 | A 6194921341 | BRACKET |
| TAIL PIPE,FRONT | ||
| 270 | A 6214921741 | BRACKET |
| Repalced by: A 6244920741 | ||
| 270 | A 6244920741 | BRACKET |
| 271 | A 6164923741 | BRACKET |
| EXHAUST PIPE BRACKET TO SIDE MEMBER | ||
| 272 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 273 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 273 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 274 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 275 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 276 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 276 | N 910113010000 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 277 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 277 | N 071555090502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 278 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 279 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 279 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 279 | N 910113014001 | NUT |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 280 | N 000933010157 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X28 | ||
| 280 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 280 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 280 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 280 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 280 | N 304017010002 | SCREW |
| TAIL PIPE TO BRACKET | ||
| M 10X30 | ||
| 284 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 284 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| M 10X25 | ||
| 288 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 288 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 288 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 288 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 288 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 288 | N 910113010000 | NUT |
| TAIL PIPE TO BRACKET | ||
| 288 | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 296 | A 3434920340 | CLAMP |
| TAIL PIPE,FRONT | ||
| 300 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 300 | N 304017008034 | SCREW |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 304 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 304 | N 913004008001 | NUT |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 308 | A 6174920130 | PROTECTIVE PLATE |
| TAIL PIPE,BOTTOM | ||
| 312 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 312 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 312 | N 304017010002 | SCREW |
| HEAT SHIELD TO FRAME | ||
| 316 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 316 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 316 | N 910113010000 | NUT |
| HEAT SHIELD TO FRAME | ||
| 320 | A 3874900030 | PROTECTIVE PLATE |
| TOP | ||
| 320 | A 6554900130 | PROTECTIVE PLATE |
| TOP | ||
| 324 | A 3434920340 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 328 | A 3954923241 | BRACKET |
| Repalced by: A 3184924841 | ||
| 328 | A 3184924841 | BRACKET |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 332 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 332 | N 304017008021 | SCREW |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 336 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 336 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 340 | A 6194920141 | BRACKET |
| TAIL PIPE,FRONT | ||
| 344 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 344 | N 304017008034 | SCREW |
| BRACKET TO CROSS CONNECTION STRUT | ||
| 348 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 348 | N 913004008001 | NUT |
| BRACKET TO CROSS CONNECTION STRUT | ||
| 352 | A 6164900140 | BRACKET |
| (STRUT),FROM TAIL PIPE TO SIDE MEMBER | ||
| 356 | A 6204901540 | BRACKET |
| (STRUT),FROM TAIL PIPE TO SIDE MEMBER | ||
| 360 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 364 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 364 | N 000125010532 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 368 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 368 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 372 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 372 | A 6454921140 | CLAMP |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 376 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 376 | N 304017010002 | SCREW |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 376 | N 304017010002 | SCREW |
| BRACKET TO REINFORCEMENT | ||
| 380 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 380 | N 910113010000 | NUT |
| EXHAUST PIPE AND PIPE CLAMP TO BRACKET | ||
| 380 | N 910113010000 | NUT |
| BRACKET TO REINFORCEMENT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
