Transporto priemonė: 2220 L; VIN numerio dalis: 619402

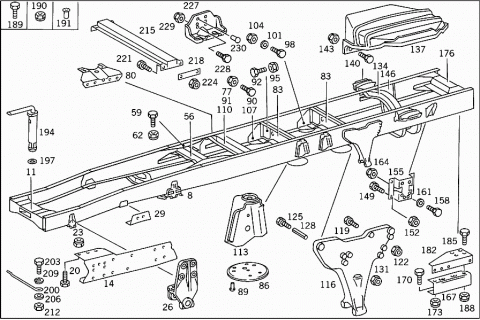

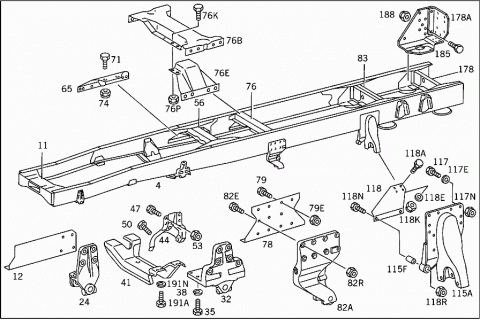

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6173105402 | FRAME |
| 008 | A 6193101301 | FRAME |
| 008 | A 6193101401 | FRAME |
| 008 | A 6193101501 | FRAME |
| 011 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 012 | A 3853122687 | GUSSET PLATE |
| FRONT LEFT | ||
| 012 | A 3853122787 | GUSSET PLATE |
| FRONT RIGHT | ||
| 014 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 014 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 020 | N 000961012092 | SCREW |
| Repalced by: N 000961012025 | ||
| 020 | N 000961012025 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X32 | ||
| 023 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 024 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 026 | A 6173220001 | FRONT SPRING BRACKET |
| FRONT | ||
| 029 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 032 | A 6173220003 | FRONT SPRING BRACKET |
| REAR | ||
| 032 | A 6173220103 | FRONT SPRING BRACKET |
| REAR | ||
| 035 | N 000961014154 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| M 14X25 | ||
| 035 | N 000961014127 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| M 14X30 | ||
| 038 | N 912004014100 | LOCK WASHER |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 041 | A 6163120310 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 044 | A 6163120061 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 047 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 047 | N 308676014020 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 050 | N 000961014113 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 053 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 053 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 056 | A 3853100436 | CROSS MEMBER |
| Repalced by: A 3813120015 | ||
| 056 | A 3813120015 | CROSS MEMBER |
| NO.3 | ||
| 059 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 059 | N 308676012012 | SCREW |
| CROSS MEMBER TO REINFORCEMENT | ||
| M 12X25 | ||
| 062 | N 910113012002 | NUT |
| CROSS MEMBER TO REINFORCEMENT | ||
| 065 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 065 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 071 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 071 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| M 12X25 | ||
| 074 | N 910113012002 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 076 | A 3913100036 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO. 4 | ||
| 076B | A 3893120125 | CROSS MEMBER |
| 076E | A 3933120161 | STRUT |
| 076K | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 076K | A 0029908201 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 076P | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 076P | N 910113012003 | NUT |
| STRUT TO CROSS MEMBER | ||
| 077 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 077 | A 3813100436 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 078 | A 3853110853 | ANGLE |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 079 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 079 | A 9429901304 | SCREW |
| CROSS MEMBER AND ANGLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 079E | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 079E | N 910113014000 | NUT |
| CROSS MEMBER AND ANGLE TO SIDE MEMBER | ||
| 080 | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 082A | A 3913220003 | FRONT SPRING BRACKET |
| FRONT AXLE II,LEFT | ||
| 082A | A 3913220103 | FRONT SPRING BRACKET |
| FRONT AXLE II,RIGHT | ||
| 082E | N 000960016237 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X60 | ||
| 082E | N 000960016250 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X85 | ||
| 082E | A 6229900014 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 18X60 | ||
| 082E | A 3919900014 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 18X85 | ||
| 082R | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 082R | N 910113016001 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 083 | A 6173100237 | CROSS MEMBER |
| NO.5 | ||
| 083 | A 6173100237 | CROSS MEMBER |
| NO.6 | ||
| 086 | A 3833270304 | COVER PLATE |
| AIR SPRING BELLOWS | ||
| 089 | N 910005014056 | RIVET |
| COVER PLATE TO GUSSET PLATE | ||
| 14X45 MM | ||
| 089 | N 910005014059 | RIVET |
| COVER PLATE TO GUSSET PLATE | ||
| 14X16 MM | ||
| 090 | N 000961014100 | SCREW |
| CROSS MEMBER TO FRAME | ||
| M 14X30 | ||
| 091 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 091 | N 910113014001 | NUT |
| CROSS MEMBER TO FRAME | ||
| 092 | N 000961014028 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| 095 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 095 | N 910113014001 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 098 | N 000961018009 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X45 | ||
| 098 | A 0039908604 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| M 18X40 | ||
| 101 | N 000125019009 | WASHER |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 104 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 104 | N 910113018004 | NUT |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 107 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 107 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 107 | N 308676010023 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 110 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 110 | N 910113010002 | NUT |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 113 | A 3603200878 | CONSOLE |
| SHOCK ABSORBER | ||
| 115A | A 6993500232 | SUPPORT |
| LONGITUDINAL CONTROL ARM | ||
| LINKS | ||
| 115A | A 6993500332 | SUPPORT |
| LONGITUDINAL CONTROL ARM | ||
| RECHTS | ||
| 115F | A 3523250150 | BUSHING |
| 115F | A 3853250050 | BUSHING |
| 116 | A 3853520541 | BEARING BODY |
| Repalced by: A 6533500032 | ||
| 116 | A 6533500032 | SUPPORT |
| Repalced by: A 6533520641 | ||
| 116 | A 6533520641 | BEARING BODY |
| LONGITUDINAL CONTROL ARM | ||
| 117 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 117 | N 308676018001 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X45 | ||
| 117 | N 000961018020 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X50 | ||
| 117 | N 000961018043 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 117 | N 000610018004 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X45 | ||
| 117 | N 000610018009 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X55 | ||
| 117 | N 000610018006 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| M 18X60 | ||
| 117E | A 6179900340 | WASHER |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| 117N | N 913004018004 | NUT |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| 118 | A 6993220208 | STAY |
| LEFT | ||
| 118 | A 6993220308 | STAY |
| RIGHT | ||
| 118A | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 118A | N 308676012026 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X35 | ||
| 118E | N 000125013008 | WASHER |
| 118K | N 910113012002 | NUT |
| STRUT TO CROSS MEMBER | ||
| 118N | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 118N | N 308676014020 | SCREW |
| STRUT TO BEARING BRACKET | ||
| 118R | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 118R | N 910113014001 | NUT |
| STRUT TO BEARING BRACKET | ||
| 119 | N 000960018122 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41;M 18X115 | ||
| 119 | N 000960018033 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41;M 18X120 | ||
| 119 | N 000960018062 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41;M 18X130 | ||
| 119 | N 000960018073 | SCREW |
| Repalced by: N 308765018004 | ||
| 119 | N 308765018004 | SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41;M 18X140 | ||
| 122 | N 913004018004 | NUT |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41 | ||
| 125 | N 000609027003 | FITTED SCREW |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41 | ||
| 128 | N 007346028000 | CLAMPING SLEEVE |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41 | ||
| 131 | N 910113027001 | NUT |
| BEARING BODY TO SIDE AND CROSS MEMBERS | ||
| TO 385 352 05 41 | ||
| 134 | A 6193100137 | CROSS MEMBER |
| NO.7 | ||
| 137 | A 3933280641 | SUPPORT |
| TRAILING AXLE AIR SPRING BELLOWS | ||
| 140 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 140 | N 308676016007 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X50 | ||
| 140 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 140 | N 308676016004 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X55 | ||
| 143 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 143 | N 910113016001 | NUT |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| 146 | A 3853100141 | CROSS MEMBER |
| LIFTING DEVICE | ||
| NO.8 | ||
| 149 | N 000961012190 | SCREW |
| Repalced by: N 308676012012 | ||
| 149 | N 308676012012 | SCREW |
| CROSS MEMBER TO REINFORCEMENT | ||
| 152 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 152 | N 910113012003 | NUT |
| CROSS MEMBER TO REINFORCEMENT | ||
| 155 | A 3853120560 | REINFORCEMENT |
| CROSS MEMBER | ||
| 158 | N 308676012010 | SCREW |
| REINFORCEMENT AND TRAILER AXLE SHOCK ABSORBER BRACKET TO SIDE MEMBER | ||
| 161 | N 000125013008 | WASHER |
| 164 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 164 | N 910113012003 | NUT |
| REINFORCEMENT AND TRAILER AXLE SHOCK ABSORBER BRACKET TO SIDE MEMBER | ||
| 167 | A 6173120160 | REINFORCEMENT |
| REAR CROSS MEMBER | ||
| 170 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 170 | N 308676012012 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 12X25 | ||
| 173 | N 910113012002 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 176 | A 3833100246 | CROSS MEMBER |
| REAR | ||
| 178 | A 6173100537 | CROSS MEMBER |
| Repalced by: A 6173100237 | ||
| 178 | A 6173100237 | CROSS MEMBER |
| REAR | ||
| 178A | A 3853123087 | GUSSET PLATE |
| LEFT | ||
| 178A | A 3853123187 | GUSSET PLATE |
| RIGHT | ||
| 182 | A 6193120087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 182 | A 6193120187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 185 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 185 | N 308676012012 | SCREW |
| REINFORCEMENT TO GUSSET PLATE | ||
| M 12X25 | ||
| 185 | N 000961012151 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| M 12X30 | ||
| 185 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 185 | A 9429901304 | SCREW |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| M 14X40 | ||
| 188 | N 910113012002 | NUT |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| 188 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 188 | N 910113014000 | NUT |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 189 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 189 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 189 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 189 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 189 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 189 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 189 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 189 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 189 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 189 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 189 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 189 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 189 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 189 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 189 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 189 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 189 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 189 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 189 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 189 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 189 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 189 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 189 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 189 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 189 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 189 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 189 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 189 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 189 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 189 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 189 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 189 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 189 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 189 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 189 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 189 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 189 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 189 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 189 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 189 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 189 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 189 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 189 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 189 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 189 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 189 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 189 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 189 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 189 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 189 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 189 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 189 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 189 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 189 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 189 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 189 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 189 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 189 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 189 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 190 | N 913004010011 | NUT |
| 190 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 190 | N 910113012003 | NUT |
| 190 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 190 | N 910113014000 | NUT |
| 190 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 190 | N 910113016001 | NUT |
| 190 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 191 | A 0009902193 | RIVET |
| Repalced by: N 910005010022 | ||
| 191 | N 910005010022 | RIVET |
| 191 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 191 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 191 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 191 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 191 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 191 | N 910005014057 | RIVET |
| 14X48 MM | ||
| 191 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 191A | N 000961014100 | SCREW |
| BRACKET AND FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| M 14X30 | ||
| 191N | N 912004014100 | LOCK WASHER |
| BRACKET AND FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 194 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 197 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 200 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 203 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 203 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 206 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 206 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 209 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 212 | N 304032008006 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 215 | A 3834030201 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 218 | A 3854030019 | BASE BLOCK |
| Repalced by: A 6744320019 | ||
| 218 | A 6744320019 | BASE |
| SPARE WHEEL MOUNTING | ||
| 221 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 221 | N 304017010002 | SCREW |
| SUPPORT TO FRAME | ||
| 224 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 224 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 227 | A 3874030701 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 228 | A 0029908201 | SCREW |
| SUPPORT TO FRAME | ||
| M12X30 | ||
| 229 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 229 | N 910113012003 | NUT |
| SUPPORT TO FRAME | ||
| 230 | N 910005012080 | RIVET |
| SUPPORT TO FRAME | ||
| 330 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 336 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 336 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 342 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 342 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 348 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 348 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 354 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 354 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 360 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 360 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 360 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 360 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| 366 | A 3878902903 | MOUNTING |
| 366 | A 6208902003 | MOUNTING |
| 372 | N 007349017002 | WASHER |
| 378 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 378 | N 910113016002 | NUT |
| 384 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 390 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| 396 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 402 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 408 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 414 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 414 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 420 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 420 | A 9429901304 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X40 | ||
| 420 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 420 | N 308676014012 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X45 | ||
| 426 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 426 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 432 | A 3813171201 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 438 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 438 | N 308676014020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 438 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 444 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 444 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 450 | A 3813171926 | GUIDE |
| LEFT | ||
| 450 | A 3813172026 | GUIDE |
| RIGHT | ||
| 456 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 462 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 468 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 474 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 480 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 486 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 492 | N 910113012002 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 498 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 498 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 498 | A 3878901319 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 498 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 498 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 498 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 504 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| 504 | A 0008900148 | JOINT |
| Repalced by: A 0008910301 | ||
| 504 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19,387 890 13 19 | ||
| 510 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 510 | A 0008910451 | SPRING |
| 510 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 510 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 513 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 516 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER MOUNTING | ||
| 522 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER MOUNTING | ||
| 528 | N 000433015005 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 534 | A 3878912010 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 540 | N 000934012022 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 546 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 546 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER MOUNTING | ||
| 549 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER | ||
| 552 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 552 | N 304017008034 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 558 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 558 | N 009021008213 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 564 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 564 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 570 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 570 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 576 | A 3813170097 | BOOT |
| SHOCK ABSORBER,TOP | ||
| 582 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 588 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 594 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 594 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 600 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 600 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 606 | A 3813170119 | LATCH |
| 612 | A 3813172374 | PIN |
| 618 | A 3813170924 | LEVER |
| 624 | A 3813170676 | WASHER |
| 630 | A 0009935426 | DISC SPRING |
| 636 | N 001481006041 | CLAMPING SLEEVE |
| 642 | N 910113012002 | NUT |
| 648 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 654 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 654 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||

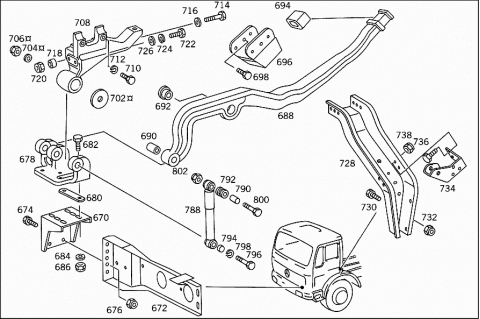

| 670 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 672 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 672 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 674 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 674 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 674 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 674 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 676 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 676 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 678 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 678 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 678 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 678 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 680 | A 3878910498 | SHIM |
| MOUNTING TO CONSOLE | ||
| 682 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 682 | N 308676014008 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X35 | ||
| 682 | N 000961014103 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X55 | ||
| 682 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 682 | N 308676014003 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X30 | ||
| 684 | N 007349015003 | WASHER |
| MOUNTING TO CONSOLE | ||
| 686 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 686 | N 910113014000 | NUT |
| MOUNTING TO CONSOLE | ||
| 688 | A 3878912556 | LEVER |
| (TILTING LEVER),CAB | ||
| 688 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 690 | A 3879920203 | BUSHING |
| LEVER | ||
| 690 | A 3879920003 | BUSHING |
| LEVER | ||
| 692 | A 6208910017 | BUSHING |
| LEVER | ||
| 694 | A 3638910023 | BUFFER |
| LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| 696 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 698 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 698 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||

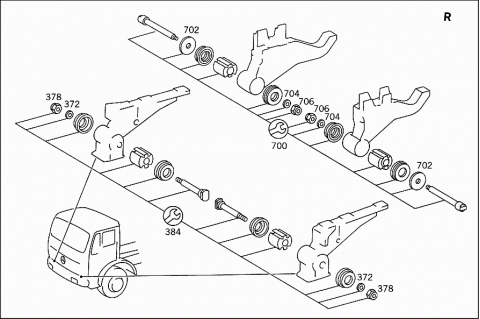

| 700 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 702 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 704 | N 007349017002 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 706 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 706 | N 910113016002 | NUT |
| CAB SUSPENSION,FRONT | ||
| 708 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 708 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 710 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 710 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 710 | N 308676012011 | SCREW |
| MOUNTING TO CAB | ||
| 712 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 714 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 714 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 716 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 716 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 718 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 720 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 720 | N 910113014001 | NUT |
| MOUNTING TO CAB | ||
| 722 | N 000961014054 | SCREW |
| MOUNTING TO CAB | ||
| M 14X45 | ||
| 722 | N 000961014028 | SCREW |
| MOUNTING TO CAB | ||
| M 14X40 | ||
| 724 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 726 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 726 | N 000125015019 | WASHER |
| MOUNTING TO CAB | ||
| 728 | A 3878911531 | CONSOLE |
| CAB SUSPENSION,REAR LEFT | ||
| 728 | A 3878911631 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 730 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 730 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 730 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 732 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 732 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 734 | A 3878908303 | MOUNTING |
| Repalced by: A 3878918520 | ||
| 734 | A 3878918520 | MOUNTING |
| LEFT VIBRATION ABSORBER | ||
| 734 | A 3878908403 | MOUNTING |
| Repalced by: A 3878918620 | ||
| 734 | A 3878918620 | MOUNTING |
| RIGHT VIBRATION ABSORBER | ||
| 736 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 736 | N 308676012012 | SCREW |
| MOUNTING TO CONSOLE | ||
| 738 | N 910113012002 | NUT |
| MOUNTING TO CONSOLE | ||

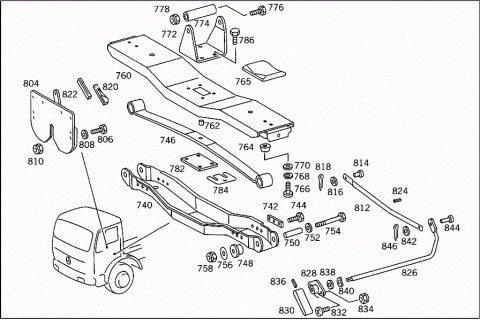

| 740 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 740 | A 6558910224 | STRUT |
| CROSS CONNECTION | ||
| 742 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 744 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 744 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 746 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 748 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 750 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 752 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 754 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 756 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 758 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 760 | A 3878900422 | RAIL |
| Repalced by: A 6558900022 | ||
| 760 | A 6558900022 | RAIL |
| (CONNECTING RAIL) | ||
| 762 | N 000007012200 | CYLINDRICAL PIN |
| 764 | A 3878910323 | BUFFER |
| (RUBBER BUFFER) | ||
| 765 | A 3878910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 766 | N 000084008122 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 768 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 770 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 770 | N 000125008443 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 772 | A 6208911320 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 774 | A 3878911653 | SPACER TUBE |
| MOUNTING | ||
| 776 | N 000960016286 | SCREW |
| MOUNTING | ||
| 778 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 778 | N 910113016002 | NUT |
| MOUNTING | ||
| 782 | A 3878910811 | PLATE |
| MOUNTING | ||
| 784 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 786 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 788 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 790 | A 0008910617 | BUSHING |
| 792 | A 0008910501 | RUBBER MOUNTING |
| 794 | A 3878910353 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 794 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 6 MM | ||
| 796 | N 000960018111 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 798 | N 912004018101 | LOCK WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 800 | N 000960018111 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 802 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 802 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 804 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 804 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 804 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 806 | N 000933010198 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X16 | ||
| 806 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| M 10X25 | ||
| 808 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 808 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 810 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 810 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 812 | A 6208910170 | ROD |
| CENTRAL LOCK | ||
| 814 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 816 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 818 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 820 | A 3878910814 | BRACKET |
| SEAL | ||
| 822 | A 3878910085 | SEAL |
| CENTRAL LOCK TO CAB | ||
| 824 | N 007346005003 | CLAMPING SLEEVE |
| BRACKET TO DRAWBAR | ||
| 826 | A 6208910456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 828 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 830 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 830 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 832 | N 007985008142 | SCREW |
| BUSHING AND LEVER TO CAB | ||
| 834 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 834 | N 913004008001 | NUT |
| BUSHING AND LEVER TO CAB | ||
| 836 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 836 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 838 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 838 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 840 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| 842 | N 000433008406 | WASHER |
| PULL ROD TO LEVER | ||
| 844 | N 001444008233 | PIN |
| PULL ROD TO LEVER | ||
| 846 | N 000094002059 | COTTER PIN |
| PULL ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
