Transporto priemonė: 2220 L; VIN numerio dalis: 619402

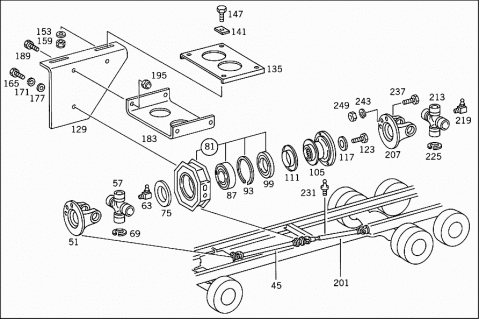

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 045 | A 3854107204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1775 MM | ||
| 045 | A 3854106304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1272 MM | ||
| 045 | A 6164100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 2022 MM | ||
| 045 | A 3854106204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1145 MM | ||
| 045 | A 3854107404 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1872 MM | ||
| 051 | A 3854111711 | DRIVE FLANGE |
| 057 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 057 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 063 | N 071412008302 | GREASE NIPPLE |
| 069 | A 0069940641 | LOCK |
| 069 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 069 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 069 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 069 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 069 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 069 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 069 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 075 | A 3854130161 | PROTECTIVE CAP |
| OUTSIDE | ||
| 075 | A 3854130461 | PROTECTIVE CAP |
| OUTSIDE | ||
| 081 | A 3854100122 | INTERMEDIATE BEARING |
| Repalced by: A 3854100922 | ||
| 081 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 081 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 081 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 087 | A 0019818125 | BALL BEARING |
| 093 | N 912009100200 | SNAP RING |
| 099 | A 3854130061 | PROTECTIVE CAP |
| INSIDE | ||
| A 9734110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 105 | A 3854100030 | CENTERING FLANGE |
| Repalced by: A 3854110045 | ||
| A 3854110045 | FLANGE | |
| PROPELLER SHAFT BEARING | ||
| 111 | A 3854130161 | PROTECTIVE CAP |
| 111 | A 3854130461 | PROTECTIVE CAP |
| 117 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 123 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 129 | A 3874136742 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 129 | A 3854137042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 129 | A 3854137842 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 129 | A 3854136442 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 129 | A 3854135242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 129 | A 3814130242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 129 | A 3874136842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 129 | A 3854137142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 129 | A 3854137942 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 129 | A 3854136542 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 129 | A 3854135342 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 129 | A 3814130342 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 135 | A 3854130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 141 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 147 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 147 | N 308676012013 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 147 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 147 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 147 | N 308676010023 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 153 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 153 | A 1232420366 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 153 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 153 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 159 | N 913001012000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 159 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 165 | N 000931010282 | SCREW |
| BRACKET TO HOUSING | ||
| M 10X40 | ||
| 165 | N 000933010105 | SCREW |
| BRACKET TO HOUSING | ||
| M 10X25 | ||
| 171 | N 912004010102 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 177 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 177 | N 007349010007 | WASHER |
| BRACKET TO HOUSING | ||
| 183 | A 3874130211 | REINFORCEMENT |
| Repalced by: A 3874130111 | ||
| 183 | A 3874130111 | REINFORCEMENT |
| STRUT TO BRACKET | ||
| 183 | A 3874130111 | REINFORCEMENT |
| STRUT TO BRACKET | ||
| 189 | N 000961010018 | SCREW |
| Repalced by: A 0079901001 | ||
| 189 | A 0079901001 | SCREW |
| STRUT TO PROPELLER SHAFT BEARING BRACKET | ||
| 189 | N 000961012016 | SCREW |
| STRUT TO PROPELLER SHAFT BEARING BRACKET | ||
| 195 | N 913001010000 | NUT |
| Repalced by: N 910113010003 | ||
| 195 | N 910113010003 | NUT |
| STRUT TO PROPELLER SHAFT BEARING BRACKET | ||
| 195 | N 913001012000 | NUT |
| STRUT TO PROPELLER SHAFT BEARING BRACKET | ||
| 201 | A 3854103107 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1825 MM | ||
| 201 | A 3854104407 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1130 MM | ||
| 201 | A 3854107307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1715 MM | ||
| 201 | A 6164100007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1951 MM | ||
| 201 | A 3854104807 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1670 MM | ||
| 207 | A 3854111711 | DRIVE FLANGE |
| 213 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 213 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 219 | N 071412008302 | GREASE NIPPLE |
| 225 | A 0029941241 | LOCK |
| Repalced by: A 0069940641 | ||
| 225 | A 0069940641 | LOCK |
| 225 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 225 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 225 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 225 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 225 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 225 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 225 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 225 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 231 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 231 | N 071412008102 | GREASE NIPPLE |
| 237 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 237 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 243 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
| 249 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE | ||
