Transporto priemonė: 2220 L; VIN numerio dalis: 619402

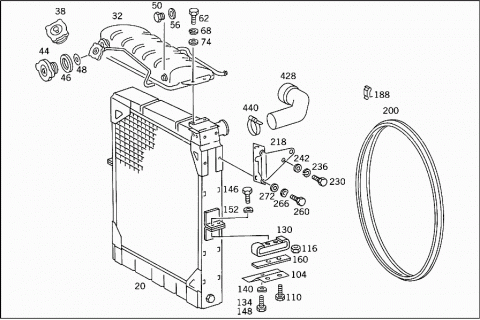

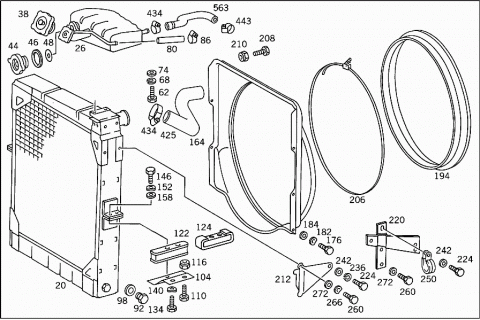

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 020 | A 0005019201 | RADIATOR |
| BEHR | ||
| 020 | A 0015011001 | RADIATOR |
| Repalced by: A 0015015501 | ||
| 020 | A 0015015501 | RADIATOR |
| BEHR | ||
| 020 | A 0015015501 | RADIATOR |
| BEHR | ||
| 020 | A 0015010901 | RADIATOR |
| BEHR | ||
| 026 | A 0005001249 | TANK |
| COOLING WATER EXPANSION | ||
| 032 | A 0005001549 | TANK |
| COOLING WATER EXPANSION | ||
| 038 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 038 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 044 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 044 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 046 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 048 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 050 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 050 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 056 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 062 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 062 | N 304017008016 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 068 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 074 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 074 | N 000125008443 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 080 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 086 | A 0005040033 | CLAMP |
| Repalced by: N 916017011000 | ||
| 086 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 086 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 092 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 092 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 098 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 104 | A 3835040101 | SUPPORT |
| RADIATOR | ||
| 104 | A 6155040001 | SUPPORT |
| LEFT | ||
| 104 | A 6155040001 | SUPPORT |
| LEFT | ||
| 104 | A 6155040101 | SUPPORT |
| RIGHT | ||
| 104 | A 6155040101 | SUPPORT |
| RIGHT | ||
| 104 | A 3835040401 | SUPPORT |
| RADIATOR | ||
| 110 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 110 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 116 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 122 | A 6175040012 | RUBBER MOUNTING |
| RADIATOR | ||
| 124 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 124 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR | ||
| A 3875040012 | RUBBER MOUNTING | |
| RADIATOR | ||
| 130 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 134 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 140 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 146 | N 000933010105 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 146 | N 000933010105 | SCREW |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 148 | N 000933010145 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 148 | N 000933010094 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 152 | N 000137010201 | SPRING WASHER |
| RADIATOR TO LEFT AND RIGHT RUBBER MOUNTINGS | ||
| 158 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 158 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 158 | N 000125010532 | WASHER |
| HEATING PIPE TO RADIATOR | ||
| 160 | A 3835040084 | SHIM |
| HEATING PIPE TO RADIATOR | ||
| 160 | A 3855040184 | SHIM |
| HEATING PIPE TO RADIATOR | ||
| 160 | A 3855040284 | SHIM |
| HEATING PIPE TO RADIATOR | ||
| 164 | A 6175050355 | FAN SHROUD |
| RADIATOR | ||
| A 6165050355 | FAN SHROUD | |
| RADIATOR | ||
| 176 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 176 | N 304017006018 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X12 | ||
| 176 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 176 | N 304017006016 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X16 | ||
| 176 | N 000933006130 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| M 6X18 | ||
| 182 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 184 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 188 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 194 | A 6175050186 | BOOT |
| FAN SHROUD | ||
| 200 | A 6175050086 | BOOT |
| FAN SHROUD | ||
| 206 | A 3879950035 | CLAMP |
| BOOT TO FAN SHROUD | ||
| 208 | N 000933006147 | SCREW |
| HOSE TO FAN SHROUD | ||
| 210 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 210 | N 913004006001 | NUT |
| HOSE TO FAN SHROUD | ||
| 212 | A 4010100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 212 | A 4010100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 218 | A 4010100440 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 220 | A 3660100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 220 | A 3660100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 220 | A 3660100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| A 3660100740 | BRACKET | |
| OI DIPSTICK GUIDE TUBE | ||
| 224 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 230 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 230 | N 304017008016 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 236 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 242 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 242 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 242 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 242 | N 000125008443 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 242 | N 000125008443 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 242 | N 000125008443 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 250 | N 916016015200 | CLAMP |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 250 | N 916016015200 | CLAMP |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 260 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 260 | N 304017006016 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X16 | ||
| 260 | N 000933006130 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X18 | ||
| 260 | N 000933006130 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| M 6X18 | ||
| 260 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 260 | N 304017006020 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 266 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 272 | N 000125006421 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 272 | A 3859901140 | WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||

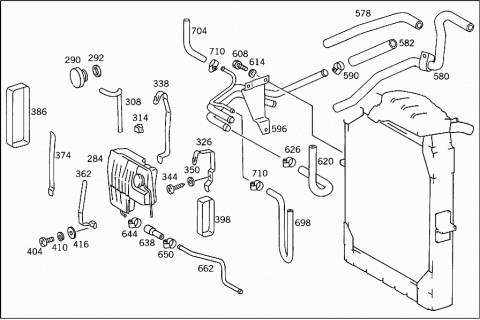

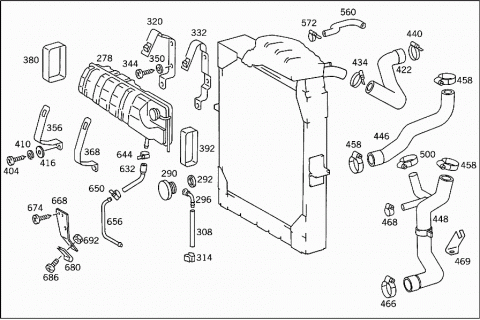

| 278 | A 6205000149 | TANK |
| (EXPANSION TANK) | ||
| 284 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 290 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 292 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 296 | A 0005010110 | DRAIN PIPE |
| A 0005010010 | DRAIN PIPE | |
| 308 | A 0139978682 | HOSE |
| TO 620 500 01 49 | ||
| 308 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 308 | A 0219977682 | HOSE |
| TO 620 500 03 49 | ||
| 314 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 314 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 320 | A 6205000031 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 326 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 332 | A 6205000131 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 338 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 344 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 350 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 356 | A 6205010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 362 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 368 | A 6205010420 | STRAP |
| EXPANSION TANK,LEFT | ||
| 374 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 380 | A 6205010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 386 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 392 | A 6205010295 | SHIM |
| EXPANSION TANK,LEFT | ||
| 398 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 404 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 404 | N 000000001146 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X16 | ||
| 410 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 416 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 416 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 422 | A 6175012082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 425 | A 6175012482 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 425 | A 6175012482 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 428 | A 3835010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 434 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 434 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR | ||
| 440 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 440 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 440 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 440 | N 000000000672 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 443 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 443 | N 000000000667 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 443 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 443 | N 000000000670 | CLAMP |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 446 | A 6175012382 | HOSE |
| FROM RADIATOR OUTLET TO OIL COOLER | ||
| 448 | A 6175015182 | HOSE |
| Repalced by: A 6175015482 | ||
| 448 | A 6175015482 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 452 | A 6165011182 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 458 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 458 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR AND TO OIL COOLER | ||
| 458 | N 000000000671 | CLAMP |
| HOSE TO WATER PUMP | ||
| 464 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 464 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 466 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 466 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 466 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR | ||
| 468 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 468 | N 000000000667 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 468 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 469 | A 6155060240 | BRACKET |
| Repalced by: A 6155060340 | ||
| 469 | A 6155060340 | BRACKET |
| HOSE TO SUPPORT | ||

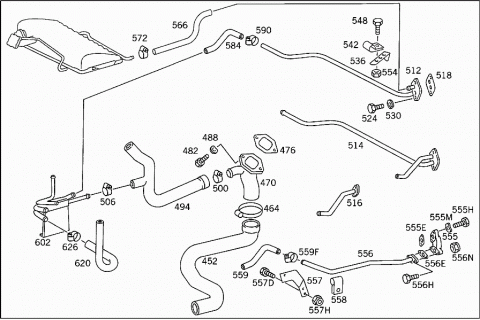

| 470 | A 6165010223 | CONNECTOR |
| AT WATER PUMP | ||
| 476 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 476 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 482 | N 000933010164 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 488 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 494 | A 6165010682 | HOSE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 500 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 500 | N 000000000670 | CLAMP |
| FROM EXPANSION TANK TO COOLING WATER PIPE | ||
| 500 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 500 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 506 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 506 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 512 | A 6175000079 | FLANGE |
| HEATING AND BREATHING | ||
| 514 | A 6175000279 | FLANGE |
| HEATING AND BREATHING | ||
| 516 | A 6175000479 | FLANGE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 518 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 524 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 530 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 536 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 542 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 548 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 554 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 554 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 555 | A 6205060161 | FLANGE |
| Repalced by: A 6205060261 | ||
| 555 | A 6205060261 | FLANGE |
| HEATING WATER LINE | ||
| 555E | N 917003022003 | GASKET |
| FLANGE TO ENGINE | ||
| 555H | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 555H | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 555H | A 0099900101 | SCREW |
| FLANGE TO ENGINE | ||
| 555M | N 000137008107 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 555M | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 555M | N 000137008212 | SPRING WASHER |
| FLANGE TO ENGINE | ||
| 556 | A 6205003272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 556 | A 6175002272 | LINE |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 556E | N 917003022003 | GASKET |
| HEATING PIPE | ||
| 556H | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 556H | N 304017008018 | SCREW |
| HEATING PIPE | ||
| 556N | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 556N | N 913004008001 | NUT |
| HEATING PIPE | ||
| 557 | A 6175061040 | BRACKET |
| BEARING TUBE | ||
| 557D | N 000933006130 | SCREW |
| BEARING TUBE | ||
| 557D | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 557H | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 557H | N 913004006001 | NUT |
| BEARING TUBE | ||
| 557H | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 558 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 559 | A 6205062235 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 559 | A 6175060935 | HOSE |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 559F | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 559F | N 000000000667 | CLAMP |
| HEATING PIPE TO RADIATOR | ||
| 560 | A 6175010782 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 560 | A 6175013382 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 563 | A 6155010182 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 563 | A 6155010182 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 566 | A 6165011282 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 572 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 572 | N 000000000667 | CLAMP |
| HOSE TO ENGINE AND TO EXPANSION TANK | ||
| 572 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 572 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 572 | N 000000000666 | CLAMP |
| HOSE TO ENGINE AND TO EXPANSION TANK | ||
| 578 | A 6175060035 | HOSE |
| FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 580 | A 6175000075 | HOSE |
| FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 582 | N 900271018038 | HOSE |
| FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 582 | N 900271018038 | HOSE |
| FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| 584 | A 6165060335 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| 590 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 590 | N 000000000667 | CLAMP |
| HOSE TO ENGINE AND TO HEATING PIPE | ||
| 590 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 596 | A 6175000772 | LINE |
| HEATING AND BREATHING | ||
| 602 | A 6175000372 | LINE |
| HEATING AND BREATHING | ||
| 608 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 608 | N 304017006018 | SCREW |
| LINE TO RADIATOR | ||
| 614 | N 000137006204 | SPRING WASHER |
| LINE TO RADIATOR | ||
| 620 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 626 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 626 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 632 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 638 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 638 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 644 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 644 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 650 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 650 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 650 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 656 | A 6175010225 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 662 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 668 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 674 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 680 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 680 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 680 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 686 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 686 | N 000000001146 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 692 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 692 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 698 | A 6175010882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 704 | N 900271008043 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 710 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 710 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||

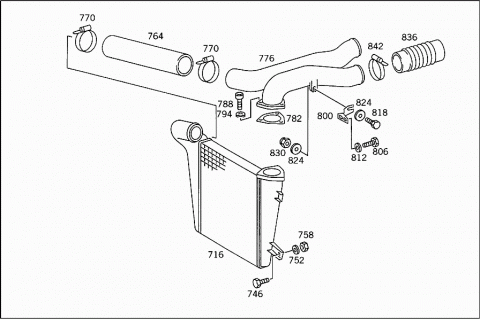

| 716 | A 6175012201 | RADIATOR |
| (CHARGING AIR INTERCOOLER) | ||
| 746 | N 000933008007 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 746 | N 914126008053 | SCREW |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 752 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 752 | N 000125008443 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 752 | N 000125008443 | WASHER |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 758 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 758 | N 913004008001 | NUT |
| CHARGING AIR INTERCOOLER TO RADIATOR | ||
| 764 | A 0010948682 | HOSE |
| Repalced by: A 0020941882 | ||
| 764 | A 0020941882 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO PIPE ELBOW | ||
| 770 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 770 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 770 | A 0059972990 | CLAMP |
| HOSE TO CHARGING AIR INTERCOOLER AND TO PIPE ELBOW | ||
| 776 | A 6175280307 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 776 | A 6175280207 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 776 | A 6175280207 | PIPE ELBOW |
| FROM CHARGING AIR INTERCOOLER TO ENGINE | ||
| 782 | A 6175280280 | GASKET |
| Repalced by: A 6175280380 | ||
| 782 | A 6175280380 | GASKET |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 788 | N 914126008055 | SCREW |
| Repalced by: A 0019904204 | ||
| 788 | A 0019904204 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 788 | N 000912008098 | SCREW |
| Repalced by: N 000912008204 | ||
| 788 | N 000912008204 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 794 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 794 | N 000137008212 | SPRING WASHER |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 800 | A 6175280240 | BRACKET |
| PIPE ELBOW | ||
| 806 | N 914126008056 | SCREW |
| Repalced by: N 910105008013 | ||
| 806 | N 910105008013 | SCREW |
| BRACKET TO WATER RADIATOR | ||
| 806 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 806 | N 304017008039 | SCREW |
| BRACKET TO WATER RADIATOR | ||
| 812 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 812 | N 000125008443 | WASHER |
| BRACKET TO WATER RADIATOR | ||
| 818 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 818 | N 304017008034 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 818 | N 914126008054 | SCREW |
| Repalced by: N 910105008026 | ||
| 818 | N 910105008026 | SCREW |
| Repalced by: N 910105008004 | ||
| 818 | N 910105008004 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 818 | N 910105008004 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 824 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 824 | N 009021008213 | WASHER |
| PIPE ELBOW TO BRACKET | ||
| 830 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 830 | N 913004008001 | NUT |
| PIPE ELBOW TO BRACKET | ||
| 836 | A 0010948582 | HOSE |
| Repalced by: A 6845011082 | ||
| 836 | A 6845011082 | HOSE |
| FROM ENGINE TO CHARGE AIR INTERCOOLER | ||
| 836 | A 0020941682 | HOSE |
| Repalced by: A 0010948582 | ||
| 836 | A 0010948582 | HOSE |
| Repalced by: A 6845011082 | ||
| 836 | A 6845011082 | HOSE |
| FROM PIPE ELBOW TO ENGINE | ||
| 842 | N 916017090000 | CLAMP |
| PIPE ELBOW TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
