Transporto priemonė: 2220 L; VIN numerio dalis: 619402
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

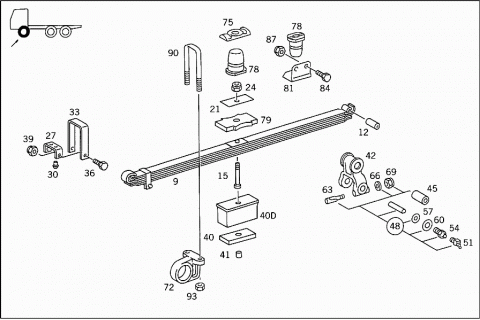

| 009 | A 6173200502 | FRONT SPRING |
| FRONT AXLE I; 3-LEAF | ||
| 009 | A 6173200602 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 012 | A 3523220050 | BUSHING |
| 012 | A 3853220050 | BUSHING |
| 015 | N 004626012167 | SPRING BOLT |
| M 12X165 | ||
| 015 | N 004626012172 | SPRING BOLT |
| M 12X95 | ||
| A 6173220384 | SHIM | |
| Repalced by: A 6173221584 | ||
| 021 | A 3853210284 | SHIM |
| Repalced by: A 3963210084 | ||
| 021 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 024 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 024 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 027 | A 6173210135 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 030 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| A 6173210133 | SPRING CLAMP | |
| Repalced by: A 6173210233 | ||
| A 6173210233 | SPRING CLAMP | |
| Repalced by: A 6753210133 | ||
| 033 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 033 | A 6763210033 | SPRING CLAMP |
| 036 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 036 | N 304017008027 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 039 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 039 | N 913004008001 | NUT |
| SPRING CLAMP TO CLAMP | ||
| 040 | A 6193220284 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 040D | A 6173221584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 041 | A 3289910060 | DOWEL PIN |
| (CENTERING CONE) | ||
| 22 MM | ||
| 041 | A 3129910460 | DOWEL PIN |
| (CENTERING CONE) | ||
| 38 MM | ||
| 041 | A 3449917260 | DOWEL PIN |
| (CENTERING CONE) | ||
| 042 | A 6173200163 | SHACKLE |
| FRONT SPRING | ||
| 045 | A 3523220050 | BUSHING |
| 045 | A 3853220050 | BUSHING |
| 048 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET | ||
| 048 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 051 | N 071412010300 | GREASE NIPPLE |
| SHACKLE | ||
| 054 | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 057 | A 3853220076 | WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 057 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 057 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 057 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 060 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 063 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 066 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 066 | N 000125010532 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 069 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 069 | N 910113010000 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 070 | A 6193230663 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 072 | A 6173230163 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 073 | N 308676012015 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X45 | ||
| 074E | N 000961012205 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X50 | ||
| 074R | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 074R | N 910113012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 075 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 078 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 078 | A 3833240008 | HELPER SPRING |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 079 | A 3853221084 | SHIM |
| TOP | ||
| 081 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 084 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 087 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 087 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 090 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 250 MM | ||
| 090 | A 3213510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 270 MM | ||
| 090 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 220 MM | ||
| 090 | A 3853310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| A 0029903551 | NUT | |
| Repalced by: N 000934018001 | ||
| 093 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

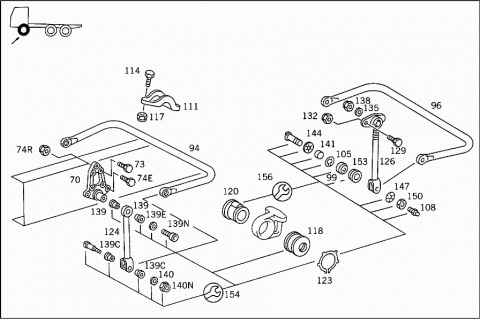

| 094 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 094 | A 6523230765 | TORSION BAR |
| FRONT AXLE I STABILIZER | ||
| 096 | A 6173260065 | TORSION BAR |
| FRONT AXLE I STABILIZER | ||
| A 0009817231 | JOINT BEARING | |
| Repalced by: A 0019814631 | ||
| 099 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR,FRONT | ||
| 105 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 108 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 108 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 111 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 111 | A 6213230340 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| "I" | ||
| 111 | A 6173230040 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| "I" | ||
| 114 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 114 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 117 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 118 | A 3873230285 | RUBBER MOUNTING |
| FRONT AXLE I TORSION BAR | ||
| 120 | A 3873230385 | RUBBER MOUNTING |
| FRONT AXLE I TORSION BAR | ||
| 123 | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 124 | A 6193230016 | SHACKLE |
| FRONT AXLE I TORSION BAR | ||
| 126 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 129 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 129 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 132 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 135 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 138 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 138 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 139 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 139C | A 6203230250 | BUSHING |
| LINK TO TORSION BAR | ||
| 139E | A 6193230052 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 139N | N 006912012020 | SCREW |
| SHACKLE TO BEARING BRACKET | ||
| 140 | N 007349017002 | WASHER |
| TORSION BAR TO SHACKLE | ||
| 140N | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 140N | N 910113016001 | NUT |
| TORSION BAR TO SHACKLE | ||
| 141 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 144 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 147 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 150 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 153 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 154 | A 6193200128 | REPAIR KIT |
| Repalced by: A 6203200628 | ||
| 154 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 156 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||

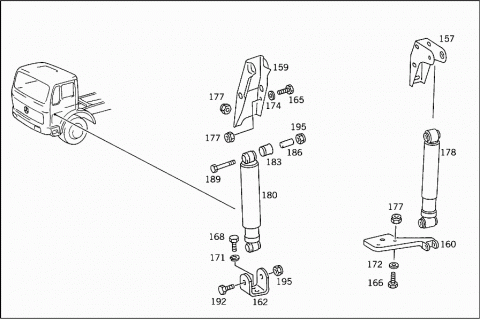

| 157 | A 6193200143 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| A 3833200278 | CONSOLE | |
| Repalced by: A 6173200078 | ||
| 159 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| A 3833200378 | CONSOLE | |
| Repalced by: A 6173200178 | ||
| 159 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 160 | A 6193200543 | BRACKET |
| Repalced by: A 3913230540 | ||
| 160 | A 3913230540 | BRACKET |
| LEFT | ||
| 160 | A 6193200643 | BRACKET |
| Repalced by: A 3913230640 | ||
| 160 | A 3913230640 | BRACKET |
| RIGHT | ||
| 162 | A 3833231863 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 165 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 165 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| M 12X40 | ||
| 166 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| 168 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 168 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 168 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| M 12X25 | ||
| 171 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 172 | N 000125013008 | WASHER |
| 174 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 174 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 177 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 177 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 178 | A 0033239800 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 178 | A 0043235700 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 180 | A 0033236500 | SHOCK ABSORBER |
| Repalced by: A 0043236700 | ||
| 180 | A 0043236700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 180 | A 0033236600 | SHOCK ABSORBER |
| Repalced by: A 0043233400 | ||
| 180 | A 0043233400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 183 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 183 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 57 00,004 323 34 00 | ||
| 183 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 98 00,003 323 65 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 67 00,003 323 66 00 | ||
| 186 | A 0003233150 | BUSHING |
| TO 003 323 98 00,003 323 65 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 67 00, 003 323 66 00 | ||
| 186 | A 0003235250 | BUSHING |
| TO 004 323 57 00,004 323 34 00 | ||
| 189 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X90 | ||
| 189 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X90 | ||
| 192 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X85 | ||
| 195 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 195 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 195 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||

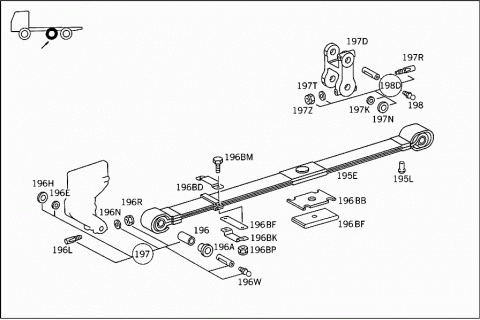

| 195E | A 6223200102 | FRONT SPRING |
| Repalced by: A 6573200102 | ||
| 195E | A 6573200102 | FRONT SPRING |
| (GUIDE SPRING),2 LEAVES;FRONT AXLE II | ||
| 195L | N 910005016017 | RIVET |
| SPRING EYE,FRONT | ||
| 196 | A 3523250150 | BUSHING |
| 196 | A 3853250050 | BUSHING |
| 196A | A 6553250050 | BUSHING |
| SPLIT | ||
| 196BB | A 3833220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| A 6193220384 | SHIM | |
| BETWEEN THE SPRING LEAVES | ||
| 196BD | A 6193210133 | SPRING CLAMP |
| UPPER PART | ||
| 196BD | A 6193210233 | SPRING CLAMP |
| UPPER PART | ||
| 196BF | A 3833212433 | SPRING CLAMP |
| CENTRAL PART | ||
| 196BF | A 6193210333 | SPRING CLAMP |
| CENTRAL PART | ||
| 196BK | A 3833212233 | SPRING CLAMP |
| LOWER PART | ||
| 196BK | A 6193210433 | SPRING CLAMP |
| LOWER PART | ||
| 196BM | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 196BM | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 196BM | A 0099900101 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 196BM | N 000931010282 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 196BP | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 196BP | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 196BP | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 196BP | N 910113010000 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 196E | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 196E | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 196H | A 0029973040 | SEAL RING |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 196L | A 3839900337 | BOLT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 196N | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 196N | N 000125010532 | WASHER |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 196R | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 196R | N 910113010000 | NUT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 196W | N 071412010100 | GREASE NIPPLE |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 197 | A 6223200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 197D | A 3913270040 | BRACKET |
| (SPRING SHACKLE) | ||
| 197K | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 197K | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 197N | A 0029973040 | SEAL RING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 197R | A 3529900337 | BOLT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 197T | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 197T | N 000125010532 | WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 197Z | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 197Z | N 910113010000 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 198 | N 071412010100 | GREASE NIPPLE |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 198D | A 6223200165 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 198K | A 6223270041 | SUPPORT |
| FRONT AXLE II AIR SPRING BELLOWS,LEFT | ||
| 198K | A 6223270141 | SUPPORT |
| FRONT AXLE II AIR SPRING BELLOWS,RIGHT | ||
| 198N | A 6193230063 | BEARING BRACKET |
| FRONT AXLE II STABILIZER | ||
| 198Q | N 000960020143 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M 20X100 | ||
| 198Q | N 000960020037 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| 198S | N 000960020040 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M 20X120 | ||
| 198T | A 3379900640 | WASHER |
| SUPPORT TO FRONT AXLE II | ||
| 198W | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 198W | N 913004020003 | NUT |
| SUPPORT TO FRONT AXLE II | ||
| 199 | A 6233200218 | PISTON |
| FRONT AXLE II | ||
| 199D | A 0004290456 | SCREW PLUG |
| 199F | N 007603012405 | SEAL RING |
| 199K | N 000961016065 | SCREW |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 199M | N 912004016101 | LOCK WASHER |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 199P | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 199R | A 3633280201 | AIR SPRING BELLOWS |
| FRONT AXLE II | ||
| 199T | A 3853200535 | PLATE |
| AIR SPRING BELLOWS,TOP | ||
| 200 | N 000961012016 | SCREW |
| PLATE TO FRAME | ||
| 200C | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 200C | N 910113012003 | NUT |
| PLATE TO FRAME | ||
| 200E | A 3833300311 | THRUST ARM |
| Repalced by: A 6543300011 | ||
| 200E | A 6543300011 | THRUST ARM |
| Repalced by: A 6543300111 | ||
| 200E | A 6543300111 | THRUST ARM |
| FRONT AXLE II | ||
| 200H | A 0003330027 | JOINT |
| Repalced by: A 0003301811 | ||
| 200H | A 0003301811 | THRUST ARM |
| R.H. THREAD | ||
| 200H | A 0003330127 | JOINT |
| Repalced by: A 0003301911 | ||
| 200H | A 0003301911 | THRUST ARM |
| L.H. THREAD | ||
| 200L | A 0003381897 | BOOT |
| 200N | A 0003330254 | RETAINING RING |
| 200Q | A 0003380317 | CLAMPING PIECE |
| 200S | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 200S | N 000960012353 | SCREW |
| 200W | N 910113012002 | NUT |
| 201 | N 000960014143 | SCREW |
| THRUST ARM TO BEARING BODY | ||
| 201C | N 308676014002 | SCREW |
| THRUST ARM TO SUPPORT | ||
| 201E | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 201E | N 910113014000 | NUT |
| THRUST ARM TO BEARING BODY | ||
| 201E | N 910113014000 | NUT |
| THRUST ARM TO SUPPORT | ||

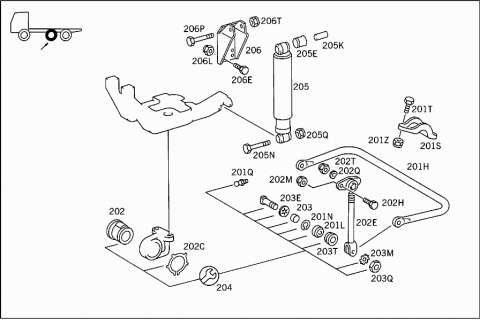

| 201H | A 6173260065 | TORSION BAR |
| FRONT AXLE II STABILIZER | ||
| A 0009817231 | JOINT BEARING | |
| Repalced by: A 0019814631 | ||
| 201L | A 0019814631 | JOINT BEARING |
| TORSION BAR | ||
| 201L | A 0019814831 | JOINT BEARING |
| TORSION BAR | ||
| 201N | N 000472035000 | LOCK RING |
| TORSION BAR | ||
| 201Q | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 201Q | N 071412008102 | GREASE NIPPLE |
| TORSION BAR | ||
| 201S | A 6173230040 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| II | ||
| 201T | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 201T | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 201Z | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 202 | A 3873230385 | RUBBER MOUNTING |
| FRONT AXLE II TORSION BAR | ||
| 202C | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 202E | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 202H | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 202H | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 202M | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 202Q | N 006796016101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 202T | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 202T | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 203 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 203E | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 203M | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 203Q | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 203T | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 204 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 205 | A 0043260200 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 205 | A 0033263900 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| A 0003232444 | RUBBER BUFFER | |
| Repalced by: A 0003232885 | ||
| 205E | A 0003232885 | RUBBER MOUNTING |
| TO 004 326 02 00,003 326 39 00 | ||
| A 0003232550 | BUSHING | |
| Repalced by: A 0003233150 | ||
| 205K | A 0003233150 | BUSHING |
| TO 004 326 02 00,003 326 39 00 | ||
| 205N | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 205Q | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 205Q | N 910113016002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 206 | A 3873200243 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 206E | N 000961012164 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 206L | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 206P | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 206T | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 206T | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 210 | A 6193280041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 210 | A 6173280141 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 210 | A 6193280141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 210 | A 6173280241 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 213 | N 000960024059 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 216 | A 6203250070 | SPHERICAL WASHER |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 219 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 222 | A 3933200918 | PISTON |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 222 | A 3873200818 | PISTON |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 222 | A 3873200818 | PISTON |
| TRAILING AXLE LIFT | ||
| 225 | A 3933200718 | PISTON |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 226 | N 007603012405 | SEAL RING |
| 227 | A 0004290456 | SCREW PLUG |
| 228 | N 000960016224 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| M 16X100 | ||
| 228 | N 000912016075 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| M 16X60 | ||
| 231 | N 000961016081 | SCREW |
| PISTON TO CROSS MEMBER | ||
| M 16X25 | ||
| 234 | N 000961016142 | SCREW |
| PISTON ON TRAILING AXLE | ||
| M 16X30 | ||
| 237 | N 912004016101 | LOCK WASHER |
| PISTON | ||
| 240 | A 3933280239 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,DRIVING AXLE | ||
| 243 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,DRIVING AXLE | ||
| 243 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,TRAILING AXLE | ||
| 244 | A 3833270001 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 246 | A 3873280001 | AIR SPRING BELLOWS |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 246 | A 3873280001 | AIR SPRING BELLOWS |
| TRAILING AXLE LIFT | ||
| 246 | A 3873280101 | AIR SPRING BELLOWS |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 246 | A 3873280101 | AIR SPRING BELLOWS |
| TRAILING AXLE LIFT | ||
| 246 | A 3933280101 | AIR SPRING BELLOWS |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 246 | A 3933280201 | AIR SPRING BELLOWS |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 249 | A 3833200335 | PLATE |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 249 | A 3833200335 | PLATE |
| TRAILING AXLE LIFT | ||
| 249 | A 3833200335 | PLATE |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 252 | A 3833270053 | SPACER TUBE |
| PISTON TO CONSOLE AND TO FRAME | ||
| 255 | N 308675022001 | NUT |
| PISTON TO CONSOLE AND TO FRAME | ||

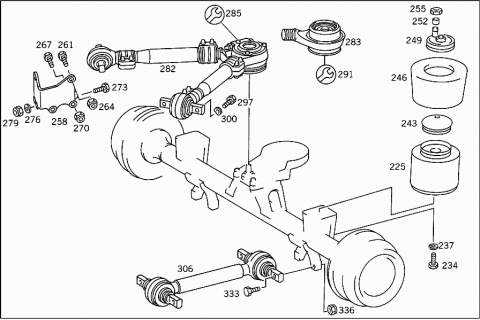

| 258 | A 6163520441 | BEARING BODY |
| FOR TRIANGULAR CONTROL ARM,LEFT | ||
| 258 | A 6193520041 | BEARING BODY |
| FOR TRIANGULAR CONTROL ARM,LEFT | ||
| 258 | A 6193520341 | BEARING BODY |
| FOR TRIANGULAR CONTROL ARM,LEFT | ||
| 258 | A 6163520341 | BEARING BODY |
| FOR TRIANGULAR CONTROL ARM,RIGHT | ||
| 258 | A 6193520141 | BEARING BODY |
| FOR TRIANGULAR CONTROL ARM,RIGHT | ||
| 258 | A 6193520241 | BEARING BODY |
| FOR TRIANGULAR CONTROL ARM,RIGHT | ||
| 261 | N 000960014190 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| 261 | N 308676014002 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| 264 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 264 | N 910113014000 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| 267 | N 000960010038 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| 267 | N 000960010076 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| 270 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 270 | N 910113010003 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BEARING BODY TO CROSS MEMBER | ||
| 273 | N 000960018142 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X65 | ||
| 273 | N 000960018111 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X70 | ||
| 273 | N 000960018082 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X135 | ||
| 273 | N 000960018120 | SCREW |
| BEARING BODY TO SIDE MEMBER | ||
| M 18X145 | ||
| 276 | N 007349019002 | WASHER |
| BEARING BODY TO SIDE MEMBER | ||
| 279 | N 913004018004 | NUT |
| BEARING BODY TO SIDE MEMBER | ||
| 282 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 282 | A 6553500305 | CONTROL ARM |
| TRIANGULAR | ||
| 282 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 282 | A 6583500005 | CONTROL ARM |
| TRIANGULAR | ||
| 283 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 283 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05 ; LEMFOERDER | ||
| 285 | A 0005861533 | REPAIR KIT |
| PLATE TO SIDE MEMBER | ||
| 285 | A 0005861433 | REPAIR KIT |
| FRONT TRIANGULAR CONTROL ARM; WITH BALL PIVOT | ||
| 291 | A 0003500105 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 653 350 01 05 | ||
| 291 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 291 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 291 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 297 | N 000961020014 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| M 20X50 | ||
| 297 | N 000960020024 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| M 20X70 | ||
| 300 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 300 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 303 | A 3813500606 | CONTROL ARM |
| Repalced by: A 6533500106 | ||
| 303 | A 6533500106 | CONTROL ARM |
| Repalced by: A 6523500306 | ||
| 303 | A 6523500306 | CONTROL ARM |
| REAR AXLE I,BOTTOM | ||
| 306 | A 6533500006 | CONTROL ARM |
| Repalced by: A 3853500006 | ||
| 306 | A 3853500006 | CONTROL ARM |
| REAR AXLE II,BOTTOM | ||
| 309 | A 0003500205 | REPAIR KIT |
| WITH HOLLOW BALL STUD | ||
| TO 653 350 01 06 | ||
| 309 | A 0005861035 | REPAIR KIT |
| WITH HOLLOW BALL STUD | ||
| TO 381 350 06 06 | ||
| 309 | A 0003501905 | REPAIR KIT |
| WITH HOLLOW BALL STUD | ||
| TO 652 350 03 06 | ||
| 315 | A 0003500213 | REPAIR KIT |
| WITH DOUBLE BALL STUD | ||
| TO 653 350 01 06 | ||
| 315 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 381 350 06 06 | ||
| 315 | A 0005861433 | REPAIR KIT |
| WITH DOUBLE BALL STUD | ||
| TO 381 350 06 06 | ||
| 315 | A 0003500613 | REPAIR KIT |
| WITH DOUBLE BALL STUD | ||
| TO 652 350 03 06 | ||
| 318 | N 000960020018 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 321 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 321 | N 913004020003 | NUT |
| CONTROL ARM TO SUPPORT | ||
| 324 | N 000960020093 | SCREW |
| Repalced by: N 308765020014 | ||
| 324 | N 308765020014 | SCREW |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| M 20X150 | ||
| 324 | N 000960020122 | SCREW |
| Repalced by: A 9429900201 | ||
| 324 | A 9429900201 | SCREW |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| M 20X180 | ||
| 327 | N 913004020003 | NUT |
| LOWER CONTROL ARM TO CENTRAL BEARING BRACKET | ||
| 330 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 330 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 330 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 330 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 330 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 333 | N 000960020078 | SCREW |
| CONTROL ARM TO TRAILING AXLE BEARING BRACKET | ||
| 336 | N 913004020003 | NUT |
| CONTROL ARM TO TRAILING AXLE BEARING BRACKET | ||
| 339 | A 6193200289 | ROD |
| TORSION BAR TO REAR AXLE | ||
| 339 | A 3833200789 | ROD |
| TORSION BAR TO REAR AXLE I | ||
| 342 | N 071412008302 | GREASE NIPPLE |
| 345 | A 3833260940 | BRACKET |
| TORSION BAR,REAR | ||
| 348 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 351 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 354 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 357 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 360 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| 363 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 363 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 366 | N 000961018020 | SCREW |
| BRACKET TO FRAME | ||
| 369 | N 913004018004 | NUT |
| BRACKET TO FRAME | ||
| 372 | A 6193260165 | TORSION BAR |
| REAR AXLE STABILIZER | ||
| 372 | A 3833260265 | TORSION BAR |
| REAR AXLE I STABILIZER | ||
| 375 | N 071412008302 | GREASE NIPPLE |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 378 | A 0009816131 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 378 | A 0009817431 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 381 | N 000472055000 | LOCK RING |
| JOINT BEARING TO BEARING BRACKET | ||
| 384 | A 3853230353 | SPACER TUBE |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 387 | A 3803230160 | SEAL RING |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 390 | N 000125036003 | WASHER |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 393 | A 3939900040 | WASHER |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 396 | N 913004022002 | NUT |
| TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT | ||
| 399 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 402 | A 3803200028 | REPAIR KIT |
| TORSION BAR TO REAR AXLE I | ||
| 405 | A 3933250419 | SPRING SEAT |
| TORSION BAR TO REAR AXLE I | ||
| 408 | N 000960016269 | SCREW |
| Repalced by: N 308765016010 | ||
| 408 | N 308765016010 | SCREW |
| TORSION BAR TO REAR AXLE I | ||
| 411 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 411 | N 910113016001 | NUT |
| TORSION BAR TO REAR AXLE I | ||
| 414 | A 3833260063 | BEARING BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 417 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 417 | N 308676012012 | SCREW |
| BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT | ||
| 420 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT | ||
| 423 | A 3853260000 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE I | ||
| 426 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 426 | A 0003233150 | BUSHING |
| 429 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 429 | A 0003232885 | RUBBER MOUNTING |
| 432 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 435 | A 3523230253 | SPACER TUBE |
| Repalced by: A 3179911240 | ||
| 435 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 438 | A 3173230344 | RUBBER BUFFER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 441 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 441 | N 910113014000 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 444 | A 3529903501 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 447 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 447 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

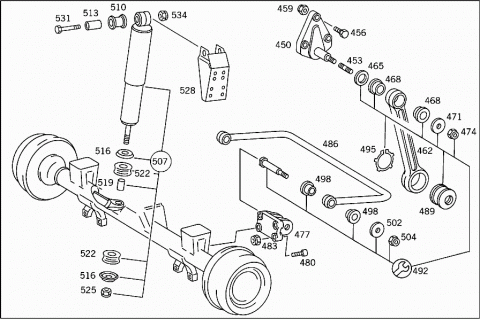

| 450 | A 3853200578 | CONSOLE |
| Repalced by: A 3853230363 | ||
| 450 | A 3853230363 | BEARING BRACKET |
| REAR AXLE II STABILIZER | ||
| 453 | N 000939012102 | STUD BOLT |
| 456 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 459 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 459 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 462 | A 3873231016 | LINK |
| TORSION BAR | ||
| 465 | A 3873230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 468 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 471 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 474 | N 910113012002 | NUT |
| LINK TO CONSOLE | ||
| 477 | A 3853260263 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE II | ||
| 480 | N 000912012153 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 480 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 480 | N 000960012353 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 483 | N 910113012002 | NUT |
| BEARING BRACKET TO REAR AXLE | ||
| 486 | A 3853260065 | TORSION BAR |
| REAR AXLE II | ||
| 489 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 492 | A 6203200328 | REPAIR KIT |
| LINK TO TORSION BAR | ||
| 495 | N 000983068000 | LOCK RING |
| LINK TO TORSION BAR | ||
| 498 | A 0003230950 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 502 | N 007349015003 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 504 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 504 | N 910113014001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 505 | N 915052006021 | BANJO UNION |
| Repalced by: A 3875010820 | ||
| 505 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 505 | A 3834929141 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 507 | A 6233260000 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE II | ||
| A 0003232444 | RUBBER BUFFER | |
| Repalced by: A 0003232885 | ||
| 510 | A 0003232885 | RUBBER MOUNTING |
| 510 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 510 | A 0003233144 | RUBBER BUFFER |
| A 0003232550 | BUSHING | |
| Repalced by: A 0003233150 | ||
| 513 | A 0003233150 | BUSHING |
| 513 | A 0003234350 | BUSHING |
| 516 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 519 | A 3879915040 | SPACER TUBE |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 522 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 525 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 525 | N 910113016001 | NUT |
| SHOCK ABSORBER TO REAR AXLE II | ||
| 528 | A 3873200243 | BRACKET |
| TRAILING AXLE SHOCK ABSORBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR MOUNTING,SEE GROUP: | ||
| 31 | ||
| 531 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 534 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 534 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 537 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 537 | A 0009872827 | PLASTIC PIPE |
| PRESSURE GAUGE LINE | ||
| 9X12 MM | ||
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| 540 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||

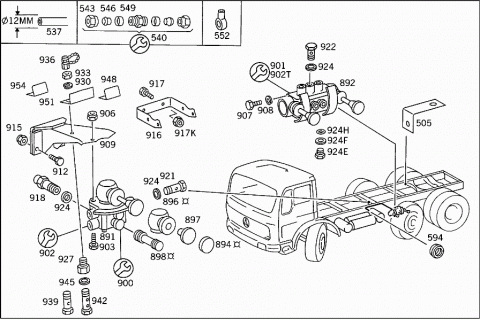

| 543 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| 546 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 546 | A 0019901967 | SEAL CONE |
| LINE CONNECTIONS | ||
| 549 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 552 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 555 | A 0089979082 | HOSE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| 558 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||

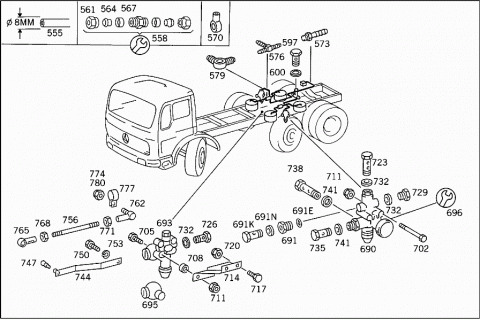

| 561 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 564 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 567 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 570 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 570 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 570 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 570 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/10 MM | ||
| 573 | N 915059006002 | FITTING |
| LINE CONNECTIONS | ||
| 6/8 MM | ||
| 576 | A 0009907990 | T-FITTING |
| LINE CONNECTIONS | ||
| 579 | A 0009909488 | BANJO UNION |
| DOUBLE | ||
| 6/6/16 MM | ||
| 582 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||

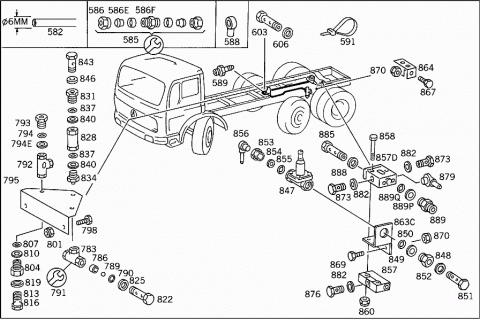

| 582 | A 0009872627 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE,CHECK VALVE, 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 585 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 586 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 586E | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 586E | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 586F | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 588 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 588 | N 915052004026 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/14 MM | ||
| 588 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 588 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 589 | N 915059004001 | FITTING |
| LINE CONNECTIONS | ||
| 4X6 MM | ||
| 591 | A 0019978390 | LOOM TIE |
| LINE TO BRACKET | ||
| 280 MM | ||
| 591 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINES TO FRAME | ||
| 376 MM | ||
| 594 | A 3609970681 | GROMMET |
| LINE THRU FRAME | ||
| 597 | N 915047008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 600 | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 603 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 606 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||

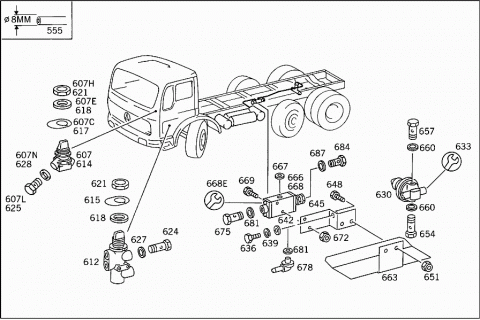

| 607 | A 0029979936 | VALVE |
| STARTING ASSISTANCE | ||
| 607C | A 6235840224 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 607E | A 6239900040 | WASHER |
| VALVE TO SUBSTRUCTURE | ||
| 607H | A 3839900051 | NUT |
| VALVE TO SUBSTRUCTURE | ||
| 607L | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| "10,41,42" | ||
| 607N | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 607N | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE | ||
| "10,41,42" | ||

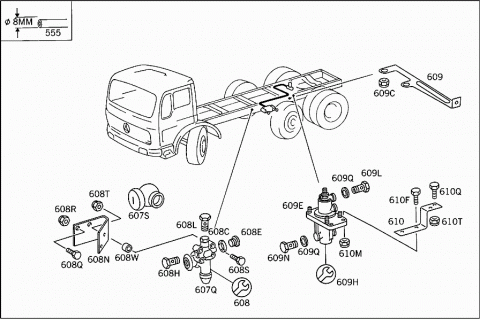

| 607Q | A 0003283630 | VALVE |
| FRONT AXLE II SELF-LEVELLING DEVICE | ||
| 607S | A 0003280292 | BOOT |
| 608 | A 0003200267 | REPAIR KIT |
| AIR SPRING VALVE | ||
| TO 000 328 36 30 | ||
| 608C | N 007603012405 | SEAL RING |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11,21" | ||
| 608E | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 608E | N 000908012009 | SCREW PLUG |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "21" | ||
| 608H | N 915036008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "21" | ||
| 608L | N 915047008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11" | ||
| 608N | A 3913280040 | BRACKET |
| AIR SPRING VALVE | ||
| 608Q | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 608Q | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 608R | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 608R | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 608S | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 608S | N 304017008053 | SCREW |
| VALVE TO BRACKET | ||
| 608T | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 608T | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 608W | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 608W | A 3094310249 | GUIDE BUSHING |
| VALVE TO BRACKET | ||
| 609 | A 3873281140 | BRACKET |
| SELF-LEVELLING DEVICE SUSPENSION, FRONT AXLE II | ||
| 609C | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 609C | N 913004020003 | NUT |
| FRONT AXLE II BRACKET | ||
| 609E | A 0014305381 | VALVE |
| (PRESSURE CONTROL VALVE) | ||
| 609H | A 0004309760 | REPAIR KIT |
| PRESSURE CONTROL VALVE | ||
| 609L | N 915036008202 | HOLLOW SCREW |
| PRESSURE REGULATOR VALVE,CONNECTION: | ||
| "20" | ||
| 609N | N 915047008202 | HOLLOW SCREW |
| PRESSURE REGULATOR VALVE,CONNECTIONS: | ||
| "20,41,42" | ||
| 609Q | N 007603012405 | SEAL RING |
| PRESSURE REGULATOR VALVE,CONNECTIONS: | ||
| "20,20,41,42" | ||
| 610 | A 6224310940 | BRACKET |
| PRESSURE CONTROL VALVE | ||
| 610F | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 610F | N 304017008027 | SCREW |
| VALVE TO BRACKET | ||
| 610M | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 610M | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 610Q | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 610Q | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 610T | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 610T | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 612 | A 0034295444 | VALVE |
| TRAILING AXLE LIFT | ||
| 614 | A 0029971936 | VALVE |
| STARTING ASSISTANCE | ||
| 614 | A 0029972036 | VALVE |
| STARTING ASSISTANCE | ||
| 615 | A 6235840024 | UNIT IDENTIFICATION PLATE |
| LIFTING TRAILING AXLE | ||
| 617 | A 6235840424 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 618 | A 6239900040 | WASHER |
| VALVE TO CAB | ||
| 621 | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 624 | N 915036008202 | HOLLOW SCREW |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "2,4,11,12" | ||
| 625 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| "12,22" | ||
| 627 | N 007603012405 | SEAL RING |
| TRAILING AXLE LIFT VALVE,CONNECTIONS: | ||
| "2,4,11,12" | ||
| 628 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 628 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE | ||
| "12,22" | ||
| A 0014295644 | VALVE | |
| Repalced by: A 0044291844 | ||
| 630 | A 0044291844 | VALVE |
| (PRESSURE RELIEF VALVE) | ||
| 633 | A 0004300568 | REPAIR KIT |
| PRESSURE RELIEF VALVE | ||
| 636 | N 000933010128 | SCREW |
| VALVE TO BRACKET | ||
| 639 | N 912004010102 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 642 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 642 | N 009021010209 | WASHER |
| VALVE TO BRACKET | ||
| 645 | A 6234310640 | BRACKET |
| PRESSURE RELIEF VALVE AND LIFT PRESSURE BOOSTER VALVE | ||
| 648 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 648 | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 651 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 651 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 654 | N 915047008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "1" | ||
| 657 | N 915036008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "1,2" | ||
| 660 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 663 | A 6194300062 | PROTECTIVE PLATE |
| PRESSURE RELIEF VALVE | ||
| 666 | A 0024295144 | VALVE |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| 667 | A 0004301560 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 668 | A 0044291944 | VALVE |
| LIFTING BELLOWS RESIDUAL PRESSURE | ||
| 668E | A 0004205355 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 669 | N 000933005029 | SCREW |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| 672 | N 913004005001 | NUT |
| RESIDUAL PRESSURE VALVE AND BRACKET TO FRAME | ||
| 675 | N 915036006202 | HOLLOW SCREW |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "10,20,40" | ||
| 678 | A 6233280165 | PIPE SOCKET |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "30" | ||
| 681 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 681 | N 007603010110 | SEAL RING |
| RESIDUAL PRESSURE VALVE, CONNECTION: | ||
| "10,20,40" | ||
| 684 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 684 | N 915036010108 | HOLLOW SCREW |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 684 | N 915047010202 | HOLLOW SCREW |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 687 | N 007603014405 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 690 | A 0003283230 | VALVE |
| REAR AXLE SELF-LEVELLING DEVICE | ||
| 690 | A 0003283330 | VALVE |
| REAR AXLE I SELF-LEVELLING DEVICE | ||
| KNORR | ||
| 691 | A 6239900168 | FITTING |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 691E | N 007603014405 | SEAL RING |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 691K | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 691K | N 915036010108 | HOLLOW SCREW |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 691N | N 007603014405 | SEAL RING |
| LIFTING BELLOWS TO CONNECTION: | ||
| "10" | ||
| 693 | A 0003282830 | VALVE |
| TRAILING AXLE SELF-LEVELLING DEVICE | ||
| KNORR | ||
| A 0003280192 | BOOT | |
| Repalced by: A 0003280292 | ||
| A 0003280092 | BOOT | |
| Repalced by: A 0003280292 | ||
| 695 | A 0003280292 | BOOT |
| A 0005861332 | REPAIR KIT | |
| Repalced by: A 0003201067 | ||
| 696 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/80093 | ||
| 696 | A 0003200967 | REPAIR KIT |
| AIR SPRING VALVE | ||
| A 0005861432 | REPAIR KIT | |
| Repalced by: A 0003200367 | ||
| 696 | A 0003200367 | REPAIR KIT |
| Repalced by: A 0003200967 | ||
| 696 | A 0003200967 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/69346 | ||
| 696 | A 0003200967 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/80095 | ||
| 696 | A 0003200267 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1269-I/80086 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| AIR SPRING VALVE | ||
| KNORR SV 1269-I/63740 | ||
| 702 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 702 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 705 | N 000933008135 | SCREW |
| VALVE TO BRACKET | ||
| A 3159185017 | BUSHING | |
| Repalced by: A 3354310053 | ||
| 708 | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 708 | A 3094310249 | GUIDE BUSHING |
| VALVE TO BRACKET | ||
| 711 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 711 | N 913004008001 | NUT |
| VALVE TO SIDE MEMBER | ||
| 711 | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 714 | A 3853200243 | BRACKET |
| TRAILING AXLE SELF-LEVELLING VALVE | ||
| 717 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 717 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 717 | A 0099900101 | SCREW |
| BRACKET TO FRAME | ||
| 720 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 720 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 723 | N 915047008202 | HOLLOW SCREW |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "4,11" | ||
| 726 | N 915036008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11,21" | ||
| 729 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 729 | N 000908012009 | SCREW PLUG |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "21" | ||
| 732 | N 007603012405 | SEAL RING |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "4,11,21" | ||
| 735 | N 915036012203 | HOLLOW SCREW |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "12,23" | ||
| 738 | N 915047012203 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "23" | ||
| 741 | N 007603016401 | SEAL RING |
| SELF-LEVELLING VALVE,CONNECTIONS: | ||
| "12,23" | ||
| 744 | A 3603200927 | LEVER |
| SELF-LEVELLING DEVICE | ||
| 747 | N 071803013208 | BALL PIVOT |
| 750 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 750 | N 304017008016 | SCREW |
| LEVER TO VALVE | ||
| 753 | N 912004008102 | LOCK WASHER |
| LEVER TO VALVE | ||
| 756 | N 900331008427 | PULL ROD |
| REAR AXLE I SELF-LEVELLING DEVICE | ||
| 756 | N 900331008427 | PULL ROD |
| FRONT AXLE II SELF-LEVELLING DEVICE | ||
| 756 | N 900331008426 | PULL ROD |
| TRAILING AXLE SELF-LEVELLING DEVICE | ||
| 762 | A 0004310667 | YOKE |
| BOTTOM | ||
| 765 | A 0004310767 | YOKE |
| TOP | ||
| 768 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 768 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 771 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 771 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 774 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 774 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 777 | A 1869950544 | CLAMP |
| PULL ROD TO CONTROL ARM | ||
| 780 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 780 | N 913004008001 | NUT |
| PULL ROD TO CONTROL ARM | ||
| 783 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 783 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 783 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 783 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 783 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 783 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 786 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| WABCO | ||
| 786 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| WABCO | ||
| 786 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| WABCO | ||
| 789 | A 0029810485 | BALL |
| VOSS | ||
| 789 | A 0029810485 | BALL |
| VOSS | ||
| 789 | A 0029810485 | BALL |
| VOSS | ||
| 790 | A 0004290180 | GASKET |
| VOSS | ||
| 790 | A 0004290180 | GASKET |
| VOSS | ||
| 790 | A 0004290180 | GASKET |
| VOSS | ||
| 791 | A 0034302681 | REPAIR KIT |
| SHUTTLE VALVE | ||
| WABCO | ||
| A 0029972836 | VALVE | |
| Repalced by: A 0044292744 | ||
| 792 | A 0044292744 | VALVE |
| SHUT-OFF VALVE | ||
| 793 | A 0009905168 | FITTING |
| SHUT-OFF VALVE,CONNECTIONS: | ||
| "11,12,21" | ||
| 794 | A 0009870446 | SEALING CORD |
| SHUT-OFF VALVE,CONNECTIONS: | ||
| "11,12,21" | ||
| 794E | A 0004290227 | THRUST RING |
| SHUT-OFF VALVE,CONNECTIONS: | ||
| "11,12,21" | ||
| A 6234310540 | BRACKET | |
| Repalced by: A 6484290040 | ||
| 795 | A 6484290040 | BRACKET |
| TWO-WAY VALVE | ||
| 798 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 798 | N 304017010002 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 801 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 801 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 804 | A 0004295934 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 807 | A 0009971548 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 810 | A 0004290927 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 813 | N 915047010202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 816 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 816 | N 915036010108 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 819 | N 007603014405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| "13,16" | ||
| 822 | N 915036012203 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| "11,12,14,15,22,23" | ||
| 825 | N 007603016401 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| "11,12,14,15,22,23" | ||
| 828 | A 0024290444 | VALVE |
| (CHECK VALVE) | ||
| 831 | A 0009904468 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 831 | A 0009974968 | CONNECTOR |
| CHECK VALVE,CONNECTION: | ||
| "1" | ||
| 834 | A 6239900068 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "2" | ||
| 837 | A 0009870446 | SEALING CORD |
| CHECK VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 840 | A 0004290227 | THRUST RING |
| CHECK VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 843 | N 915036008202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 843 | N 915047010202 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 846 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 846 | N 007603012405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 847 | A 0034294244 | VALVE |
| (OVERFLOW VALVE) | ||
| 847 | A 0034299944 | VALVE |
| (OVERFLOW VALVE) | ||
| 848 | A 0009905168 | FITTING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 849 | A 0004290227 | THRUST RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 850 | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 851 | N 915047012203 | HOLLOW SCREW |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 852 | N 007603016401 | SEAL RING |
| OVERFLOW VALVE,CONNECTION: | ||
| "10" | ||
| 853 | A 0019907368 | FITTING |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 854 | A 0004290227 | THRUST RING |
| OVERFLOW VALVE,CONNECTION: | ||
| 20" | ||
| 855 | A 0009870446 | SEALING CORD |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| 856 | A 6233280365 | PIPE SOCKET |
| OVERFLOW VALVE,CONNECTION: | ||
| "20" | ||
| A 0002607657 | VALVE | |
| Repalced by: A 0012604957 | ||
| 857 | A 0012604957 | VALVE |
| (SHUTTLE VALVE) | ||
| 857D | A 0034296844 | VALVE |
| TRAILING AXLE SELF-LEVELLING VALVE | ||
| 857D | A 0034296844 | VALVE |
| TRAILING AXLE LIFT | ||
| 857D | A 0034296844 | VALVE |
| STARTING ASSISTANCE | ||
| 858 | N 000931005047 | SCREW |
| VALVE TO BRACKET | ||
| M 5X75 | ||
| 858 | N 000931005047 | SCREW |
| VALVE TO BRACKET | ||
| M 5X75 | ||
| 858 | N 000931005046 | SCREW |
| VALVE TO BRACKET | ||
| M 5X40 | ||
| 858 | N 000931005022 | SCREW |
| VALVE TO BRACKET | ||
| M 5X35 | ||
| 860 | N 913004005001 | NUT |
| VALVE TO BRACKET | ||
| A 3934291240 | BRACKET | |
| 3/2-WAY VALVE | ||
| 863C | A 6194290440 | BRACKET |
| 3/2-WAY VALVE | ||
| A 3974290540 | BRACKET | |
| Repalced by: A 3604292440 | ||
| 864 | A 3604292440 | BRACKET |
| Repalced by: A 3604292940 | ||
| 864 | A 3604292940 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 867 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 867 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| M 8X30 | ||
| 869 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 869 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| M 8X20 | ||
| 870 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 870 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 873 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 873 | N 915036010108 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "11,21,22,23" | ||
| 873 | N 915036010108 | HOLLOW SCREW |
| SHUTTLE VALVE,CONNECTION: | ||
| "18,24" | ||
| 876 | N 915047010202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "12,13" | ||
| 876 | N 915047010202 | HOLLOW SCREW |
| SHUTTLE VALVE,CONNECTION: | ||
| "17" | ||
| N 915040010202 | HOLLOW SCREW FITTING | |
| SHUTTLE VALVE,CONNECTION: | ||
| "17" | ||
| 879 | A 6233280265 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "31" | ||
| 879 | A 6233280265 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "31,34" | ||
| 882 | N 007603014405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "11,12,13,21,23" | ||
| 882 | N 007603014405 | SEAL RING |
| SHUTTLE VALVE,CONNECTION: | ||
| "17,18,24" | ||
| 885 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "41,43" | ||
| 885 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "42" | ||
| 885 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| 42,44" | ||
| 888 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 888 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "41,42,43" | ||
| 888 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "41,42,43,44" | ||
| 889 | A 0039979972 | FITTING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "32,33" | ||
| 889 | A 0039979972 | FITTING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "24,32,33" | ||
| A 0009909970 | T-FITTING | |
| 3/2-WAY VALVE;CONNECTION: | ||
| "33" | ||
| 889P | A 0004290627 | THRUST RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "32,33" | ||
| 889P | A 0004290627 | THRUST RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24,32,33" | ||
| 889Q | A 0079974245 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "32,33" | ||
| 889Q | A 0079974245 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24,32,33" | ||
| N 000908014001 | SCREW PLUG | |
| Repalced by: N 000908014009 | ||
| N 000908014009 | SCREW PLUG | |
| 3/2-WAY VALVE;CONNECTION: | ||
| 14 | ||
| 891 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| GRAU | ||
| 891 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| GRAU | ||
| 891 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 891 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| 891 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| A 0003290525 | VALVE | |
| Repalced by: A 0003290925 | ||
| 892 | A 0003290925 | VALVE |
| Repalced by: A 0003291125 | ||
| 892 | A 0003291125 | VALVE |
| SELF-LEVELLING DEVICE AND PLATFORM HEIGHT ADJUSTMENT,MANUAL | ||
| KNORR | ||
| 894 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 894 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| 894 | A 0003290193 | PROTECTIVE CAP |
| KNORR | ||
| A 0003290293 | PROTECTIVE CAP | |
| Repalced by: A 0003290092 | ||
| 896 | A 0003290092 | BOOT |
| KNORR | ||
| 896 | A 0003290092 | BOOT |
| KNORR | ||
| 896 | A 0003290092 | BOOT |
| KNORR | ||
| 897 | A 0009973177 | HANDLE |
| KNORR | ||
| 897 | A 0009973177 | HANDLE |
| KNORR | ||
| 897 | A 0009973177 | HANDLE |
| KNORR | ||
| 898 | A 0003200058 | VALVE |
| KNORR | ||
| 898 | A 0003200058 | VALVE |
| KNORR | ||
| 898 | A 0003200058 | VALVE |
| KNORR | ||
| A 0003291325 | VALVE | |
| 900 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 900 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 901 | A 0003200667 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3118-I/75379 | ||
| 902 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 902 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 902 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 902 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 902T | A 0003200867 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV3118-I/86025 | ||
| 903 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 903 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 903 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 906 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 906 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 906 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 907 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 907 | N 304017008016 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 908 | N 912004008102 | LOCK WASHER |
| SHIFT VALVE TO BRACKET | ||
| 909 | A 6203200143 | BRACKET |
| CONTROL VALVE | ||
| 909 | A 3873200443 | BRACKET |
| CONTROL VALVE | ||
| 912 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 912 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 915 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 916 | A 6203270240 | BRACKET |
| CONTROL VALVE | ||
| 917 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 917 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 917K | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 917K | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 918 | N 915039012206 | HOLLOW SCREW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 921 | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 922 | N 915047012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTION: | ||
| "15" | ||
| 924 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,12,13,22,23" | ||
| 924 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "15" | ||
| 924E | N 000908016001 | SCREW PLUG |
| SHIFT VALVE,CONNECTION: | ||
| "14,24" | ||
| 924F | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "14,24" | ||
| 924H | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "14,24" | ||
| 927 | A 0019908168 | FITTING |
| AT BRACKET | ||
| 930 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 933 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 936 | A 0004312031 | TEST CONNECTION |
| 936 | A 0004314531 | TEST CONNECTION |
| 936 | A 0004314831 | TEST CONNECTION |
| 936 | A 0004316131 | TEST CONNECTION |
| 939 | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION | ||
| 942 | N 915047008202 | HOLLOW SCREW |
| TEST CONNECTION | ||
| 945 | N 007603012405 | SEAL RING |
| TEST CONNECTION | ||
| 948 | A 3185840621 | GUIDE SIGN |
| SUPPLY | ||
| 951 | A 3935840721 | GUIDE SIGN |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| 954 | A 3935840821 | GUIDE SIGN |
| TRAILING AXLE LIFT | ||
| A 3875840055 | ADHESIVE FOIL | |
| TRAILING AXLE LIFT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
