Transporto priemonė: 2222; VIN numerio dalis: 619036

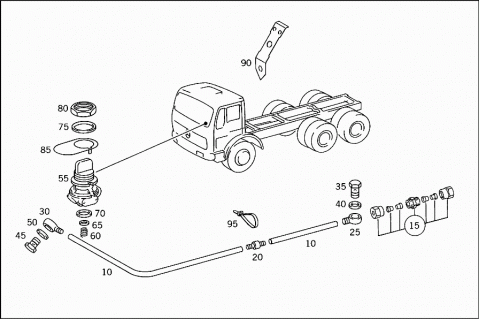

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 010 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,THREE-WAY VALVE,PNEUMATIC CYLINDER | ||
| 4X6 MM | ||
| 015 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 020 | A 0009904578 | CONNECTOR |
| COMPRESSED AIR LINE TO DISTRIBUTOR | ||
| 025 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 030 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 035 | N 915036008202 | HOLLOW SCREW |
| AIR LINE TO LONGITUDINAL DIFFERENTIAL LOCK VALVE | ||
| 040 | N 007603012405 | SEAL RING |
| AIR LINE TO LONGITUDINAL DIFFERENTIAL LOCK VALVE | ||
| 045 | N 915036006202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO VALVE | ||
| 050 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 050 | N 007603010110 | SEAL RING |
| COMPRESSED AIR LINE TO VALVE | ||
| 055 | A 0019976136 | VALVE |
| 3/2-WAY | ||
| WABCO | ||
| 055 | A 0019975036 | VALVE |
| 3/2-WAY | ||
| BOSCH | ||
| 055 | A 0039975936 | VALVE |
| 3/2-WAY | ||
| KNORR | ||
| 055 | A 0039976036 | VALVE |
| 3/2-WAY | ||
| VOSS | ||
| 060 | A 0049937501 | SPRING |
| TO 001 997 61 36,WABCO | ||
| 065 | A 0069972648 | SEAL RING |
| TO 001 997 61 36,WABCO | ||
| 070 | A 0039979640 | SEAL RING |
| TO 001 997 61 36,WABCO | ||
| 075 | A 6239900040 | WASHER |
| VALVE TO CAB | ||
| 080 | A 3839900051 | NUT |
| VALVE TO CAB | ||
| 085 | A 3855841324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 090 | A 3874297240 | BRACKET |
| COMPRESSED AIR CONNECTION TO AXLE HOUSING | ||
| 095 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 095 | A 0019978490 | LOOM TIE |
| 376 MM | ||
