Transporto priemonė: 2222; VIN numerio dalis: 619037
Grupė: 31 FRAME

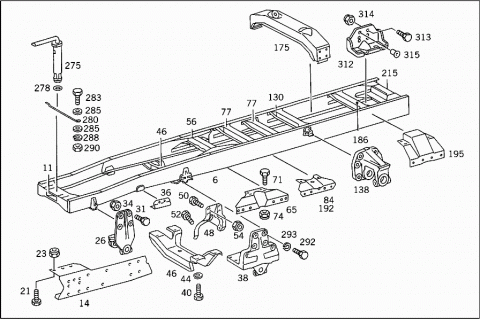

29056

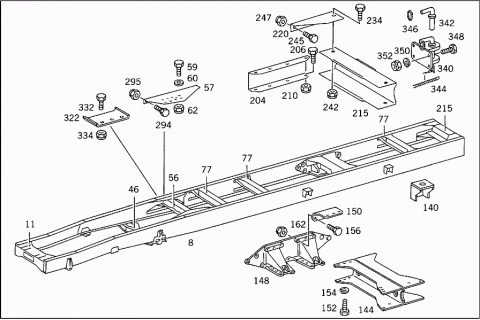

29057

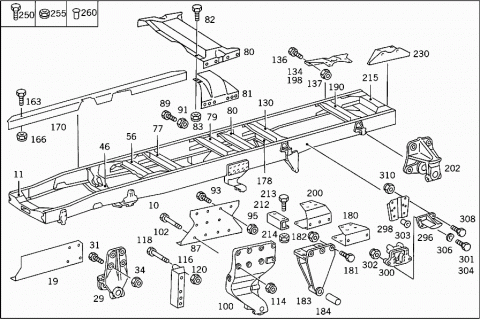

29058

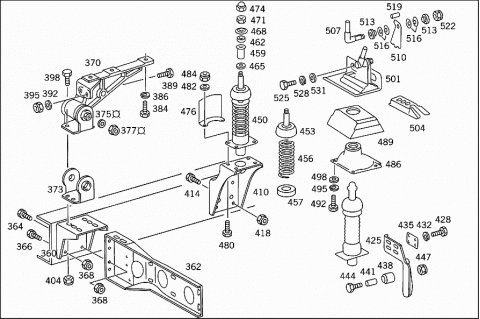

29059

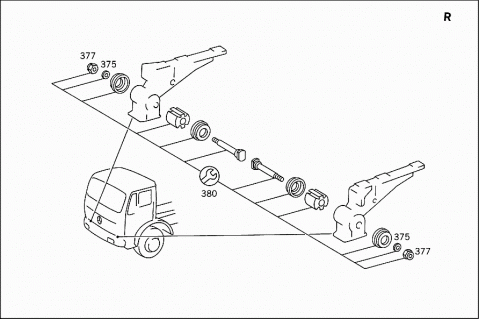

29434
# Kodas Pavadinimas
006 A 6193102601 FRAME
006 A 6193102701 FRAME
008 A 6193105401 FRAME
008 A 6193100501 FRAME
008 A 6193100601 FRAME
008 A 6193100701 FRAME
008 A 6193100101 FRAME
Repalced by: A 6193103201
008 A 6193103201 FRAME
008 A 6193104501 FRAME
008 A 6193100201 FRAME
008 A 6193105901 FRAME
008 A 6193100301 FRAME
008 A 6193100401 FRAME
010 A 6193103701 FRAME
010 A 6193103801 FRAME
010 A 6193104601 FRAME
011 A 3873100422 CROSS MEMBER
FRONT
014 A 3853122187 GUSSET PLATE
FRONT LEFT
014 A 3853122187 GUSSET PLATE
FRONT LEFT
014 A 3853122187 GUSSET PLATE
FRONT LEFT
014 A 6173122087 GUSSET PLATE
Repalced by: A 3873122087
014 A 3873122087 GUSSET PLATE
FRONT LEFT
014 A 3873122087 GUSSET PLATE
FRONT LEFT
014 A 3853122287 GUSSET PLATE
FRONT RIGHT
014 A 3853122287 GUSSET PLATE
FRONT RIGHT
014 A 3853122287 GUSSET PLATE
FRONT RIGHT
014 A 6173122187 GUSSET PLATE
Repalced by: A 6203120987
014 A 6203120987 GUSSET PLATE
014 A 6203120987 GUSSET PLATE
019 A 3853122687 GUSSET PLATE
FRONT LEFT
019 A 3853122787 GUSSET PLATE
FRONT RIGHT
021 N 000961012092 SCREW
Repalced by: N 000961012025
021 N 000961012025 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X32
023 N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
026 A 6173220001 FRONT SPRING BRACKET
FRONT
029 A 3873220301 FRONT SPRING BRACKET
FRONT
029 A 3873220301 FRONT SPRING BRACKET
Repalced by: A 6203220501
029 A 6203220501 FRONT SPRING BRACKET
Repalced by: A 6203220901
029 A 6203220901 FRONT SPRING BRACKET
FRONT
031 A 3589900414 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
031 A 3859902314 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 18X45
031 A 3859902414 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 18X55
034 N 913004014005 NUT
Repalced by: N 910113014000
034 N 910113014000 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
034 N 913004018004 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
036 A 3833220131 PLATE
HELPER SPRING
038 A 6173220003 FRONT SPRING BRACKET
REAR
038 A 6173220103 FRONT SPRING BRACKET
REAR
040 N 000961014154 SCREW
FRONT SPRING REAR BRACKET TO CROSS MEMBER
M 14X25
044 N 912004014100 LOCK WASHER
FRONT SPRING REAR BRACKET TO CROSS MEMBER
A 6193110053 ANGLE
LEFT
A 6193110053 ANGLE
LEFT
A 6193110153 ANGLE
RIGHT
A 6193110153 ANGLE
RIGHT
046 A 6163120310 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
048 A 6163120061 STRUT
FRONT SPRING REAR BRACKET
050 N 000961014050 SCREW
Repalced by: N 308676014020
050 N 308676014020 SCREW
STRUT TO SIDE MEMBER
052 N 000961014113 SCREW
STRUT TO CROSS MEMBER
054 N 913004014002 NUT
Repalced by: N 910113014001
054 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
A 3853100436 CROSS MEMBER
Repalced by: A 3813120015
056 A 3813120015 CROSS MEMBER
NO.3
057 A 6193120687 GUSSET PLATE
Repalced by: A 3813120652
057 A 3813120652 ANGLE
TOP LEFT
057 A 3813120652 ANGLE
TOP LEFT
057 A 6193120787 GUSSET PLATE
Repalced by: A 3813120752
057 A 3813120752 ANGLE
TOP RIGHT
057 A 3813120752 ANGLE
TOP RIGHT
059 N 308676012012 SCREW
CROSS MEMBER TO GUSSET PLATE
059 N 308676012010 SCREW
CROSS MEMBER TO GUSSET PLATE
059 N 308676012010 SCREW
CROSS MEMBER TO GUSSET PLATE
059 N 308676012010 SCREW
CROSS MEMBER TO GUSSET PLATE
060 A 3859901040 WASHER
CROSS MEMBER TO GUSSET PLATE
060 A 3859901040 WASHER
CROSS MEMBER TO GUSSET PLATE
060 A 3859901040 WASHER
CROSS MEMBER TO GUSSET PLATE
062 N 910113012002 NUT
062 N 913004012009 NUT
Repalced by: N 910113012003
062 N 910113012003 NUT
CROSS MEMBER TO GUSSET PLATE
065 A 6173120352 ANGLE
BOTTOM LEFT
065 A 6173120352 ANGLE
BOTTOM LEFT
065 A 6173120352 ANGLE
BOTTOM LEFT
065 A 3813120252 ANGLE
BOTTOM LEFT
065 A 3813120252 ANGLE
BOTTOM LEFT
065 A 6173120452 ANGLE
BOTTOM RIGHT
065 A 6173120452 ANGLE
BOTTOM RIGHT
065 A 6173120452 ANGLE
BOTTOM RIGHT
065 A 3813120352 ANGLE
BOTTOM RIGHT
065 A 3813120352 ANGLE
BOTTOM RIGHT
071 N 308676012012 SCREW
ANGLE TO CROSS MEMBER
074 N 910113012002 NUT
ANGLE TO CROSS MEMBER
077 A 6173120117 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4
077 A 6173120117 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4,NO.7
077 A 6173120117 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4,NO.6
077 A 6173120117 CROSS MEMBER
Repalced by: A 3813120017
077 A 3813120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4
077 A 6173120117 CROSS MEMBER
Repalced by: A 3813120017
077 A 3813120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.5
077 A 6173120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4
077 A 6173120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4
077 A 6173120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4,NO.5,NO.7
077 A 6173120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.5
077 A 6173120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.6
077 A 6173120017 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.7
N 000933010276 SCREW
CROSS MEMBER AND STRUT TO SIDE MEMBER
M 10X28
N 000961014008 SCREW
Repalced by: N 308676014003
N 308676014003 SCREW
CROSS MEMBER AND STRUT TO SIDE MEMBER
M 14X30
N 913004010011 NUT
CROSS MEMBER AND STRUT TO SIDE MEMBER
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
CROSS MEMBER AND STRUT TO SIDE MEMBER
079 A 6193100136 CROSS MEMBER
Repalced by: A 3913100036
079 A 3913100036 CROSS MEMBER
NO.4
079 A 3913100036 CROSS MEMBER
NO.5
079 A 3913100036 CROSS MEMBER
NO.3
080 A 3893120125 CROSS MEMBER
081 A 3933120161 STRUT
082 A 0039900901 SCREW
Repalced by: A 0029908201
082 A 0029908201 SCREW
STRUT TO CROSS MEMBER
083 N 913004012009 NUT
Repalced by: N 910113012003
083 N 910113012003 NUT
STRUT TO CROSS MEMBER
084 A 3833120360 REINFORCEMENT
CROSS MEMBER
084 A 3833120360 REINFORCEMENT
CROSS MEMBER
084 A 3833120360 REINFORCEMENT
CROSS MEMBER
084 A 3523122360 REINFORCEMENT
CROSS MEMBER
084 A 3523122360 REINFORCEMENT
CROSS MEMBER
084 A 3523122360 REINFORCEMENT
CROSS MEMBER
087 A 3853110853 ANGLE
CROSS MEMBER
089 N 000961014063 SCREW
Repalced by: A 9429901304
089 A 9429901304 SCREW
CROSS MEMBER TO SIDE MEMBERS
091 N 913004014005 NUT
Repalced by: N 910113014000
091 N 910113014000 NUT
CROSS MEMBER TO SIDE MEMBERS
093 N 000961014063 SCREW
Repalced by: A 9429901304
093 A 9429901304 SCREW
CROSS MEMBER AND ANGLE TO SIDE MEMBER
095 N 913004014005 NUT
Repalced by: N 910113014000
095 N 910113014000 NUT
CROSS MEMBER AND ANGLE TO SIDE MEMBER
100 A 3913220003 FRONT SPRING BRACKET
FRONT AXLE II,LEFT
100 A 3913220103 FRONT SPRING BRACKET
FRONT AXLE II,RIGHT
102 N 000960016237 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 16X60
102 A 6229900014 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 16X85
102 A 3919900014 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 16X55
102 N 000960016250 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 16X85
114 N 913004016005 NUT
Repalced by: N 910113016001
114 N 910113016001 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
116 A 3914300111 CONSOLE
AIR RESERVOIR
118 N 000960014201 SCREW
LEFT CONSOLE TO FRAME
118 A 6229900114 SCREW
LEFT CONSOLE TO FRAME
120 N 913004014002 NUT
Repalced by: N 910113014001
120 N 910113014001 NUT
LEFT CONSOLE TO FRAME
120 N 913004016005 NUT
Repalced by: N 910113016001
120 N 910113016001 NUT
LEFT CONSOLE TO FRAME
130 A 3813120017 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.5
130 A 3813120017 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.7
130 A 3523120217 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.4
134 A 3833120360 REINFORCEMENT
CROSS MEMBER AT REAR SPRING FRONT BRACKET
134 A 3523122360 REINFORCEMENT
CROSS MEMBER AT REAR SPRING FRONT BRACKET
136 N 000933010174 SCREW
Repalced by: N 304017010040
136 N 304017010040 SCREW
REINFORCEMENT TO CROSS MEMBER
137 N 913004010011 NUT
REINFORCEMENT TO CROSS MEMBER
138 A 6173250001 REAR SPRING BRACKET
FRONT
140 A 3433200078 CONSOLE
RETAINING ROPE TO FRAME
140 A 3433200078 CONSOLE
RETAINING ROPE TO FRAME
140 A 3433200078 CONSOLE
RETAINING ROPE TO FRAME
140 A 6193200278 CONSOLE
RETAINING ROPE TO FRAME
140 A 6193200278 CONSOLE
RETAINING ROPE TO FRAME
140 A 6193200278 CONSOLE
RETAINING ROPE TO FRAME
144 A 3853101437 CROSS MEMBER
Repalced by: A 3853121025
144 A 3853121025 CROSS MEMBER
BETWEEN THE REAR AXLES
NO.7
144 A 3853121025 CROSS MEMBER
BETWEEN THE REAR AXLES
NO.6
144 A 3853121025 CROSS MEMBER
BETWEEN THE REAR AXLES
NO.5
148 A 6193250010 SUPPORT
REAR SPRING CENTRAL BEARING
148 A 6193250010 SUPPORT
REAR SPRING CENTRAL BEARING
148 A 6193250010 SUPPORT
REAR SPRING CENTRAL BEARING
148 A 6193250110 SUPPORT
REAR SPRING CENTRAL BEARING
148 A 6193250110 SUPPORT
REAR SPRING CENTRAL BEARING
150 A 3853121587 GUSSET PLATE
LEFT
150 A 3853121687 GUSSET PLATE
RIGHT
152 N 000961014050 SCREW
Repalced by: N 308676014020
152 N 308676014020 SCREW
SUPPORT TO CROSS MEMBER
154 N 912004014100 LOCK WASHER
SUPPORT TO CROSS MEMBER
156 N 914112016018 SCREW
Repalced by: A 6529901204
156 A 6529901204 SCREW
Repalced by: N 914112014016
156 N 914112014016 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X55
156 N 914112016340 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X50
156 N 914112016343 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X85
162 N 913012016002 NUT
CROSS MEMBER TO SIDE MEMBERS
163 N 000961014028 SCREW
FRAME TRUSS TO SIDE MEMBER
M 14X40
163 N 000960014237 SCREW
FRAME TRUSS TO SIDE MEMBER
M 14X50
166 N 913004014002 NUT
Repalced by: N 910113014001
166 N 910113014001 NUT
FRAME TRUSS TO SIDE MEMBER
166 N 913004014005 NUT
Repalced by: N 910113014000
166 N 910113014000 NUT
FRAME TRUSS TO SIDE MEMBER
170 A 6193110253 ANGLE
SADDLE PLATE,LEFT
170 A 6193110353 ANGLE
SADDLE PLATE,RIGHT
175 A 3853100440 CROSS MEMBER
SHOCK ABSORBER
NO.6
178 A 6193120015 CROSS MEMBER
NO.6
178 A 6193120015 CROSS MEMBER
NO.8
180 A 6193120095 WEB
Repalced by: A 6193120395
180 A 6193120395 WEB
CROSS MEMBER
181 N 000961014088 SCREW
Repalced by: N 308676014008
181 N 308676014008 SCREW
REINFORCEMENTS AND ANGLE TO CROSS MEMBER
181 N 000961014101 SCREW
Repalced by: N 308676014012
181 N 308676014012 SCREW
STAY BOLTED TO CROSS MEMBER,SHIM AND SPRING BRACKET
181 N 000961014130 SCREW
CROSS MEMBER AT REAR SPRING REAR BRACKET
182 N 913004014005 NUT
Repalced by: N 910113014000
182 N 910113014000 NUT
CROSS MEMBER AT REAR SPRING REAR BRACKET
182 N 910113014000 NUT
REINFORCEMENTS AND ANGLE TO CROSS MEMBER
182 N 910113014000 NUT
STAY BOLTED TO CROSS MEMBER,SHIM AND SPRING BRACKET
183 A 6193200075 SPRING BRACKET
FRONT AXLE II,REAR
184 A 3273255050 BUSHING
Repalced by: A 3523250150
184 A 3523250150 BUSHING
184 A 3853250050 BUSHING
186 A 3853120017 CROSS MEMBER
NO.7,NO.8
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
215
190 A 3813120021 CROSS MEMBER
Repalced by: A 6173120117
190 A 6173120117 CROSS MEMBER
REAR-SPRING REAR BRACKET
NO.7
190 A 6173120117 CROSS MEMBER
REAR-SPRING REAR BRACKET
NO.9
190 A 6193120015 CROSS MEMBER
REAR-SPRING REAR BRACKET
NO.5
192 A 3523122360 REINFORCEMENT
CROSS MEMBER
195 A 3853120161 STRUT
CROSS MEMBER TO SIDE MEMBERS
198 A 3833120360 REINFORCEMENT
CROSS MEMBER AT REAR SPRING REAR BRACKET
200 A 6193120195 WEB
CROSS MEMBER AT REAR SPRING REAR BRACKET
202 A 3523250101 REAR SPRING BRACKET
REAR
204 A 6173120160 REINFORCEMENT
REAR CROSS MEMBER
206 N 308676012012 SCREW
REINFORCEMENT TO SIDE MEMBER
206 N 308676012012 SCREW
CROSS MEMBER TO STAY
210 N 913004012009 NUT
Repalced by: N 910113012003
210 N 910113012003 NUT
REINFORCEMENT TO SIDE MEMBER
210 N 910113012003 NUT
CROSS MEMBER TO STAY
212 A 6193100084 SHIM
REINFORCEMENT TO SIDE MEMBER
213 N 000960014237 SCREW
REAR SPRING REAR BRACKET AND REINFORCEMENT TO SIDE MEMBER
213 N 000960014245 SCREW
CROSS MEMBER WITH SHIM TO REAR SPRING REAR BRACKET
214 N 913004014005 NUT
Repalced by: N 910113014000
214 N 910113014000 NUT
CROSS MEMBER WITH SHIM TO REAR SPRING REAR BRACKET
214 N 910113014000 NUT
REAR SPRING REAR BRACKET AND REINFORCEMENT TO SIDE MEMBER
215 A 3833100246 CROSS MEMBER
REAR
215 A 3853100146 CROSS MEMBER
Repalced by: A 3853100246
215 A 3853100246 CROSS MEMBER
REAR
220 A 6193120087 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
220 A 6193120087 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
220 A 6193120087 GUSSET PLATE
TOP LEFT
220 A 6193120187 GUSSET PLATE
TOP RIGHT, BOTTOM LEFT
220 A 6193120187 GUSSET PLATE
TOP LEFT, BOTTOM RIGHT
220 A 6193120187 GUSSET PLATE
TOP RIGHT
230 A 6173120387 GUSSET PLATE
BOTTOM LEFT
230 A 6173120287 GUSSET PLATE
BOTTOM RIGHT
234 N 308676012012 SCREW
REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER
M 12X25
234 N 000961012151 SCREW
REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER
M 12X30
242 N 910113012002 NUT
REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER
245 N 000961014028 SCREW
GUSSET PLATE TO SIDE MEMBER
245 N 000961012097 SCREW
Repalced by: N 308676012026
245 N 308676012026 SCREW
GUSSET PLATE TO SIDE MEMBER
M 12X35
245 N 000961012122 SCREW
REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS
M 12X40
247 N 913004014002 NUT
Repalced by: N 910113014001
247 N 910113014001 NUT
GUSSET PLATE TO SIDE MEMBER
247 N 910113012002 NUT
REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
250 N 000609010004 FITTED SCREW
M 10X11X14X28
250 N 000610010003 FITTED SCREW
M 10X11X25X38
250 N 000609010014 FITTED SCREW
M 10X11X24X40
250 A 3859900514 SCREW
M 10X11X26,5X46
Y YYYYYYYYYYYY PART NAME MISSING
250 A 3859900714 SCREW
M 12X12X10X25
250 A 3859901414 SCREW
M 12X12X11X26
250 A 0039900901 SCREW
Repalced by: A 0029908201
250 A 0029908201 SCREW
M 12X12X12X28
250 A 3859901514 SCREW
M 12X12X13X28
250 A 0029908201 SCREW
M 12X12X14X30
250 A 3859902114 SCREW
M 12X12X15X30
250 A 0029908301 SCREW
Repalced by: N 308676012013
250 N 308676012013 SCREW
M 12X12X16X32
250 A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
250 A 6209900114 SCREW
M 12X13X12X29
250 A 3969900314 SCREW
M 12X13X13X30
250 A 3589901914 SCREW
M 12X13X15X32
250 A 3559900014 SCREW
M 12X13X18X35
250 A 3589900614 SCREW
M 12X13X21X38
250 A 6179900114 SCREW
M 12X13X23X40
250 A 6249900014 SCREW
M 12X13X25X42
250 A 3859900214 SCREW
M 12X13X35X52
250 A 6689900114 SCREW
M 12X13X58X80
250 A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
250 A 3859900814 SCREW
Repalced by: A 3229903101
250 A 3229903101 SCREW
M 14X14X18X32
250 A 3859902014 SCREW
M 14X14X18X34
250 A 3559900114 SCREW
M 12X14X13X35
250 A 3219901601 SCREW
M 14X14X17X35
250 A 3219901901 SCREW
M 14X14X22X40
250 A 3559900501 SCREW
M 14X14X24X42
250 A 3409900201 SCREW
M 14X14X27X45
250 A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
250 A 3589900114 SCREW
M 14X15X15X32
250 A 3589900814 SCREW
M 14X15X17X34
250 A 6459900014 SCREW
M 14X15X18X35
250 A 3589901014 SCREW
M 14X15X19X36
250 A 3589900214 SCREW
M 14X15X21X38
250 A 3589900414 SCREW
M 14X15X25X42
250 A 3589900714 SCREW
M 14X15X27X44
250 A 3589900914 SCREW
M 14X15X29X46
250 A 3859900414 SCREW
M 14X15X31X48
250 A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
250 A 3859900914 SCREW
Repalced by: N 308676016020
250 N 308676016020 SCREW
M 16X16X18X36
250 A 3859901714 SCREW
M 16X16X20X38
250 A 3859901014 SCREW
M 16X16X22X40
250 A 3859901114 SCREW
M 16X16X24X42
250 A 0029909901 SCREW
Repalced by: A 3959900501
250 A 3959900501 SCREW
M 16X16X20X45
250 A 3859901814 SCREW
M 16X16X30X48
250 A 3859901914 SCREW
M 16X16X32X50
250 A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
250 A 3859900514 SCREW
M 16X17X22X42
250 A 6459900714 SCREW
M 16X17X24X44
250 A 3609900114 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
250 A 3469900014 SCREW
M 16X18X18X40
250 A 3859902314 SCREW
M 18X18X23X45
250 A 6209900014 SCREW
M 16X18X26X48
250 A 3469900114 SCREW
M 16X18X31X50
250 A 3859902414 SCREW
M 18X18X33X55
250 A 6229900014 SCREW
M 16X18X38X60
250 A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
250 N 000610018004 FITTED SCREW
M 18X19X25X45
250 N 000610018009 FITTED SCREW
M 18X19X33X55
250 N 000610018006 FITTED SCREW
M 18X19X38X60
250 N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
255 N 913004010011 NUT
255 N 913004012009 NUT
Repalced by: N 910113012003
255 N 910113012003 NUT
255 N 913004014005 NUT
Repalced by: N 910113014000
255 N 910113014000 NUT
255 N 913004016005 NUT
Repalced by: N 910113016001
255 N 910113016001 NUT
255 N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
260 N 910005010014 RIVET
10X26 MM
260 N 910005010016 RIVET
10X28 MM
260 N 910005010022 RIVET
10X34 MM
260 N 910005012073 RIVET
12X28 MM
260 N 910005012080 RIVET
12X42 MM
260 N 910005014056 RIVET
14X45 MM
260 N 910005014059 RIVET
14X55 MM
275 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
278 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
280 A 3353150031 LOCKING SPRING
COUPLING PIN
283 N 000933008153 SCREW
Repalced by: N 304017008034
283 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
285 N 000125008418 WASHER
Repalced by: N 000125008443
285 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
288 N 912004008102 LOCK WASHER
LOCK SPRING TO CROSS MEMBER
290 N 304032008006 NUT
LOCK SPRING TO CROSS MEMBER
292 N 000961014100 SCREW
FRONT SPRING REAR BRACKET TO CROSS MEMBER
293 N 912004014100 LOCK WASHER
FRONT SPRING REAR BRACKET TO CROSS MEMBER
294 A 3219901601 SCREW
FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER
M 14X35
294 A 3609900214 SCREW
FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER
M 14X32
295 N 913004014005 NUT
Repalced by: N 910113014000
295 N 910113014000 NUT
FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER
296 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
296 A 6843250017 HELPER SPRING BRACKET
IN FRONT OF,AND BEHIND,REAR AXLE
296 A 6173250117 HELPER SPRING BRACKET
Repalced by: A 6843250117
296 A 6843250117 HELPER SPRING BRACKET
IN FRONT OF,AND BEHIND,REAR AXLE
298 A 3813250041 STIFFENING
HELPER SPRING BRACKET TO SIDE MEMBER
300 A 6173260227 INTERMEDIATE PIECE
BETWEEN HELPER SPRING BRACKET AND SIDE MEMBER
301 A 6179900114 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
301 A 6249900014 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
302 N 913004012009 NUT
Repalced by: N 910113012003
302 N 910113012003 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
303 N 910005012073 RIVET
HELPER SPRING BRACKET TO SIDE MEMBER
12X28 MM
303 N 910005012087 RIVET
HELPER SPRING BRACKET TO SIDE MEMBER
12X58 MM
304 N 308676012010 SCREW
INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME
306 N 000137012203 SPRING WASHER
INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME
308 N 000961016077 SCREW
Repalced by: N 308676016006
308 N 308676016006 SCREW
INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME
310 N 913004016005 NUT
Repalced by: N 910113016001
310 N 910113016001 NUT
INTERMEDIATE PIECE AND HELPER SPRING BRACKET TO FRAME
312 A 3874030701 SUPPORT
SPARE WHEEL MOUNTING
313 A 0029908201 SCREW
SUPPORT TO FRAME
314 N 913004012009 NUT
Repalced by: N 910113012003
314 N 910113012003 NUT
SUPPORT TO FRAME
315 N 910005012080 RIVET
SUPPORT TO FRAME
A 3853160260 MOUNTING PLATE
BODY MOUNTING
A 3853160860 MOUNTING PLATE
BODY MOUNTING
322 A 3853160560 MOUNTING PLATE
BODY MOUNTING
322 A 3853160560 MOUNTING PLATE
BODY MOUNTING
A 3853160360 MOUNTING PLATE
BODY MOUNTING
A 3853160160 MOUNTING PLATE
BODY MOUNTING
A 3853160160 MOUNTING PLATE
BODY MOUNTING
322 A 3853160960 MOUNTING PLATE
BODY MOUNTING
322 A 3853160760 MOUNTING PLATE
BODY MOUNTING
332 N 000961014028 SCREW
PLATE TO FRAME
M 14X40
332 A 3589901014 SCREW
PLATE TO FRAME
M 14X36
332 A 3589901014 SCREW
PLATE TO FRAME
M 14X36
332 A 3589900214 SCREW
PLATE TO FRAME
M 14X38
332 A 3589900214 SCREW
PLATE TO FRAME
M 14X38
332 A 3589900214 SCREW
PLATE TO FRAME
M 14X38
332 A 3589900214 SCREW
PLATE TO FRAME
M 14X38
332 A 3589900814 SCREW
PLATE TO FRAME
M 14X34
332 A 3589900814 SCREW
PLATE TO FRAME
M 14X34
332 A 3589900114 SCREW
PLATE TO FRAME
M 14X32
332 A 3589900314 SCREW
PLATE TO FRAME
M 14X40
334 N 913004014005 NUT
Repalced by: N 910113014000
334 N 910113014000 NUT
PLATE TO FRAME
340 A 0013152999 TRAILER COUPLING
(TOW BAR COUPLING)
342 A 0003151174 PIN
344 N 005685004100 CHAIN
346 N 005296025204 RING
348 N 000960016171 SCREW
TRAILER COUPLING TO REAR CROSS MEMBER
350 N 912004016101 LOCK WASHER
TRAILER COUPLING TO REAR CROSS MEMBER
352 N 913004016004 NUT
Repalced by: N 910113016002
352 N 910113016002 NUT
TRAILER COUPLING TO REAR CROSS MEMBER
360 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
362 A 6203170223 STRUT
BUMPER,LEFT
362 A 6203170423 STRUT
BUMPER,RIGHT
364 N 000961014101 SCREW
Repalced by: N 308676014012
364 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
366 N 000961014063 SCREW
Repalced by: A 9429901304
366 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
368 N 913004014005 NUT
Repalced by: N 910113014000
368 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
370 A 3813106509 BRACKET
CAB,LEFT
370 A 6208902103 MOUNTING
CAB,LEFT
370 A 3813106609 BRACKET
CAB, RIGHT
370 A 6208902203 MOUNTING
CAB, RIGHT
373 A 3878902903 MOUNTING
373 A 6208902003 MOUNTING
375 N 007349017002 WASHER
377 N 913004016004 NUT
Repalced by: N 910113016002
377 N 910113016002 NUT
380 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
384 N 000961014028 SCREW
MOUNTING TO CAB
M 14X40
386 N 912004014100 LOCK WASHER
MOUNTING TO CAB
389 N 000961014064 SCREW
MOUNTING TO CAB
M 14X50
392 A 3209901840 WASHER
MOUNTING TO CAB
395 N 913004014002 NUT
Repalced by: N 910113014001
395 N 910113014001 NUT
MOUNTING TO CAB
398 N 000961014063 SCREW
Repalced by: A 9429901304
398 A 9429901304 SCREW
MOUNTING TO CONSOLE
M 14X40
398 N 000961014101 SCREW
Repalced by: N 308676014012
398 N 308676014012 SCREW
MOUNTING TO CONSOLE
M 14X45
404 N 913004014005 NUT
Repalced by: N 910113014000
404 N 910113014000 NUT
MOUNTING TO CONSOLE
410 A 3813171201 CONSOLE
VIBRATION ABSORBER TO FRAME
414 N 000961014050 SCREW
Repalced by: N 308676014020
414 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
M 14X35
414 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X40
418 N 913004014002 NUT
Repalced by: N 910113014001
418 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
425 A 3813171926 GUIDE
LEFT
425 A 3813172026 GUIDE
RIGHT
428 N 000960012301 SCREW
GUIDE TO CAB
432 N 912004012100 LOCK WASHER
GUIDE TO CAB
435 A 3873170084 SHIM
GUIDE TO CAB
438 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
441 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
444 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
447 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
450 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
450 A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
450 A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
450 A 6208900019 SHOCK ABSORBER
Repalced by: A 6208900119
450 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
450 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
453 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19,620 890 00 19
453 A 0008900148 JOINT
Repalced by: A 0008910301
453 A 0008910301 RUBBER MOUNTING
TO 620 890 01 19,387 890 13 19
456 A 0008910751 SPRING
Repalced by: A 0008910451
456 A 0008910451 SPRING
456 A 0008911051 SPRING
TO 620 890 00 19
456 A 0008911151 SPRING
TO 620 890 01 19
457 A 0008910123 BUFFER
TO 620 890 00 19
459 A 3813170753 SPACER TUBE
SHOCK ABSORBER MOUNTING
462 A 3275045082 RUBBER RING
SHOCK ABSORBER MOUNTING
465 N 000433015005 WASHER
SHOCK ABSORBER MOUNTING
468 A 3878912010 WASHER
SHOCK ABSORBER MOUNTING
471 N 000934012022 NUT
SHOCK ABSORBER MOUNTING
474 N 001587012008 CAP NUT
Repalced by: N 001587012010
474 N 001587012010 CAP NUT
SHOCK ABSORBER MOUNTING
476 A 3813170031 COVER PLATE
SHOCK ABSORBER
480 N 000933008153 SCREW
Repalced by: N 304017008034
480 N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
482 N 009021008205 WASHER
Repalced by: N 009021008213
482 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
484 N 913004008004 NUT
Repalced by: N 913004008001
484 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
486 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
486 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
489 A 3813170097 BOOT
SHOCK ABSORBER,TOP
492 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
495 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
498 N 000125010518 WASHER
Repalced by: N 000125010532
498 N 000125010532 WASHER
BRACKET AND BOOT TO SIDE MEMBER
501 A 3813102075 LOCKING MECHANISM
CAB,LEFT
501 A 3813101975 LOCKING MECHANISM
CAB, RIGHT
504 A 3813170119 LATCH
507 A 3813172374 PIN
510 A 3813170924 LEVER
513 A 3813170676 WASHER
516 A 0009935426 DISC SPRING
519 N 001481006041 CLAMPING SLEEVE
522 N 910113012002 NUT
525 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
528 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
531 N 000125010518 WASHER
Repalced by: N 000125010532
531 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
