Transporto priemonė: 2222; VIN numerio dalis: 619037

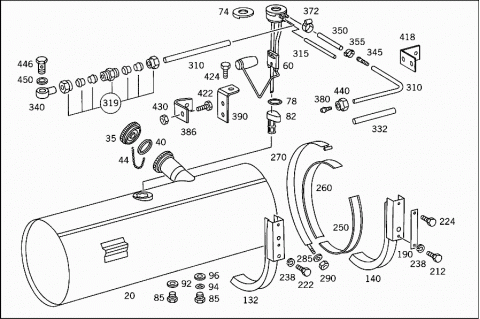

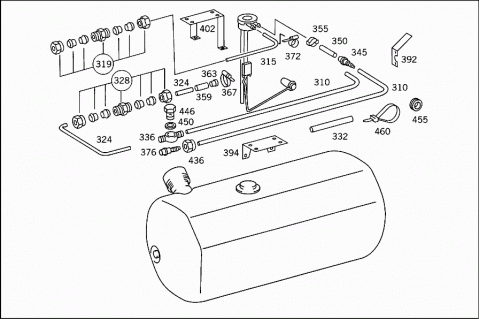

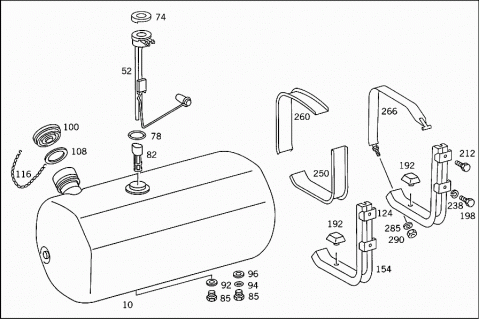

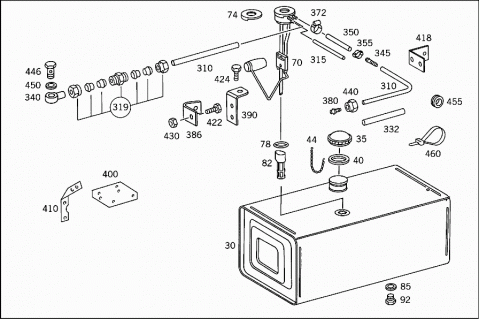

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3834701101 | FUEL TANK | |
| Repalced by: A 6164700001 | ||
| A 3834701101 | FUEL TANK | |
| Repalced by: A 6164700001 | ||
| 010 | A 6164700001 | FUEL TANK |
| Repalced by: A 6524700101 | ||
| 010 | A 6524700101 | FUEL TANK |
| 125 L. | ||
| 010 | A 6524700101 | FUEL TANK |
| 125 L. | ||
| 010 | A 6524700101 | FUEL TANK |
| 125 L. | ||
| 010 | A 6524700101 | FUEL TANK |
| 125 L. | ||
| 020 | A 3874701301 | FUEL TANK |
| Repalced by: A 3554700101 | ||
| 020 | A 3554700101 | FUEL TANK |
| 200 L | ||
| 020 | A 3874702601 | FUEL TANK |
| Repalced by: A 3804700201 | ||
| 020 | A 3804700201 | FUEL TANK |
| Repalced by: A 3804700101 | ||
| 020 | A 3804700101 | FUEL TANK |
| 200 L. | ||
| 030 | A 3874701201 | FUEL TANK |
| Repalced by: A 3874701001 | ||
| 030 | A 3874701001 | FUEL TANK |
| 300L | ||
| 030 | A 3914700201 | FUEL TANK |
| Repalced by: A 3914700101 | ||
| 030 | A 3914700101 | FUEL TANK |
| 300L | ||
| 035 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 035 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 035 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 035 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 035 | A 0004700305 | FILLER CAP |
| 040 | A 3049970340 | SEAL RING |
| 044 | A 3034700031 | CHAIN |
| FILLER CAP TO FILLER NECK | ||
| 052 | A 0055423417 | SENDER UNIT |
| Repalced by: A 0085427717 | ||
| 052 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 052 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 060 | A 0055423817 | SENDER UNIT |
| Repalced by: A 0085428017 | ||
| 060 | A 0085428017 | SENDER UNIT |
| FUEL GAUGE | ||
| 060 | A 0085428017 | SENDER UNIT |
| FUEL GAUGE | ||
| 060 | A 0055423617 | SENDER UNIT |
| Repalced by: A 0085427917 | ||
| 060 | A 0085427917 | SENDER UNIT |
| Repalced by: A 0085428917 | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: A 0085428917 | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: | ||
| A 0085427917 | SENDER UNIT | |
| Repalced by: | ||
| 070 | A 0055423917 | SENDER UNIT |
| Repalced by: A 0085428117 | ||
| 070 | A 0085428117 | SENDER UNIT |
| FUEL GAUGE | ||
| 070 | A 0055424017 | SENDER UNIT |
| Repalced by: A 0085428217 | ||
| 070 | A 0085428217 | SENDER UNIT |
| FUEL GAUGE | ||
| 074 | A 0009970920 | EXPANSION PLUG |
| 078 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 082 | A 0004710235 | FUEL STRAINER |
| 085 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 085 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 085 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 085 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| N 007603014405 | SEAL RING | |
| AT TANK | ||
| 092 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 092 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 094 | A 0079974245 | SEAL RING |
| AT TANK | ||
| 096 | A 0004290627 | THRUST RING |
| AT TANK | ||
| 100 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 100 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 100 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 100 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 100 | A 0004700305 | FILLER CAP |
| 108 | A 3049970340 | SEAL RING |
| 116 | A 3034700031 | CHAIN |
| FILLER CAP TO FILLER NECK | ||
| 124 | A 6174700742 | SUPPORT |
| FUEL TANK | ||
| 124 | A 6174700742 | SUPPORT |
| FUEL TANK | ||
| 132 | A 3854700442 | SUPPORT |
| FRONT TANK | ||
| 132 | A 3854700442 | SUPPORT |
| FRONT TANK | ||
| 136 | A 3914700142 | SUPPORT |
| FRONT TANK | ||
| 140 | A 3854700342 | SUPPORT |
| REAR TANK | ||
| 140 | A 3854700342 | SUPPORT |
| REAR TANK | ||
| 145 | A 3914700342 | SUPPORT |
| REAR TANK | ||
| 150 | A 3914750026 | REINFORCEMENT |
| AT SUPPORT | ||
| 154 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174703042 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174703042 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174703042 | SUPPORT |
| FUEL TANK | ||
| A 6194700042 | SUPPORT | |
| FUEL TANK | ||
| 154 | A 6174701442 | SUPPORT |
| FUEL TANK | ||
| 154 | A 6174701442 | SUPPORT |
| FUEL TANK | ||
| 156 | A 3914700242 | SUPPORT |
| Repalced by: A 6574700442 | ||
| 156 | A 6574700442 | SUPPORT |
| Repalced by: A 6574700542 | ||
| 156 | A 6574700542 | SUPPORT |
| FUEL TANK | ||
| 158 | A 3634700342 | SUPPORT |
| FUEL TANK | ||
| 160 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 160 | N 308676014020 | SCREW |
| SUPPORT TO SUPPORT | ||
| 162 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 162 | N 910113014001 | NUT |
| SUPPORT TO SUPPORT | ||
| 164 | A 3664750026 | REINFORCEMENT |
| AT SUPPORT | ||
| 175 | N 000961012151 | SCREW |
| REINFORCEMENT TO SUPPORT | ||
| 179 | N 000125013008 | WASHER |
| 183 | N 910113012002 | NUT |
| REINFORCEMENT TO SUPPORT | ||
| 190 | A 6174750684 | SHIM |
| Repalced by: A 3614750019 | ||
| 190 | A 3614750019 | BASE |
| SUPPORT TO SIDE MEMBER | ||
| 192 | A 3834750087 | STOP |
| FUEL TANK TO CONSOLE | ||
| 192 | A 3834750087 | STOP |
| FUEL TANK TO CONSOLE | ||
| 192 | A 3834750087 | STOP |
| FUEL TANK TO CONSOLE | ||
| 198 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 198 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 198 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 205 | N 000961014064 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 210 | N 000960014110 | SCREW |
| Repalced by: N 308765014006 | ||
| 210 | N 308765014006 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X90 | ||
| 212 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 212 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 212 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 212 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 214 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 214 | N 000125015019 | WASHER |
| 216 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 216 | N 910113014001 | NUT |
| 222 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 222 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 224 | N 000961014064 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 230 | N 000960016183 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 16X90 | ||
| 234 | A 3874750053 | SPACER TUBE |
| 238 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 238 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 238 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 238 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 238 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 242 | N 912004016101 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 242 | A 3834750384 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 250 | A 6174750020 | PAD |
| FUEL TANK TO CONSOLE | ||
| 250 | A 6174750020 | PAD |
| FUEL TANK TO CONSOLE | ||
| 250 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 250 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 250 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 250 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 255 | A 3634750120 | PAD |
| FUEL TANK TO CONSOLE | ||
| 260 | A 6174750620 | PAD |
| STRAP | ||
| 260 | A 6174750620 | PAD |
| STRAP | ||
| 262 | A 3634750320 | PAD |
| STRAP | ||
| 262 | A 3634750320 | PAD |
| STRAP | ||
| 262 | A 3634750320 | PAD |
| STRAP | ||
| 262 | A 3634750320 | PAD |
| STRAP | ||
| 266 | A 3834700540 | STRAP |
| FUEL TANK | ||
| 266 | A 3834700540 | STRAP |
| FUEL TANK | ||
| 270 | A 3834700140 | STRAP |
| Repalced by: A 6174700440 | ||
| 270 | A 6174700440 | STRAP |
| FUEL TANK | ||
| A 6174700040 | STRAP | |
| Repalced by: A 6174700240 | ||
| 270 | A 6174700240 | STRAP |
| FUEL TANK | ||
| 270 | A 6174700240 | STRAP |
| FUEL TANK | ||
| 270 | A 6204700340 | STRAP |
| FUEL TANK | ||
| 280 | A 3464705340 | STRAP |
| FUEL TANK | ||
| 280 | A 3914700040 | STRAP |
| Repalced by: A 3464705340 | ||
| 280 | A 3464705340 | STRAP |
| FUEL TANK | ||
| 285 | N 000125013008 | WASHER |
| 285 | A 3609970126 | WASHER |
| STRAP TO SUPPORT | ||
| 290 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| 290 | N 910113012002 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1,5 | ||
| 295 | N 001443016200 | PIN |
| STRAP TO SUPPORT | ||
| 300 | N 000094004065 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 310 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 315 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| 319 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 319 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 008 997 90 82 | ||
| 324 | A 0109977082 | HOSE |
| LEAK LINE | ||
| 4X6 MM | ||
| 328 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 332 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| 336 | A 0009908188 | BANJO UNION |
| FUEL LINES TO ENGINE | ||
| 340 | N 915052008016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 340 | N 915052008016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 345 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 345 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 350 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 355 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 359 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 363 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 367 | N 900288010001 | CLAMP |
| LEAK LINE | ||
| N 916002010100 | CLAMP | |
| LEAK LINE | ||
| 372 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 372 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 376 | A 0019975272 | FITTING |
| RETURN LINE TO FILTER | ||
| 380 | A 0019974972 | FITTING |
| RETURN LINE TO FILTER | ||
| 380 | A 0019974972 | FITTING |
| RETURN LINE TO FILTER | ||
| 386 | A 3874760136 | BRACKET |
| Repalced by: A 6454310740 | ||
| 386 | A 6454310740 | BRACKET |
| LINE MOUNTING | ||
| 390 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 390 | A 6205240340 | BRACKET |
| LINE MOUNTING | ||
| 392 | A 6174760536 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 392 | A 6174760536 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 392 | A 6174760536 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 394 | A 6174760336 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 394 | A 6174760336 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 394 | A 6174760336 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 400 | A 6174760036 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 400 | A 6174760036 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 402 | A 6174760436 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 402 | A 6174760436 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 410 | A 6174760736 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 410 | A 6174760736 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 410 | A 6174760736 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| 418 | A 6174760636 | BRACKET |
| Repalced by: A 6174761336 | ||
| 418 | A 6174761336 | BRACKET |
| FUEL LINE TO FRAME | ||
| 422 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 422 | N 304017008034 | SCREW |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 422 | N 304017008034 | SCREW |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 424 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 424 | N 304017008027 | SCREW |
| FUEL LINE TO FRAME | ||
| 430 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 430 | N 913004008001 | NUT |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 430 | N 913004008001 | NUT |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 430 | N 913004008001 | NUT |
| FUEL LINE TO FRAME | ||
| 436 | N 915017008201 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 440 | N 915017010200 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 440 | N 915017010200 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 446 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 446 | N 915036010108 | HOLLOW SCREW |
| FUEL LINES TO ENGINE | ||
| 450 | N 007603014405 | SEAL RING |
| FUEL LINES TO ENGINE | ||
| 455 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
| 460 | A 0019978390 | LOOM TIE |
| FUEL LINES | ||
| 280 MM | ||
| 460 | A 0019978490 | LOOM TIE |
| FUEL LINES | ||
| 376 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
