Transporto priemonė: 2222; VIN numerio dalis: 619037
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 010 | A 0004664502 | TANK |
| OIL | ||
| 014 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 018 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 018 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 022 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 026 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 030 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 034 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 038 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 042 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 046 | A 0004660604 | FILTER |
| 050 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 054 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 058 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 062 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 066 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 066 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 070 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 074 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 078 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 082 | A 6204600235 | BRACKET |
| OIL TANK | ||
| 082 | A 6204600335 | BRACKET |
| OIL TANK | ||
| 086 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 086 | N 304017010028 | SCREW |
| BRACKET TO STEERING | ||
| 090 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 094 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 094 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 094 | N 000000001149 | SCREW |
| OIL TANK TO BRACKET | ||
| 098 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 098 | N 913004006001 | NUT |
| OIL TANK TO BRACKET | ||
| A 3439970382 | HOSE | |
| Repalced by: A 3609970982 | ||
| 100 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 100 | A 3859971582 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 140 | ||
| 104 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 104 | N 000000000667 | CLAMP |
| HOSE TO SUCTION LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 144 | ||
| 108 | A 6204661665 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 108 | A 6204661765 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 148 | ||
| 112 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 112 | A 3859971582 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 152 | ||
| 116 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 116 | N 000000000667 | CLAMP |
| HOSE TO SUCTION LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 155 | ||
| A 6164600024 | LINE | |
| Repalced by: A 3874602624 | ||
| 120 | A 3874602624 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 120 | A 3874602424 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 159 | ||
| 124 | A 3874605424 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| A 6174602324 | LINE | |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 124 | A 3874605224 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| A 6564600724 | LINE | |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 163 | ||
| 128 | N 915017022100 | UNION NUT |
| SUCTION LINE TO OIL PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 168 | ||
| 132 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 132 | A 0019901267 | SEAL CONE |
| SUCTION LINE TO OIL PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 183 | ||
| 136 | A 0009906171 | ELBOW FITTING |
| SUCTION LINE TO OIL PUMP | ||
| N 003901022006 | SCREW-IN FITTING | |
| SUCTION LINE TO OIL PUMP | ||
| N 915043022200 | SCREW CONNECTION | |
| SUCTION LINE TO OIL PUMP | ||
| N 915043022200 | SCREW CONNECTION | |
| SUCTION LINE TO OIL PUMP | ||
| A 0029971572 | FITTING | |
| DELIVERY LINE TO PUMP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 187 | ||
| A 6164600124 | LINE | |
| Repalced by: A 3874601924 | ||
| 140 | A 3874601924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 140 | A 3874600924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 140 | A 3874604724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| A 6174602224 | LINE | |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 140 | A 3874603724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| A 0005516156 | TUBE | |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 176 | ||
| 144 | N 915017012100 | UNION NUT |
| DELIVERY LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 179 | ||
| 148 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 148 | A 0019901967 | SEAL CONE |
| DELIVERY LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 181 | ||
| 152 | A 0009978252 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 152 | A 0019976452 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 152 | A 0129972582 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 172 | ||
| 155 | A 3854600024 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX | ||
| 155 | A 3854600124 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 136 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 120 | ||
| 159 | N 915017012100 | UNION NUT |
| DELIVERY LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 124 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 128 | ||
| 163 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 163 | A 0019901967 | SEAL CONE |
| DELIVERY LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 132 | ||
| 168 | N 003901012011 | SCREW-IN FITTING |
| DELIVERY LINE TO STEERING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 112 | ||
| 172 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 116 | ||
| 176 | A 3854660265 | LINE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 108 | ||
| 179 | N 915017015100 | UNION NUT |
| RETURN LINE | ||
| 181 | N 003861015004 | GLAND |
| RETURN LINE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 100 | ||
| 183 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 183 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 183 | A 3859971682 | HOSE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 104 | ||
| 187 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 187 | N 000000000666 | CLAMP |
| HOSE TO RETURN LINE AND TO OIL TANK | ||
| 190 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| 194 | A 3874660240 | BRACKET |
| Repalced by: A 6564660040 | ||
| 194 | A 6564660040 | BRACKET |
| AT FRAME | ||
| 194 | A 3874660940 | BRACKET |
| AT FRAME | ||
| 198 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| 202 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 206 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 206 | N 916016018202 | CLAMP |
| LINES TO BRACKET | ||
| 210 | A 3609950401 | CLAMP |
| LINES TO BRACKET | ||
| 214 | N 007985006176 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X20 | ||
| 218 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 218 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 222 | A 6164660040 | BRACKET |
| OIL LINE TO ENGINE | ||
| 222 | A 3874660440 | BRACKET |
| Repalced by: A 6205244040 | ||
| 222 | A 6205244040 | BRACKET |
| BRACKET TO UPPER SCREW ON RIGHT TRANSVERSE INTAKE PIPE | ||
| 224 | A 3874661240 | BRACKET |
| Repalced by: A 3044760335 | ||
| 224 | A 3044760335 | BRACKET |
| Repalced by: A 6205244040 | ||
| 224 | A 6205244040 | BRACKET |
| BRACKET TO UPPER SCREW ON RIGHT TRANSVERSE INTAKE PIPE | ||
| 226 | A 3874660840 | BRACKET |
| Repalced by: A 3875015820 | ||
| 226 | A 3875015820 | BRACKET |
| Repalced by: A 3524290740 | ||
| 226 | A 3524290740 | BRACKET |
| LEFT TRANSVERSE INTAKE PIPE | ||
| A 3552711140 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292940 | BRACKET | |
| LEFT TRANSVERSE INTAKE PIPE | ||
| 228 | A 3814661140 | BRACKET |
| Repalced by: A 3604293140 | ||
| 228 | A 3604293140 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 228 | A 3604293140 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 230 | N 916016012200 | CLAMP |
| LINES TO BRACKET | ||
| 234 | N 916016022202 | CLAMP |
| LINES TO BRACKET | ||
| 238 | N 007985006176 | SCREW |
| OIL LINE TO ENGINE | ||
| M 6X20 | ||
| 238 | N 007985006176 | SCREW |
| OIL LINE TO ENGINE | ||
| M 6X20 | ||
| 238 | N 007985006176 | SCREW |
| OIL LINE TO ENGINE | ||
| M 6X20 | ||
| N 000933006083 | SCREW | |
| OIL LINE TO ENGINE | ||
| M 6X35 | ||
| 242 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 242 | N 913004006001 | NUT |
| OIL LINE TO ENGINE | ||

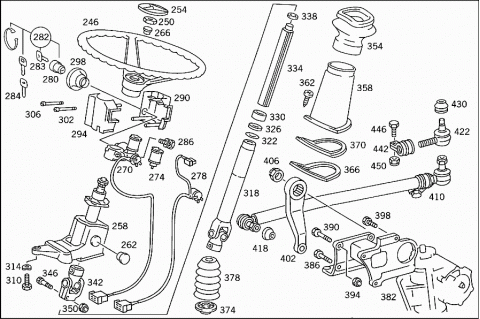

| 246 | A 3834640201 | STEERING WHEEL |
| 250 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 254 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 258 | A 3814601831 | STEERING COLUMN BRACKET |
| 258 | A 6154601031 | STEERING COLUMN BRACKET |
| 258 | A 3814602531 | STEERING COLUMN BRACKET |
| 258 | A 6154601331 | STEERING COLUMN BRACKET |
| 262 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 266 | A 3819971186 | PLUG |
| TOP | ||
| 270 | A 0014621130 | STEERING LOCK |
| LESS TUMBLER | ||
| 274 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 278 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 280 | A 3814600104 | TUMBLER |
| HUF | ||
| 280 | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 282 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 282 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 283 | A 0007600006 | KEY |
| HUF | ||
| 283 | A 0007600606 | KEY |
| YMOS | ||
| 284 | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 284 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 286 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 290 | A 3814622143 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 290 | A 3814622243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 294 | A 3814620143 | SHELL |
| Repalced by: A 3814622443 | ||
| 294 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 294 | A 3814622343 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| A 6204620043 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620443 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 3574620096 | BOOT | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 3574620196 | BOOT | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 298 | A 3814620486 | GROMMET |
| STEERING COLUMN | ||
| 302 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X75,5 | ||
| 306 | A 3019900021 | SCREW |
| Repalced by: A 3819900321 | ||
| 306 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 306 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 310 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 310 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 314 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| 314 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| 318 | A 3814600609 | STEERING SHAFT |
| Repalced by: A 6504600209 | ||
| 318 | A 6504600209 | STEERING SHAFT |
| LEMFOERDER | ||
| 318 | A 6504600609 | STEERING SHAFT |
| 318 | A 3814607109 | STEERING SHAFT |
| 322 | A 3814620175 | WASHER |
| TO A 381 460 06 09 | ||
| 326 | A 3814620260 | SEAL RING |
| TO A 381 460 06 09 | ||
| 330 | A 3814620061 | SEAL HOLDER |
| TO A 381 460 06 09 | ||
| 334 | A 3814620403 | SLEEVE |
| STEERING SHAFT | ||
| 338 | A 3814620251 | RING |
| STEERING SHAFT | ||
| TO A 381 460 06 09 | ||
| 342 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 342 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 342 | A 0004600057 | UNIVERSAL JOINT |
| 342 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 342 | A 0004600157 | UNIVERSAL JOINT |
| 346 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 346 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING COLUMN | ||
| M 8X42 | ||
| 346 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 346 | A 3169900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X38 | ||
| 350 | N 910113008001 | NUT |
| STEERING SHAFT TO JOINT | ||
| 350 | N 910113008001 | NUT |
| STEERING SHAFT TO STEERING COLUMN | ||
| 354 | A 3874610396 | BOOT |
| STEERING SHAFT | ||
| 358 | A 3874611297 | PROTECTIVE SLEEVE |
| STEERING SHAFT | ||
| 362 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 362 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 366 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 370 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 374 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 378 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 382 | A 3874610240 | STEERING SUPPORT |
| AT FRAME | ||
| 382 | A 3874610340 | STEERING SUPPORT |
| AT FRAME | ||
| 386 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 390 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 394 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 394 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 398 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 398 | N 308676016006 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| M 16X1.5X45 | ||
| 402 | A 6194630101 | PITMAN ARM |
| 402 | A 6194630201 | PITMAN ARM |
| Repalced by: A 6194630301 | ||
| 402 | A 6194630201 | PITMAN ARM |
| Repalced by: A 6194630301 | ||
| 402 | A 6194630301 | PITMAN ARM |
| 404 | A 3914630601 | PITMAN ARM |
| FRONT | ||
| 404 | A 6194630401 | PITMAN ARM |
| 404 | A 3914630701 | PITMAN ARM |
| FRONT | ||
| 404 | A 6194630501 | PITMAN ARM |
| 406 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 406 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 410 | A 6174600005 | DRAG LINK |
| Repalced by: A 6174602805 | ||
| 410 | A 6174602805 | DRAG LINK |
| LEMFOERDER | ||
| 410 | A 6174600205 | DRAG LINK |
| EHRENREICH | ||
| 410 | A 6194601105 | DRAG LINK |
| Repalced by: A 6194602505 | ||
| 410 | A 6194602505 | DRAG LINK |
| Repalced by: A 6194605205 | ||
| 410 | A 6194605205 | DRAG LINK |
| LEMFOERDER | ||
| 410 | A 6194602905 | DRAG LINK |
| EHRENREICH | ||
| 410 | A 6174600105 | DRAG LINK |
| Repalced by: A 6174602905 | ||
| 410 | A 6174602905 | DRAG LINK |
| LEMFOERDER | ||
| 410 | A 6174600305 | DRAG LINK |
| EHRENREICH | ||
| 410 | A 6194601205 | DRAG LINK |
| Repalced by: A 6194602705 | ||
| 410 | A 6194602705 | DRAG LINK |
| Repalced by: A 6194605305 | ||
| 410 | A 6194605305 | DRAG LINK |
| LEMFOERDER | ||
| 410 | A 6194603105 | DRAG LINK |
| EHRENREICH | ||
| 412 | A 6194600005 | DRAG LINK |
| Repalced by: A 6994603505 | ||
| 412 | A 6194600105 | DRAG LINK |
| Repalced by: A 6994603505 | ||
| 412 | A 6994603505 | DRAG LINK |
| Repalced by: A 6254601305 | ||
| 412 | A 6254601305 | DRAG LINK |
| Repalced by: A 6224601405 | ||
| 412 | A 6224601405 | DRAG LINK |
| FROM PITMAN ARM TO FRONT AXLE I | ||
| LEMFOERDER | ||
| 412 | A 6994603705 | DRAG LINK |
| Repalced by: A 6224601505 | ||
| 412 | A 6224601505 | DRAG LINK |
| FROM PITMAN ARM TO FRONT AXLE I | ||
| EHRENREICH | ||
| 418 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 418 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 418 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| 422 | A 0004603448 | DRAG LINK END |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 422 | A 0004603548 | DRAG LINK END |
| Repalced by: A 0014601448 | ||
| 422 | A 0014601448 | DRAG LINK END |
| Repalced by: A 0014602348 | ||
| 422 | A 0014602348 | DRAG LINK END |
| L.H. THREAD | ||
| EHRENREICH | ||
| 422 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 422 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 422 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 422 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 422 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 422 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 422 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 430 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 430 | A 0004621796 | BOOT |
| 430 | A 0004261896 | CUP |
| 442 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 442 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 442 | A 0003383145 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 442 | A 0003383145 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 442 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 442 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 446 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 446 | N 000960012353 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 446 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 446 | N 308676012017 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 450 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 450 | N 910113012003 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 454 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094005035 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| 462 | A 3914601105 | DRAG LINK |
| Repalced by: A 3914601905 | ||
| 462 | A 3914601905 | DRAG LINK |
| FROM PITMAN ARM TO STEERING SUPPORT I | ||
| LEMFOERDER | ||
| 462 | A 3914601405 | DRAG LINK |
| Repalced by: A 3914602005 | ||
| 462 | A 3914602005 | DRAG LINK |
| FROM PITMAN ARM TO STEERING SUPPORT I | ||
| EHRENREICH | ||
| 470 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 470 | A 0004621796 | BOOT |
| 474 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| 474 | N 000094005045 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 482 | A 6224610040 | STEERING SUPPORT |
| "I" | ||
| 486 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 486 | N 308676016020 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 490 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 490 | N 910113016001 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 494 | A 6224630210 | STEERING INTERMEDIATE ARM |
| "I" | ||
| 494 | A 6224630310 | STEERING INTERMEDIATE ARM |
| "I" | ||
| 500 | A 0069977545 | SEAL RING |
| INSIDE | ||
| 506 | A 0069973048 | SEAL RING |
| INSIDE AND OUTSIDE | ||
| 510 | A 6224630162 | THRUST WASHER |
| INSIDE | ||
| 514 | A 0049813810 | NEEDLE BEARING |
| 518 | A 3634630153 | SPACER TUBE |
| 522 | A 0059978148 | SEAL RING |
| Repalced by: A 0169973648 | ||
| 522 | A 0169973648 | SEAL RING |
| OUTSIDE | ||
| 526 | A 6224630062 | THRUST WASHER |
| OUTSIDE | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 530 | N 071412008102 | GREASE NIPPLE |
| 534 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 534 | N 910113018004 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 538 | A 6194600405 | DRAG LINK |
| Repalced by: A 6194604505 | ||
| 538 | A 6194604505 | DRAG LINK |
| FROM STEERING SUPPORT I TO STEERING SUPPORT II | ||
| LEMFOERDER | ||
| 538 | A 6194601905 | DRAG LINK |
| FROM STEERING SUPPORT I TO STEERING SUPPORT II | ||
| EHRENREICH | ||
| 538 | A 6194601605 | DRAG LINK |
| Repalced by: A 6194604905 | ||
| 538 | A 6194604905 | DRAG LINK |
| FROM STEERING SUPPORT I TO STEERING SUPPORT II | ||
| LEMFOERDER | ||
| 538 | A 6194602405 | DRAG LINK |
| FROM STEERING SUPPORT I TO STEERING SUPPORT II | ||
| EHRENREICH | ||
| 546 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 546 | A 0004621796 | BOOT |
| 550 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094005035 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| 558 | A 6224610140 | STEERING SUPPORT |
| "II" | ||
| 564 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 564 | N 308676014012 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X45 | ||
| 564 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||

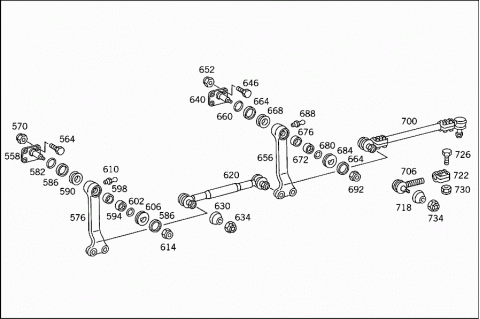

| 570 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 570 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 576 | A 3854630010 | STEERING INTERMEDIATE ARM |
| Repalced by: A 6544630210 | ||
| 576 | A 6544630210 | STEERING INTERMEDIATE ARM |
| "II" | ||
| 576 | A 3854630110 | STEERING INTERMEDIATE ARM |
| Repalced by: A 6544630310 | ||
| 576 | A 6544630310 | STEERING INTERMEDIATE ARM |
| "II" | ||
| 582 | A 0069977545 | SEAL RING |
| INSIDE | ||
| A 0159971847 | SEAL RING | |
| INSIDE | ||
| 586 | A 0069973048 | SEAL RING |
| INSIDE AND OUTSIDE | ||
| 590 | A 6224630162 | THRUST WASHER |
| INSIDE | ||
| 590 | A 6574630162 | THRUST WASHER |
| INSIDE | ||
| 594 | A 0049813810 | NEEDLE BEARING |
| 598 | A 3634630053 | SPACER TUBE |
| 602 | A 0059978148 | SEAL RING |
| Repalced by: A 0169973648 | ||
| 602 | A 0169973648 | SEAL RING |
| OUTSIDE | ||
| 606 | A 6224630062 | THRUST WASHER |
| OUTSIDE | ||
| 606 | A 6574630062 | THRUST WASHER |
| OUTSIDE | ||
| 610 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 610 | N 071412008102 | GREASE NIPPLE |
| 614 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 614 | N 910113018004 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| A 6254630033 | CAP | |
| 620 | A 6194600605 | DRAG LINK |
| Repalced by: A 6194604705 | ||
| 620 | A 6194604705 | DRAG LINK |
| FROM STEERING SUPPORT II TO STEERING SUPPORT III | ||
| LEMFOERDER | ||
| 620 | A 6194602105 | DRAG LINK |
| FROM STEERING SUPPORT II TO STEERING SUPPORT III | ||
| EHRENREICH | ||
| 620 | A 6194600505 | DRAG LINK |
| Repalced by: A 6194604605 | ||
| 620 | A 6194604605 | DRAG LINK |
| FROM STEERING SUPPORT II TO STEERING SUPPORT III | ||
| LEMFOERDER | ||
| 620 | A 6194602005 | DRAG LINK |
| FROM STEERING SUPPORT II TO STEERING SUPPORT III | ||
| EHRENREICH | ||
| 630 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 630 | A 0004621796 | BOOT |
| 634 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094005035 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| 640 | A 6224610140 | STEERING SUPPORT |
| "III" | ||
| 640 | A 6224610140 | STEERING SUPPORT |
| "II" | ||
| 646 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 646 | N 308676014012 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X45 | ||
| 646 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 652 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 652 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 656 | A 6224630110 | STEERING INTERMEDIATE ARM |
| Repalced by: A 6574630110 | ||
| 656 | A 6574630110 | STEERING INTERMEDIATE ARM |
| "III" | ||
| 656 | A 6574630110 | STEERING INTERMEDIATE ARM |
| "II" | ||
| 660 | A 0069977545 | SEAL RING |
| INSIDE | ||
| A 0159971847 | SEAL RING | |
| INSIDE | ||
| 664 | A 0069973048 | SEAL RING |
| INSIDE AND OUTSIDE | ||
| 668 | A 6224630162 | THRUST WASHER |
| Repalced by: A 6574630162 | ||
| 668 | A 6574630162 | THRUST WASHER |
| INSIDE | ||
| 672 | A 0049813810 | NEEDLE BEARING |
| 676 | A 3634630053 | SPACER TUBE |
| 680 | A 0059978148 | SEAL RING |
| Repalced by: A 0169973648 | ||
| 680 | A 0169973648 | SEAL RING |
| OUTSIDE | ||
| 684 | A 6224630062 | THRUST WASHER |
| Repalced by: A 6574630062 | ||
| 684 | A 6574630062 | THRUST WASHER |
| OUTSIDE | ||
| 688 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 688 | N 071412008102 | GREASE NIPPLE |
| 692 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 692 | N 910113018004 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| A 6254630033 | CAP | |
| 700 | A 3914600605 | DRAG LINK |
| Repalced by: A 3914601505 | ||
| 700 | A 3914601505 | DRAG LINK |
| FROM INTERMEDIATE LEVER III TO FRONT AXLE II | ||
| LEMFOERDER | ||
| 700 | A 3914601505 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| LEMFOERDER | ||
| 700 | A 3914601205 | DRAG LINK |
| Repalced by: A 3914601605 | ||
| 700 | A 3914601605 | DRAG LINK |
| FROM INTERMEDIATE LEVER III TO FRONT AXLE II | ||
| EHRENREICH | ||
| 700 | A 3914601605 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| EHRENREICH | ||
| 700 | A 6224600205 | DRAG LINK |
| Repalced by: A 6224600905 | ||
| 700 | A 6224600905 | DRAG LINK |
| FROM INTERMEDIATE LEVER III TO FRONT AXLE II | ||
| LEMFOERDER | ||
| 700 | A 6224600905 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| LEMFOERDER | ||
| 700 | A 6224600305 | DRAG LINK |
| Repalced by: A 6224601005 | ||
| 700 | A 6224601005 | DRAG LINK |
| FROM INTERMEDIATE LEVER III TO FRONT AXLE II | ||
| EHRENREICH | ||
| 700 | A 6224601005 | DRAG LINK |
| FROM INTERMEDIATE LEVER II TO FRONT AXLE II | ||
| EHRENREICH | ||
| 706 | A 0004600648 | DRAG LINK END |
| Repalced by: A 0004603448 | ||
| 706 | A 0004603448 | DRAG LINK END |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 706 | A 0004601248 | DRAG LINK END |
| Repalced by: A 0004603548 | ||
| 706 | A 0004603548 | DRAG LINK END |
| Repalced by: A 0014601448 | ||
| 706 | A 0014601448 | DRAG LINK END |
| Repalced by: A 0014602348 | ||
| 706 | A 0014602348 | DRAG LINK END |
| L.H. THREAD | ||
| EHRENREICH | ||
| 706 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 706 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 706 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 706 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 706 | A 0004601048 | DRAG LINK END |
| Repalced by: A 0004602948 | ||
| 706 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 706 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 706 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 718 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 718 | A 0004621796 | BOOT |
| 722 | A 0003380645 | CLAMP |
| CLAMP, TWO-HOLE | ||
| A 0003382445 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383445 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| 726 | N 000960012349 | SCREW |
| CLAMP, TWO-HOLE | ||
| 726 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 726 | N 000960012353 | SCREW |
| CLAMP, ONE-HOLE | ||
| 730 | N 910113012002 | NUT |
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 734 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094005045 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
