Transporto priemonė: 2222; VIN numerio dalis: 619037
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.6 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.3 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.8 | ||

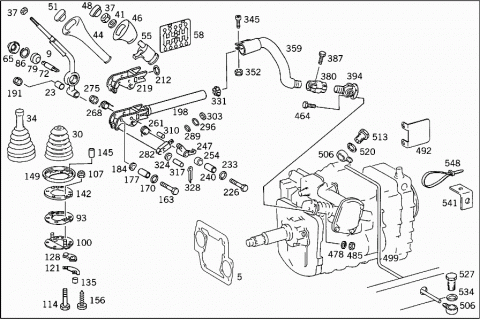

| 005 | A 0002611680 | GASKET |
| TRANSMISSION TO BELL HOUSING | ||
| 009 | A 3852606839 | SHIFT LEVER |
| 016 | A 3852606939 | SHIFT LEVER |
| 023 | A 3359920203 | BUSHING |
| 030 | A 3892680097 | BOOT |
| 030 | A 3892680097 | BOOT |
| 034 | A 6202680097 | BOOT |
| SHIFT LEVER | ||
| 037 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 041 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 041 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 044 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 044 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 046 | A 6202600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 048 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 048 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 051 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 051 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 051 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 051 | A 6202680257 | COVER |
| 055 | A 0002609557 | VALVE |
| Repalced by: A 0012602457 | ||
| 055 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 055 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 055 | A 0012605357 | VALVE |
| Repalced by: A 0012606357 | ||
| 055 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 055 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 058 | A 3855840338 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 058 | A 3855840138 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 058 | A 3855840138 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 058 | A 3855840138 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 058 | A 6205840138 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 065 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 065 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 072 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 079 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 079 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 079 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 086 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 093 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 100 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 107 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 107 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 114 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 114 | N 304017008018 | SCREW |
| SHIFT LEVER TO CAB FLOOR | ||
| 121 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 128 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 135 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 142 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 145 | A 3852681950 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 149 | A 3852601962 | BRACKET |
| BOOT | ||
| 156 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 163 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 163 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 170 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 177 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 184 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 191 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 191 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 198 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 205 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| A 3852603882 | SHIFTING TUBE | |
| (TELESCOPIC TUBE) | ||
| 212 | A 0009978748 | SEAL RING |
| SHIFTING ROD | ||
| 30.20 MM | ||
| 219 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 226 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 226 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 233 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 240 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 247 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 247 | A 6202600087 | PAWL |
| PAWL TO ROD END | ||
| 254 | A 3359920203 | BUSHING |
| SHIFTING ROD | ||
| A 6209920003 | BUSHING | |
| SHIFTING ROD | ||
| A 6202680150 | BUSHING | |
| SHIFTING ROD | ||
| 261 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 268 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 275 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 282 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 282 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 289 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| WABCO | ||
| 296 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| WABCO | ||
| 303 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| WABCO | ||
| 310 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 310 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 317 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 324 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 328 | N 000094002059 | COTTER PIN |
| 331 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 338 | A 3852602062 | BRACKET |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 338 | A 3852602062 | BRACKET |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 345 | N 006912010000 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 352 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 352 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 359 | A 6192600033 | SHIFTING ROD |
| REAR | ||
| 359 | A 6192600033 | SHIFTING ROD |
| REAR | ||
| 359 | A 3812603033 | SHIFTING ROD |
| REAR | ||
| 359 | A 3852600182 | SHIFTING TUBE |
| REAR | ||
| 359 | A 3852600182 | SHIFTING TUBE |
| REAR | ||
| 362 | A 6192601133 | SHIFTING ROD |
| REAR | ||
| 362 | A 6192601133 | SHIFTING ROD |
| REAR | ||
| 366 | A 3812603533 | SHIFTING ROD |
| REAR | ||
| 366 | A 3812603533 | SHIFTING ROD |
| REAR | ||
| 370 | A 3842602882 | SHIFTING TUBE |
| REAR | ||
| 370 | A 6172600133 | SHIFTING ROD |
| Repalced by: A 6172601033 | ||
| 370 | A 6172601033 | SHIFTING ROD |
| REAR | ||
| 370 | A 6172601033 | SHIFTING ROD |
| REAR | ||
| 373 | A 3359920203 | BUSHING |
| 373 | A 3359920203 | BUSHING |
| 380 | A 3852680188 | CLAMPING PIECE |
| REAR SHIFTING ROD | ||
| 380 | A 3852680188 | CLAMPING PIECE |
| REAR SHIFTING ROD | ||
| 383 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 383 | A 6172680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 383 | A 6172680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 387 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 387 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 387 | N 304017010047 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 390 | N 000912014041 | SCREW |
| Repalced by: N 000912014008 | ||
| 390 | N 000912014008 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| 390 | N 000912014008 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| 390 | N 000933014014 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| 394 | A 3872680089 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3872680089 | JOINT |
| 394 | A 0002686489 | JOINT |
| REAR SHIFTING ROD | ||
| 349 | A 0002686489 | JOINT |
| 394 | A 3832680289 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3832680589 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3832680589 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3832680489 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3832680489 | JOINT |
| REAR SHIFTING ROD | ||
| 401 | A 3852600075 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 401 | A 3852600075 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 408 | A 3359920203 | BUSHING |
| 408 | A 3359920203 | BUSHING |
| 415 | A 0009978648 | SEAL RING |
| CONNECTOR | ||
| 415 | A 0009978648 | SEAL RING |
| CONNECTOR | ||
| 422 | A 3859900740 | WASHER |
| SHIFTING ROD TO CONNECTOR | ||
| 422 | A 3859900740 | WASHER |
| SHIFTING ROD TO CONNECTOR | ||
| 429 | A 3852681423 | YOKE |
| REAR SHIFTING ROD | ||
| 429 | A 3852681423 | YOKE |
| REAR SHIFTING ROD | ||
| 436 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 436 | N 304014010004 | SCREW |
| CONNECTOR TO YOKE | ||
| 436 | N 304014010004 | SCREW |
| CONNECTOR TO YOKE | ||
| 443 | A 3859901740 | WASHER |
| Repalced by: A 4039900040 | ||
| 443 | A 4039900040 | WASHER |
| CONNECTOR TO YOKE | ||
| 443 | A 4039900040 | WASHER |
| CONNECTOR TO YOKE | ||
| 450 | A 3852680153 | SPACER TUBE |
| CONNECTOR TO YOKE | ||
| 450 | A 3852680153 | SPACER TUBE |
| CONNECTOR TO YOKE | ||
| 457 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 457 | N 910113010000 | NUT |
| CONNECTOR TO YOKE | ||
| 457 | N 910113010000 | NUT |
| CONNECTOR TO YOKE | ||
| 457 | N 910113010000 | NUT |
| SHIFTING ROD TO CONNECTOR | ||
| 457 | N 910113010000 | NUT |
| CONNECTOR TO YOKE | ||
| 460 | A 3892609233 | SHIFTING ROD |
| WITH FLANGE | ||
| 460 | A 3892609233 | SHIFTING ROD |
| WITH FLANGE | ||
| 462 | A 3852680628 | CONNECTOR |
| 464 | A 3219900601 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 464 | A 3219900601 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 464 | A 3219900601 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 471 | N 000933008145 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 471 | N 000933008145 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 471 | N 000933008145 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 475 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 475 | N 304017008027 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 475 | N 304017008027 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 475 | A 0049906401 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 475 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 475 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 475 | A 0099900101 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 475 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 475 | N 304017008034 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 478 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD TO TRANSMISSION | ||
| 485 | N 304032008006 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 485 | N 304032008006 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 485 | N 304032008006 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 485 | N 304032008006 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 488 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 488 | N 913004008001 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
| 489 | A 3892600055 | FLANGE |
| SHIFTING ROD TO TRANSMISSION | ||
| 490 | A 3892680071 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 491 | N 000912012125 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| 492 | A 3852610788 | COVER PLATE |
| STARTING LOCK | ||
| 492 | A 3852610788 | COVER PLATE |
| STARTING LOCK | ||
| A 0109975982 | HOSE | |
| Repalced by: A 0009872827 | ||
| A 0009872827 | PLASTIC PIPE | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| 9X12 MM | ||
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| A 0029906171 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| N 003861012007 | GLAND | |
| Repalced by: A 0019901967 | ||
| A 0019901967 | SEAL CONE | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| N 915017012100 | UNION NUT | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| N 915062009000 | SLEEVE | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| N 915052009009 | BANJO UNION | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| 9X16 MM | ||
| A 0019905270 | T-FITTING | |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| N 915036012203 | HOLLOW SCREW | |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| N 007603016401 | SEAL RING | |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| N 915036008202 | HOLLOW SCREW | |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| A 0049978672 | FITTING | |
| (SUPPLY LINE) FROM AIR RESERVOIR TO FITTING | ||
| 499 | A 0089979082 | HOSE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO 3/2-WAY VALVE | ||
| 6X8 MM | ||
| 499 | A 0089979082 | HOSE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO 3/2-WAY VALVE | ||
| 6X8 MM | ||
| 499 | A 0089979082 | HOSE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO 3/2-WAY VALVE | ||
| 6X8 MM | ||
| 502 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 502 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 502 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 503 | N 003861008005 | GLAND |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| 504 | N 915017008100 | UNION NUT |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| 505 | N 915062006000 | SLEEVE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR CLEANER,TRANSMISSION | ||
| 506 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 506 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 506 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 513 | N 915039008202 | HOLLOW SCREW FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "1" | ||
| 513 | N 915039008202 | HOLLOW SCREW FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "1" | ||
| 520 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "1" | ||
| 520 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "1" | ||
| 527 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 527 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 531 | N 915036006202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO SUPPLY DISTRIBUTOR | ||
| 531 | N 915036006202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO SUPPLY DISTRIBUTOR | ||
| 534 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 534 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 534 | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO SUPPLY DISTRIBUTOR | ||
| "24" | ||
| 534 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 536 | A 0019905971 | ELBOW FITTING |
| SUPPLY LINE TO TRANSMISSION AIR CLEANER | ||
| 536 | A 0019900671 | ELBOW FITTING |
| SUPPLY LINE TO TRANSMISSION AIR CLEANER | ||
| 538 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE,NEUTRAL POSITION; CONNECTIONS: | ||
| "1" | ||
| 539 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE,NEUTRAL POSITION; CONNECTIONS: | ||
| "11" | ||
| 541 | A 3852670040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 541 | A 3852670040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 548 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||

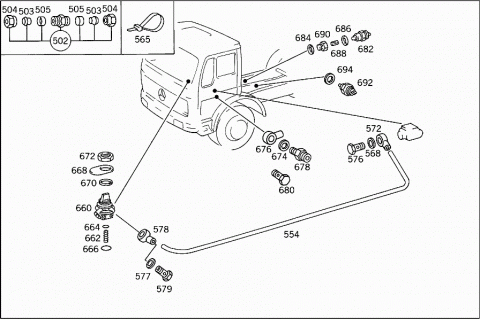

| 554 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 554 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,3/2-WAY VALVE,SHIFT CYLINDER | ||
| 4X6 MM | ||
| 554 | A 0009872627 | PLASTIC PIPE |
| FROM PRESSURE RELIEF VALVE TO TWIN-HSHIFT 4/2-WAY VALVE | ||
| 4X6 MM | ||

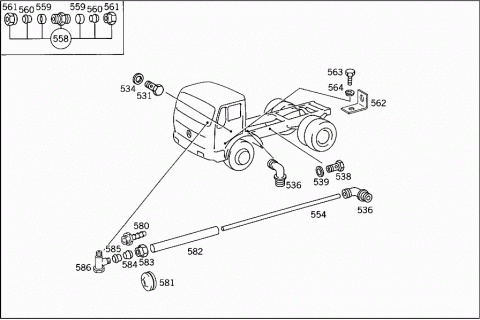

| 558 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 559 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 560 | N 003861006007 | GLAND |
| LINE CONNECTIONS | ||
| 560 | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 561 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 561 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 562 | A 3604280243 | ANGLE |
| LINE MOUNTING | ||
| 563 | N 000933010198 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 564 | N 912004010102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 565 | A 0019978390 | LOOM TIE |
| LINE TO SIDE MEMBER | ||
| 565 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 568 | N 007603012405 | SEAL RING |
| DISTRIBUTOR,CONNECTION: | ||
| "70" | ||
| 572 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 572 | N 915052004015 | BANJO UNION |
| FROM 3/2-WAY VALVE TO CLUTCH BRAKE CONNECTION | ||
| 4/12 MM | ||
| 576 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "70" | ||
| 577 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 577 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24" | ||
| 578 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 579 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "14,24" | ||
| 579 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "1" | ||
| 580 | N 915059004001 | FITTING |
| LINE CONNECTIONS | ||
| 581 | A 1109970481 | GROMMET |
| 582 | A 0109975482 | PLASTIC TUBE |
| 583 | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| 584 | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| 585 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 586 | A 0019906371 | ELBOW FITTING |
| PRESSURE RELIEF VALVE,TRANSMISSION | ||
| 586 | A 0019906171 | ELBOW FITTING |
| CLUTCH BRAKE | ||

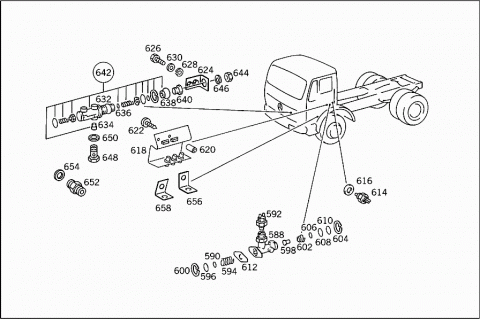

| 588 | A 0002607857 | VALVE |
| NEUTRAL-POSITION/CLUTCH-BRAKE INDICATION | ||
| 590 | A 0099975348 | SEAL RING |
| 592 | A 0005457509 | SWITCH |
| Repalced by: A 0005454909 | ||
| 592 | A 0005454909 | SWITCH |
| Repalced by: A 0005458309 | ||
| 592 | A 0005458309 | SWITCH |
| Repalced by: A 0005457909 | ||
| 592 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 592 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 592 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 592 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 594 | A 0059932801 | SPRING |
| (PRESSURE SPRING) | ||
| 596 | A 0099975448 | SEAL RING |
| 598 | A 0002680721 | PISTON |
| 600 | N 000472021000 | LOCK RING |
| 602 | A 0009935105 | SPRING |
| 604 | N 000472019000 | LOCK RING |
| 606 | A 0099975548 | SEAL RING |
| 608 | A 0099975648 | SEAL RING |
| 610 | A 0099975748 | SEAL RING |
| 612 | A 3852611880 | GASKET |
| Repalced by: A 3852613680 | ||
| 612 | A 3852613680 | GASKET |
| 3/2-WAY VALVE TO TRANSMISSION | ||
| 614 | A 0015454414 | SWITCH |
| OPTICAL GROUP INDICATION | ||
| 616 | N 007603018101 | SEAL RING |
| OPTICAL GROUP INDICATION | ||
| 618 | A 6192600062 | BRACKET |
| Repalced by: A 6172600162 | ||
| 618 | A 6172600162 | BRACKET |
| CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT | ||
| 620 | A 3479915040 | SPACER TUBE |
| BRACKET TO CAB | ||
| 622 | N 007981004254 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 624 | A 6202900133 | BRACKET |
| 3/2-WAY VALVE | ||
| 626 | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 628 | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 630 | N 000125006421 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| Repalced by: N 000125006449 | ||
| 630 | N 000125006449 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 632 | A 0004342201 | VALVE |
| 3/2-WAY;GROUP SHIFT | ||
| 634 | A 0003280191 | CLEANER |
| 636 | A 0079972548 | SEAL RING |
| 638 | A 0004340586 | CUP |
| 640 | A 0009971977 | HANDLE |
| 642 | A 0025869843 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 644 | N 074305026202 | NUT |
| VALVE TO BRACKET | ||
| 646 | A 3609900840 | WASHER |
| Repalced by: N 001440027000 | ||
| 646 | N 001440027000 | WASHER |
| VALVE TO BRACKET | ||
| 648 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY;GROUP SHIFT | ||
| 650 | N 007603012405 | SEAL RING |
| 3/2-WAY;GROUP SHIFT | ||
| 652 | A 3509977872 | FITTING |
| Repalced by: A 0019975372 | ||
| 652 | A 0019975372 | FITTING |
| NEUTRAL POSITION 3/2-WAY VALVE; CONNECTION: | ||
| 654 | N 007603010404 | SEAL RING |
| NEUTRAL POSITION 3/2-WAY VALVE; CONNECTION: | ||
| 656 | A 3604280243 | ANGLE |
| COMPRESSED AIR LINE MOUNTING | ||
| 658 | A 3874760136 | BRACKET |
| Repalced by: A 6454310740 | ||
| 658 | A 6454310740 | BRACKET |
| COMPRESSED AIR LINE TO TRANSMISSION | ||
| 660 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 660 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 660 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 660 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 662 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 664 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 666 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 668 | A 3855841524 | SYMBOL PLATE |
| P.T.O. | ||
| 670 | A 6239900040 | WASHER |
| VALVE TO FLOOR | ||
| 672 | A 3839900051 | NUT |
| VALVE TO FLOOR | ||
| 674 | N 007603012405 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "10" | ||
| 676 | N 915052004015 | BANJO UNION |
| SHIFTING CYLINDER,CONNECTION: | ||
| "10" | ||
| 678 | N 915039008202 | HOLLOW SCREW FITTING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "10" | ||
| 680 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "10" | ||
| 682 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 682 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 682 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 682 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 682 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 682 | A 0015452709 | SWITCH |
| NEUTRAL POSITION | ||
| 684 | A 0002680559 | SEAL RING |
| IDLE-INDICATOR-SWITCH THREADED BUSHING | ||
| 684 | A 0002680559 | SEAL RING |
| IDLE-INDICATOR-SWITCH THREADED BUSHING | ||
| 686 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1,60 MM | ||
| 686 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 1,80 MM | ||
| 686 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,00 MM | ||
| 686 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,00 MM | ||
| 686 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,20 MM | ||
| 686 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,20 MM | ||
| 686 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,40 MM | ||
| 686 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,40 MM | ||
| 686 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,60 MM | ||
| 686 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 2,80 MM | ||
| 686 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO THREADED BUSHING; AS REQUIRED | ||
| 3,00 MM | ||
| 688 | A 0002684674 | PIN |
| NEUTRAL POSITION | ||
| 688 | A 0002684674 | PIN |
| NEUTRAL POSITION | ||
| 690 | A 0002610131 | THREADED BUSHING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 690 | A 0002610131 | THREADED BUSHING |
| IDLE POSITION INDICATOR SWITCH TO TRANSMISSION CASE OVER | ||
| 692 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 692 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 692 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 692 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 694 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 694 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATION | ||
| 694 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
