Transporto priemonė: 2222; VIN numerio dalis: 619037

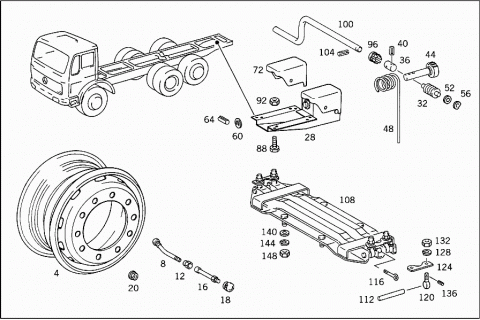

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6174000002 | DISC WHEEL |
| Repalced by: A 3854001302 | ||
| 004 | A 3854001302 | DISC WHEEL |
| Repalced by: A 0004017405 | ||
| 004 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 004 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 004 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 004 | A 0004018705 | RIM |
| Repalced by: A 0004012302 | ||
| 004 | A 0004012302 | DISC WHEEL |
| Repalced by: A 0004002922 | ||
| 004 | A 0004002922 | PART NAME MISSING |
| 7.50X22.5 | ||
| 004 | A 0004002922 | PART NAME MISSING |
| 7.50X22.5 | ||
| 004 | A 0004002922 | PART NAME MISSING |
| 7.50X22.5 | ||
| 004 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 004 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 004 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 004 | A 6174000102 | DISC WHEEL |
| Repalced by: A 3874000102 | ||
| 004 | A 3874000102 | DISC WHEEL |
| Repalced by: A 0004017605 | ||
| 004 | A 0004017605 | RIM |
| Repalced by: A 0004017905 | ||
| 004 | A 0004017905 | RIM |
| Repalced by: A 0004016702 | ||
| 004 | A 0004016702 | DISC WHEEL |
| 8.25X22.5 | ||
| 004 | A 0004016702 | DISC WHEEL |
| 8.25X22.5 | ||
| 004 | A 0004016702 | DISC WHEEL |
| 8.25X22.5 | ||
| 004 | A 0004011702 | DISC WHEEL |
| Repalced by: A 0004018905 | ||
| 004 | A 0004018905 | RIM |
| Repalced by: A 0004016502 | ||
| 004 | A 0004016502 | DISC WHEEL |
| 9,25X22.5 | ||
| 004 | A 0004016502 | DISC WHEEL |
| 9,25X22.5 | ||
| 004 | A 0004016502 | DISC WHEEL |
| 9,25X22.5 | ||
| 004 | A 0004016602 | DISC WHEEL |
| 8,25X22.5 | ||
| 004 | A 0004016602 | DISC WHEEL |
| 8,25X22.5 | ||
| 004 | A 0004016602 | DISC WHEEL |
| 8,25X22.5 | ||
| 008 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 008 | A 0004017113 | VALVE |
| Repalced by: A 0004013213 | ||
| 008 | A 0004013213 | VALVE |
| 27 DEGREES | ||
| 012 | A 0004010272 | NUT |
| VALVE TO DISC WHEEL | ||
| 016 | A 0004010513 | VALVE |
| Repalced by: A 3854010013 | ||
| 016 | A 3854010013 | VALVE |
| EXTENSION | ||
| 016 | A 3854010113 | VALVE |
| EXTENSION | ||
| 018 | N 007757008600 | VALVE CAP |
| 020 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 028 | A 3814001639 | SPARE WHEEL HOIST |
| 032 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 032 | A 6204030085 | WORM |
| 036 | A 3814030250 | BUSHING |
| 040 | N 001481006027 | CLAMPING SLEEVE |
| BUSHING TO WORM | ||
| 6X24 MM | ||
| 044 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 044 | A 6204030483 | STOP GEAR |
| 048 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 048 | N 083334008000 | WIRE CABLE |
| 2700 MM | ||
| 052 | A 3819900340 | WASHER |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 052 | A 6179900540 | WASHER |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 056 | N 002093031201 | DISC SPRING |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 060 | A 3819900140 | WASHER |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 064 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 064 | N 308752008000 | CLAMPING PIN |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 8X50 MM | ||
| 072 | A 3814030044 | COVER PLATE |
| 088 | N 000933010128 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 096 | A 3814030150 | BUSHING |
| AT FRAME | ||
| 096 | A 3834030050 | BUSHING |
| AT FRAME | ||
| 100 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 104 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| 108 | A 3814002639 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 112 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 116 | N 000094004065 | COTTER PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 120 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 120 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 124 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 128 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 132 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 132 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 136 | N 007346004016 | CLAMPING SLEEVE |
| SPARE WHEEL CARRIER TO FRAME | ||
| 140 | N 007349021001 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 144 | N 912004020100 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 148 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 148 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 148 | N 308674020000 | NUT |
| SPARE WHEEL TO BRACKET | ||
