Transporto priemonė: 2224/6X2; VIN numerio dalis: 385333
Grupė: 42 BRAKES

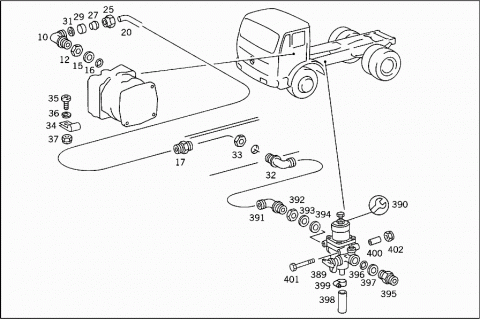

43221

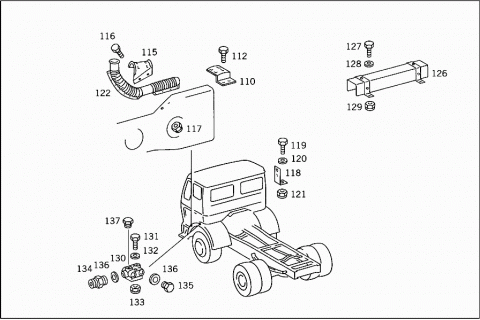

44298

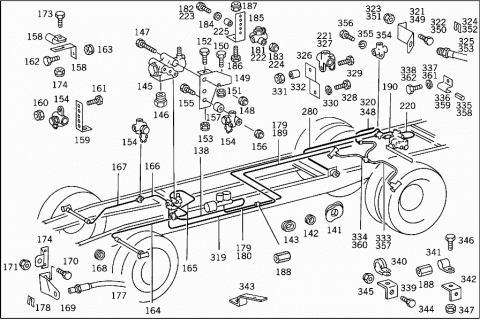

43223

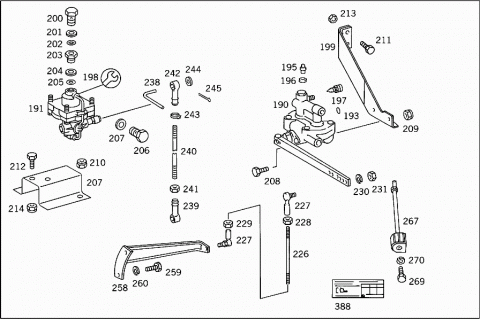

44299

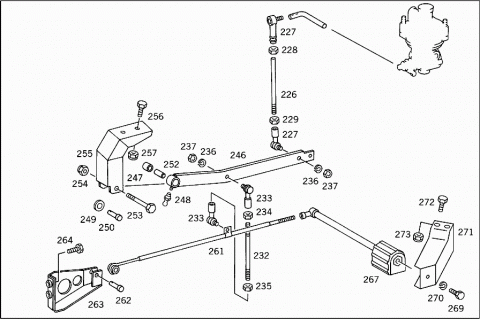

43229

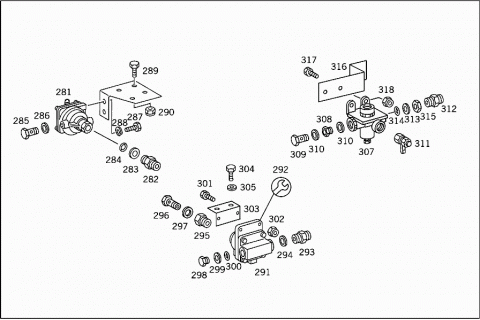

43226

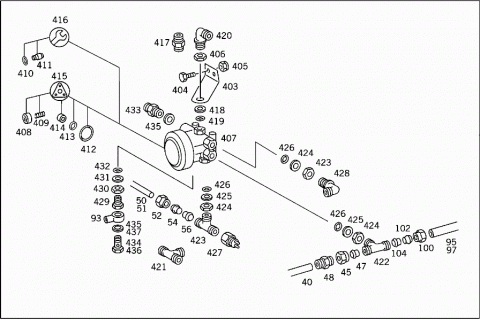

43227

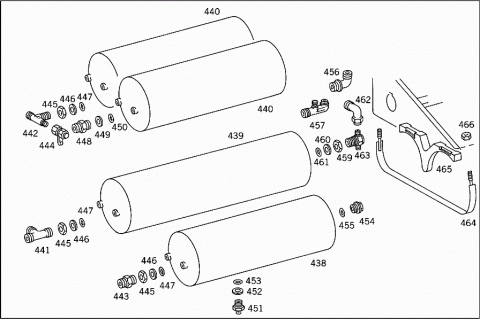

43228

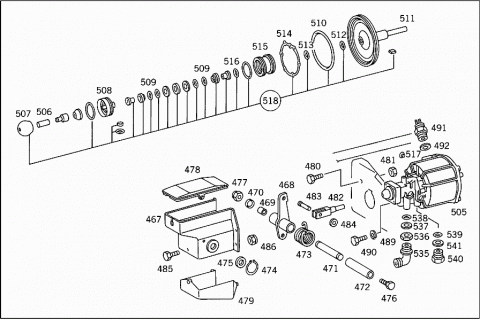

43230

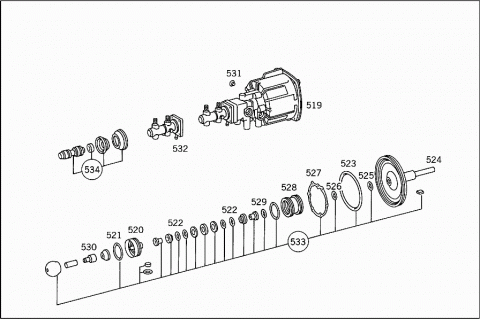

43231
43232

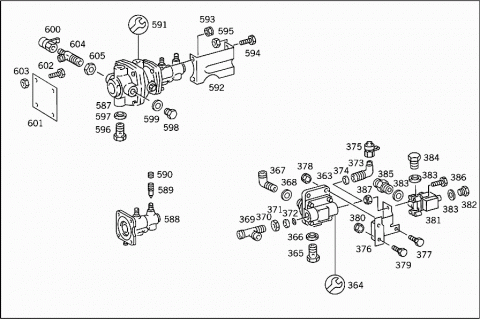

43233

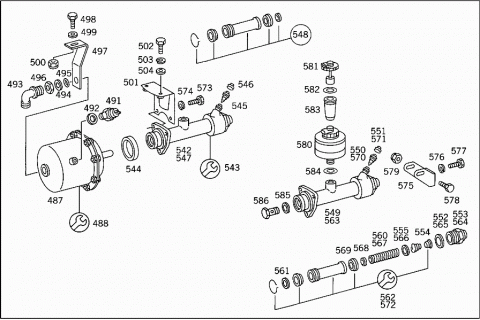

43234

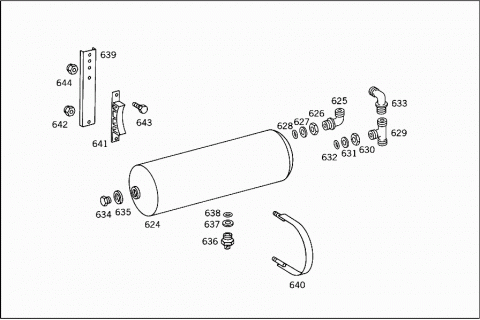

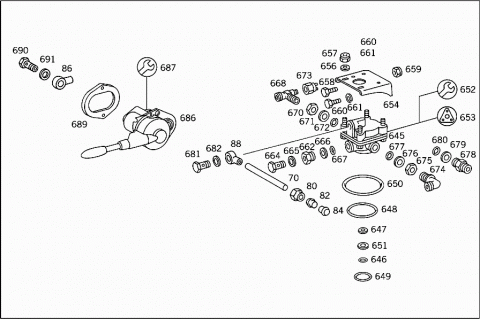

43235

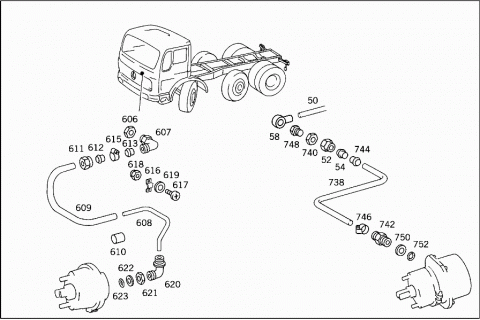

43236

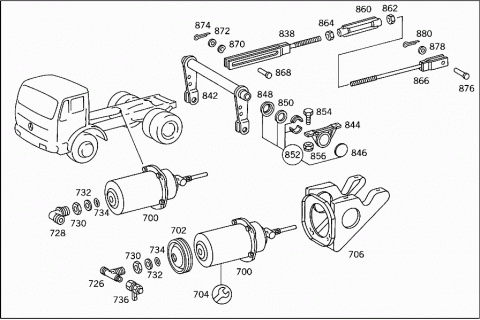

43237

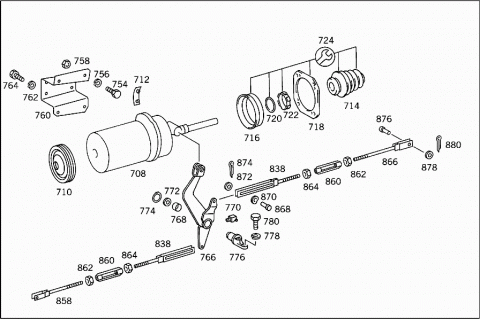

43238

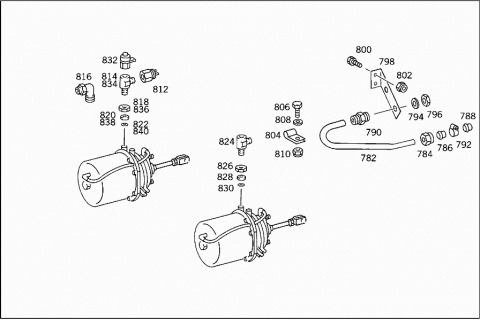

43239
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.1;749.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
744.8
010 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
010 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
012 N 074305026202 NUT
AT AIR COMPRESSOR
012 N 074305026202 NUT
AT AIR COMPRESSOR
N 007603026104 SEAL RING
AT AIR COMPRESSOR
015 A 0004290527 THRUST RING
AT AIR COMPRESSOR
015 A 0004290527 THRUST RING
AT AIR COMPRESSOR
016 A 0039973848 SEAL RING
AT AIR COMPRESSOR
016 A 0039973848 SEAL RING
AT AIR COMPRESSOR
017 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
020 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
025 N 915018015000 UNION NUT
027 N 003861015004 GLAND
029 N 915065015101 THRUST RING
031 A 0004292084 SEAL RING
Repalced by: N 915045012100
031 N 915045012100 SEAL RING
Repalced by: N 007603012121
031 N 007603012121 SEAL RING
032 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
032 A 0029901271 ELBOW FITTING
AT LEFT SIDE MEMBER
032 N 003941015101 FITTING
AT LEFT SIDE MEMBER
033 N 074305022202 NUT
AT LEFT SIDE MEMBER
034 A 3609952001 CLAMP
Repalced by: A 6739950001
034 A 6739950001 CLAMP
COMPRESSED AIR LINE TO BRACKET
035 N 000000001147 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
036 N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TO BRACKET
037 N 913004006002 NUT
Repalced by: N 913004006001
037 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
A 3954280043 ANGLE
Repalced by: A 3604280243
A 3604280243 ANGLE
AT BELL HOUSING
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
AT BELL HOUSING
N 007985006145 SCREW
Repalced by: N 007985006581
N 007985006581 SCREW
AT BELL HOUSING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT BELL HOUSING
A 3854290540 BRACKET
AT LEFT SIDE MEMBER
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
AT LEFT SIDE MEMBER
N 007985006145 SCREW
Repalced by: N 007985006581
N 007985006581 SCREW
AT LEFT SIDE MEMBER
N 000125006421 WASHER
AT LEFT SIDE MEMBER
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT LEFT SIDE MEMBER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
AT LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AT LEFT SIDE MEMBER
040 A 0004292101 LINE
FOUR-CIRCUIT PROTECTIVE VALVE, SECONDARY CONSUMING UNIT AIR RESERVOIR
12 MM
045 N 915017012100 UNION NUT
047 N 003861012007 GLAND
Repalced by: A 0019901967
047 A 0019901967 SEAL CONE
048 N 074317012300 FITTING
BETWEEN THE LINES
050 A 0109975982 HOSE
Repalced by: A 0009872827
050 A 0009872827 PLASTIC PIPE
FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE
9X12 MM
050 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,RELAY VALVE,TWO-WAY VALVE,HAND BRAKE VALVE
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
051 N 040621013200 INSULATING HOSE
13X0.8 MM
052 N 915017012100 UNION NUT
054 N 003861012007 GLAND
Repalced by: A 0019901967
054 A 0019901967 SEAL CONE
056 A 0009921505 BUSHING
Repalced by: N 915062009000
056 N 915062009000 SLEEVE
058 N 915052009009 BANJO UNION
058 N 915052009009 BANJO UNION
070 A 0089979082 HOSE
FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE
6X8 MM
070 A 0089979082 HOSE
BREATHING,REAR AXLES I AND II
6X8 MM
N 040621008207 INSULATING HOSE
8 MM
080 N 915017008100 UNION NUT
082 N 003861008005 GLAND
084 A 0007630043 SLEEVE
Repalced by: N 915062006000
084 N 915062006000 SLEEVE
086 N 915052006021 BANJO UNION
088 N 915052006014 BANJO UNION
093 A 0009906688 BANJO UNION
Repalced by: N 915052006013
093 N 915052006013 BANJO UNION
N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
095 A 0089976082 HOSE
Repalced by: A 0009872627
095 A 0009872627 PLASTIC PIPE
PRESSURE GAUGE,FOUR-CIRCUIT PROTECTIVE VALVE,AIR CLEANER
4X6 MM
095 A 0009872627 PLASTIC PIPE
LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE
4X6 MM
097 N 040621006203 INSULATING HOSE
RED
6 MM
097 N 073379006203 HOSE
A 0009903888 BANJO UNION
Repalced by: N 915052004006
N 915052004015 BANJO UNION
HOLE DIA.
12 MM
A 0009904288 BANJO UNION
Repalced by: N 915052004002
N 915052004019 BANJO UNION
HOLE DIA.
16 MM
100 N 915017006100 UNION NUT
102 N 003861006007 GLAND
Repalced by: A 0019901667
102 A 0019901667 SEAL CONE
104 A 0009920205 BUSHING
Repalced by: N 915062004000
104 N 915062004000 SLEEVE
104 A 0009920105 BUSHING
Repalced by: N 915062004000
104 N 915062004000 SLEEVE
A 0019978390 LOOM TIE
280 MM
A 0019978490 LOOM TIE
376 MM
110 A 3874291140 BRACKET
AT EXHAUST MUFFLER BRACKET
112 N 000933008147 SCREW
Repalced by: N 304017008021
112 N 304017008021 SCREW
AT EXHAUST MUFFLER BRACKET
A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
115 A 3874292540 BRACKET
LEFT
A 3874292640 BRACKET
RIGHT
116 N 000933008145 SCREW
BRACKET TO BUMPER STRUT
117 N 913004008004 NUT
Repalced by: N 913004008001
117 N 913004008001 NUT
BRACKET TO BUMPER STRUT
118 A 3274925419 BRACKET
Repalced by: A 6205240340
118 A 6205240340 BRACKET
LINE TO CROSS MEMBER
119 N 000933008153 SCREW
Repalced by: N 304017008034
119 N 304017008034 SCREW
LINE TO CROSS MEMBER
120 N 000125008418 WASHER
Repalced by: N 000125008443
120 N 000125008443 WASHER
LINE TO CROSS MEMBER
121 N 913004008004 NUT
Repalced by: N 913004008001
121 N 913004008001 NUT
LINE TO CROSS MEMBER
122 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
122 A 0004290286 PROTECTIVE TUBE
LINE TO CROSS MEMBER
126 A 3854200244 PROTECTIVE PLATE
Repalced by: A 3854200644
126 A 3854200644 PROTECTIVE PLATE
Repalced by: A 3854201544
126 A 3854201544 PROTECTIVE PLATE
HEAT INSULATION; PLASTIC LINES; ON THE LEFT
126 A 3854200244 PROTECTIVE PLATE
Repalced by: A 3854200744
126 A 3854200744 PROTECTIVE PLATE
Repalced by: A 3854201444
126 A 3854201444 PROTECTIVE PLATE
HEAT INSULATION;PLASTIC LINES;ON THE RIGHT
127 N 000933008153 SCREW
Repalced by: N 304017008034
127 N 304017008034 SCREW
HEAT SHIELD TO SIDE MEMBER
128 N 000125008418 WASHER
Repalced by: N 000125008443
128 N 000125008443 WASHER
HEAT SHIELD TO SIDE MEMBER
129 N 913004008004 NUT
Repalced by: N 913004008001
129 N 913004008001 NUT
HEAT SHIELD TO SIDE MEMBER
130 A 0004294137 DISTRIBUTOR
SECONDARY CONSUMING UNITS
130 A 0004294037 DISTRIBUTOR
SECONDARY CONSUMING UNITS
131 N 304017006026 SCREW
Repalced by: N 304017006026
131 N 304017006026 SCREW
DISTRIBUTOR TO CAB
132 N 000125006421 WASHER
DISTRIBUTOR TO CAB
133 N 913004006002 NUT
Repalced by: N 913004006001
133 N 913004006001 NUT
DISTRIBUTOR TO CAB
A 6204295240 BRACKET
AT CAB FLOOR
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT CAB FLOOR
134 A 0009971572 FITTING
134 A 0019972572 FITTING
134 A 0019972572 FITTING
135 N 915036012203 HOLLOW SCREW
AT DISTRIBUTOR
135 N 915036008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTIONS:
"10.20.30"
N 915047008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTION:
"10"
136 N 007603016401 SEAL RING
AT DISTRIBUTOR
136 N 007603016401 SEAL RING
AT DISTRIBUTOR
136 N 007603012405 SEAL RING
AT DISTRIBUTOR
137 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
137 N 000908012009 SCREW PLUG
AT DISTRIBUTOR
138 A 3404201529 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
900 MM
138 A 3404202729 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
1500 MM
138 A 3404204129 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
2800 MM
138 A 3404202929 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
1600 MM
141 A 3879970181 GROMMET
AT LEFT SIDE MEMBER
142 A 0039973481 GROMMET
AT LEFT SIDE MEMBER
142 A 0039973481 GROMMET
AT LEFT SIDE MEMBER
143 A 3859970381 GROMMET
AT LEFT SIDE MEMBER
N 915017006100 UNION NUT
AT VALVE
145 A 0004314713 VALVE
145 A 0004314713 VALVE
145 A 0004314613 VALVE
145 A 0004314513 VALVE
145 A 0004314513 VALVE
A 0209975948 SEAL RING
TO 000 431 46 13
A 0209975948 SEAL RING
TO 000 431 46 13
146 A 0004280032 SCREW PLUG
CONNECTIONS:
"10,20"
147 N 000931008251 SCREW
REGULATING VALVE TO BRACKET
147 N 000931008251 SCREW
REGULATING VALVE TO BRACKET
148 N 913004008004 NUT
Repalced by: N 913004008001
148 N 913004008001 NUT
REGULATING VALVE TO BRACKET
148 N 913004008001 NUT
REGULATING VALVE TO BRACKET
149 A 3854315540 BRACKET
PRESSURE REGULATOR
149 A 3854315540 BRACKET
PRESSURE REGULATOR
150 N 000933008153 SCREW
Repalced by: N 304017008034
150 N 304017008034 SCREW
VALVE TO CROSS MEMBER
150 N 304017008034 SCREW
VALVE TO CROSS MEMBER
151 N 913004008004 NUT
Repalced by: N 913004008001
151 N 913004008001 NUT
VALVE TO CROSS MEMBER
151 N 913004008001 NUT
VALVE TO CROSS MEMBER
152 N 000933010105 SCREW
VALVE TO CROSS MEMBER
152 N 000933010105 SCREW
VALVE TO CROSS MEMBER
153 N 913004010008 NUT
Repalced by: N 910113010000
153 N 910113010000 NUT
VALVE TO CROSS MEMBER
153 N 910113010000 NUT
VALVE TO CROSS MEMBER
154 A 0004290437 DISTRIBUTOR
154 A 0004294337 DISTRIBUTOR
154 A 0004312231 TEST CONNECTION
FRONT AXLE
154 A 0004312231 TEST CONNECTION
FRONT AXLE
154 A 0004312231 TEST CONNECTION
FRONT AXLE
154 A 0004316531 TEST CONNECTION
FRONT AXLE
154 A 0004316531 TEST CONNECTION
FRONT AXLE
154 A 0004316531 TEST CONNECTION
FRONT AXLE
154 A 0004311231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
154 A 0004311231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
154 A 0004316631 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
154 A 0004316631 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
155 N 000933008152 SCREW
Repalced by: N 304017008027
155 N 304017008027 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
155 N 000933008153 SCREW
Repalced by: N 304017008034
155 N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
155 N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
155 N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
155 N 000931008246 SCREW
Repalced by: N 304017008028
155 N 304017008028 SCREW
TEST CONNECTION TO BRACKET
155 N 304017008028 SCREW
TEST CONNECTION TO BRACKET
156 N 913004008004 NUT
Repalced by: N 913004008001
156 N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
156 N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
156 N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
157 A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
157 A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
158 A 3604280243 ANGLE
BRAKE LINE MOUNTING
158 A 3604280243 ANGLE
BRAKE LINE MOUNTING
158 A 3604280243 ANGLE
BRAKE LINE MOUNTING
A 3815530340 BRACKET
BRAKE LINE MOUNTING
159 A 3604292940 BRACKET
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
159 A 3604292940 BRACKET
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
160 N 000933008145 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
160 N 000933008145 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
161 N 913004008004 NUT
Repalced by: N 913004008001
161 N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
161 N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
162 N 000933008153 SCREW
Repalced by: N 304017008034
162 N 304017008034 SCREW
BRAKE LINE MOUNTING
162 N 304017008034 SCREW
BRAKE LINE MOUNTING
163 N 913004008004 NUT
Repalced by: N 913004008001
163 N 913004008001 NUT
BRAKE LINE MOUNTING
163 N 913004008001 NUT
BRAKE LINE MOUNTING
164 A 3404204229 LINE
FROM FRONT TEST CONNECTION TO FRONT WHEEL BRAKE HOSE
3000 MM
164 A 3404204229 LINE
FROM FRONT TEST CONNECTION TO FRONT WHEEL BRAKE HOSE
3000 MM
164 A 3404202929 LINE
FROM VALVE TO LEFT FRONT WHEEL
1600 MM
164 A 3404202929 LINE
FROM VALVE TO LEFT FRONT WHEEL
1600 MM
164 A 3404203829 LINE
FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE
2200 MM
165 A 3404200529 LINE
FROM TEST CONNECTION TO VALVE
400 MM
165 A 3404200529 LINE
FROM TEST CONNECTION TO VALVE
400 MM
166 A 3404200729 LINE
FROM VALVE TO TEST CONNECTION
500 MM
166 A 3404200729 LINE
FROM VALVE TO TEST CONNECTION
500 MM
167 A 3404204129 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
2800 MM
167 A 3404204129 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
2800 MM
167 A 3404203129 LINE
FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE
1700 MM
167 A 3404204429 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
3400 MM
167 A 3404204429 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
3400 MM
168 A 3859970081 GROMMET
AT LEFT SIDE MEMBER
168 A 3859970081 GROMMET
AT LEFT SIDE MEMBER
169 A 3854280040 BRACKET
Repalced by: A 3854280240
169 A 3854280240 BRACKET
LEFT BRAKE HOSE
169 A 3854280240 BRACKET
LEFT BRAKE HOSE
169 A 3854280240 BRACKET
LEFT BRAKE HOSE
169 A 3854280340 BRACKET
RIGHT BRAKE HOSE
169 A 3854280340 BRACKET
RIGHT BRAKE HOSE
169 A 3854280340 BRACKET
RIGHT BRAKE HOSE
170 N 000933008147 SCREW
Repalced by: N 304017008021
170 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
170 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
170 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
170 N 000933008153 SCREW
Repalced by: N 304017008034
170 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
170 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
170 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
171 N 913004008004 NUT
Repalced by: N 913004008001
171 N 913004008001 NUT
BRACKET TO SIDE MEMBER
171 N 913004008001 NUT
BRACKET TO SIDE MEMBER
171 N 913004008001 NUT
BRACKET TO SIDE MEMBER
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
LINE TO BRACKET
N 916016008200 CLAMP
LINE TO BRACKET
173 N 000084006137 SCREW
LINE TO BRACKET
173 N 000084006137 SCREW
LINE TO BRACKET
174 N 913004006002 NUT
Repalced by: N 913004006001
174 N 913004006001 NUT
LINE TO BRACKET
174 N 913004006001 NUT
LINE TO BRACKET
N 003954012101 FITTING
Repalced by: A 0019900970
A 0019900970 T-FITTING
AT SIDE MEMBER,REAR
N 007603012102 SEAL RING
AT SIDE MEMBER,REAR
N 080705018002 NUT
AT SIDE MEMBER,REAR
177 A 0024281135 BRAKE HOSE
Repalced by: A 0004288935
177 A 0004288935 BRAKE HOSE
650 MM
177 A 0004288935 BRAKE HOSE
650 MM
177 A 0014284835 BRAKE HOSE
650 MM
177 A 0014284835 BRAKE HOSE
650 MM
177 A 0024280135 BRAKE HOSE
.
700 MM
178 A 0004280473 BRACKET
Repalced by: A 6525040038
178 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
178 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
178 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
179 A 3404204729 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
4000 MM
179 A 3404204329 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
3200 MM
179 A 3404204529 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
3600 MM
179 A 3404204829 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
4200 MM
179 A 3404205329 LINE
FROM BRAKE MASTER CYL.TO BRAKE CIRCUIT II TEST CONNECTION,REAR AXLES I & II
5200 MM
179 A 3404205029 LINE
FROM MASTER CYLINDER TO REAR AXLE TEST CONNECTION
4600 MM
179 A 3404205029 LINE
FROM MASTER CYLINDER TO CONNECTOR
4600 MM
179 A 3404205029 LINE
FROM MASTER CYLINDER TO REAR AXLE TEST CONNECTION
4600 MM
180 A 3404202329 LINE
FROM MASTER CYLINDER TO CONNECTOR
1300 MM
180 A 3404201529 LINE
FROM MASTER CYLINDER TO CONNECTOR
900 MM
181 A 0004311231 TEST CONNECTION
IN FRONT OF BRAKE POWER REGULATOR
181 A 0004311231 TEST CONNECTION
IN FRONT OF BRAKE POWER REGULATOR
181 A 0004311231 TEST CONNECTION
IN FRONT OF BRAKE POWER REGULATOR
181 A 0004316631 TEST CONNECTION
IN FRONT OF BRAKE POWER REGULATOR
181 A 0004316631 TEST CONNECTION
IN FRONT OF BRAKE POWER REGULATOR
181 A 0004316631 TEST CONNECTION
IN FRONT OF BRAKE POWER REGULATOR
182 N 000933008160 SCREW
Repalced by: N 304017008040
182 N 304017008040 SCREW
Repalced by: N 910105008010
182 N 910105008010 SCREW
Repalced by: N 910143008005
182 N 910143008005 SCREW
TEST CONNECTION TO BRACKET
182 N 910143008005 SCREW
TEST CONNECTION TO BRACKET
182 N 000933006084 SCREW
Repalced by: N 304017006026
182 N 304017006026 SCREW
TEST CONNECTION TO BRACKET
183 N 913004008004 NUT
Repalced by: N 913004008001
183 N 913004008001 NUT
TEST CONNECTION TO BRACKET
183 N 913004008001 NUT
TEST CONNECTION TO BRACKET
183 N 913004006002 NUT
Repalced by: N 913004006001
183 N 913004006001 NUT
TEST CONNECTION TO BRACKET
184 N 000125006421 WASHER
TEST CONNECTION TO BRACKET
185 A 3604292940 BRACKET
TEST CONNECTION
185 A 3604292940 BRACKET
TEST CONNECTION
185 A 3852670040 BRACKET
BRAKE CIRCUIT II TEST CONNECTION
186 N 000933008153 SCREW
Repalced by: N 304017008034
186 N 304017008034 SCREW
TEST CONNECTION
186 N 304017008034 SCREW
TEST CONNECTION
187 N 913004008004 NUT
Repalced by: N 913004008001
187 N 913004008001 NUT
TEST CONNECTION
187 N 913004008001 NUT
TEST CONNECTION
188 A 0004292736 CONNECTOR
188 A 0004292736 CONNECTOR
189 A 3404203929 LINE
FROM CONNECTOR TO TEST CONNECTION
2400 MM
189 A 3404204229 LINE
FROM CONNECTOR TO TEST CONNECTION
3000 MM
189 A 3404204129 LINE
FROM CONNECTOR TO TEST CONNECTION
2800 MM
189 A 3404204729 LINE
FROM CONNECTOR TO TEST CONNECTION
4000 MM
189 A 3404204629 LINE
FROM CONNECTOR TO TEST CONNECTION
3800 MM
189 A 3404204929 LINE
FROM CONNECTOR TO TEST CONNECTION
4400 MM
189 A 3404204029 LINE
FROM CONNECTOR TO DISTRIBUTOR
2600 MM
189 A 3404204029 LINE
FROM CONNECTOR TO DISTRIBUTOR
2600 MM
190 A 3404204129 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
2800 MM
190 A 3404204129 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
2800 MM
190 A 3404204329 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
3200 MM
190 A 3404204329 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
3200 MM
190 A 3404204629 LINE
FROM CONNECTOR TO TEST CONNECTION
2800 MM
190 A 3404204729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
4000 MM
190 A 3404202929 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
1600 MM
190 A 3404204929 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
4400 MM
190 A 3404203929 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
2400 MM
190 A 3404200829 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
550 MM
190 A 3404200929 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
600 MM
190 A 0004314312 BRAKE PRESSURE REGULATOR
190 A 0004317512 BRAKE PRESSURE REGULATOR
190 A 0004317512 BRAKE PRESSURE REGULATOR
190 A 0004316712 BRAKE PRESSURE REGULATOR
190 A 0014311812 BRAKE PRESSURE REGULATOR
191 A 0004316912 BRAKE PRESSURE REGULATOR
191 A 0004316912 BRAKE PRESSURE REGULATOR
191 A 0014311312 BRAKE PRESSURE REGULATOR
193 A 0109975845 SEAL RING
TO 000 431 67 12,001 431 18 12
A 0004312739 LEVER
TOOTHED
TO 000 431 18 12
A 0004312839 LEVER
TO 000 431 18 12
A 0004312339 LEVER
TOOTHED
TO 000 431 75 12
A 0004312439 LEVER
TO 000 431 75 12
A 0004310949 GUIDE BUSHING
TO 000 431 67 12,001 431 18 12
A 0004312713 GUIDE BUSHING
TO 000 431 67 12,001 431 18 12
A 0004318560 SEAL RING
TO 000 431 67 12,001 431 18 12
195 A 0004310968 VALVE PART
Repalced by: A 0004311068
195 A 0004311068 VALVE PART
TO 000 431 67 12,001 431 18 12,
Y YYYYYYYYYYYY PART NAME MISSING
000 431 75 12,000 431 43 12
A 0014315793 SPRING
TO 001 431 43 12,000 431 75 12,
Y YYYYYYYYYYYY PART NAME MISSING
000 431 67 12,001 431 18 12
196 N 007603018101 SEAL RING
TO 000 431 67 12,001 431 18 12,
Y YYYYYYYYYYYY PART NAME MISSING
000 431 75 12,000 431 43 12
197 A 0004310465 VALVE
Repalced by: A 0004310265
197 A 0004310265 VALVE
Repalced by: A 3075530107
197 A 3075530107 VALVE
TO 000 431 43 12,000 431 75 12,
Y YYYYYYYYYYYY PART NAME MISSING
000 431 67 12,000 431 18 12
A 0004311049 GUIDE BUSHING
TO 000 431 67 12,001 431 18 12
A 0029937201 SPRING
TO 000 431 67 12,001 431 18 12
198 A 0035860043 REPAIR KIT
TO 000 431 69 12
198 A 0035860043 REPAIR KIT
TO 000 431 69 12
A 3834310340 BRACKET
Repalced by: A 3834300039
199 A 3834300039 SUPPORT
BRAKE POWER REGULATOR
199 A 3854314440 BRACKET
BRAKE POWER REGULATOR
200 N 915036012203 HOLLOW SCREW
CONNECTION:
"1"
200 N 915036012203 HOLLOW SCREW
CONNECTION:
"1"
201 N 007603016401 SEAL RING
CONNECTION:
"1"
201 N 007603016401 SEAL RING
CONNECTION:
"1"
201 A 0004290227 THRUST RING
CONNECTION:
"1"
201 A 0004290227 THRUST RING
CONNECTION:
"1"
202 A 0009870446 SEALING CORD
CONNECTION:
"1"
202 A 0009870446 SEALING CORD
CONNECTION:
"1"
203 A 0009905168 FITTING
CONNECTION:
"1"
203 A 0009905168 FITTING
CONNECTION:
"1"
203 A 0009905168 FITTING
CONNECTIONS:
"1,2"
204 A 0004290227 THRUST RING
CONNECTION:
"2"
204 A 0004290227 THRUST RING
CONNECTION:
"2"
205 A 0009870446 SEALING CORD
CONNECTION:
"2"
205 A 0009870446 SEALING CORD
CONNECTION:
"2"
205 N 007603022102 SEAL RING
CONNECTION:
"2"
206 A 0009905563 HOLLOW SCREW
Repalced by: N 915047012100
206 N 915047012100 HOLLOW SCREW
CONNECTION:
"2"
206 N 915047012100 HOLLOW SCREW
CONNECTION:
"2"
206 N 915036012203 HOLLOW SCREW
CONNECTION:
"2"
207 N 007603016401 SEAL RING
CONNECTION:
"2"
207 N 007603016401 SEAL RING
CONNECTION:
"2"
A 3854312340 BRACKET
Repalced by: A 3854313240
207 A 3854313240 BRACKET
BRAKE POWER REGULATOR
207 A 3854313240 BRACKET
BRAKE POWER REGULATOR
207 A 3854313140 BRACKET
BRAKE POWER REGULATOR
207 A 3854313140 BRACKET
BRAKE POWER REGULATOR
208 N 000931010337 SCREW
Repalced by: N 304017010051
208 N 304017010051 SCREW
208 N 304017010051 SCREW
208 N 304017010051 SCREW
209 A 0009906550 NUT
REGULATOR TO BRACKET
209 A 0009906550 NUT
REGULATOR TO BRACKET
209 A 0009906550 NUT
REGULATOR TO BRACKET
210 N 913004008004 NUT
Repalced by: N 913004008001
210 N 913004008001 NUT
REGULATOR TO BRACKET
210 N 913004008001 NUT
REGULATOR TO BRACKET
211 N 000961012122 SCREW
BRACKET TO SIDE MEMBER
211 N 000961012122 SCREW
BRACKET TO SIDE MEMBER
211 N 000961012106 SCREW
BRACKET TO SIDE MEMBER
211 N 000961012106 SCREW
BRACKET TO SIDE MEMBER
211 N 000961012069 SCREW
Repalced by: N 308676012015
211 N 308676012015 SCREW
BRACKET TO SIDE MEMBER
212 N 000933010129 SCREW
Repalced by: N 304017010002
212 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
212 N 304017010002 SCREW
BRACKET TO CROSS MEMBER
213 N 910113012002 NUT
BRACKET TO SIDE MEMBER
213 N 910113012002 NUT
BRACKET TO SIDE MEMBER
213 N 910113012002 NUT
BRACKET TO SIDE MEMBER
214 N 913004010008 NUT
Repalced by: N 910113010000
214 N 910113010000 NUT
BRACKET TO SIDE MEMBER
214 N 910113010000 NUT
BRACKET TO CROSS MEMBER
A 0024295744 VALVE
Repalced by: A 0034291444
A 0034291444 VALVE
REDUCTION VALVE
A 0025862943 REPAIR KIT
Repalced by: A 0004300760
A 0004300760 REPAIR KIT
TO 003 429 14 44,002 429 57 44
A 0009908471 ELBOW FITTING
Repalced by: A 0019904371
A 0019904371 ELBOW FITTING
REDUCING VALVE,CONNECTION:
"1"
N 074305022202 NUT
REDUCING VALVE,CONNECTION:
"1"
A 0004290227 THRUST RING
REDUCING VALVE,CONNECTION:
"1"
A 0009870446 SEALING CORD
REDUCING VALVE,CONNECTION:
"1"
N 915036012203 HOLLOW SCREW
REDUCING VALVE,CONNECTION:
"1"
N 007603016401 SEAL RING
REDUCING VALVE,CONNECTION:
"1"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
REDUCING VALVE,CONNECTION:
"2"
N 000908016001 SCREW PLUG
REDUCING VALVE,CONNECTION:
"2"
N 007603022102 SEAL RING
REDUCING VALVE,CONNECTION:
"2"
A 0004290227 THRUST RING
REDUCING VALVE,CONNECTION:
"2"
A 0004290927 THRUST RING
REDUCING VALVE,CONNECTION:
"2"
A 0009870446 SEALING CORD
REDUCING VALVE,CONNECTION:
"2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
REDUCING VALVE,CONNECTION:
"2"
N 915036012203 HOLLOW SCREW
REDUCING VALVE,CONNECTION:
"2"
N 007603016401 SEAL RING
REDUCING VALVE,CONNECTION:
"2"
A 3854319940 BRACKET
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO REDUCING VALVE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO REDUCING VALVE
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
REDUCING VALVE TO SUPPORT
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
REDUCING VALVE TO SUPPORT
N 074305022202 NUT
REDUCING VALVE,CONNECTION:
"2"
A 0004290227 THRUST RING
REDUCING VALVE,CONNECTION:
"2"
A 0009870446 SEALING CORD
REDUCING VALVE,CONNECTION:
"2"
220 A 3404201329 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
800 MM
220 A 3404201329 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
800 MM
220 A 3404201329 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
800 MM
220 A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
500 MM
220 A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
500 MM
221 A 0004312231 TEST CONNECTION
BEHIND BRAKE POWER REGULATOR
221 A 0004312231 TEST CONNECTION
BEHIND BRAKE POWER REGULATOR
221 A 0004316531 TEST CONNECTION
BEHIND BRAKE POWER REGULATOR
221 A 0004316531 TEST CONNECTION
BEHIND BRAKE POWER REGULATOR
222 A 0004282024 DISTRIBUTOR
BEHIND BRAKE POWER REGULATOR
222 A 0004282024 DISTRIBUTOR
BEHIND BRAKE POWER REGULATOR
223 N 000931008244 SCREW
DISTRIBUTOR TO SIDE MEMBER
223 N 000931008244 SCREW
DISTRIBUTOR TO SIDE MEMBER
224 N 913004008004 NUT
Repalced by: N 913004008001
224 N 913004008001 NUT
DISTRIBUTOR TO SIDE MEMBER
224 N 913004008001 NUT
DISTRIBUTOR TO SIDE MEMBER
225 A 3609910140 SPACER TUBE
DISTRIBUTOR TO SIDE MEMBER
225 A 3609910140 SPACER TUBE
DISTRIBUTOR TO SIDE MEMBER
225 A 1801550053 SPACER TUBE
225 A 1801550053 SPACER TUBE
226 A 3854301092 ROD
Repalced by: N 900331008427
226 A 3854301292 ROD
Repalced by: N 900331008427
226 A 3604306092 ROD
Repalced by: N 900331008427
226 A 3534300792 ROD
Repalced by: N 900331008427
226 N 900331008427 PULL ROD
FROM REGULATOR TO INTERMEDIATE LEVER
400 MM
227 A 0004310467 YOKE
Repalced by: A 0004310667
227 A 0004310667 YOKE
R.H. THREAD
227 A 0004310867 YOKE
L.H. THREAD
228 N 304032008006 NUT
R.H. THREAD
229 N 000934008035 NUT
230 N 912004008102 LOCK WASHER
231 N 304032008006 NUT
232 A 3854302892 ROD
Repalced by: N 900331008427
232 A 3534300492 ROD
Repalced by: N 900331008426
232 N 900331008426 PULL ROD
200 MM
232 N 900331008427 PULL ROD
400 MM
233 A 0004310867 YOKE
L.H. THREAD
233 A 0004310467 YOKE
Repalced by: A 0004310667
233 A 0004310667 YOKE
R.H. THREAD
234 N 304032008006 NUT
R.H. THREAD
235 N 000934008035 NUT
L.H. THREAD
236 N 912004008102 LOCK WASHER
237 N 000934008035 NUT
238 A 3854310239 LEVER
Repalced by: A 6204310839
238 A 6204310839 LEVER
Repalced by: A 6744310039
238 A 6744310039 LEVER
LOAD-DEPENDING BRAKE
238 A 6744310039 LEVER
LOAD-DEPENDING BRAKE
A 3854302492 ROD
Repalced by: N 900331008420
A 3854302592 ROD
Repalced by: N 900331008420
239 A 0004310667 YOKE
239 A 0004310667 YOKE
240 N 900331008420 PULL ROD
240 N 900331008420 PULL ROD
241 N 304032008006 NUT
241 N 304032008006 NUT
242 A 0004310735 CONNECTOR
242 A 0004310735 CONNECTOR
243 N 916026010000 CLAMP
Repalced by: N 000000000665
243 N 000000000665 CLAMP
243 N 000000000665 CLAMP
244 N 000125008418 WASHER
Repalced by: N 000125008443
244 N 000125008443 WASHER
ROD TO BRAKE POWER REGULATOR
244 N 000125008443 WASHER
ROD TO BRAKE POWER REGULATOR
245 N 000094002059 COTTER PIN
ROD TO BRAKE POWER REGULATOR
245 N 000094002059 COTTER PIN
ROD TO BRAKE POWER REGULATOR
N 912004008102 LOCK WASHER
INTERMEDIATE LEVER
N 912004008102 LOCK WASHER
INTERMEDIATE LEVER
N 304032008006 NUT
INTERMEDIATE LEVER
N 304032008006 NUT
INTERMEDIATE LEVER
246 A 3854300023 LEVER
LOAD-DEPENDING BRAKE
A 3813010227 HUB
247 A 3144270150 BUSHING
248 N 071412010100 GREASE NIPPLE
249 N 000125019009 WASHER
250 N 001444018200 PIN
N 000094005030 COTTER PIN
252 A 3854310353 SPACER TUBE
INTERMEDIATE LEVER
253 N 000931010271 SCREW
INTERMEDIATE LEVER
254 N 913004010008 NUT
Repalced by: N 910113010000
254 N 910113010000 NUT
INTERMEDIATE LEVER
255 A 3854312440 BRACKET
AT CROSS MEMBER
256 N 000933010157 SCREW
BRACKET TO CROSS MEMBER
257 N 913002010001 NUT
BRACKET TO CROSS MEMBER
258 A 3834310140 BRACKET
OPERATING ROD
258 A 3854315440 BRACKET
OPERATING ROD
259 N 000933010128 SCREW
BRACKET TO REAR AXLE
259 N 000961016081 SCREW
BRACKET TO REAR AXLE
260 N 912004010102 LOCK WASHER
BRACKET TO REAR AXLE
260 N 912004016101 LOCK WASHER
BRACKET TO REAR AXLE
261 A 3854301692 ROD
Repalced by: A 3854302692
261 A 3854302692 ROD
261 A 3854302692 ROD
261 A 3854302992 ROD
261 A 3854302992 ROD
262 N 001434008107 PIN
ROD TO BRACKET
262 N 001444008217 PIN
ROD TO BRACKET
N 000094002059 COTTER PIN
ROD TO BRACKET
263 A 3854300510 BRACKET
FRONT ROD
264 N 000961012107 SCREW
Repalced by: N 308676012011
264 N 308676012011 SCREW
A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE,CONNECTION "2", BOTTOM
A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE,CONNECTION "2", BOTTOM
N 000961012099 SCREW
N 000961012099 SCREW
N 000961012185 SCREW
Repalced by: N 308676012040
N 308676012040 SCREW
267 A 0004311018 METAL SPRING BELLOWS
267 A 0004311218 METAL SPRING BELLOWS
267 A 0004311218 METAL SPRING BELLOWS
267 A 0004310618 METAL SPRING BELLOWS
267 A 0004311318 METAL SPRING BELLOWS
A 0009916322 BALL SOCKET
TO 000 431 13 18
A 0004311618 METAL SPRING BELLOWS
269 N 000933012058 SCREW
METAL SPRING BELLOWS TO BRACKET
269 N 000933012058 SCREW
METAL SPRING BELLOWS TO BRACKET
269 N 000961012052 SCREW
Repalced by: N 308676012012
269 N 308676012012 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1,5X25
269 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
270 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
270 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
N 000934010014 NUT
LINK
271 A 3854312540 BRACKET
METAL SPRING BELLOWS
272 N 000933008152 SCREW
Repalced by: N 304017008027
272 N 304017008027 SCREW
BRACKET TO REAR AXLE II
273 N 913004008004 NUT
Repalced by: N 913004008001
273 N 913004008001 NUT
BRACKET TO REAR AXLE II
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
METAL SPRING BELLOWS TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
METAL SPRING BELLOWS TO BRACKET
A 3815530340 BRACKET
METAL SPRING BELLOWS
N 000933008145 SCREW
METAL SPRING BELLOWS TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
METAL SPRING BELLOWS TO BRACKET
280 A 3404201129 LINE
FROM DISTRIBUTOR TO VALVE
700 MM
281 A 0004313913 VALVE
CONTROL VALVE
282 A 0029971572 FITTING
CONNECTION:
"12"
282 A 0029971572 FITTING
CONNECTION:
"1"
283 N 007603016401 SEAL RING
CONTROL VALVE,CONNECTIONS:
"1.2"
283 A 0004290927 THRUST RING
CONNECTION:
"1"
284 A 0009971548 SEAL RING
CONNECTION:
"1"
285 N 915036012203 HOLLOW SCREW
CONNECTION:
"2"
286 N 007603016401 SEAL RING
CONNECTION:
"2"
A 3854313840 BRACKET
CONTROL VALVE
287 N 000933008145 SCREW
VALVE TO BRACKET
288 N 912004008102 LOCK WASHER
VALVE TO BRACKET
289 N 000933010105 SCREW
BRACKET TO CROSS MEMBER
290 N 913004010008 NUT
Repalced by: N 910113010000
290 N 910113010000 NUT
BRACKET TO CROSS MEMBER
291 A 0024297344 VALVE
REDUCTION VALVE
A 0024298944 VALVE
REDUCTION VALVE
292 A 0025862342 REPAIR KIT
Repalced by: A 0004300760
292 A 0004300760 REPAIR KIT
TO 002 429 89 44
292 A 0025862943 REPAIR KIT
Repalced by: A 0004300760
292 A 0004300760 REPAIR KIT
TO 002 429 73 44
293 A 0019972372 FITTING
CONNECTION:
"2"
293 A 0029971172 FITTING
CONNECTION:
"2"
294 N 007603022102 SEAL RING
295 A 0009905168 FITTING
CONNECTION:
"1"
296 N 915036012203 HOLLOW SCREW
CONNECTION:
"1"
297 N 007603016401 SEAL RING
CONNECTION:
"1"
298 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
298 N 000908022011 SCREW PLUG
CONNECTION:
"2"
299 A 0004290227 THRUST RING
300 A 0009870446 SEALING CORD
301 N 000933008153 SCREW
Repalced by: N 304017008034
301 N 304017008034 SCREW
VALVE TO BRACKET
302 N 913004008004 NUT
Repalced by: N 913004008001
302 N 913004008001 NUT
VALVE TO BRACKET
303 A 3854293140 BRACKET
REDUCTION VALVE
304 N 000933008152 SCREW
Repalced by: N 304017008027
304 N 304017008027 SCREW
BRACKET TO LEFT SIDE MEMBER
305 N 000125008418 WASHER
Repalced by: N 000125008443
305 N 000125008443 WASHER
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER
307 A 0004304981 VALVE
(ADAPTATION VALVE)
308 A 0009905168 FITTING
CONNECTION:
"2"
309 N 915047012100 HOLLOW SCREW
CONNECTION:
"2"
310 N 007603016401 SEAL RING
CONNECTION:
"2"
311 A 0004312031 TEST CONNECTION
CONNECTION:
"2" VOSS
311 A 0004314531 TEST CONNECTION
CONNECTION:
"2" SCHAEFER
311 A 0004314831 TEST CONNECTION
CONNECTION:
"2" WABCO
311 A 0004316131 TEST CONNECTION
CONNECTION:
"2" WIRA
A 0009979486 PLUG
312 A 0039972072 FITTING
CONNECTION:
"2"
313 A 0004290227 THRUST RING
314 A 0009870446 SEALING CORD
315 N 074305022202 NUT
316 A 3854293040 BRACKET
(ADAPTATION VALVE)
317 N 000933008153 SCREW
Repalced by: N 304017008034
317 N 304017008034 SCREW
VALVE TO BRACKET
318 N 913004008004 NUT
Repalced by: N 913004008001
318 N 913004008001 NUT
VALVE TO BRACKET
319 A 3404204329 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
3200 MM
319 A 3404204329 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
3200 MM
319 A 3404204529 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
3600 MM
319 A 3404204529 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
3600 MM
319 A 3404204829 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
4200 MM
319 A 3404204829 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
4200 MM
319 A 3404205329 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
5200 MM
319 A 3404204129 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
2800 MM
319 A 3404204229 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
3000 MM
319 A 3404204729 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
4000 MM
319 A 3404205129 LINE
FROM DISTRIBUTOR TO CONTROL VALVE
4800 MM
320 A 3404201329 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE I
800 MM
320 A 3404201329 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE I
800 MM
320 A 3404201329 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE I
800 MM
320 A 3404202929 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE II
1600 MM
320 A 3404202129 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE I
1200 MM
320 A 3404201529 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE I
900 MM
A 3404203829 LINE
FROM DISTRIBUTOR TO VALVE
2200 MM
321 A 3124281040 BRACKET
Repalced by: A 3834280140
321 A 3834280140 BRACKET
BRAKE HOSE TO SIDE MEMBER
321 A 3834280140 BRACKET
BRAKE HOSE TO SIDE MEMBER
321 A 3834280140 BRACKET
BRAKE HOSE TO SIDE MEMBER
A 3524282240 BRACKET
BRAKE HOSE TO SIDE MEMBER
322 N 000933008152 SCREW
Repalced by: N 304017008027
322 N 304017008027 SCREW
BRAKE HOSE TO SIDE MEMBER
322 N 304017008027 SCREW
BRAKE HOSE TO SIDE MEMBER
322 N 304017008027 SCREW
BRAKE HOSE TO SIDE MEMBER
322 N 000933008147 SCREW
Repalced by: N 304017008021
322 N 304017008021 SCREW
BRAKE HOSE TO SIDE MEMBER
323 N 913004008004 NUT
Repalced by: N 913004008001
323 N 913004008001 NUT
BRAKE HOSE TO SIDE MEMBER
323 N 913004008001 NUT
BRAKE HOSE TO SIDE MEMBER
323 N 913004008001 NUT
BRAKE HOSE TO SIDE MEMBER
324 A 0024281035 BRAKE HOSE
Repalced by: A 0004288935
324 A 0024281135 BRAKE HOSE
Repalced by: A 0004288935
324 A 0004288935 BRAKE HOSE
650 MM
324 A 0004288935 BRAKE HOSE
650 MM
324 A 0004288935 BRAKE HOSE
650 MM
324 A 0014284835 BRAKE HOSE
650 MM
324 A 0014284835 BRAKE HOSE
650 MM
324 A 0014284835 BRAKE HOSE
650 MM
325 A 0004280473 BRACKET
Repalced by: A 6525040038
325 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
325 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
325 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
A 3524280740 BRACKET
BRAKE HOSE TO BRACKET
326 A 3854280440 BRACKET
TEST CONNECTION TO REAR AXLE
326 A 3854280440 BRACKET
TEST CONNECTION TO REAR AXLE
326 A 3854280440 BRACKET
TEST CONNECTION TO REAR AXLE
326 A 3814312140 BRACKET
TEST CONNECTION TO REAR AXLE
327 A 0004312231 TEST CONNECTION
REAR AXLE I
327 A 0004312231 TEST CONNECTION
REAR AXLE I
327 A 0004312231 TEST CONNECTION
REAR AXLE I
327 A 0004316531 TEST CONNECTION
REAR AXLE I
327 A 0004316531 TEST CONNECTION
REAR AXLE I
327 A 0004316531 TEST CONNECTION
REAR AXLE I
328 N 000933008212 SCREW
Repalced by: N 304017008016
328 N 304017008016 SCREW
BRACKET TO REAR AXLE I
328 N 304017008016 SCREW
BRACKET TO REAR AXLE I
328 N 304017008016 SCREW
BRACKET TO REAR AXLE I
329 N 000933008152 SCREW
Repalced by: N 304017008027
329 N 304017008027 SCREW
TEST CONNECTION TO BRACKET
329 N 304017008027 SCREW
TEST CONNECTION TO BRACKET
329 N 304017008027 SCREW
TEST CONNECTION TO BRACKET
329 N 000933008150 SCREW
Repalced by: N 304017008018
329 N 304017008018 SCREW
TEST CONNECTION TO BRACKET
330 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE I
330 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE I
330 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE I
331 N 913004008004 NUT
Repalced by: N 913004008001
331 N 913004008001 NUT
TEST CONNECTION TO BRACKET
331 N 913004008001 NUT
TEST CONNECTION TO BRACKET
331 N 913004008001 NUT
TEST CONNECTION TO BRACKET
332 A 3382930053 SPACER TUBE
Repalced by: A 3872640974
332 A 3872640974 PIN
TEST CONNECTION TO BRACKET
333 A 3404202429 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1350 MM
334 A 3404202629 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
1450 MM
334 A 3404202629 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
1450 MM
334 A 3404201129 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
700 MM
334 A 3404201229 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
750 MM
334 A 3404201229 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
750 MM
335 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
335 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
335 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
336 A 3859950020 CLAMP
BRAKE LINE TO REAR AXLE
336 A 3859950020 CLAMP
BRAKE LINE TO REAR AXLE
336 A 3859950020 CLAMP
BRAKE LINE TO REAR AXLE
336 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
336 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
336 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
337 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
337 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
337 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
338 N 000933008212 SCREW
Repalced by: N 304017008016
338 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
338 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
338 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
339 A 3604280243 ANGLE
BRAKE LINE MOUNTING
339 A 3604280243 ANGLE
BRAKE LINE MOUNTING
339 A 3854280043 ANGLE
Repalced by: A 3604280243
339 A 3604280243 ANGLE
BRAKE LINE MOUNTING
339 A 3604280243 ANGLE
BRAKE LINE MOUNTING
340 A 3604300143 CLAMP
Repalced by: N 916016008200
340 N 916016008200 CLAMP
BRAKE LINE MOUNTING
340 N 916016008200 CLAMP
BRAKE LINE MOUNTING
341 A 3609950601 CLAMP
BRAKE LINE MOUNTING
341 A 3609950601 CLAMP
BRAKE LINE MOUNTING
342 A 3852670040 BRACKET
BRAKE LINE MOUNTING
342 A 3852670040 BRACKET
BRAKE LINE MOUNTING
343 A 3854291740 BRACKET
BRAKE LINE MOUNTING
343 A 3854291740 BRACKET
BRAKE LINE MOUNTING
344 N 000933008153 SCREW
Repalced by: N 304017008034
344 N 304017008034 SCREW
BRAKE LINE MOUNTING
344 N 304017008034 SCREW
BRAKE LINE MOUNTING
345 N 913004008004 NUT
Repalced by: N 913004008001
345 N 913004008001 NUT
BRAKE LINE MOUNTING
345 N 913004008001 NUT
BRAKE LINE MOUNTING
346 N 000933006121 SCREW
Repalced by: N 304017006020
346 N 304017006020 SCREW
BRAKE LINE MOUNTING
346 N 304017006020 SCREW
BRAKE LINE MOUNTING
346 N 304017006020 SCREW
BRAKE LINE MOUNTING
346 N 000000001147 SCREW
BRAKE LINE MOUNTING
M 6X20
347 N 913004006002 NUT
Repalced by: N 913004006001
347 N 913004006001 NUT
BRAKE LINE MOUNTING
347 N 913004006001 NUT
BRAKE LINE MOUNTING
348 A 3404202129 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE II
1200 MM
348 A 3404202129 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE II
1200 MM
349 A 3124281040 BRACKET
Repalced by: A 3834280140
349 A 3834280140 BRACKET
BRAKE HOSE TO SIDE MEMBER
349 A 3834280140 BRACKET
BRAKE HOSE TO SIDE MEMBER
350 N 000933008152 SCREW
Repalced by: N 304017008027
350 N 304017008027 SCREW
BRAKE HOSE TO SIDE MEMBER
350 N 304017008027 SCREW
BRAKE HOSE TO SIDE MEMBER
351 N 913004008004 NUT
Repalced by: N 913004008001
351 N 913004008001 NUT
BRAKE HOSE TO SIDE MEMBER
351 N 913004008001 NUT
BRAKE HOSE TO SIDE MEMBER
A 0024281035 BRAKE HOSE
Repalced by: A 0004288935
285 A 0024281135 BRAKE HOSE
Repalced by: A 0004288935
352 A 0004288935 BRAKE HOSE
650 MM
352 A 0004288935 BRAKE HOSE
650 MM
352 A 0014284835 BRAKE HOSE
650 MM
352 A 0014284835 BRAKE HOSE
650 MM
353 A 0004280473 BRACKET
Repalced by: A 6525040038
353 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
353 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
354 A 0004290437 DISTRIBUTOR
REAR AXLE II
354 A 0004290437 DISTRIBUTOR
REAR AXLE II
354 A 0004294337 DISTRIBUTOR
REAR AXLE II
354 A 0004294337 DISTRIBUTOR
REAR AXLE II
355 N 912004008102 LOCK WASHER
DISTRIBUTOR TO REAR AXLE II
355 N 912004008102 LOCK WASHER
DISTRIBUTOR TO REAR AXLE II
356 N 000933008152 SCREW
Repalced by: N 304017008027
356 N 304017008027 SCREW
DISTRIBUTOR TO REAR AXLE II
356 N 304017008027 SCREW
DISTRIBUTOR TO REAR AXLE II
357 A 3404202929 LINE
FROM REAR AXLE II DISTRIBUTOR TO WHEEL BRAKE CYLINDER,LEFT
1600 MM
357 A 3404202929 LINE
FROM REAR AXLE II DISTRIBUTOR TO WHEEL BRAKE CYLINDER,LEFT
1600 MM
358 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
358 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
359 A 3859950020 CLAMP
359 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
359 A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
360 A 3404201229 LINE
FROM REAR AXLE II DISTRIBUTOR TO WHEEL BRAKE CYLINDER,RIGHT
750 MM
360 A 3404201229 LINE
FROM REAR AXLE II DISTRIBUTOR TO WHEEL BRAKE CYLINDER,RIGHT
750 MM
361 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
361 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
362 N 000933008212 SCREW
Repalced by: N 304017008016
362 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
362 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
363 A 0004313313 VALVE
LOAD/NO-LOAD
363 A 0004313313 VALVE
LOAD/NO-LOAD
364 A 0005867843 REPAIR KIT
TO 000 431 33 13
364 A 0005867843 REPAIR KIT
TO 000 431 33 13
365 N 915036012203 HOLLOW SCREW
CONNECTION:
"11"
365 N 915036012203 HOLLOW SCREW
CONNECTION:
"11"
366 N 007603016401 SEAL RING
CONNECTION:
"11"
366 N 007603016401 SEAL RING
CONNECTION:
"11"
367 N 915039008202 HOLLOW SCREW FITTING
CONNECTIONS:
"12,4"
367 N 915039008202 HOLLOW SCREW FITTING
CONNECTIONS:
"12,4"
368 N 007603012405 SEAL RING
CONNECTIONS:
"12,4"
368 N 007603012405 SEAL RING
CONNECTIONS:
"12,4"
369 A 0009904270 T-FITTING
CONNECTION:
"2" "
369 A 0009904270 T-FITTING
CONNECTION:
"2" "
370 N 080705016003 NUT
CONNECTION:
"2"
370 N 080705016003 NUT
CONNECTION:
"2"
371 A 0004290927 THRUST RING
CONNECTION:
"2"
371 A 0004290927 THRUST RING
CONNECTION:
"2"
372 A 0029971640 SEAL RING
Repalced by: A 0009971548
372 A 0009971548 SEAL RING
CONNECTION:
"2"
372 A 0009971548 SEAL RING
CONNECTION:
"2"
373 A 0029978172 FITTING
CONNECTION:
"2"
373 A 0029978172 FITTING
CONNECTION:
"2"
374 N 007603016401 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION:
"2"
375 A 0004312031 TEST CONNECTION
CONNECTION:
"2",VOSS
375 A 0004312031 TEST CONNECTION
CONNECTION:
"2",VOSS
375 A 0004314531 TEST CONNECTION
CONNECTION:
"2",SCHAEFER
375 A 0004314531 TEST CONNECTION
CONNECTION:
"2",SCHAEFER
375 A 0004314831 TEST CONNECTION
CONNECTION:
"2",WABCO
375 A 0004314831 TEST CONNECTION
CONNECTION:
"2",WABCO
375 A 0004316131 TEST CONNECTION
CONNECTION:
"2",WIRA
375 A 0004316131 TEST CONNECTION
CONNECTION:
"2",WIRA
A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE,CONNECTION:
"2"
A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE,CONNECTION:
"2"
A 0009979486 PLUG
A 0009971548 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION:
"2"
A 0009971548 SEAL RING
LOAD/NO-LOAD VALVE,CONNECTION:
"2"
376 A 3854313640 BRACKET
LOAD/NO-LOAD VALVE
376 A 3854313640 BRACKET
LOAD/NO-LOAD VALVE
377 N 000933008153 SCREW
Repalced by: N 304017008034
377 N 304017008034 SCREW
NO-LOAD/LOAD VALVE TO BRACKET
377 N 304017008034 SCREW
NO-LOAD/LOAD VALVE TO BRACKET
378 N 913004008004 NUT
Repalced by: N 913004008001
378 N 913004008001 NUT
NO-LOAD/LOAD VALVE TO BRACKET
378 N 913004008001 NUT
NO-LOAD/LOAD VALVE TO BRACKET
379 N 000933008153 SCREW
Repalced by: N 304017008034
379 N 304017008034 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
379 N 304017008034 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
380 N 913004008004 NUT
Repalced by: N 913004008001
380 N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
380 N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
381 A 0029970736 VALVE
Repalced by: A 0029972755
381 A 0029977436 VALVE
Repalced by: A 0004202755
381 A 0004202755 BLEEDER VALVE
381 A 0029970636 VALVE
Repalced by: A 0029977336
381 A 0029977336 VALVE
3/2-WAY
382 N 915039008202 HOLLOW SCREW FITTING
AT VALVE
382 N 915039008202 HOLLOW SCREW FITTING
AT VALVE
383 N 007603012405 SEAL RING
AT VALVE
383 N 007603012405 SEAL RING
AT VALVE
384 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
384 N 000908012009 SCREW PLUG
AT VALVE
384 N 000908012009 SCREW PLUG
AT VALVE
385 A 0039979172 FITTING
AT VALVE
385 A 0029975872 FITTING
Repalced by: A 3899970272
385 A 3899970272 FITTING
AT VALVE
386 N 000933006124 SCREW
VALVE TO BRACKET
386 N 000933006124 SCREW
VALVE TO BRACKET
387 N 913004006002 NUT
Repalced by: N 913004006001
387 N 913004006001 NUT
VALVE TO BRACKET
387 N 913004006001 NUT
VALVE TO BRACKET
A 0029977372 FITTING
FRONT AXLE
N 080705018002 NUT
T-FITTING TO BRACKET
A 3854280540 BRACKET
Repalced by: A 3952711140
A 3952711140 BRACKET
T-FITTING
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
BRACKET TO CROSS MEMBER BEHIND CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO CROSS MEMBER BEHIND CAB
388 A 3855841421 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855841721 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855845521 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855841121 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855844821 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855840921 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855843121 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855846621 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855841521 GUIDE SIGN
LOAD-DEPENDING BRAKE
388 A 3855843221 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
389 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
389 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
389 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
389 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
389 A 0024314906 PRESSURE REGULATOR
WABCO
389 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
389 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
389 A 0024318306 PRESSURE REGULATOR
KNORR
390 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
390 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
390 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
390 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
390 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
390 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
390 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
390 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
390 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221,
Y YYYYYYYYYYYY PART NAME MISSING
002 431 43 06,BOSCH 0 481 039 201
390 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
390 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
390 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
391 N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
391 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
392 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
393 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION:
"1"
394 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION:
"1"
395 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
396 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION:
"21"
396 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION:
"21"
397 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION:
"21"
398 A 0004310173 BREATHER PIPE
AT PRESSURE REGULATOR
398 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION:
"3"
A 6159905082 THREADED UNION
PRESSURE REGULATOR,CONNECTION:
"3"
399 N 916026020001 CLAMP
Repalced by: N 000000000667
399 N 000000000667 CLAMP
AT PRESSURE REGULATOR
399 N 916017032000 CLAMP
Repalced by: N 000000000670
399 N 000000000670 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
399 N 916026016001 CLAMP
Repalced by: A 0059970190
399 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
A 0004310151 SPACER RING
PRESSURE REGULATOR,CONNECTION:
"3"
400 A 3854310153 SPACER TUBE
Repalced by: A 4409910040
400 A 4409910040 SPACER TUBE
PRESSURE REGULATOR TO BATTERY SUPPORT
400 A 3809910040 SPACER TUBE
PRESSURE REGULATOR TO BATTERY SUPPORT
401 N 000931008281 SCREW
PRESSURE REGULATOR TO BATTERY SUPPORT
401 N 000931008209 SCREW
PRESSURE REGULATOR TO BATTERY SUPPORT
402 N 913004008004 NUT
Repalced by: N 913004008001
402 N 913004008001 NUT
PRESSURE REGULATOR TO BATTERY SUPPORT
403 A 3854312240 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
403 A 3854313440 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
404 N 000933008147 SCREW
Repalced by: N 304017008021
404 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
405 N 913004008004 NUT
Repalced by: N 913004008001
405 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
406 N 074305022202 NUT
VALVE TO BRACKET
407 A 0014313806 VALVE
Repalced by: A 0024310406
407 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
407 A 0014313506 VALVE
Repalced by: A 0014318406
407 A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
407 A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
407 A 0014316806 VALVE
Repalced by: A 0024312906
407 A 0024312906 VALVE
Repalced by: A 0024319306
407 A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
408 A 0014310986 CUP
TO 002 431 04 06,BOSCH
409 A 0009934905 SPRING
Repalced by: A 0009935205
409 A 0009935205 SPRING
TO 002 431 04 06,BOSCH
410 A 0014311860 SEAL RING
34X2.3MM,TO 001 431 68 06,GRAU
411 A 0024298844 VALVE
TO 001 431 68 06 GRAU 37001
412 A 0099972448 SEAL RING
19.3X2.4MM,TO 001 431 68 06,GRAU 37001
413 A 0059973248 SEAL RING
25.3X2.4 MM,TO 001 431 68 06,GRAU
414 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
15X2 MM,TO 001 431 68 06,GRAU 19001
415 A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
416 A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
416 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
416 A 0025861743 REPAIR KIT
BOOT
001 431 38 06,BOSCH
416 A 0015868443 REPAIR KIT
SEAL RING
001 431 38 06,BOSCH
416 A 0015863842 REPAIR KIT
TO 001 431 35 06,001 431 47 06
416 A 0025860643 REPAIR KIT
Repalced by: A 0025862843
416 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
416 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
N 074313016401 FITTING
Repalced by: A 0019972372
417 A 0019972372 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
418 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
418 A 0004290227 THRUST RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
419 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
419 A 0009870446 SEALING CORD
AT FOUR-CIRCUIT PROTECTIVE VALVE
420 N 074301022203 ELBOW FITTING
CONNECTION:
"1"
421 A 0009905070 T-FITTING
CONNECTIONS:
"1,2"
422 A 0009904770 T-FITTING
CONNECTION:
"11"
422 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,23"
423 A 0009904670 T-FITTING
CONNECTION:
"23"
424 N 080705016003 NUT
AT FOUR-CIRCUIT PROTECTIVE VALVE
425 A 0004290927 THRUST RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
A 0029971640 SEAL RING
Repalced by: A 0009971548
426 A 0009971548 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
427 A 0005455414 SWITCH
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
428 N 074315012100 FITTING
Repalced by: A 0019903371
428 A 0019903371 ELBOW FITTING
CONNECTION:
"21"
428 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
N 003952006102 FITTING
Repalced by: A 0019909871
A 0019909871 ELBOW FITTING
429 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
429 A 0009909270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
430 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
431 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
432 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
433 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
434 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
T YYYYYYYYYYYY PART NAME MISSING
.
26
435 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
436 N 915036012203 HOLLOW SCREW
AT FOUR-CIRCUIT PROTECTIVE VALVE
437 N 007603016401 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
438 A 0004322601 RESERVOIR
Repalced by: A 0034321801
438 A 0034321801 RESERVOIR
OUTSIDE
30 L
438 A 0034321801 RESERVOIR
OUTSIDE
30 L
438 A 0034321801 RESERVOIR
OUTSIDE
30 L
439 A 0004325301 RESERVOIR
INSIDE
30/10 L.
439 A 0004325301 RESERVOIR
INSIDE
30/10 L.
439 A 0004325301 RESERVOIR
INSIDE
30/10 L.
440 A 0004322101 RESERVOIR
Repalced by: A 0034322301
440 A 0034322301 RESERVOIR
OUTSIDE AND INSIDE
40 L
440 A 0034322301 RESERVOIR
OUTSIDE AND INSIDE
40 L
441 A 0009903970 T-FITTING
Repalced by: A 0019901070
441 A 0019901070 T-FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
442 A 0009902787 CROSS FITTING
INSIDE AIR RESERVOIR,OUTSIDE CONNECTION
443 A 0019979572 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009979486 PLUG
444 A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
445 N 074305022202 NUT
INSIDE AIR RESERVOIR,OUTSIDE CONNECTION
446 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR,OUTSIDE CONNECTION
447 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR,OUTSIDE CONNECTION
448 A 0029971172 FITTING
INSIDE AIR RESERVOIR,OUTSIDE CONNECTION
449 N 007603022102 SEAL RING
INSIDE AIR RESERVOIR,OUTSIDE CONNECTION
449 A 0004290227 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
450 A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 3854320840 BRACKET
AIR RESERVOIR
451 A 0004320607 VALVE
Repalced by: A 0004321107
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004320607 VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004321107 VALVE
DRAIN VALVE
451 A 0004322107 VALVE
DRAIN VALVE
451 A 0004322107 VALVE
DRAIN VALVE
451 A 0004322107 VALVE
DRAIN VALVE
451 A 0004322107 VALVE
DRAIN VALVE
451 A 0004322107 VALVE
DRAIN VALVE
451 A 0004322407 VALVE
DRAIN VALVE
451 A 0004322407 VALVE
DRAIN VALVE
451 A 0004322407 VALVE
DRAIN VALVE
451 A 0004322407 VALVE
DRAIN VALVE
N 007603022102 SEAL RING
AT RESERVOIR,BOTTOM
N 007603022102 SEAL RING
AT RESERVOIR,BOTTOM
452 A 0004290227 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
452 A 0004290227 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
452 A 0004290227 THRUST RING
AIR RESERVOIR,BOTTOM CONNECTION
453 A 0009870446 SEALING CORD
AIR RESERVOIR,BOTTOM CONNECTION
453 A 0009870446 SEALING CORD
AIR RESERVOIR,BOTTOM CONNECTION
453 A 0009870446 SEALING CORD
AIR RESERVOIR,BOTTOM CONNECTION
454 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
454 N 000908022011 SCREW PLUG
AT OUTSIDE AIR RESERVOIR
454 N 000908022011 SCREW PLUG
AT OUTSIDE AIR RESERVOIR
454 N 000908022011 SCREW PLUG
AT OUTSIDE AIR RESERVOIR
455 N 007603022102 SEAL RING
AT OUTSIDE AIR RESERVOIR
456 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
456 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
456 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
456 A 0009907771 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
457 A 0009970569 F-FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
A 0005455414 SWITCH
INSIDE AIR RESERVOIR, REAR CONNECTION
459 N 074305022202 NUT
INSIDE AIR RESERVOIR, REAR CONNECTION
459 N 074305022202 NUT
INSIDE AIR RESERVOIR, REAR CONNECTION
459 N 074305022202 NUT
INSIDE AIR RESERVOIR, REAR CONNECTION
460 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR, REAR CONNECTION
460 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR, REAR CONNECTION
460 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR, REAR CONNECTION
461 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR, REAR CONNECTION
461 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR, REAR CONNECTION
461 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR, REAR CONNECTION
462 A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
462 A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
462 A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
463 A 0024295844 VALVE
CHECK
463 A 0024295844 VALVE
CHECK
463 A 0024295844 VALVE
CHECK
463 A 0024295944 VALVE
CHECK
463 A 0024295944 VALVE
CHECK
463 A 0024295944 VALVE
CHECK
463 A 0024297544 VALVE
CHECK
463 A 0024297544 VALVE
CHECK
463 A 0024297544 VALVE
CHECK
464 A 3854300140 STRAP
AIR RESERVOIR TO BRACKET
465 A 3854320218 BASE
AIR RESERVOIR TO BRACKET
466 N 000934010014 NUT
AIR RESERVOIR TO BRACKET
A 3854200168 SUPPORT
Repalced by: A 3854260240
A 3854200168 SUPPORT
467 A 3854260240 BRACKET
BRAKE BOOSTER ASSEMBLY
467 A 3854260240 BRACKET
BRAKE BOOSTER ASSEMBLY
468 A 3854200042 BRAKE LEVER
468 A 3854200042 BRAKE LEVER
468 A 3854200042 BRAKE LEVER
469 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
469 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
469 A 0119813410 NEEDLE BEARING
469 A 0119813410 NEEDLE BEARING
469 A 0119813410 NEEDLE BEARING
470 A 0089978046 SEAL RING
Repalced by: A 0069979147
470 A 0069979147 SEAL RING
470 A 0069979147 SEAL RING
470 A 0069979147 SEAL RING
471 A 3802940507 PIVOT PIN
471 A 3802940507 PIVOT PIN
472 A 3854310853 SPACER TUBE
472 A 3854310853 SPACER TUBE
473 A 3859930010 SPRING
473 A 3859930010 SPRING
473 A 3859930010 SPRING
474 N 000471020001 LOCK RING
474 N 000471020001 LOCK RING
475 N 000433021002 WASHER
475 N 000433021002 WASHER
475 N 000433021002 WASHER
476 N 000931010379 SCREW
476 N 000931010379 SCREW
477 N 913004010008 NUT
Repalced by: N 910113010000
477 N 910113010000 NUT
477 N 910113010000 NUT
478 A 3854260165 PROTECTIVE PLATE
AT MUFFLER
479 A 3854260065 PROTECTIVE PLATE
AT MUFFLER
480 N 304017010025 SCREW
Repalced by: N 304017010051
480 N 304017010051 SCREW
480 N 304017010051 SCREW
480 N 304017010051 SCREW
481 N 000934010014 NUT
481 N 000934010014 NUT
481 N 000934010014 NUT
A 3819910407 PIN
N 912007010000 CLIP
482 A 3804310092 ROD
CONSOLE TO APPARATUS SUPPORT
482 A 3804310092 ROD
CONSOLE TO APPARATUS SUPPORT
482 A 3804310092 ROD
CONSOLE TO APPARATUS SUPPORT
483 N 001434010009 PIN
CONSOLE TO APPARATUS SUPPORT
483 N 001434010009 PIN
CONSOLE TO APPARATUS SUPPORT
483 N 001434010009 PIN
CONSOLE TO APPARATUS SUPPORT
484 N 000433010505 WASHER
Repalced by: N 000433010510
484 N 000433010510 WASHER
CONSOLE TO APPARATUS SUPPORT
484 N 000433010510 WASHER
CONSOLE TO APPARATUS SUPPORT
484 N 000433010510 WASHER
CONSOLE TO APPARATUS SUPPORT
N 000094003219 COTTER PIN
CONSOLE TO APPARATUS SUPPORT
N 000094003219 COTTER PIN
CONSOLE TO APPARATUS SUPPORT
N 000094003219 COTTER PIN
CONSOLE TO APPARATUS SUPPORT
485 N 000933010105 SCREW
CONSOLE TO APPARATUS SUPPORT
485 N 000933010105 SCREW
CONSOLE TO APPARATUS SUPPORT
485 N 000933010105 SCREW
CONSOLE TO APPARATUS SUPPORT
485 N 000933010128 SCREW
CONSOLE TO APPARATUS SUPPORT
485 N 000933010128 SCREW
CONSOLE TO APPARATUS SUPPORT
485 N 000933010128 SCREW
CONSOLE TO APPARATUS SUPPORT
486 N 913004010008 NUT
Repalced by: N 910113010000
486 N 910113010000 NUT
CONSOLE TO APPARATUS SUPPORT
486 N 910113010000 NUT
CONSOLE TO APPARATUS SUPPORT
486 N 910113010000 NUT
CONSOLE TO APPARATUS SUPPORT
487 A 0014309901 BRAKE MASTER CYLINDER
Repalced by: A 0034304401
487 A 0004313414 BRAKE CYLINDER
Repalced by: A 0034304401
487 A 0034304401 BRAKE BOOSTER
487 A 0034304401 BRAKE BOOSTER
487 A 0034304401 BRAKE BOOSTER
488 A 0015869143 REPAIR KIT
TO 003 430 44 01,000 431 34 14
488 A 0015869143 REPAIR KIT
TO 003 430 44 01,000 431 34 14
488 A 0015869143 REPAIR KIT
TO 003 430 44 01,000 431 34 14
489 N 000933010145 SCREW
BOSCH BRAKE CYLINDER TO REAR BRACKET
489 N 000933010145 SCREW
BOSCH BRAKE CYLINDER TO REAR BRACKET
489 N 000933010145 SCREW
BOSCH BRAKE CYLINDER TO REAR BRACKET
489 N 000933010129 SCREW
Repalced by: N 304017010002
489 N 304017010002 SCREW
BOSCH BRAKE CYLINDER TO REAR BRACKET
489 N 304017010002 SCREW
BOSCH BRAKE CYLINDER TO REAR BRACKET
489 N 304017010002 SCREW
BOSCH BRAKE CYLINDER TO REAR BRACKET
490 N 912004010102 LOCK WASHER
BOSCH BRAKE CYLINDER TO REAR BRACKET
490 N 912004010102 LOCK WASHER
BOSCH BRAKE CYLINDER TO REAR BRACKET
490 N 912004010102 LOCK WASHER
BOSCH BRAKE CYLINDER TO REAR BRACKET
491 A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
491 A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
491 A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
492 N 007603010103 SEAL RING
Repalced by: N 007603010110
492 N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
492 N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
492 N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
493 A 0029971372 FITTING
AT BRAKE CYLINDER
493 A 0029971372 FITTING
AT BRAKE CYLINDER
493 A 0029971372 FITTING
AT BRAKE CYLINDER
494 N 007603022102 SEAL RING
AT BRAKE CYLINDER
494 N 007603022102 SEAL RING
AT BRAKE CYLINDER
494 A 0004290227 THRUST RING
AT BRAKE CYLINDER
494 A 0004290227 THRUST RING
AT BRAKE CYLINDER
495 A 0009870446 SEALING CORD
AT BRAKE CYLINDER
495 A 0009870446 SEALING CORD
AT BRAKE CYLINDER
A 0009907771 ELBOW FITTING
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 074305022202 NUT
496 N 080705018002 NUT
BRAKE CYLINDER TO FRONT BRACKET
496 N 080705018002 NUT
BRAKE CYLINDER TO FRONT BRACKET
497 A 3854320540 BRACKET
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
497 A 3854320540 BRACKET
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
497 A 3854320540 BRACKET
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
498 N 000933010105 SCREW
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
498 N 000933010105 SCREW
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
498 N 000933010105 SCREW
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
499 N 000125010518 WASHER
Repalced by: N 000125010532
499 N 000125010532 WASHER
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
499 N 000125010532 WASHER
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
499 N 000125010532 WASHER
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
500 N 913004010008 NUT
Repalced by: N 910113010000
500 N 910113010000 NUT
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
500 N 910113010000 NUT
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
500 N 910113010000 NUT
FRONT AIR BRAKE CYLINDER TO CROSS MEMBER BEHIND CAB
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BRAKE CYLINDER TO BRACKET
N 910113010000 NUT
BRAKE CYLINDER TO BRACKET
N 910113010000 NUT
BRAKE CYLINDER TO BRACKET
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
684T
501 A 3854300210 BRACKET
PRE-LOAD CYLINDER
501 A 3854300210 BRACKET
PRE-LOAD CYLINDER
501 A 3854300210 BRACKET
PRE-LOAD CYLINDER
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
502 N 000933010105 SCREW
BRACKET TO CROSS MEMBER
502 N 000933010105 SCREW
BRACKET TO CROSS MEMBER
502 N 000933010105 SCREW
BRACKET TO CROSS MEMBER
503 N 912004010102 LOCK WASHER
BRACKET TO CROSS MEMBER
503 N 912004010102 LOCK WASHER
BRACKET TO CROSS MEMBER
503 N 912004010102 LOCK WASHER
BRACKET TO CROSS MEMBER
504 A 3609900040 WASHER
Repalced by: A 4219905440
504 A 4219905440 WASHER
BRACKET TO CROSS MEMBER
504 A 4219905440 WASHER
BRACKET TO CROSS MEMBER
504 A 4219905440 WASHER
BRACKET TO CROSS MEMBER
A 3859900140 WASHER
Repalced by: A 3859900540
A 3859900540 WASHER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
505 A 0004316914 BRAKE CYLINDER
Repalced by: A 0014317214
505 A 0014317214 BRAKE CYLINDER
BOSCH
505 A 0014317214 BRAKE CYLINDER
BOSCH
505 A 0004316814 BRAKE CYLINDER
Repalced by: A 0014317214
505 A 0014310814 BRAKE CYLINDER
Repalced by: A 0014317514
505 A 0004319514 BRAKE CYLINDER
Repalced by: A 0014317514
505 A 0024301030 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317514
505 A 0014314214 BRAKE CYLINDER
Repalced by: A 0014317514
505 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
505 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
505 A 0014317514 BRAKE CYLINDER
BOSCH-SCHAEFER
506 A 0014311349 GUIDE BUSHING
TO 000 431 69 14,BOSCH
506 A 0014311349 GUIDE BUSHING
TO 000 431 69 14,BOSCH
506 A 0004311249 GUIDE BUSHING
TO 000 431 95 14,BOSCH-SCHAEFER
506 A 0004311249 GUIDE BUSHING
TO 000 431 95 14,BOSCH-SCHAEFER
507 A 0004317587 PROTECTIVE CAP
TO 000 431 69 14,BOSCH
507 A 0004317587 PROTECTIVE CAP
TO 000 431 69 14,BOSCH
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
525Y
508 A 0004317283 PISTON
TO 000 431 69 14,000 431 95 14
508 A 0004317283 PISTON
TO 000 431 69 14,000 431 95 14
509 A 0019979340 SEAL RING
Repalced by: A 0019975945
509 A 0019975945 SEAL RING
TO 000 431 69 14,000 431 95 14
509 A 0019975945 SEAL RING
TO 000 431 69 14,000 431 95 14
510 A 0039979548 SEAL RING
TO 000 431 69 14,000 431 95 14
510 A 0039979548 SEAL RING
TO 000 431 69 14,000 431 95 14
511 A 0004317483 PISTON
TO 000 431 69 14,000 431 95 14
511 A 0004317483 PISTON
TO 000 431 69 14,000 431 95 14
512 A 0069975645 SEAL RING
TO 000 431 69 14,000 431 95 14
512 A 0069975645 SEAL RING
TO 000 431 69 14,000 431 95 14
513 A 0039979348 SEAL RING
TO 000 431 69 14,000 431 95 14
513 A 0039979348 SEAL RING
TO 000 431 69 14,000 431 95 14
514 A 0014310660 SEAL RING
O 000 431 69 14,000 431 95 14
514 A 0014310660 SEAL RING
O 000 431 69 14,000 431 95 14
515 A 0004317383 PISTON
TO 000 431 69 14,000 431 95 14
515 A 0004317383 PISTON
TO 000 431 69 14,000 431 95 14
516 A 0039979448 SEAL RING
TO 000 431 69 14,000 431 95 14
516 A 0039979448 SEAL RING
TO 000 431 69 14,000 431 95 14
A 0039974347 SEAL RING
TO 000 431 69 14,000 431 95 14
A 0039974347 SEAL RING
TO 000 431 69 14,000 431 95 14
517 A 0004318886 CUP
TO 000 431 69 14,000 431 95 14
517 A 0004318886 CUP
TO 000 431 69 14,000 431 95 14
A 0004315586 CUP
TO 000 431 68 14,BOSCH
A 0004311422 COVER
TO 001 431 72 14,BOSCH
A 0004311422 COVER
TO 001 431 72 14,BOSCH
A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
A 0074202018 WHEEL BRAKE CYLINDER
A 0074202018 WHEEL BRAKE CYLINDER
A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO002 430 10 30,002 431 42 14,
Y YYYYYYYYYYYY PART NAME MISSING
TO 001 431 75 14,BOSCH-SCHAEFER
A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO002 430 10 30,002 431 42 14,
A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO002 430 10 30,002 431 42 14,
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0004210887 PROTECTIVE CAP
A 0009882735 CAP
TO 001 431 72 14,BOSCH
A 0009882735 CAP
TO 001 431 72 14,BOSCH
518 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
518 A 0004302108 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 95 14,69 14,001 431 42 14
A 0005860743 REPAIR KIT
Repalced by: A 0005869143
A 0005869143 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 72 14,BOSCH
A 0005869143 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 72 14,BOSCH
A 0025866543 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 08 14,BOSCH-SCHAEFER
A 0025866543 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 08 14,BOSCH-SCHAEFER
A 0025865743 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 68 14,BOSCH
A 0025865743 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 68 14,BOSCH
A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18,SCHAEFER
A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18,SCHAEFER
A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18,SCHAEFER
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18,SCHAEFER
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18,SCHAEFER
A 0025865542 REPAIR KIT
TO 004 420 68 18,SCHAEFER
A 0004316614 BRAKE CYLINDER
Repalced by: A 0014317114
A 0004319614 BRAKE CYLINDER
Repalced by: A 0014317114
A 0014317114 BRAKE CYLINDER
BOSCH
A 0014317114 BRAKE CYLINDER
BOSCH
519 A 0014310514 BRAKE CYLINDER
Repalced by: A 0014317314
519 A 0004319414 BRAKE CYLINDER
Repalced by: A 0014317314
519 A 0024300830 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317314
519 A 0014313914 BRAKE CYLINDER
Repalced by: A 0014317314
519 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
519 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
519 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
520 A 0004317283 PISTON
TO 000 431 94 14;000 431 96 14
521 A 0049970248 SEAL RING
TO 000 431 94 14;000 431 96 14
522 A 0019979340 SEAL RING
Repalced by: A 0019975945
522 A 0019975945 SEAL RING
TO 000 431 94 14;000 431 96 14
N 000472030000 LOCK RING
TO 000 431 94 14;000 431 96 14
523 A 0039979248 SEAL RING
TO 000 431 94 14;000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14,001 431 73 14
A 0004318986 CUP
TO 000 431 94 14,000 431 96 14
N 000472036000 LOCK RING
TO 000 431 94 14,000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14,001 431 73 14
N 000472017000 LOCK RING
TO 001 431 71 14,001 431 73 14
N 912004008102 LOCK WASHER
TO 000 431 94 14,000 431 96 14
524 A 0004317183 PISTON
TO 000 431 94 14,000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14,001 431 73 14
525 A 0069975645 SEAL RING
TO 000 431 94 14,000 431 96 14
526 A 0039979348 SEAL RING
TO 000 431 94 14,000 431 96 14
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
TO 000 431 94 14,000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14,001 431 73 14
527 A 0014310660 SEAL RING
TO 000 431 94 14,000 431 96 14
528 A 0004317383 PISTON
TO 000 431 94 14,000 431 96 14
529 A 0039979448 SEAL RING
TO 000 431 94 14,000 431 96 14
N 000934006007 NUT
TO 000 431 94 14,000 431 96 14
N 000963006014 SCREW
TO 000 431 94 14,000 431 96 14
530 A 0004311249 GUIDE BUSHING
TO 000 431 94 14,000 431 96 14
N 007993016100 SNAP RING
TO 000 431 94 14,000 431 96 14
N 000933010145 SCREW
TO 000 431 94 14,000 431 96 14
N 000933010094 SCREW
TO 001 431 71 14,001 431 73 14
A 0009902047 LOCK WASHER
Repalced by: N 912004010102
N 912004010102 LOCK WASHER
TO 000 431 94 14,000 431 96 14
N 001476003007 GROOVED NAIL
TO 000 431 94 14,000 431 96 14
N 000471022000 LOCK RING
TO 000 431 94 14,000 431 96 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14,001 431 73 14
A 0039974347 SEAL RING
TO 000 431 94 14,000 431 96 14
N 007603010404 SEAL RING
TO 001 431 71 14,001 431 73 14
N 007993006100 SNAP RING
TO 000 431 94 14,000 431 96 14
N 007993006100 SNAP RING
TO 000 431 94 14,000 431 96 14
A 0004311322 COVER
TO 001 431 71 14,001 431 73 14
531 A 0004318886 CUP
TO 000 431 94 14,000 431 96 14
A 0004315586 CUP
TO 001 431 05 14,000 431 96 14
532 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
532 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
532 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
A 0074202018 WHEEL BRAKE CYLINDER
A 0074202018 WHEEL BRAKE CYLINDER
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0025865543 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 66 14,001 431 05 14,
Y YYYYYYYYYYYY PART NAME MISSING
BOSCH/SCHAEFER
533 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
533 A 0004302108 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 94 14,96 14,001 431 39 14,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 71 14,001 431 73 14
A 0025865643 REPAIR KIT
Repalced by: A 0025865543
A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18,SCHAEFER
534 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18,SCHAEFER
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18,SCHAEFER
A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18,SCHAEFER
A 0089979082 HOSE
BLEEDING
6X8 MM
A 0089979082 HOSE
BLEEDING
6X8 MM
A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
N 912004010102 LOCK WASHER
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 912004010102 LOCK WASHER
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 304017010002 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 000931010331 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 000931010331 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 000933010094 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 000933010094 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
N 007604010102 SCREW PLUG
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
535 N 074315012100 FITTING
Repalced by: A 0019903371
535 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
535 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
535 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
536 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
536 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
536 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
537 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
537 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
537 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
538 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
538 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
538 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
539 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
539 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
540 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTION "2.2"
540 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTION "2.2"
241 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTION "2.2"
241 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTION "2.2"
541 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
541 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
541 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTION "2.2"
542 A 0034305501 BRAKE MASTER CYLINDER
FRONT WHEEL BRAKE
543 A 0025863243 REPAIR KIT
Repalced by: A 0014300260
543 A 0014300260 REPAIR KIT
544 A 0004319260 SEAL RING
A 0009934205 SPRING
A 0004313676 WASHER
Repalced by: A 0004311776
A 0004311776 WASHER
A 0004310994 LOCK
545 A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
545 A 0004310265 VALVE
Repalced by: A 3075530107
545 A 3075530107 VALVE
546 A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
546 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
546 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
546 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
546 A 0004210887 PROTECTIVE CAP
547 A 0034304901 BRAKE MASTER CYLINDER
REAR WHEEL BRAKE
547 A 0034304901 BRAKE MASTER CYLINDER
REAR WHEEL BRAKE
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
554
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
563
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
554
548 A 0025864543 REPAIR KIT
Repalced by: A 0004303483
548 A 0004303483 PISTON
TO 003 430 49 01
A 0024302701 BRAKE MASTER CYLINDER
Repalced by: A 0024304101
A 0024309201 BRAKE MASTER CYLINDER
Repalced by: A 0024304101
549 A 0024304101 BRAKE MASTER CYLINDER
FRONT WHEEL BRAKE
550 A 0004310265 VALVE
Repalced by: A 3075530107
550 A 3075530107 VALVE
551 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
551 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
551 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
551 A 0004210887 PROTECTIVE CAP
552 N 007603040102 SEAL RING
553 A 0004311075 THREADED UNION
554 A 0004300381 VALVE
A 0009930605 SPRING
A 0004311776 WASHER
555 A 0009941835 SNAP RING
560 A 0004314293 SPRING
A 0004311785 FILLER RING
561 A 0004310376 WASHER
Repalced by: A 0004311176
561 A 0004311176 WASHER
562 A 0005861743 REPAIR KIT
TO 002 430 41 01
563 A 0024306101 BRAKE MASTER CYLINDER
FRONT WHEEL BRAKE
563 A 0024306101 BRAKE MASTER CYLINDER
FRONT WHEEL BRAKE
563 A 0024306101 BRAKE MASTER CYLINDER
REAR WHEEL BRAKE
564 A 0004310975 THREADED UNION
564 A 0004310975 THREADED UNION
565 N 007603035101 SEAL RING
565 N 007603035101 SEAL RING
A 0009930605 SPRING
A 0009930605 SPRING
566 A 0004311876 WASHER
566 A 0004311876 WASHER
567 A 0004313793 SPRING
567 A 0004313793 SPRING
568 A 0004310089 SPRING RETAINER
568 A 0004310089 SPRING RETAINER
569 A 0004310685 FILLER RING
569 A 0004310685 FILLER RING
A 0004311976 WASHER
Repalced by: A 0004312176
A 0004312176 WASHER
A 0004312176 WASHER
570 A 0004310265 VALVE
Repalced by: A 3075530107
570 A 3075530107 VALVE
570 A 3075530107 VALVE
571 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
571 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
571 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
571 A 0004210887 PROTECTIVE CAP
571 A 0004210887 PROTECTIVE CAP
572 A 0005861143 REPAIR KIT
572 A 0005861143 REPAIR KIT
573 N 000933010129 SCREW
Repalced by: N 304017010002
573 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
573 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
573 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
N 000933010145 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
574 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
574 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
574 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
575 A 3854300110 BRACKET
576 N 912004010102 LOCK WASHER
577 N 000933010128 SCREW
578 N 000931008254 SCREW
Repalced by: N 304014008002
578 N 304014008002 SCREW
579 N 913004008004 NUT
Repalced by: N 913004008001
579 N 913004008001 NUT
580 A 0004318702 RESERVOIR
580 A 0004318702 RESERVOIR
580 A 0004318702 RESERVOIR
581 A 0004312833 FILLER CAP
Repalced by: A 0004315533
581 A 0004315533 FILLER CAP
TO 000 431 87 02
581 A 0004315533 FILLER CAP
TO 000 431 87 02
581 A 0004315533 FILLER CAP
TO 000 431 87 02
A 0014310287 PROTECTIVE CAP
TO 000 431 55 33
582 A 0039976440 SEAL RING
TO 000 431 87 02
582 A 0039976440 SEAL RING
TO 000 431 87 02
582 A 0039976440 SEAL RING
TO 000 431 87 02
583 A 0004312634 STRAINER
TO 000 431 87 02
583 A 0004312634 STRAINER
TO 000 431 87 02
583 A 0004312634 STRAINER
TO 000 431 87 02
A 0004319702 RESERVOIR
Repalced by: A 0004318702
A 0004319702 RESERVOIR
A 0004319702 RESERVOIR
A 0004313333 FILLER CAP
A 0004313333 FILLER CAP
584 N 007603022102 SEAL RING
584 N 007603022102 SEAL RING
584 N 007603022102 SEAL RING
A 0004280830 CONNECTOR
585 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION:
"21"
585 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION:
"21"
585 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION:
"21"
A 0004280026 HOLLOW SCREW
586 A 0004230184 FITTING
MASTER CYLINDER,CONNECTION:
"21"
586 A 0004230184 FITTING
MASTER CYLINDER,CONNECTION:
"21"
586 A 0004230184 FITTING
MASTER CYLINDER,CONNECTION:
"21"
587 A 0014314305 BRAKE VALVE
TWO-CIRCUIT
587 A 0014314305 BRAKE VALVE
TWO-CIRCUIT
587 A 0014313505 BRAKE VALVE
TWO-CIRCUIT
587 A 0014313505 BRAKE VALVE
TWO-CIRCUIT
587 A 0014319405 BRAKE VALVE
TWO-CIRCUIT
587 A 0014319405 BRAKE VALVE
TWO-CIRCUIT
587 A 0024310505 BRAKE VALVE
TWO-CIRCUIT
587 A 0024310505 BRAKE VALVE
TWO-CIRCUIT
A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
A 0109974248 SEAL RING
TO 001 431 43 05
A 0109974248 SEAL RING
TO 001 431 43 05
A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0002960107 SLAVE CYLINDER
Repalced by: A 0074202118
588 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 35 05,001 431 43 05, TEVES
588 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 35 05,001 431 43 05, TEVES
588 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 94 05,002 431 0505,SCHAEFER
588 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 94 05,002 431 0505,SCHAEFER
N 007603006108 SEAL RING
TO 000 296 01 07,TEVES
N 007603006108 SEAL RING
TO 000 296 01 07,TEVES
A 0004310871 SCREW
TO 000 296 01 07,TEVES
A 0004310871 SCREW
TO 000 296 01 07,TEVES
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
589 A 0004310265 VALVE
Repalced by: A 3075530107
589 A 3075530107 VALVE
589 A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
590 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
590 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
590 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
590 A 0004210887 PROTECTIVE CAP
590 A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
591 A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 000 296 01 07,TEVES
591 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18,TEVES
591 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18,TEVES
591 A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,SCHAEFER
591 A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,SCHAEFER
591 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,SCHAEFER
591 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05
591 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05
591 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05
591 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05
591 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
591 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05,002 431 05 05
591 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05,002 431 05 05
A 0089979082 HOSE
SLAVE CYLINDER BREATHING
592 A 3854313040 BRACKET
TWO-CIRCUIT BRAKE VALVE
592 A 3854313040 BRACKET
TWO-CIRCUIT BRAKE VALVE
593 N 913004008004 NUT
Repalced by: N 913004008001
593 N 913004008001 NUT
BRAKE VALVE TO BRACKET
593 N 913004008001 NUT
BRAKE VALVE TO BRACKET
594 N 000933010164 SCREW
BRACKET TO APPARATUS SUPPORT
594 N 000933010164 SCREW
BRACKET TO APPARATUS SUPPORT
595 N 913004010008 NUT
Repalced by: N 910113010000
595 N 910113010000 NUT
BRACKET TO APPARATUS SUPPORT
595 N 910113010000 NUT
BRACKET TO APPARATUS SUPPORT
596 N 915036012203 HOLLOW SCREW
AT BRAKE VALVE
596 N 915036012203 HOLLOW SCREW
AT BRAKE VALVE
597 N 007603016401 SEAL RING
AT BRAKE VALVE
597 N 007603016401 SEAL RING
AT BRAKE VALVE
598 N 000908016001 SCREW PLUG
AT BRAKE VALVE
599 A 0004290927 THRUST RING
AT BRAKE VALVE
600 A 0004312031 TEST CONNECTION
VOSS
600 A 0004312031 TEST CONNECTION
VOSS
600 A 0004314531 TEST CONNECTION
600 A 0004314531 TEST CONNECTION
600 A 0004314831 TEST CONNECTION
WABCO
600 A 0004314831 TEST CONNECTION
WABCO
600 A 0004316131 TEST CONNECTION
WABCO
600 A 0004316131 TEST CONNECTION
WABCO
601 A 3854313740 BRACKET
TEST CONNECTION
601 A 3854313740 BRACKET
TEST CONNECTION
A 0009979486 PLUG
602 N 000933008147 SCREW
Repalced by: N 304017008021
602 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
602 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
603 N 913004008004 NUT
Repalced by: N 913004008001
603 N 913004008001 NUT
BRACKET TO CROSS MEMBER
603 N 913004008001 NUT
BRACKET TO CROSS MEMBER
604 A 0009977172 FITTING
FITTING TO BRACKET
604 A 0009977172 FITTING
FITTING TO BRACKET
605 N 080705012003 NUT
FITTING TO BRACKET
605 N 080705012003 NUT
FITTING TO BRACKET
N 003911012100 FITTING
Repalced by: A 0009907871
A 0009907871 ELBOW FITTING
AT SIDE MEMBER
A 0009907871 ELBOW FITTING
AT SIDE MEMBER
606 N 080705018002 NUT
AT SIDE MEMBER
606 N 080705018002 NUT
AT SIDE MEMBER
607 A 0019903871 ELBOW FITTING
AT SIDE MEMBER
607 A 0019903871 ELBOW FITTING
AT SIDE MEMBER
608 A 3834290801 LINE
Repalced by: A 6194290801
608 A 6194290801 LINE
Repalced by: A 6254293501
608 A 6254293501 LINE
FRONT AXLE,DIAPHRAGM CYLINDER
608 A 6254293501 LINE
FRONT AXLE,DIAPHRAGM CYLINDER
609 N 916027011014 HOSE
FRONT AXLE,DIAPHRAGM CYLINDER
609 N 916027011014 HOSE
FRONT AXLE,DIAPHRAGM CYLINDER
610 N 900271018036 HOSE
FRONT AXLE,DIAPHRAGM CYLINDER
610 N 900271018036 HOSE
FRONT AXLE,DIAPHRAGM CYLINDER
611 N 915017012100 UNION NUT
FRONT AXLE,DIAPHRAGM CYLINDER
611 N 915017012100 UNION NUT
FRONT AXLE,DIAPHRAGM CYLINDER
612 N 003861012007 GLAND
Repalced by: A 0019901967
612 A 0019901967 SEAL CONE
FRONT AXLE,DIAPHRAGM CYLINDER
612 A 0019901967 SEAL CONE
FRONT AXLE,DIAPHRAGM CYLINDER
613 A 0004290541 FITTING
FRONT AXLE,DIAPHRAGM CYLINDER
613 A 0004290541 FITTING
FRONT AXLE,DIAPHRAGM CYLINDER
A 0019978390 LOOM TIE
FRONT AXLE,DIAPHRAGM CYLINDER
A 0019978390 LOOM TIE
FRONT AXLE,DIAPHRAGM CYLINDER
615 N 916017016000 CLAMP
Repalced by: N 000000000666
615 N 000000000666 CLAMP
FRONT AXLE,DIAPHRAGM CYLINDER
615 N 000000000666 CLAMP
FRONT AXLE,DIAPHRAGM CYLINDER
A 3854292240 BRACKET
LEFT FRONT BRAKE HOSE
A 3854292240 BRACKET
LEFT FRONT BRAKE HOSE
A 3854292340 BRACKET
RIGHT FRONT BRAKE HOSE
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
806N
616 A 3159955010 CLAMP
616 A 3159955010 CLAMP
616 A 3159955010 CLAMP
617 N 000933008147 SCREW
Repalced by: N 304017008021
617 N 304017008021 SCREW
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
617 N 000933008153 SCREW
Repalced by: N 304017008034
617 N 304017008034 SCREW
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
617 N 304017008034 SCREW
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
617 N 000000001147 SCREW
M 6X20
617 N 000000001147 SCREW
M 6X20
618 N 913004008004 NUT
Repalced by: N 913004008001
618 N 913004008001 NUT
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
618 N 913004008001 NUT
BRACKET TO LEFT AND RIGHT SIDE MEMBERS
618 N 913004006002 NUT
Repalced by: N 913004006001
618 N 913004006001 NUT
LINE TO FRONT AXLE,RIGHT
618 N 913004006001 NUT
LINE TO FRONT AXLE,RIGHT
619 N 000125006421 WASHER
LINE TO FRONT AXLE,RIGHT
619 N 000125006421 WASHER
LINE TO FRONT AXLE,RIGHT
620 N 074315012100 FITTING
Repalced by: A 0019903371
620 A 0019903371 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
620 A 0019903371 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
621 N 080705016003 NUT
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
621 N 080705016003 NUT
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
622 A 0004290927 THRUST RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
622 A 0004290927 THRUST RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
623 A 0029971640 SEAL RING
Repalced by: A 0009971548
623 A 0009971548 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
623 A 0009971548 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
624 A 0004322001 RESERVOIR
Repalced by: A 0034321101
624 A 0034321101 RESERVOIR
SPRING LOAD ACCUMULATOR CYLINDER
20L
624 A 0034321101 RESERVOIR
SPRING LOAD ACCUMULATOR CYLINDER
20L
625 A 0009907771 ELBOW FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
625 A 0009907771 ELBOW FITTING
REAR AIR RESERVOIR
626 N 074305022202 NUT
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
626 N 074305022202 NUT
REAR AIR RESERVOIR
627 A 0004290227 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
627 A 0004290227 THRUST RING
REAR AIR RESERVOIR
628 A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
628 A 0009870446 SEALING CORD
REAR AIR RESERVOIR
629 A 0024295844 VALVE
CHECK VALVE
629 A 0024295844 VALVE
CHECK VALVE
629 A 0024295944 VALVE
CHECK VALVE
629 A 0024295944 VALVE
CHECK VALVE
629 A 0024297544 VALVE
CHECK VALVE
629 A 0024297544 VALVE
CHECK VALVE
630 N 074305022202 NUT
INSIDE AIR RESERVOIR
630 N 074305022202 NUT
REAR AIR RESERVOIR
631 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR
631 A 0004290227 THRUST RING
AIR RESERVOIR
632 A 0009870446 SEALING CORD
INSIDE AIR RESERVOIR
632 A 0009870446 SEALING CORD
AIR RESERVOIR
633 A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR
633 A 0019902171 ELBOW FITTING
AIR RESERVOIR
634 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
634 N 000908022011 SCREW PLUG
REAR AIR RESERVOIR
634 N 000908022011 SCREW PLUG
REAR AIR RESERVOIR
634 N 000908022011 SCREW PLUG
REAR AIR RESERVOIR
A 0009907771 ELBOW FITTING
REAR AIR RESERVOIR
N 074305022202 NUT
REAR AIR RESERVOIR
635 N 007603022102 SEAL RING
REAR AIR RESERVOIR
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
636 A 0004322407 VALVE
AIR RESERVOIR
636 A 0004322407 VALVE
DRAIN
A 0005830296 RING
A 0005830296 RING
637 A 0004290227 THRUST RING
DRAIN VALVE
637 N 007603022102 SEAL RING
DRAIN VALVE
638 A 0009870446 SEALING CORD
DRAIN VALVE
639 A 3814320140 BRACKET
RESERVOIR
639 A 3814320140 BRACKET
RESERVOIR
640 A 3524300040 STRAP
Repalced by: A 3354300340
640 A 3354300340 STRAP
SPRING-LOAD-ACCUMULATOR AIR-RESERVOIR TO BRACKET
640 A 3354300340 STRAP
SPRING-LOAD-ACCUMULATOR AIR-RESERVOIR TO BRACKET
641 A 3354320418 BASE
SPRING-LOAD-ACCUMULATOR AIR-RESERVOIR TO BRACKET
641 A 3354320418 BASE
SPRING-LOAD-ACCUMULATOR AIR-RESERVOIR TO BRACKET
642 N 000934010014 NUT
SPRING-LOAD-ACCUMULATOR AIR-RESERVOIR TO BRACKET
642 N 000934010014 NUT
SPRING-LOAD-ACCUMULATOR AIR-RESERVOIR TO BRACKET
643 N 000933010145 SCREW
BRACKET TO RIGHT SIDE MEMBER
643 N 000933010145 SCREW
BRACKET TO RIGHT SIDE MEMBER
643 N 000933010105 SCREW
644 N 913004010008 NUT
Repalced by: N 910113010000
644 N 910113010000 NUT
BRACKET TO RIGHT SIDE MEMBER
644 N 910113010000 NUT
BRACKET TO RIGHT SIDE MEMBER
A 0014292044 VALVE
Repalced by: A 0034291644
645 A 0034291644 VALVE
RELAY VALVE
BOSCH
645 A 0014296844 VALVE
RELAY VALVE
WABCO
645 A 0014296844 VALVE
HAND BRAKE
WABCO
645 A 0014296844 VALVE
ACTUATION OF BRAKE BY PEDAL
WABCO
645 A 0014296844 VALVE
ACTUATION OF BRAKE BY PEDAL
WABCO
645 A 0024290744 VALVE
Repalced by: A 0034295344
645 A 0034295344 VALVE
RELAY VALVE
KNORR
645 A 0014299144 VALVE
RELAY VALVE
GRAU
646 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
646 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
647 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
647 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
648 A 0059972748 SEAL RING
8X3 MM,TO 000 429 28 95, GRAU
648 A 0059972748 SEAL RING
8X3 MM,TO 000 429 28 95, GRAU
649 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
649 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
650 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
650 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
651 A 0014311980 GASKET
Repalced by: A 0004311980
651 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44
34X2X6 MM,TO 001 429 91 44,GRAU
651 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44
34X2X6 MM,TO 001 429 91 44,GRAU
652 A 0015862742 REPAIR KIT
652 A 0015862742 REPAIR KIT
652 A 0005865742 REPAIR KIT
652 A 0005865742 REPAIR KIT
652 A 0025865742 REPAIR KIT
652 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
652 A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
653 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
653 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
653 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
654 A 3554320140 BRACKET
AT CROSS MEMBER
654 A 3854301210 BRACKET
BRACKET TO RIGHT SIDE MEMBER
654 A 3854301210 BRACKET
BRACKET TO RIGHT SIDE MEMBER
656 N 000125008418 WASHER
Repalced by: N 000125008443
656 N 000125008443 WASHER
RELAY VALVE TO CROSS MEMBER
656 N 000125008443 WASHER
RELAY VALVE TO CROSS MEMBER
656 N 000125008443 WASHER
VALVE TO BRACKET
657 N 913004008004 NUT
Repalced by: N 913004008001
657 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
657 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
657 N 913004008001 NUT
VALVE TO BRACKET
658 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
659 N 913004010008 NUT
Repalced by: N 910113010000
659 N 910113010000 NUT
660 N 000961012097 SCREW
Repalced by: N 308676012026
660 N 308676012026 SCREW
BRACKET TO RIGHT SIDE MEMBER
660 N 308676012026 SCREW
BRACKET TO RIGHT SIDE MEMBER
661 N 912004012100 LOCK WASHER
BRACKET TO RIGHT SIDE MEMBER
661 N 912004012100 LOCK WASHER
BRACKET TO RIGHT SIDE MEMBER
A 0009904670 T-FITTING
CONNECTION:
"1"
N 074305022202 NUT
CONNECTION:
"1"
A 0004290227 THRUST RING
CONNECTION:
"1"
A 0009870446 SEALING CORD
CONNECTION:
"1"
A 0015451614 SWITCH
CONNECTION:
"1"
662 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
662 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
662 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
N 007603022102 SEAL RING
RELAY VALVE,CONNECTION:
"1"
N 007603022102 SEAL RING
RELAY VALVE,CONNECTION:
"1"
664 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1"
664 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1"
664 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1"
665 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1"
665 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1"
665 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1"
666 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
666 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
666 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
667 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
667 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
667 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
668 A 0009904770 T-FITTING
RIGHT;CONNECTION:
"2"
668 A 0009904770 T-FITTING
RIGHT;CONNECTION:
"2"
668 A 0009905070 T-FITTING
RIGHT;CONNECTION:
"2"
668 A 0019979272 FITTING
RIGHT;CONNECTION:
"2"
670 N 080705016003 NUT
RIGHT;CONNECTION:
"2"
671 A 0004290927 THRUST RING
RIGHT;CONNECTION:
"2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
672 A 0009971548 SEAL RING
RIGHT;CONNECTION:
"2"
673 A 0015451614 SWITCH
RIGHT;CONNECTION:
"2"
673 A 0005455414 SWITCH
RIGHT;CONNECTION:
"2"
674 N 074315012100 FITTING
Repalced by: A 0019903371
674 A 0019903371 ELBOW FITTING
LEFT;CONNECTION:
"2"
674 A 0009904570 T-FITTING
LEFT;CONNECTION:
"2"
674 A 0009904570 T-FITTING
LEFT;CONNECTION:
"2"
675 N 080705016003 NUT
RELAY VALVE,CONNECTION:
"2"
675 N 080705016003 NUT
RELAY VALVE,CONNECTION:
"2"
676 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
676 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
677 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
677 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
N 000908016001 SCREW PLUG
REAR CONNECTION
"2"
N 007603016401 SEAL RING
REAR CONNECTION
"2"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"2"
678 A 0029971572 FITTING
RELAY VALVE,CONNECTION:
"2"
678 A 0029971572 FITTING
RELAY VALVE,CONNECTION:
"2"
679 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
679 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
680 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
680 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
A 0004294238 ELBOW FITTING
681 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"4"
682 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"4"
682 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"4"
A 0019979672 FITTING
RELAY VALVE,CONNECTION:
"4"
N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"4"
N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"4"
N 074313008104 FITTING
Repalced by: A 0029979572
A 0029979572 FITTING
A 0029979572 FITTING
A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"4"
A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"4"
A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"4"
A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"4"
686 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
686 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
686 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
686 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
687 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
687 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
687 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
687 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
687 A 0025866243 REPAIR KIT
Repalced by: A 0034303881
687 A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
N 000965006003 SCREW
VALVE TO CAB
N 000965006000 SCREW
VALVE TO CAB
689 A 3874310684 SHIM
VALVE TO CAB
A 0009907191 NUT RETAINER
Repalced by: A 3229900091
A 3229900091 NUT RETAINER
VALVE TO CAB
690 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
690 N 915036010108 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
691 N 007603014405 SEAL RING
LINE TO HAND BRAKE VALVE
700 A 0014311314 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
700 A 0004312114 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
BOSCH
700 A 0004317714 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
KNORR
702 A 0004318587 PROTECTIVE CAP
TO 001 431 13 14,WABCO
704 A 0025861443 REPAIR KIT
TO 001 431 13 14,WABCO
A 0004319186 CUP
Repalced by: A 0004312786
A 0004318186 CUP
Repalced by: A 0015864342
A 0004310736 FILTER BOTTOM
TO 000 431 21 14,BOSCH
A 0014310786 CUP
Repalced by: A 0004312786
A 0004312786 CUP
TO 000 431 21 14,BOSCH
A 0004318583 PISTON
TO 000 431 21 14,BOSCH
A 0089977548 SEAL RING
TO 000 431 21 14,BOSCH
A 0049971740 SEAL RING
TO 000 431 21 14,BOSCH
704 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
704 A 0034201724 REPAIR KIT
TO 000 431 21 14,BOSCH
706 A 3604302311 CONSOLE
708 A 0004319914 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR
708 A 0004315014 BRAKE CYLINDER
Repalced by: A 0014316514
708 A 0014316514 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR
710 A 0004318186 CUP
Repalced by: A 0015864342
710 A 0004318786 CUP
TO 000 431 50 14
710 A 0004318786 CUP
TO 000 431 99 14
710 A 0014311786 CUP
TO 001 431 65 14
712 A 0004310649 SLIDE
TO 000 431 50 14
714 A 0004319586 CUP
TO 000 431 77 14,KNORR
716 A 0004319686 CUP
TO 000 431 77 14,KNORR
718 A 0004311880 GASKET
TO 000 431 77 14,KNORR
720 A 0059971148 SEAL RING
TO 000 431 77 14,KNORR
722 A 0014311160 SEAL RING
TO 000 431 77 14,KNORR
724 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
724 A 0034201724 REPAIR KIT
TO 000 431 99 14
724 A 0034201724 REPAIR KIT
TO 000 431 50 14,001 431 65 14
726 A 0009904770 T-FITTING
LEFT
726 A 0009904770 T-FITTING
LEFT
726 A 0009904770 T-FITTING
LEFT
728 N 074315012100 FITTING
Repalced by: A 0019903371
728 A 0019903371 ELBOW FITTING
RIGHT
728 A 0019903371 ELBOW FITTING
RIGHT
728 A 0019903371 ELBOW FITTING
RIGHT
730 N 080705016003 NUT
730 N 080705016003 NUT
730 N 080705016003 NUT
732 A 0004290927 THRUST RING
732 A 0004290927 THRUST RING
732 A 0004290927 THRUST RING
734 A 0029971640 SEAL RING
Repalced by: A 0009971548
734 A 0009971548 SEAL RING
734 A 0009971548 SEAL RING
734 A 0009971548 SEAL RING
736 A 0004312031 TEST CONNECTION
VOSS
736 A 0004312031 TEST CONNECTION
VOSS
736 A 0004312031 TEST CONNECTION
VOSS
736 A 0004314531 TEST CONNECTION
736 A 0004314531 TEST CONNECTION
736 A 0004314531 TEST CONNECTION
736 A 0004314831 TEST CONNECTION
WABCO
736 A 0004314831 TEST CONNECTION
WABCO
736 A 0004314831 TEST CONNECTION
WABCO
736 A 0004316131 TEST CONNECTION
WIRA
736 A 0004316131 TEST CONNECTION
WIRA
736 A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
738 N 916027011014 HOSE
740 N 080705018002 NUT
742 A 0004290641 FITTING
744 A 0004290541 FITTING
746 A 0029970590 LOOM TIE
Repalced by: A 0009971190
746 A 0009971190 LOOM TIE
Repalced by: N 916018011000
746 N 916017011000 CLAMP
Repalced by: N 916017011001
746 N 000000000665 CLAMP
748 A 0029971572 FITTING
CONNECTION TO TRISTOP CYLINDER
750 N 007603016401 SEAL RING
CONNECTION TO TRISTOP CYLINDER
750 A 0004290927 THRUST RING
CONNECTION TO TRISTOP CYLINDER
752 A 0009971548 SEAL RING
CONNECTION TO TRISTOP CYLINDER
752 A 3039971440 SEAL RING
754 N 000961012151 SCREW
BRAKE CYLINDER TO SUPPORT
754 N 000961012151 SCREW
BRAKE CYLINDER TO SUPPORT
756 N 912004012100 LOCK WASHER
BRAKE CYLINDER TO SUPPORT
756 N 912004012100 LOCK WASHER
BRAKE CYLINDER TO SUPPORT
758 N 000934012022 NUT
BRAKE CYLINDER TO SUPPORT
758 N 000934012022 NUT
BRAKE CYLINDER TO SUPPORT
760 A 3554300239 SUPPORT
SPRING LOAD ACCUMULATOR CYLINDER
760 A 3554300239 SUPPORT
SPRING LOAD ACCUMULATOR CYLINDER
762 N 912004012100 LOCK WASHER
SUPPORT TO SIDE MEMBER
762 N 912004012100 LOCK WASHER
SUPPORT TO SIDE MEMBER
764 N 000933012077 SCREW
SUPPORT TO SIDE MEMBER
764 N 000933012077 SCREW
SUPPORT TO SIDE MEMBER
764 N 000933012071 SCREW
SUPPORT TO SIDE MEMBER
764 N 000933012071 SCREW
SUPPORT TO SIDE MEMBER
766 A 3554200481 LEVER
Repalced by: A 3854200581
766 A 3854200581 LEVER
RIGHT
766 A 3854200581 LEVER
RIGHT
A 3554200581 LEVER
Repalced by: A 3854200681
766 A 3854200681 LEVER
LEFT
766 A 3854200681 LEVER
LEFT
768 A 3524270250 BUSHING
768 A 3524270250 BUSHING
770 N 071412010100 GREASE NIPPLE
770 N 071412010100 GREASE NIPPLE
772 N 000125031001 WASHER
AT BEARING BRACKET
772 N 000125031001 WASHER
AT BEARING BRACKET
774 N 000471030000 LOCK RING
AT BEARING BRACKET
774 N 000471030000 LOCK RING
AT BEARING BRACKET
776 A 3524270111 BEARING BRACKET
LEVER
776 A 3524270111 BEARING BRACKET
LEVER
778 N 912004012100 LOCK WASHER
778 N 912004012100 LOCK WASHER
780 N 000960012261 SCREW
M 12X55
780 N 000960012261 SCREW
M 12X55
780 N 000961012106 SCREW
M 12X35
780 N 000961012106 SCREW
M 12X35
780 N 000961012106 SCREW
SEE FIG. NO.:
25
A 3834290801 LINE
Repalced by: A 6194290801
A 6194290801 LINE
Repalced by: A 6254293501
A 6254293501 LINE
782 N 916027011014 HOSE
CONNECTION TO TRISTOP CYLINDER
782 N 916027011014 HOSE
CONNECTION TO TRISTOP CYLINDER
784 N 915017012100 UNION NUT
784 N 915017012100 UNION NUT
786 N 003861012007 GLAND
Repalced by: A 0019901967
786 A 0019901967 SEAL CONE
786 A 0019901967 SEAL CONE
788 A 0004290541 FITTING
CONNECTION TO TRISTOP CYLINDER
788 A 0004290541 FITTING
CONNECTION TO TRISTOP CYLINDER
790 A 0004290641 FITTING
CONNECTION TO TRISTOP CYLINDER
790 A 0004290641 FITTING
CONNECTION TO TRISTOP CYLINDER
792 N 916017016000 CLAMP
Repalced by: N 000000000666
792 N 000000000666 CLAMP
CONNECTION TO TRISTOP CYLINDER
792 N 000000000666 CLAMP
CONNECTION TO TRISTOP CYLINDER
794 A 3039971440 SEAL RING
BETWEEN THE LINES TO BRAKE HOSE
794 A 3039971440 SEAL RING
BETWEEN THE LINES TO BRAKE HOSE
796 N 080705018002 NUT
BRAKE HOSE TO BRACKET
796 N 080705018002 NUT
BRAKE HOSE TO BRACKET
798 A 3953530240 BRACKET
BRAKE HOSE
798 A 3953530240 BRACKET
BRAKE HOSE
800 N 000933008152 SCREW
Repalced by: N 304017008027
800 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
800 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
802 N 913004008004 NUT
Repalced by: N 913004008001
802 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
802 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
804 A 3609950401 CLAMP
AT BRACKET
804 A 3609950401 CLAMP
AT BRACKET
806 N 000084006134 SCREW
AT BRACKET
806 N 000084006134 SCREW
AT BRACKET
808 N 000125006421 WASHER
AT BRACKET
808 N 000125006421 WASHER
AT BRACKET
810 N 913004005005 NUT
AT BRACKET
810 N 913004005005 NUT
AT BRACKET
812 A 0005456009 SWITCH
EXHAUST BRAKE
812 A 0005456009 SWITCH
EXHAUST BRAKE
814 A 0009904770 T-FITTING
REAR AXLE I TRISTOP CYLINDER
814 A 0009904770 T-FITTING
REAR AXLE I TRISTOP CYLINDER
816 N 074315012100 FITTING
Repalced by: A 0019903371
816 A 0019903371 ELBOW FITTING
816 A 0019903371 ELBOW FITTING
818 N 080705016003 NUT
REAR AXLE I TRISTOP CYLINDER
818 N 080705016003 NUT
REAR AXLE I TRISTOP CYLINDER
820 A 0004290927 THRUST RING
REAR AXLE I TRISTOP CYLINDER
820 A 0004290927 THRUST RING
REAR AXLE I TRISTOP CYLINDER
A 0029971640 SEAL RING
Repalced by: A 0009971548
822 A 0009971548 SEAL RING
REAR AXLE I TRISTOP CYLINDER
822 A 0009971548 SEAL RING
REAR AXLE I TRISTOP CYLINDER
824 A 0009904270 T-FITTING
REAR AXLE I TRISTOP CYLINDER
824 A 0009904270 T-FITTING
REAR AXLE I TRISTOP CYLINDER
826 N 080705016003 NUT
REAR AXLE I TRISTOP CYLINDER
826 N 080705016003 NUT
REAR AXLE I TRISTOP CYLINDER
828 A 0004290927 THRUST RING
REAR AXLE I TRISTOP CYLINDER
828 A 0004290927 THRUST RING
REAR AXLE I TRISTOP CYLINDER
830 A 0029971640 SEAL RING
Repalced by: A 0009971548
830 A 0009971548 SEAL RING
REAR AXLE I TRISTOP CYLINDER
830 A 0009971548 SEAL RING
REAR AXLE I TRISTOP CYLINDER
832 A 0004312031 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
VOSS
832 A 0004312031 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
VOSS
832 A 0004314531 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
832 A 0004314531 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
832 A 0004314831 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
WABCO
832 A 0004314831 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
WABCO
832 A 0004316131 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
WIRA
832 A 0004316131 TEST CONNECTION
REAR AXLE II TRISTOP CYLINDER
WIRA
A 0009979486 PLUG
834 A 0009901387 CROSS FITTING
REAR AXLE II TRISTOP CYLINDER
834 A 0009901387 CROSS FITTING
REAR AXLE II TRISTOP CYLINDER
834 A 0009904770 T-FITTING
REAR AXLE II TRISTOP CYLINDER
834 A 0009904770 T-FITTING
REAR AXLE II TRISTOP CYLINDER
834 A 0009904270 T-FITTING
REAR AXLE II TRISTOP CYLINDER
834 A 0009904270 T-FITTING
REAR AXLE II TRISTOP CYLINDER
836 N 080705016003 NUT
REAR AXLE II TRISTOP CYLINDER
836 N 080705016003 NUT
REAR AXLE II TRISTOP CYLINDER
838 A 0004290927 THRUST RING
REAR AXLE II TRISTOP CYLINDER
838 A 0004290927 THRUST RING
REAR AXLE II TRISTOP CYLINDER
840 A 0029971640 SEAL RING
Repalced by: A 0009971548
840 A 0009971548 SEAL RING
REAR AXLE II TRISTOP CYLINDER
840 A 0009971548 SEAL RING
REAR AXLE II TRISTOP CYLINDER
842 A 3854200080 BRAKE INTERMEDIATE SHAFT
844 A 3854200178 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
A 3024260107 SUPPORT
Repalced by: A 3025860242
846 N 000470052000 EXPANSION PLUG
848 A 3274270058 SEAL HOLDER
BEARING BRACKET TO FRONT CROSS MEMBER
850 A 3279970040 SEAL RING
BEARING BRACKET TO FRONT CROSS MEMBER
852 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
852 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
852 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
854 N 000933010145 SCREW
BEARING BRACKET TO FRONT CROSS MEMBER
856 N 913004010008 NUT
Repalced by: N 910113010000
856 N 910113010000 NUT
BEARING BRACKET TO FRONT CROSS MEMBER
858 A 3604200474 ROD
FRONT
858 A 3604200474 ROD
FRONT
858 A 3604200474 ROD
FRONT
860 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
860 A 3859960034 NUT
860 A 3859960034 NUT
860 A 3859960034 NUT
862 N 000934012020 NUT
L.H. THREAD
862 N 000934012020 NUT
L.H. THREAD
862 N 000934012020 NUT
L.H. THREAD
864 N 000934012021 NUT
864 N 000934012021 NUT
864 N 000934012021 NUT
866 A 3534200074 ROD
REAR,REAR AXLE II
866 A 3454200074 ROD
REAR,REAR AXLE II
866 A 3454200074 ROD
REAR,REAR AXLE II
A 3584200074 ROD
REAR,REAR AXLE I
A 3854200274 ROD
REAR,REAR AXLE I
A 3584200074 ROD
REAR,REAR AXLE I
A 3584200074 ROD
REAR,REAR AXLE I
868 A 3529910207 PIN
ROD TO LEVER
868 A 3529910207 PIN
ROD TO LEVER
868 A 3529910207 PIN
ROD TO LEVER
870 N 900055012001 SPRING WASHER
ROD TO LEVER
870 N 900055012001 SPRING WASHER
ROD TO LEVER
870 N 900055012001 SPRING WASHER
ROD TO LEVER
872 N 000433013005 WASHER
Repalced by: N 000433013010
872 N 000433013010 WASHER
ROD TO LEVER
872 N 000433013010 WASHER
ROD TO LEVER
872 N 000433013010 WASHER
ROD TO LEVER
874 N 000094003210 COTTER PIN
ROD TO LEVER
874 N 000094003210 COTTER PIN
ROD TO LEVER
874 N 000094003210 COTTER PIN
ROD TO LEVER
876 A 3529910107 PIN
PULL RODS TO BRAKE LEVERS
876 A 3529910107 PIN
PULL RODS TO BRAKE LEVERS
876 A 3529910107 PIN
PULL RODS TO BRAKE LEVERS
878 N 000433013005 WASHER
Repalced by: N 000433013010
878 N 000433013010 WASHER
PULL RODS TO BRAKE LEVERS
878 N 000433013010 WASHER
PULL RODS TO BRAKE LEVERS
878 N 000433013010 WASHER
PULL RODS TO BRAKE LEVERS
880 N 000094003210 COTTER PIN
PULL RODS TO BRAKE LEVERS
880 N 000094003210 COTTER PIN
PULL RODS TO BRAKE LEVERS
880 N 000094003210 COTTER PIN
PULL RODS TO BRAKE LEVERS
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
