Transporto priemonė: 2224/6X2; VIN numerio dalis: 385333

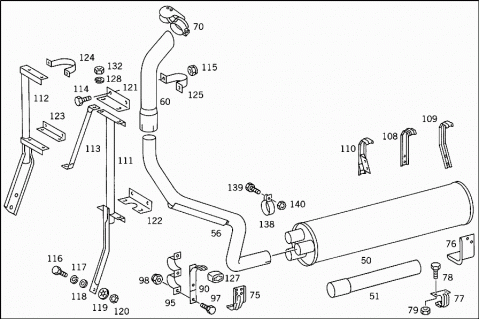

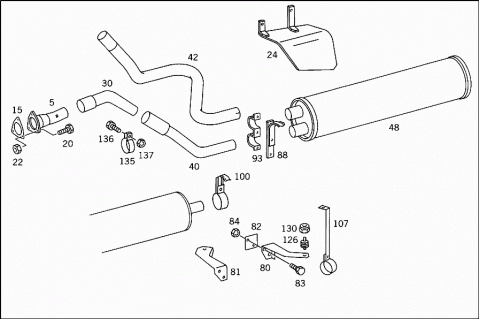

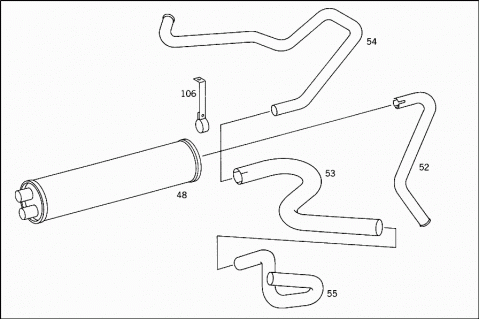

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3854900219 | EXHAUST PIPE |
| FRONT LEFT | ||
| 005 | A 3854900019 | EXHAUST PIPE |
| FRONT LEFT | ||
| 005 | A 3854900319 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 005 | A 3854900119 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 015 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 015 | A 4424920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 022 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3834900830 | PROTECTIVE PLATE | |
| 024 | A 3834900930 | PROTECTIVE PLATE |
| 030 | A 3834920007 | CONNECTOR |
| FRONT LEFT AND RIGHT | ||
| A 3834920107 | CONNECTOR | |
| Repalced by: A 3834920007 | ||
| 040 | A 3834920601 | FRONT EXHAUST PIPE |
| FRONT LEFT | ||
| 042 | A 3834922201 | FRONT EXHAUST PIPE |
| FRONT RIGHT | ||
| A 3834922301 | FRONT EXHAUST PIPE | |
| A 3834920701 | FRONT EXHAUST PIPE | |
| 048 | A 3834900301 | EXHAUST MUFFLER |
| 050 | A 3834900401 | EXHAUST MUFFLER |
| A 3604921807 | CONNECTOR | |
| Repalced by: A 3604921907 | ||
| 051 | A 3604921907 | CONNECTOR |
| REAR | ||
| 052 | A 3814920504 | REAR EXHAUST PIPE |
| Repalced by: A 3814926304 | ||
| 052 | A 3814926304 | REAR EXHAUST PIPE |
| 052 | A 3814924404 | REAR EXHAUST PIPE |
| 052 | A 3814927004 | REAR EXHAUST PIPE |
| 053 | A 3814924304 | REAR EXHAUST PIPE |
| Repalced by: A 3814926504 | ||
| 053 | A 3814926504 | REAR EXHAUST PIPE |
| 054 | A 3854920804 | REAR EXHAUST PIPE |
| 055 | A 3854920304 | REAR EXHAUST PIPE |
| Repalced by: A 3814926804 | ||
| 055 | A 3814926804 | REAR EXHAUST PIPE |
| 056 | A 3834900121 | EXHAUST PIPE |
| TOP CENTRAL | ||
| 056 | A 3834900521 | EXHAUST PIPE |
| TOP CENTRAL | ||
| A 3834900021 | EXHAUST PIPE | |
| REAR;FIRST PART | ||
| 060 | A 3834920904 | REAR EXHAUST PIPE |
| Repalced by: A 3834920907 | ||
| A 3834927004 | REAR EXHAUST PIPE | |
| Repalced by: A 3834920907 | ||
| 060 | A 3834920907 | CONNECTOR |
| (TAIL PIPE) | ||
| 070 | A 0004900463 | FLAP |
| END PIECE TO EXHAUST PIPE | ||
| 075 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 075 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 075 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 076 | A 3854920516 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 077 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 078 | N 000933010128 | SCREW |
| 079 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 079 | N 910113010000 | NUT |
| 080 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 080 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 081 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 081 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 082 | A 3834920018 | BASE PLATE |
| SUPPORT TO SIDE MEMBER | ||
| 083 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 083 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 083 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 083 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 083 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 084 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 084 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 088 | A 3834900040 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 090 | A 3834900140 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 090 | A 3834901140 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 093 | A 3834920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 095 | A 3834920140 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 097 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 097 | N 304017008034 | SCREW |
| CLAMP TO BRACKET | ||
| 098 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 098 | N 913004008001 | NUT |
| CLAMP TO BRACKET | ||
| 100 | A 3814921941 | BRACKET |
| EXHAUST | ||
| 100 | A 3834921941 | BRACKET |
| EXHAUST | ||
| 100 | A 3834921341 | BRACKET |
| EXHAUST | ||
| 106 | A 3834922141 | BRACKET |
| Repalced by: A 3834927941 | ||
| 106 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 106 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 107 | A 3834921841 | BRACKET |
| Repalced by: A 3814923841 | ||
| 107 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 107 | A 3814922641 | BRACKET |
| Repalced by: A 3834927941 | ||
| 107 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 108 | A 3834922941 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 109 | A 3834928941 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 110 | A 3854900140 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 111 | A 3834900240 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 112 | A 3834901040 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 113 | A 3834900840 | BRACKET |
| STRUT | ||
| 113 | A 3834901240 | BRACKET |
| STRUT | ||
| 114 | N 000933010157 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| M 10X28 | ||
| 115 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 115 | N 910113010000 | NUT |
| BRACKET TO FENDER SUPPORT | ||
| 116 | N 000933010105 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| M10X25 | ||
| 117 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 118 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 118 | N 000125010532 | WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 119 | N 006797010251 | TOOTHED WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 120 | N 000936010008 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 121 | A 3524921041 | BRACKET |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 122 | A 3834923141 | BRACKET |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 123 | A 3834929041 | BRACKET |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 124 | A 3524920040 | CLAMP |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 125 | A 3834920740 | CLAMP |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 125 | A 3874920340 | CLAMP |
| UPPER EXHAUST PIPE TO BRACKET | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 126 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE BRACKET TO FRAME | ||
| 126 | A 0019875340 | RUBBER BUFFER |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 127 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 127 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 128 | N 912004010102 | LOCK WASHER |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 132 | N 000934010014 | NUT |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 135 | N 071555065501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 65.50 MM | ||
| 135 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 75.50 MM | ||
| 135 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 70.50 MM | ||
| 136 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 136 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 136 | N 304017008034 | SCREW |
| UPPER EXHAUST PIPE TO BRACKET | ||
| M 8X25 | ||
| 136 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 136 | N 000933010157 | SCREW |
| UPPER EXHAUST PIPE TO BRACKET | ||
| M 10X28 | ||
| 137 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 137 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 137 | N 913004008001 | NUT |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 137 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 137 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 137 | N 910113010000 | NUT |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 138 | N 071555078502 | CLAMP |
| END PIECE TO EXHAUST PIPE | ||
| 139 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 139 | N 304017008034 | SCREW |
| END PIECE TO EXHAUST PIPE | ||
| 140 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 140 | N 913004008001 | NUT |
| END PIECE TO EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 116 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 117 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 118 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 120 | ||
