Transporto priemonė: 2224/6X2; VIN numerio dalis: 385333
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

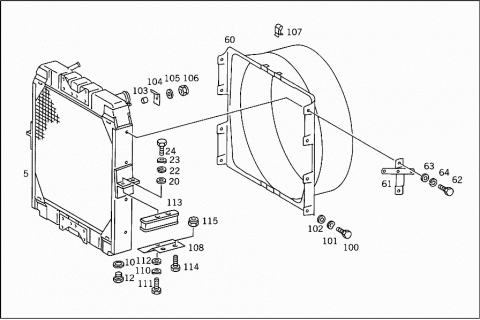

| A 3855010201 | RADIATOR | |
| Repalced by: A 3855010501 | ||
| A 3855010501 | RADIATOR | |
| Repalced by: A 3815010501 | ||
| 005 | A 3815010501 | RADIATOR |
| 005 | A 3815010701 | RADIATOR |
| Repalced by: A 3815010801 | ||
| 005 | A 3815010801 | RADIATOR |
| 010 | N 007603014405 | SEAL RING |
| 012 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 012 | N 007604014101 | SCREW PLUG |
| 020 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 020 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 022 | N 912004010102 | LOCK WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 023 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 024 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 10X25 MM | ||
| 024 | N 000933010094 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 10X40 MM | ||
| 024 | N 000933010145 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 10X35 MM | ||
| A 3835040084 | SHIM | |
| AS REQUIRED | ||
| 5.00 MM | ||
| A 3855040184 | SHIM | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 3855040284 | SHIM | |
| AS REQUIRED | ||
| 2.00 MM | ||

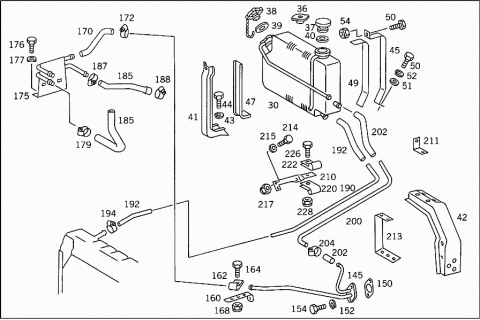

| A 3815000249 | TANK | |
| Repalced by: A 3815001649 | ||
| 030 | A 3815001649 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 030 | A 3815000649 | TANK |
| Repalced by: A 3815000749 | ||
| 030 | A 3815000749 | TANK |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 036 | A 0005013115 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005013515 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 036 | A 0005014215 | RADIATOR CAP |
| 037 | A 0005014515 | RADIATOR CAP |
| 038 | A 0005014615 | RADIATOR CAP |
| 038 | A 0005017215 | RADIATOR CAP |
| 039 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM, TO 000 501 42 15,000 501 46 15 | ||
| 040 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 041 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 041 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 041 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 041 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 042 | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 043 | N 912004010102 | LOCK WASHER |
| BRACKET TO RIGHT FENDER | ||
| 044 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 044 | N 304017010028 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 10X18 MM | ||
| 045 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 045 | A 3815012720 | BRACKET |
| EXPANSION TANK | ||
| 045 | A 3815012520 | BRACKET |
| EXPANSION TANK | ||
| 045 | A 3815012520 | BRACKET |
| EXPANSION TANK | ||
| A 4404750020 | PAD | |
| Repalced by: A 3634750220 | ||
| 047 | A 3634750220 | PAD |
| EXPANSION TANK TO BRACKET | ||
| A 3815010095 | SHIM | |
| Repalced by: A 3815010295 | ||
| 049 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 049 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 050 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 051 | N 006902011101 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 052 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 054 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 054 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 060 | A 3855050555 | FAN SHROUD |
| 061 | A 4010100140 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 062 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 063 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 064 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||

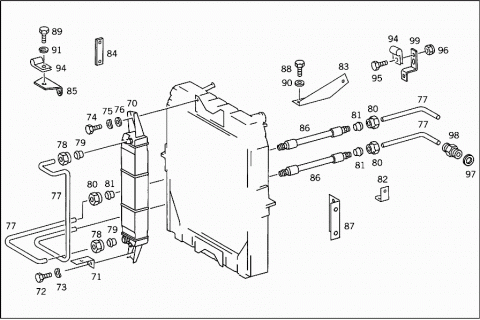

| 070 | A 0005014401 | RADIATOR |
| OIL COOLER | ||
| 070 | A 0005014401 | RADIATOR |
| OIL COOLER | ||
| 071 | A 3852710640 | BRACKET |
| Repalced by: A 6735460443 | ||
| 071 | A 6735460443 | BRACKET |
| OIL COOLER | ||
| 071 | A 6735460443 | BRACKET |
| OIL COOLER | ||
| 072 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 072 | N 304017008039 | SCREW |
| BRACKET TO WATER RADIATOR | ||
| 8X12 MM | ||
| 072 | N 304017008039 | SCREW |
| BRACKET TO WATER RADIATOR | ||
| 8X12 MM | ||
| 073 | N 900055008002 | SPRING WASHER |
| BRACKET TO WATER RADIATOR | ||
| 073 | N 900055008002 | SPRING WASHER |
| BRACKET TO WATER RADIATOR | ||
| 074 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 074 | N 304017008016 | SCREW |
| OIL COOLER TO BRACKET | ||
| 8X15 MM | ||
| 074 | N 304017008016 | SCREW |
| OIL COOLER TO BRACKET | ||
| 8X15 MM | ||
| 075 | N 900055008002 | SPRING WASHER |
| OIL COOLER TO BRACKET | ||
| 075 | N 900055008002 | SPRING WASHER |
| OIL COOLER TO BRACKET | ||
| 076 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 076 | N 000125008443 | WASHER |
| OIL COOLER TO BRACKET | ||
| 077 | A 0002610283 | OIL PIPE |
| OIL LINE TO OIL COOLER | ||
| 10X1 MM | ||
| 077 | A 0002610283 | OIL PIPE |
| 10X1 MM | ||
| 078 | N 915017015200 | UNION NUT |
| FROM HOSE TO RADIATOR | ||
| 078 | N 915017015200 | UNION NUT |
| FROM HOSE TO RADIATOR | ||
| 079 | N 915004013200 | SEAL CONE |
| FROM HOSE TO RADIATOR | ||
| 079 | N 915004013200 | SEAL CONE |
| FROM HOSE TO RADIATOR | ||
| 080 | N 915017010100 | UNION NUT |
| OIL LINE TO OIL COOLER | ||
| 080 | N 915017010100 | UNION NUT |
| OIL LINE TO OIL COOLER | ||
| 081 | N 003861010009 | GLAND |
| OIL LINE TO OIL COOLER | ||
| 081 | N 003861010009 | GLAND |
| OIL LINE TO OIL COOLER | ||
| 082 | A 3852710740 | BRACKET |
| OIL LINES | ||
| 082 | A 3852710740 | BRACKET |
| OIL LINES | ||
| 083 | A 3852700441 | BRACKET |
| OIL LINES | ||
| 084 | A 3852710840 | BRACKET |
| OIL LINES | ||
| 084 | A 3852710840 | BRACKET |
| OIL LINES | ||
| 085 | A 3852700341 | BRACKET |
| OIL LINES | ||
| A 3634291840 | BRACKET | |
| OIL LINES | ||
| 086 | A 3164290040 | BRACKET |
| OIL LINES | ||
| 087 | A 3852700541 | BRACKET |
| OIL LINES | ||
| 088 | N 000933010328 | SCREW |
| OIL LINES | ||
| 089 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 089 | N 304017006018 | SCREW |
| OIL LINES | ||
| 090 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 090 | N 000125010532 | WASHER |
| OIL LINES | ||
| 091 | N 912004006102 | LOCK WASHER |
| OIL LINES | ||
| A 3852710940 | BRACKET | |
| OIL LINES | ||
| N 000933010065 | SCREW | |
| OIL LINES | ||
| 094 | A 3609950301 | CLAMP |
| OIL LINES | ||
| 095 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 095 | N 304017006020 | SCREW |
| OIL LINES | ||
| 6X20 MM | ||
| 095 | N 000933006102 | SCREW |
| OIL LINES | ||
| 6X16 MM | ||
| 096 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 096 | N 913004006001 | NUT |
| OIL LINES | ||
| 097 | N 007603014405 | SEAL RING |
| LINE TO TRANSMISSION | ||
| 097 | N 007603014405 | SEAL RING |
| LINE TO TRANSMISSION | ||
| 098 | N 003901010001 | SCREW-IN FITTING |
| LINE TO TRANSMISSION | ||
| 098 | N 003901010001 | SCREW-IN FITTING |
| LINE TO TRANSMISSION | ||
| 099 | A 3859970782 | HOSE |
| Repalced by: A 3859970982 | ||
| 099 | A 3859970982 | HOSE |
| . | ||
| 099 | A 3859970982 | HOSE |
| . | ||
| 099 | A 3859971382 | HOSE |
| . | ||
| 099 | A 3859971382 | HOSE |
| . | ||
| 100 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 6X16 MM | ||
| 100 | N 000933006130 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 6X18 MM | ||
| 101 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 102 | A 3859901140 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 103 | A 3815040051 | SPACER RING |
| Repalced by: A 3469910040 | ||
| 103 | A 3469910040 | SPACER TUBE |
| FAN SHROUD TO RADIATOR | ||
| 104 | A 3815040031 | SUPPORTING PLATE |
| FAN SHROUD TO RADIATOR | ||
| 105 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 105 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 106 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 106 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 107 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 108 | A 3835040040 | BRACKET |
| RADIATOR MOUNTING | ||
| 108 | A 3835040401 | SUPPORT |
| RADIATOR MOUNTING | ||
| 110 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 111 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 111 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| 112 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 112 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 113 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR MOUNTING | ||
| 113 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR MOUNTING | ||
| 114 | N 000961012023 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 115 | N 910113012002 | NUT |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||

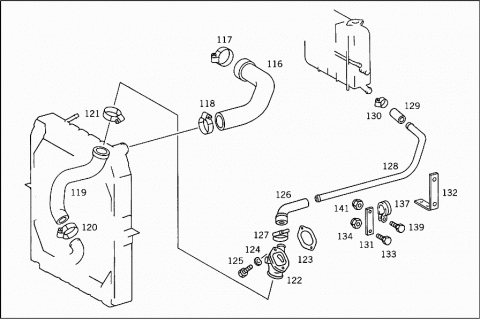

| 116 | A 3855011482 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 117 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 117 | N 000000000674 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 118 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 118 | N 000000000672 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 119 | A 3855011582 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 120 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 120 | N 000000000672 | CLAMP |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 121 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 121 | N 000000000674 | CLAMP |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 122 | A 3875010123 | CONNECTOR |
| AT WATER PUMP | ||
| 123 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 123 | A 4422010480 | GASKET |
| CONNECTOR | ||
| 124 | N 000137010201 | SPRING WASHER |
| CONNECTOR | ||
| 125 | N 000933010105 | SCREW |
| CONNECTOR | ||
| 126 | A 3875011082 | HOSE |
| COOLING WATER LINE | ||
| 127 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 127 | N 000000000670 | CLAMP |
| COOLING WATER LINE | ||
| 128 | A 3855010524 | COOLING WATER PIPE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 128 | A 3835011124 | COOLING WATER PIPE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 128 | A 3875010824 | COOLING WATER PIPE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 129 | N 900271028026 | HOSE |
| 130 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 130 | N 000000000670 | CLAMP |
| 131 | A 3835010120 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 132 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 132 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 133 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 133 | N 308676012012 | SCREW |
| 134 | N 910113012002 | NUT |
| 137 | N 916016028200 | CLAMP |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 139 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 139 | N 304017008021 | SCREW |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 141 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 141 | N 913004008001 | NUT |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 145 | A 3875000079 | FLANGE |
| 150 | N 917003040008 | GASKET |
| CONNECTOR TO ENGINE | ||
| 152 | N 912004010102 | LOCK WASHER |
| CONNECTOR TO ENGINE | ||
| 154 | N 000933010105 | SCREW |
| CONNECTOR TO ENGINE | ||
| 160 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| A 3609951501 | CLAMP | |
| Repalced by: A 3609950601 | ||
| 162 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 164 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 164 | N 304017008016 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 164 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 168 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 168 | N 913004008001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 168 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 168 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| A 3855060035 | HOSE | |
| Repalced by: A 3875060235 | ||
| 170 | A 3875060235 | HOSE |
| HEATING FEED | ||
| 172 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 172 | N 000000000667 | CLAMP |
| HEATING FEED | ||
| 175 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 175 | A 3875000072 | LINE |
| HEATING FEED | ||
| 176 | N 000933010105 | SCREW |
| HEATING FEED | ||
| 177 | N 000137010201 | SPRING WASHER |
| HEATING FEED | ||
| 179 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 179 | N 000000000667 | CLAMP |
| HEATING FEED | ||
| 185 | A 3835060035 | HOSE |
| Repalced by: A 3635060135 | ||
| 185 | A 3635060135 | HOSE |
| 185 | A 3855060135 | HOSE |
| Repalced by: A 3635060135 | ||
| 185 | A 3875060435 | HOSE |
| Repalced by: A 3635060135 | ||
| 185 | A 3635060135 | HOSE |
| Repalced by: A 3635060235 | ||
| 185 | A 3635060235 | HOSE |
| HEATING FEED | ||
| 185 | A 3635060235 | HOSE |
| HEATING; TO CAB | ||
| 187 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 187 | N 000000000667 | CLAMP |
| HEATING FEED | ||
| 188 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 188 | N 000000000668 | CLAMP |
| HEATING FEED | ||
| 190 | A 3875012025 | BREATHER PIPE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 190 | A 3875016225 | BREATHER PIPE |
| 190 | A 3815012525 | BREATHER PIPE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 192 | N 900271012018 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 192 | A 3855011382 | HOSE |
| DE-AERATION | ||
| 194 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 194 | N 000000000667 | CLAMP |
| DE-AERATION | ||
| 200 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 200 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 200 | A 3815012325 | BREATHER PIPE |
| FROM EXPANSION TANK TO ENGINE | ||
| 202 | N 900271015037 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 204 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 204 | N 000000000667 | CLAMP |
| DE-AERATION | ||
| A 3875011020 | BRACKET | |
| Repalced by: A 3855010220 | ||
| 210 | A 3855010220 | BRACKET |
| DE-AERATION LINE | ||
| 211 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 211 | A 6454310740 | BRACKET |
| DE-AERATION LINE | ||
| 213 | A 3815011320 | BRACKET |
| COOLING WATER PIPE TO CAB SUPPORT | ||
| 214 | N 000933010062 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 215 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 215 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 215 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 217 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 217 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 217 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 220 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 220 | N 916016011202 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 222 | A 3609951201 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 222 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 222 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 226 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 226 | N 304017008021 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 226 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 226 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 228 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 228 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 228 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 228 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 228 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
