Transporto priemonė: 2224/6X2; VIN numerio dalis: 385338

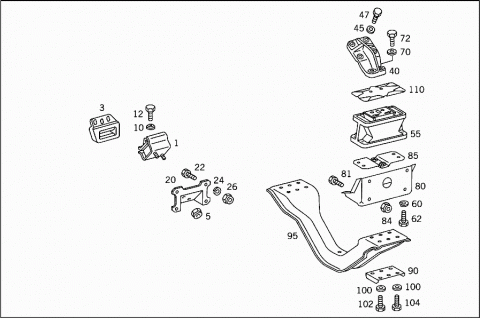

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3832400517 | RUBBER MOUNTING |
| Repalced by: A 3832401817 | ||
| 001 | A 3832401817 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 001 | A 3832400617 | RUBBER MOUNTING |
| Repalced by: A 3832401217 | ||
| 001 | A 3832401217 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 003 | A 0002420043 | STOP |
| ENGINE FRONT MOUNTING | ||
| TO 383 240 12 17 | ||
| 005 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 010 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 012 | N 000961016092 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M 16X38 | ||
| 020 | A 3832410335 | BEARING BRACKET |
| ENGINE FRONT SUSPENSION | ||
| 022 | N 000961012164 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X28 | ||
| 022 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X40 | ||
| 022 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X32 | ||
| 024 | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 026 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 040 | A 3852420005 | SUPPORTING ARM |
| BELL HOUSING | ||
| 040 | A 3852420905 | SUPPORTING ARM |
| BELL HOUSING | ||
| 045 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 047 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 047 | N 308676016006 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X45 | ||
| 047 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 047 | N 308676018001 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 18X45 | ||
| 055 | A 3872400218 | RUBBER MOUNTING |
| Repalced by: A 6172400318 | ||
| 055 | A 6172400318 | RUBBER MOUNTING |
| Repalced by: A 6452400118 | ||
| 055 | A 6452400118 | RUBBER MOUNTING |
| BRACKET TO CAB | ||
| 055 | A 3832400718 | RUBBER MOUNTING |
| Repalced by: A 6172400418 | ||
| 055 | A 6172400418 | RUBBER MOUNTING |
| Repalced by: A 6452400018 | ||
| 055 | A 6452400018 | RUBBER MOUNTING |
| BRACKET TO CAB | ||
| 055 | A 3872400418 | RUBBER MOUNTING |
| Repalced by: A 6172400518 | ||
| 055 | A 6172400518 | RUBBER MOUNTING |
| Repalced by: A 6452400218 | ||
| 055 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| 060 | N 912004012100 | LOCK WASHER |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 062 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 062 | N 308676012026 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 070 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 072 | N 000961016119 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 080 | A 3832400206 | CONSOLE |
| ENGINE REAR MOUNTING | ||
| 081 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 081 | N 308676014008 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| M 14X35 | ||
| 084 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 084 | N 910113014000 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 085 | A 3832400226 | INTERMEDIATE PIECE |
| RUBBER MOUNT | ||
| 090 | A 3813120260 | REINFORCEMENT |
| ENGINE CROSS MEMBER | ||
| 095 | A 3833120207 | ENGINE CROSS MEMBER |
| REAR | ||
| 100 | A 3859901040 | WASHER |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 102 | N 000961012117 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| M12X42 | ||
| 102 | N 308676012015 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| M12X45 | ||
| 104 | N 000961012108 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| M12X38 | ||
| 110 | A 3832420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
