Transporto priemonė: 2224/6X2; VIN numerio dalis: 385338
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

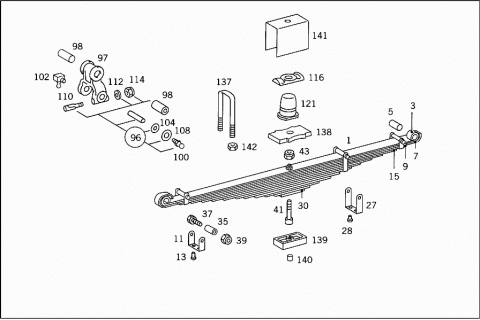

| 001 | A 3853201402 | FRONT SPRING |
| Repalced by: A 3853202402 | ||
| 001 | A 3853202402 | FRONT SPRING |
| 11-LEAF | ||
| 001 | A 3853202402 | FRONT SPRING |
| 11-LEAF | ||
| 001 | A 3853202002 | FRONT SPRING |
| 11-LEAF | ||
| 001 | A 3853201502 | FRONT SPRING |
| 11-LEAF | ||
| 003 | A 3853200394 | SPRING LEAF |
| Repalced by: A 3853203294 | ||
| 003 | A 3853202594 | SPRING LEAF |
| Repalced by: A 3853203294 | ||
| 003 | A 3853202594 | SPRING LEAF |
| Repalced by: A 3853203294 | ||
| 003 | A 3853203294 | SPRING LEAF |
| NO.1 | ||
| 003 | A 3853203294 | SPRING LEAF |
| NO.1 | ||
| 003 | A 3853202194 | SPRING LEAF |
| Repalced by: A 3853203194 | ||
| 003 | A 3853203194 | SPRING LEAF |
| NO.1 | ||
| 003 | A 3853200994 | SPRING LEAF |
| NO.1 | ||
| 005 | A 3523220050 | BUSHING |
| 005 | A 3853220050 | BUSHING |
| 005 | A 3523220050 | BUSHING |
| 005 | A 3853220050 | BUSHING |
| 007 | A 3853212312 | SPRING LEAF |
| Repalced by: A 3853212912 | ||
| 007 | A 3853212312 | SPRING LEAF |
| Repalced by: A 3853212912 | ||
| 007 | A 3853212912 | SPRING LEAF |
| NO.2 | ||
| 007 | A 3853212912 | SPRING LEAF |
| NO.2 | ||
| 007 | A 3853212012 | SPRING LEAF |
| Repalced by: A 3853212712 | ||
| 007 | A 3853212712 | SPRING LEAF |
| NO.2 | ||
| 007 | A 3853211512 | SPRING LEAF |
| NO.2 | ||
| 009 | A 3853202694 | SPRING LEAF |
| Repalced by: A 3853200494 | ||
| 009 | A 3853200494 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3853200494 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3853202294 | SPRING LEAF |
| NO.3 | ||
| 009 | A 3853211513 | SPRING LEAF |
| Repalced by: A 3853210713 | ||
| 009 | A 3853210713 | SPRING LEAF |
| NO.3 | ||
| 011 | A 3523210433 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 011 | A 3123240633 | SPRING CLAMP |
| 013 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 015 | A 3853212114 | SPRING LEAF |
| Repalced by: A 3853211314 | ||
| 015 | A 3853211314 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3853211314 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3853211814 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3853201094 | SPRING LEAF |
| NO.4 | ||
| 027 | A 0013211433 | SPRING CLAMP |
| Repalced by: A 0003219433 | ||
| 027 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 027 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 027 | A 6173210333 | SPRING CLAMP |
| TO LEAF NO.9 | ||
| 027 | A 0013217233 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 027 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| 028 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 030 | A 3533240135 | SPACER |
| 028 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 035 | A 0003212553 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 035 | A 0003212753 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 037 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 037 | N 308765012007 | SCREW |
| FOR SPRING CLAMPS | ||
| 039 | N 910113012002 | NUT |
| FOR SPRING CLAMPS | ||
| 041 | N 004626012171 | SPRING BOLT |
| M 12X150 | ||
| 041 | N 004626012171 | SPRING BOLT |
| M 12X150 | ||
| 041 | N 004626012112 | SPRING BOLT |
| M12X160 | ||
| 041 | N 004626012112 | SPRING BOLT |
| M12X160 | ||
| 043 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 043 | N 910113012005 | NUT |
| SPRING BOLT | ||

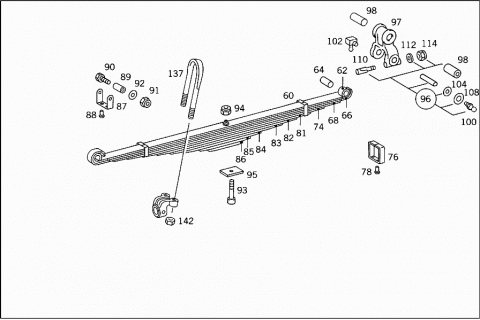

| 060 | A 3853202102 | FRONT SPRING |
| Repalced by: A 3853202502 | ||
| 060 | A 3853202502 | FRONT SPRING |
| 10-LEAF | ||
| 062 | A 3853201594 | SPRING LEAF |
| NO.1 | ||
| 062 | A 3853202794 | SPRING LEAF |
| NO.1 | ||
| 064 | A 3523220050 | BUSHING |
| 064 | A 3853220050 | BUSHING |
| 066 | A 3853212112 | SPRING LEAF |
| NO.2 | ||
| 066 | A 3853212412 | SPRING LEAF |
| NO.2 | ||
| 068 | A 3853212113 | SPRING LEAF |
| NO.3 | ||
| 068 | A 3853212413 | SPRING LEAF |
| NO.3 | ||
| 074 | A 3853201694 | SPRING LEAF |
| NO.4 | ||
| 076 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 076 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 076 | A 6173210333 | SPRING CLAMP |
| TO SPRING LEAVES NOS.3 AND 4 | ||
| 078 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| A 3853212214 | SPRING LEAF | |
| NO.4 | ||
| 081 | A 3853212115 | SPRING LEAF |
| NO.5 | ||
| 082 | A 3853212016 | SPRING LEAF |
| NO.6 | ||
| 083 | A 3853212017 | SPRING LEAF |
| NO.7 | ||
| 084 | A 3853212018 | SPRING LEAF |
| NO.8 | ||
| 085 | A 3853212019 | SPRING LEAF |
| NO.9 | ||
| 086 | A 3853211420 | SPRING LEAF |
| NO.10 | ||
| 087 | A 0033214233 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 087 | A 3123240633 | SPRING CLAMP |
| TO LEAF NO.9 | ||
| 087 | A 0003248433 | SPRING CLAMP |
| TO SPRING LEAVES NOS.3 AND 4 | ||
| 087 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 087 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 087 | A 6173210333 | SPRING CLAMP |
| TO LEAF NO.8 | ||
| 088 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 089 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 089 | A 0003213253 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 089 | A 0003212553 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 089 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 090 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 090 | N 304014008009 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 090 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 090 | N 308765012007 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| M 12X120 | ||
| 090 | N 000960012371 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| M 12X115 | ||
| 091 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 091 | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 091 | N 910113012002 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 091 | N 000934012022 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 092 | A 3039902440 | WASHER |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 093 | N 004626012167 | SPRING BOLT |
| M 12X165 | ||
| 093 | N 004626012112 | SPRING BOLT |
| M 12X160 | ||
| 094 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 094 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 095 | A 3533240135 | SPACER |
| 096 | A 3523220530 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 096 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3855860332 | ||
| 096 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 096 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 096 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 097 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 097 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| 098 | A 3523220050 | BUSHING |
| 098 | A 3853220050 | BUSHING |
| 100 | N 071412010100 | GREASE NIPPLE |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 100 | N 071412010100 | GREASE NIPPLE |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 102 | N 071412010300 | GREASE NIPPLE |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 104 | A 3523230376 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 4.0 MM | ||
| 104 | A 3523230476 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 4.20 MM | ||
| 104 | A 3523230576 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 4.30 MM | ||
| 108 | A 0029973140 | SEAL RING |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 110 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 112 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 112 | N 000125010532 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 116 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 121 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 137 | A 3213510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 270 MM | ||
| 137 | A 3213510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 270 MM | ||
| 137 | A 3213510725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 290 MM | ||
| 137 | A 3213510725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 290 MM | ||
| 137 | A 3213510725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 290 MM | ||
| 137 | A 3523510225 | U-BOLT |
| Repalced by: A 3213512125 | ||
| 137 | A 3213512125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 310 MM | ||
| 137 | A 3523511225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 330 MM | ||
| 137 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 137 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 137 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 138 | A 3853220584 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 138 | A 3853221084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 139 | A 3213510028 | PAD |
| FRONT SPRINGS TO FRONT AXLE | ||
| 139 | A 3213510028 | PAD |
| FRONT SPRINGS TO FRONT AXLE | ||
| 139 | A 3523250184 | SHIM |
| Repalced by: A 3523250384 | ||
| 139 | A 3523250384 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 139 | A 3523250384 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3449917160 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3449917160 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3129910460 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 140 | A 3129910460 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 141 | A 3853210184 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 150 | A 3553230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 155 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 156 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 157 | A 3603230065 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 170 | A 3603230151 | SPACER RING |
| TORSION BAR,FRONT | ||
| 171 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 173 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 173 | N 910113010000 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 181 | A 3603230869 | LEVER |
| TORSION BAR,FRONT | ||
| 182 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 183 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 187 | A 3813200589 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 3813200789 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 187 | A 6173200089 | ROD |
| TORSION BAR | ||
| A 0003300085 | BOOT | |
| Repalced by: A 0004631396 | ||
| 188 | A 0004631396 | BOOT |
| TO 381 320 07 89,617 320 00 89 | ||
| 190 | A 3813230263 | BEARING BRACKET |
| Repalced by: A 6173200089 | ||
| 190 | A 6173200089 | ROD |
| TO 381 320 05 89 | ||
| 200 | A 3813230060 | SEAL RING |
| TO 381 320 05 89 | ||
| 202 | A 3813230158 | SEAL HOLDER |
| TO 381 320 05 89 | ||
| 204 | A 3813230171 | SCREW |
| TO 381 320 05 89 | ||
| 205 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 205 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 206 | N 000125013008 | WASHER |
| 207 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 207 | N 000125015019 | WASHER |
| ROD TO FRAME | ||
| 208 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 208 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 209 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 210 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 210 | N 910113014001 | NUT |
| ROD TO FRAME | ||
| 211 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 211 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 212 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 212 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 212 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 212 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 212 | A 0019814631 | JOINT BEARING |
| 212 | A 0019814831 | JOINT BEARING |
| 212 | A 0019814831 | JOINT BEARING |
| 213 | N 007993035200 | SNAP RING |
| JOINT TO LEVER | ||
| 215 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| A 3603230274 | PIN | |
| Repalced by: A 3605860032 | ||
| 219 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 221 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 223 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 225 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 227 | N 071412010100 | GREASE NIPPLE |
| 229 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 229 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||

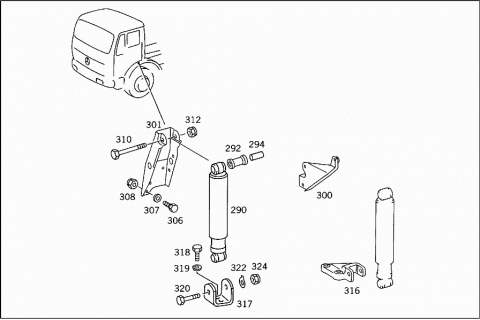

| 290 | A 0033231800 | SHOCK ABSORBER |
| Repalced by: A 0043236600 | ||
| 290 | A 0023236100 | SHOCK ABSORBER |
| Repalced by: A 0043236600 | ||
| 290 | A 0043236600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043236600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0033231900 | SHOCK ABSORBER |
| Repalced by: A 0043235100 | ||
| 290 | A 0043235100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0033230000 | SHOCK ABSORBER |
| Repalced by: A 0043235400 | ||
| 290 | A 0043235400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0023238400 | SHOCK ABSORBER |
| Repalced by: A 0043233300 | ||
| 290 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 290 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 290 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 292 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 292 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 18 00,002 323 61 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 76 00,004 323 66 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 71 00,002 323 84 00, | ||
| 292 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 19 00,003 323 00 00 | ||
| 292 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 292 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00,004 323 51 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 54 00 | ||
| 294 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 294 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 294 | A 0003233150 | SPACER RING |
| 003 323 18 00,002 323 61 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 76 00,004 323 66 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 71 00,002 323 84 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 19 00,003 323 00 00 | ||
| 294 | A 0003235250 | BUSHING |
| TO 004 323 33 00,004 323 51 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 54 00 | ||
| 300 | A 3833200043 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 300 | A 3833200143 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 301 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 301 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 301 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 301 | A 3833200378 | CONSOLE |
| Repalced by: A 6173200178 | ||
| 301 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 301 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 306 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X30 | ||
| 306 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X40 | ||
| 306 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X40 | ||
| 306 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 306 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X25 | ||
| 306 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M12X25 | ||
| 307 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 307 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 307 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 308 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 308 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 308 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 310 | A 3839900202 | SCREW |
| Repalced by: N 000960016244 | ||
| 310 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 312 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 312 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 316 | A 3833231163 | BEARING BRACKET |
| BOTTOM LEFT | ||
| 316 | A 3833231263 | BEARING BRACKET |
| BOTTOM RIGHT | ||
| 317 | A 3833231863 | BEARING BRACKET |
| BOTTOM LEFT & RIGHT | ||
| 317 | A 3833231863 | BEARING BRACKET |
| BOTTOM LEFT & RIGHT | ||
| 318 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 318 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 318 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 319 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 319 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 320 | N 000960016061 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 320 | N 000960016061 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 320 | A 3839900001 | SCREW |
| Repalced by: N 000960016105 | ||
| 320 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 322 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 324 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 324 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 324 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

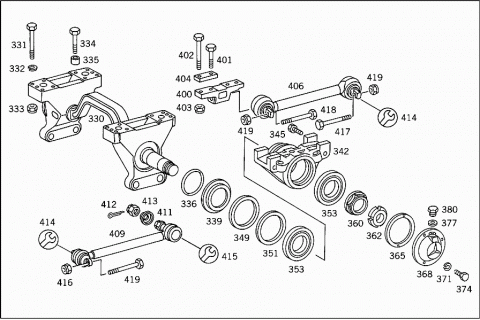

| 330 | A 3833200575 | SPRING BRACKET |
| REAR SPRING CENTRAL BEARING | ||
| 331 | N 000960018109 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M18X60 | ||
| 331 | N 000960018082 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M18X135 | ||
| 332 | N 912004018101 | LOCK WASHER |
| SPRING BRACKET TO FRAME | ||
| 333 | N 913004018004 | NUT |
| SPRING BRACKET TO FRAME | ||
| 334 | A 3853250275 | SCREW |
| Repalced by: N 914142018100 | ||
| 334 | N 914142018100 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 18X60 | ||
| 334 | N 914142018100 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 18X60 | ||
| 334 | A 3853250175 | SCREW |
| Repalced by: N 914142018101 | ||
| 334 | N 914142018101 | SCREW |
| Repalced by: N 000960018145 | ||
| 334 | N 000960018145 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 18X80 | ||
| 334 | N 000960018145 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 18X80 | ||
| 335 | A 3853250053 | SPACER TUBE |
| SPRING BRACKET TO FRAME | ||
| 335 | A 3853250053 | SPACER TUBE |
| SPRING BRACKET TO FRAME | ||
| 336 | A 0119970245 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 339 | A 3833250151 | SPACER RING |
| REAR SPRING CENTRAL BEARING | ||
| 342 | A 3833250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 345 | N 000960020093 | SCREW |
| Repalced by: N 308765020014 | ||
| 345 | N 308765020014 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 349 | A 0099975246 | SEAL RING |
| Repalced by: A 3853200067 | ||
| 349 | A 0109971646 | SEAL RING |
| Repalced by: A 3853200067 | ||
| 349 | A 3853200067 | GASKET |
| INSIDE | ||
| 351 | A 0099975346 | SEAL RING |
| OUTSIDE | ||
| 351 | A 0119973746 | SEAL RING |
| OUTSIDE | ||
| 353 | A 0049811705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 353 | A 0049814305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 353 | A 0059815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 353 | A 0049811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 353 | A 0049814405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 360 | A 3933250052 | SPACER WASHER |
| REAR SPRING CENTRAL BEARING | ||
| 362 | A 3939900060 | NUT |
| REAR SPRING CENTRAL BEARING | ||
| 365 | A 3833250080 | GASKET |
| REAR SPRING CENTRAL BEARING | ||
| 368 | A 3833200084 | COVER |
| REAR SPRING CENTRAL BEARING | ||
| 371 | N 912004008102 | LOCK WASHER |
| COVER TO HOUSING | ||
| 374 | N 000933008145 | SCREW |
| COVER TO HOUSING | ||
| 377 | N 007603014405 | SEAL RING |
| OIL REFILLING | ||
| 380 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 380 | N 007604014110 | SCREW PLUG |
| OIL REFILLING | ||
| 382 | A 3813250209 | BEARING BRACKET |
| Repalced by: A 3813250309 | ||
| 382 | A 3813250309 | BEARING BRACKET |
| LOWER CONTROL ARM | ||
| 385 | A 3853500075 | RUBBER MOUNTING |
| Repalced by: A 3853200044 | ||
| 385 | A 3853200044 | RUBBER BUFFER |
| 388 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO SPRING SEAT | ||
| 391 | N 000933010105 | SCREW |
| RUBBER BUFFER TO SPRING SEAT | ||
| 394 | A 3523250019 | SPRING SEAT |
| LOWER CONTROL ARM | ||
| 397 | A 3523520074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 398 | N 000912016069 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 399 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 399 | N 308673016001 | NUT |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 400 | A 3813520241 | BEARING BODY |
| UPPER CONTROL ARM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I AND II CONTROL ARM BEARING BRACKETS,SEE GROUP: | ||
| "42" | ||
| 401 | N 000960016023 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| M 16X55 | ||
| 402 | N 000960016241 | SCREW |
| BEARING BODY TO CROSS MEMBER | ||
| M16X75 | ||
| 403 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 403 | N 910113016001 | NUT |
| BEARING BODY TO CROSS MEMBER | ||
| 404 | A 3853520184 | SHIM |
| BEARING BODY TO CROSS MEMBER | ||
| 406 | A 3953200332 | LINK |
| Repalced by: A 3853500106 | ||
| 406 | A 3853500106 | CONTROL ARM |
| TOP | ||
| A 0003381797 | BOOT | |
| 409 | A 3813500306 | CONTROL ARM |
| Repalced by: A 3853500206 | ||
| 409 | A 3853500206 | CONTROL ARM |
| BOTTOM | ||
| A 0003501013 | REPAIR KIT | |
| A 0003381797 | BOOT | |
| FOR SPHERICAL PIECE | ||
| 411 | A 0003381497 | BOOT |
| FOR BALL PIVOT | ||
| 412 | N 000094006319 | COTTER PIN |
| 413 | A 0009902755 | NUT |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 414 R | ||
| 414 | A 0003500213 | JOINT |
| WITH BALL PIVOT | ||
| TO 395 320 03 32;381 350 03 06 | ||
| 414 | A 0003500613 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 385 350 01 06;385 350 02 06 | ||
| 415 | A 0005861633 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 381 350 03 06 | ||
| 415 | A 0003501013 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 385 350 02 06 | ||
| 415 | A 0005861733 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 381 350 03 06 | ||
| 416 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 416 | N 308765020012 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X90 | ||
| 417 | N 000960020040 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M 20X120 | ||
| 418 | N 000960020086 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M20X180 | ||
| 419 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 419 | N 913004020003 | NUT |
| CONTROL ARM TO BEARING BRACKET | ||

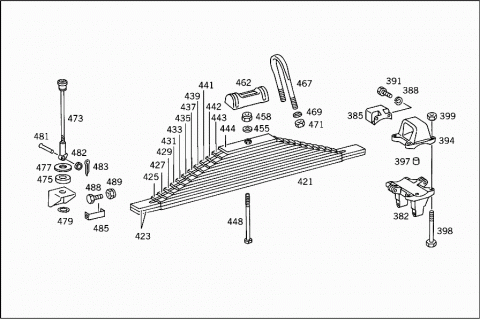

| 421 | A 3853200505 | REAR SPRING |
| 11-LEAF | ||
| 421 | A 3853200405 | REAR SPRING |
| Repalced by: A 3853200605 | ||
| 421 | A 3853200605 | REAR SPRING |
| 14-LEAF | ||
| 423 | A 3853240811 | SPRING LEAF |
| Repalced by: A 3853202093 | ||
| 423 | A 3853240812 | SPRING LEAF |
| Repalced by: A 3853202093 | ||
| 423 | A 3853202093 | SPRING LEAF |
| NO.1,NO.2 | ||
| 423 | A 3853240711 | SPRING LEAF |
| Repalced by: A 3853202193 | ||
| 423 | A 3853240712 | SPRING LEAF |
| Repalced by: A 3853202193 | ||
| 423 | A 3853202193 | SPRING LEAF |
| NO.1,NO.2 | ||
| 423 | A 3853241711 | SPRING LEAF |
| Repalced by: A 3853202293 | ||
| 423 | A 3853241712 | SPRING LEAF |
| Repalced by: A 3853202293 | ||
| 423 | A 3853202293 | SPRING LEAF |
| NO.1,NO.2 | ||
| 425 | A 3853240813 | SPRING LEAF |
| NO.3 | ||
| 425 | A 3853240713 | SPRING LEAF |
| NO.3 | ||
| 425 | A 3853241713 | SPRING LEAF |
| NO.3 | ||
| 427 | A 3853240714 | SPRING LEAF |
| NO.4 | ||
| 427 | A 3853240614 | SPRING LEAF |
| NO.4 | ||
| 427 | A 3853241414 | SPRING LEAF |
| NO.4 | ||
| 429 | A 3853240715 | SPRING LEAF |
| NO.5 | ||
| 429 | A 3853240615 | SPRING LEAF |
| NO.5 | ||
| 429 | A 3853241415 | SPRING LEAF |
| NO.5 | ||
| 431 | A 3853240716 | SPRING LEAF |
| NO.6 | ||
| 431 | A 3853240616 | SPRING LEAF |
| NO.6 | ||
| 431 | A 3853241416 | SPRING LEAF |
| NO.6 | ||
| 433 | A 3853240617 | SPRING LEAF |
| NO.7 | ||
| 433 | A 3853240517 | SPRING LEAF |
| NO.7 | ||
| 433 | A 3853241317 | SPRING LEAF |
| NO.7 | ||
| 435 | A 3853240518 | SPRING LEAF |
| NO.8 | ||
| 435 | A 3853240418 | SPRING LEAF |
| NO.8 | ||
| 435 | A 3853241018 | SPRING LEAF |
| NO.8 | ||
| 437 | A 3853240519 | SPRING LEAF |
| NO.9 | ||
| 437 | A 3853240419 | SPRING LEAF |
| NO.9 | ||
| 437 | A 3853240919 | SPRING LEAF |
| NO.9 | ||
| 439 | A 3853240520 | SPRING LEAF |
| NO.10 | ||
| 439 | A 3853240420 | SPRING LEAF |
| NO.10 | ||
| 439 | A 3853240720 | SPRING LEAF |
| NO.10 | ||
| 441 | A 3853240521 | SPRING LEAF |
| NO.11 | ||
| 441 | A 3853240421 | SPRING LEAF |
| NO.11 | ||
| 441 | A 3853240721 | SPRING LEAF |
| NO.11 | ||
| 442 | A 3853240222 | SPRING LEAF |
| NO.12 | ||
| 443 | A 3853240023 | SPRING LEAF |
| NO.13 | ||
| 444 | A 3853240024 | SPRING LEAF |
| NO.14 | ||
| 448 | A 3523240371 | SPRING BOLT |
| M 16X230 | ||
| 448 | A 3853240071 | SPRING BOLT |
| M 16X265 | ||
| 448 | A 3853240171 | SPRING BOLT |
| M 16X225 | ||
| 455 | N 007349017002 | WASHER |
| SPRING BOLT | ||
| 458 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 458 | N 910113016001 | NUT |
| SPRING BOLT | ||
| 462 | A 3523250231 | PLATE |
| Repalced by: A 6193250031 | ||
| 462 | A 6193250031 | PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 467 | A 3523510825 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 340 MM | ||
| 467 | A 3853510525 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 380 MM | ||
| 467 | A 3853512825 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 410 MM | ||
| 469 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 471 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 473 | A 3523200291 | WIRE CABLE |
| RETAINING ROPE | ||
| 475 | A 3433250144 | RUBBER BUFFER |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 477 | A 3433250162 | THRUST WASHER |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 479 | N 000471035000 | LOCK RING |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 481 | N 001444014214 | PIN |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 482 | N 000433015005 | WASHER |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 483 | N 000094004065 | COTTER PIN |
| CABLE AND MOUNTING FOR REAR AXLE | ||
| 485 | A 3853250240 | BRACKET |
| CABLE AND MOUNTING FOR REAR AXLE I | ||
| 488 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 488 | N 304017008021 | SCREW |
| CABLE AND MOUNTING FOR REAR AXLE I | ||
| 489 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 489 | N 913004008001 | NUT |
| CABLE AND MOUNTING FOR REAR AXLE I | ||

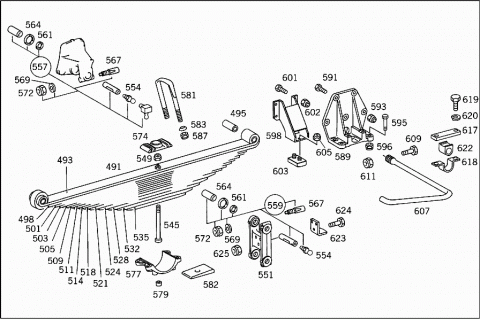

| 491 | A 3603200406 | REAR SPRING |
| 14-LEAF | ||
| 491 | A 3603200406 | REAR SPRING |
| 14-LEAF | ||
| 493 | A 3603200593 | SPRING LEAF |
| NO.1 | ||
| 495 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 495 | A 3523250150 | BUSHING |
| 495 | A 3853250050 | BUSHING |
| 498 | A 3603240812 | SPRING LEAF |
| NO.2 | ||
| 501 | A 3603240813 | SPRING LEAF |
| NO.3 | ||
| 503 | A 3603240814 | SPRING LEAF |
| NO.4 | ||
| 505 | A 3603240815 | SPRING LEAF |
| NO.5 | ||
| 509 | A 3603240816 | SPRING LEAF |
| NO.6 | ||
| 511 | A 3603240717 | SPRING LEAF |
| NO.7 | ||
| 514 | A 3603240418 | SPRING LEAF |
| NO.8 | ||
| 518 | A 3603240419 | SPRING LEAF |
| NO.9 | ||
| 521 | A 3603240320 | SPRING LEAF |
| NO.10 | ||
| 524 | A 3603240321 | SPRING LEAF |
| NO.11 | ||
| 528 | A 3603240322 | SPRING LEAF |
| NO.12 | ||
| 532 | A 3603240123 | SPRING LEAF |
| NO.13 | ||
| 535 | A 3603240124 | SPRING LEAF |
| NO.14 | ||
| 545 | N 004626012148 | SPRING BOLT |
| M 12X205 | ||
| 545 | A 6173241571 | SPRING BOLT |
| M 12X210 | ||
| 549 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 549 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 551 | A 3853250020 | SHACKLE |
| REAR SPRING TO SWINGING LINK | ||
| 554 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| A 3523250530 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| A 3853250030 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| 557 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 557 | A 3853200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| A 3353250030 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| A 3893250230 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| 559 | A 3895860032 | REPAIR KIT |
| Repalced by: A 3895860232 | ||
| 559 | A 3895860232 | REPAIR KIT |
| Repalced by: A 3893200165 | ||
| 559 | A 3893200165 | SHACKLE PIN |
| (PARTS KIT) SHACKLE TO TRAILING AXLE SWINGING LINK | ||
| 561 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 561 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 564 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 567 | A 3529900337 | BOLT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 569 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 569 | N 000125010532 | WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 572 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 572 | N 910113010000 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 574 | A 3833250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 574 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 577 | A 3553250531 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 577 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 579 | A 3839910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 579 | A 3859910464 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 581 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 390 MM | ||
| 581 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 581 | A 3853511525 | U-BOLT |
| Repalced by: A 3853511425 | ||
| 581 | A 3853511425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 582 | A 3853510928 | PAD |
| AT CROSS MEMBER | ||
| 583 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 583 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 587 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 587 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 587 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 587 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 589 | A 3353930038 | SUPPORT |
| TRAILING AXLE | ||
| 591 | N 000961016039 | SCREW |
| SUPPORT TO FRAME | ||
| 593 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 593 | N 910113016002 | NUT |
| SUPPORT TO FRAME | ||
| 595 | N 000960016237 | SCREW |
| AXLE TUBE TO SUPPORT | ||
| 596 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 596 | N 910113016002 | NUT |
| AXLE TUBE TO SUPPORT | ||
| 598 | A 3353200029 | STOP |
| DAMPING SPRING | ||
| 601 | N 000961014028 | SCREW |
| STOP TO FRAME | ||
| 602 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 602 | N 910113014001 | NUT |
| STOP TO FRAME | ||
| 603 | A 3353250044 | RUBBER BUFFER |
| SWINGING LINK | ||
| 605 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 605 | N 910113010000 | NUT |
| RUBBER BUFFER TO STOP | ||
| 607 | A 3353930004 | DAMPING SPRING |
| TORSION BAR,REAR | ||
| 609 | N 000960012258 | SCREW |
| DAMPING SPRING TO AXLE TUBE | ||
| 611 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 611 | N 910113012003 | NUT |
| DAMPING SPRING TO AXLE TUBE | ||
| 617 | A 3353930022 | BEARING SHELL |
| TOP | ||
| 618 | A 3353930122 | BEARING SHELL |
| BOTTOM | ||
| 619 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 619 | N 308676012026 | SCREW |
| DAMPING SPRING TO TRAILING AXLE BEARING BRACKET | ||
| 620 | N 912004012100 | LOCK WASHER |
| DAMPING SPRING TO TRAILING AXLE BEARING BRACKET | ||
| 622 | A 0003930050 | BUSHING |
| DAMPING SPRING | ||
| 623 | A 3353910140 | BRACKET |
| DAMPING SPRING STOP | ||
| 624 | N 000931010258 | SCREW |
| BRACKET TO SHACKLE | ||
| 625 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 625 | N 910113010000 | NUT |
| BRACKET TO SHACKLE | ||
| A 0023267300 | SHOCK ABSORBER | |
| Repalced by: A 3853260300 | ||
| A 0023267500 | SHOCK ABSORBER | |
| Repalced by: A 3853260300 | ||
| 628 | A 0003230785 | RUBBER MOUNTING |
| 629 | A 0003230553 | SPACER TUBE |
| 630 | A 3853260300 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE I | ||
| 631 | A 3223230167 | RETAINER |
| Repalced by: A 3173260167 | ||
| 631 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 632 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 636 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 640 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 644 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 644 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 648 | A 0023267400 | SHOCK ABSORBER |
| Repalced by: A 0033261100 | ||
| 648 | A 0023267600 | SHOCK ABSORBER |
| Repalced by: A 0033261100 | ||
| 648 | A 0033261100 | SHOCK ABSORBER |
| TRAILING AXLE SHOCK ABSORBER | ||
| 652 | A 0003260168 | RUBBER BUFFER |
| 656 | A 0003260550 | BUSHING |
| 660 | A 0003260450 | BUSHING |
| 664 | A 3853100040 | CROSS MEMBER |
| Repalced by: A 3853100440 | ||
| 664 | A 3853100440 | CROSS MEMBER |
| REAR AXLE I SHOCK ABSORBER | ||
| 665 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 665 | N 308676012026 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 666 | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 667 | N 910005012080 | RIVET |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 12X42 MM | ||
| 667 | N 910005012080 | RIVET |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 12X42 MM | ||
| 668 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 668 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 669 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X110 | ||
| 670 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 671 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 672 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 674 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 674 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 678 | A 3353231440 | BRACKET |
| Repalced by: A 6533260940 | ||
| 678 | A 6533260940 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 679 | N 000960014219 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 680 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 680 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 682 | N 000960020037 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 684 | N 000125021006 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 686 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 686 | N 913004020003 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
