Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048
Grupė: 42 BRAKES

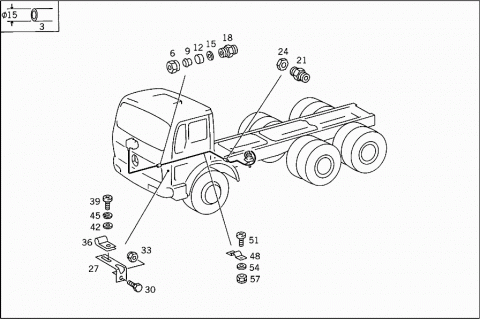

41995
41996
41997
41998

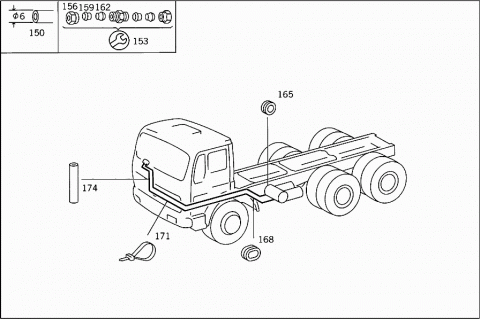

41999
42000
42001
42002
42003
42004

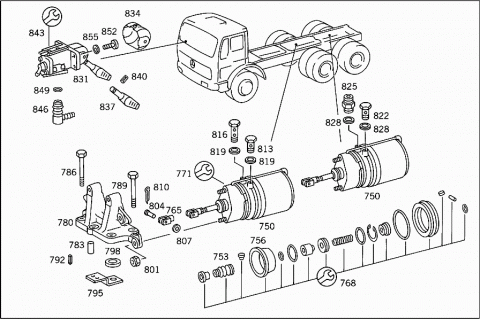

42005
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES ON FRONT AXLE I, SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
745.7
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL:
745.7
T YYYYYYYYYYYY PART NAME MISSING
FOR AIR COMPRESSOR CONNECTION,SEE GROUP 13
003 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
003 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
006 N 915018015000 UNION NUT
006 N 915017015100 UNION NUT
009 N 003861015004 GLAND
012 N 915065015101 THRUST RING
015 N 915045012100 SEAL RING
018 A 0019972172 FITTING
BETWEEN THE LINES
018 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
021 A 0019972372 FITTING
THROUGH SIDE MEMBER
021 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
024 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
027 A 3854290540 BRACKET
COMPRESSED AIR LINE
030 N 000933008152 SCREW
BRACKET TO SIDE MEMBER
033 N 913004008004 NUT
BRACKET TO SIDE MEMBER
036 A 3609952001 CLAMP
Repalced by: A 6739950001
036 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
039 N 007985006145 SCREW
CLAMP TO BRACKET

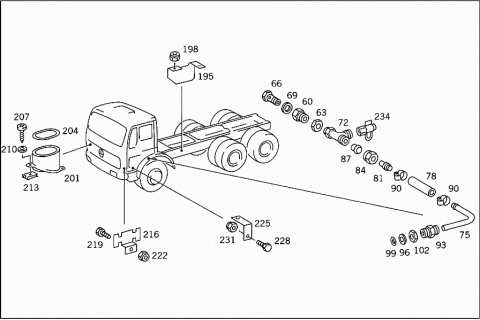

042 N 000125006421 WASHER
CLAMP TO BRACKET
045 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
048 A 3159955010 CLAMP
LINE MOUNTING
051 N 007985006145 SCREW
LINE MOUNTING
M 6X20
054 N 000125006421 WASHER
LINE MOUNTING
057 N 913004006002 NUT
Repalced by: N 913004006001
057 N 913004006001 NUT
LINE MOUNTING
060 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
063 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
066 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
069 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
072 A 0019907070 T-FITTING
BRAKE HOSE TO SIDE MEMBER
075 A 6194290801 LINE
Repalced by: A 6254293501
075 A 6254293501 LINE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
078 N 916027011014 HOSE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
081 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
084 N 915017012100 UNION NUT
087 N 003861012007 GLAND
090 N 916017016000 CLAMP
Repalced by: N 000000000666
090 N 000000000666 CLAMP
LINE MOUNTING
16-27X13 MM
093 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
096 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
099 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
102 N 913004006002 NUT
Repalced by: N 913004006001
102 N 913004006001 NUT
CLAMP TO BRACKET
105 A 0109975982 HOSE
Repalced by: A 0009872827

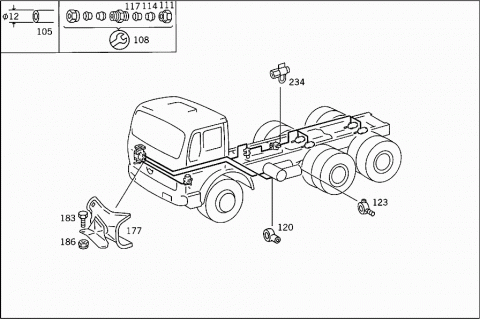

105 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
105 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
105 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
105 A 0009872827 PLASTIC PIPE
PRESSURE LIMIT VALVE,OVERFLOW VALVE
9X12 MM
105 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
108 A 0049971772 FITTING
Repalced by: A 0029906171
108 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
111 N 915017012100 UNION NUT
114 N 003861012007 GLAND
117 N 915062009000 SLEEVE
120 N 915052009005 BANJO UNION
Repalced by: N 915052009009
120 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
123 A 0019901088 BANJO UNION

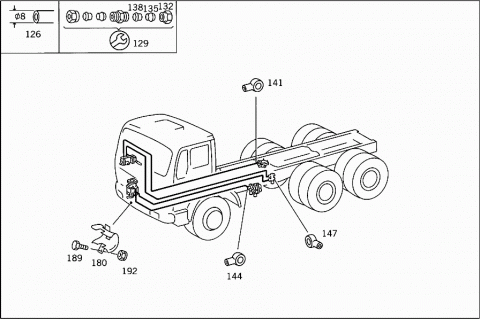

126 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
126 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
126 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
126 A 0089979082 HOSE
BREATHING,REAR AXLES I AND II
6X8 MM
129 A 0039978972 FITTING
Repalced by: A 0029905971
129 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
132 N 915017008100 UNION NUT
135 N 003861008005 GLAND
138 N 915062006000 SLEEVE
141 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
144 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
147 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
150 A 0089976082 HOSE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
153 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
156 N 915017006100 UNION NUT
159 N 003861006007 GLAND
162 N 915062004000 SLEEVE
165 A 6209970181 GROMMET
LINE THRU LEFT SIDE MEMBER
42/36 MM
168 A 3549970081 GROMMET
LINE THRU LEFT SIDE MEMBER
32/27 MM
171 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
171 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
174 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
177 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
180 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
183 N 000933008147 SCREW
BRACKET TO BUMPER STRUT
186 N 913004008004 NUT
BRACKET TO BUMPER STRUT
189 N 000933008153 SCREW
BRACKET TO CAB CONSOLE
192 N 913004008004 NUT
BRACKET TO CAB CONSOLE
195 A 6204295240 BRACKET
BETWEEN THE LINES
198 N 913004006002 NUT
Repalced by: N 913004006001
198 N 913004006001 NUT
BRACKET TO CAB FLOOR
201 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
204 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
207 N 007981004215 SHEET METAL SCREW
BRACKET TO CAB FLOOR
210 N 009021005202 WASHER
BRACKET TO CAB FLOOR
213 A 0009946445 LOCK
BRACKET TO CAB FLOOR
216 A 6204293940 BRACKET
COMPRESSED AIR LINE
219 N 000933008152 SCREW
BRACKET TO SIDE MEMBER
222 N 913004008004 NUT
BRACKET TO SIDE MEMBER
225 A 3954290840 BRACKET
Repalced by: A 6674920240
225 A 6674920240 CLAMP
Repalced by: A 6554314640
225 A 6554314640 BRACKET
LINE MOUNTING
228 N 000933008045 SCREW
BRACKET TO CONTROL ARM
M 8X20
225 A 3954290440 BRACKET
Repalced by: A 6205243040
225 A 6205243040 BRACKET
LINE MOUNTING
228 N 000933008150 SCREW
BRACKET TO CROSS MEMBER
M 8X35
228 N 000933008152 SCREW
BRACKET TO CROSS MEMBER
M 8X30
231 N 913004008004 NUT
BRACKET TO CROSS MEMBER
231 N 913004008004 NUT
BRACKET TO CONTROL ARM
234 A 0004312031 TEST CONNECTION
VOSS
234 A 0004314531 TEST CONNECTION
SCHAEFER
234 A 0004314831 TEST CONNECTION
WABCO
234 A 0004316131 TEST CONNECTION
WIRA
234 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
234 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
234 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"40"
234 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0009979486 PLUG

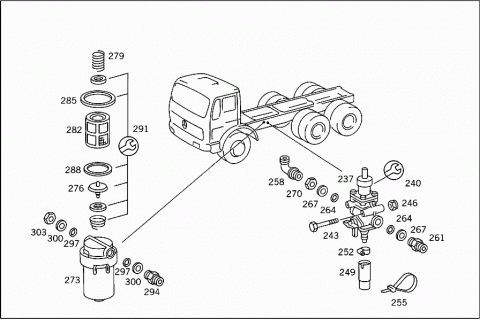

237 A 0024314906 PRESSURE REGULATOR
WABCO
237 A 0024314306 PRESSURE REGULATOR
BOSCH
237 A 0024318306 PRESSURE REGULATOR
KNORR
240 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
240 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
240 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
243 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
246 N 913004008004 NUT
PRESSURE REGULATOR TO BRACKET
249 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
252 N 916026020001 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
255 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
258 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
261 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
264 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
267 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
270 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
273 A 0004292595 AIR CLEANER
BOSCH
273 A 0004292695 AIR CLEANER
KNORR
273 A 0004292795 AIR CLEANER
WABCO
273 A 0004292895 AIR CLEANER
GRAU
276 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
276 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
279 A 0059930901 SPRING
TO 000 429 27 95,WABCO
282 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
282 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
282 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
282 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
285 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
285 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
288 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
288 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
288 A 0049972248 SEAL RING
Repalced by: A 0289972348
288 A 0289972348 SEAL RING
TO 000 429 27 95,100X35MM,WABCO
288 A 0009870746 SEALING CORD
TO 000 429 27 95,075X3 MM,WABCO
291 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
294 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
294 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
297 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
300 A 0004290227 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
303 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
306 A 0024314006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
306 A 0014319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
306 A 0014318706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
306 A 0024312706 VALVE
Repalced by: A 0024319106
306 A 0024319106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
309 A 0035860943 REPAIR KIT
TO 002 431 40 06,WABCO
309 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
309 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
309 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
312 N 080705016003 NUT
VALVE TO BRACKET
315 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
315 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
318 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
321 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
324 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
327 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
330 N 000439016206 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
333 N 000125017010 WASHER
VALVE TO BRACKET
336 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
339 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
342 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
345 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23,24"
348 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22,24"
351 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22,24"

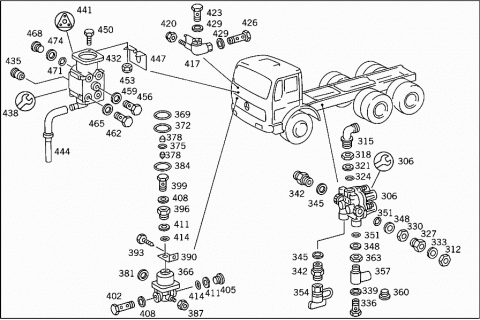

354 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
357 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
360 N 000908016001 SCREW PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
363 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
366 A 0014306481 VALVE
FROM PRESSURE RATIO VALVE TO TRAILER CONTROL VALVE
369 A 0019871746 SEALING CORD
38X3 MM
372 A 0089970445 SEAL RING
34.6X2.6 MM
375 A 0089978648 SEAL RING
28.4X2.6 MM
378 A 0004313223 VALVE
381 N 007603016401 SEAL RING
16X20 MM
384 A 0089978748 SEAL RING
56X1.7 MM
387 N 913004008004 NUT
VALVE TO FLOOR
390 A 6204312540 BRACKET
PRESSURE RATIO VALVE
393 N 007976005203 SHEET METAL SCREW
BRACKET TO CAB FLOOR
396 A 0004296134 ADAPTER FITTING
PRESSURE RATIO VALVE,CONNECTION:
399 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
402 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
405 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
408 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
411 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
414 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
417 A 0029900871 ELBOW FITTING
420 N 913004008004 NUT
FITTING TO CAB FLOOR
423 N 915036012203 HOLLOW SCREW
AT FITTING
426 N 915047012203 HOLLOW SCREW
AT FITTING
429 N 007603016401 SEAL RING
AT FITTING
432 A 0024310605 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
432 A 0024311005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
432 A 0024312005 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
435 A 0004313623 VALVE
WABCO
438 A 0004306360 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 06 05,WABCO
441 A 0014308460 GASKET KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 10 05,BOSCH
444 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
444 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
447 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL BEARING BRACKET
450 N 000933008152 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
453 N 913004008004 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
456 N 915036008202 HOLLOW SCREW
BRAKE VALVE,CONNECTION:
"40"
459 N 007603012405 SEAL RING
BRAKE VALVE,CONNECTION:
"40"
462 N 915036012203 HOLLOW SCREW
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
465 N 007603016401 SEAL RING
BRAKE VALVE,RIGHT CONNECTIONS:
"11,12,21,22"
468 N 000908016001 SCREW PLUG
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
471 A 0009971548 SEAL RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"
474 A 0004290927 THRUST RING
BRAKE VALVE,LEFT CONNECTIONS:
"11,12,21,22"

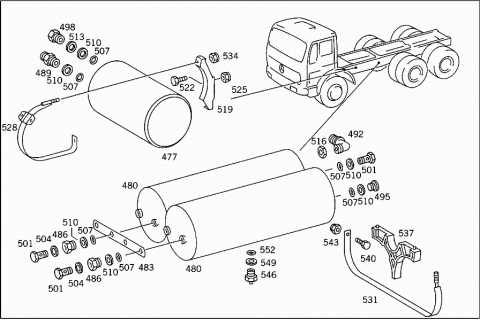

477 A 0004324801 RESERVOIR
Repalced by: A 0014327501
477 A 0014327501 RESERVOIR
Repalced by: A 0034321201
477 A 0034321201 RESERVOIR
(AIR RESERVOIR),PARKING BRAKE CIRCUIT
20 L
480 A 0004322101 RESERVOIR
Repalced by: A 0034322301
480 A 0034322301 RESERVOIR
(AIR RESERVOIR),BRAKE CIRCUITS I & II
40 L
483 A 3464320073 LOCK
PROTECTION AGAINST TORSION
486 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
489 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009005 BANJO UNION
Repalced by: N 915052009009
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
492 A 0009907771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"31"
495 N 000908022001 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
498 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
501 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,31"
504 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,31"
507 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
510 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
513 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
516 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"31"
519 A 3874320540 BRACKET
FRONT AIR RESERVOIR
522 N 000933008215 SCREW
BRACKET TO APPARATUS SUPPORT
525 N 913004008004 NUT
BRACKET TO APPARATUS SUPPORT
528 A 6204301040 STRAP
RIGHT AIR RESERVOIR
531 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
534 N 913004010008 NUT
STRAP TO BRACKET
537 A 6204320018 BASE
STRAP TO SUPPORT
540 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
543 N 913004010008 NUT
STRAP TO SUPPORT
546 A 0004322407 VALVE
DRAIN
546 A 0004321107 VALVE
DRAIN
546 A 0004322107 VALVE
DRAIN
549 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
552 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR

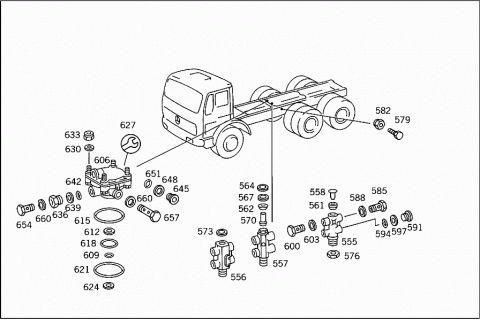

555 A 0024299644 VALVE
(CHECK VALVE)
VOSS
556 A 0034290444 VALVE
(CHECK VALVE)
WABCO
557 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
558 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
561 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
562 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
564 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
567 A 0004290662 THRUST WASHER
TO 000 429 12 44,SCHAEFER
570 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
573 A 0089977348 SEAL RING
19.3X2.4 MM,TO 003 429 04 44,WABCO
576 N 074305022202 NUT
CHECK VALVE TO BRACKET
579 N 000933010129 SCREW
BRACKET TO LEFT SIDE MEMBER
582 N 913004010008 NUT
BRACKET TO LEFT SIDE MEMBER
N 915045012100 SEAL RING
CHECK VALVE,CONNECTION:
"10"
585 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
588 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
591 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
594 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
597 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
600 N 915036010204 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
603 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
606 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
606 A 0034295344 VALVE
(RELAY VALVE)
KNORR
606 A 0014299144 VALVE
(RELAY VALVE)
GRAU
606 A 0014296844 VALVE
(RELAY VALVE)
WABCO
609 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
612 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
615 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
618 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
621 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
624 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
627 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
627 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;UP TO 03.82
627 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;FROM 04.82
627 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
627 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
627 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
627 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
630 N 000125008418 WASHER
RELAY VALVE TO CROSS MEMBER
633 N 913004008004 NUT
RELAY VALVE TO CROSS MEMBER
636 A 0009905168 FITTING
REAR AXLE I RELAY VALVE,CONNECTION:
"10"
639 A 0004290227 THRUST RING
REAR AXLE I RELAY VALVE,CONNECTION:
"10"
642 A 0009870446 SEALING CORD
REAR AXLE I RELAY VALVE,CONNECTION:
"10"
645 N 000908016001 SCREW PLUG
REAR AXLE I RELAY VALVE,CONNECTION:
"20"
648 A 0004290927 THRUST RING
REAR AXLE I RELAY VALVE,CONNECTION:
"20"
651 A 0009971548 SEAL RING
REAR AXLE I RELAY VALVE,CONNECTION:
"20"
654 N 915036012203 HOLLOW SCREW
REAR AXLE I RELAY VALVE,CONNECTIONS:
"10,20,40"
657 N 915047012203 HOLLOW SCREW
REAR AXLE I RELAY VALVE,CONNECTION:
"20"
660 N 007603016401 SEAL RING
REAR AXLE I RELAY VALVE,CONNECTIONS:
"10,20,40"

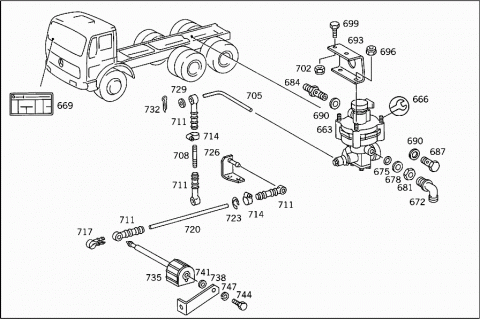

663 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
663 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
663 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
666 A 0004307560 REPAIR KIT
TO 001 431 33 12,WABCO
666 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,BOSCH
666 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
666 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,BOSCH
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
669 A 6195840821 GUIDE SIGN
LOAD-DEPENDING BRAKE
669 A 6195842521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
672 A 0019903071 ELBOW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"10"
675 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
678 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"10"
681 N 080705016003 NUT
BRAKE POWER REGULATOR,CONNECTION:
"10"
684 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
687 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
687 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"20"
690 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20,40"
693 A 3854317040 BRACKET
BRAKE POWER REGULATOR
696 N 913004008004 NUT
BRAKE POWER REGULATOR TO BRACKET
699 N 000933008153 SCREW
BRACKET TO CROSS MEMBER
M 8X25
702 N 913004008004 NUT
BRACKET TO CROSS MEMBER
705 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
708 N 900331008419 PULL ROD
FROM LEVER TO LINK
711 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
714 N 916026010000 CLAMP
CONNECTOR TO ROD
717 A 6249950065 CLAMP
CONNECTOR TO ROD
720 A 3954310192 ROD
723 N 900055008402 LOCK RING
PULL ROD TO CONNECTOR
726 A 3854301910 BRACKET
REAR ROD
726 A 6244300110 BRACKET
REAR ROD
N 000931008160 SCREW
BRACKET TO REAR AXLE II
N 913004008004 NUT
BRACKET TO REAR AXLE II
729 N 000125008418 WASHER
BRACKET TO REAR AXLE II
732 N 000094002069 COTTER PIN
ROD TO LEVER
735 A 0004310918 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
735 A 0004310418 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
738 A 6234310040 BRACKET
BRAKE POWER REGULATOR CONTROL
738 A 6244310040 BRACKET
METAL SPRING BELLOWS
741 N 000125017010 WASHER
METAL SPRING BELLOWS
744 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
747 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
750 A 0074206518 WHEEL BRAKE CYLINDER
REAR AXLES I AND II
WABCO
750 A 0074204218 WHEEL BRAKE CYLINDER
REAR AXLES I AND II
KNORR
750 A 0084209018 WHEEL BRAKE CYLINDER
REAR AXLES I AND II
BOSCH
750 A 0094206118 WHEEL BRAKE CYLINDER
REAR AXLES I AND II
GRAU
753 A 0004215286 CUP
TO 007 420 65 18,WABCO
753 A 0004233886 CUP
TO 008 420 90 18,BOSCH
756 A 0004312928 DIAPHRAGM
TO 008 420 42 18,KNORR
756 A 0004313028 DIAPHRAGM
TO 008 420 90 18,BOSCH
765 N 071752014000 YOKE
TO 008 420 90 18,BOSCH
768 A 0025865042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 65 18,WABCO
768 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
768 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 007 420 65 18,WABCO
768 A 0004304060 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 008 420 42 18,KNORR
768 A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 90 18
780 A 3954231233 BEARING BRACKET
REAR AXLES I AND II
783 N 007346012003 CLAMPING SLEEVE
786 N 000961016036 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1.5X40
789 N 000961020007 SCREW
Repalced by: N 000961020061
789 N 000961020061 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1.5X40
789 N 000961020025 SCREW
BEARING BRACKET TO REAR AXLE
M 20X1.5X55
792 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
795 A 3954290640 BRACKET
BEARING BRACKET TO REAR AXLE
798 A 3379900640 WASHER
BEARING BRACKET TO REAR AXLE
801 N 913004016004 NUT
TRISTOP CYLINDER TO BEARING BRACKET
804 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
807 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
810 N 000094004065 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
813 N 915036012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
816 N 915047012203 HOLLOW SCREW
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
819 N 007603016401 SEAL RING
REAR AXLE I TRISTOP CYLINDER, CONNECTIONS:
"11,12"
822 N 915036012203 HOLLOW SCREW
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11"
825 N 915040012200 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
825 N 915039012205 HOLLOW SCREW FITTING
REAR AXLE II TRISTOP CYLINDER, CONNECTIONS:
"11,12"
828 N 007603016401 SEAL RING
REAR AXLE II TRISTOP CYLINDER
831 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
831 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
831 A 0014306781 VALVE
Repalced by: A 0024309981
831 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
834 A 0014310887 PROTECTIVE CAP
WABCO
834 A 0014311087 PROTECTIVE CAP
BOSCH
834 A 0014311287 PROTECTIVE CAP
KNORR
837 A 0009975577 HANDLE
KNORR
837 A 0009972477 HANDLE
TO 001 430 57 81,WABCO
837 N 912006008000 LOCK WASHER
TO 001 430 43 81,BOSCH
840 N 001481003025 CLAMPING SLEEVE
KNORR
843 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 43 81,BOSCH
843 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
843 A 0034303181 REPAIR KIT
TO 001 430 57 81,WABCO
843 A 0034302081 VALVE
KNORR
846 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
849 A 0099973948 SEAL RING
852 N 007985008119 SCREW
HAND BRAKE VALVE TO CAB
855 N 007980008003 LOCK WASHER
HAND BRAKE VALVE TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
