Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

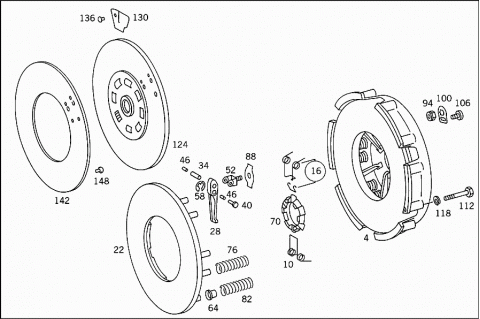

| 004 | A 0032507004 | CLUTCH PRESSURE PLATE |
| 010 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 010 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 016 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 016 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 022 | A 0002524912 | PRESSURE PLATE |
| 028 | A 0002524613 | RELEASE LEVER |
| 034 | A 0002522216 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 040 | A 0002523116 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 046 | A 0002520118 | ROLLER |
| 052 | A 0002522614 | BRACKET |
| 058 | N 006799007007 | LOCK PLATE |
| 064 | A 0002520535 | SLEEVE |
| 070 | A 0002521245 | FLANGE |
| 076 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 082 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 088 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 088 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 094 | A 0002523072 | NUT |
| 100 | A 0002521073 | LOCK |
| 106 | A 0002522971 | SCREW |
| 112 | N 000931010239 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 118 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 124 | A 0072504203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 124 | A 0072504303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 124 | A 0052500103 | CLUTCH DISC |
| 124 | A 0052500203 | CLUTCH DISC |
| 130 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 130 | A 0002523919 | LEAF SPRING |
| 136 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 136 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 142 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 142 | A 0012528310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 142 | A 0012522010 | CLUTCH LINING |
| 148 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 148 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 148 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 148 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||

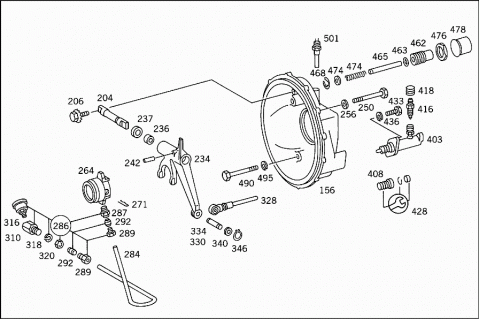

| 156 | A 6202510701 | BELL HOUSING |
| Repalced by: A 6202511601 | ||
| 156 | A 6202511601 | BELL HOUSING |
| 204 | A 6202540207 | SHAFT |
| (CLUTCH RELEASE SHAFT) | ||
| 206 | N 914112010025 | SCREW |
| CLUTCH RELEASE SHAFT TO BELL HOUSING | ||
| 234 | A 6202540308 | RELEASE LEVER |
| Repalced by: A 6202540508 | ||
| 234 | A 6202540508 | RELEASE LEVER |
| 236 | A 0099810410 | NEEDLE BEARING |
| RELEASE LEVER | ||
| 237 | A 0079978847 | SEAL RING |
| RELEASE LEVER | ||
| 242 | N 001481005044 | CLAMPING SLEEVE |
| RELEASE LEVER TO SHAFT | ||
| 250 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 256 | N 000125010518 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 264 | A 0002507615 | RELEASE BEARING |
| 271 | A 6209930125 | SPRING |
| RELEASE LEVER TO RELEASE BEARING | ||
| 284 | A 3205730036 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 286 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 287 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 289 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 292 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 310 | A 3872510108 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 310 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 316 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 316 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 318 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 320 | N 000936014010 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 328 | A 0009968740 | ROD END |
| CLUTCH ACTUATION | ||
| 334 | A 6202560074 | PIN |
| ROD END TO RELEASE LEVER | ||
| 340 | A 0019972141 | SEAL RING |
| ROD END TO RELEASE LEVER | ||
| 346 | N 000471012001 | LOCK RING |
| ROD END TO RELEASE LEVER | ||
| 403 | A 0012954407 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 408 | A 0002954883 | BOOT |
| 416 | A 3075530107 | VALVE |
| BREATHER | ||
| 418 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 418 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 418 | A 0004210887 | PROTECTIVE CAP |
| 428 | A 0002901267 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 433 | N 000933010105 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 436 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 462 | A 6202520171 | SCREW |
| WEAR INDICATOR | ||
| 463 | A 0139971448 | SEAL RING |
| 465 | A 6202540074 | PIN |
| WEAR INDICATOR | ||
| 468 | N 912009008100 | SNAP RING |
| WEAR INDICATOR | ||
| 471 | N 000433008406 | WASHER |
| WEAR INDICATOR | ||
| 474 | N 002098001028 | SPRING |
| WEAR INDICATOR | ||
| 476 | N 080705020001 | NUT |
| WEAR INDICATOR | ||
| 478 | A 0019880835 | CAP |
| WEAR INDICATOR | ||
| 490 | N 000960018111 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 495 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 501 | A 0065427117 | SENDER UNIT |
| OVERREVVING | ||
