Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048

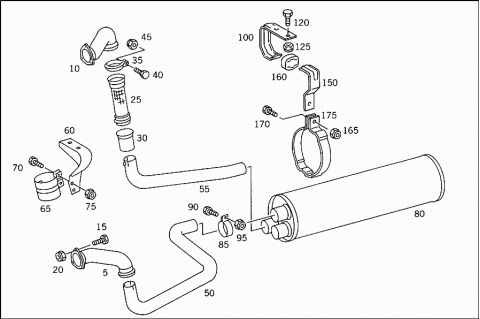

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 010 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 015 | N 000931012034 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 020 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 030 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 035 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 040 | N 000933008161 | SCREW |
| LOOM TIE TO EXHAUST PIPE AND TO METALLICHOSE | ||
| 045 | N 913004008004 | NUT |
| LOOM TIE TO EXHAUST PIPE AND TO METALLICHOSE | ||
| 055 | A 6174905420 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 060 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 060 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 065 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 070 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 075 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | A 6174900001 | EXHAUST MUFFLER |
| 085 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 78.5 MM | ||
| 085 | N 071555090501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 090 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 095 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 100 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 105 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 110 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 115 | A 3604910916 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 120 | N 000961012151 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 125 | N 913004012008 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 130 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| 135 | N 913004010008 | NUT |
| SUPPORT TO SUPPORT | ||
| 140 | N 000933008152 | SCREW |
| SUPPORT TO FRAME | ||
| 145 | N 913004008004 | NUT |
| SUPPORT TO FRAME | ||
| 150 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 155 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 160 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 160 | A 3814920082 | DAMPING PAD |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 165 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 170 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 175 | N 913004010008 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 180 | A 6174921707 | CONNECTOR |
| BOTTOM | ||
| 185 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 190 | N 913004010008 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 195 | A 6194920104 | REAR EXHAUST PIPE |
| TOP | ||
| 200 | N 071555094502 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 205 | N 000933010105 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 210 | N 913004010008 | NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 215 | A 3834901040 | BRACKET |
| UPPER EXHAUST PIPE | ||
| 220 | N 000933010157 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 225 | N 913004010008 | NUT |
| BRACKET TO FENDER SUPPORT | ||
| 230 | A 3834901240 | BRACKET |
| UPPER EXHAUST PIPE | ||
| 235 | N 000933010157 | SCREW |
| BRACKET TO FENDER SUPPORT | ||
| 240 | N 912004010102 | LOCK WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 245 | N 000125010518 | WASHER |
| BRACKET TO FENDER SUPPORT | ||
| 250 | A 3834929041 | BRACKET |
| REAR EXHAUST PIPES | ||
| 255 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 260 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 265 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 270 | A 3434920340 | CLAMP |
| UPPER EXHAUST PIPE TO BRACKET | ||
| 275 | N 000933008153 | SCREW |
| CLAMP TO BRACKET | ||
| 280 | N 913004008004 | NUT |
| CLAMP TO BRACKET |
