Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048

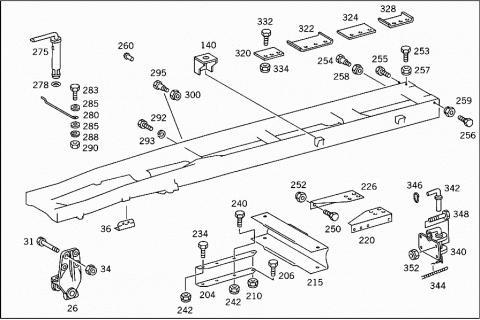

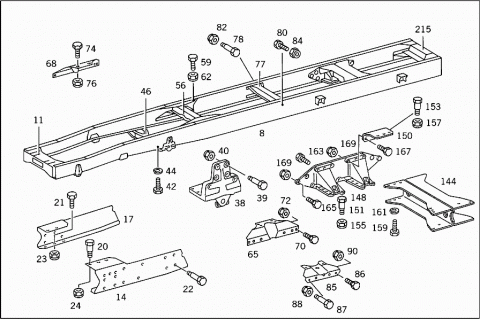

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6193103201 | FRAME |
| 008 | A 6193104501 | FRAME |
| 011 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 014 | A 3853122187 | GUSSET PLATE |
| FRONT LEFT | ||
| 014 | A 6173122087 | GUSSET PLATE |
| Repalced by: A 3873122087 | ||
| 014 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 017 | A 3853122287 | GUSSET PLATE |
| FRONT RIGHT | ||
| 017 | A 6173122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 017 | A 6203120987 | GUSSET PLATE |
| 020 | A 3859900714 | SCREW |
| CROSS MEMBER TO GUSSET PLATE | ||
| 021 | A 3559900014 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X35 | ||
| 022 | A 3219901601 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 14X35 | ||
| 022 | A 3609900214 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 14X32 | ||
| 022 | A 3969900314 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| 023 | N 913004012009 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 023 | N 913004012009 | NUT |
| CROSS MEMBER TO GUSSET PLATE | ||
| 023 | N 913004012009 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 024 | N 913004014005 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 024 | N 913004014005 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 026 | A 6173220001 | FRONT SPRING BRACKET |
| FRONT | ||
| 031 | A 3589900414 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X42 | ||
| 031 | A 3589900714 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X44 | ||
| 034 | N 913004014005 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 036 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 038 | A 6173220003 | FRONT SPRING BRACKET |
| REAR | ||
| 038 | A 6173220103 | FRONT SPRING BRACKET |
| REAR | ||
| 039 | A 3589900914 | SCREW |
| FRONT SPRING REAR BRACKET AND CROSS MEMBER TO SIDE MEMBER | ||
| M 14X46 | ||
| 039 | A 6199900014 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X54 | ||
| 040 | N 913004014005 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 042 | N 000961014154 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 044 | N 912004014100 | LOCK WASHER |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 045 | A 6193110053 | ANGLE |
| LEFT | ||
| 045 | A 6193110153 | ANGLE |
| RIGHT | ||
| 045E | A 3609900214 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 045H | N 913004014005 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 046 | A 6163120310 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 056 | A 3813120015 | CROSS MEMBER |
| NO.3 | ||
| 057 | A 6193120687 | GUSSET PLATE |
| Repalced by: A 3813120652 | ||
| 057 | A 3813120652 | ANGLE |
| TOP LEFT | ||
| 057 | A 6193120787 | GUSSET PLATE |
| Repalced by: A 3813120752 | ||
| 057 | A 3813120752 | ANGLE |
| TOP RIGHT | ||
| 057R | A 3609900214 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| 057S | N 913004014005 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 059 | A 3859900714 | SCREW |
| CROSS MEMBER TO GUSSET PLATE | ||
| 059 | N 000961012120 | SCREW |
| CROSS MEMBER TO GUSSET PLATE | ||
| 060 | A 3859901040 | WASHER |
| CROSS MEMBER TO GUSSET PLATE | ||
| 062 | N 913004012009 | NUT |
| CROSS MEMBER TO GUSSET PLATE | ||
| 065 | A 6173120352 | ANGLE |
| BOTTOM LEFT | ||
| 065 | A 3813120252 | ANGLE |
| BOTTOM LEFT | ||
| 068 | A 6173120452 | ANGLE |
| BOTTOM RIGHT | ||
| 068 | A 3813120352 | ANGLE |
| BOTTOM RIGHT | ||
| 070 | A 3219901601 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 072 | N 913004014005 | NUT |
| FRAME TRUSSING TO SIDE MEMBER | ||
| 074 | A 3969900114 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 076 | N 913004012009 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 077 | A 6173120017 | CROSS MEMBER |
| NO.4 | ||
| 077 | A 6173120117 | CROSS MEMBER |
| NO.4 | ||
| 078 | A 3609900214 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X32 | ||
| 080 | N 000933010174 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 082 | N 913004014005 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 084 | N 913004010011 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 085 | A 3523122360 | REINFORCEMENT |
| 085 | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER | ||
| 086 | N 000933010174 | SCREW |
| REINFORCEMENT TO CROSS MEMBER | ||
| M 10X25 | ||
| 086 | N 000933010278 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 10X32 | ||
| 087 | A 3609900214 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 087 | A 3219901601 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 088 | N 913004014005 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 090 | N 913004010011 | NUT |
| REINFORCEMENT TO CROSS MEMBER | ||
| 090 | N 913004010011 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 140 | A 6193200278 | CONSOLE |
| RETAINING ROPE TO FRAME | ||
| 144 | A 3853121025 | CROSS MEMBER |
| NO.5 | ||
| 148 | A 6193250010 | SUPPORT |
| REAR SPRING CENTRAL BEARING | ||
| 148 | A 6193250110 | SUPPORT |
| REAR SPRING CENTRAL BEARING | ||
| 150 | A 3853121587 | GUSSET PLATE |
| LEFT | ||
| 150 | A 3853121687 | GUSSET PLATE |
| RIGHT | ||
| 151 | A 3559900014 | SCREW |
| CROSS MEMBER TO CROSS MEMBER | ||
| 153 | A 3589901014 | SCREW |
| CROSS MEMBER TO REINFORCEMENT | ||
| 155 | N 913004012009 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 157 | N 913004014005 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 159 | N 000961014050 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 161 | N 912004014100 | LOCK WASHER |
| SUPPORT TO CROSS MEMBER | ||
| 163 | N 914112016018 | SCREW |
| Repalced by: A 6529901204 | ||
| 163 | A 6529901204 | SCREW |
| Repalced by: N 914112014016 | ||
| 163 | N 914112014016 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X35 | ||
| 165 | N 914112016340 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X50 | ||
| 167 | N 914112016343 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 16X85 | ||
| 169 | N 913012016002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 204 | A 6173120160 | REINFORCEMENT |
| REAR CROSS MEMBER | ||
| 206 | N 308676012012 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 210 | N 913004012009 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 215 | A 3853100146 | CROSS MEMBER |
| Repalced by: A 3853100246 | ||
| 215 | A 3853100246 | CROSS MEMBER |
| REAR | ||
| 220 | A 6193120087 | GUSSET PLATE |
| TOP LEFT, BOTTOM RIGHT | ||
| 226 | A 6193120187 | GUSSET PLATE |
| TOP RIGHT, BOTTOM LEFT | ||
| 234 | N 308676012012 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| M 12X1,5X25 | ||
| 240 | N 000961012151 | SCREW |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| M 12X30 | ||
| 242 | N 913004012008 | NUT |
| REINFORCEMENT TO GUSSET PLATE AND TO CROSS MEMBER | ||
| 250 | N 000931012097 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 12X35 | ||
| 250 | N 000961012122 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| M 12X40 | ||
| 252 | N 913004012008 | NUT |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 253 | A 3969900114 | SCREW |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| M 12X25 | ||
| 253 | A 3859902214 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| M 12X32 | ||
| 254 | A 3969900214 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 14X28 | ||
| 255 | A 3859901414 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 12X26 | ||
| 256 | N 000933010174 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 10X25 | ||
| 257 | N 913004012009 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 257 | N 913004012009 | NUT |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| 257 | N 913004012009 | NUT |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 258 | N 913004014005 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 259 | N 913004010011 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859900814 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| M 16X16X25X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| N 913004014005 | NUT | |
| N 913004016005 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 260 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 260 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 260 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 260 | N 910005010024 | RIVET |
| 10X36 MM | ||
| 260 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 260 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 260 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 260 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 275 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 278 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 280 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 283 | N 000933008153 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 285 | N 000125008418 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 288 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 290 | N 000934008010 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 292 | N 000961014100 | SCREW |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 293 | N 912004014100 | LOCK WASHER |
| FRONT SPRING REAR BRACKET TO CROSS MEMBER | ||
| 295 | A 3609900214 | SCREW |
| FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER | ||
| M 14X32 | ||
| 300 | N 913004014005 | NUT |
| FOR CROSS MEMBER NO.3; ANGLE TO SIDE MEMBER | ||
| 320 | A 3853160260 | MOUNTING PLATE |
| BODY MOUNTING | ||
| 322 | A 3853160560 | MOUNTING PLATE |
| BODY MOUNTING | ||
| 322 | A 3853160360 | MOUNTING PLATE |
| BODY MOUNTING | ||
| 324 | A 3853160160 | MOUNTING PLATE |
| BODY MOUNTING | ||
| 328 | A 3853160760 | MOUNTING PLATE |
| BODY MOUNTING | ||
| 332 | A 3589901014 | SCREW |
| PLATE TO FRAME | ||
| 332 | A 3589900214 | SCREW |
| PLATE TO FRAME | ||
| M 14X38 | ||
| 332 | A 3589900214 | SCREW |
| PLATE TO FRAME | ||
| M 14X38 | ||
| 332 | A 3589900814 | SCREW |
| PLATE TO FRAME | ||
| M 14X34 | ||
| 334 | N 913004014005 | NUT |
| PLATE TO FRAME | ||
| 340 | A 0013152999 | TRAILER COUPLING |
| (TOW BAR COUPLING) | ||
| 342 | A 0003151174 | PIN |
| 344 | N 005685004100 | CHAIN |
| 346 | N 005296025204 | RING |
| 348 | N 000960016171 | SCREW |
| TRAILER COUPLING TO REAR CROSS MEMBER | ||
| 352 | N 913004016004 | NUT |
| TRAILER COUPLING TO REAR CROSS MEMBER | ||

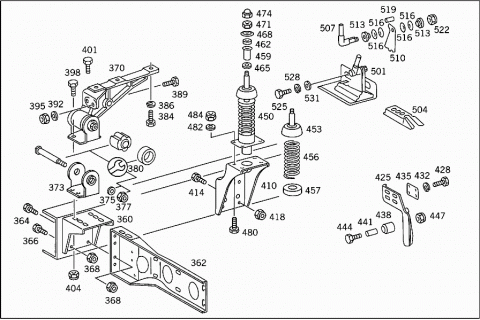

| 360 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 362 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 362 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 364 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 366 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 368 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 370 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 370 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| 373 | A 6208902003 | MOUNTING |
| 375 | N 007349017002 | WASHER |
| 377 | N 913004016004 | NUT |
| 380 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 384 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 384 | A 0029909604 | SCREW |
| MOUNTING TO CAB | ||
| 386 | N 912004014100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 389 | N 000961014064 | SCREW |
| MOUNTING TO CAB | ||
| 392 | A 3209901840 | WASHER |
| MOUNTING TO CAB | ||
| 395 | N 913004014002 | NUT |
| MOUNTING TO CAB | ||
| 398 | N 000961014063 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X40 | ||
| 401 | N 000961014101 | SCREW |
| MOUNTING TO CONSOLE | ||
| M 14X45 | ||
| 404 | N 913004014005 | NUT |
| MOUNTING TO CONSOLE | ||
| 410 | A 3813171201 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 414 | N 000961014050 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 418 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 425 | A 3813171926 | GUIDE |
| LEFT | ||
| 425 | A 3813172026 | GUIDE |
| RIGHT | ||
| 428 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 432 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 435 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 438 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 441 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 444 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 447 | N 913004012008 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 450 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 450 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 450 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 453 | A 0008910201 | RUBBER MOUNTING |
| TO 620 890 00 19 | ||
| 453 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19 | ||
| 456 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 456 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 457 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 459 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER MOUNTING | ||
| 462 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER MOUNTING | ||
| 465 | N 000433015005 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 468 | A 3878912010 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 471 | N 000934012022 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 474 | N 001587012008 | CAP NUT |
| SHOCK ABSORBER MOUNTING | ||
| 480 | N 000933008153 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 482 | N 009021008205 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 484 | N 913004008004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 501 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 501 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 504 | A 3813170119 | LATCH |
| 507 | A 3813172374 | PIN |
| 510 | A 3813170924 | LEVER |
| 513 | A 3813170676 | WASHER |
| 516 | A 0009935426 | DISC SPRING |
| 519 | N 001481006041 | CLAMPING SLEEVE |
| 522 | N 913004012008 | NUT |
| 525 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 528 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 531 | N 000125010518 | WASHER |
| LOCKING MECHANISM TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
