Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048

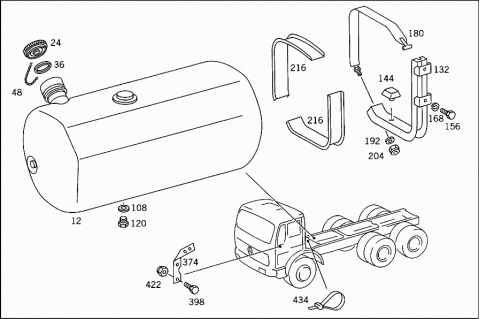

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 6164700001 | FUEL TANK |
| 125 L. | ||
| A 0004717930 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004718030 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| 024 | A 0004700305 | FILLER CAP |
| 024 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 036 | A 3049970340 | SEAL RING |
| 048 | A 3034700031 | CHAIN |
| FILLER CAP TO FILLER NECK | ||
| A 0055423617 | SENDER UNIT | |
| Repalced by: A 0085427917 | ||
| 060 | A 0085427917 | SENDER UNIT |
| FUEL GAUGE | ||
| 072 | A 0009970920 | EXPANSION PLUG |
| 084 | A 0004710235 | FUEL STRAINER |
| 096 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| N 007603014304 | SEAL RING | |
| Repalced by: N 007603014106 | ||
| 108 | N 007603014106 | SEAL RING |
| AT TANK | ||
| 120 | N 007604014106 | SCREW PLUG |
| AT TANK | ||
| 132 | A 6174701242 | SUPPORT |
| FUEL TANK | ||
| A 6174703042 | SUPPORT | |
| FUEL TANK | ||
| 144 | A 3834750087 | STOP |
| FUEL TANK TO CONSOLE | ||
| 156 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X45 | ||
| 156 | N 000961014064 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 168 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 180 | A 6174700240 | STRAP |
| FUEL TANK | ||
| 192 | N 000125013008 | WASHER |
| STRAP TO SUPPORT | ||
| 204 | N 913004012008 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 216 | A 3634750220 | PAD |
| FUEL TANK TO CONSOLE | ||
| 216 | A 3634750320 | PAD |
| STRAP | ||
| 228 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 240 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| 252 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 008 997 90 82 | ||
| 264 | A 3054760126 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 278 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 290 | N 916002010100 | CLAMP |
| LEAK LINE | ||
| 302 | N 916026010000 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 314 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| 326 | N 915052008016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| A 3879900078 | CONNECTOR | |
| Repalced by: N 915062008000 | ||
| 338 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 350 | N 915017010201 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 362 | A 0019974972 | FITTING |
| RETURN LINE TO FILTER | ||
| A 6174760536 | BRACKET | |
| FUEL LINE TO TRANSMISSION | ||
| 374 | A 6174760736 | BRACKET |
| FUEL LINE TO TRANSMISSION | ||
| A 6174760636 | BRACKET | |
| Repalced by: A 6174761336 | ||
| 386 | A 6174761336 | BRACKET |
| FUEL LINE TO FRAME | ||
| 398 | N 000933008153 | SCREW |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 410 | N 000933008152 | SCREW |
| FUEL LINE TO FRAME | ||
| 422 | N 913004008004 | NUT |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 422 | N 913004008004 | NUT |
| FUEL LINE TO FRAME | ||
| 434 | A 0019978490 | LOOM TIE |
| FUEL LINES | ||
| 434 | A 0019978390 | LOOM TIE |
| FUEL LINES | ||
| 280 MM | ||
| 446 | N 915036010204 | HOLLOW SCREW |
| FUEL LINES TO ENGINE | ||
| 458 | N 007603014405 | SEAL RING |
| FUEL LINES TO ENGINE | ||
| 470 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
