Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

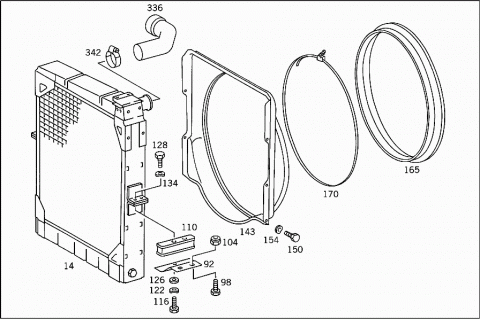

| 014 | A 0015010801 | RADIATOR |
| BEHR | ||

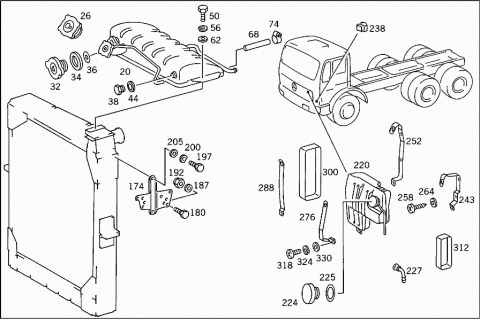

| 020 | A 0005000649 | TANK |
| COOLING WATER EXPANSION | ||
| 026 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 026 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 032 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 032 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 034 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 036 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 038 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 044 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 050 | N 000933008212 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 056 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 062 | N 000125008418 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 068 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 074 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 074 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X13 MM | ||
| 092 | A 3835040101 | SUPPORT |
| RADIATOR | ||
| 098 | N 000961012106 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 104 | N 913004012008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 110 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR | ||
| 116 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 122 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 126 | N 009021010202 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 128 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 134 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 143 | A 6175050030 | AIR BAFFLE |
| RADIATOR | ||
| 150 | N 000933006103 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| 150 | N 000933006130 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| 154 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE TO RADIATOR | ||
| 165 | A 3635050180 | BOOT |
| AIR BAFFLE | ||
| 170 | A 3639950065 | CLAMP |
| BOOT TO AIR BAFFLE | ||
| 174 | A 4210100040 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 180 | N 000933008301 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 187 | N 000125008418 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 192 | N 913004008004 | NUT |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 197 | N 000933006183 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 200 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 205 | A 3859901140 | WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 220 | A 6205000349 | TANK |
| (EXPANSION TANK) | ||
| 224 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 225 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 227 | A 0005010110 | DRAIN PIPE |
| A 0079972682 | HOSE | |
| 238 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 243 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 252 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 258 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 264 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 276 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 288 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 300 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 312 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 318 | N 007985006193 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 324 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 330 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 336 | A 6175010082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 342 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 342 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 70-90X13 MM | ||
| 348 | A 6175010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 354 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 354 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO WATER PUMP | ||
| 70-90X13 MM | ||

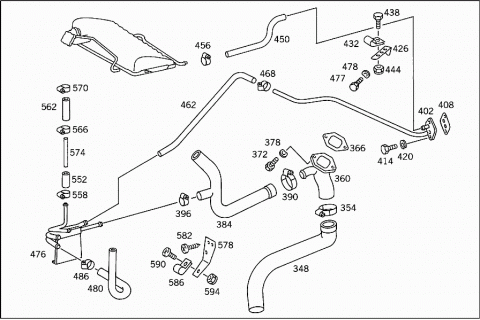

| 360 | A 6165010223 | CONNECTOR |
| AT WATER PUMP | ||
| A 4032010480 | GASKET | |
| Repalced by: A 4422010480 | ||
| 366 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 372 | N 000933010164 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 378 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 384 | A 6175012782 | HOSE |
| FROM EXPANSION TANK TO WATER PUMP | ||
| 390 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 390 | N 000000000670 | CLAMP |
| HOSE TO EXPANSION TANK AND TO WATER PUMP | ||
| 35-50 X13 MM | ||
| 396 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 396 | N 000000000667 | CLAMP |
| HOSE TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 402 | A 6175000079 | FLANGE |
| HEATING AND BREATHING | ||
| A 6175000179 | FLANGE | |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 408 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 414 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 420 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 426 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 432 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 438 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 444 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 444 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 450 | A 6175010382 | HOSE |
| DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK | ||
| 456 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 456 | N 000000000667 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 20-32X13 MM | ||
| 462 | A 6175060235 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| A 6205060261 | FLANGE | |
| HEATING WATER LINE | ||
| N 917003022003 | GASKET | |
| FLANGE TO ENGINE | ||
| N 917003022003 | GASKET | |
| HEATING WATER LINE TO FLANGE | ||
| N 000933008116 | SCREW | |
| Repalced by: N 000933008337 | ||
| N 000933008337 | SCREW | |
| FLANGE TO ENGINE | ||
| N 000137008107 | SPRING WASHER | |
| FLANGE TO ENGINE | ||
| A 6175002172 | LINE | |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| N 000933008150 | SCREW | |
| HEATING WATER LINE TO FLANGE | ||
| N 913004008004 | NUT | |
| HEATING WATER LINE TO FLANGE | ||
| N 000933006130 | SCREW | |
| BRACKET TO FAN SHROUD BRACKET | ||
| N 000933006130 | SCREW | |
| BRACKET TO CONTROL SHAFT BEARING TUBE | ||
| N 000933006130 | SCREW | |
| HEATING WATER LINE TO BRACKET | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO FAN SHROUD BRACKET | ||
| N 913004006001 | NUT | |
| BRACKET TO CONTROL SHAFT BEARING TUBE | ||
| N 913004006001 | NUT | |
| HEATING WATER LINE TO BRACKET | ||
| A 6175061040 | BRACKET | |
| BEARING TUBE | ||
| 468 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 468 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| A 6175060835 | HOSE | |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 476 | A 6175001372 | LINE |
| HEATING AND BREATHING | ||
| 477 | N 000933006130 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 478 | N 000137006204 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 480 | A 3835060035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 486 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 486 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 20-32X13 MM | ||
| 552 | N 900271008043 | HOSE |
| 8X17 MM | ||
| 552 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 8X17 MM | ||
| 552 | N 900271008043 | HOSE |
| FROM PIPE LINE AT CAB TO HEATING PIPE AT RADIATOR | ||
| 8X17 MM | ||
| 558 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 558 | N 000000000665 | CLAMP |
| HEATING PIPE | ||
| 12-22X13 MM | ||
| 562 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 566 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 566 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 570 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 570 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 574 | A 6205010725 | BREATHER PIPE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 578 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 582 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 586 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 586 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 586 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 590 | N 007985006193 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 594 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 594 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
