Transporto priemonė: 2225 B 6X4 MBSA; VIN numerio dalis: 619048
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

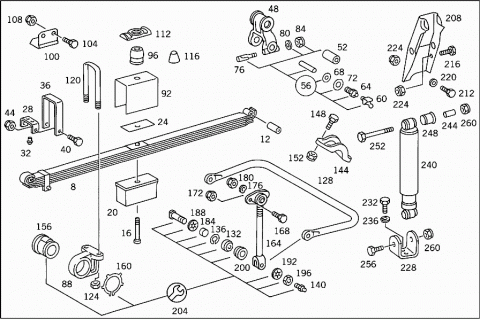

| 008 | A 6173200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 012 | A 3523220050 | BUSHING |
| 012 | A 3853220050 | BUSHING |
| 016 | N 004626012167 | SPRING BOLT |
| M 12X165 | ||
| 016 | N 004626012107 | SPRING BOLT |
| M 12X115 | ||
| 020 | A 6173220684 | SHIM |
| Repalced by: A 6173221384 | ||
| 024 | A 3853210284 | SHIM |
| Repalced by: A 3963210084 | ||
| 024 | A 3963210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 024 | N 913004012007 | NUT |
| SPRING BOLT | ||
| 028 | A 6173210135 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 032 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 036 | A 6173210233 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 036 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 036 | A 6763210033 | SPRING CLAMP |
| 040 | N 000933008152 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 044 | N 913004008004 | NUT |
| SPRING CLAMP TO CLAMP | ||
| A 6173221384 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3449917260 | DOWEL PIN | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 048 | A 6173200163 | SHACKLE |
| FRONT SPRING | ||
| 052 | A 3523220050 | BUSHING |
| 052 | A 3853220050 | BUSHING |
| 056 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 060 | N 071412010300 | GREASE NIPPLE |
| SHACKLE | ||
| 064 | N 071412010100 | GREASE NIPPLE |
| SHACKLE | ||
| 068 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 068 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 072 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 076 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 080 | N 000125010518 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 084 | N 913004010008 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 088 | A 6193230063 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 092 | A 3853210484 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 096 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 100 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 104 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 108 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 112 | A 3043310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 116 | A 3263310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 MM | ||
| 120 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 124 | N 000934020008 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 128 | A 6173260065 | TORSION BAR |
| FRONT STABILIZER | ||
| 132 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 132 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 132 | A 0019814831 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| 136 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 140 | N 071412008100 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 144 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 148 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 152 | N 913004012008 | NUT |
| BRACKET TO TORSION BAR | ||
| 156 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 160 | N 000983068000 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 164 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 168 | N 000961012097 | SCREW |
| ROD TO FRAME | ||
| 172 | N 913004012008 | NUT |
| ROD TO FRAME | ||
| 176 | N 006796016101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 180 | N 913004016004 | NUT |
| ROD TO FRAME | ||
| 184 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 188 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 192 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 196 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 200 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 204 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 208 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 208 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 212 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 216 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X1,5X25 | ||
| 220 | N 007349013003 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 224 | N 913004012008 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 228 | A 3833231863 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,FRONT | ||
| 232 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 236 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 240 | A 0043236700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 240 | A 0043233400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 244 | A 0003233150 | BUSHING |
| TO 004 323 67 00 | ||
| 244 | A 0003235250 | BUSHING |
| TO 004 323 34 00 | ||
| 248 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 67 00 | ||
| 248 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 34 00 | ||
| 252 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X90 | ||
| 256 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X85 | ||
| 260 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||

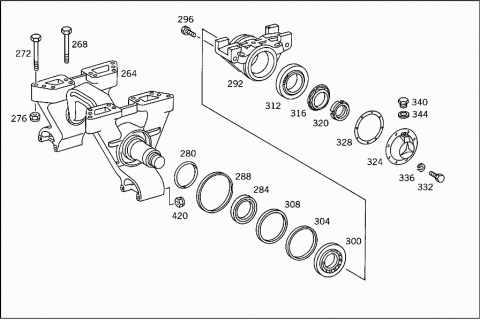

| 264 | A 3853200475 | SPRING BRACKET |
| REAR SPRING CENTRAL BEARING | ||
| 268 | N 914142020103 | SCREW |
| Repalced by: A 0003250775 | ||
| 268 | A 0003250775 | SCREW |
| SPRING BRACKET TO FRAME | ||
| 268 | N 914112020200 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 20X75 | ||
| 272 | N 000960020033 | SCREW |
| Repalced by: A 0003250875 | ||
| 272 | A 0003250875 | SCREW |
| SPRING BRACKET TO FRAME | ||
| 272 | N 914112020201 | SCREW |
| SPRING BRACKET TO FRAME | ||
| M 20X90 | ||
| 276 | N 913004020003 | NUT |
| SPRING BRACKET TO FRAME | ||
| 276 | N 913012020000 | NUT |
| SPRING BRACKET TO FRAME | ||
| 280 | A 0119970245 | SEAL RING |
| REAR SPRING CENTRAL BEARING | ||
| 284 | A 3833250151 | SPACER RING |
| REAR SPRING CENTRAL BEARING | ||
| 288 | A 3853200167 | GASKET |
| REAR SPRING CENTRAL BEARING | ||
| 292 | A 3833250112 | SPRING SADDLE |
| REAR SPRING CENTRAL BEARING | ||
| 296 | N 000960020093 | SCREW |
| (CLAMPING BOLT),AT SPRING SADDLE | ||
| 300 | A 0049811705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 300 | A 0049814305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 300 | A 0059815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 300 | A 0069810005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 304 | A 0099975246 | SEAL RING |
| INSIDE | ||
| 304 | A 0109971646 | SEAL RING |
| INSIDE | ||
| 308 | A 0099975346 | SEAL RING |
| OUTSIDE | ||
| 308 | A 0119973746 | SEAL RING |
| OUTSIDE | ||
| 312 | A 0049811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 312 | A 0049814405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 316 | A 3933250052 | SPACER WASHER |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 320 | A 3939900060 | NUT |
| SPRING SADDLE TO CENTRAL BEARING BRACKET | ||
| 324 | A 3833200084 | COVER |
| REAR SPRING CENTRAL BEARING | ||
| 328 | A 3833250080 | GASKET |
| COVER TO SPRING SADDLE | ||
| 332 | N 000933008145 | SCREW |
| COVER TO SPRING SADDLE | ||
| 336 | N 912004008102 | LOCK WASHER |
| COVER TO SPRING SADDLE | ||
| 340 | N 007604014106 | SCREW PLUG |
| OIL REFILLING | ||
| 344 | N 007603014405 | SEAL RING |
| OIL REFILLING | ||

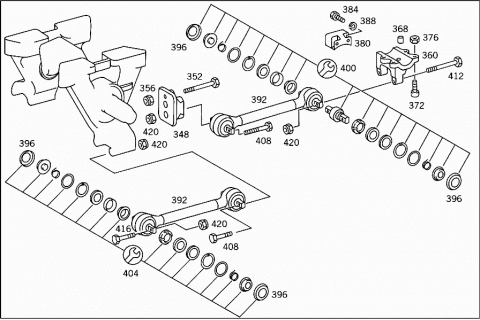

| 348 | A 6193250209 | BEARING BRACKET |
| UPPER CONTROL ARM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE I CONTROL ARM BEARING BRACKET,SEE GROUP: | ||
| "42" | ||
| 352 | N 000960014073 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 356 | N 913004014002 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE II CONTROL ARM BEARING BRACKET,SEE GROUP: | ||
| "42" | ||
| 360 | A 6193250009 | BEARING BRACKET |
| LOWER CONTROL ARM | ||
| 364 | A 6193250019 | SPRING SEAT |
| LOWER CONTROL ARM | ||
| 364 | A 6193250519 | SPRING SEAT |
| LOWER CONTROL ARM | ||
| 368 | A 3523520074 | PIN |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 372 | N 000960020181 | SCREW |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 376 | N 000934020014 | NUT |
| SPRING SEAT AND BEARING BRACKET TO REAR AXLE | ||
| 380 | A 6193200044 | RUBBER BUFFER |
| AXLE STOP | ||
| 384 | N 000933010128 | SCREW |
| RUBBER BUFFER TO SPRING SEAT | ||
| 388 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO SPRING SEAT | ||
| 392 | A 3933200132 | LINK |
| Repalced by: A 3953500206 | ||
| 392 | A 3953500206 | CONTROL ARM |
| TOP | ||
| 392 | A 3953500206 | CONTROL ARM |
| BOTTOM | ||
| 392 | A 6593500106 | CONTROL ARM |
| TOP | ||
| 392 | A 6593500106 | CONTROL ARM |
| BOTTOM | ||
| 392 | A 6593502406 | CONTROL ARM |
| TOP | ||
| 392 | A 6593502406 | CONTROL ARM |
| BOTTOM | ||
| 396 | A 0003381797 | BOOT |
| TO 393 320 01 32 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 404 | ||
| 404 | A 0005861533 | REPAIR KIT |
| Repalced by: A 0005861433 | ||
| 404 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 320 01 32 | ||
| 404 | A 0003500613 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 395 350 02 06;659 350 01 06 | ||
| 404 | A 0003501113 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 659 350 24 06 | ||
| 408 | N 000960020152 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| M 20X230 | ||
| 412 | N 000960020138 | SCREW |
| UPPER CONTROL ARM TO REAR AXLE | ||
| M 20X85 | ||
| 416 | N 000960020032 | SCREW |
| LOWER CONTROL ARM TO REAR AXLE | ||
| M 20X90 | ||
| 420 | N 913004020004 | NUT |
| CONTROL ARM TO BEARING BRACKET | ||
| 420 | N 913004020004 | NUT |
| UPPER CONTROL ARM TO REAR AXLE | ||
| 420 | N 913004020004 | NUT |
| LOWER CONTROL ARM TO REAR AXLE | ||

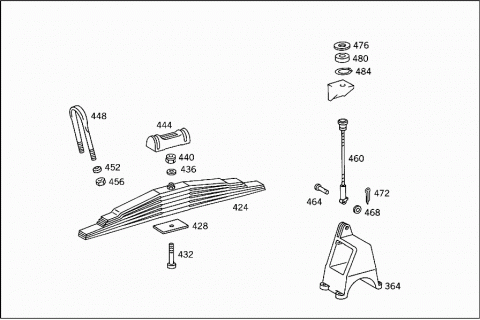

| 424 | A 6193200305 | REAR SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "5" | ||
| 428 | A 6193210284 | SHIM |
| 432 | A 3523240271 | SPRING BOLT |
| 436 | N 007349017002 | WASHER |
| 440 | N 913004016005 | NUT |
| 444 | A 6193250031 | PLATE |
| REAR SPRING TO SPRING SADDLE | ||
| 448 | A 3933510025 | U-BOLT |
| REAR SPRING TO SPRING SADDLE | ||
| 300 MM | ||
| 452 | A 3433250070 | SPHERICAL WASHER |
| REAR SPRING TO SPRING SADDLE | ||
| 456 | A 0019902151 | NUT |
| REAR SPRING TO SPRING SADDLE | ||
| 460 | A 6193200091 | WIRE CABLE |
| (RETAINING ROPE) | ||
| 464 | N 001444014214 | PIN |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 468 | N 000433015005 | WASHER |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 472 | N 000094004061 | COTTER PIN |
| RETAINING ROPE TO BEARING BRACKET, BOTTOM | ||
| 476 | A 3433250162 | THRUST WASHER |
| RETAINING ROPE TO FRAME | ||
| 480 | A 3433250144 | RUBBER BUFFER |
| RETAINING ROPE TO FRAME | ||
| 484 | N 000471035000 | LOCK RING |
| RETAINING ROPE TO BEARING BRACKET,TOP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
