Transporto priemonė: 2226 L/6X2; VIN numerio dalis: 393575

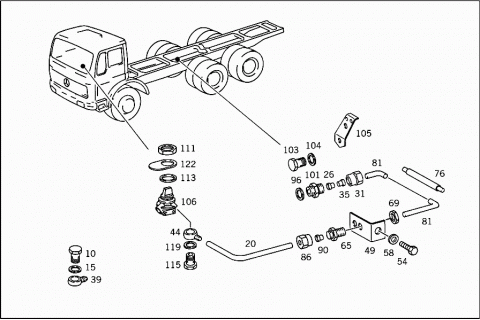

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| LONGITUDINAL DIFFERENTIAL LOCK CONTROL | ||
| 010 | N 915039008202 | HOLLOW SCREW FITTING |
| COMPRESSED AIR LINE TO DISTRIBUTOR | ||
| 015 | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO DISTRIBUTOR | ||
| 020 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 020 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 4X6 MM | ||
| 026 | N 915062004000 | SLEEVE |
| 031 | N 915017006100 | UNION NUT |
| 035 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 035 | A 0019901667 | SEAL CONE |
| 039 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 044 | N 915052004003 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 049 | A 3954310140 | BRACKET |
| A 3934310240 | BRACKET | |
| 054 | N 000961016064 | SCREW |
| 058 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 058 | N 000125017016 | WASHER |
| 065 | A 0019973872 | FITTING |
| Repalced by: A 0009977172 | ||
| 065 | A 0009977172 | FITTING |
| 069 | N 080705012003 | NUT |
| 076 | N 071435006002 | HOSE |
| 081 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 081 | A 0004296201 | LINE |
| 086 | N 915017006100 | UNION NUT |
| 090 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 090 | A 0019901667 | SEAL CONE |
| 096 | N 007603012405 | SEAL RING |
| 101 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 101 | A 0029906071 | FITTING |
| 103 | N 915036006202 | HOLLOW SCREW |
| AT CYLINDER | ||
| 104 | N 007603012405 | SEAL RING |
| 105 | A 3874297240 | BRACKET |
| A 0019978390 | LOOM TIE | |
| 106 | A 0019976136 | VALVE |
| 3/2-WAY | ||
| WABCO | ||
| 106 | A 0019975036 | VALVE |
| 3/2-WAY | ||
| BOSCH | ||
| 106 | A 0039975936 | VALVE |
| 3/2-WAY | ||
| KNORR | ||
| 106 | A 0039976036 | VALVE |
| 3/2-WAY | ||
| VOSS | ||
| A 0049937501 | SPRING | |
| WABCO | ||
| A 0069972648 | SEAL RING | |
| WABCO | ||
| A 0039979640 | SEAL RING | |
| WABCO | ||
| 111 | A 3839900051 | NUT |
| 113 | A 6239900040 | WASHER |
| 115 | N 915036006202 | HOLLOW SCREW |
| AT VALVE | ||
| 119 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 119 | N 007603010110 | SEAL RING |
| AT VALVE | ||
| 122 | A 3855841324 | UNIT IDENTIFICATION PLATE |
