Transporto priemonė: 2228; VIN numerio dalis: 623008

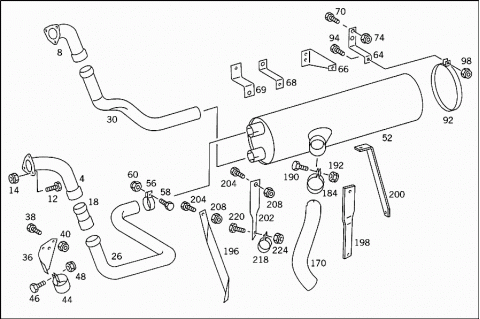

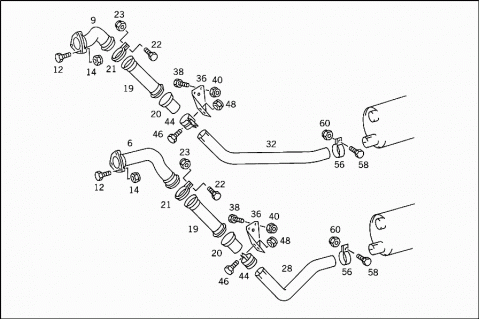

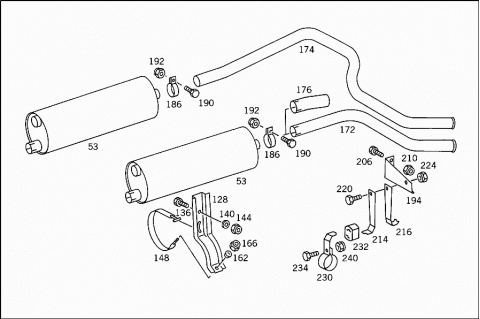

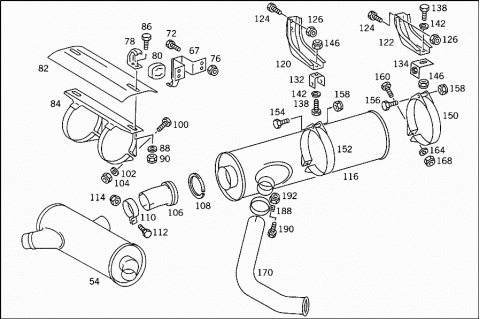

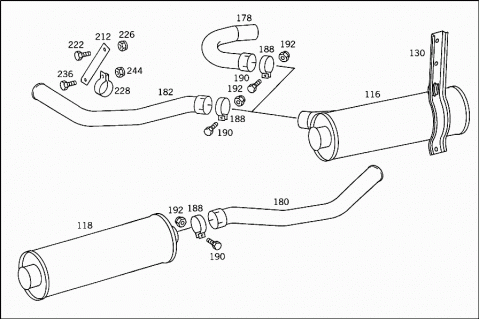

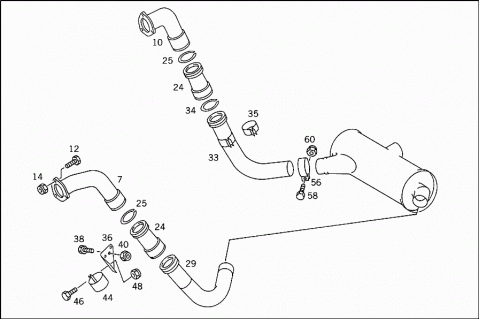

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3874900725 | CONNECTOR | |
| Repalced by: A 3874902725 | ||
| 004 | A 3874902725 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902125 | CONNECTOR |
| LEFT FRONT | ||
| 006 | A 6204902125 | CONNECTOR |
| LEFT FRONT | ||
| 007 | A 6204900925 | CONNECTOR |
| LEFT FRONT | ||
| A 3874900925 | CONNECTOR | |
| Repalced by: A 3874902625 | ||
| 008 | A 3874902625 | CONNECTOR |
| RIGHT FRONT | ||
| 009 | A 6204902225 | CONNECTOR |
| RIGHT FRONT | ||
| 009 | A 6204902225 | CONNECTOR |
| RIGHT FRONT | ||
| 010 | A 6204901025 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 014 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 018 | A 3874921209 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 019 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 019 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 020 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 020 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 020 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 021 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 021 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 022 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 022 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 022 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 022 | N 910143008005 | SCREW |
| CLAMP TO CONNECTOR | ||
| 022 | N 910143008005 | SCREW |
| CLAMP TO CONNECTOR | ||
| 023 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 023 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 023 | N 913004008001 | NUT |
| CLAMP TO CONNECTOR | ||
| 024 | A 6204901625 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 025 | A 0001423957 | SEAL RING |
| 026 | A 3894901219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 026 | A 3894901419 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 028 | A 6214900920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 028 | A 6204903019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 028 | A 6204903019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6204901219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6204900819 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6204901019 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 3934900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 3874900419 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6204902319 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 029 | A 6244900919 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 030 | A 3894901319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 030 | A 3894901519 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6214901020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6204903119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 032 | A 6204903119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6204901319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6204900919 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6204901119 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 3934900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 3934900519 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6204902419 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 033 | A 6244901019 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 034 | A 0001423957 | SEAL RING |
| 035 | A 3874920240 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 036 | A 3874925941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 036 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 036 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 036 | A 3874926041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 036 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 036 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 036 | A 6204920041 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 036 | A 6204920141 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 038 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 040 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 040 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 044 | A 3874920240 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 044 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 046 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 046 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 046 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 048 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 048 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 052 | A 3874900501 | EXHAUST MUFFLER |
| 052 | A 3874900501 | EXHAUST MUFFLER |
| 052 | A 3874900601 | EXHAUST MUFFLER |
| 052 | A 3874900601 | EXHAUST MUFFLER |
| 053 | A 6204900001 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 053 | A 6204900001 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 054 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 054 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 054 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 056 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 056 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 056 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 058 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 058 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 058 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 058 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 058 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 058 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 058 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 058 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 060 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 060 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M8 | ||
| 060 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M8 | ||
| 060 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M8 | ||
| 060 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 060 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 060 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 060 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 064 | A 3874911641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 064 | A 3874911641 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 064 | A 3874914241 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 064 | A 3954912141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 064 | A 3954912141 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 066 | A 3894911541 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 066 | A 3894911541 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 067 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 067 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 067 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 068 | A 3934911341 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 069 | A 3934911641 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 070 | N 000961012151 | SCREW |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5X30 | ||
| 070 | N 000961012151 | SCREW |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5X30 | ||
| 070 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 070 | N 308676012026 | SCREW |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5X35 | ||
| 070 | N 308676012026 | SCREW |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| M 12X1.5X35 | ||
| 070 | N 000961012122 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 072 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 072 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 072 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 072 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 072 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 072 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 072 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 074 | N 910113012002 | NUT |
| BRACKETS TO CROSS AND SIDE MEMBERS | ||
| 076 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 076 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 076 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 076 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 078 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 078 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 078 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 080 | A 3814920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 080 | A 3814920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 080 | A 3814920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 082 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 082 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 082 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 084 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 084 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 084 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 086 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 086 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 086 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 086 | N 304017008021 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 088 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 088 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 088 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 088 | N 000125008443 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 090 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 090 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 090 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 090 | N 913004008001 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| A 3354910040 | CLAMP | |
| Repalced by: A 3874900041 | ||
| 092 | A 3874900041 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 094 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 094 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 098 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 098 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 100 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 100 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 100 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 100 | N 304017008042 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 102 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 102 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 102 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 102 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 104 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 104 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 104 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 104 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 106 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 106 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 106 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 108 | A 0001424457 | SEAL RING |
| 108 | A 0001424457 | SEAL RING |
| 110 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 110 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 110 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 112 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 112 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 112 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 114 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 114 | N 910113010000 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 116 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 116 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 116 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 116 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 118 | A 6234900001 | EXHAUST MUFFLER |
| Repalced by: A 6234900101 | ||
| 118 | A 6234900101 | EXHAUST MUFFLER |
| REAR | ||
| 120 | A 6204910115 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 120 | A 6204910115 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 120 | A 6204910715 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 120 | A 6204910715 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 122 | A 6204910415 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 122 | A 6204910415 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 122 | A 6204910315 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 122 | A 6204910315 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 124 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 124 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5X35 | ||
| 124 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5X35 | ||
| 124 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5X35 | ||
| 124 | N 308676012026 | SCREW |
| CONSOLE TO STRUT | ||
| M12X1,5X35 | ||
| 124 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5X35 | ||
| 126 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5 | ||
| 126 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5 | ||
| 126 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| M12X1,5 | ||
| 126 | N 910113012002 | NUT |
| CONSOLE TO STRUT | ||
| M12X1,5 | ||
| 128 | A 6214911341 | BRACKET |
| EXHAUST MUFFLER SUSPENSION | ||
| 128 | A 6214911341 | BRACKET |
| EXHAUST MUFFLER SUSPENSION | ||
| 128 | A 6214911341 | BRACKET |
| EXHAUST MUFFLER SUSPENSION | ||
| 128 | A 6214911341 | BRACKET |
| EXHAUST MUFFLER SUSPENSION | ||
| 130 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER SUSPENSION | ||
| 132 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 132 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 132 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 134 | A 6204900040 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 134 | A 6204900040 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 136 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 136 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 138 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 138 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 138 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 140 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 140 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 140 | N 000125015019 | WASHER |
| BRACKET TO FRAME | ||
| 142 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 142 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 144 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 144 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 144 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 146 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 146 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 146 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 146 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 148 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 148 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 148 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 150 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 150 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| 150 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER | ||
| A 6204910321 | STRAP | |
| Repalced by: A 6204900441 | ||
| 152 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER,FRONT | ||
| 152 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER,FRONT | ||
| 154 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 154 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 154 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 156 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 156 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 156 | N 304017010053 | SCREW |
| STRAP TO BRACKET | ||
| M 10X50 | ||
| 156 | N 304017010053 | SCREW |
| STRAP TO BRACKET | ||
| M 10X50 | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 158 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 158 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 160 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 160 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 160 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 162 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 162 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 164 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 164 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 164 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 164 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 166 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 166 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 166 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 168 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 168 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 168 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 168 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 170 | A 3894923404 | REAR EXHAUST PIPE |
| 170 | A 3894921404 | REAR EXHAUST PIPE |
| 170 | A 6204921304 | REAR EXHAUST PIPE |
| 170 | A 6204921304 | REAR EXHAUST PIPE |
| 170 | A 3934920404 | REAR EXHAUST PIPE |
| 170 | A 3934920304 | REAR EXHAUST PIPE |
| 170 | A 3874924204 | REAR EXHAUST PIPE |
| 170 | A 3874921704 | REAR EXHAUST PIPE |
| 172 | A 6214920804 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 172 | A 6214923404 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 172 | A 6214923404 | REAR EXHAUST PIPE |
| SHORT;EXHAUST MUFFLER,LEFT | ||
| 174 | A 6214922504 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 174 | A 6214923504 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 174 | A 6214923504 | REAR EXHAUST PIPE |
| LONG;EXHAUST MUFFLER,RIGHT | ||
| 176 | A 6214921004 | REAR EXHAUST PIPE |
| 176 | A 6214921004 | REAR EXHAUST PIPE |
| 178 | A 6204921604 | REAR EXHAUST PIPE |
| 178 | A 6204921604 | REAR EXHAUST PIPE |
| 180 | A 6204925104 | REAR EXHAUST PIPE |
| 182 | A 6234920504 | REAR EXHAUST PIPE |
| 182 | A 6234920504 | REAR EXHAUST PIPE |
| 184 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 184 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 186 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 186 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 75.5 MM | ||
| 188 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 188 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 100.5 MM | ||
| 188 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 100.5 MM | ||
| 188 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 100.5 MM | ||
| 188 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 100.5 MM | ||
| 188 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 190 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 190 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 190 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 190 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X30 | ||
| 190 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 190 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 190 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 190 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 192 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 192 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 192 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 192 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 192 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 192 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 192 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 192 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 194 | A 6214920941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 194 | A 6214921941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 194 | A 6214921941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 196 | A 3894921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 198 | A 6204921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 198 | A 6204921241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 3894920541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 6204923341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 6204923341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 3894920941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 3894920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 3894921041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | A 3934920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 202 | A 6234920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 202 | A 6234920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3894920741 | BRACKET | |
| Repalced by: A 3894921441 | ||
| 204 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 204 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 204 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 204 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 204 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 204 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 204 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 204 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 204 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 206 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 206 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 210 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 210 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 212 | A 6214921741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 214 | A 6214920341 | BRACKET |
| BRACKET TO BRACKET | ||
| 214 | A 6214920341 | BRACKET |
| BRACKET TO BRACKET | ||
| 216 | A 6214920441 | BRACKET |
| BRACKET TO BRACKET | ||
| 216 | A 6214920441 | BRACKET |
| BRACKET TO BRACKET | ||
| 218 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 218 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 220 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 220 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| 220 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 220 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 220 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 222 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 224 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 224 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 224 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 226 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 226 | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 228 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 228 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 228 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 228 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 230 | A 3834921341 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 230 | A 6214921841 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 230 | A 6214921841 | BRACKET |
| REAR EXHAUST PIPE TO DAMPING PAD | ||
| 232 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 232 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 234 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 234 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 234 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 234 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 236 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 236 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 236 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 240 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 240 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 240 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 244 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 244 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 244 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
