Transporto priemonė: 2232/6X2; VIN numerio dalis: 393384
Grupė: 31 FRAME

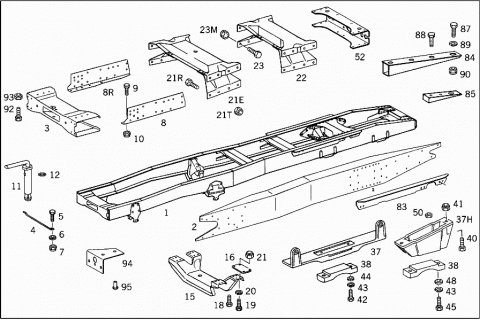

28937

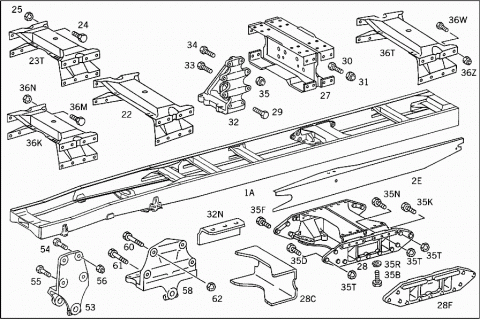

28938

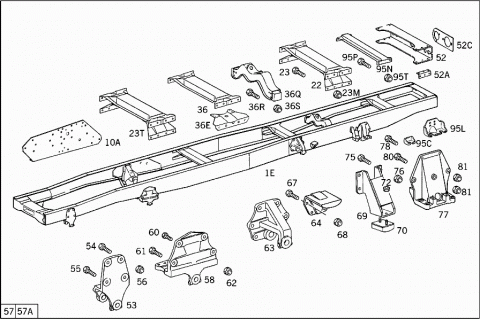

28939

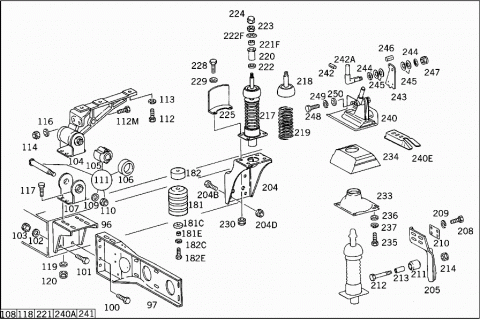

28940

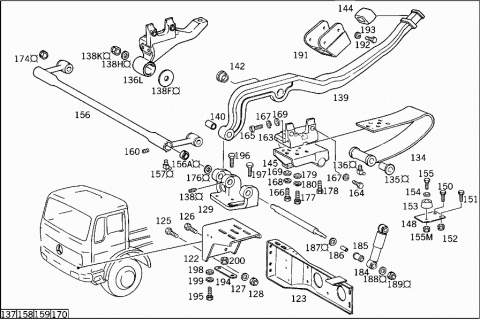

28941

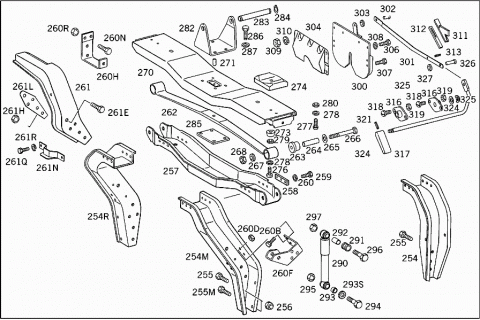

28942

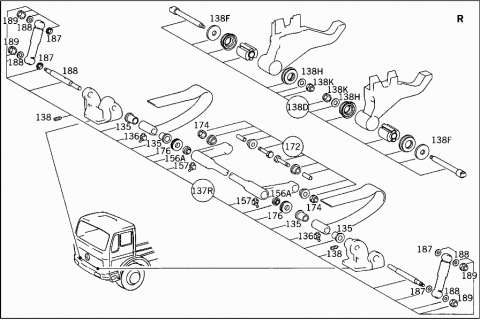

28943
# Kodas Pavadinimas
001 A 3933101301 FRAME
001 A 3933104101 FRAME
001 A 3933100001 FRAME
001 A 3933104201 FRAME
001A A 3933101201 FRAME
001A A 3933104301 FRAME
001E A 3933101801 FRAME
001E A 3933101001 FRAME
001E A 3933101901 FRAME
001E A 3933102401 FRAME
001E A 3933100101 FRAME
001E A 3933101101 FRAME
002 A 3893110751 TRUSS
Repalced by: A 3953110951
002 A 3953110951 TRUSS
LEFT
A 3933111751 TRUSS
002 A 3933110451 TRUSS
A 3933110251 TRUSS
A 3893110851 TRUSS
Repalced by: A 3953111051
002 A 3953111051 TRUSS
RIGHT
A 3933111851 TRUSS
002E A 3933110551 TRUSS
A 3933110351 TRUSS
003 A 3873100422 CROSS MEMBER
FRONT
004 A 3353150031 LOCKING SPRING
COUPLING PIN
005 N 000933008153 SCREW
Repalced by: N 304017008034
005 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
006 N 000125008418 WASHER
Repalced by: N 000125008443
006 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
007 N 913004008004 NUT
Repalced by: N 913004008001
007 N 913004008001 NUT
LOCK SPRING TO CROSS MEMBER
A 3873120487 GUSSET PLATE
Repalced by: A 3873122087
A 3873120587 GUSSET PLATE
Repalced by: A 3873122187
008 A 3873122087 GUSSET PLATE
LEFT
008R A 3873122187 GUSSET PLATE
Repalced by: A 6203120987
008R A 6203120987 GUSSET PLATE
RIGHT
009 N 000961012097 SCREW
Repalced by: N 308676012026
009 N 308676012026 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
N 000125013008 WASHER
010 N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
N 910005012011 RIVET
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
A 3873110053 ANGLE
Repalced by: A 3873110253
010A A 3873110253 ANGLE
LEFT
010A A 3873110253 ANGLE
LEFT
A 3873110153 ANGLE
Repalced by: A 3873110353
A 3873110353 ANGLE
RIGHT
A 3873110353 ANGLE
RIGHT
N 910005012080 RIVET
REINFORCEMENT ANGLE TO SIDE MEMBER
011 A 3873150006 COUPLING PIN
FOR COUPLING MOUTH
011 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
012 A 0009874346 SEALING CORD
COUPLING MOUTH
015 A 3873120510 CROSS MEMBER
Repalced by: A 3873100027
015 A 3873100027 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
016 A 3873120084 SHIM
Repalced by: A 6203121984
016 A 6203121984 SHIM
AT CROSS MEMBER
018 N 000961014054 SCREW
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
M 14X45
019 N 000961014100 SCREW
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
M 14X30
019 N 000961014100 SCREW
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
M 14X30
020 N 912004014100 LOCK WASHER
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
021 N 913004014002 NUT
Repalced by: N 910113014001
021 N 910113014001 NUT
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
021E A 3953100636 CROSS MEMBER
NO.3
021E A 3953100736 CROSS MEMBER
NO.3
021R N 000961012097 SCREW
Repalced by: N 308676012026
021R N 308676012026 SCREW
CROSS MEMBER TO SIDE MEMBERS
021R N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
021T N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
021T N 913004014002 NUT
Repalced by: N 910113014001
021T N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
022 A 3933100037 CROSS MEMBER
NO.4
022 A 3933100037 CROSS MEMBER
NO.4
022 A 3933100037 CROSS MEMBER
NO.5
022 A 3933100037 CROSS MEMBER
NO.6
022 A 3933100037 CROSS MEMBER
NO.7
A 3873120017 CROSS MEMBER
A 3873120261 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
023 N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
023 N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
023M N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
023M N 913004014002 NUT
Repalced by: N 910113014001
023M N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
A 3873100836 CROSS MEMBER
Repalced by: A 3953100136
A 3953100436 CROSS MEMBER
Repalced by: A 3953100136
023T A 3953100136 CROSS MEMBER
NO.3
023T A 3953100136 CROSS MEMBER
NO.4
A 3873120025 CROSS MEMBER
A 3953120261 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
024 N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
024 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
025 N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
025 N 913004014002 NUT
Repalced by: N 910113014001
025 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
027 A 3933100537 CROSS MEMBER
NO.5
027 A 3933100537 CROSS MEMBER
NO.6
A 3953100637 CROSS MEMBER
Repalced by: A 6243100037
A 3953100637 CROSS MEMBER
Repalced by: A 6243100037
028 A 6243100037 CROSS MEMBER
NO.5
028 A 6243100037 CROSS MEMBER
N0.6
028C A 3953120124 CROSS MEMBER
CENTRAL BEARING
028F A 6243250110 SUPPORT
Repalced by: A 6243250310
028F A 6243250310 SUPPORT
CENTRAL BEARING
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
CROSS MEMBER TO CONSOLE
N 912004014100 LOCK WASHER
CROSS MEMBER TO CONSOLE
029 N 000961014054 SCREW
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
M 14X45
030 N 000961014028 SCREW
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
M 14X40
031 N 913004014002 NUT
Repalced by: N 910113014001
031 N 910113014001 NUT
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
032 A 3893130142 ANGLE
AT CROSS MEMBER
032N A 3953120041 ANGLE
Repalced by: A 6243120041
032N A 6243120041 ANGLE
Repalced by: A 6243120141
032N A 6243120141 ANGLE
AT CROSS MEMBER
N 910005014017 RIVET
AT CROSS MEMBER
033 N 000961014014 SCREW
ANGLE TO SIDE MEMBER
M 14X50
034 N 000961014054 SCREW
ANGLE TO SIDE MEMBER
M 14X45
035 N 913004014002 NUT
Repalced by: N 910113014001
035 N 910113014001 NUT
ANGLE TO SIDE MEMBER
035B N 000961014063 SCREW
Repalced by: A 9429901304
035B A 9429901304 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X40
035B N 000961016036 SCREW
Repalced by: N 308676016013
035B N 308676016013 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X40
035D N 000960014067 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X50
035D N 000960016249 SCREW
Repalced by: N 308676016004
035D N 308676016004 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X55
035F N 000960014190 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X60
035F N 000960016261 SCREW
Repalced by: N 308676016014
035F N 308676016014 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X65
035K N 308676014002 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X80
035K N 000960016250 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X85
035N N 000960014110 SCREW
Repalced by: N 308765014006
035N N 308765014006 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X90
035N N 000960016260 SCREW
Repalced by: N 308765016002
035N N 308765016002 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X90
035R N 912004014100 LOCK WASHER
CROSS MEMBER TO SIDE MEMBERS
035R N 912004016101 LOCK WASHER
CROSS MEMBER TO SIDE MEMBERS
035T N 913004014005 NUT
Repalced by: N 910113014000
035T N 910113014000 NUT
CROSS MEMBER TO SIDE MEMBERS
035T N 913004016004 NUT
Repalced by: N 910113016002
035T N 910113016002 NUT
CROSS MEMBER TO SIDE MEMBERS
036 A 3893120025 CROSS MEMBER
NO.4
036 A 3893120025 CROSS MEMBER
NO.5
036E A 3873120161 STRUT
036K A 3873100836 CROSS MEMBER
Repalced by: A 3873100136
036K A 3873100136 CROSS MEMBER
NO.3
036K A 3873100136 CROSS MEMBER
NO.4
A 3873120025 CROSS MEMBER
A 3873121961 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
036M N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
036M N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
036N N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
036N N 913004014002 NUT
Repalced by: N 910113014001
036N N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
036Q A 3933100137 CROSS MEMBER
SHOCK ABSORBER
NO.5
036Q A 3933100137 CROSS MEMBER
SHOCK ABSORBER
NO.6
036R N 000961012097 SCREW
Repalced by: N 308676012026
036R N 308676012026 SCREW
SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS
036S N 910113012002 NUT
SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS
036T A 3953100037 CROSS MEMBER
NO.4
036T A 3953100037 CROSS MEMBER
NO.4
036T A 3953100037 CROSS MEMBER
NO.5
036T A 3953100037 CROSS MEMBER
NO.6
036T A 3953100037 CROSS MEMBER
NO.7
A 3893120025 CROSS MEMBER
A 3873120261 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
N 910005012080 RIVET
CROSS MEMBER TO SIDE MEMBERS
036W N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 12X28
036W N 000961012097 SCREW
Repalced by: N 308676012026
036W N 308676012026 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 12X35
036W N 000961014054 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X45
036W N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X40
036Z N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
036Z N 913004014002 NUT
Repalced by: N 910113014001
036Z N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
A 3933250231 PLATE
Repalced by: A 3933250731
037 A 3933250731 PLATE
REAR AXLE I
037 A 3933250731 PLATE
REAR AXLE II
037H A 3933110087 STOP
REAR AXLE II
A 3933250231 PLATE
Repalced by: A 3933250731
A 3933250731 PLATE
REAR AXLE II
038 A 3933250044 RUBBER BUFFER
REAR AXLE
NO.1,NO.2
040 N 000961012122 SCREW
STOP TO SIDE MEMBER
041 N 910113012002 NUT
STOP TO SIDE MEMBER
042 N 000933010129 SCREW
Repalced by: N 304017010002
042 N 304017010002 SCREW
RUBBER BUFFER TO STOP
043 N 912004010102 LOCK WASHER
RUBBER BUFFER TO STOP
044 N 007349010003 WASHER
Repalced by: N 007349010007
044 N 007349010007 WASHER
RUBBER BUFFER TO STOP
045 N 000931010260 SCREW
Repalced by: N 304017010030
045 N 304017010030 SCREW
RUBBER BUFFER TO STOP
048 N 007349010003 WASHER
Repalced by: N 007349010007
048 N 007349010007 WASHER
RUBBER BUFFER TO STOP
050 N 913004010008 NUT
Repalced by: N 910113010000
050 N 910113010000 NUT
RUBBER BUFFER TO STOP
A 3873120035 CROSS MEMBER
Repalced by: A 3933100246
A 3933100046 CROSS MEMBER
Repalced by: A 3933100246
052 A 3933100246 CROSS MEMBER
Repalced by: A 3873120735
052 A 3873120735 CROSS MEMBER
REAR
052 A 3873120735 CROSS MEMBER
REAR
052 A 3933100346 CROSS MEMBER
REAR
052A A 3933120041 ANGLE
REAR CROSS MEMBER TO SIDE MEMBERS
N 000961014100 SCREW
REAR CROSS MEMBER TO SIDE MEMBERS
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
REAR CROSS MEMBER TO SIDE MEMBERS
052C A 3875440438 BRACKET
CROSS MEMBER TO SIDE MEMBERS
053 A 3873220301 FRONT SPRING BRACKET
FRONT
054 A 3879900114 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
055 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
056 N 913004016005 NUT
Repalced by: N 910113016001
056 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
057 N 000961014028 SCREW
057A N 000961014064 SCREW
058 A 3873220503 FRONT SPRING BRACKET
REAR
060 N 000961014101 SCREW
Repalced by: N 308676014012
060 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
061 N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
062 N 913004014005 NUT
Repalced by: N 910113014000
062 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
063 A 3873250001 REAR SPRING BRACKET
FRONT
064 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
064 A 6843250017 HELPER SPRING BRACKET
FRONT
067 N 000961012122 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
068 N 910113012002 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
069 A 3353200029 STOP
DAMPING SPRING
070 A 3353250044 RUBBER BUFFER
SWINGING LINK
072 N 913004010008 NUT
Repalced by: N 910113010000
072 N 910113010000 NUT
RUBBER BUFFER TO STOP
075 N 000961014050 SCREW
Repalced by: N 308676014020
075 N 308676014020 SCREW
STOP TO SIDE MEMBER
076 N 913004014002 NUT
Repalced by: N 910113014001
076 N 910113014001 NUT
STOP TO SIDE MEMBER
077 A 3633930038 SUPPORT
TRAILING AXLE
078 N 000961016039 SCREW
SUPPORT TO FRAME
M 16X50
080 N 000960016244 SCREW
SUPPORT TO FRAME
M 16X90
081 N 913004016004 NUT
Repalced by: N 910113016002
081 N 910113016002 NUT
SUPPORT TO FRAME
083 A 3953160052 ANGLE
FRAME SIDE MEMBER REINFORCEMENT,REAR LEFT
083 A 3933160252 ANGLE
Repalced by: A 6243160052
083 A 6243160052 ANGLE
FRAME SIDE MEMBER REINFORCEMENT,REAR LEFT
A 3953160152 ANGLE
FRAME SIDE MEMBER REINFORCEMENT,REAR RIGHT
A 3933160352 ANGLE
Repalced by: A 6243160152
A 6243160152 ANGLE
FRAME SIDE MEMBER REINFORCEMENT,REAR RIGHT
084 A 3873100063 CONSOLE
SADDLE PLATE
085 A 3873160150 CONSOLE
SADDLE PLATE
087 N 000961012097 SCREW
Repalced by: N 308676012026
087 N 308676012026 SCREW
CONSOLE TO FRAME
M 12X35
087 N 308676012026 SCREW
CONSOLE TO FRAME
M 12X35
088 N 000961012052 SCREW
Repalced by: N 308676012012
088 N 308676012012 SCREW
CONSOLE TO FRAME
M 12X25
089 N 912004012100 LOCK WASHER
CONSOLE TO FRAME
090 N 910113012002 NUT
CONSOLE TO FRAME
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26.5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X13X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
M 12X12X16X32
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3229903101 SCREW
M 14X14X14X32
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X16X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X18X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3859901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
N 910005012080 RIVET
12X42 MM
N 910005012087 RIVET
12X58 MM
N 910005014056 RIVET
14X45 MM
N 910005014059 RIVET
14X55 MM
N 910005016017 RIVET
16X48 MM
N 910005016027 RIVET
16X68 MM
N 910005016027 RIVET
16X68 MM
N 910005016007 RIVET
16X68 MM
092 N 000961012097 SCREW
Repalced by: N 308676012026
092 N 308676012026 SCREW
CROSS MEMBER TO SIDE MEMBERS
092 N 000961014050 SCREW
Repalced by: N 308676014020
092 N 308676014020 SCREW
CROSS MEMBER TO SIDE MEMBERS
093 N 910113012002 NUT
FRONT CROSS MEMBER TO SIDE MEMBERS
093 N 913004014002 NUT
Repalced by: N 910113014001
093 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
094 A 3875420640 BRACKET
HORN
095 A 0009903096 RIVET
Repalced by: N 910005012026
095 N 910005012087 RIVET
BRACKET TO CROSS MEMBER
095C A 3874030001 SUPPORT
SPARE WHEEL MOUNTING
095L A 3874030701 SUPPORT
SPARE WHEEL MOUNTING
095L A 3874030701 SUPPORT
SPARE WHEEL MOUNTING
N 910005012087 RIVET
SUPPORT TO FRAME
12X58 MM
N 910005012080 RIVET
SUPPORT TO FRAME
12X42 MM
N 910005012080 RIVET
SUPPORT TO FRAME
12X42 MM
095N A 3874030501 SUPPORT
SPARE WHEEL MOUNTING
095N A 3874030401 SUPPORT
SPARE WHEEL MOUNTING
095P N 000933010129 SCREW
Repalced by: N 304017010002
095P N 304017010002 SCREW
CROSS MEMBER TO FRAME
M 10X30
095P N 000933010105 SCREW
CROSS MEMBER TO FRAME
M 10X25
095T N 913004010008 NUT
Repalced by: N 910113010000
095T N 910113010000 NUT
CROSS MEMBER TO FRAME
096 A 3878910531 CONSOLE
Repalced by: A 3878912631
096 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
096 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
096 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
097 A 3873170423 STRUT
CAB MOUNTING,FRONT
097 A 3873170423 STRUT
CAB MOUNTING,FRONT
100 N 000961014101 SCREW
Repalced by: N 308676014012
100 N 308676014012 SCREW
STRUT TO FRAME
M 14X45
100 N 308676014012 SCREW
STRUT TO FRAME
M 14X45
101 N 000961014063 SCREW
Repalced by: A 9429901304
101 A 9429901304 SCREW
STRUT TO FRAME
M 14X40
101 A 9429901304 SCREW
STRUT TO FRAME
M 14X40
102 N 000125015013 WASHER
Repalced by: N 000125015019
102 N 000125015019 WASHER
STRUT TO FRAME
102 N 000125015019 WASHER
STRUT TO FRAME
103 N 913004014005 NUT
Repalced by: N 910113014000
103 N 910113014000 NUT
STRUT TO FRAME
103 N 910113014000 NUT
STRUT TO FRAME
104 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
104 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
105 A 3813171512 RUBBER BUFFER
106 A 3813171412 RUBBER BUFFER
107 A 3878902903 MOUNTING
107 A 3878902903 MOUNTING
108 A 3813172174 PIN
109 N 007349017002 WASHER
109 N 007349017002 WASHER
110 N 913004016004 NUT
Repalced by: N 910113016002
110 N 910113016002 NUT
110 N 910113016002 NUT
111 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
111 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
112 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
112 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
112M N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
112M N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
113 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
113 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
114 N 913004014002 NUT
Repalced by: N 910113014001
114 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
114 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
116 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
116 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
117 N 000961014063 SCREW
Repalced by: A 9429901304
117 A 9429901304 SCREW
CAB TO FRAME
M 14X40
117 A 9429901304 SCREW
CAB TO FRAME
M 14X40
N 000961014101 SCREW
Repalced by: N 308676014012
N 308676014012 SCREW
CAB TO FRAME
M 14X45
N 308676014012 SCREW
CAB TO FRAME
M 14X45
118 A 3878910698 SHIM
119 N 000125015013 WASHER
Repalced by: N 000125015019
119 N 000125015019 WASHER
CAB TO FRAME
119 N 000125015019 WASHER
CAB TO FRAME
120 N 913004014005 NUT
Repalced by: N 910113014000
120 N 910113014000 NUT
CAB TO FRAME
120 N 910113014000 NUT
CAB TO FRAME
122 A 3878910531 CONSOLE
Repalced by: A 3878912631
122 A 3878912631 CONSOLE
CAB TO FRAME
123 A 3873100153 STRUT
BUMPER,LEFT
123 A 3873100153 STRUT
BUMPER,LEFT
A 3873100253 STRUT
BUMPER,RIGHT
A 3873100253 STRUT
BUMPER,RIGHT
123 A 3873170423 STRUT
BUMPER AT TORSION BAR
125 N 000961014063 SCREW
Repalced by: A 9429901304
125 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
126 N 000961014101 SCREW
Repalced by: N 308676014012
126 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
127 N 000125015013 WASHER
Repalced by: N 000125015019
127 N 000125015019 WASHER
CONSOLE AND STRUT TO FRAME
128 N 913004014005 NUT
Repalced by: N 910113014000
128 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
129 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
129 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
129 A 3878916020 MOUNTING
Repalced by: A 6558910320
129 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878916120 MOUNTING
Repalced by: A 6558910420
A 6558910420 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878900505 SPRING
Repalced by: A 3878910551
134 A 3878910551 SPRING
134 A 3878910551 SPRING
135 A 3638910617 BUSHING
135 A 3638910617 BUSHING
136 N 071412008200 GREASE NIPPLE
136 N 071412008200 GREASE NIPPLE
136L A 3878916420 MOUNTING
CAB SUSPENSION,FRONT LEFT
136L A 3878916520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3813171712 RUBBER BUFFER
Repalced by: A 6205860031
A 3813171412 RUBBER BUFFER
Repalced by: A 6205860031
137 A 3873170674 PIN
Repalced by: A 3875860131
137R A 3875860131 REPAIR KIT
Repalced by: A 3873100077
137R A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
137R A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
138 N 000417008004 HEADLESS SETSCREW
PIN TO BEARING
138 N 000417008004 HEADLESS SETSCREW
PIN TO BEARING
A 3873170874 PIN
Repalced by: A 6205860031
138D A 6205860031 REPAIR KIT
CAB SUSPENSION
138F A 3873170376 WASHER
PIN TO BEARING
138H N 007349017002 WASHER
PIN TO BEARING
138K N 913004016004 NUT
Repalced by: N 910113016002
138K N 910113016002 NUT
PIN TO BEARING
139 A 3878911156 LEVER
Repalced by: A 3878912556
139 A 3878912156 LEVER
Repalced by: A 3878912556
139 A 3878912556 LEVER
(TILTING LEVER),CAB
139 A 3878912556 LEVER
(TILTING LEVER),CAB
A 3878911256 LEVER
Repalced by: A 3878912856
A 3878912256 LEVER
Repalced by: A 3878912856
A 3878912456 LEVER
Repalced by: A 3878912856
A 3878912856 LEVER
(TILTING LEVER),CAB
A 3878912856 LEVER
(TILTING LEVER),CAB
140 A 3879920003 BUSHING
LEVER TO BEARING BRACKET
140 A 3879920003 BUSHING
LEVER TO BEARING BRACKET
140 A 3879920203 BUSHING
LEVER TO BEARING BRACKET
140 A 3879920203 BUSHING
LEVER TO BEARING BRACKET
A 0009817231 JOINT BEARING
Repalced by: A 6208910017
A 0019810431 JOINT BEARING
Repalced by: A 6208910017
A 0019810531 JOINT BEARING
Repalced by: A 6208910017
142 A 6208910017 BUSHING
(TILTING LEVER),CAB
142 A 6208910017 BUSHING
(TILTING LEVER),CAB
A 0029943741 LOCK
Repalced by: A 6208910017
144 A 3638910023 BUFFER
(TILTING LEVER),CAB
144 A 3638910023 BUFFER
(TILTING LEVER),CAB
A 3878903903 MOUNTING
Repalced by: A 3878905303
145 A 3878905303 MOUNTING
STABILIZER,LEFT
145 A 3878905303 MOUNTING
STABILIZER,LEFT
A 3878904003 MOUNTING
Repalced by: A 3878905603
A 3878905603 MOUNTING
RIGHT STABILIZER
A 3878905603 MOUNTING
RIGHT STABILIZER
148 A 3878910914 BRACKET
FRONT RUBBER MOUNTING TO FRAME
148 A 3878910914 BRACKET
FRONT RUBBER MOUNTING TO FRAME
150 N 000961012097 SCREW
Repalced by: N 308676012026
150 N 308676012026 SCREW
BUFFER TO BRACKET
M 12X35
150 N 308676012026 SCREW
BUFFER TO BRACKET
M 12X35
151 N 000961012151 SCREW
BUFFER TO BRACKET
M 12X30
151 N 000961012151 SCREW
BUFFER TO BRACKET
M 12X30
152 N 910113012002 NUT
BUFFER TO BRACKET
152 N 910113012002 NUT
BUFFER TO BRACKET
A 3878910123 BUFFER
Repalced by: A 3348910072
153 A 3348910072 MOUNTING
(RUBBER MOUNTING),IN BRACKET ON FRAME
153 A 3348910072 MOUNTING
(RUBBER MOUNTING),IN BRACKET ON FRAME
154 N 009021008205 WASHER
Repalced by: N 009021008213
154 N 009021008213 WASHER
BUFFER TO BRACKET
154 N 009021008213 WASHER
BUFFER TO BRACKET
155 N 000933008153 SCREW
Repalced by: N 304017008034
155 N 304017008034 SCREW
BUFFER TO BRACKET
155 N 304017008034 SCREW
BUFFER TO BRACKET
155M N 913004008004 NUT
Repalced by: N 913004008001
155M N 913004008001 NUT
BUFFER TO BRACKET
155M N 913004008001 NUT
BUFFER TO BRACKET
A 3878900504 STABILIZER
Repalced by: A 3878900404
156 A 3878900404 STABILIZER
CAB SUSPENSION,REAR
156 A 3878900404 STABILIZER
CAB SUSPENSION,REAR
156A A 0009810731 JOINT BEARING
Repalced by: A 0009817231
156A A 0009810931 JOINT BEARING
Repalced by: A 0009817331
156A A 0009817331 JOINT BEARING
Repalced by: A 0009817231
156A A 0009817231 JOINT BEARING
Repalced by: A 0019814631
156A A 0019814631 JOINT BEARING
156A A 0019814631 JOINT BEARING
A 0019814831 JOINT BEARING
A 0019814831 JOINT BEARING
157 N 071412008200 GREASE NIPPLE
157 N 071412008200 GREASE NIPPLE
158 A 3878910717 BUSHING
Repalced by: A 3875860531
159 A 3878910272 MOUNTING
Repalced by: A 3875860531
160 N 000906010000 SCREW PLUG
STABILIZER
160 N 000906010000 SCREW PLUG
STABILIZER
163 A 3878910831 CONSOLE
Repalced by: A 6208910631
163 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
163 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
A 3878910931 CONSOLE
Repalced by: A 6208910731
A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
164 N 000961012069 SCREW
Repalced by: N 308676012015
164 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
N 000960012189 SCREW
Repalced by: N 308676012031
N 308676012031 SCREW
Repalced by: N 308676012011
N 308676012011 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 12X50
N 308676012011 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 12X50
165 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
165 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
166 N 000961014050 SCREW
Repalced by: N 308676014020
166 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
166 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
167 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
167 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
168 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
168 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
169 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
169 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
170 A 3878910957 PIN
Repalced by: A 3875860531
172 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
172 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
174 N 913004014008 NUT
LEFT AND RIGHT CONSOLES TO CAB
174 N 913004014008 NUT
LEFT AND RIGHT CONSOLES TO CAB
174 N 913004014008 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
176 A 3878911910 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
177 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
177 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
178 N 000961014084 SCREW
Repalced by: N 000961014148
178 N 000961014148 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X45
178 N 000960014138 SCREW
Repalced by: N 000961014084
178 N 000961014084 SCREW
Repalced by: N 000961014148
178 N 000961014148 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X75
N 912004012100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BEARING BRACKET TO CAB
N 913004008604 NUT
BEARING BRACKET TO CAB
179 N 007349015003 WASHER
BEARING BRACKET TO CAB
180 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
180 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000960014167 SCREW
Repalced by: N 000961014064
N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
181 A 3638910223 BUFFER
(HOLLOW RUBBER SPRING),CAB
181 A 3638910223 BUFFER
(HOLLOW RUBBER SPRING),CAB
181C A 3638910047 FLANGE
HOLLOW RUBBER SPRING
181C A 3638910047 FLANGE
HOLLOW RUBBER SPRING
181E A 3638910517 BUSHING
HOLLOW RUBBER SPRING
181E A 3638910517 BUSHING
HOLLOW RUBBER SPRING
182 A 3878911710 WASHER
Repalced by: A 3878912210
182 A 3878912210 WASHER
Repalced by: A 4432610076
182 A 4432610076 WASHER
HOLLOW RUBBER SPRING TO CAB
20 MM
182 A 3878912210 WASHER
Repalced by: A 4432610076
182 A 4432610076 WASHER
HOLLOW RUBBER SPRING
10 MM
182 A 4432610076 WASHER
HOLLOW RUBBER SPRING
10 MM
182 A 4432610076 WASHER
HOLLOW RUBBER SPRING
10 MM
182C N 912004010102 LOCK WASHER
HOLLOW RUBBER SPRING TO CAB
182C N 912004010102 LOCK WASHER
HOLLOW RUBBER SPRING TO CAB
182E N 000931010282 SCREW
HOLLOW RUBBER SPRING TO CAB
M 10X40
182E N 000931010282 SCREW
HOLLOW RUBBER SPRING TO CAB
M 10X40
182E N 000933010129 SCREW
Repalced by: N 304017010002
182E N 304017010002 SCREW
HOLLOW RUBBER SPRING TO CAB
M 10X30
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BEARING BRACKET TO CAB
184 A 0008911405 SHOCK ABSORBER
CAB SUSPENSION,FRONT
184 A 0008911605 SHOCK ABSORBER
CAB SUSPENSION,FRONT
184 A 0008911905 SHOCK ABSORBER
Repalced by: A 0008911805
184 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
185 A 0008910101 RUBBER MOUNTING
Repalced by: A 0008910001
185 A 0008910001 RUBBER MOUNTING
185 A 0008910401 RUBBER MOUNTING
Repalced by: A 0008910501
185 A 0008910501 RUBBER MOUNTING
186 A 0008910217 BUSHING
Repalced by: A 0008910117
186 A 0008910117 BUSHING
186 A 0008910317 BUSHING
Repalced by: A 0008910617
186 A 0008910617 BUSHING
187 A 3639900040 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
15 MM
187 A 3873170076 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
15 MM
187 A 3873170176 WASHER
Repalced by: A 6203170176
187 A 6203170176 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
18.5 MM
188 N 000125010518 WASHER
Repalced by: N 000125010532
188 N 000125010532 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
188 A 3873170276 WASHER
Repalced by: N 000125013008
188 N 000125013008 WASHER
188 N 000125013008 WASHER
189 N 910113012002 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
189 N 910113012002 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
189 N 913004010008 NUT
Repalced by: N 910113010000
189 N 910113010000 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
191 A 3878913220 MOUNTING
Repalced by: A 6208901603
191 A 6208901603 MOUNTING
TILTING LEVER TO CAB SIDE MEMBER
191 A 6208901603 MOUNTING
TILTING LEVER TO CAB SIDE MEMBER
192 N 000933010105 SCREW
BEARING BRACKET TO CAB
192 N 000933010105 SCREW
BEARING BRACKET TO CAB
192 N 000961012052 SCREW
Repalced by: N 308676012012
192 N 308676012012 SCREW
BEARING BRACKET TO CAB
192 N 308676012012 SCREW
BEARING BRACKET TO CAB
193 N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB
193 N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB
193 N 912004012100 LOCK WASHER
BEARING BRACKET TO CAB
194 A 3878910098 SHIM
Repalced by: A 3878910498
194 A 3878910498 SHIM
CAB CONSOLE TO SIDE MEMBER
194 A 3878910498 SHIM
CAB CONSOLE TO SIDE MEMBER
195 N 000961014088 SCREW
Repalced by: N 308676014008
195 N 308676014008 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X35
195 N 308676014008 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X35
196 N 000961014063 SCREW
Repalced by: A 9429901304
196 A 9429901304 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X40
196 A 9429901304 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X40
197 N 000960014229 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X55
197 N 000960014229 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X55
198 N 007349015003 WASHER
CAB CONSOLE TO SIDE MEMBER
198 N 007349015003 WASHER
CAB CONSOLE TO SIDE MEMBER
199 N 912004014100 LOCK WASHER
CAB CONSOLE TO SIDE MEMBER
199 N 912004014100 LOCK WASHER
CAB CONSOLE TO SIDE MEMBER
200 N 913004014002 NUT
Repalced by: N 910113014001
200 N 910113014001 NUT
CAB CONSOLE TO SIDE MEMBER
200 N 910113014001 NUT
CAB CONSOLE TO SIDE MEMBER
204 A 3873170001 CONSOLE
Repalced by: A 6553170001
204 A 6553170001 CONSOLE
Repalced by: A 3873170001
204 A 3873170001 CONSOLE
CAB SUSPENSION,REAR
204 A 3873170001 CONSOLE
CAB SUSPENSION,REAR
204B N 000961012097 SCREW
Repalced by: N 308676012026
204B N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
204B N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
204D N 910113012002 NUT
CONSOLE TO SIDE MEMBER
204D N 910113012002 NUT
CONSOLE TO SIDE MEMBER
205 A 3873170626 GUIDE
CAB SUSPENSION,REAR LEFT
205 A 3873170626 GUIDE
CAB SUSPENSION,REAR LEFT
A 3873170726 GUIDE
CAB SUSPENSION,REAR RIGHT
A 3873170726 GUIDE
CAB SUSPENSION,REAR RIGHT
208 N 000960012301 SCREW
GUIDE TO CAB
208 N 000960012301 SCREW
GUIDE TO CAB
209 N 912004012100 LOCK WASHER
GUIDE TO CAB
209 N 912004012100 LOCK WASHER
GUIDE TO CAB
210 A 3873170084 SHIM
GUIDE TO CAB
210 A 3873170084 SHIM
GUIDE TO CAB
211 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
211 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
212 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
212 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
213 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
213 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
214 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
214 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
A 3818900719 SHOCK ABSORBER
Repalced by: A 3878901619
217 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
217 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
217 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
217 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
217 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
218 A 3818900101 MOUNTING
218 A 0008910301 RUBBER MOUNTING
218 A 0008910301 RUBBER MOUNTING
219 A 3818910080 SPRING
219 A 0008910251 SPRING
219 A 0008910251 SPRING
220 A 3813170753 SPACER TUBE
SHOCK ABSORBER
220 A 3813170753 SPACER TUBE
SHOCK ABSORBER
221 A 0009935326 DISC SPRING
Repalced by: A 3275045082
221F A 3275045082 RUBBER RING
SHOCK ABSORBER
221F A 3275045082 RUBBER RING
SHOCK ABSORBER
222 N 000433015005 WASHER
SHOCK ABSORBER
222 N 000433015005 WASHER
SHOCK ABSORBER
222F A 3878912010 WASHER
SHOCK ABSORBER
222F A 3878912010 WASHER
SHOCK ABSORBER
223 N 000934012022 NUT
SHOCK ABSORBER
223 N 000934012022 NUT
SHOCK ABSORBER
224 N 001587012006 CAP NUT
SHOCK ABSORBER
224 N 001587012006 CAP NUT
SHOCK ABSORBER
225 A 3813170031 COVER PLATE
SHOCK ABSORBER
225 A 3813170031 COVER PLATE
SHOCK ABSORBER
228 N 000933008153 SCREW
Repalced by: N 304017008034
228 N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
228 N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
229 N 009021008205 WASHER
Repalced by: N 009021008213
229 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
229 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
230 N 913004008004 NUT
Repalced by: N 913004008001
230 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
230 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
A 3813176140 BRACKET
Repalced by: A 3813177840
233 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
233 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
A 3813176240 BRACKET
Repalced by: A 3813177940
233 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
233 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
234 A 3813170097 BOOT
RETAINER
234 A 3813170097 BOOT
RETAINER
235 N 000933010105 SCREW
RETAINER TO SIDE MEMBER
235 N 000933010105 SCREW
RETAINER TO SIDE MEMBER
236 N 000125010518 WASHER
Repalced by: N 000125010532
236 N 000125010532 WASHER
RETAINER TO SIDE MEMBER
236 N 000125010532 WASHER
RETAINER TO SIDE MEMBER
237 N 912004010102 LOCK WASHER
RETAINER TO SIDE MEMBER
237 N 912004010102 LOCK WASHER
RETAINER TO SIDE MEMBER
A 3813101275 LOCKING MECHANISM
Repalced by: A 3813102075
240 A 3813102075 LOCKING MECHANISM
CAB,LEFT
240 A 3813102075 LOCKING MECHANISM
CAB,LEFT
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
240
A 3813101175 LOCKING MECHANISM
Repalced by: A 3813101975
A 3813101975 LOCKING MECHANISM
CAB, RIGHT
A 3813101975 LOCKING MECHANISM
CAB, RIGHT
240E A 3813170119 LATCH
240E A 3813170119 LATCH
A 3813100007 COUPLING PIN
Repalced by: A 3813172374
A 3813100007 COUPLING PIN
242 N 001481006012 CLAMPING SLEEVE
Repalced by: N 000000000306
242 N 000000000306 CLAMPING PIN
242A A 3813172374 PIN
242A A 3813172374 PIN
243 A 3813170924 LEVER
243 A 3813170924 LEVER
244 A 3813170676 WASHER
244 A 3813170676 WASHER
245 A 0009935426 DISC SPRING
245 A 0009935426 DISC SPRING
246 N 001481006041 CLAMPING SLEEVE
246 N 001481006041 CLAMPING SLEEVE
247 N 910113012002 NUT
247 N 910113012002 NUT
248 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
248 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
249 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
249 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
250 N 000125010518 WASHER
Repalced by: N 000125010532
250 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
250 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
254 A 3878911031 CONSOLE
CAB MOUNTING,REAR
254M A 3878911531 CONSOLE
FRAME,LEFT
254R A 3878911631 CONSOLE
FRAME,RIGHT
255 N 000961014050 SCREW
Repalced by: N 308676014020
255 N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
255 N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
255M N 000961014008 SCREW
Repalced by: N 308676014003
255M N 308676014003 SCREW
CONSOLE TO FRAME
M 14X40
255M N 308676014003 SCREW
CONSOLE TO FRAME
M 14X40
256 N 913004014002 NUT
Repalced by: N 910113014001
256 N 910113014001 NUT
CONSOLE TO FRAME
256 N 910113014001 NUT
CONSOLE TO FRAME
257 A 3878910024 STRUT
Repalced by: A 6558910224
257 A 6558910224 STRUT
CAB MOUNTING,REAR
257 A 6558910224 STRUT
CAB MOUNTING,REAR
258 A 3878910198 SHIM
258 A 3878910198 SHIM
259 N 000961012052 SCREW
Repalced by: N 308676012012
259 N 308676012012 SCREW
STRUT TO CONSOLE
259 N 308676012012 SCREW
STRUT TO CONSOLE
260 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
260 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
260B N 000961012052 SCREW
Repalced by: N 308676012012
260B N 308676012012 SCREW
LEFT AND RIGHT BEARING BRACKETS ON CONSOLE
260B N 308676012012 SCREW
LEFT AND RIGHT BEARING BRACKETS ON CONSOLE
260D N 910113012002 NUT
LEFT AND RIGHT BEARING BRACKETS ON CONSOLE
260D N 910113012002 NUT
LEFT AND RIGHT BEARING BRACKETS ON CONSOLE
A 3878915720 MOUNTING
AT CONSOLE
A 3878915720 MOUNTING
AT CONSOLE
260F A 3878908303 MOUNTING
Repalced by: A 3878918520
260F A 3878918520 MOUNTING
LEFT VIBRATION ABSORBER
260F A 3878908403 MOUNTING
Repalced by: A 3878918620
260F A 3878918620 MOUNTING
RIGHT VIBRATION ABSORBER
N 913004018003 NUT
Repalced by: N 910113018004
N 910113018004 NUT
MOUNTING
260H A 3878911014 BRACKET
AT CONSOLE
260H A 3878911014 BRACKET
AT CONSOLE
260N N 000961014050 SCREW
Repalced by: N 308676014020
260N N 308676014020 SCREW
BRACKET TO CONSOLE
260N N 308676014020 SCREW
BRACKET TO CONSOLE
260R N 913004014002 NUT
Repalced by: N 910113014001
260R N 910113014001 NUT
BRACKET TO CONSOLE
260R N 910113014001 NUT
BRACKET TO CONSOLE
N 007349015003 WASHER
BRACKET TO CONSOLE
N 007349015003 WASHER
BRACKET TO CONSOLE
261 A 3815001327 SUPPORT
RESERVOIR
261 A 3815001327 SUPPORT
RESERVOIR
261E N 000961014050 SCREW
Repalced by: N 308676014020
261E N 308676014020 SCREW
RESERVOIR
261E N 308676014020 SCREW
RESERVOIR
261H N 913004014002 NUT
Repalced by: N 910113014001
261H N 910113014001 NUT
RESERVOIR
261H N 910113014001 NUT
RESERVOIR
261L A 3815011238 REINFORCEMENT
RESERVOIR
261L A 3815011238 REINFORCEMENT
RESERVOIR
261N A 3878910124 STRUT
RESERVOIR
261N A 3878910124 STRUT
RESERVOIR
261Q N 000961012052 SCREW
Repalced by: N 308676012012
261Q N 308676012012 SCREW
RESERVOIR
261Q N 308676012012 SCREW
RESERVOIR
261R N 912004012100 LOCK WASHER
RESERVOIR
261R N 912004012100 LOCK WASHER
RESERVOIR
262 A 3878911051 SPRING
CAB
262 A 3878911051 SPRING
CAB
263 A 3638910717 BUSHING
LEAF SPRING TO CAB
263 A 3638910717 BUSHING
LEAF SPRING TO CAB
264 A 3638910218 TUBE
LEAF SPRING TO CAB
264 A 3638910218 TUBE
LEAF SPRING TO CAB
265 A 3638910010 WASHER
LEAF SPRING TO CAB
265 A 3638910010 WASHER
LEAF SPRING TO CAB
266 N 000960012153 SCREW
LEAF SPRING TO CAB
266 N 000960012153 SCREW
LEAF SPRING TO CAB
267 N 009021013200 WASHER
LEAF SPRING TO CAB
267 N 009021013200 WASHER
LEAF SPRING TO CAB
268 N 910113012002 NUT
LEAF SPRING TO CAB
268 N 910113012002 NUT
LEAF SPRING TO CAB
270 A 3878900222 RAIL
(CONNECTING RAIL)
270 A 3878900222 RAIL
(CONNECTING RAIL)
270 A 3878900422 RAIL
Repalced by: A 6558900022
270 A 6558900022 RAIL
(CONNECTING RAIL)
271 N 000007012225 CYLINDRICAL PIN
271 N 000007012225 CYLINDRICAL PIN
271 N 000007012201 CYLINDRICAL PIN
273 A 3638910123 BUFFER
Repalced by: A 3878910323
273 A 3878910323 BUFFER
CONNECTING RAIL
273 A 3878910323 BUFFER
CONNECTING RAIL
274 A 3878910072 MOUNTING
CONNECTING RAIL
274 A 3878910072 MOUNTING
CONNECTING RAIL
276 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X20
276 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X20
276 N 000084008122 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X18
276 N 000084008122 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X18
277 N 000933008154 SCREW
Repalced by: N 304017008021
277 N 304017008021 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X22
277 N 304017008021 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X22
278 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
278 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
279 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
279 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
280 N 000125008418 WASHER
Repalced by: N 000125008443
280 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
280 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
A 3878910298 SHIM
BUFFER AND MOUNTING TO RAIL
A 3878916820 MOUNTING
BEARING BRACKET AND PLATE TO SPRING
A 6208911320 MOUNTING
BEARING BRACKET AND PLATE TO SPRING
A 3638910520 MOUNTING
Repalced by: A 3878918120
282 A 3878918120 MOUNTING
CAB LOCKING MECHANISM
283 A 3878911057 PIN
CAB LOCKING MECHANISM
283 A 3878910457 PIN
CAB LOCKING MECHANISM
A 3878911653 SPACER TUBE
CAB LOCKING MECHANISM
284 N 000471025002 LOCK RING
PIN TO BEARING
284 N 000471025002 LOCK RING
PIN TO BEARING
N 000960016286 SCREW
BEARING BRACKET
N 913004016004 NUT
Repalced by: N 910113016002
N 910113016002 NUT
BEARING BRACKET
285 A 3878910811 PLATE
LEAF SPRING
285 A 3878910811 PLATE
LEAF SPRING
286 N 000931010258 SCREW
LEAF SPRING TO BEARING BRACKET
287 N 912004010102 LOCK WASHER
LEAF SPRING TO BEARING BRACKET
287 N 912004010102 LOCK WASHER
LEAF SPRING TO BEARING BRACKET
290 A 0008911405 SHOCK ABSORBER
CAB SUSPENSION,REAR
290 A 0008911605 SHOCK ABSORBER
CAB SUSPENSION,REAR
290 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
290 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
291 A 0008910501 RUBBER MOUNTING
291 A 0008910101 RUBBER MOUNTING
Repalced by: A 0008910001
291 A 0008910001 RUBBER MOUNTING
292 A 0008910617 BUSHING
292 A 0008910217 BUSHING
Repalced by: A 0008910117
292 A 0008910117 BUSHING
293 A 3878910153 SPACER TUBE
SHOCK ABSORBER
293 A 3878910953 SPACER TUBE
SHOCK ABSORBER
293 A 3878910353 SPACER TUBE
Repalced by: A 3878910953
293 A 3878910953 SPACER TUBE
SHOCK ABSORBER
6 MM
293S A 3878911610 WASHER
SHOCK ABSORBER
294 N 000960018187 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X180
294 N 000960018111 SCREW
SHOCK ABSORBER TO CONSOLE
M 18X70
294 N 000960014145 SCREW
SHOCK ABSORBER TO CONSOLE
N 912004018101 LOCK WASHER
SHOCK ABSORBER TO CONSOLE
295 N 913004018003 NUT
Repalced by: N 910113018004
295 N 910113018004 NUT
SHOCK ABSORBER TO CONSOLE
295 N 913004014002 NUT
Repalced by: N 910113014001
295 N 910113014001 NUT
SHOCK ABSORBER TO CONSOLE
296 N 000960018111 SCREW
SHOCK ABSORBER TO RAIL
296 N 000960014249 SCREW
SHOCK ABSORBER TO RAIL
297 N 913004018003 NUT
Repalced by: N 910113018004
297 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
297 N 913004014002 NUT
Repalced by: N 910113014001
297 N 910113014001 NUT
SHOCK ABSORBER TO RAIL
300 A 0008900089 FASTENER
Repalced by: A 0008902389
300 A 0008900089 FASTENER
300 A 0008901389 FASTENER
Repalced by: A 0008902389
300 A 0008902389 FASTENER
CENTRAL LOCK TO CAB
300 A 0008902389 FASTENER
CENTRAL LOCK TO CAB
301 A 3878910170 ROD
CENTRAL LOCK TO CAB
301 A 6208910170 ROD
CENTRAL LOCK TO CAB
301 A 3878910070 ROD
CENTRAL LOCK TO CAB
302 N 001444008202 PIN
CENTRAL LOCK TO CAB
302 N 001434008059 PIN
PULL TO FASTENER
303 N 000433008406 WASHER
PULL TO FASTENER
303 N 000433008406 WASHER
PULL TO FASTENER
N 000094002059 COTTER PIN
PULL TO FASTENER
N 000094002059 COTTER PIN
PULL TO FASTENER
304 A 3878911131 CONSOLE
PULL TO FASTENER
306 N 000933010128 SCREW
CENTRAL LOCK TO CAB
M 10X20
306 N 000933010128 SCREW
CENTRAL LOCK TO CAB
M 10X20
307 N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
307 N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
308 N 912004010102 LOCK WASHER
CENTRAL LOCK TO CAB
308 N 912004010102 LOCK WASHER
CENTRAL LOCK TO CAB
309 N 913004010008 NUT
Repalced by: N 910113010000
309 N 910113010000 NUT
CENTRAL LOCK TO CAB
309 N 910113010000 NUT
CENTRAL LOCK TO CAB
310 N 000125010518 WASHER
Repalced by: N 000125010532
310 N 000125010532 WASHER
CENTRAL LOCK TO CAB
310 N 000125010532 WASHER
CENTRAL LOCK TO CAB
311 A 3878910814 BRACKET
ROD THRU CAB
311 A 3878910814 BRACKET
ROD THRU CAB
312 A 3878910085 SEAL
AT BRACKET
312 A 3878910085 SEAL
AT BRACKET
313 N 007346005003 CLAMPING SLEEVE
AT BRACKET
313 N 007346005003 CLAMPING SLEEVE
AT BRACKET
A 3878911956 LEVER
CAB LOCKING MECHANISM
A 6208910056 LEVER
CAB LOCKING MECHANISM
315 A 3878911456 LEVER
CAB LOCKING MECHANISM
316 A 3638910317 BUSHING
LEVER
316 A 3638910317 BUSHING
LEVER
317 A 3638910073 HANDLE
Repalced by: A 6208910073
317 A 6208910073 HANDLE
LEVER
317 A 6208910073 HANDLE
LEVER
318 N 007985008142 SCREW
LEVER AND BUSHING TO CAB
318 N 007985008142 SCREW
LEVER AND BUSHING TO CAB
319 N 913004008004 NUT
Repalced by: N 913004008001
319 N 913004008001 NUT
LEVER AND BUSHING TO CAB
319 N 913004008001 NUT
LEVER AND BUSHING TO CAB
321 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
321 N 001481005039 CLAMPING SLEEVE
LEVER
321 N 001481005039 CLAMPING SLEEVE
LEVER
324 N 000125015013 WASHER
Repalced by: N 000125015019
324 N 000125015019 WASHER
LEVER
324 N 000125015019 WASHER
LEVER
325 N 900055014400 LOCK RING
LEVER
325 N 900055014400 LOCK RING
LEVER
326 N 001444008233 PIN
LEVER
326 N 001434008020 PIN
LEVER
327 N 000433008406 WASHER
LEVER
327 N 000433008406 WASHER
LEVER
N 000094002059 COTTER PIN
LEVER
N 000094002059 COTTER PIN
LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
