Transporto priemonė: 2232/6X4; VIN numerio dalis: 393326
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |

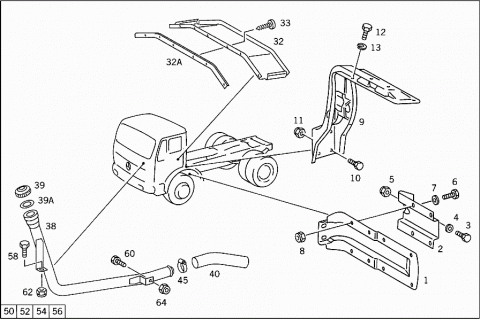

| FRONT FENDER MOUNTING | ||
| 001 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 001 | A 6575210140 | BRACKET |
| FENDER | ||
| 001 | A 6575210140 | BRACKET |
| FENDER | ||
| 002 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 002 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 002 | A 6575200033 | SUPPORT |
| (CONSOLE),FOR FENDER | ||
| 002 | A 6575200033 | SUPPORT |
| (CONSOLE),FOR FENDER | ||
| 003 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 003 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 004 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 004 | N 000125015019 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 005 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 005 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 006 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 006 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X25 | ||
| 006 | N 304017008034 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X25 | ||
| 006 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 006 | N 304017008027 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X30 | ||
| 006 | N 000933008145 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X18 | ||
| 007 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 007 | A 6312670276 | WASHER |
| FENDER TO FENDER BRACKET | ||
| 007 | A 6312670276 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 008 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 008 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 008 | N 913004008001 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 008 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 009 | A 3875200241 | BRACKET |
| FENDER AND SHOCK ABSORBER,LEFT | ||
| 009 | A 3875200241 | BRACKET |
| FENDER AND SHOCK ABSORBER,LEFT | ||
| 009 | A 3875200341 | BRACKET |
| RIGHT FENDER | ||
| 009 | A 3875200341 | BRACKET |
| RIGHT FENDER | ||
| 010 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 010 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 011 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 011 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 012 | N 000933008145 | SCREW |
| FENDER TO BRACKET | ||
| M 8X18 | ||
| 013 | N 912004008102 | LOCK WASHER |
| FENDER TO BRACKET | ||

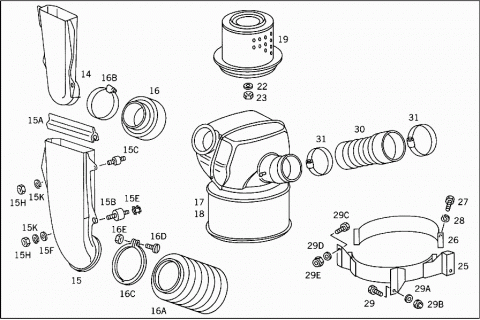

| 014 | A 3875200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 014 | A 3875200301 | AIR INTAKE PIPE |
| LEFT | ||
| 015 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 015 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 015A | A 3875280076 | BINDING RAIL |
| 015B | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 015B | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 015C | A 3879880111 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| A 0009906091 | NUT RETAINER | |
| Repalced by: A 0019901791 | ||
| 015E | A 0019901791 | NUT RETAINER |
| AIR INTAKE PIPE TO CAB | ||
| 015F | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 015F | N 000125008443 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 015H | N 304032008006 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 015K | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| A 3855280291 | BOOT | |
| Repalced by: A 3855280391 | ||
| 016 | A 3855280391 | BOOT |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 016A | A 3815280191 | BOOT |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 016B | A 0029972790 | LOOM TIE |
| BOOT TO AIR DUCT | ||
| 016C | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 016D | N 000084004423 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 016E | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 017 | A 0080944402 | AIR CLEANER |
| Repalced by: A 0090945702 | ||
| 017 | A 0090945702 | AIR CLEANER |
| A 0080944502 | AIR CLEANER | |
| Repalced by: A 0090945802 | ||
| 017 | A 0090945802 | AIR CLEANER |
| A 0080944602 | AIR CLEANER | |
| Repalced by: A 0090945902 | ||
| 018 | A 0090945902 | AIR CLEANER |
| Repalced by: A 0110942602 | ||
| 018 | A 0110942602 | AIR CLEANER |
| A 0080944702 | AIR CLEANER | |
| Repalced by: A 0090946002 | ||
| 018 | A 0090946002 | AIR CLEANER |
| Repalced by: A 0140948802 | ||
| 018 | A 0140948802 | AIR CLEANER |
| A 0010947304 | FILTER ELEMENT | |
| Repalced by: A 0010949304 | ||
| 019 | A 0010949304 | FILTER ELEMENT |
| A 0010947404 | FILTER ELEMENT | |
| Repalced by: A 0010948304 | ||
| 019 | A 0010948304 | FILTER ELEMENT |
| 022 | A 0000940276 | WASHER |
| FELT | ||
| 023 | A 0009901550 | NUT |
| A 3855200433 | SUPPORT | |
| Repalced by: A 3055200633 | ||
| 025 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 025 | A 6505200333 | SUPPORT |
| AIR CLEANER | ||
| A 3855200533 | SUPPORT | |
| Repalced by: A 3855200733 | ||
| 025 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 025 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| 025 | A 3875200533 | SUPPORT |
| Repalced by: A 6565200033 | ||
| 025 | A 6565200033 | SUPPORT |
| AIR CLEANER | ||
| 025 | A 3875200633 | SUPPORT |
| Repalced by: A 6565200133 | ||
| 025 | A 6565200133 | SUPPORT |
| AIR CLEANER | ||
| 026 | A 3855280421 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 026 | A 3875280721 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 027 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 027 | N 304017008034 | SCREW |
| STRAP TO SUPPORT | ||
| 028 | N 912004008102 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 029 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 029 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 029A | N 000125013008 | WASHER |
| 029B | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 029C | N 000933010128 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 029D | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 029D | N 000125010532 | WASHER |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 029E | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 029E | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 030 | A 0010942682 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 030 | A 0000949882 | HOSE |
| Repalced by: A 6205280782 | ||
| 030 | A 6205280782 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 031 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 031 | N 000000000678 | CLAMP |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 031 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 031 | A 0059971490 | LOOM TIE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 032 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 032 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 032 | A 3875240429 | COVER |
| ENGINE COVERING | ||
| 032 | A 3875240429 | COVER |
| ENGINE COVERING | ||
| 032 | A 3875240529 | COVER |
| ENGINE COVERING | ||
| 032 | A 3875240529 | COVER |
| ENGINE COVERING | ||
| 032 | A 3875240529 | COVER |
| ENGINE COVERING | ||
| 032A | A 3875240084 | SHIM |
| COVER PLATE TO CAB REAR PANEL | ||
| 032A | A 3875240084 | SHIM |
| COVER PLATE TO CAB REAR PANEL | ||
| 033 | N 007981005306 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| OIL REFILLING | ||
| 038 | A 3875200406 | PIPE ELBOW |
| OIL REFILLING | ||
| A 3520100168 | CAP | |
| Repalced by: A 0000180702 | ||
| 039 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 039A | A 3520180180 | GASKET |
| TO 352 010 01 68 | ||
| A 1020180302 | CAP | |
| OIL REFILLING | ||
| A 1020180402 | CAP | |
| OIL REFILLING | ||
| A 0000180180 | GASKET | |
| Repalced by: A 1020180080 | ||
| 039A | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 039A | A 1020180380 | GASKET |
| TO 000 018 07 02 | ||
| 040 | A 3875280582 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 045 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 045 | N 000000000671 | CLAMP |
| FROM OIL FILLER NECK TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 181 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 181C | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 181E | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 31,FIG.NO.: | ||
| 182 | ||
| 058 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 060 | N 000961012151 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 062 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 062 | N 910113010000 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 064 | N 910113012002 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
