Transporto priemonė: 2232 L/6X2; VIN numerio dalis: 393585

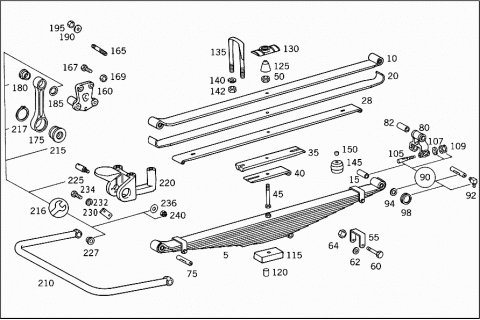

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 010 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 015 | A 3043210150 | BUSHING |
| 015 | A 6203210050 | BUSHING |
| 020 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| A 3633210013 | SPRING LEAF | |
| Repalced by: A 6593210713 | ||
| A 6593210713 | SPRING LEAF | |
| NO.3 | ||
| 028 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 028 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| A 3633210015 | SPRING LEAF | |
| Repalced by: A 6593210615 | ||
| A 6593210615 | SPRING LEAF | |
| NO.5 | ||
| A 3633210016 | SPRING LEAF | |
| Repalced by: A 6593210616 | ||
| A 6593210616 | SPRING LEAF | |
| NO.6 | ||
| A 3633210017 | SPRING LEAF | |
| Repalced by: A 6593210617 | ||
| A 6593210617 | SPRING LEAF | |
| NO.7 | ||
| A 3633210018 | SPRING LEAF | |
| Repalced by: A 6593210618 | ||
| A 6593210618 | SPRING LEAF | |
| NO.8 | ||
| A 3633210019 | SPRING LEAF | |
| Repalced by: A 6593210619 | ||
| A 6593210619 | SPRING LEAF | |
| NO.9 | ||
| A 3633210020 | SPRING LEAF | |
| NO.10 | ||
| 035 | A 3633210021 | SPRING LEAF |
| NO.11 | ||
| 040 | A 3633210022 | SPRING LEAF |
| Repalced by: A 3873210122 | ||
| 040 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 040 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 045 | A 3353210071 | SCREW |
| Repalced by: A 3873210071 | ||
| 045 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 050 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 050 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 055 | A 0003246433 | SPRING CLAMP |
| Repalced by: A 0023219233 | ||
| 055 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 055 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 055 | A 6203240433 | SPRING CLAMP |
| 060 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 060 | N 308765012007 | SCREW |
| SPRING CLAMP | ||
| N 000963012011 | SCREW | |
| SPRING CLAMP | ||
| 062 | A 3039902440 | WASHER |
| SPRING CLAMP | ||
| 064 | N 000934012022 | NUT |
| SPRING CLAMP | ||
| 075 | A 3703220130 | SHACKLE PIN |
| Repalced by: A 3955860332 | ||
| 075 | A 3953220430 | SHACKLE PIN |
| Repalced by: A 3955860332 | ||
| A 3955860132 | REPAIR KIT | |
| Repalced by: A 3955860332 | ||
| A 3955860332 | REPAIR KIT | |
| Repalced by: A 3953200165 | ||
| A 3953200165 | SHACKLE PIN | |
| PARTS KIT | ||
| 080 | A 3703200062 | SHACKLE |
| Repalced by: A 3873200162 | ||
| 080 | A 3873200162 | SHACKLE |
| FRONT SPRING TO SPRING BRACKET | ||
| 082 | A 3043210150 | BUSHING |
| 082 | A 6203210050 | BUSHING |
| 090 | A 3953220330 | SHACKLE PIN |
| Repalced by: A 3955860232 | ||
| A 3955860232 | REPAIR KIT | |
| Repalced by: A 3953200265 | ||
| A 3953200265 | SHACKLE PIN | |
| PARTS KIT | ||
| 092 | N 071412010300 | GREASE NIPPLE |
| 094 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 094 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 094 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 098 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 105 | A 3529900337 | BOLT |
| SHACKLE PIN | ||
| 107 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 107 | N 000125010532 | WASHER |
| SHACKLE PIN | ||
| 109 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 109 | N 910113010000 | NUT |
| SHACKLE PIN | ||
| 115 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 115 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 115 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3873310728 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3873310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3933210084 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3353310328 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3353310328 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3873310928 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3873310828 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 125 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 125 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3263310044 | RUBBER BUFFER | |
| Repalced by: A 6553310044 | ||
| A 6553310044 | RUBBER BUFFER | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 125 | A 3873310044 | RUBBER BUFFER |
| Repalced by: A 3873310144 | ||
| 125 | A 3873310144 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 130 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 130 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 130 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 130 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 130 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 130 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 | A 3873310226 | PLATE |
| Repalced by: A 6203310026 | ||
| 130 | A 6203310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 | A 6203310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3873310525 | U-BOLT |
| Repalced by: A 3873310725 | ||
| 135 | A 3873310725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 335 MM | ||
| 135 | A 3873310525 | U-BOLT |
| Repalced by: A 3933310025 | ||
| 135 | A 3933310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 350/240 MM | ||
| 135 | A 3873310625 | U-BOLT |
| Repalced by: A 3873310825 | ||
| 135 | A 3873310825 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 335 MM | ||
| 135 | A 3873310625 | U-BOLT |
| Repalced by: A 3933310125 | ||
| 135 | A 3933310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 350/285 MM | ||
| 140 | N 074361020352 | LOCK WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 142 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 142 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 145 | A 0019871140 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 150 | A 3633220051 | SPACER RING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| N 007985010125 | SCREW | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| M10X30 | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 160 | A 3873200378 | CONSOLE |
| FRONT STABILIZER | ||
| 165 | N 000939016033 | STUD BOLT |
| 167 | N 000961016039 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M16X50 | ||
| 167 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 167 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M16X35 | ||
| 169 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 169 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 175 | A 3873260447 | SHACKLE |
| Repalced by: A 3873260847 | ||
| 175 | A 3873260847 | SHACKLE |
| TORSION BAR | ||
| 180 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 185 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 190 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 195 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 195 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| 210 | A 3873230265 | TORSION BAR |
| 215 | A 0003261581 | RUBBER MOUNTING |
| TORSION BAR | ||
| 215 | A 3873260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 216 | A 3875860232 | REPAIR KIT |
| Repalced by: A 3873200228 | ||
| 216 | A 3873200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 216 | A 3875860432 | REPAIR KIT |
| Repalced by: A 3873200428 | ||
| 216 | A 3873200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 217 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 220 | A 3873230420 | BEARING |
| LEFT | ||
| 220 | A 3873230520 | BEARING |
| RIGHT | ||
| 225 | A 3353260074 | PIN |
| Repalced by: A 3875860232 | ||
| 225 | A 3353260074 | PIN |
| Repalced by: A 3875860432 | ||
| 227 | A 0003260250 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 230 | A 3129941309 | LOCK |
| PIN TO BEARING | ||
| 232 | N 912004008102 | LOCK WASHER |
| PIN TO BEARING | ||
| 234 | N 000933008145 | SCREW |
| PIN TO BEARING | ||
| M8X18 | ||
| 236 | A 0009931926 | DISC SPRING |
| PIN TO BEARING | ||
| 240 | N 000935027000 | NUT |
| PIN TO BEARING | ||
| N 000094005045 | COTTER PIN | |
| PIN TO BEARING | ||

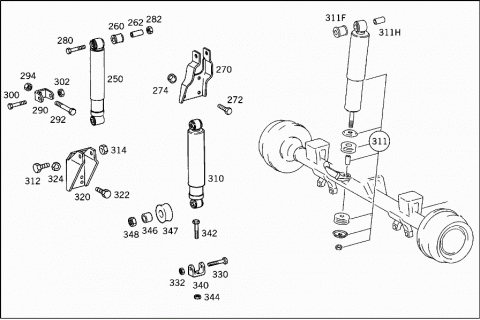

| 250 | A 0023235800 | SHOCK ABSORBER |
| Repalced by: A 0043234500 | ||
| 250 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 250 | A 0023235900 | SHOCK ABSORBER |
| Repalced by: A 0043230000 | ||
| 250 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 250 | A 0023234700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 250 | A 0023235600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 260 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 260 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 58 00,002 323 47 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 45 00,002 323 59 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 56 00 | ||
| 260 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 260 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 00 00 | ||
| 262 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 262 | A 0003233150 | SPACER RING |
| TO 002 323 58 00,002 323 47 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 45 00,002 323 59 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 56 00 | ||
| 262 | A 0003235250 | BUSHING |
| TO 004 323 00 00 | ||
| 270 | A 3873230340 | BRACKET |
| Repalced by: A 3953230640 | ||
| 270 | A 3913230240 | BRACKET |
| Repalced by: A 3953230640 | ||
| 270 | A 3953230640 | BRACKET |
| Repalced by: A 6203230040 | ||
| 270 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 270 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 272 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 272 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 274 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 274 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3878911153 | SPACER TUBE | |
| SHOCK ABSORBER TO BRACKET | ||
| A 3939900240 | WASHER | |
| SHOCK ABSORBER TO BRACKET | ||
| 280 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M16X85 | ||
| 280 | N 000960016175 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X120 | ||
| 280 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X95 | ||
| 282 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 282 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 290 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 292 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 292 | N 000960020084 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M20X125 | ||
| 294 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 294 | N 913004020003 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 300 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| M16X85 | ||
| 302 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 302 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 310 | A 0023266300 | SHOCK ABSORBER |
| Repalced by: A 0033268500 | ||
| 310 | A 0033268500 | SHOCK ABSORBER |
| Repalced by: A 0053262000 | ||
| 310 | A 0023266200 | SHOCK ABSORBER |
| Repalced by: A 0053262000 | ||
| 310 | A 0053262000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 310 | A 0023265500 | SHOCK ABSORBER |
| REAR AXLE I | ||
| 310 | A 0023265000 | SHOCK ABSORBER |
| Repalced by: A 0033267400 | ||
| 310 | A 0033267400 | SHOCK ABSORBER |
| REAR AXLE I | ||
| 311 | A 0023266000 | SHOCK ABSORBER |
| Repalced by: A 6233260000 | ||
| 311 | A 6233260000 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE II | ||
| 311F | A 0003232885 | RUBBER MOUNTING |
| 311F | A 0003232885 | RUBBER MOUNTING |
| REAR AXLE I | ||
| 311F | A 0003232885 | RUBBER MOUNTING |
| REAR AXLE II | ||
| 311F | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 311F | A 0003233144 | RUBBER BUFFER |
| REAR AXLE II | ||
| A 0003230453 | SPACER TUBE | |
| Repalced by: A 0003233150 | ||
| 311H | A 0003233150 | SPACER RING |
| 311H | A 0003233150 | SPACER RING |
| REAR AXLE I | ||
| 311H | A 0003233150 | SPACER RING |
| REAR AXLE II | ||
| 311H | A 0003234350 | BUSHING |
| REAR AXLE II | ||
| 312 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 314 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 314 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 320 | A 3873200243 | BRACKET |
| REAR AXLE II | ||
| 322 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 322 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M12X35 | ||
| 324 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 330 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| M16X85 | ||
| 332 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 332 | N 910113016002 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 340 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 342 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 342 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| M20X140 | ||
| 344 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 344 | N 913004020003 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| A 3173260167 | RETAINER | |
| SHOCK ABSORBER TO REAR AXLE | ||
| 346 | A 3879915040 | SPACER TUBE |
| SHOCK ABSORBER TO REAR AXLE | ||
| 347 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 348 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 348 | N 910113016001 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||

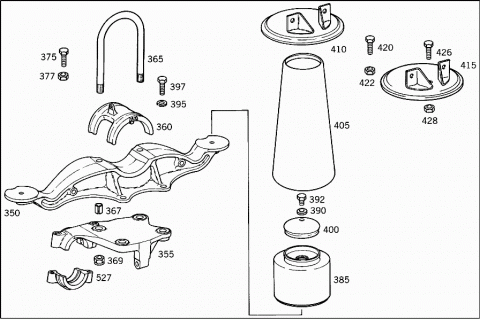

| 350 | A 3933280241 | SUPPORT |
| AIR SPRING BELLOWS | ||
| 355 | A 3933250140 | BRACKET |
| REAR STABILIZER | ||
| A 3933250240 | BRACKET | |
| REAR STABILIZER | ||
| 360 | A 3933280284 | SHIM |
| REAR STABILIZER | ||
| 365 | A 3873510625 | U-BOLT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 290 MM | ||
| 367 | N 007346030003 | CLAMPING SLEEVE |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 369 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 375 | N 000961016039 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT | ||
| M16X50 | ||
| 377 | N 000439016203 | NUT |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 385 | A 3873200418 | PISTON |
| PNEUMATIC SUSPENSION | ||
| 210 MM | ||
| 385 | A 3873200518 | PISTON |
| Repalced by: A 3873200818 | ||
| 385 | A 3873200818 | PISTON |
| 385 | A 3873200818 | PISTON |
| REAR AXLE I PNEUMATIC SUSPENSION | ||
| 385 | A 3873200818 | PISTON |
| TRAILING AXLE LIFT | ||
| 385 | A 3933200318 | PISTON |
| Repalced by: A 3933200718 | ||
| 385 | A 3933200718 | PISTON |
| REAR AXLE II PNEUMATIC SUSPENSION | ||
| 390 | N 007603012405 | SEAL RING |
| 392 | A 0004290456 | SCREW PLUG |
| 395 | N 912004016101 | LOCK WASHER |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 397 | N 000960016112 | SCREW |
| Repalced by: N 308676016015 | ||
| 397 | N 308676016015 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| M16X55 | ||
| 397 | N 000960016171 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| M16X60 | ||
| 397 | N 000960016212 | SCREW |
| Repalced by: N 000960016261 | ||
| 397 | N 000960016261 | SCREW |
| Repalced by: N 308676016014 | ||
| 397 | N 308676016014 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| M16X65 | ||
| 400 | A 3933280239 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,DRIVING AXLE | ||
| 400 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,DRIVING AXLE | ||
| 400 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP) EMERGENCY RUNNING,TRAILING AXLE | ||
| N 000961016142 | SCREW | |
| TRAILING AXLE LIFT | ||
| M16X30 | ||
| N 000961016081 | SCREW | |
| PISTON TO CROSS MEMBER | ||
| M16X25 | ||
| 405 | A 3873280001 | AIR SPRING BELLOWS |
| DRIVING AXLE | ||
| 405 | A 3873280101 | AIR SPRING BELLOWS |
| DRIVING AXLE | ||
| 405 | A 3933280101 | AIR SPRING BELLOWS |
| TRAILING AXLE | ||
| 405 | A 3933280201 | AIR SPRING BELLOWS |
| TRAILING AXLE | ||
| 410 | A 3873200535 | PLATE |
| REAR AXLE I,FRONT;REAR AXLE II,REAR | ||
| 410 | A 3873200535 | PLATE |
| REAR AXLE I,FRONT;REAR AXLE II,REAR | ||
| 415 | A 3873200635 | PLATE |
| REAR AXLE I,REAR;REAR AXLE II,FRONT | ||
| 415 | A 3873200635 | PLATE |
| REAR AXLE I,REAR;REAR AXLE II,FRONT | ||
| 420 | N 000960018098 | SCREW |
| PLATE TO FRAME | ||
| M18X75 | ||
| 422 | N 913004018004 | NUT |
| PLATE TO FRAME | ||
| 426 | N 000961012106 | SCREW |
| PLATE TO FRAME | ||
| M12X35 | ||
| 428 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 428 | N 910113012003 | NUT |
| PLATE TO FRAME | ||
| A 3833200335 | PLATE | |
| TRAILING AXLE | ||
| A 3833270053 | SPACER TUBE | |
| PLATE TO SPRING CONSOLE | ||
| N 308675022001 | NUT | |
| PLATE TO SPRING CONSOLE | ||

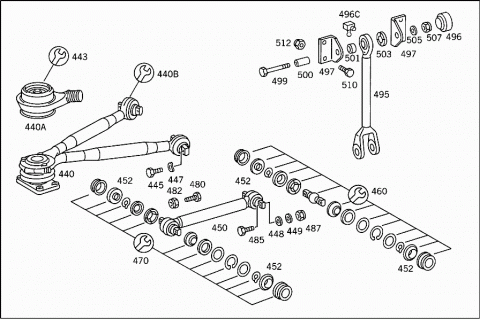

| 440 | A 3933505005 | CONTROL ARM |
| Repalced by: A 3933505405 | ||
| 440 | A 3933505205 | CONTROL ARM |
| Repalced by: A 3933505405 | ||
| 440 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 440 | A 6553500305 | CONTROL ARM |
| TRIANGULAR | ||
| 440 | A 3933505105 | CONTROL ARM |
| Repalced by: A 3933505505 | ||
| 440 | A 3933505305 | CONTROL ARM |
| Repalced by: A 3933505505 | ||
| 440 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 440 | A 6583500005 | CONTROL ARM |
| TRIANGULAR | ||
| 440A | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 53 05;393 350 55 05; | ||
| 440A | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 440A | A 0003500813 | JOINT |
| (CENTRAL JOINT) | ||
| TO 658 350 00 05;EHRENREICH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EHRENREICH | ||
| 440B | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 50 05;393 350 52 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 393 350 54 05;655 350 03 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEMFOERDER | ||
| 440B | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 53 05;393 350 55 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 658 350 00 05;EHRENREICH | ||
| 443 | A 0005860135 | PART NAME MISSING |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 50 05;393 350 52 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 393 350 54 05;LEMFOERDER | ||
| 443 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 443 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 443 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 53 05;393 350 55 05; | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EHRENREICH | ||
| 443 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 658 350 00 05;EHRENREICH | ||
| 445 | N 000961020016 | SCREW |
| Repalced by: N 308676020021 | ||
| 445 | N 308676020021 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| M20X55 | ||
| 447 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 447 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO SUPPORT | ||
| 448 | A 3933280152 | SPACER WASHER |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| 0.50 MM | ||
| 448 | A 3933280252 | SPACER WASHER |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| 1.00 MM | ||
| 448 | A 3933280352 | SPACER WASHER |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| 2.00 MM | ||
| 448 | A 3933280452 | SPACER WASHER |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| 4.00 MM | ||
| 449 | N 000125021005 | WASHER |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| 450 | A 3933200132 | LINK |
| Repalced by: A 6553500006 | ||
| 450 | A 6553500006 | CONTROL ARM |
| Repalced by: A 6583500006 | ||
| 450 | A 6583500006 | CONTROL ARM |
| Repalced by: A 6583500206 | ||
| 450 | A 6583500206 | CONTROL ARM |
| LOWER CONTROL ARM | ||
| 452 | A 0003381797 | BOOT |
| 460 | A 0003500213 | JOINT |
| WITH BALL PIVOT | ||
| TO 393 320 01 32 | ||
| 470 | A 0003500505 | CONTROL ARM |
| Repalced by: A 0003500305 | ||
| 470 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 470 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 655 350 00 06 | ||
| 480 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 480 | N 000960020078 | SCREW |
| CONTROL ARM TO REAR AXLE | ||
| M20X85 | ||
| 482 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 482 | N 913004020003 | NUT |
| CONTROL ARM TO REAR AXLE | ||
| 485 | N 000960020150 | SCREW |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| M20X205 | ||
| 487 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 487 | N 913004020003 | NUT |
| CONTROL ARM ON INTERMEDIATE PLATE | ||
| 495 | A 3933200689 | ROD |
| TORSION BAR | ||
| 495 | A 3933200789 | ROD |
| TORSION BAR | ||
| 495 | A 3933200789 | ROD |
| TORSION BAR | ||
| 496 | A 0009816131 | JOINT BEARING |
| 496C | N 071412008302 | GREASE NIPPLE |
| 497 | A 3933260440 | BRACKET |
| TORSION BAR | ||
| 497 | A 3833260940 | BRACKET |
| TORSION BAR | ||
| 497 | A 3833260940 | BRACKET |
| TORSION BAR | ||
| 499 | A 3933260174 | PIN |
| Repalced by: N 000960016247 | ||
| 499 | N 000960016285 | SCREW |
| THRUST ARM TO SUBSTRUCTURE | ||
| 500 | A 3853230453 | SPACER TUBE |
| BRACKET TO STABILIZER ROD | ||
| 501 | A 3853230353 | SPACER TUBE |
| BRACKET TO STABILIZER ROD | ||
| 503 | A 3933230160 | SEAL RING |
| Repalced by: A 3803230260 | ||
| 503 | A 3803230260 | SEAL RING |
| BRACKET TO STABILIZER ROD | ||
| 505 | N 000125023006 | WASHER |
| BRACKET TO STABILIZER ROD | ||
| 505 | N 007349017002 | WASHER |
| BRACKET TO STABILIZER ROD | ||
| 507 | N 913004022002 | NUT |
| BRACKET TO STABILIZER ROD | ||
| 507 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 507 | N 910113016001 | NUT |
| BRACKET TO STABILIZER ROD | ||
| 510 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 510 | N 308676016006 | SCREW |
| ROD TO FRAME | ||
| M 16X45 | ||
| 510 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 510 | N 308676016005 | SCREW |
| ROD TO FRAME | ||
| M 16X50 | ||
| 510 | N 000961018020 | SCREW |
| ROD TO FRAME | ||
| M 18X50 | ||
| 510 | N 000961018020 | SCREW |
| ROD TO FRAME | ||
| M 18X50 | ||
| 512 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 512 | N 910113016001 | NUT |
| ROD TO FRAME | ||
| 512 | N 913004018031 | NUT |
| ROD TO FRAME | ||
| 512 | N 913004018031 | NUT |
| ROD TO FRAME | ||

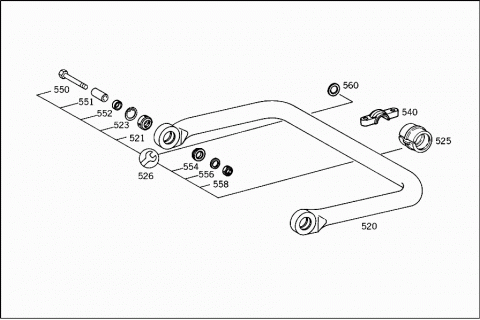

| 520 | A 3933260765 | TORSION BAR |
| 520 | A 3933260565 | TORSION BAR |
| 520 | A 3933260865 | TORSION BAR |
| 521 | A 0009816131 | JOINT BEARING |
| TORSION BAR | ||
| 521 | A 0009817431 | JOINT BEARING |
| TORSION BAR | ||
| 523 | N 000472055001 | LOCK RING |
| TORSION BAR | ||
| 525 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 525 | A 3933260381 | RUBBER MOUNTING |
| TORSION BAR | ||
| 526 | A 3875860332 | REPAIR KIT |
| Repalced by: A 3873200328 | ||
| 526 | A 3873200328 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 526 | A 3935860532 | REPAIR KIT |
| Repalced by: A 3933200428 | ||
| 526 | A 3933200428 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 527 | A 3933250319 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| A 3933250419 | SPRING SEAT | |
| TORSION BAR TO REAR AXLE,LEFT | ||
| N 000960016285 | SCREW | |
| TORSION BAR TO REAR AXLE | ||
| M 16X115 | ||
| N 000960016251 | SCREW | |
| TORSION BAR TO REAR AXLE | ||
| M 16X155 | ||
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| TORSION BAR TO REAR AXLE | ||
| 540 | A 3933250940 | BRACKET |
| Repalced by: A 3933251540 | ||
| 540 | A 3933251540 | BRACKET |
| TORSION BAR | ||
| A 3933251040 | BRACKET | |
| Repalced by: A 3933251440 | ||
| A 3933251440 | BRACKET | |
| TORSION BAR | ||
| N 000960016244 | SCREW | |
| BRACKET TO TORSION BAR | ||
| N 000961010038 | SCREW | |
| BRACKET TO TORSION BAR | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| BRACKET TO TORSION BAR | ||
| N 913004010010 | NUT | |
| Repalced by: N 910113010002 | ||
| N 910113010002 | NUT | |
| BRACKET TO TORSION BAR | ||
| 550 | A 3933260174 | PIN |
| Repalced by: N 000960016247 | ||
| N 000960016285 | SCREW | |
| ROD TO TORSION BAR | ||
| M 16X115 | ||
| 551 | A 3853230453 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 552 | A 3853230353 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 554 | A 3933230160 | SEAL RING |
| Repalced by: A 3803230160 | ||
| 554 | A 3803230160 | SEAL RING |
| ROD TO TORSION BAR | ||
| 556 | N 000125023006 | WASHER |
| ROD TO TORSION BAR | ||
| 556 | N 007349017002 | WASHER |
| ROD TO TORSION BAR | ||
| 558 | N 913004022002 | NUT |
| ROD TO TORSION BAR | ||
| 558 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 558 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 560 | A 3939900140 | WASHER |
| ROD TO TORSION BAR | ||

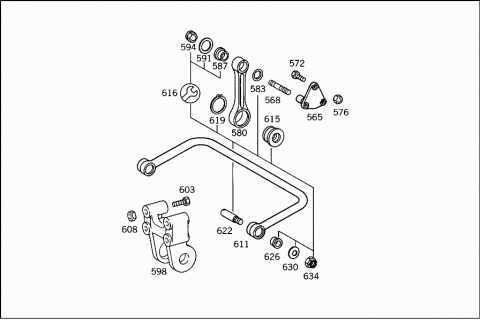

| 565 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 565 | A 3873230563 | BEARING BRACKET |
| REAR STABILIZER | ||
| 568 | N 000939012102 | STUD BOLT |
| 572 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 572 | N 308676016005 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X60 | ||
| 572 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 572 | N 308676016005 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X38 | ||
| 576 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 576 | N 910113016001 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 580 | A 3873230516 | LINK |
| Repalced by: A 3873231016 | ||
| 580 | A 3873231016 | LINK |
| SHACKLE | ||
| 583 | A 3873230052 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 587 | A 0003232150 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 591 | A 3873230152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 594 | N 910113012002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 598 | A 3933260263 | BEARING BRACKET |
| TORSION BAR | ||
| 603 | N 000960012331 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 608 | N 910113012002 | NUT |
| BEARING BRACKET TO REAR AXLE | ||
| A 3933260665 | TORSION BAR | |
| Repalced by: A 3933261165 | ||
| 611 | A 3933261165 | TORSION BAR |
| REAR AXLE | ||
| 615 | A 0003233885 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 615 | A 0003233985 | RUBBER MOUNTING |
| TORSION BAR | ||
| 615 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 616 | A 4355860032 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 616 | A 3935860132 | REPAIR KIT |
| Repalced by: A 3933200128 | ||
| 616 | A 3933200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 616 | A 3935860432 | REPAIR KIT |
| Repalced by: A 3933200328 | ||
| 616 | A 3933200328 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 619 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 622 | A 3353230074 | PIN |
| Repalced by: A 4355860032 | ||
| 622 | A 4355860032 | REPAIR KIT |
| TORSION BAR | ||
| 622 | A 3353230074 | PIN |
| Repalced by: A 3935860132 | ||
| 622 | A 3353230074 | PIN |
| Repalced by: A 3935860432 | ||
| 626 | A 0003230950 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 630 | A 0009932026 | DISC SPRING |
| TORSION BAR TO BEARING BRACKET | ||
| 634 | N 000935020001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| N 000094004065 | COTTER PIN | |
| TORSION BAR TO BEARING BRACKET | ||

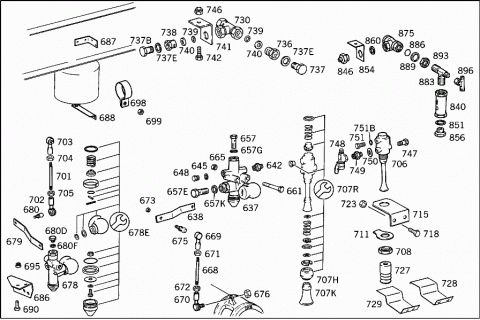

| 637 | A 0003283130 | VALVE |
| Repalced by: A 0003283230 | ||
| 637 | A 0003283230 | VALVE |
| REAR AXLE I SELF-LEVELLING DEVICE | ||
| KNORR | ||
| 637 | A 0003283030 | VALVE |
| Repalced by: A 0003283330 | ||
| 637 | A 0003283330 | VALVE |
| REAR AXLE I SELF-LEVELLING DEVICE | ||
| KNORR | ||
| A 0003280192 | BOOT | |
| Repalced by: A 0003280292 | ||
| A 0003280292 | BOOT | |
| A 0005861332 | REPAIR KIT | |
| Repalced by: A 0003201067 | ||
| A 0003201067 | REPAIR KIT | |
| AIR SPRING VALVE | ||
| KNORR SV-1280-I/80093 | ||
| A 0005861432 | REPAIR KIT | |
| Repalced by: A 0003200367 | ||
| A 0003200367 | REPAIR KIT | |
| Repalced by: A 0003200967 | ||
| A 0003200967 | REPAIR KIT | |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/69346 | ||
| A 0003200967 | REPAIR KIT | |
| AIR SPRING VALVE | ||
| KNORR SV 1281-I/80095 | ||
| N 912004008102 | LOCK WASHER | |
| LEVER TO AIR SPRING VALVE | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| LEVER TO AIR SPRING VALVE | ||
| 638 | A 3603200927 | LEVER |
| AIR SPRING VALVE | ||
| N 071803013208 | BALL PIVOT | |
| 642 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 642 | A 0019972572 | FITTING |
| AIR SPRING VALVE | ||
| 645 | N 007603012405 | SEAL RING |
| AIR SPRING VALVE | ||
| 648 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 648 | N 000908012009 | SCREW PLUG |
| AIR SPRING VALVE | ||
| 657 | N 915036006202 | HOLLOW SCREW |
| AIR SPRING VALVE | ||
| A 0009903563 | HOLLOW SCREW | |
| Repalced by: N 915047008100 | ||
| N 915047008202 | HOLLOW SCREW | |
| AIR SPRING VALVE | ||
| N 915047008202 | HOLLOW SCREW | |
| AIR SPRING VALVE | ||
| 657E | N 915036012203 | HOLLOW SCREW |
| AIR SPRING VALVE | ||
| 657G | N 007603012405 | SEAL RING |
| AIR SPRING VALVE | ||
| 657K | N 007603016401 | SEAL RING |
| AIR SPRING VALVE | ||
| A 3609901140 | WASHER | |
| 661 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 661 | N 000933008134 | SCREW |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| 665 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 665 | N 913004008001 | NUT |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| A 3873200389 | ROD | |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 668 | N 900331008427 | PULL ROD |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 669 | A 0004310667 | YOKE |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 670 | A 0004310767 | YOKE |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 671 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 671 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 672 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 672 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 673 | N 304032008006 | NUT |
| 675 | N 071803013102 | BALL PIVOT |
| 676 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 676 | N 913004008001 | NUT |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 678 | A 0003282830 | VALVE |
| REAR AXLE II SELF-LEVELLING DEVICE | ||
| A 0003280092 | BOOT | |
| Repalced by: A 0003280292 | ||
| A 0003280292 | BOOT | |
| 678E | A 0005861232 | REPAIR KIT |
| Repalced by: A 0003200267 | ||
| 678E | A 0003200267 | REPAIR KIT |
| AIR SPRING VALVE | ||
| 679 | A 3603200927 | LEVER |
| AIR SPRING VALVE | ||
| 680 | N 071803013208 | BALL PIVOT |
| N 912004008102 | LOCK WASHER | |
| LEVER TO AIR SPRING VALVE | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| LEVER TO AIR SPRING VALVE | ||
| 680D | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 680D | N 000908012009 | SCREW PLUG |
| AIR SPRING VALVE | ||
| 680F | N 007603012405 | SEAL RING |
| AIR SPRING VALVE | ||
| 686 | A 3933281340 | BRACKET |
| AIR SPRING VALVE | ||
| 687 | A 3933282540 | BRACKET |
| AIR SPRING VALVE | ||
| 688 | A 3933281440 | BRACKET |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 690 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 690 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| N 000933010128 | SCREW | |
| BRACKET TO FRAME | ||
| 695 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 695 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO FRAME | ||
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| AIR SPRING VALVE TO BRACKET | ||
| A 3159185017 | BUSHING | |
| Repalced by: A 3354310053 | ||
| A 3354310053 | SPACER TUBE | |
| Repalced by: A 3094310249 | ||
| A 3094310249 | GUIDE BUSHING | |
| AIR SPRING VALVE TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| AIR SPRING VALVE TO BRACKET | ||
| 698 | A 1869950544 | CLAMP |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 699 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 699 | N 913004008001 | NUT |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| A 3933201089 | ROD | |
| Repalced by: N 900331008421 | ||
| N 900331008421 | PULL ROD | |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| A 3873200189 | ROD | |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 701 | N 900331008428 | PULL ROD |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 701 | N 900331008426 | PULL ROD |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 702 | A 0004310667 | YOKE |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 703 | A 0004310767 | YOKE |
| LEVEL ADJUSTMENT VALVE CONTROL | ||
| 704 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 704 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 705 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 705 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 706 | A 0019973836 | VALVE |
| Repalced by: A 0004342501 | ||
| 706 | A 0004342501 | VALVE |
| (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| A 0079972548 | SEAL RING | |
| WABCO 463 013 118 0 | ||
| A 0079972448 | SEAL RING | |
| WABCO 463 013 118 0 | ||
| 707H | A 0004340586 | CUP |
| WABCO 463 013 118 0 | ||
| 707K | A 0009972177 | HANDLE |
| WABCO 463 013 118 0 | ||
| A 0005869743 | REPAIR KIT | |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| WABCO 463 013 018 0 | ||
| 707R | A 0025869843 | REPAIR KIT |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| WABCO 463 013 118 0 | ||
| 708 | N 080705026000 | NUT |
| Repalced by: N 080705026003 | ||
| 708 | N 080705026003 | NUT |
| VALVE TO BRACKET | ||
| 711 | N 000093027000 | LOCK PLATE |
| VALVE TO BRACKET | ||
| 715 | A 3934282440 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 718 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 718 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| 723 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 723 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 727 | A 3633280039 | RUBBER BUFFER |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 728 | A 3933282040 | BRACKET |
| Repalced by: A 3933200543 | ||
| 729 | A 3933282140 | BRACKET |
| Repalced by: A 3933200543 | ||
| 729 | A 3933200543 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| N 000965008006 | SCREW | |
| Repalced by: N 000963008036 | ||
| N 000963008036 | SCREW | |
| BRACKET TO SHIM | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SHIM | ||
| 730 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 730 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 730 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 730 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 730 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 730 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| A 0004290682 | VALVE | |
| Repalced by: A 0004290782 | ||
| A 0004290782 | VALVE | |
| Repalced by: A 0004291182 | ||
| A 0004291182 | VALVE BODY | |
| PISTONS | ||
| WABCO | ||
| A 0004291182 | VALVE BODY | |
| PISTONS | ||
| WABCO | ||
| A 0004291182 | VALVE BODY | |
| PISTONS | ||
| WABCO | ||
| A 0029810485 | BALL | |
| VOSS | ||
| A 0029810485 | BALL | |
| VOSS | ||
| A 0029810485 | BALL | |
| VOSS | ||
| A 0004290180 | GASKET | |
| VOSS | ||
| A 0004290180 | GASKET | |
| VOSS | ||
| A 0004290180 | GASKET | |
| VOSS | ||
| A 0009904468 | FITTING | |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| A 0009870446 | SEALING CORD | |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| A 0004290227 | THRUST RING | |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 736 | A 0004291034 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737 | A 0009903563 | HOLLOW SCREW |
| Repalced by: N 915047008100 | ||
| 737 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737 | N 915047008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737B | N 915039008202 | HOLLOW SCREW FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737B | N 915036008202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 737E | N 007603012405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 738 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 739 | A 0009870446 | SEALING CORD |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 740 | A 0004290227 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 741 | A 3603282140 | BRACKET |
| Repalced by: A 3183281840 | ||
| 741 | A 3183281840 | BRACKET |
| Repalced by: A 3094921819 | ||
| 741 | A 3094921819 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 742 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 746 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 746 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 747 | A 0024293344 | VALVE |
| (CHECK VALVE) | ||
| 748 | A 0024292444 | VALVE |
| (TEST VALVE) | ||
| A 0039974348 | SEAL RING | |
| TEST VALVE | ||
| A 0039974448 | SEAL RING | |
| TEST VALVE | ||
| A 0039974548 | SEAL RING | |
| TEST VALVE | ||
| N 915017008100 | UNION NUT | |
| TEST VALVE | ||
| N 003861008005 | GLAND | |
| TEST VALVE | ||
| 749 | N 003901008001 | SCREW-IN FITTING |
| Repalced by: A 0019972572 | ||
| 749 | A 0019972572 | FITTING |
| TEST VALVE | ||
| 750 | N 007603012405 | SEAL RING |
| TEST VALVE | ||
| 751 | N 915039008202 | HOLLOW SCREW FITTING |
| TEST VALVE | ||
| 751B | N 007603012405 | SEAL RING |
| TEST VALVE | ||
| 752 | A 0003275725 | VALVE |
| Repalced by: A 0003290425 | ||
| 752 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 752 | A 0003290825 | VALVE |
| (SHIFT VALVE) | ||
| KNORR | ||
| 752 | A 0003290725 | VALVE |
| (SHIFT VALVE) | ||
| GRAU | ||
| 752C | A 0003270192 | BOOT |
| A 0003290193 | PROTECTIVE CAP | |
| TO 000 329 04 25,000 329 08 25 | ||
| A 0003290293 | PROTECTIVE CAP | |
| Repalced by: A 0003290092 | ||
| A 0003290092 | BOOT | |
| TO 000 329 04 25,000 329 08 25 | ||
| 752D | A 0029973690 | LOOM TIE |
| 752E | A 0005840129 | OPERATING PLATE |
| 752H | A 0003270159 | PROTECTIVE CAP |
| A 0009973377 | HANDLE | |
| A 0009973177 | HANDLE | |
| TO 000 329 04 25,000 329 08 25 | ||
| A 0003200058 | VALVE | |
| TO 000 329 04 25,000 329 08 25 | ||
| 753 | A 0005860832 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR | ||
| A 0005861132 | REPAIR KIT | |
| CONTROL VALVE | ||
| KNORR SV3111-I/73100 | ||
| A 0003200767 | REPAIR KIT | |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 754 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| SHIFT VALVE TO BRACKET | ||
| 755 | A 0004312031 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 755 | A 0004314531 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 755 | A 0004314831 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| 755 | A 0004316131 | TEST CONNECTION |
| AT SELF-LEVELLING DEVICE BRACKET | ||
| A 3935840721 | GUIDE SIGN | |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| A 3935840821 | GUIDE SIGN | |
| TRAILING AXLE LIFT | ||
| A 3875840055 | ADHESIVE FOIL | |
| TRAILING AXLE LIFT | ||
| 756 | A 0019904071 | ELBOW FITTING |
| TEST CONNECTION | ||
| 756E | N 912004012100 | LOCK WASHER |
| TEST CONNECTION | ||
| 756F | N 080705012003 | NUT |
| TEST CONNECTION | ||
| 757 | A 0009907470 | T-FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 758 | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 759 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 760 | N 080705016003 | NUT |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 761 | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 761 | A 0029979572 | FITTING |
| CONNECTION "3" | ||
| 761 | N 915036012203 | HOLLOW SCREW |
| LINE CONNECTION | ||
| 762 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 763 | A 3873200343 | BRACKET |
| TEST CONNECTION | ||
| 763 | A 3873200443 | BRACKET |
| TEST CONNECTION | ||
| 765 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 765 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 767 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 769 | A 0009905563 | HOLLOW SCREW |
| Repalced by: N 915047012100 | ||
| 769 | N 915047012100 | HOLLOW SCREW |
| CONTROL VALVE | ||
| N 915036012203 | HOLLOW SCREW | |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,13,21,23" | ||
| N 915036012203 | HOLLOW SCREW | |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,13,21,23" | ||
| N 915036012203 | HOLLOW SCREW | |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,13,21,23" | ||
| 772 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,13,21,23" | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| SHIFT VALVE TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| SHIFT VALVE TO BRACKET | ||

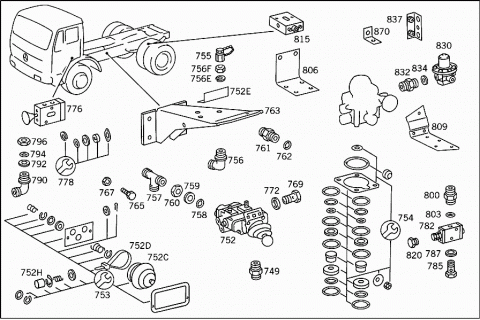

| 776 | A 0014299244 | VALVE |
| MANUAL RAISING OF TRAILING AXLE | ||
| A 0009972677 | HANDLE | |
| 778 | A 0015865542 | REPAIR KIT |
| 3/2-WAY VALVE | ||
| 782 | A 0024295144 | VALVE |
| AUTOMATIC LOWERING OF TRAILING AXLE | ||
| A 0004301560 | REPAIR KIT | |
| 3/2-WAY VALVE | ||
| 785 | A 0009905363 | HOLLOW SCREW |
| Repalced by: N 915047006101 | ||
| 785 | A 0009903663 | HOLLOW SCREW |
| Repalced by: N 915047006101 | ||
| 785 | N 915047006101 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| 785 | N 915047006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| 787 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 787 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE | ||
| 790 | A 0009909271 | ELBOW FITTING |
| 3/2-WAY VALVE | ||
| 792 | A 0079974245 | SEAL RING |
| 3/2-WAY VALVE | ||
| 794 | A 0004290627 | THRUST RING |
| 3/2-WAY VALVE | ||
| 796 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 796 | N 308675014001 | NUT |
| 3/2-WAY VALVE | ||
| A 3049900163 | HOLLOW SCREW | |
| Repalced by: N 915047010100 | ||
| N 915047010202 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915047010202 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 007603014405 | SEAL RING | |
| 3/2-WAY VALVE | ||
| A 0019973972 | FITTING | |
| 3/2-WAY VALVE | ||
| N 915036006202 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915036006202 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| 3/2-WAY VALVE | ||
| 800 | A 0029978472 | FITTING |
| 3/2-WAY VALVE | ||
| 803 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 803 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE | ||
| 806 | A 3934291240 | BRACKET |
| 3/2-WAY VALVE | ||
| N 000931005047 | SCREW | |
| 3/2-WAY VALVE TO BRACKET | ||
| M 5X75 | ||
| N 007985005165 | SCREW | |
| 3/2-WAY VALVE TO BRACKET | ||
| M 5X40 | ||
| N 913004005001 | NUT | |
| 3/2-WAY VALVE TO BRACKET | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| 3/2-WAY VALVE TO BRACKET | ||
| M 8X30 | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| 3/2-WAY VALVE TO BRACKET | ||
| 809 | A 3933910540 | BRACKET |
| 3/2-WAY VALVE | ||
| A 3934290047 | COVERING | |
| 3/2-WAY VALVE | ||
| N 000931005050 | SCREW | |
| 3/2-WAY VALVE TO BRACKET | ||
| M 5X70 | ||
| N 000931005012 | SCREW | |
| 3/2-WAY VALVE TO BRACKET | ||
| M 5X50 | ||
| N 000931005022 | SCREW | |
| 3/2-WAY VALVE TO BRACKET | ||
| M 5X35 | ||
| N 007349005001 | WASHER | |
| 3/2-WAY VALVE TO BRACKET | ||
| N 912004005103 | LOCK WASHER | |
| 3/2-WAY VALVE TO BRACKET | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| 3/2-WAY VALVE TO BRACKET | ||
| N 001587005000 | CAP NUT | |
| 3/2-WAY VALVE TO BRACKET | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| M 6X20 | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BRACKET TO CAB FLOOR | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO CAB FLOOR | ||
| 815 | A 0014299344 | VALVE |
| Repalced by: A 0034296844 | ||
| 815 | A 0034296844 | VALVE |
| TRAILING AXLE CONTROL | ||
| 820 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 820 | N 007604014110 | SCREW PLUG |
| 3/2-WAY | ||
| A 0009972072 | FITTING | |
| Repalced by: A 0039979972 | ||
| A 0039979972 | FITTING | |
| 3/2-WAY VALVE | ||
| N 007603014405 | SEAL RING | |
| 3/2-WAY VALVE | ||
| A 0009903663 | HOLLOW SCREW | |
| Repalced by: N 915047006101 | ||
| N 915047006101 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915047006202 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915036006103 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 915036006202 | HOLLOW SCREW | |
| 3/2-WAY VALVE | ||
| N 007603010103 | SEAL RING | |
| Repalced by: N 007603010110 | ||
| N 007603010110 | SEAL RING | |
| 3/2-WAY VALVE | ||
| 830 | A 0014295644 | VALVE |
| (PRESSURE RELIEF VALVE) | ||
| A 0004300568 | REPAIR KIT | |
| PRESSURE RELIEF VALVE | ||
| 832 | A 0019972572 | FITTING |
| PRESSURE RELIEF VALVE | ||
| 834 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE | ||
| A 0009903563 | HOLLOW SCREW | |
| Repalced by: N 915047008100 | ||
| N 915047008202 | HOLLOW SCREW | |
| PRESSURE RELIEF VALVE | ||
| N 915047008202 | HOLLOW SCREW | |
| PRESSURE RELIEF VALVE | ||
| N 000933010128 | SCREW | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| M 10X20 | ||
| N 912004010102 | LOCK WASHER | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| 837 | A 3933200143 | BRACKET |
| PRESSURE RELIEF VALVE | ||
| A 0009977172 | FITTING | |
| PRESSURE RELIEF VALVE | ||
| A 0019972772 | FITTING | |
| PRESSURE RELIEF VALVE | ||
| N 912004012100 | LOCK WASHER | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| N 912004014100 | LOCK WASHER | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| N 080705012003 | NUT | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| N 080705014002 | NUT | |
| PRESSURE RELIEF VALVE TO BRACKET | ||
| N 000933006036 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| M 6X15 | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| 840 | A 0024290444 | VALVE |
| (CHECK VALVE) | ||
| 846 | A 0004291034 | ADAPTER FITTING |
| CHECK VALVE | ||
| 851 | A 0009870446 | SEALING CORD |
| CHECK VALVE | ||
| A 0004290227 | THRUST RING | |
| CHECK VALVE | ||
| 854 | A 3603282140 | BRACKET |
| Repalced by: A 3183281840 | ||
| 854 | A 3183281840 | BRACKET |
| Repalced by: A 3094921819 | ||
| 854 | A 3094921819 | BRACKET |
| CHECK VALVE | ||
| 856 | A 0009904468 | FITTING |
| CHECK VALVE | ||
| 856 | A 0019907168 | FITTING |
| CHECK VALVE | ||
| A 0009870446 | SEALING CORD | |
| CHECK VALVE | ||
| 860 | A 0004290227 | THRUST RING |
| CHECK VALVE | ||
| N 000933008145 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| CHECK VALVE | ||
| N 915036008202 | HOLLOW SCREW | |
| CHECK VALVE | ||
| N 007603012405 | SEAL RING | |
| CHECK VALVE | ||
| A 0009904468 | FITTING | |
| AT AIR RESERVOIR | ||
| A 0009870446 | SEALING CORD | |
| AT AIR RESERVOIR | ||
| A 0004290227 | THRUST RING | |
| AT AIR RESERVOIR | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| AT AIR RESERVOIR | ||
| N 915036008202 | HOLLOW SCREW | |
| AT AIR RESERVOIR | ||
| N 007603012405 | SEAL RING | |
| AT AIR RESERVOIR | ||
| A 0009972072 | FITTING | |
| Repalced by: A 0039979972 | ||
| A 0039979972 | FITTING | |
| AIR SPRING BELLOWS | ||
| N 007603014405 | SEAL RING | |
| AIR SPRING BELLOWS | ||
| A 0079974245 | SEAL RING | |
| AIR SPRING BELLOWS | ||
| A 0004290627 | THRUST RING | |
| AIR SPRING BELLOWS | ||
| 870 | A 3852670040 | BRACKET |
| AIR SPRING BELLOWS | ||
| A 0009972081 | GROMMET | |
| AIR SPRING BELLOWS | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| BRAKE POWER REGULATOR | ||
| N 915036008202 | HOLLOW SCREW | |
| BRAKE POWER REGULATOR | ||
| N 007603012405 | SEAL RING | |
| BRAKE POWER REGULATOR | ||
| 875 | A 0004290444 | VALVE |
| Repalced by: A 0034290744 | ||
| 875 | A 0034290744 | VALVE |
| (CHECK VALVE) | ||
| A 0004290088 | VALVE SEAT RING | |
| A 0004290049 | BUSHING | |
| A 0005865942 | REPAIR KIT | |
| CHECK VALVE | ||
| A 0009904468 | FITTING | |
| CHECK VALVE | ||
| N 007603022102 | SEAL RING | |
| CHECK VALVE | ||
| 883 | A 0009903270 | T-FITTING |
| CHECK VALVE | ||
| 886 | A 0009870446 | SEALING CORD |
| CHECK VALVE | ||
| 889 | A 0004290227 | THRUST RING |
| CHECK VALVE | ||
| 893 | N 074305022202 | NUT |
| CHECK VALVE | ||
| 896 | A 0019900070 | T-FITTING |
| CHECK VALVE | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| CHECK VALVE | ||
| N 007603012405 | SEAL RING | |
| CHECK VALVE | ||
| 900 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 900 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE,CHECK VALVE, 3/2-WAY VALVE | ||
| 9X12 MM | ||
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| A 0029906171 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 905 | N 915017012100 | UNION NUT |
| 908 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 908 | A 0019901967 | SEAL CONE |
| 911 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 911 | N 915062009000 | SLEEVE |
| 915 | A 0089979082 | HOSE |
| T-FITTING,REAR AXLE LEVEL ADJUSTMENT VALVE,CONNECTOR | ||
| 6X8 MM | ||
| 915 | A 0089979082 | HOSE |
| AIR RESERVOIR,SHIFT VALVE,CHECK VALVE, 3/2-WAY VALVE | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 918 | N 915017008100 | UNION NUT |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 921 | N 003861008005 | GLAND |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 925 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 925 | N 915062006000 | SLEEVE |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 928 | A 0019976772 | FITTING |
| Repalced by: N 915059006000 | ||
| 928 | N 915059006002 | FITTING |
| 3/2-WAY VALVE | ||
| A 0009907990 | T-FITTING | |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| 937 | N 915052006021 | BANJO UNION |
| 3/2-WAY VALVE | ||
| A 0009904678 | CONNECTOR | |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| N 915052006014 | BANJO UNION | |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6/16 | ||
| A 0009906688 | BANJO UNION | |
| Repalced by: N 915052006013 | ||
| N 915052006013 | BANJO UNION | |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 6/12 | ||
| A 0009907488 | BANJO UNION | |
| Repalced by: N 915052006003 | ||
| N 915052006022 | BANJO UNION | |
| 3/2-WAY VALVE | ||
| A 3879970381 | GROMMET | |
| COMPRESSED AIR LINE THRU FRAME | ||
| 942 | A 3833020091 | GROMMET |
| COMPRESSED AIR LINE THRU FRAME | ||
| N 000433008406 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| 945 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 949 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 949 | A 0009872627 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE,CHECK VALVE, 3/2-WAY VALVE | ||
| 4X6 MM | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 952 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 952 | N 915052004015 | BANJO UNION |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 4/12 | ||
| A 0009904288 | BANJO UNION | |
| Repalced by: N 915052004002 | ||
| N 915052004019 | BANJO UNION | |
| SHIFT VALVE,TWO-WAY VALVE,TEST CONNECTION | ||
| 4/16 | ||
| N 915052004016 | BANJO UNION | |
| LINE CONNECTION | ||
| A 0009906988 | BANJO UNION | |
| Repalced by: A 0019904388 | ||
| A 0019904388 | BANJO UNION | |
| LINE CONNECTION | ||
| 960 | N 915017006100 | UNION NUT |
| LINE CONNECTION | ||
| 963 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 963 | A 0019901667 | SEAL CONE |
| LINE CONNECTION | ||
| 967 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 967 | N 915062004000 | SLEEVE |
| LINE CONNECTION | ||
| A 0039977581 | GROMMET | |
| COMPRESSED AIR LINE THRU FRAME | ||
| 972 | A 0039977481 | GROMMET |
| COMPRESSED AIR LINE THRU FRAME | ||
| A 3833020091 | GROMMET | |
| COMPRESSED AIR LINE THRU FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
