Transporto priemonė: 2233 L; VIN numerio dalis: 623423
Grupė: 42 BRAKES

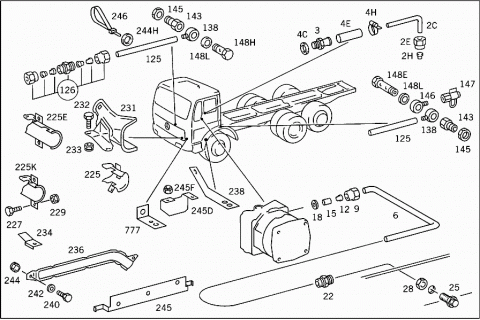

42418

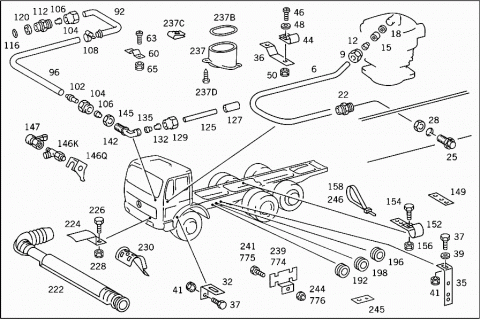

42419

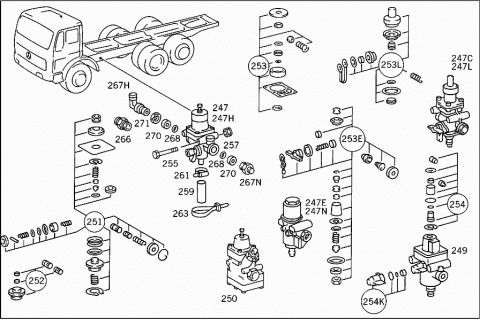

42420

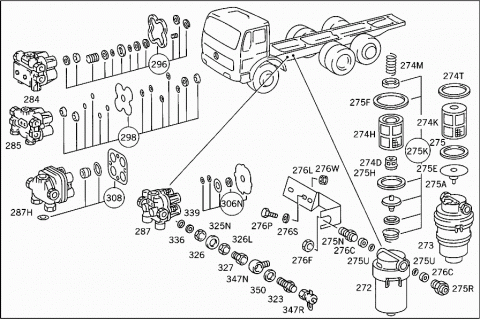

42421

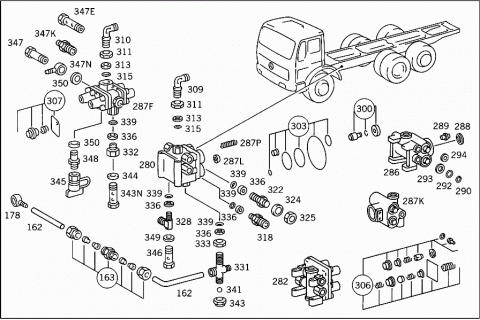

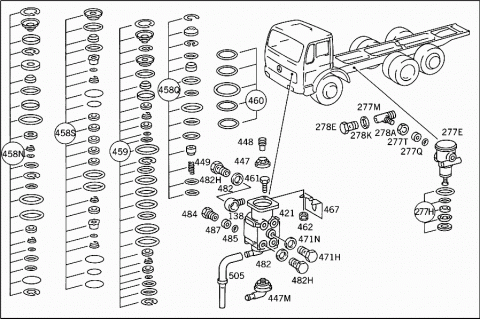

42422

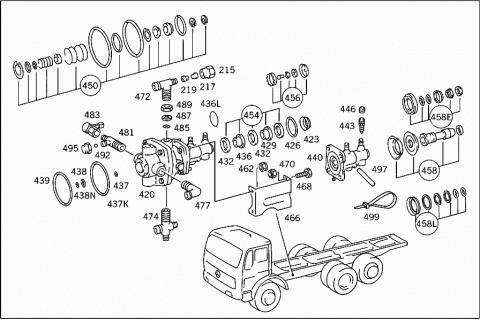

42423
42424

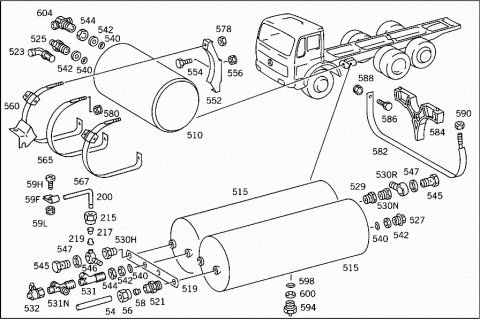

42425

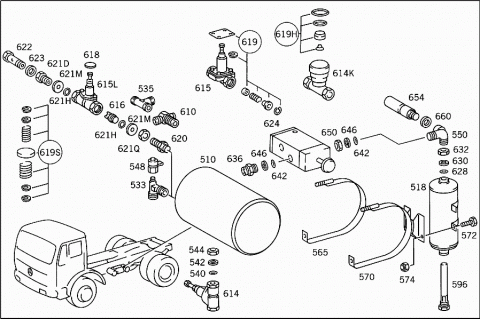

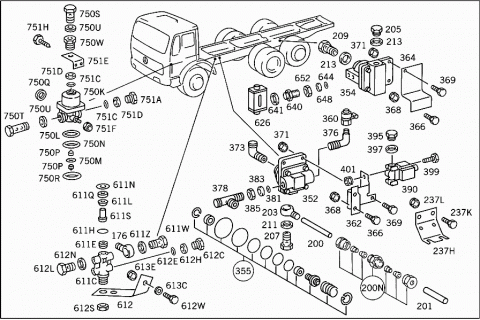

42426

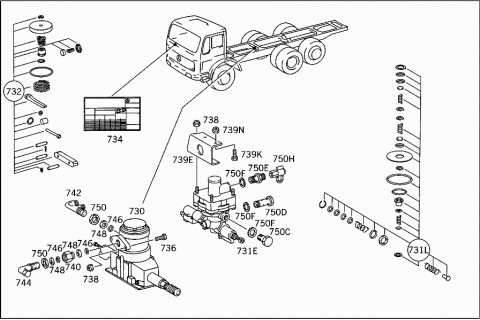

42427

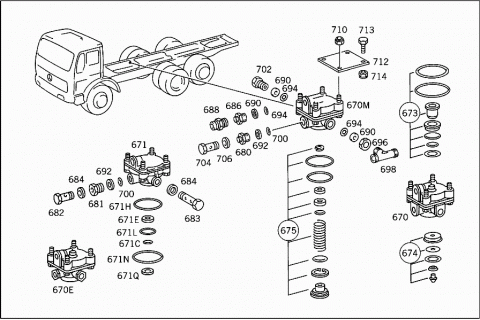

42428
42429

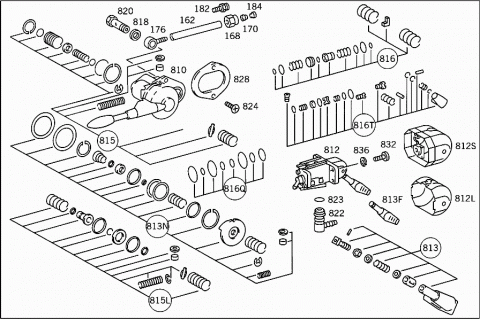

42430

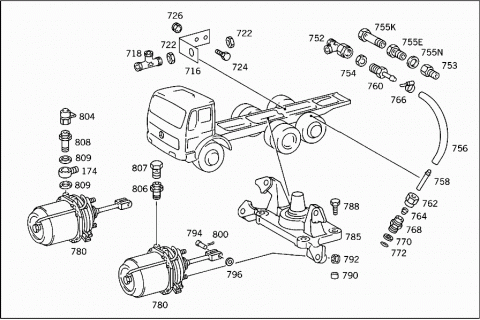

42431

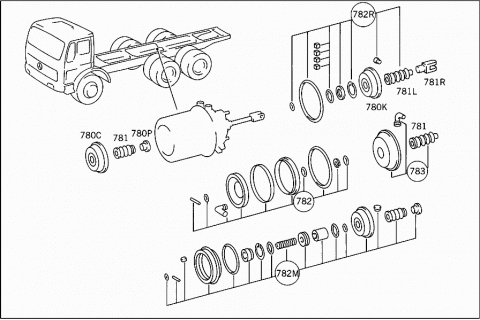

42432
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
740.3
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE I,SEE UNIT ST,ANDARD VERSION,MODEL:
748,4
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKE ON REAR AXLE II,SEE UNIT STANDARD VERISON,MODEL:
749.1
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
002C A 0004291601 LINE
FROM ENGINE AIR INTAKE PIPE SOCKET TO AIR COMPRESSOR
22 MM
002E N 915017022100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
002H N 003861022004 GLAND
Repalced by: A 0019901267
002H A 0019901267 SEAL CONE
COMPRESSED AIR LINE TO AIR COMPRESSOR
003 A 4031340156 FITTING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
004C N 007603026104 SEAL RING
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
004E N 900271022023 HOSE
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
22X31 MM
004H N 916017025000 CLAMP
Repalced by: N 000000000668
004H N 000000000668 CLAMP
COMPRESSED AIR LINE TO ENGINE AIR INTAKE PIPE SOCKET
006 A 0004291401 LINE
15 MM
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
006 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
006 A 0004291401 LINE
PRESSURE RELIEF VALVE
15 MM
009 N 915018015000 UNION NUT
N 915017015100 UNION NUT
012 N 003861015004 GLAND
015 N 915065015101 THRUST RING
018 N 915045012100 SEAL RING
Repalced by: N 007603012121
018 N 007603012121 SEAL RING
022 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
025 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
028 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
032 A 3464295840 BRACKET
Repalced by: A 3812950440
032 A 3144290240 BRACKET
Repalced by: A 3812950440
032 A 3812950440 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
035 A 3872950240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
036 A 6204294740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
037 N 000933008147 SCREW
Repalced by: N 304017008021
037 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
037 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
039 N 000125008418 WASHER
Repalced by: N 000125008443
039 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
041 N 913004008004 NUT
Repalced by: N 913004008001
041 N 913004008001 NUT
BRACKET TO SIDE MEMBER
041 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
044 A 3609950501 CLAMP
Repalced by: A 3609952001
044 A 3609952001 CLAMP
Repalced by: A 6739950001
044 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
046 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
046 N 007985006193 SCREW
Repalced by: N 000000001146
046 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
048 N 000125006421 WASHER
CLAMP TO BRACKET
N 912004006102 LOCK WASHER
CLAMP TO BRACKET
050 N 913004006002 NUT
Repalced by: N 913004006001
050 N 913004006001 NUT
CLAMP TO BRACKET
054 A 0004292101 LINE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
12 MM
054 A 0004292101 LINE
LOAD/NO-LOAD VALVE,TRISTOP CYLINDERS
12 MM
056 N 915017012100 UNION NUT
058 N 003861012007 GLAND
Repalced by: A 0019901967
058 A 0019901967 SEAL CONE
059F A 3609950401 CLAMP
COMPRESSED AIR LINE TO BRACKET
059H N 000000001147 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
059L N 913004006002 NUT
Repalced by: N 913004006001
059L N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
060 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
063 N 007985006145 SCREW
Repalced by: N 007985006581
063 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
065 N 913004006002 NUT
Repalced by: N 913004006001
065 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
092 A 3874299502 LINE
Repalced by: A 3834290801
092 A 3834290801 LINE
Repalced by: A 6194290801
092 A 6194290801 LINE
Repalced by: A 6254293501
092 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
096 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
102 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
104 N 915017012100 UNION NUT
106 N 003861012007 GLAND
Repalced by: A 0019901967
106 A 0019901967 SEAL CONE
108 N 916017016000 CLAMP
Repalced by: N 000000000666
108 N 000000000666 CLAMP
LINE MOUNTING
112 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
120 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
125 A 0109975982 HOSE
Repalced by: A 0009872827
125 A 0009872827 PLASTIC PIPE
9X12 MM
125 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
125 A 0009872827 PLASTIC PIPE
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
125 A 0009872827 PLASTIC PIPE
CHECK VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
LOAD/NO-LOAD VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
PRESSURE RELIEF VALVE,OVERFLOW VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE
9X12 MM
125 A 0009872827 PLASTIC PIPE
FROM RELAY VALVE TO REAR BRAKE HOSE
9X12 MM
125 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
126 A 0049971772 FITTING
Repalced by: A 0029906171
126 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907378 CONNECTOR
REPAIR SIZE
127 N 040621013200 INSULATING HOSE
13X14,6 MM
129 N 915017012100 UNION NUT
132 N 003861012007 GLAND
Repalced by: A 0019901967
132 A 0019901967 SEAL CONE
135 A 0009921505 BUSHING
Repalced by: N 915062009000
135 N 915062009000 SLEEVE
138 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
A 0019903970 T-FITTING
Repalced by: A 0029909070
A 0029909070 T-FITTING
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
142 N 003911012100 FITTING
Repalced by: A 0009907871
142 A 0009907871 ELBOW FITTING
LEFT AND RIGHT BRAKE HOSES
A 0019908171 ELBOW FITTING
Repalced by: A 0029905871
A 0029905871 ELBOW FITTING
LEFT AND RIGHT BRAKE HOSES
143 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
143 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
A 0004296834 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
A 0009970934 UNION SCREW
LEFT AND RIGHT BRAKE HOSES
145 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
N 000439018204 NUT
ADAPTER FITTING TO SIDE MEMBER
146 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
146 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
146K A 0019901570 T-FITTING
RIGHT FRONT BRAKE HOSE
A 0019907070 T-FITTING
COMPRESSED AIR LINE, BRAKE
146Q A 6204290473 LOCK
RIGHT FRONT BRAKE HOSE
147 A 0004312031 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
VOSS
147 A 0004314531 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
SCHAEFER
147 A 0004314831 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WABCO
147 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
A 0009979486 PLUG
148E N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
148E N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
148H N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
148H N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
148H N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
148L N 007603016401 SEAL RING
COMPRESSED AIR LINE TO FITTING
A 0009940147 SEAL RING
COMPRESSED AIR LINE THRU FRAME
TO M 22
A 0009941448 LOCK
COMPRESSED AIR LINE THRU FRAME
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED AIR LINE THRU FRAME
TO M 22
149 A 3184312440 BRACKET
Repalced by: A 3604293140
149 A 3604293140 BRACKET
152 A 3934310140 BRACKET
Repalced by: A 6514310240
152 A 6514310240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
154 N 000933008147 SCREW
Repalced by: N 304017008021
154 N 304017008021 SCREW
BRACKET TO CONTROL ARM
156 N 913004008004 NUT
Repalced by: N 913004008001
156 N 913004008001 NUT
BRACKET TO CONTROL ARM
158 A 0019978390 LOOM TIE
280 MM
158 A 0019978490 LOOM TIE
376 MM
162 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
162 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
162 A 0089979082 HOSE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
162 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
163 A 0039978972 FITTING
Repalced by: A 0029905971
163 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
168 N 915017008100 UNION NUT
170 N 003861008005 GLAND
174 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
176 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
178 A 0009906688 BANJO UNION
Repalced by: N 915052006013
178 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
182 A 0019976772 FITTING
Repalced by: N 915059006000
182 N 915059006002 FITTING
FROM HAND BRAKE VALVE TO RELAY VALVE
184 A 0007630043 SLEEVE
Repalced by: N 915062006000
184 N 915062006000 SLEEVE
192 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
192 A 6454290081 GROMMET
Repalced by: A 6554290081
192 A 6554290081 GROMMET
LINE THRU FRAME
196 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
196 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
198 A 6209970181 GROMMET
42/36 MM
200 A 0089976082 HOSE
Repalced by: A 0009872627
200 A 0009872627 PLASTIC PIPE
BLACK
6X4 MM
200 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
6X4 MM
200 A 0009872627 PLASTIC PIPE
LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE
6X4 MM
200N A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
6 MM
201 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
203 A 0009903888 BANJO UNION
Repalced by: N 915052004006
203 N 915052004015 BANJO UNION
NO-LOAD/LOAD VALVE
205 N 000908016001 SCREW PLUG
NO-LOAD/LOAD VALVE
207 N 915039008202 HOLLOW SCREW FITTING
NO-LOAD/LOAD VALVE
209 N 915036012203 HOLLOW SCREW
NO-LOAD/LOAD VALVE
211 N 007603012405 SEAL RING
NO-LOAD/LOAD VALVE
213 N 007603016401 SEAL RING
NO-LOAD/LOAD VALVE
215 N 915017006100 UNION NUT
217 N 003861006007 GLAND
Repalced by: A 0019901667
217 A 0019901667 SEAL CONE
219 A 0009920105 BUSHING
Repalced by: N 915062004000
219 N 915062004000 SLEEVE
222 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
222 A 0004290286 PROTECTIVE TUBE
COMPRESSED AIR LINE
224 A 3874291140 BRACKET
PLASTIC LINES TO FRAME
225 A 6204201386 BRACKET
Repalced by: A 6154200086
225 A 6154200086 BRACKET
BRAKE LINE MOUNTING
225 A 6154200086 BRACKET
BRAKE LINE MOUNTING
A 6204201486 BRACKET
BRAKE LINE MOUNTING
A 6204201486 BRACKET
BRAKE LINE MOUNTING
225E A 6204202386 BRACKET
BRAKE LINE MOUNTING
225E A 6204202486 BRACKET
BRAKE LINE MOUNTING
225K A 6204201986 BRACKET
BRAKE LINE MOUNTING
225K A 6204202086 BRACKET
BRAKE LINE MOUNTING
226 N 000933008147 SCREW
Repalced by: N 304017008021
226 N 304017008021 SCREW
BRACKET TO CONSOLE
226 N 000933008153 SCREW
Repalced by: N 304017008034
226 N 304017008034 SCREW
BRACKET TO CONSOLE
226 N 304017008034 SCREW
BRACKET TO CONSOLE
227 N 000961014100 SCREW
BRACKET TO CONSOLE
228 N 913004008004 NUT
Repalced by: N 913004008001
228 N 913004008001 NUT
BRACKET TO CONSOLE
229 N 913004014002 NUT
Repalced by: N 910113014001
229 N 910113014001 NUT
BRACKET TO CONSOLE
230 A 3874292540 BRACKET
BRAKE LINE MOUNTING
230 A 3874292640 BRACKET
BRAKE LINE MOUNTING
231 A 6204201186 BRACKET
BRAKE LINE MOUNTING
231 A 6204201186 BRACKET
BRAKE LINE MOUNTING
231 A 6204201286 BRACKET
BRAKE LINE MOUNTING
231 A 6204201286 BRACKET
BRAKE LINE MOUNTING
231 A 6204201586 BRACKET
BRAKE LINE MOUNTING
231 A 6204201686 BRACKET
BRAKE LINE MOUNTING
232 N 000933008147 SCREW
Repalced by: N 304017008021
232 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
233 N 913004008004 NUT
Repalced by: N 913004008001
233 N 913004008001 NUT
BRACKET TO BUMPER STRUT
234 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO CAB
234 A 3874292740 BRACKET
PRESSURE GAUGE LINE TO CAB
236 A 6204292340 BRACKET
PLASTIC LINES TO FRAME
237 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
237 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
237 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
237 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
237B A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
237B A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
237C A 0009946445 LOCK
BETWEEN BRACKET AND CAB FLOOR
237C A 0009946445 LOCK
BETWEEN BRACKET AND CAB FLOOR
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
BRACKET TO CAB FLOOR
N 009021005205 WASHER
BRACKET TO CAB FLOOR
237D N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
237D N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
237H A 6204297040 BRACKET
LINE MOUNTING
237K N 000933010129 SCREW
Repalced by: N 304017010002
237K N 304017010002 SCREW
BRACKET TO SIDE MEMBER
237L N 913004010008 NUT
Repalced by: N 910113010000
237L N 910113010000 NUT
BRACKET TO SIDE MEMBER
238 A 3274925419 BRACKET
Repalced by: A 6205240340
238 A 6205240340 BRACKET
LINE MOUNTING
239 A 6204293940 BRACKET
LINE MOUNTING
239 A 6204293940 BRACKET
LINE MOUNTING
239 A 6204293940 BRACKET
LINE MOUNTING
239 A 6204293940 BRACKET
LINE MOUNTING
240 N 000933008153 SCREW
Repalced by: N 304017008034
240 N 304017008034 SCREW
BRACKET TO FRONT CROSS MEMBER
241 N 000933008152 SCREW
Repalced by: N 304017008027
241 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
241 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
242 N 000125008418 WASHER
Repalced by: N 000125008443
242 N 000125008443 WASHER
BRACKET TO FRONT CROSS MEMBER
244 N 913004008004 NUT
Repalced by: N 913004008001
244 N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
244 N 913004008001 NUT
BRACKET TO SIDE MEMBER
244 N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
244H A 3609902340 WASHER
BRAKE LINE MOUNTING
244H A 3609902340 WASHER
BRAKE LINE MOUNTING
245 A 6204294340 BRACKET
Repalced by: A 3604293140
245 A 3604293140 BRACKET
LINE MOUNTING
245 A 3604293140 BRACKET
LINE MOUNTING
245D A 6204295240 BRACKET
BRACKET TO CAB FLOOR
245D A 6204295240 BRACKET
BRACKET TO CAB FLOOR
245F N 913004006002 NUT
Repalced by: N 913004006001
245F N 913004006001 NUT
BRACKET TO CAB FLOOR
245F N 913004006001 NUT
BRACKET TO CAB FLOOR
A 6204295740 BRACKET
LINE MOUNTING
246 A 0019978490 LOOM TIE
376 MM
247 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
247C A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
247E A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
247E A 0024314906 PRESSURE REGULATOR
WABCO
247H A 0014316506 PRESSURE REGULATOR
Repalced by: A 0024315006
247L A 0014319006 PRESSURE REGULATOR
Repalced by: A 0024314406
247N A 0014319106 PRESSURE REGULATOR
Repalced by: A 0024318406
247N A 0024315006 PRESSURE REGULATOR
WABCO
247N A 0024315006 PRESSURE REGULATOR
WABCO
249 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
249 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
249 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
250 A 0014316106 PRESSURE REGULATOR
Repalced by: A 0024313606
250 A 0024313606 PRESSURE REGULATOR
Repalced by: A 0024314406
250 A 0024314406 PRESSURE REGULATOR
BOSCH
250 A 0024314406 PRESSURE REGULATOR
BOSCH
250 A 0024318306 PRESSURE REGULATOR
KNORR
250 A 0024318406 PRESSURE REGULATOR
KNORR 90310
250 A 0024318406 PRESSURE REGULATOR
KNORR 90310
251 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
251 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 11 00
T YYYYYYYYYYYY PART NAME MISSING
TO 001 431 65 06,WABCO 975 300 15 10
252 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 11 00
T YYYYYYYYYYYY PART NAME MISSING
TO 001 431 65 06,WABCO 975 300 15 10
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 46 00
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 50 06,WABCO 975 303 50 00
253 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
253 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
T YYYYYYYYYYYY PART NAME MISSING
TO 001 431 61 06,BOSCH 0 481 039 105
253E A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
T YYYYYYYYYYYY PART NAME MISSING
TO 001 431 91 06,KNORR 32 11
253L A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
254 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
254 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 44 06,BOSCH 0 481 039 205
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 36 06,BOSCH 0 481 039 225
254K A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
254K A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 44 06,BOSCH 0 481 039 205
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 36 06,BOSCH 0 481 039 225
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
A 0004300507 REPAIR KIT
TO 002 431 84 06,KNORR 90310
255 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
257 N 913004008004 NUT
Repalced by: N 913004008001
257 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
259 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
259 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"3"
261 N 916026016001 CLAMP
Repalced by: A 0059970190
261 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
261 N 916026020001 CLAMP
Repalced by: N 000000000667
261 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"3"
263 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"3"
266 N 074298022203 DOUBLE FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
267H A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
267H A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
267N A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
267N A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
268 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
270 A 0004290227 THRUST RING
Repalced by: A 0009940203
270 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
271 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
271 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"1"
272 A 0004292595 AIR CLEANER
BOSCH
272 A 0004292595 AIR CLEANER
BOSCH
272 A 0004292695 AIR CLEANER
KNORR
272 A 0004292695 AIR CLEANER
KNORR
272 A 0004292795 AIR CLEANER
WABCO
272 A 0004292795 AIR CLEANER
WABCO
273 A 0004292895 AIR CLEANER
GRAU
273 A 0004292895 AIR CLEANER
GRAU
274D A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
274D A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
274H A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
274H A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
274K A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
274K A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
274K A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
274K A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
274M A 0059930901 SPRING
TO 000 429 27 95,WABCO
274M A 0059930901 SPRING
TO 000 429 27 95,WABCO
274T A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
274T A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
274T A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
274T A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
275 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
275 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
275A A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
275A A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
275A A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
275A A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
275E A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
275E A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
275F A 0089978848 SEAL RING
Repalced by: A 0049972248
275F A 0049972248 SEAL RING
Repalced by: A 0289972348
275F A 0289972348 SEAL RING
100X3 MM,TO 000 429 27 95,WABCO
275F A 0289972348 SEAL RING
100X3 MM,TO 000 429 27 95,WABCO
275H A 0089978948 SEAL RING
Repalced by: A 0009870746
A 0009870746 SEALING CORD
75X3 MM,TO 000 429 27 95,WABCO
A 0009870746 SEALING CORD
75X3 MM,TO 000 429 27 95,WABCO
275K A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
275K A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
275N A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
275N A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
275R A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
275R A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
275U A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"1,2"
275U A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"1,2"
276C A 0004290227 THRUST RING
Repalced by: A 0009940203
276C A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"1,2"
276C A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"1,2"
276F N 074305022202 NUT
AIR CLEANER TO BRACKET
276F N 074305022202 NUT
AIR CLEANER TO BRACKET
276L A 6204310740 BRACKET
AIR CLEANER
276L A 6204310740 BRACKET
AIR CLEANER
276P N 000933008147 SCREW
Repalced by: N 304017008021
276P N 304017008021 SCREW
BRACKET TO STRAP
276P N 304017008021 SCREW
BRACKET TO STRAP
276S N 000125008418 WASHER
Repalced by: N 000125008443
276S N 000125008443 WASHER
BRACKET TO STRAP
276S N 000125008443 WASHER
BRACKET TO STRAP
276W N 913004008004 NUT
Repalced by: N 913004008001
276W N 913004008001 NUT
BRACKET TO STRAP
276W N 913004008001 NUT
BRACKET TO STRAP
A 0014317206 VALVE
Repalced by: A 0024312406
277E A 0024312406 VALVE
(PRESSURE RELIEF VALVE)
WABCO
277E A 0024312406 VALVE
(PRESSURE RELIEF VALVE)
WABCO
277H A 0025862043 REPAIR KIT
Repalced by: A 0004200871
277H A 0004200871 REPAIR KIT
TO 001 431 72 06,BOSCH
A 0004304960 REPAIR KIT
TO 002 431 24 06,WABCO
A 0004304960 REPAIR KIT
TO 002 431 24 06,WABCO
277M A 0019907370 T-FITTING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
277M A 0019907370 T-FITTING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
A 0029902270 T-FITTING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
277Q A 0009971548 SEAL RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
277Q A 0009971548 SEAL RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
277T A 0004290927 THRUST RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
277T A 0004290927 THRUST RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
278A N 080705016003 NUT
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
278A N 080705016003 NUT
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
278E N 915036012203 HOLLOW SCREW
PRESSURE RELIEF VALVE,CONNECTION:
"1"
278E N 915036012203 HOLLOW SCREW
PRESSURE RELIEF VALVE,CONNECTION:
"1"
278K N 007603016401 SEAL RING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
278K N 007603016401 SEAL RING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
280 A 0014313806 VALVE
Repalced by: A 0024310406
280 A 0024310406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
282 A 0014314706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
284 A 0014313506 VALVE
Repalced by: A 0014318406
285 A 0014318406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
286 A 0014316806 VALVE
Repalced by: A 0024312906
286 A 0024312906 VALVE
Repalced by: A 0024319306
286 A 0024319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
287 A 0014318706 VALVE
Repalced by: A 0034315006
287 A 0014318706 VALVE
287F A 0014318906 VALVE
Repalced by: A 0024314006
287F A 0024314006 VALVE
Repalced by: A 0034315006
287F A 0024314006 VALVE
287H A 0014319306 VALVE
Repalced by: A 0034315006
287H A 0014319306 VALVE
287K A 0024310206 VALVE
Repalced by: A 0024312706
287K A 0024312706 VALVE
Repalced by: A 0024319106
287K A 0024319106 VALVE
Repalced by: A 0034315006
287K A 0024319106 VALVE
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
287L A 0014310986 CUP
TO 002 431 04 06,BOSCH
287P A 0009934905 SPRING
Repalced by: A 0009935205
287P A 0009935205 SPRING
TO 002 431 04 06,BOSCH
288 A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
289 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
290 A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4 MM,GRAU37001
292 A 0059973248 SEAL RING
25.3X2.4 MM TO 001 431 68 06,GRAU
292 A 0059973248 SEAL RING
002 431 02 06;GRAU
293 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
294 A 0014311960 SEAL RING
Repalced by: A 0009971548
294 A 0009971548 SEAL RING
TO 001 431 68 06,15X2 MM,GRAU 19001
296 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
298 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
300 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
303 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
306 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO
306 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO
A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
306N A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
307 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
308 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
308 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
308 A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06;BOSCH
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
309 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
309 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
310 A 0019903971 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
310 A 0019903971 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
311 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
313 A 0004290227 THRUST RING
Repalced by: A 0009940203
313 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
315 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
318 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21"
322 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
322 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
323 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
323 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
324 N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325N N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
325N N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326 N 000125017010 WASHER
Repalced by: N 000125017016
326 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326L N 000439016206 NUT
Repalced by: N 308675016001
326L N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
326L N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
327 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
327 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
328 A 0009909270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
331 A 0019979272 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
332 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
332 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
333 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23,24"
336 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21,22,23,24"
336 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
339 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21,22,23,24"
339 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
341 A 0009970386 PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
343 N 915020018000 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
343N N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
343N N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
344 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
344 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
345 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
345 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
345 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
345 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
346 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
347 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
347E N 915047012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
347K N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
347K N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
347N A 0019900788 BANJO UNION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
347R A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22";VOSS
347R A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22";VOSS
347R A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22";SCHAEFER
347R A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22";SCHAEFER
347R A 0004314831 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"WABCO
347R A 0004314831 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"WABCO
347R A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22";WIRA
347R A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22";WIRA
A 0009979486 PLUG
348 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
348 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
349 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
350 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
350 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
352 A 0004313113 VALVE
LOAD/NO-LOAD
354 A 0004313313 VALVE
LOAD/NO-LOAD
355 A 0005867143 REPAIR KIT
TO 000 431 31 13
355 A 0005867843 REPAIR KIT
TO 000 431 33 13
360 A 0004312031 TEST CONNECTION
AT BRAKE VALVE
VOSS
360 A 0004314531 TEST CONNECTION
AT BRAKE VALVE
SCHAEFER
360 A 0004314831 TEST CONNECTION
AT BRAKE VALVE
WABCO
360 A 0004316131 TEST CONNECTION
AT BRAKE VALVE
WIRA
A 0009979486 PLUG
362 A 3874293240 BRACKET
LOAD/NO-LOAD VALVE
364 A 3874311140 BRACKET
LOAD/NO-LOAD VALVE
366 N 000933008152 SCREW
Repalced by: N 304017008027
366 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
M 8X30
368 N 913004008004 NUT
Repalced by: N 913004008001
368 N 913004008001 NUT
BRACKET TO SIDE MEMBER
369 N 000933008153 SCREW
Repalced by: N 304017008034
369 N 304017008034 SCREW
BRACKET TO LOAD/NO-LOAD VALVE
M8X25
371 N 913004008004 NUT
Repalced by: N 913004008001
371 N 913004008001 NUT
BRACKET TO LOAD/NO-LOAD VALVE
373 A 0019903071 ELBOW FITTING
LOAD/NO-LOAD VALVE
376 A 3529900071 ELBOW FITTING
LOAD/NO-LOAD VALVE
378 A 0009904570 T-FITTING
LOAD/NO-LOAD VALVE
381 A 0009971548 SEAL RING
LOAD/NO-LOAD VALVE
383 A 0004290927 THRUST RING
LOAD/NO-LOAD VALVE
385 N 080705016003 NUT
LOAD/NO-LOAD VALVE
390 A 0004202755 BLEEDER VALVE
395 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
395 N 000908012009 SCREW PLUG
TO PLUG THE FREE CONNECTIONS
397 N 007603012405 SEAL RING
TO PLUG THE FREE CONNECTIONS
399 N 000933006124 SCREW
VALVE TO BRACKET
401 N 913004006002 NUT
Repalced by: N 913004006001
401 N 913004006001 NUT
VALVE TO BRACKET
420 A 0014313505 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
TEVES-WABCO
420 A 0014314305 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH-TEVES
420 A 0014319405 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
SCHAEFER-WABCO
420 A 0024310505 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH-SCHAEFER
421 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
421 A 0024310705 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
421 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
421 A 0024311105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
421 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
421 A 0024311905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
423 A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
426 A 0049970248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
429 A 0004312181 VALVE DISC
Repalced by: A 0004312781
429 A 0004312781 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
432 A 0004318986 CUP
TO 001 431 43 05,BOSCH-TEVES
436 A 0004312281 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
436L A 0109974248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
436L A 0109974348 SEAL RING
Repalced by: A 0049970248
436L A 0049970248 SEAL RING
TO 002 431 05 05,BOSCH-SCHAEFER
437 A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
437K A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
438 A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
438N A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
439 A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
440 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TEVES,TO 001 431 35 05,001 431 43 05
440 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
SCHAEFER,TO001 431 94 05,002 431 05 05
443 A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004310265 VALVE
Repalced by: A 3075530107
443 A 3075530107 VALVE
446 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
446 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
446 A 0004217187 PROTECTIVE CAP
447 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
447M A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
448 A 0004318383 PISTON
TO 001 431 83 05,WABCO
449 A 0014316993 SPRING
TO 001 431 89 05
A 0004313623 VALVE
WABCO
A 0004313623 VALVE
WABCO
450 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05,WABCO
454 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05,BOSCH
456 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
456 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05,002 431 05 05,BOSCH
458 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18,TEVES
458E A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
458L A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
458N A 0004306260 REPAIR KIT
Repalced by: A 0014300460
A 0014300460 REPAIR KIT
Repalced by: A 0004308006
A 0004308006 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
458Q A 0025868743 REPAIR KIT
Repalced by: A 0004303506
458Q A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 89 05,BOSCH
458S A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
459 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
459 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
459 A 0004308206 REPAIR KIT
TO 002 431 07 05,WABCO
459 A 0004308206 REPAIR KIT
TO 002 431 07 05,WABCO
460 A 0004300160 REPAIR KIT
Repalced by: A 0004303306
460 A 0004303306 REPAIR KIT
TO 002 431 11 05,BOSCH
460 A 0004303306 REPAIR KIT
TO 002 431 11 05,BOSCH
461 N 000933008152 SCREW
Repalced by: N 304017008027
461 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
461 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
462 N 913004008004 NUT
Repalced by: N 913004008001
462 N 913004008001 NUT
BRAKE VALVE TO BRACKET
462 N 913004008001 NUT
BRAKE VALVE TO PEDAL UNIT
462 N 913004008001 NUT
BRAKE VALVE TO BRACKET
466 A 3874311340 BRACKET
TRUCK-TRACTOR BRAKE VALVE
467 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
467 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
468 N 000933010128 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
470 N 913004010008 NUT
Repalced by: N 910113010000
470 N 910113010000 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
471H N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
471H N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
471N N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
471N N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"4"
472 A 0009904770 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12"
474 A 0029979072 FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"21"
477 A 0019903071 ELBOW FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
481 A 0009906170 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
482H N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
482H N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
482 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
482 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
483 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22",VOSS
483 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22",SCHAEFER
483 A 0004314831 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22",WABCO
483 A 0004316131 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22",WIRA
A 0009979486 PLUG
484 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
484 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
485 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
485 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
485 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
487 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
487 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
487 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
489 N 080705016003 NUT
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
489 N 080705018002 NUT
TWO-CIRCUIT BRAKE VALVE
492 A 3879970086 PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
495 N 915020014000 NUT
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
497 A 0089979082 HOSE
TWO-CIRCUIT BRAKE VALVE BLEEDING
499 A 0019978390 LOOM TIE
TWO-CIRCUIT BRAKE VALVE BLEEDING
505 A 6174310073 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE
505 A 6174310073 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE
505 A 6174310173 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE
505 A 6174310173 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE
510 A 0004324801 RESERVOIR
Repalced by: A 0014327501
510 A 0014327501 RESERVOIR
Repalced by: A 0034321201
510 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
510 A 0004325101 RESERVOIR
Repalced by: A 0034321301
510 A 0034321301 RESERVOIR
REAR AIR RESERVOIR
20 L
510 A 0034321301 RESERVOIR
REAR AIR RESERVOIR
20 L
515 A 0004322101 RESERVOIR
Repalced by: A 0034322301
515 A 0034322301 RESERVOIR
AIR RESERVOIR
30 L
518 A 0004326201 RESERVOIR
DRAIN
1.5 L
519 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
519 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
521 A 0029971172 FITTING
AIR RESERVOIR
30 L
523 A 0009907771 ELBOW FITTING
AIR RESERVOIR
20 L
525 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
525 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
527 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
527 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"32"
529 A 0009904468 FITTING
AIR RESERVOIR,CONNECTION:
"31"
530H A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
530H A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
530N A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"23,24,31"
530N A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"23,24,31"
530N A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"32"
530R A 0019900788 BANJO UNION
AIR RESERVOIR,CONNECTION:
"32"
531 A 0009903970 T-FITTING
Repalced by: A 0019901070
531 A 0019901070 T-FITTING
AIR RESERVOIRS II,III
531N A 0009902687 CROSS FITTING
AIR RESERVOIRS II,III
532 A 0004312031 TEST CONNECTION
AIR RESERVOIRS II,III
VOSS
532 A 0004314531 TEST CONNECTION
AIR RESERVOIRS II,III
SCHAEFER
532 A 0004314831 TEST CONNECTION
AIR RESERVOIRS II,III
WABCO
532 A 0004316131 TEST CONNECTION
AIR RESERVOIRS II,III
WIRA
A 0009979486 PLUG
533 A 0019900470 T-FITTING
AIR RESERVOIR,CONNECTION:
"13"
535 A 0019902170 T-FITTING
AIR RESERVOIR,CONNECTION:
"23"
540 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"1,2,11,12,13,14,21,22,23,24,31,32"
540 A 0009870446 SEALING CORD
COMPRESSED AIR LINE TO AIR RESERVOIR
"1,2,11,12,13,14,21,22,23,24,31,32"
542 A 0004290227 THRUST RING
Repalced by: A 0009940203
542 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"1,2,11,12,13,14,21,22,23,24,31,32"
542 A 0009940203 THRUST RING
COMPRESSED AIR LINE TO AIR RESERVOIR
"1,2,11,12,13,14,21,22,23,24,31,32"
544 N 074305022202 NUT
AIR RESERVOIR,CONNECTIONS:
"2,13,14,23,24"
544 N 074305022202 NUT
COMPRESSED AIR LINE TO AIR RESERVOIR
"2,13,14,23,24"
545 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31"
545 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31"
545 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"32"
546 A 0019901088 BANJO UNION
AIR RESERVOIR,CONNECTIONS:
"21,22"
546 A 0019901088 BANJO UNION
AIR RESERVOIR,CONNECTIONS:
"21,22"
547 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31"
547 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31"
547 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"32"
548 A 0004312031 TEST CONNECTION
AIR RESERVOIR,CONNECTION "13"
VOSS
548 A 0004314531 TEST CONNECTION
AIR RESERVOIR,CONNECTION "13"
SCHAEFER
548 A 0004314831 TEST CONNECTION
AIR RESERVOIR,CONNECTION "13"
WABCO
548 A 0004316131 TEST CONNECTION
AIR RESERVOIR,CONNECTION "13"
WIRA
A 0009979486 PLUG
550 A 0039979472 FITTING
AIR RESERVOIR,CONNECTION:
"2"
552 A 3874320540 BRACKET
FRONT AIR RESERVOIR
552 A 3874320540 BRACKET
REAR AIR RESERVOIR
554 N 000933008154 SCREW
Repalced by: N 304017008021
554 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
554 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
554 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
554 N 000933008215 SCREW
Repalced by: A 0069909301
554 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
554 A 0069909301 SCREW
BRACKET TO APPARATUS SUPPORT
556 N 913004008004 NUT
Repalced by: N 913004008001
556 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
560 A 3874301240 STRAP
AIR RESERVOIR
560 A 6204300640 STRAP
FRONT AIR RESERVOIR
560 A 6204300640 STRAP
FRONT AIR RESERVOIR
A 6204300240 STRAP
FRONT AIR RESERVOIR
565 A 3874300640 STRAP
AIR RESERVOIR
565 A 3874300640 STRAP
REAR AIR RESERVOIR
567 A 6204300740 STRAP
FRONT AIR RESERVOIR
A 6204301240 STRAP
FRONT AIR RESERVOIR
A 6204301240 STRAP
FRONT AIR RESERVOIR
570 A 3874301040 STRAP
CONDENSATION TANK
572 N 000933008212 SCREW
Repalced by: N 304017008016
572 N 304017008016 SCREW
AIR RESERVOIR TO STRAP
574 N 913004008004 NUT
Repalced by: N 913004008001
574 N 913004008001 NUT
AIR RESERVOIR TO STRAP
578 N 000934010014 NUT
STRAP TO BRACKET
580 N 913004010008 NUT
Repalced by: N 910113010000
580 N 910113010000 NUT
STRAP TO BRACKET
580 N 910113010000 NUT
STRAP TO BRACKET
582 A 3874300740 STRAP
AIR RESERVOIR TO FRAME
582 A 6204300040 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
582 A 6204300040 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
584 A 3854320218 BASE
AIR RESERVOIR,STRAP
584 A 6204320018 BASE
AIR RESERVOIR,STRAP
584 A 6204320018 BASE
AIR RESERVOIR,STRAP
586 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
588 N 913004010008 NUT
Repalced by: N 910113010000
588 N 910113010000 NUT
AIR RESERVOIR,STRAP
590 N 000934010014 NUT
AIR RESERVOIR,STRAP
594 A 0004321107 VALVE
DRAIN
594 A 0004322107 VALVE
DRAIN
594 A 0004322407 VALVE
DRAIN
594 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
596 A 0004321707 VALVE
AUTOMATIC DRAIN
598 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
598 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
598 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
600 A 0004290227 THRUST RING
Repalced by: A 0009940203
600 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
600 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
600 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
604 A 0024295844 VALVE
(CHECK VALVE)
604 A 0024295944 VALVE
(CHECK VALVE)
604 A 0024297544 VALVE
(CHECK VALVE)
610 A 0024296044 VALVE
(CHECK VALVE)
610 A 0024296144 VALVE
(CHECK VALVE)
610 A 0024297644 VALVE
(CHECK VALVE)
611C A 0024299644 VALVE
(CHECK VALVE)
VOSS
611C A 0024299644 VALVE
(CHECK VALVE)
VOSS
611C A 0034290444 VALVE
(CHECK VALVE)
WABCO
611C A 0034290444 VALVE
(CHECK VALVE)
WABCO
611C A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
611C A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
611E A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
611E A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
611E A 0002950320 VALVE
TO 003 429 04 44,WABCO
611E A 0002950320 VALVE
TO 003 429 04 44,WABCO
611H A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
611H A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
611H A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
611H A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
611L A 0109970048 SEAL RING
13X6X2;TO 003 429 12 44,SCHAEFER
611L A 0109970048 SEAL RING
13X6X2;TO 003 429 12 44,SCHAEFER
611N A 0109970148 SEAL RING
15.3X2.4;TO 003 429 12 44,SCHAEFER
611N A 0109970148 SEAL RING
15.3X2.4;TO 003 429 12 44,SCHAEFER
611Q A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
611Q A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
611S A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
611S A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
611W N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
611W N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
611Z N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
611Z N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
612C N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
612C N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
612E A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
612E A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
612H A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
612H A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
612L N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
612L N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
612L N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
612N N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
612N N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
A 6204292540 BRACKET
Repalced by: A 6164290140
612 A 6204292540 BRACKET
Repalced by: A 6164290140
612 A 6164290140 BRACKET
CHECK VALVE
612 A 6164290140 BRACKET
CHECK VALVE
612S N 074305022202 NUT
CHECK VALVE TO BRACKET
612S N 074305022202 NUT
CHECK VALVE TO BRACKET
612W N 000933010260 SCREW
BRACKET TO FRAME SIDE MEMBER
612W N 000933010260 SCREW
BRACKET TO FRAME SIDE MEMBER
613C A 3529900640 WASHER
BRACKET TO FRAME SIDE MEMBER
613C A 3529900640 WASHER
BRACKET TO FRAME SIDE MEMBER
613E N 913004010008 NUT
Repalced by: N 910113010000
613E N 910113010000 NUT
BRACKET TO FRAME SIDE MEMBER
A 6204310062 COVERING
CHECK VALVE
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
BRACKET TO COVER PLATE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO COVER PLATE
N 913004008001 NUT
BRACKET TO COVER PLATE
614 A 0024297044 VALVE
Repalced by: A 0044293244
614 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
614 A 0014296544 VALVE
Repalced by: A 0044293144
614 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
614K A 0024290044 VALVE
Repalced by: A 0044293144
614K A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
615 A 0034295544 VALVE
Repalced by: A 0024294244
615 A 0024294244 VALVE
Repalced by: A 0034290944
615 A 0034290944 VALVE
Repalced by: A 0044293144
615 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
615 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
615L A 0034295644 VALVE
Repalced by: A 0024296544
615L A 0024296544 VALVE
Repalced by: A 0034290844
615L A 0034290844 VALVE
Repalced by: A 0044293244
615L A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
615L A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
616 A 0024298844 VALVE
TO 002 429 70 44,003 429 08 44
618 A 0004290745 DIAPHRAGM
TO 002 429 70 44,003 429 08 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
619 A 0015862042 REPAIR KIT
TO 001 429 65 44,002 429 42 44
619H A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
619S A 0005865842 REPAIR KIT
TO 003 429 09 44,WABCO
620 A 0019972372 FITTING
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"24"
620 A 0019972372 FITTING
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"24"
621D A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"1"
621D A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"1"
621H A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS:
"1,2"
621H A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTIONS:
"1,2"
621M A 0004290227 THRUST RING
Repalced by: A 0009940203
621M A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"1,2"
621M A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTIONS:
"1,2"
621Q N 074305022202 NUT
OVERFLOW VALVE,CONNECTION:
"2"
621Q N 074305022202 NUT
OVERFLOW VALVE,CONNECTION:
"2"
622 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
622 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
623 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
623 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
624 A 0024293244 VALVE
Repalced by: A 0034296944
624 A 0034296944 VALVE
3/2-WAY
WABCO,363 123 001 0
626 A 0014290444 VALVE
3/2-WAY
WABCO,571 002 000 0
A 0004205755 REPAIR KIT
TO 001 429 04 44,WABCO 571 002 000 0
628 A 0009870446 SEALING CORD
VALVE TO RESERVOIR
630 A 0004290227 THRUST RING
Repalced by: A 0009940203
630 A 0009940203 THRUST RING
VALVE TO RESERVOIR
632 N 074305022202 NUT
VALVE TO RESERVOIR
636 N 074298022203 DOUBLE FITTING
3/2-WAY VALVE;CONNECTION:
"21"
640 A 0029979272 FITTING
3/2-WAY VALVE;CONNECTIONS:
"2,4"
641 N 007603010103 SEAL RING
Repalced by: N 007603010110
641 N 007603010110 SEAL RING
3/2-WAY VALVE;CONNECTIONS:
"2,4"
642 A 0009870446 SEALING CORD
3/2-WAY VALVE;CONNECTIONS:
"21,22"
644 A 0019970845 SEAL RING
3/2-WAY VALVE;CONNECTION:
"4"
646 A 0004290227 THRUST RING
Repalced by: A 0009940203
646 A 0009940203 THRUST RING
3/2-WAY VALVE;CONNECTIONS:
"21,22"
648 A 0004290827 THRUST RING
Repalced by: A 0009940103
648 A 0009940103 THRUST RING
3/2-WAY VALVE;CONNECTIONS:
"2,4"
650 N 074305022202 NUT
3/2-WAY VALVE;CONNECTION:
"22"
652 N 080705012003 NUT
3/2-WAY VALVE;CONNECTIONS:
"2,4"
654 A 0024293444 VALVE
Repalced by: A 0044297244
654 A 0044297244 VALVE
(SAFETY VALVE)
660 N 007603018101 SEAL RING
3/2-WAY VALVE;CONNECTION:
"22"
670 A 0014292044 VALVE
Repalced by: A 0034291644
670 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
670E A 0024290744 VALVE
Repalced by: A 0034295344
670E A 0034295344 VALVE
(RELAY VALVE)
KNORR
670M A 0014296844 VALVE
(RELAY VALVE)
WABCO
671 A 0014299144 VALVE
(RELAY VALVE)
GRAU
671C A 0059972648 SEAL RING
22.3X2.4 MM; TO 001 429 91 44,GRAU
671E A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
671H A 0059972748 SEAL RING
80X3 MM; TO 000 429 28 95, GRAU
671L A 0014311660 SEAL RING
28X2 MM; TO 001 429 91 44,GRAU
671N A 0014311760 SEAL RING
86X2 MM; TO 001 429 91 44,GRAU
671Q A 0004311980 GASKET
34X2X6 MM; TO 001 429 91 44,GRAU
673 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
673 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
673 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
674 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
674 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
675 A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
675 A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
675 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
680 A 0029971172 FITTING
RELAY VALVE,CONNECTION:
"1"
681 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
681 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
682 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
683 N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"2"
684 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
686 N 074313008104 FITTING
Repalced by: A 0029979572
686 A 0029979572 FITTING
RELAY VALVE,CONNECTION:
"4"
688 A 0029971572 FITTING
RELAY VALVE;CONNECTIONS:
"11,12,22"
690 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
690 A 0004290927 THRUST RING
RELAY VALVE;CONNECTIONS:
"2,4"
690 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
692 A 0004290227 THRUST RING
Repalced by: A 0009940203
692 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
694 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
694 A 0009971548 SEAL RING
RELAY VALVE;CONNECTIONS:
"2,4"
694 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
696 N 080705016003 NUT
RELAY VALVE,CONNECTION:
"2"
698 A 0009904270 T-FITTING
RELAY VALVE,CONNECTION:
"2"
700 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
702 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
704 N 915036006202 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,2"
706 N 007603010103 SEAL RING
Repalced by: N 007603010110
706 N 007603010110 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2"
710 N 913004008004 NUT
Repalced by: N 913004008001
710 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
710 N 913004008001 NUT
RELAY VALVE TO BRACKET
710 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
712 A 3914311240 BRACKET
RELAY VALVE
712 A 3914311240 BRACKET
RELAY VALVE
713 N 000933008153 SCREW
Repalced by: N 304017008034
713 N 304017008034 SCREW
BRACKET TO CROSS MEMBER
713 N 304017008034 SCREW
BRACKET TO CROSS MEMBER
714 N 913004008004 NUT
Repalced by: N 913004008001
714 N 913004008001 NUT
BRACKET TO CROSS MEMBER
714 N 913004008001 NUT
BRACKET TO CROSS MEMBER
716 A 3934290940 BRACKET
T-FITTING TO SIDE MEMBER
718 A 0029977372 FITTING
T-FITTING
722 N 080705018002 NUT
T-FITTING TO BRACKET
724 N 000933008152 SCREW
Repalced by: N 304017008027
724 N 304017008027 SCREW
BRACKET TO RIGHT SIDE MEMBER
726 N 913004008004 NUT
Repalced by: N 913004008001
726 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
730 A 0004315712 BRAKE PRESSURE REGULATOR
731E A 0014314812 BRAKE PRESSURE REGULATOR
731E A 0014314812 BRAKE PRESSURE REGULATOR
731L A 0004303660 REPAIR KIT
TO 001 431 48 12
731L A 0004303660 REPAIR KIT
TO 001 431 48 12
732 A 0005869843 REPAIR KIT
TO 000 431 57 12
734 A 3875843521 GUIDE SIGN
LOAD-DEPENDING BRAKE
734 A 6235841921 GUIDE SIGN
LOAD-DEPENDING BRAKE
734 A 6235841921 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
LOAD-DEPENDING BRAKE
736 N 000933008150 SCREW
Repalced by: N 304017008018
736 N 304017008018 SCREW
BRAKE POWER REGULATOR TO FRAME
738 N 913004008004 NUT
Repalced by: N 913004008001
738 N 913004008001 NUT
BRAKE POWER REGULATOR TO FRAME
738 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
738 N 913004008001 NUT
BRAKE POWER REGULATOR TO FRAME
739E A 3854317040 BRACKET
BRAKE POWER REGULATOR
739E A 3854317040 BRACKET
BRAKE POWER REGULATOR
739K N 000933008153 SCREW
Repalced by: N 304017008034
739K N 304017008034 SCREW
BRACKET TO FRAME
739K N 304017008034 SCREW
BRACKET TO FRAME
739N N 913004008004 NUT
Repalced by: N 913004008001
739N N 913004008001 NUT
BRACKET TO FRAME
739N N 913004008001 NUT
BRACKET TO FRAME
740 A 0019974872 FITTING
BRAKE PRESSURE REGULATOR CONNECTION
742 A 0009970169 F-FITTING
BRAKE PRESSURE REGULATOR CONNECTION
744 A 0009907771 ELBOW FITTING
BRAKE PRESSURE REGULATOR CONNECTION
746 A 0009870446 SEALING CORD
BRAKE PRESSURE REGULATOR CONNECTION
748 A 0004290227 THRUST RING
Repalced by: A 0009940203
748 A 0009940203 THRUST RING
BRAKE PRESSURE REGULATOR CONNECTION
750 N 074305022202 NUT
BRAKE PRESSURE REGULATOR CONNECTION
750C N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
750C N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
750D N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
750D N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
750E N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
750E N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
750F N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
750F N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
750H A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",VOSS
750H A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",VOSS
750H A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",SCHAEFER
750H A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",SCHAEFER
750H A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",WABCO
750H A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",WABCO
750H A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",WIRA
750H A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4",WIRA
A 0009979486 PLUG
750K A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
750K A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
750L A 0019871746 SEALING CORD
38X3 MM
750L A 0019871746 SEALING CORD
38X3 MM
750M A 0089970445 SEAL RING
34.6X2.6 MM
750M A 0089970445 SEAL RING
34.6X2.6 MM
750N A 0089978648 SEAL RING
28.4X2.6 MM
750N A 0089978648 SEAL RING
28.4X2.6 MM
750P A 0004313223 VALVE
750P A 0004313223 VALVE
750Q N 007603016401 SEAL RING
16X20 MM
750Q N 007603016401 SEAL RING
16X20 MM
750R A 0089978748 SEAL RING
56X1.7 MM
750R A 0089978748 SEAL RING
56X1.7 MM
750S N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
750S N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
750T N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
750T N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
750U N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
750U N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
750W A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
750W A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
751A N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
751A N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
751C A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
751C A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
751D A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
751D A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
751E A 6204312440 BRACKET
PRESSURE RATIO VALVE
751E A 6204312440 BRACKET
PRESSURE RATIO VALVE
751E A 6204312540 BRACKET
PRESSURE RATIO VALVE
751E A 6204312540 BRACKET
PRESSURE RATIO VALVE
751F N 913004008004 NUT
Repalced by: N 913004008001
751F N 913004008001 NUT
VALVE TO FLOOR
751F N 913004008001 NUT
VALVE TO FLOOR
751H N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
751H N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
752 N 003954012101 FITTING
Repalced by: A 0019900970
752 A 0019900970 T-FITTING
BRAKE HOSE TO SIDE MEMBER
753 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
753 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
753 A 0004296934 ADAPTER FITTING
BRAKE HOSE TO SIDE MEMBER
753 A 0004296934 ADAPTER FITTING
BRAKE HOSE TO SIDE MEMBER
754 N 080705018002 NUT
BRAKE HOSE TO SIDE MEMBER
755E N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
755E N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
755E N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
755K N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
755K N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE TO FITTING
755N N 007603016401 SEAL RING
COMPRESSED AIR LINE TO FITTING
755N N 007603016401 SEAL RING
COMPRESSED AIR LINE TO FITTING
755N N 007603016401 SEAL RING
COMPRESSED AIR LINE TO FITTING
A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
A 0069970072 FITTING
COMPRESSED AIR LINE TO FITTING
A 0009971548 SEAL RING
COMPRESSED AIR LINE TO FITTING
A 0004290927 THRUST RING
756 N 916027011014 HOSE
REAR BRAKE HOSE,TRAILING AXLE
758 A 0004290541 FITTING
REAR BRAKE HOSE,TRAILING AXLE
760 A 0004290641 FITTING
REAR BRAKE HOSE,TRAILING AXLE
760 N 074304016201 FITTING
REAR BRAKE HOSE,TRAILING AXLE
760 N 074304016201 FITTING
REAR BRAKE HOSE,TRAILING AXLE
762 N 915017012100 UNION NUT
REAR BRAKE HOSE,TRAILING AXLE
764 N 003861012007 GLAND
Repalced by: A 0019901967
764 A 0019901967 SEAL CONE
REAR BRAKE HOSE,TRAILING AXLE
766 N 916017016000 CLAMP
Repalced by: N 000000000666
766 N 000000000666 CLAMP
REAR BRAKE HOSE,TRAILING AXLE
768 A 0029971572 FITTING
REAR BRAKE HOSE,TRAILING AXLE
770 A 0004290927 THRUST RING
REAR AXLE II TRISTOP CYLINDER TO CONNECTIONS "11,12"
772 A 0009971548 SEAL RING
REAR AXLE II TRISTOP CYLINDER TO CONNECTIONS "11,12"
772 A 0039975745 SEAL RING
BRAKE HOSE
772 A 0039975745 SEAL RING
BRAKE HOSE
774 A 6204293940 BRACKET
COMPRESSED AIR LINE TO BRACKET
775 N 000933008154 SCREW
Repalced by: N 304017008021
775 N 304017008021 SCREW
COMPRESSED AIR LINE TO BRACKET
776 N 913004008004 NUT
Repalced by: N 913004008001
776 N 913004008001 NUT
COMPRESSED AIR LINE TO BRACKET
777 A 6194290140 BRACKET
Repalced by: A 3184923441
777 A 3184923441 BRACKET
COMPRESSED AIR LINE TO TRIANGULAR CONTROL ARM
780 A 0074204218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
780 A 0074206518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
780 A 0084209018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
780 A 0094206118 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU
780C A 0004312928 DIAPHRAGM
TO 007 420 42 18,KNORR
780K A 0004313028 DIAPHRAGM
TO 008 420 90 18,BOSCH
780P A 0004231060 SEAL RING
TO 007 420 42 18,KNORR
781 A 0004234187 PROTECTIVE CAP
TO 007 420 42 18,KNORR
781 A 0004212286 CUP
Repalced by: A 0004215286
781 A 0004215286 CUP
TO 007 420 65 18 WABCO
781L A 0004233886 CUP
TO 008 420 90 18,BOSCH
781R A 0004211263 GUIDE
Repalced by: N 071752014000
781R N 071752014000 YOKE
TO 008 420 90 18,BOSCH
782 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
782 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
782 A 0024301560 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 65 18,WABCO
782M A 0004304060 REPAIR KIT
Repalced by: A 0024209524
782R A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 007 420 42 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 007 420 42 18,KNORR
A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 90 18,BOSCH
783 A 0025865042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 007 420 65 18,WABCO
785 A 3934200178 BEARING BRACKET
Repalced by: A 6234201878
785 A 6234201878 BEARING BRACKET
Repalced by: A 6234230633
785 A 6234230633 BEARING BRACKET
TRISTOP CYLINDER AND CONTROL ARM
785 A 6234230633 BEARING BRACKET
TRISTOP CYLINDER AND CONTROL ARM
A 6239910020 BALL PIVOT
AT BEARING BRACKET
788 N 000961016036 SCREW
Repalced by: N 308676016013
788 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
788 N 914125020501 SCREW
BEARING BRACKET TO REAR AXLE
788 N 914125020501 SCREW
BEARING BRACKET TO REAR AXLE
790 N 001481028004 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
792 N 913004016004 NUT
Repalced by: N 910113016002
792 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
794 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
796 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
800 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
804 A 0004312031 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12",VOSS
804 A 0004314531 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12",SCHAEFER
804 A 0004314831 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12",WABCO
804 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12",WIRA
A 0009979486 PLUG
806 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
806 N 915039012205 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
807 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
807 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
808 N 915040012206 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
808 N 915040012206 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
809 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
810 A 0004305581 VALVE
(HAND BRAKE VALVE)
WABCO
810 A 0004306681 VALVE
(HAND BRAKE VALVE)
KNORR
810 A 0004305681 VALVE
(HAND BRAKE VALVE)
WABCO
810 A 0004306781 VALVE
(HAND BRAKE VALVE)
KNORR
812 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
812 A 0014303481 VALVE
(PARKING BRAKE VALVE)
BOSCH
812 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
812 A 0014305681 VALVE
(PARKING BRAKE VALVE)
WABCO
812 A 0014306681 VALVE
Repalced by: A 0024309881
812 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
812 A 0024309881 VALVE
(PARKING BRAKE VALVE)
KNORR
812 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
812 A 0014304381 VALVE
(PARKING BRAKE VALVE)
BOSCH
812 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
812 A 0014305781 VALVE
(PARKING BRAKE VALVE)
WABCO
812 A 0014306781 VALVE
Repalced by: A 0024309981
812 A 0024309981 VALVE
(PARKING BRAKE VALVE)
KNORR
812L A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,57 81 WABCO
812S A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81 BOSCH
812S A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,43 81 BOSCH
A 0014311287 PROTECTIVE CAP
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
813 A 0004300027 HANDLE
TO 001 430 34 81,001 430 43 81 BOSCH
813 A 0004300027 HANDLE
TO 001 430 34 81,001 430 43 81 BOSCH
813F A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81 WABCO
813F A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81 WABCO
A 0009975577 HANDLE
KNORR
A 0009975577 HANDLE
KNORR
813N N 001481003025 CLAMPING SLEEVE
KNORR
813N N 001481003025 CLAMPING SLEEVE
KNORR
815 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
815 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
815 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
815 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
815L A 0025866243 REPAIR KIT
Repalced by: A 0034303881
815L A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81 KNORR
816 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
816 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81 WABCO
816 A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81 WABCO
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
816Q A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81 BOSCH
816Q A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81 BOSCH
816T A 0035860543 REPAIR KIT
GASKET KIT
TO 001 430 66 81,001 430 67 81 KNORR
816T A 0035860543 REPAIR KIT
GASKET KIT
TO 001 430 66 81,001 430 67 81 KNORR
818 N 007603014405 SEAL RING
CONNECTION TO VALVE
820 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
820 N 915036010108 HOLLOW SCREW
CONNECTION TO VALVE
822 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
822 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
823 A 0099973948 SEAL RING
8.5X2 MM
823 A 0099973948 SEAL RING
8.5X2 MM
824 N 000965006003 SCREW
VALVE TO CAB
M 6X25
824 N 000965006040 SCREW
VALVE TO CAB
M 6X30
828 A 3874310684 SHIM
VALVE TO CAB
832 N 007985008119 SCREW
PARKING BRAKE VALVE TO INSTRUMENT PANEL
832 N 007985008119 SCREW
PARKING BRAKE VALVE TO INSTRUMENT PANEL
836 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO INSTRUMENT PANEL
836 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO INSTRUMENT PANEL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
