Transporto priemonė: 2233 L; VIN numerio dalis: 623423
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

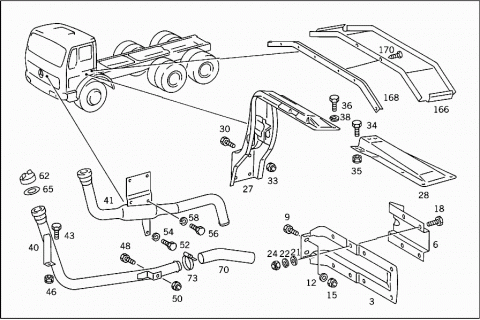

| 003 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 003 | A 6575210140 | BRACKET |
| FENDER | ||
| 006 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 006 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 006 | A 6575200033 | SUPPORT |
| FENDER | ||
| 009 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 009 | N 000961014054 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 012 | N 001440016001 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 015 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 015 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 018 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 018 | N 304017008018 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X35 | ||
| 018 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 018 | N 304017008027 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X30 | ||
| 018 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 018 | N 304017008034 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X25 | ||
| 018 | N 000933008145 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X18 | ||
| 021 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 021 | A 6312670276 | WASHER |
| FENDER TO FENDER BRACKET | ||
| 022 | N 912004008102 | LOCK WASHER |
| FENDER TO FENDER BRACKET | ||
| 024 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 024 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 027 | A 3875200241 | BRACKET |
| FENDER AND SHOCK ABSORBER,LEFT | ||
| 027 | A 3875205841 | BRACKET |
| FENDER AND SHOCK ABSORBER,RIGHT | ||
| 028 | A 3875212040 | BRACKET |
| LEFT FENDER | ||
| 028 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 030 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 033 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 033 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 034 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 034 | N 308676012012 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 035 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 036 | N 000933008145 | SCREW |
| FENDER TO BRACKET | ||
| 038 | N 912004008102 | LOCK WASHER |
| FENDER TO BRACKET | ||
| 040 | A 6205201206 | PIPE ELBOW |
| OIL REFILLING | ||
| 040 | A 6205201406 | PIPE ELBOW |
| Repalced by: A 6205202406 | ||
| 040 | A 6205202406 | PIPE ELBOW |
| OIL REFILLING | ||
| 041 | A 6205201106 | PIPE ELBOW |
| OIL REFILLING | ||
| A 6205202206 | PIPE ELBOW | |
| Repalced by: A 6455200106 | ||
| A 6455200106 | PIPE ELBOW | |
| Repalced by: A 6555200406 | ||
| A 6555200406 | PIPE ELBOW | |
| OIL REFILLING | ||
| 043 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| M 10X20 | ||
| 046 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 046 | N 910113010000 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 048 | N 000961012122 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 050 | N 910113012002 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 052 | N 000933006102 | SCREW |
| OIL FILLER PIPE TO RADIATOR | ||
| 054 | N 912004006102 | LOCK WASHER |
| OIL FILLER PIPE TO RADIATOR | ||
| N 000125006421 | WASHER | |
| OIL FILLER PIPE TO RADIATOR | ||
| 056 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 056 | N 304017008039 | SCREW |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 058 | N 912004008102 | LOCK WASHER |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 062 | A 0000180702 | CAP |
| OIL REFILLING | ||
| A 1020180302 | CAP | |
| OIL REFILLING | ||
| A 1020180402 | CAP | |
| OIL REFILLING | ||
| 065 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 065 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 065 | A 1020180380 | GASKET |
| 070 | A 6205280282 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 070 | A 6205280082 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| A 6205280482 | HOSE | |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 073 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 073 | N 000000000671 | CLAMP |
| HOSE TO FILLER NECK | ||
| A 6205205541 | BRACKET | |
| HOSE | ||
| A 6205280143 | CLAMP | |
| HOSE TO BRACKET | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| HOSE TO BRACKET | ||
| N 304017008034 | SCREW | |
| BRACKET TO FAN SHROUD | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO FAN SHROUD | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO FAN SHROUD | ||

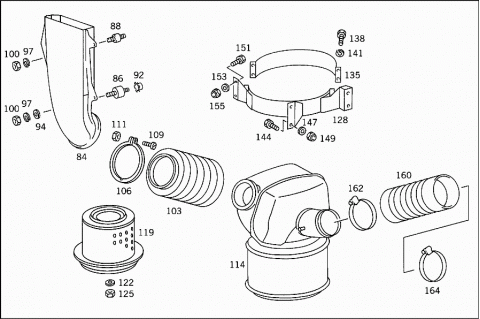

| 084 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 084 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 086 | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 088 | A 3879880111 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 092 | A 0019901791 | NUT RETAINER |
| AIR INTAKE PIPE TO CAB | ||
| 094 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 094 | N 000125008443 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 097 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 100 | N 304032008006 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 103 | A 3815280191 | BOOT |
| AIR INTAKE | ||
| 106 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 109 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 111 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 114 | A 0090945702 | AIR CLEANER |
| MANN & HUMMEL | ||
| 114 | A 0090945902 | AIR CLEANER |
| Repalced by: A 0110942602 | ||
| 114 | A 0110942602 | AIR CLEANER |
| MANN & HUMMEL | ||
| 114 | A 0090945802 | AIR CLEANER |
| MANN & HUMMEL | ||
| 114 | A 0090946002 | AIR CLEANER |
| Repalced by: A 0140948802 | ||
| 114 | A 0140948802 | AIR CLEANER |
| MANN & HUMMEL | ||
| 119 | A 0010949304 | FILTER ELEMENT |
| TO 009 094 57 02,009 094 58 02 | ||
| 119 | A 0010948304 | FILTER ELEMENT |
| TO 009 094 59 02,009 094 60 02 | ||
| 122 | A 0000940276 | WASHER |
| FELT | ||
| TO 009 094 57 02,009 094 58 02, | ||
| 122 | A 0000940276 | WASHER |
| FELT | ||
| TO 009 094 57 02,009 094 60 02 | ||
| 125 | A 0009901550 | NUT |
| TO 009 094 57 02,009 094 58 02, | ||
| 125 | A 0009901550 | NUT |
| TO 009 094 59 02,009 094 60 02 | ||
| 128 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 128 | A 6505200333 | SUPPORT |
| AIR CLEANER | ||
| 128 | A 3875200533 | SUPPORT |
| Repalced by: A 6565200033 | ||
| 128 | A 6565200033 | SUPPORT |
| AIR CLEANER | ||
| 128 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 128 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| 128 | A 3875200633 | SUPPORT |
| Repalced by: A 6565200133 | ||
| 128 | A 6565200133 | SUPPORT |
| AIR CLEANER | ||
| 135 | A 3855280421 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 135 | A 3875280721 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 138 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 138 | N 304017008034 | SCREW |
| STRAP TO SUPPORT | ||
| 141 | N 912004008102 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 144 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 144 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 144 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 147 | N 000125013008 | WASHER |
| 149 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 149 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 151 | N 000933010105 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 153 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 153 | N 000125010532 | WASHER |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 155 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 155 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 160 | A 0010942682 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 160 | A 0000949882 | HOSE |
| Repalced by: A 6205280782 | ||
| 160 | A 6205280782 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 162 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 162 | A 0059971490 | LOOM TIE |
| HOSE TO PICO AIR CLEANER | ||
| 162 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 162 | N 000000000678 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 164 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 164 | N 000000000678 | CLAMP |
| HOSE TO SCOOP | ||
| 166 | A 3835240529 | COVER |
| PROTECTIVE PLATE | ||
| 168 | A 3875240084 | SHIM |
| PROTECTIVE PLATE TO FRAME | ||
| 170 | N 007981005306 | SHEET METAL SCREW |
| PROTECTIVE PLATE TO FRAME | ||

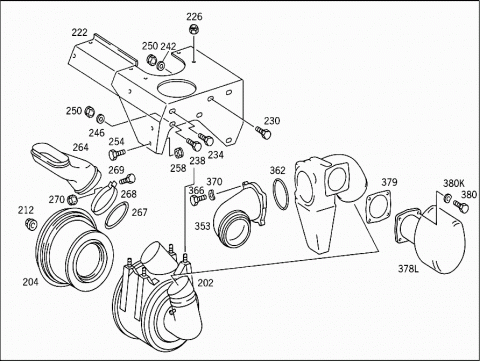

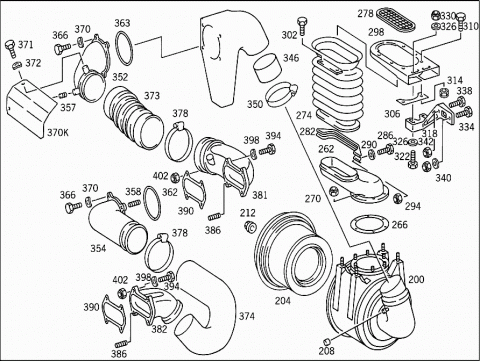

| 200 | A 0110940202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 200 | A 0100948802 | AIR CLEANER |
| MANN & HUMMEL | ||
| 202 | A 0120946202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 204 | A 0010948304 | FILTER ELEMENT |
| TO 011 094 02 02 | ||
| 204 | A 0020942404 | FILTER ELEMENT |
| TO 010 094 88 02,012 094 62 02 | ||
| 208 | A 0000940276 | WASHER |
| FELT | ||
| TO 011 094 02 02,010 094 88 02, | ||
| 208 | A 0000940276 | WASHER |
| FELT | ||
| 012 094 61 02,012 094 62 02 | ||
| 212 | A 0009901550 | NUT |
| TO 011 094 02 02,010 094 88 02, | ||
| 212 | A 0009901550 | NUT |
| 012 094 61 02,012 094 62 02 | ||
| 222 | A 6205200033 | SUPPORT |
| AIR CLEANER | ||
| 226 | N 910113012002 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 226 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 226 | N 910113014001 | NUT |
| AIR CLEANER TO SUPPORT | ||
| N 000125013008 | WASHER | |
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| AIR CLEANER TO SUPPORT | ||
| 230 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 234 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X45 | ||
| 238 | N 000961014029 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X48 | ||
| 238 | N 000961014064 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 242 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 242 | N 000125015019 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 246 | A 3609901740 | WASHER |
| Repalced by: A 3859900440 | ||
| 246 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 246 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 250 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 250 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 254 | N 000961012151 | SCREW |
| SUPPORT TO CONSOLE | ||
| 258 | N 910113012002 | NUT |
| SUPPORT TO CONSOLE | ||
| 262 | A 6205200206 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 264 | A 6205201906 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 266 | A 0010946280 | GASKET |
| INTAKE PIPE TO AIR CLEANER | ||
| 267 | A 0099977648 | SEAL RING |
| INTAKE PIPE TO AIR CLEANER | ||
| 268 | A 6209970690 | CLAMP |
| INTAKE PIPE TO AIR CLEANER | ||
| 269 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 269 | N 304017008018 | SCREW |
| INTAKE PIPE TO AIR CLEANER | ||
| 270 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 270 | N 913004008001 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 270 | N 913004008001 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 274 | A 6205200096 | BOOT |
| Repalced by: A 6205200296 | ||
| 274 | A 6205200296 | BOOT |
| AIR INTAKE | ||
| 278 | A 6205200003 | STRAINER |
| Repalced by: A 6205280103 | ||
| 278 | A 6205280103 | STRAINER |
| BOOT | ||
| 282 | A 6205280043 | CLAMP |
| BOOT TO INTAKE PIPE | ||
| 286 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 286 | N 304017008027 | SCREW |
| BOOT TO INTAKE PIPE | ||
| 290 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 290 | N 000125008443 | WASHER |
| BOOT TO INTAKE PIPE | ||
| 294 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 294 | N 913004008001 | NUT |
| BOOT TO INTAKE PIPE | ||
| 298 | A 6205280840 | BRACKET |
| Repalced by: A 6575280040 | ||
| 298 | A 6575280040 | BRACKET |
| BOOT | ||
| 302 | N 914116006803 | SCREW |
| BOOT TO BRACKET | ||
| 306 | A 6205280940 | BRACKET |
| BOOT | ||
| 310 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 310 | N 304017008016 | SCREW |
| BRACKET TO BRACKET | ||
| 314 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 314 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 318 | A 6205280239 | SUPPORT |
| BOOT | ||
| 318 | A 6205280139 | SUPPORT |
| BOOT | ||
| 322 | N 000933010150 | SCREW |
| BRACKET TO SUPPORT | ||
| 326 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 326 | N 000125010532 | WASHER |
| BRACKET TO SUPPORT | ||
| 330 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 330 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 334 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 334 | N 304017010002 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M 10X30 | ||
| 338 | N 000933010094 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M 10X40 | ||
| 340 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 340 | N 000125010532 | WASHER |
| SUPPORT TO CAB BEARING RAIL | ||
| 342 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 342 | N 910113010000 | NUT |
| SUPPORT TO CAB BEARING RAIL | ||
| 346 | A 6245280082 | HOSE |
| FROM AIR CLEANER TO CAB CONSOLE | ||
| 350 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 350 | N 000000000678 | CLAMP |
| HOSE TO AIR CLEANER AND CAB CONSOLE | ||
| 352 | A 6205201506 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 353 | A 6205200606 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| A 6205201706 | PIPE ELBOW | |
| (INTAKE PIPE) | ||
| 354 | A 6205200806 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| A 6205201806 | PIPE ELBOW | |
| (INTAKE PIPE) | ||
| 357 | N 900421006002 | THREADED INSERT |
| 358 | N 900421008004 | THREADED INSERT |
| 362 | A 0069979348 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 362 | A 0069979348 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 363 | A 0019976748 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| A 0019976748 | SEAL RING | |
| INTAKE PIPE TO CAB CONSOLE | ||
| A 0019976748 | SEAL RING | |
| INTAKE PIPE TO CAB CONSOLE | ||
| 366 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 366 | N 304017008027 | SCREW |
| INTAKE PIPE TO CAB CONSOLE | ||
| 370 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 370 | N 000137008212 | SPRING WASHER |
| INTAKE PIPE TO CAB CONSOLE | ||
| 370K | A 6205240001 | PROTECTIVE PLATE |
| 371 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 371 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 372 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 373 | A 6235280082 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 374 | A 0010941282 | HOSE |
| Repalced by: A 0010941182 | ||
| 374 | A 0010941182 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 374 | A 0010941182 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| A 0000949482 | HOSE | |
| Repalced by: A 6235280082 | ||
| A 6235280082 | HOSE | |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 378 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 378 | N 000000000678 | CLAMP |
| HOSE TO INTAKE PIPE AND TO ENGINE | ||
| 378L | A 6205200002 | AIR INTAKE CASE |
| 379 | A 6205280180 | GASKET |
| 380 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 380 | N 304017010002 | SCREW |
| 380K | N 000137010201 | SPRING WASHER |
| 381 | A 6205201006 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 382 | A 6205200706 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 386 | N 900421010002 | THREADED INSERT |
| 390 | A 3015280080 | GASKET |
| Repalced by: A 4421411480 | ||
| 390 | A 4421411480 | GASKET |
| INTAKE PIPE TO ENGINE | ||
| 394 | N 000933010328 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X45 | ||
| 394 | N 000933010095 | SCREW |
| Repalced by: N 304017010030 | ||
| 394 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 394 | N 304017010053 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X50 | ||
| 394 | N 000933010150 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X55 | ||
| 398 | N 000137010201 | SPRING WASHER |
| INTAKE PIPE TO ENGINE | ||
| 402 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 402 | N 910113010000 | NUT |
| INTAKE PIPE TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
