Transporto priemonė: 2233 L; VIN numerio dalis: 623423
Grupė: 31 FRAME
28844

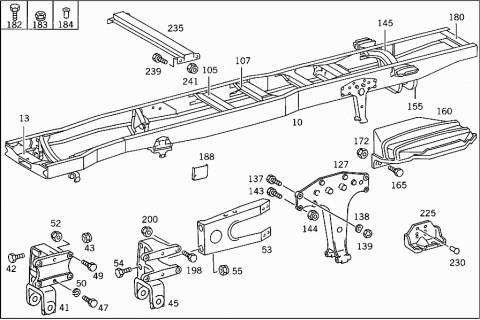

28845

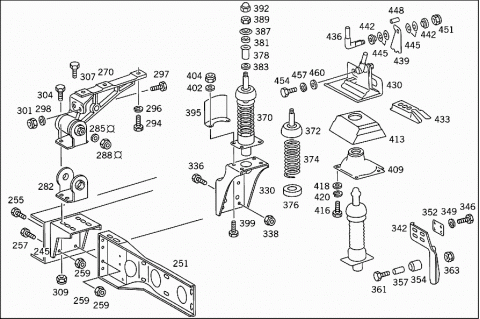

28846

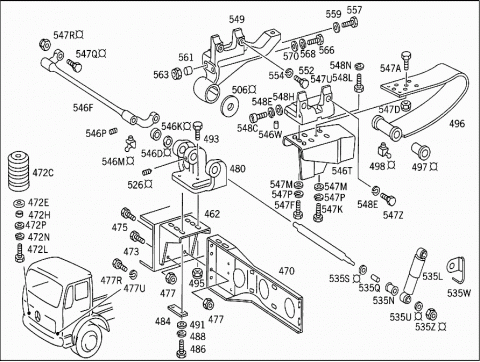

28847

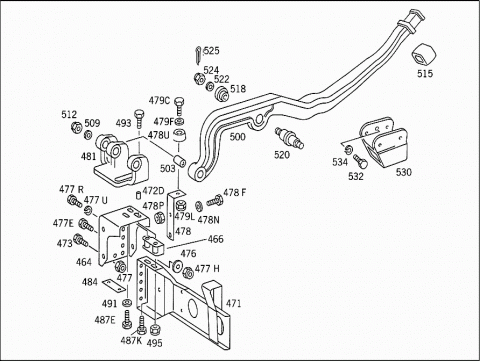

28848

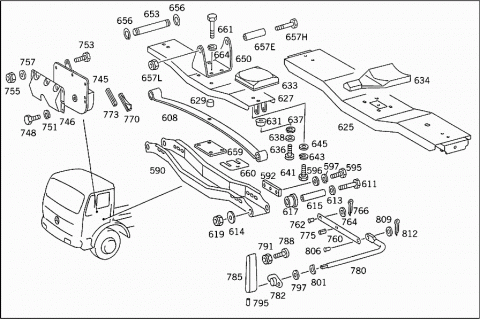

28849

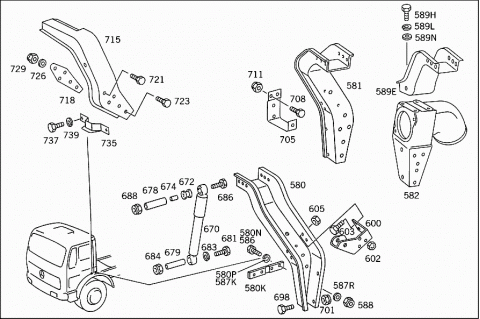

28850

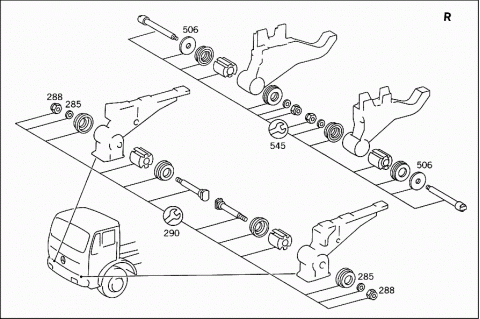

28851

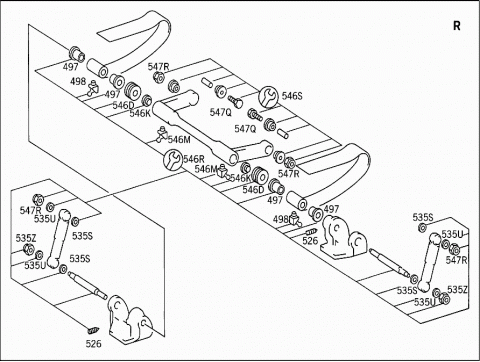

29431
# Kodas Pavadinimas
008 A 6233100101 FRAME
008 A 6233104301 FRAME
008 A 6483101001 FRAME
008 A 6233100201 FRAME
008 A 6233104401 FRAME
008 A 6233104401 FRAME
008 A 6483100101 FRAME
008 A 6233101601 FRAME
008 A 6483100201 FRAME
010 A 6233103401 FRAME
Repalced by: A 6233105101
010 A 6233105101 FRAME
013 A 3873100422 CROSS MEMBER
FRONT
013 A 6203100122 CROSS MEMBER
FRONT
013 A 6203100022 CROSS MEMBER
FRONT
013 A 6203100222 CROSS MEMBER
FRONT
016 A 3353150031 LOCKING SPRING
COUPLING MOUTH
019 N 000933008153 SCREW
Repalced by: N 304017008034
019 N 304017008034 SCREW
SPRING TO CROSS MEMBER
022 N 000125008418 WASHER
Repalced by: N 000125008443
022 N 000125008443 WASHER
SPRING TO CROSS MEMBER
024 N 913004008004 NUT
Repalced by: N 913004008001
024 N 913004008001 NUT
SPRING TO CROSS MEMBER
026 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
026 A 6203150006 COUPLING PIN
FOR COUPLING MOUTH
030 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
031 A 3873122087 GUSSET PLATE
FRONT LEFT
031 A 3873122187 GUSSET PLATE
Repalced by: A 6203120987
031 A 6203120987 GUSSET PLATE
FRONT LEFT
032 A 3878900032 BOW
FRONT LEFT
032 A 3878900132 BOW
FRONT RIGHT
033 N 000961012097 SCREW
Repalced by: N 308676012026
033 N 308676012026 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X35
033 N 000961012069 SCREW
Repalced by: N 308676012015
033 N 308676012015 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 12X45
N 000125013008 WASHER
034 N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
035 N 000961014028 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
036 N 913004014002 NUT
Repalced by: N 910113014001
036 N 910113014001 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
037 A 3878910696 BASE
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
3.00 MM
037 A 3878910796 BASE
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
4.00 MM
037 A 3878910896 BASE
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
5.00 MM
A 6213100036 CROSS MEMBER
NO.2
041 A 6213220001 FRONT SPRING BRACKET
FRONT LEFT
041 A 6213220101 FRONT SPRING BRACKET
FRONT RIGHT
042 N 000960016065 SCREW
FRONT SPRING FRONT BRACKET TO CROSS MEMBER
M 16X95
042 N 000960016244 SCREW
FRONT SPRING FRONT BRACKET TO CROSS MEMBER
M 16X90
043 N 913004016004 NUT
Repalced by: N 910113016002
043 N 910113016002 NUT
FRONT SPRING FRONT BRACKET TO CROSS MEMBER
044 A 3873220301 FRONT SPRING BRACKET
FRONT
044 A 6203220201 FRONT SPRING BRACKET
Repalced by: A 6203220501
044 A 6203220501 FRONT SPRING BRACKET
Repalced by: A 6203220901
044 A 6203220901 FRONT SPRING BRACKET
FRONT
044 A 6203220901 FRONT SPRING BRACKET
FRONT
045 A 6203220301 FRONT SPRING BRACKET
Repalced by: A 6203220601
045 A 6203220601 FRONT SPRING BRACKET
FRONT
046 A 3879900114 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
047 N 000961016075 SCREW
Repalced by: N 308676016020
047 N 308676016020 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X35
047 N 000961016108 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X30
048 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
049 N 000960016112 SCREW
Repalced by: N 308676016015
049 N 308676016015 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
049 N 000961016096 SCREW
Repalced by: N 308676016007
049 N 308676016007 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X50
050 N 912004016101 LOCK WASHER
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
051 N 913004016005 NUT
Repalced by: N 910113016001
051 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
052 N 913004016005 NUT
Repalced by: N 910113016001
052 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
053 A 6203121261 STRUT
FRONT LEFT
053 A 6203100653 STRUT
Repalced by: A 6553100453
053 A 6553100453 STRUT
FRONT LEFT
053 A 6203121361 STRUT
FRONT RIGHT
053 A 6203100753 STRUT
FRONT RIGHT
054 N 000960016105 SCREW
STRUT TO SIDE MEMBER
M 16X80
054 N 000960016061 SCREW
STRUT TO SIDE MEMBER
M 16X85
055 N 913004016005 NUT
Repalced by: N 910113016001
055 N 910113016001 NUT
STRUT TO SIDE MEMBER
056 A 6203220003 FRONT SPRING BRACKET
Repalced by: A 6203220103
056 A 6203220103 FRONT SPRING BRACKET
REAR
057 N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
057 N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
058 N 000961014101 SCREW
Repalced by: N 308676014012
058 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
058 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
058 N 000960014231 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X50
058 N 000961014063 SCREW
Repalced by: A 9429901304
058 A 9429901304 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X40
060 N 913004014005 NUT
Repalced by: N 910113014000
060 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
067 A 6203110353 ANGLE
LEFT REINFORCEMENT
067 A 6203110353 ANGLE
LEFT REINFORCEMENT
067 A 6203110453 ANGLE
RIGHT REINFORCEMENT
067 A 6203110453 ANGLE
RIGHT REINFORCEMENT
069 N 000961014113 SCREW
STRUT TO CROSS AND SIDE MEMBERS
M 14X28
069 N 000961014113 SCREW
STRUT TO CROSS AND SIDE MEMBERS
M 14X28
069 N 000961014028 SCREW
STRUT TO CROSS AND SIDE MEMBERS
M 14X40
072 N 913004014002 NUT
Repalced by: N 910113014001
072 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
075 N 000961014050 SCREW
Repalced by: N 308676014020
075 N 308676014020 SCREW
STRUT TO CROSS AND SIDE MEMBERS
078 N 912004014100 LOCK WASHER
STRUT TO CROSS AND SIDE MEMBERS
085 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
085 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.3
085 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
A 3873122561 STRUT
Repalced by: A 3873100353
088 A 3873100353 STRUT
Repalced by: A 6203121561
088 A 6203121561 STRUT
FRONT SPRING REAR BRACKET
090 A 6203120384 SHIM
FRONT SPRING REAR BRACKET
094 A 3873120084 SHIM
Repalced by: A 6203121984
094 A 6203121984 SHIM
CROSS MEMBER TO FRONT SPRING REAR BRACKET
097 N 000961014100 SCREW
CROSS MEMBER TO FRONT SPRING REAR BRACKET
099 N 912004014100 LOCK WASHER
CROSS MEMBER TO FRONT SPRING REAR BRACKET
105 A 3953100136 CROSS MEMBER
NO.3
105 A 3953100136 CROSS MEMBER
NO.3,NO.4
105 A 3953100136 CROSS MEMBER
NO.3
105 A 3953100136 CROSS MEMBER
NO.4
105 A 3953100136 CROSS MEMBER
NO.3
105 A 3873100136 CROSS MEMBER
NO.4
105 A 3873100136 CROSS MEMBER
NO.4
105 A 3873100136 CROSS MEMBER
NO.5
105 A 3873100136 CROSS MEMBER
NO.4
106 A 3873120025 CROSS MEMBER
NO.3
106 A 3873120025 CROSS MEMBER
NO.3,NO.4
106 A 3873120025 CROSS MEMBER
NO.3,NO.4
106 A 3873120025 CROSS MEMBER
NO.4,NO.5
106 A 3873120025 CROSS MEMBER
NO.3,NO.4
A 3953120261 STRUT
AT CROSS MEMBER
NO.3
A 3953120261 STRUT
AT CROSS MEMBER
NO.3,NO.4
A 3953120261 STRUT
AT CROSS MEMBER
NO.3
A 3953120261 STRUT
AT CROSS MEMBER
NO.4
A 3953120261 STRUT
AT CROSS MEMBER
NO.3
A 3873121961 STRUT
AT CROSS MEMBER
NO.4
A 3873121961 STRUT
AT CROSS MEMBER
NO.4
A 3873121961 STRUT
AT CROSS MEMBER
NO.5
A 3873121961 STRUT
AT CROSS MEMBER
NO.4
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
107 A 3933100337 CROSS MEMBER
107 A 3933100337 CROSS MEMBER
108 A 3893120025 CROSS MEMBER
NO.4
108 A 3893120025 CROSS MEMBER
NO.5
108 A 3893120025 CROSS MEMBER
NO.4
108 A 3893120025 CROSS MEMBER
NO.6
108 A 3893120025 CROSS MEMBER
NO.5
108 A 3873120017 CROSS MEMBER
NO.4
108 A 3873120017 CROSS MEMBER
NO.5
109 A 3933120161 STRUT
AT CROSS MEMBER
110 N 910005012080 RIVET
STRUT TO CROSS MEMBER
111 A 0039900901 SCREW
Repalced by: A 0029908201
111 A 0029908201 SCREW
STRUT TO CROSS MEMBER
M 12X28
112 N 913004012009 NUT
Repalced by: N 910113012003
112 N 910113012003 NUT
STRUT TO CROSS MEMBER
113 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X30
113 N 000961014050 SCREW
Repalced by: N 308676014020
113 N 308676014020 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X35
113 N 308676014020 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X35
113 N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X30
114 N 913004014002 NUT
Repalced by: N 910113014001
114 N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
115 A 6203120024 CROSS MEMBER
CENTRAL BEARING
NO.5
115 A 6203120024 CROSS MEMBER
CENTRAL BEARING
NO.6
115 A 6203120024 CROSS MEMBER
CENTRAL BEARING
NO.5
115 A 6203120024 CROSS MEMBER
CENTRAL BEARING
NO.7
115 A 6203120024 CROSS MEMBER
CENTRAL BEARING
NO.6
115 A 6453120024 CROSS MEMBER
CENTRAL BEARING
NO.5
115 A 6453120024 CROSS MEMBER
CENTRAL BEARING
NO.6
116 A 6453120087 GUSSET PLATE
LEFT TOP
116 A 6453120187 GUSSET PLATE
RIGHT TOP
117 A 6453120287 GUSSET PLATE
LEFT BOTTOM
117 A 6453120387 GUSSET PLATE
RIGHT BOTTOM
121 N 000961012164 SCREW
CROSS MEMBER TO FRAME TRUSSING,CENTRAL BEARING
121 N 000961014100 SCREW
CROSS MEMBER TO FRAME TRUSSING,CENTRAL BEARING
121 N 000961016075 SCREW
Repalced by: N 308676016020
121 N 308676016020 SCREW
CROSS MEMBER TO FRAME TRUSSING,CENTRAL BEARING
123 N 910113012002 NUT
CROSS MEMBER TO FRAME TRUSSING,CENTRAL BEARING
123 N 913004014002 NUT
Repalced by: N 910113014001
123 N 910113014001 NUT
CROSS MEMBER TO FRAME TRUSSING,CENTRAL BEARING
123 N 913004016004 NUT
Repalced by: N 910113016002
123 N 910113016002 NUT
CROSS MEMBER TO FRAME TRUSSING,CENTRAL BEARING
127 A 3933251809 BEARING BRACKET
Repalced by: A 3933253209
127 A 3933253209 BEARING BRACKET
Repalced by: A 6583250109
127 A 6583250109 BEARING BRACKET
Repalced by: A 6583250509
127 A 6583250509 BEARING BRACKET
AIR-SPRING-BELLOWS SUPPORT
129 A 3933250409 BEARING BRACKET
CONTROL ARM,FRONT
129 A 3933253309 BEARING BRACKET
CONTROL ARM,FRONT
131 A 3933250609 BEARING BRACKET
CONTROL ARM,REAR
A 6583250053 SPACER TUBE
Repalced by: A 6583250253
A 6583250253 SPACER TUBE
BEARING BRACKET TO SIDE AND CROSS MEMBERS
133 N 000960018025 SCREW
BEARING BRACKET TO SIDE AND CROSS MEMBERS
135 N 913004018003 NUT
Repalced by: N 910113018004
135 N 910113018004 NUT
BEARING BRACKET TO SIDE AND CROSS MEMBERS
137 N 000610027002 FITTED SCREW
BEARING BRACKET TO SIDE MEMBER
138 N 000137027201 SPRING WASHER
BEARING BRACKET TO SIDE MEMBER
139 N 000934027002 NUT
BEARING BRACKET TO SIDE MEMBER
140 A 6453120184 SHIM
BEARING BRACKET TO CROSS MEMBER
143 N 000961018043 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X55
143 N 000960018142 SCREW
BEARING BRACKET TO SIDE MEMBER
M18X65
143 N 000960018133 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X75
143 N 000960018145 SCREW
Repalced by: A 0039909304
143 A 0039909304 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X80
143 N 000960018119 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X85
143 N 000960018163 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X100
143 N 000960018120 SCREW
BEARING BRACKET TO SIDE MEMBER
M 18X145
N 007349019002 WASHER
BEARING BRACKET TO SIDE MEMBER
144 N 913004018004 NUT
BEARING BRACKET TO SIDE MEMBER
144 N 913004018004 NUT
BEARING BRACKET TO SIDE MEMBER
145 A 3933100837 CROSS MEMBER
NO.6
145 A 3933100837 CROSS MEMBER
NO.7
145 A 3933100837 CROSS MEMBER
NO.8
145 A 3933100837 CROSS MEMBER
NO.7
155 A 3933120225 CROSS MEMBER
AIR SPRING BELLOWS
NO.7
155 A 3933120225 CROSS MEMBER
AIR SPRING BELLOWS
NO.8
155 A 3933120225 CROSS MEMBER
AIR SPRING BELLOWS
NO.9
155 A 3933120225 CROSS MEMBER
AIR SPRING BELLOWS
NO.8
160 A 3933280641 SUPPORT
AIR SPRING BELLOWS
165 N 000961016075 SCREW
Repalced by: N 308676016020
165 N 308676016020 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X35
165 N 308676016020 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X35
165 N 308676016022 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X40
165 N 000961016039 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X50
165 N 000961016039 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X50
165 N 000960016212 SCREW
Repalced by: N 000960016261
165 N 000960016261 SCREW
Repalced by: N 308676016014
165 N 308676016014 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X65
165 N 000960016112 SCREW
Repalced by: N 308676016015
165 N 308676016015 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X55
165 N 000960016171 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 16X60
172 N 913004016004 NUT
Repalced by: N 910113016002
172 N 910113016002 NUT
CROSS MEMBER TO SIDE MEMBERS
180 A 3933100246 CROSS MEMBER
Repalced by: A 3873120735
180 A 3873120735 CROSS MEMBER
REAR
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
182 N 000609010004 FITTED SCREW
M 10X11X14X28
182 N 000610010003 FITTED SCREW
M 10X11X25X38
182 N 000609010014 FITTED SCREW
M 10X11X24X40
182 A 3859900514 SCREW
M 10X11X26.5X46
Y YYYYYYYYYYYY PART NAME MISSING
182 A 3859900714 SCREW
M 12X12X10X25
182 A 3859901414 SCREW
M 12X12X11X26
182 A 0039900901 SCREW
Repalced by: A 0029908201
182 A 0029908201 SCREW
M 12X12X12X28
182 A 3859901514 SCREW
M 12X12X13X28
182 A 0029908201 SCREW
M 12X12X14X30
182 A 3859902114 SCREW
M 12X12X15X30
182 A 0029908301 SCREW
Repalced by: N 308676012013
182 N 308676012013 SCREW
M 12X12X16X32
182 A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
182 A 6209900114 SCREW
M 12X13X12X29
182 A 3969900314 SCREW
M 12X13X13X30
182 A 3589901914 SCREW
M 12X13X15X32
182 A 3559900014 SCREW
M 12X13X18X35
182 A 3589900614 SCREW
M 12X13X21X38
182 A 6179900114 SCREW
M 12X13X23X40
182 A 6249900014 SCREW
M 12X13X25X42
182 A 3859900214 SCREW
M 12X13X35X52
182 A 6689900114 SCREW
M 12X13X58X80
182 A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
182 A 3859900814 SCREW
Repalced by: A 3229903101
182 A 3229903101 SCREW
M 14X14X18X32
182 A 3859902014 SCREW
M 14X14X18X34
182 A 3559900114 SCREW
M 12X14X13X35
182 A 3219901601 SCREW
Repalced by: A 3169900014
182 A 3169900014 SCREW
M 14X14X17X35
182 A 3219901901 SCREW
M 14X14X22X40
182 A 3559900501 SCREW
M 14X14X24X42
182 A 3409900201 SCREW
M 14X14X27X45
182 A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
182 A 3589900114 SCREW
M 14X15X15X32
182 A 3589900814 SCREW
M 14X15X17X34
182 A 6459900014 SCREW
M 14X15X18X35
182 A 3589901014 SCREW
M 14X15X19X36
182 A 3589900214 SCREW
M 14X15X21X38
182 A 3589900414 SCREW
M 14X15X25X42
182 A 3589900714 SCREW
M 14X15X27X44
182 A 3589900914 SCREW
M 14X15X29X46
182 A 3859900414 SCREW
M 14X15X31X48
182 A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
182 A 3859900914 SCREW
Repalced by: N 308676016020
182 N 308676016020 SCREW
M 16X16X18X36
182 A 3859901714 SCREW
M 16X16X20X38
182 A 3859901014 SCREW
M 16X16X22X40
182 A 3859901114 SCREW
M 16X16X24X42
182 A 0029909901 SCREW
Repalced by: A 3959900501
182 A 3959900501 SCREW
M 16X16X20X45
182 A 3859901814 SCREW
M 16X16X30X48
182 A 3859901914 SCREW
M 16X16X32X50
182 A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
182 A 3589900514 SCREW
M 16X17X22X42
182 A 6459900714 SCREW
M 16X17X24X44
182 A 3609900114 SCREW
Repalced by: A 0009906314
182 A 0009906314 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
182 A 3469900014 SCREW
M 16X18X18X40
182 A 3859902314 SCREW
M 18X18X23X45
182 A 6209900014 SCREW
M 16X18X26X48
182 A 3469900114 SCREW
M 16X18X31X50
182 A 3859902414 SCREW
Repalced by: N 000961018043
182 N 000961018043 SCREW
M 18X18X33X55
182 A 6229900014 SCREW
M 16X18X38X60
182 A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
182 N 000610018004 FITTED SCREW
M 18X19X25X45
182 N 000610018009 FITTED SCREW
M 18X19X33X55
182 N 000610018006 FITTED SCREW
M 18X19X38X60
182 N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
183 N 913004010011 NUT
183 N 913004012009 NUT
Repalced by: N 910113012003
183 N 910113012003 NUT
183 N 913004014005 NUT
Repalced by: N 910113014000
183 N 910113014000 NUT
183 N 913004016005 NUT
Repalced by: N 910113016001
183 N 910113016001 NUT
183 N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
184 N 910005012033 RIVET
12X22 MM
184 N 910005012073 RIVET
12X28 MM
184 N 910005012080 RIVET
12X42 MM
184 N 910005014056 RIVET
14X45 MM
184 N 910005016000 RIVET
16X38 MM
188 A 3873110060 REINFORCEMENT
LEFT,FOR TORSION BAR
188 A 3873110060 REINFORCEMENT
LEFT,FOR TORSION BAR
188 A 3873110160 REINFORCEMENT
RIGHT,FOR TORSION BAR
188 A 3873110160 REINFORCEMENT
RIGHT,FOR TORSION BAR
194 N 000961014050 SCREW
Repalced by: N 308676014020
194 N 308676014020 SCREW
CROSS MEMBER NO.1 TO SIDE MEMBERS
196 N 913004014002 NUT
Repalced by: N 910113014001
196 N 910113014001 NUT
CROSS MEMBER NO.1 TO SIDE MEMBERS
198 N 000960016112 SCREW
Repalced by: N 308676016015
198 N 308676016015 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
198 N 000961016039 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M16X50
200 N 913004016004 NUT
Repalced by: N 910113016002
200 N 910113016002 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
225 A 3874030701 SUPPORT
SPARE WHEEL MOUNTING
230 N 910005012080 RIVET
SUPPORT TO FRAME
235 A 3874030501 SUPPORT
SPARE WHEEL MOUNTING
239 N 000933010105 SCREW
SUPPORT TO FRAME
241 N 913004010008 NUT
Repalced by: N 910113010000
241 N 910113010000 NUT
SUPPORT TO FRAME
245 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
251 A 3873170423 STRUT
BUMPER AT TORSION BAR
251 A 6203170223 STRUT
TWO-WAY
251 A 6203170423 STRUT
TWO-WAY VALVE TO BRACKET
255 N 000961014101 SCREW
Repalced by: N 308676014012
255 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
257 N 000961014063 SCREW
Repalced by: A 9429901304
257 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
259 N 913004014005 NUT
Repalced by: N 910113014000
259 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
270 A 3813106509 BRACKET
CAB,LEFT
270 A 6208902103 MOUNTING
CAB,LEFT
270 A 3813106609 BRACKET
CAB, RIGHT
270 A 6208902203 MOUNTING
CAB, RIGHT
A 3813171512 RUBBER BUFFER
A 3813171412 RUBBER BUFFER
282 A 3878902903 MOUNTING
282 A 6208902003 MOUNTING
285 N 007349017002 WASHER
288 N 913004016004 NUT
Repalced by: N 910113016002
288 N 910113016002 NUT
290 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
294 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
296 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
297 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
298 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
301 N 913004014002 NUT
Repalced by: N 910113014001
301 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
304 N 000961014063 SCREW
Repalced by: A 9429901304
304 A 9429901304 SCREW
CAB TO FRAME
M 14X40
307 N 000961014101 SCREW
Repalced by: N 308676014012
307 N 308676014012 SCREW
CAB TO FRAME
M 14X45
309 N 913004014005 NUT
Repalced by: N 910113014000
309 N 910113014000 NUT
CAB TO FRAME
330 A 3873170001 CONSOLE
Repalced by: A 6553170001
330 A 6553170001 CONSOLE
Repalced by: A 3873170001
330 A 3873170001 CONSOLE
CAB MOUNTING,REAR
336 N 000961012097 SCREW
Repalced by: N 308676012026
336 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
338 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
342 A 3873170626 GUIDE
LEFT
342 A 3873170726 GUIDE
RIGHT
346 N 000960012301 SCREW
GUIDE TO CAB
349 N 912004012100 LOCK WASHER
GUIDE TO CAB
352 A 3873170084 SHIM
GUIDE TO CAB
354 A 3813170750 BUSHING
GUIDE TO CAB
357 A 3813170553 SPACER TUBE
GUIDE TO CAB
361 N 000960012230 SCREW
GUIDE TO CAB
363 N 910113012002 NUT
GUIDE TO CAB
370 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
370 A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
370 A 3878901319 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
370 A 6208900019 SHOCK ABSORBER
Repalced by: A 6208900119
370 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
370 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
372 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19,620 890 00 19
372 A 0008900148 JOINT
Repalced by: A 0008910301
372 A 0008910301 RUBBER MOUNTING
TO 620 890 01 19,387 890 13 19
374 A 0008910751 SPRING
Repalced by: A 0008910451
374 A 0008910451 SPRING
374 A 0008911051 SPRING
TO 620 890 00 19
374 A 0008911151 SPRING
TO 620 890 01 19
376 A 0008910123 BUFFER
TO 620 890 00 19
378 A 3813170753 SPACER TUBE
SHOCK ABSORBER MOUNTING
381 A 3275045082 RUBBER RING
SHOCK ABSORBER MOUNTING
383 N 000433015005 WASHER
SHOCK ABSORBER MOUNTING
387 A 3878912010 WASHER
SHOCK ABSORBER MOUNTING
389 N 000934012022 NUT
SHOCK ABSORBER MOUNTING
392 N 001587012008 CAP NUT
Repalced by: N 001587012010
392 N 001587012010 CAP NUT
SHOCK ABSORBER MOUNTING
395 A 3813170031 COVER PLATE
SHOCK ABSORBER
399 N 000933008153 SCREW
Repalced by: N 304017008034
399 N 304017008034 SCREW
VIBRATION ABSORBER TO CONSOLE
402 N 009021008205 WASHER
Repalced by: N 009021008213
402 N 009021008213 WASHER
VIBRATION ABSORBER TO CONSOLE
404 N 913004008004 NUT
Repalced by: N 913004008001
404 N 913004008001 NUT
VIBRATION ABSORBER TO CONSOLE
409 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
409 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
413 A 3813170097 BOOT
VIBRATION ABSORBER
416 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
418 N 000125010518 WASHER
Repalced by: N 000125010532
418 N 000125010532 WASHER
BRACKET AND BOOT TO SIDE MEMBER
420 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
430 A 3813102075 LOCKING MECHANISM
CAB,LEFT
430 A 3813101975 LOCKING MECHANISM
CAB, RIGHT
433 A 3813170119 LATCH
436 A 3813172374 PIN
439 A 3813170924 LEVER
442 A 3813170676 WASHER
445 A 0009935426 DISC SPRING
448 N 001481006041 CLAMPING SLEEVE
451 N 910113012002 NUT
454 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
457 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
460 N 000125010518 WASHER
Repalced by: N 000125010532
460 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
462 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
464 A 3878912831 CONSOLE
CAB MOUNTING,FRONT
466 A 6208900232 BOW
CAB MOUNTING,FRONT
470 A 3873170423 STRUT
BUMPER AT TORSION BAR
470 A 6203170223 STRUT
BUMPER,LEFT
470 A 6203170423 STRUT
BUMPER,RIGHT
471 A 6203100253 STRUT
BUMPER,LEFT
471 A 6203100053 STRUT
BUMPER,LEFT
471 A 6203100353 STRUT
BUMPER,RIGHT
471 A 6203100153 STRUT
BUMPER,RIGHT
472C A 3638910223 BUFFER
(HOLLOW RUBBER SPRING),CAB
472D A 1079870240 RUBBER BUFFER
CAB
472E A 3638910047 FLANGE
HOLLOW RUBBER SPRING
472H A 3638910517 BUSHING
HOLLOW RUBBER SPRING
472L N 000933010129 SCREW
Repalced by: N 304017010002
472L N 304017010002 SCREW
BUFFER TO CAB
M 10X30
472L N 000933010094 SCREW
BUFFER TO CAB
M 10X40
472N N 912004010102 LOCK WASHER
BUFFER TO CAB
472P A 3878912210 WASHER
Repalced by: A 4432610076
472P A 4432610076 WASHER
BUFFER TO CAB
473 N 000961014063 SCREW
Repalced by: A 9429901304
473 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
473 N 000961014088 SCREW
Repalced by: N 308676014008
473 N 308676014008 SCREW
CONSOLE AND STRUT TO FRAME
M 14X35
475 N 000961014054 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
475 N 000961014101 SCREW
Repalced by: N 308676014012
475 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
476 A 3939900240 WASHER
CONSOLE AND STRUT TO FRAME
477 N 913004014005 NUT
Repalced by: N 910113014000
477 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
477E A 3469900014 SCREW
CONSOLE AND STRUT TO FRAME
477E A 6209900014 SCREW
CONSOLE AND STRUT TO FRAME
477E N 000961018018 SCREW
CONSOLE AND STRUT TO FRAME
477H N 913004016005 NUT
Repalced by: N 910113016001
477H N 910113016001 NUT
CONSOLE AND STRUT TO FRAME
477H N 913004018004 NUT
CONSOLE AND STRUT TO FRAME
477R N 000961012094 SCREW
Repalced by: N 308676012013
477R N 308676012013 SCREW
CONSOLE,STRUT,AND ENGINE MOUNTING TO SIDE MEMBER
477R N 000961014101 SCREW
Repalced by: N 308676014012
477R N 308676014012 SCREW
CONSOLE,STRUT,AND ENGINE MOUNTING TO SIDE MEMBER
477R N 000961016108 SCREW
CONSOLE,STRUT,AND ENGINE MOUNTING TO SIDE MEMBER
477U N 912004012100 LOCK WASHER
CONSOLE,STRUT,AND ENGINE MOUNTING TO SIDE MEMBER
478 A 3878910914 BRACKET
BUFFER
478 A 3878900314 BRACKET
LEFT BUFFER
478 A 3878900414 BRACKET
RIGHT BUFFER
478F N 000961012151 SCREW
BRACKET TO FRAME
M 12X30
478F N 000961012097 SCREW
Repalced by: N 308676012026
478F N 308676012026 SCREW
BRACKET TO FRAME
M 12X35
478F N 000961014028 SCREW
BRACKET TO CONSOLE
478N N 007349015003 WASHER
BRACKET TO CONSOLE
478P N 910113012002 NUT
BRACKET TO FRAME
478P N 913004014002 NUT
Repalced by: N 910113014001
478P N 910113014001 NUT
BRACKET TO CONSOLE
478U A 3348910072 MOUNTING
BUFFER
479C N 000933008153 SCREW
Repalced by: N 304017008034
479C N 304017008034 SCREW
BUFFER TO BRACKET
479F N 009021008205 WASHER
Repalced by: N 009021008213
479F N 009021008213 WASHER
BUFFER TO BRACKET
479L N 913004008004 NUT
Repalced by: N 913004008001
479L N 913004008001 NUT
BUFFER TO BRACKET
480 A 3878916020 MOUNTING
Repalced by: A 6558910320
480 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
480 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
480 A 6208910420 MOUNTING
CAB SUSPENSION,FRONT LEFT
481 A 3878916120 MOUNTING
Repalced by: A 6558910420
481 A 6558910420 MOUNTING
CAB SUSPENSION,FRONT RIGHT
481 A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
481 A 6208910520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
484 A 3878910498 SHIM
MOUNTING TO SIDE MEMBER
486 N 000961014088 SCREW
Repalced by: N 308676014008
486 N 308676014008 SCREW
MOUNTING TO SIDE MEMBER
M 14X35
486 N 308676014008 SCREW
MOUNTING TO SIDE MEMBER
M 14X35
487E N 000961014008 SCREW
Repalced by: N 308676014003
487E N 308676014003 SCREW
MOUNTING TO SIDE MEMBER
M 14X30
487E N 308676014003 SCREW
MOUNTING TO SIDE MEMBER
M 14X30
487K N 000960014251 SCREW
MOUNTING TO SIDE MEMBER
M 14X85
488 N 912004014100 LOCK WASHER
MOUNTING TO SIDE MEMBER
491 N 007349015003 WASHER
MOUNTING TO SIDE MEMBER
493 N 000960014229 SCREW
MOUNTING TO SIDE MEMBER
M 14X55
493 N 000961014103 SCREW
MOUNTING TO SIDE MEMBER
M 14X55
493 N 000960014248 SCREW
Repalced by: N 308765014008
493 N 308765014008 SCREW
MOUNTING TO SIDE MEMBER
M 14X100
495 N 913004014005 NUT
Repalced by: N 910113014000
495 N 910113014000 NUT
MOUNTING TO SIDE MEMBER
496 A 3878910551 SPRING
(LEAF SPRING),CAB SUSPENSION
496 A 6208910151 SPRING
(LEAF SPRING),CAB SUSPENSION
497 A 3638910617 BUSHING
LEAF SPRING
498 N 071412008200 GREASE NIPPLE
LEAF SPRING
500 A 3878912156 LEVER
Repalced by: A 3878912556
500 A 3878912556 LEVER
(TILTING LEVER),CAB
500 A 3878912256 LEVER
Repalced by: A 3878912856
500 A 3878912856 LEVER
(TILTING LEVER),CAB
500 A 3878912856 LEVER
(TILTING LEVER),CAB
503 A 3879920203 BUSHING
LEVER
503 A 3879920003 BUSHING
LEVER
506 A 3873170376 WASHER
CAB SUSPENSION,FRONT
509 N 007349017002 WASHER
CAB SUSPENSION,FRONT
512 N 913004016004 NUT
Repalced by: N 910113016002
512 N 910113016002 NUT
CAB SUSPENSION,FRONT
515 A 3638910023 BUFFER
LEVER TO BEARING
A 0029943741 LOCK
Repalced by: A 6208910017
518 A 6208910017 BUSHING
LEVER
A 3875860431 REPAIR KIT
Repalced by: A 3879920003
A 3879920003 BUSHING
CAB MOUNTING
520 A 6208910257 PIN
LEVER
522 A 3875530376 WASHER
LEVER
524 N 000979016005 NUT
Repalced by: N 000979016008
524 N 000979016008 NUT
LEVER
525 N 000094004065 COTTER PIN
LEVER
526 N 000417008004 HEADLESS SETSCREW
SHAFT ADJUSTMENT
530 A 3878915520 MOUNTING
Repalced by: A 3878913220
530 A 3878913220 MOUNTING
Repalced by: A 6208901603
530 A 6208901603 MOUNTING
TILTING LEVER TO CAB SIDE MEMBER
532 N 000933010105 SCREW
MOUNTING TO LEVER
532 N 000961012052 SCREW
Repalced by: N 308676012012
532 N 308676012012 SCREW
MOUNTING TO LEVER
532 N 308676012012 SCREW
MOUNTING TO LEVER
534 N 912004010102 LOCK WASHER
MOUNTING TO LEVER
534 N 912004012100 LOCK WASHER
MOUNTING TO LEVER
535L A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
535L A 0008911805 SHOCK ABSORBER
Repalced by: A 0008912205
535L A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,FRONT
535N A 0008910501 RUBBER MOUNTING
535Q A 0008910617 BUSHING
535S A 3873170176 WASHER
Repalced by: A 6203170176
535S A 6203170176 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
535U A 3873170276 WASHER
Repalced by: N 000125013008
535U N 000125013008 WASHER
535U N 000125013008 WASHER
535W A 6208900332 BOW
SHOCK ABSORBER TO CONSOLE AND TO CAB
535Z N 910113012002 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
A 3813171712 RUBBER BUFFER
Repalced by: A 6205860031
A 3813171412 RUBBER BUFFER
Repalced by: A 6205860031
545 A 6205860031 REPAIR KIT
CAB SUSPENSION,FRONT
546D A 3878911910 WASHER
CAB SUSPENSION,FRONT
546F A 6218900304 STABILIZER
Repalced by: A 6528900104
546F A 6528900104 STABILIZER
CAB SUSPENSION,FRONT
546F A 6218900504 STABILIZER
Repalced by: A 6558900004
546F A 6558900004 STABILIZER
CAB SUSPENSION,FRONT
546K A 0009817331 JOINT BEARING
Repalced by: A 0009817231
546K A 0009817231 JOINT BEARING
Repalced by: A 0019814631
546K A 0019814631 JOINT BEARING
546K A 0019814831 JOINT BEARING
546M N 071412008200 GREASE NIPPLE
546P N 000906010000 SCREW PLUG
STABILIZER
546R A 3875860131 REPAIR KIT
Repalced by: A 3873100077
546R A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
546S A 6203100077 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
546S A 6203100177 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
546T A 6218900203 MOUNTING
Repalced by: A 6218900403
546T A 6218900403 MOUNTING
STABILIZER TO CAB,LEFT
546T A 6218900303 MOUNTING
Repalced by: A 6218900503
546T A 6218900503 MOUNTING
STABILIZER TO CAB,RIGHT
546W A 6218910157 PIN
547A N 000933008153 SCREW
Repalced by: N 304017008034
547A N 304017008034 SCREW
MOUNTING TO CAB
547D N 913004008004 NUT
Repalced by: N 913004008001
547D N 913004008001 NUT
MOUNTING TO CAB
547F N 000961014028 SCREW
MOUNTING TO CAB
M 14X40
547K N 000960014061 SCREW
MOUNTING TO CAB
M 14X80
547M N 007349015003 WASHER
MOUNTING TO CAB
547P N 912004014100 LOCK WASHER
MOUNTING TO CAB
547Q N 000960014245 SCREW
STABILIZER TO BEARING BRACKET
547R N 913004014002 NUT
Repalced by: N 910113014001
547R N 910113014001 NUT
STABILIZER TO BEARING BRACKET
547U A 3878910831 CONSOLE
Repalced by: A 6208910631
547U A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
547U A 3878910931 CONSOLE
Repalced by: A 6208910731
547U A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
547Z N 000961012069 SCREW
Repalced by: N 308676012015
547Z N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
548C N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
548E N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
548H A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
548L N 000961014050 SCREW
Repalced by: N 308676014020
548L N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
548N N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
549 A 3878916420 MOUNTING
CAB TO LEFT BEARING BRACKET
549 A 3878916520 MOUNTING
CAB TO RIGHT BEARING BRACKET
552 N 000960012189 SCREW
Repalced by: N 308676012031
552 N 308676012031 SCREW
Repalced by: N 308676012011
552 N 308676012011 SCREW
MOUNTING TO CAB
554 N 912004012100 LOCK WASHER
MOUNTING TO CAB
557 N 000960014167 SCREW
Repalced by: N 000961014064
557 N 000961014064 SCREW
MOUNTING TO CAB
559 N 000125015013 WASHER
Repalced by: N 000125015019
559 N 000125015019 WASHER
MOUNTING TO CAB
561 A 3209901840 WASHER
MOUNTING TO CAB
563 N 913004014002 NUT
Repalced by: N 910113014001
563 N 910113014001 NUT
MOUNTING TO CAB
566 N 000961014054 SCREW
MOUNTING TO CAB
M 14X45
566 N 000961014028 SCREW
MOUNTING TO CAB
M 14X40
568 N 912004014100 LOCK WASHER
MOUNTING TO CAB
570 N 000125015013 WASHER
Repalced by: N 000125015019
570 N 000125015019 WASHER
MOUNTING TO CAB
580 A 3878911531 CONSOLE
REAR LEFT
580 A 3878911731 CONSOLE
REAR LEFT
580 A 6208910031 CONSOLE
REAR LEFT
580K A 6208910096 BASE
CONSOLE
580K A 6208910096 BASE
CONSOLE
580K A 6208910096 BASE
CONSOLE
580N N 000961014050 SCREW
Repalced by: N 308676014020
580N N 308676014020 SCREW
PAD TO FRAME
580N N 308676014020 SCREW
PAD TO FRAME
580N N 000961014028 SCREW
PAD TO FRAME
580P N 912004014100 LOCK WASHER
PAD TO FRAME
581 A 3878911631 CONSOLE
REAR RIGHT
582 A 6208910831 CONSOLE
AIR INTAKE
582 A 6208910231 CONSOLE
AIR INTAKE
582 A 6208910231 CONSOLE
AIR INTAKE
582 A 6208911231 CONSOLE
AIR INTAKE
582 A 6208910831 CONSOLE
AIR INTAKE
582 A 6208911031 CONSOLE
AIR INTAKE
586 N 000961014050 SCREW
Repalced by: N 308676014020
586 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
M 14X35
586 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X40
586 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X40
586 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X40
586 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
586 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
586 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
586 N 000961016040 SCREW
CONSOLE TO SIDE MEMBER
587K N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
587K N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
587K N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
587K N 912004014100 LOCK WASHER
CONSOLE TO SIDE MEMBER
587K N 912004016101 LOCK WASHER
CONSOLE TO SIDE MEMBER
587R N 007349015003 WASHER
CONSOLE TO SIDE MEMBER
588 N 913004014002 NUT
Repalced by: N 910113014001
588 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
589E A 6208900031 CONSOLE
REAR RIGHT,TOP
589E A 6208910131 CONSOLE
REAR RIGHT,TOP
589H N 000961012151 SCREW
CONSOLE TO CONSOLE
589L N 912004012100 LOCK WASHER
CONSOLE TO CONSOLE
589N A 3609900940 WASHER
CONSOLE TO CONSOLE
590 A 3878910024 STRUT
Repalced by: A 6558910224
590 A 6558910224 STRUT
CAB MOUNTING,REAR
592 A 3878910198 SHIM
STRUT TO CONSOLE
595 N 000961012052 SCREW
Repalced by: N 308676012012
595 N 308676012012 SCREW
STRUT TO CONSOLE
M 12X25
595 N 000961012151 SCREW
STRUT TO CONSOLE
M 12X30
596 N 000125013008 WASHER
597 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
600 A 3878908303 MOUNTING
Repalced by: A 3878918520
600 A 3878918520 MOUNTING
LEFT VIBRATION ABSORBER
600 A 3878908403 MOUNTING
Repalced by: A 3878918620
600 A 3878918620 MOUNTING
RIGHT VIBRATION ABSORBER
602 N 000439018210 NUT
MOUNTING
603 N 000961012052 SCREW
Repalced by: N 308676012012
603 N 308676012012 SCREW
MOUNTING TO CONSOLE
605 N 910113012002 NUT
MOUNTING TO CONSOLE
608 A 3878911051 SPRING
CAB SUSPENSION,REAR
608 A 6208910051 SPRING
CAB SUSPENSION,REAR
611 N 000960012153 SCREW
SPRING TO STRUT
611 N 000960012332 SCREW
SPRING TO STRUT
613 A 3638910010 WASHER
SPRING TO STRUT
614 N 009021013200 WASHER
SPRING TO STRUT
615 A 3638910218 TUBE
SPRING TO STRUT
617 A 3638910717 BUSHING
SPRING TO STRUT
619 N 910113012002 NUT
SPRING TO STRUT
625 A 3878900422 RAIL
Repalced by: A 6558900022
625 A 6558900022 RAIL
CAB SUSPENSION,REAR
627 A 3878900522 RAIL
Repalced by: A 6558900122
627 A 6558900122 RAIL
CAB SUSPENSION,REAR
629 N 000007012201 CYLINDRICAL PIN
631 A 3638910123 BUFFER
Repalced by: A 3878910323
631 A 3878910323 BUFFER
CAB SUSPENSION,REAR
633 A 3878910072 MOUNTING
CAB SUSPENSION,REAR
634 A 6208910372 MOUNTING
Repalced by: A 3878910072
634 A 6208910472 MOUNTING
Repalced by: A 3878910072
634 A 6208910072 MOUNTING
Repalced by: A 3878910072
634 A 3878910072 MOUNTING
CAB SUSPENSION,REAR
634 A 6208910172 MOUNTING
CAB SUSPENSION,REAR
634 A 6208910272 MOUNTING
CAB SUSPENSION,REAR
636 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
636 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
637 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
638 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
641 N 000084008122 SCREW
MOUNTING TO RAIL
M 8X18
641 N 000084008122 SCREW
MOUNTING TO RAIL
M 8X18
641 N 000933008154 SCREW
Repalced by: N 304017008021
641 N 304017008021 SCREW
MOUNTING TO RAIL
M 8X22
643 N 912004008102 LOCK WASHER
MOUNTING TO RAIL
645 N 000125008418 WASHER
Repalced by: N 000125008443
645 N 000125008443 WASHER
MOUNTING TO RAIL
650 A 3878916820 MOUNTING
CAB SUSPENSION,REAR
650 A 6208911320 MOUNTING
CAB SUSPENSION,REAR
650 A 6208910020 MOUNTING
CAB SUSPENSION,REAR
653 A 3878911057 PIN
MOUNTING TO CAB
656 N 000471025002 LOCK RING
MOUNTING TO CAB
657E A 3878911653 SPACER TUBE
CAB SUSPENSION,REAR
657E A 3878911753 SPACER TUBE
MOUNTING TO CAB
657H N 000960016286 SCREW
MOUNTING TO CAB
657H N 000960016242 SCREW
Repalced by: N 000960016251
657H N 000960016251 SCREW
MOUNTING TO CAB
657L N 913004016004 NUT
Repalced by: N 910113016002
657L N 910113016002 NUT
MOUNTING TO CAB
657L N 910113016002 NUT
MOUNTING TO CAB
659 A 3878910811 PLATE
CAB SUSPENSION,REAR
660 A 6208910296 BASE
RAIL AND PLATE TO SPRING
661 N 000931010258 SCREW
RAIL AND PLATE TO SPRING
664 N 912004010102 LOCK WASHER
RAIL AND PLATE TO SPRING
670 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
670 A 0008911805 SHOCK ABSORBER
Repalced by: A 0008912205
670 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
670 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
672 A 0008910501 RUBBER MOUNTING
674 A 0008910617 BUSHING
678 A 3878910353 SPACER TUBE
Repalced by: A 3878910953
678 A 3878910953 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
6 MM
679 A 3878910453 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
681 N 000960018111 SCREW
Repalced by: N 308676018010
681 N 308676018010 SCREW
SHOCK ABSORBER TO CONSOLE
681 N 000960018125 SCREW
Repalced by: N 000960018072
681 N 000960018072 SCREW
SHOCK ABSORBER TO CONSOLE
683 N 912004018101 LOCK WASHER
SHOCK ABSORBER TO CONSOLE
684 N 913004018003 NUT
Repalced by: N 910113018004
684 N 910113018004 NUT
SHOCK ABSORBER TO CONSOLE
684 N 910113018004 NUT
SHOCK ABSORBER TO CONSOLE
686 N 000960018111 SCREW
Repalced by: N 308676018010
686 N 308676018010 SCREW
SHOCK ABSORBER TO RAIL
686 N 000960018040 SCREW
Repalced by: N 000960018142
686 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
686 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
688 N 913004018003 NUT
Repalced by: N 910113018004
688 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
688 N 910113018004 NUT
SEE GROUP 32,FIG.NO.:
172
698 N 000961014050 SCREW
Repalced by: N 308676014020
698 N 308676014020 SCREW
BRACKET TO SIDE MEMBER
701 N 913004014002 NUT
Repalced by: N 910113014001
701 N 910113014001 NUT
BRACKET TO SIDE MEMBER
705 A 3878911014 BRACKET
EXPANSION TANK
708 N 000961014100 SCREW
BRACKET TO CONSOLE
711 N 913004014002 NUT
Repalced by: N 910113014001
711 N 910113014001 NUT
BRACKET TO CONSOLE
715 A 3815001327 SUPPORT
EXPANSION TANK
718 A 3815011238 REINFORCEMENT
SUPPORT TO BEARING BRACKET
721 N 000961014050 SCREW
Repalced by: N 308676014020
721 N 308676014020 SCREW
SUPPORT TO BEARING BRACKET
M 14X35
723 N 000961014100 SCREW
SUPPORT TO BEARING BRACKET
M 14X30
726 N 007349015003 WASHER
SUPPORT TO BEARING BRACKET
729 N 913004014002 NUT
Repalced by: N 910113014001
729 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
735 A 3878910124 STRUT
EXPANSION TANK
737 N 000961012052 SCREW
Repalced by: N 308676012012
737 N 308676012012 SCREW
STRUT TO CROSS MEMBER
739 N 912004012100 LOCK WASHER
STRUT TO CROSS MEMBER
745 A 0008900089 FASTENER
Repalced by: A 0008902389
745 A 0008901389 FASTENER
Repalced by: A 0008902389
745 A 0008902389 FASTENER
(CENTRAL LOCK)
746 A 3878911131 CONSOLE
CENTRAL LOCK
748 N 000933010128 SCREW
FASTENER TO CAB
M 10X20
748 N 000933010198 SCREW
FASTENER TO CAB
M 10X16
748 N 000933010198 SCREW
FASTENER TO CAB
M 10X16
751 N 912004010102 LOCK WASHER
FASTENER TO CAB
753 N 000933010105 SCREW
FASTENER TO CAB
M 10X25
755 N 913004010008 NUT
Repalced by: N 910113010000
755 N 910113010000 NUT
FASTENER TO CAB
757 N 000125010518 WASHER
Repalced by: N 000125010532
757 N 000125010532 WASHER
FASTENER TO CAB
760 A 3878910170 ROD
CAB LOCKING MECHANISM
760 A 6208910170 ROD
CAB LOCKING MECHANISM
760 A 3878910070 ROD
CAB LOCKING MECHANISM
760 A 6208910070 ROD
Repalced by: A 6208910270
760 A 6208910270 ROD
CAB LOCKING MECHANISM
762 N 001444008202 PIN
PULL TO FASTENER
762 A 1269911907 PIN
PULL TO FASTENER
764 N 000433008406 WASHER
PULL TO FASTENER
766 N 000094002059 COTTER PIN
PULL TO FASTENER
N 912002008001 LOCK
Repalced by: N 912002008003
N 912002008003 LOCK
PULL TO FASTENER
770 A 3878910814 BRACKET
SEAL
773 A 3878910085 SEAL
PULL TO FASTENER
775 N 007346005003 CLAMPING SLEEVE
ROD TO BRACKET
780 A 3878911956 LEVER
CAB LOCKING MECHANISM
780 A 6208910056 LEVER
CAB LOCKING MECHANISM
780 A 3878911456 LEVER
CAB LOCKING MECHANISM
780 A 6208910256 LEVER
CAB LOCKING MECHANISM
780 A 6208910256 LEVER
CAB LOCKING MECHANISM
780 A 6208910556 LEVER
CAB LOCKING MECHANISM
782 A 3638910317 BUSHING
CAB LOCKING MECHANISM
785 A 6208910073 HANDLE
CAB LOCKING MECHANISM
788 N 007985008142 SCREW
BUSHING AND HANDLE TO CAB
791 N 913004008004 NUT
Repalced by: N 913004008001
791 N 913004008001 NUT
BUSHING AND HANDLE TO CAB
A 2019900292 RIVET
795 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
795 N 001481005039 CLAMPING SLEEVE
HANDLE TO LEVER
795 N 001481005039 CLAMPING SLEEVE
LEVER MOUNTING
797 N 000125015013 WASHER
Repalced by: N 000125015019
797 N 000125015019 WASHER
LEVER MOUNTING
801 N 900055014401 LOCK RING
LEVER MOUNTING
806 N 001444008233 PIN
ROD TO LEVER
809 N 000433008406 WASHER
ROD TO LEVER
812 N 000094002059 COTTER PIN
ROD TO LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
